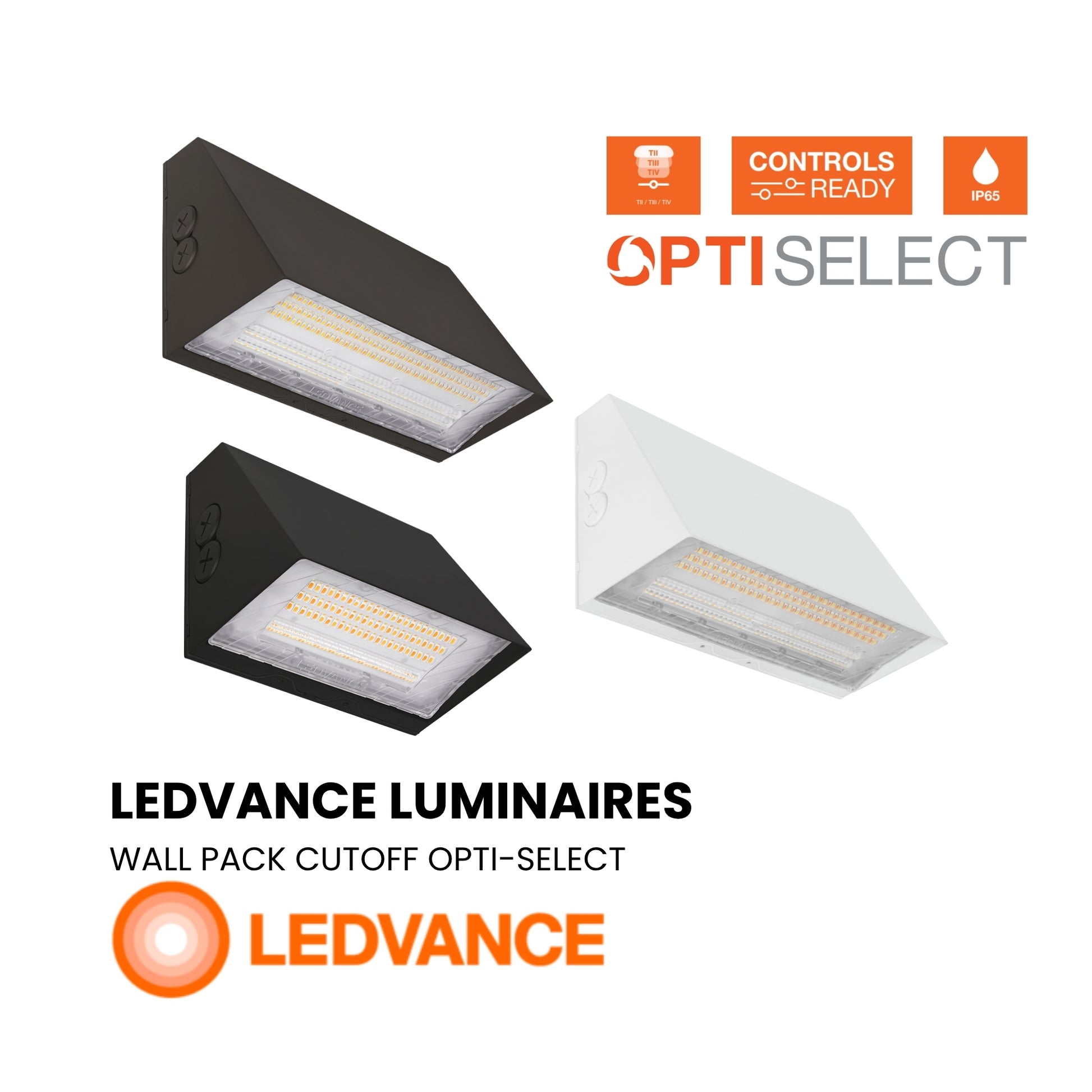

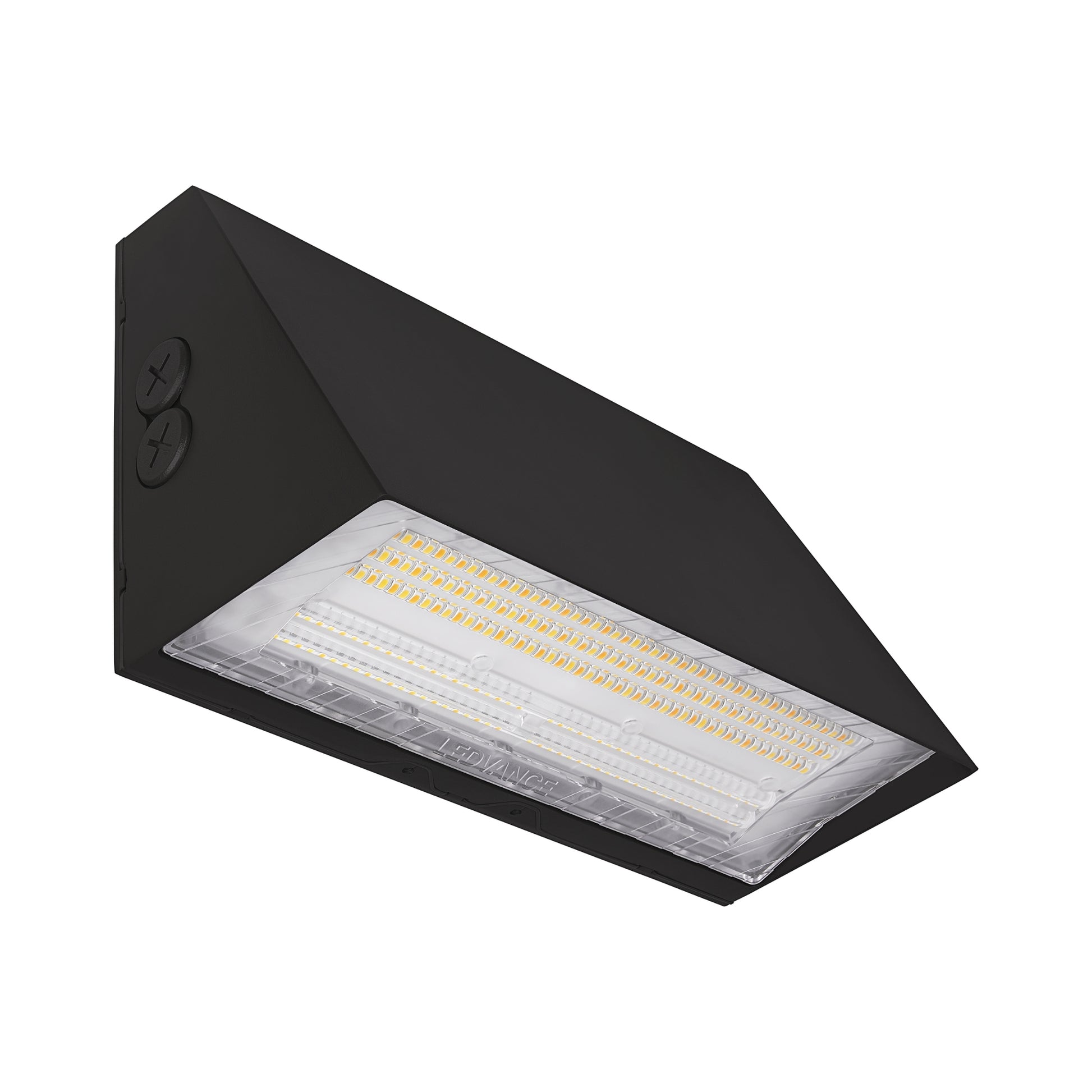

LEDVANCE Sylvania 66384 Full Cutoff Wall Pack — 100W Selectable Configuration

The LEDVANCE Sylvania 66384 is a premium commercial full cutoff wall pack designed for superior precision and adaptability. Operating on a universal 120-347V system, this luminaire features selectable wattage up to 100W to deliver a massive maximum output of 15,000 lumens. Engineered with revolutionary OPTI-SELECT technology and an IP65 wet location rating, it provides facility managers and electrical contractors with a highly versatile, glare-free solution for perimeter illumination and building exteriors.

Key Features

• Selectable Wattage: 3 power levels (100W, 80W, 60W)
• Selectable CCT: 3 color temperatures (3000K, 4000K, 5000K)
• Maximum Output: Up to 15,000 lumens at peak wattage
• Voltage Range: Universal 120-347V operation
• Cutoff Classification: Full cutoff design for zero uplight

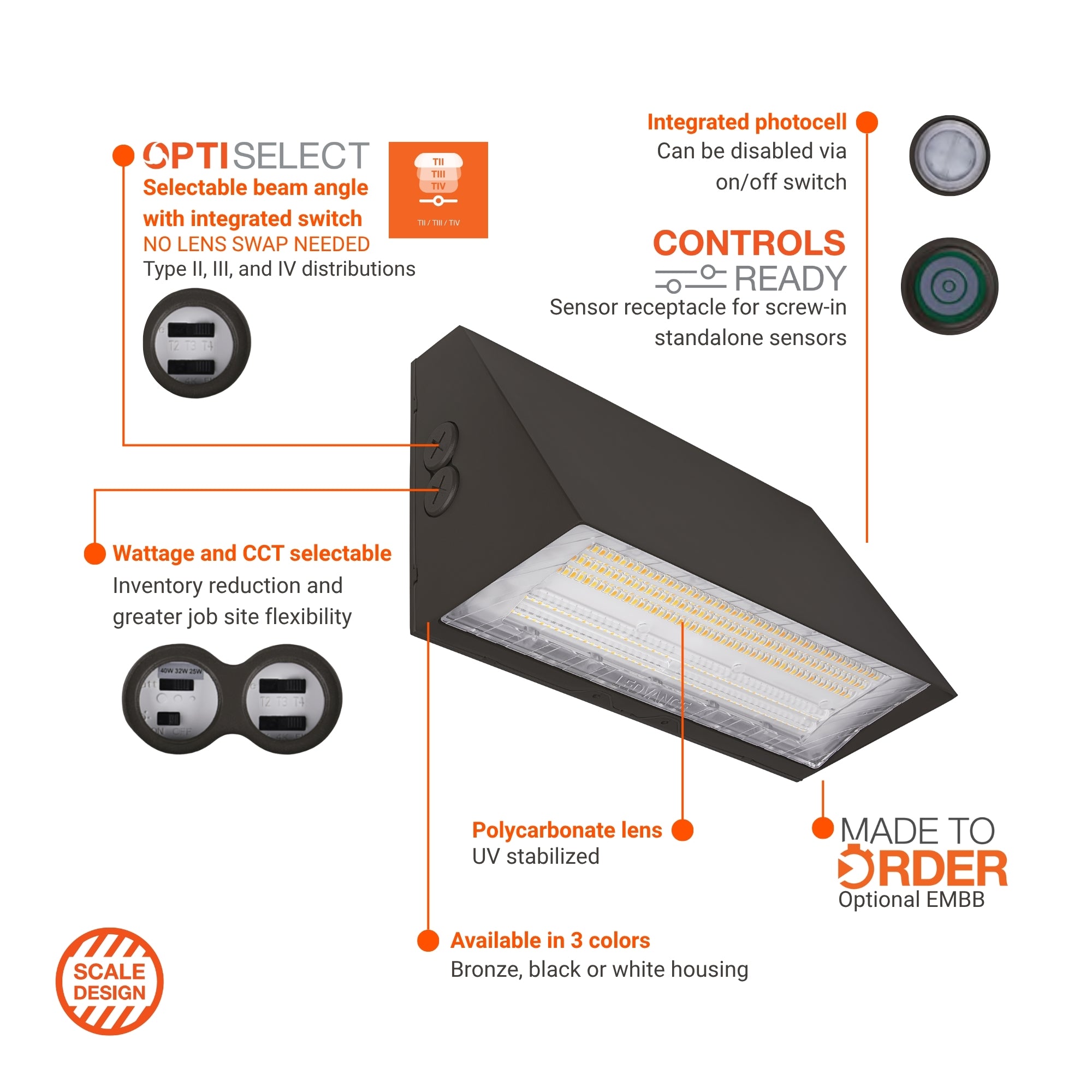

• Optical Control: Opti-Select Type II, III, and IV distributions
• Automated Control: Integrated, switchable photocell included
• Dimming Capability: Standard 0-10V dimming
• Color Accuracy: Minimum 80 CRI
• Environmental Rating: IP65 Wet Location listed
• LED Lifespan: 100,000-hour rated life (L70)

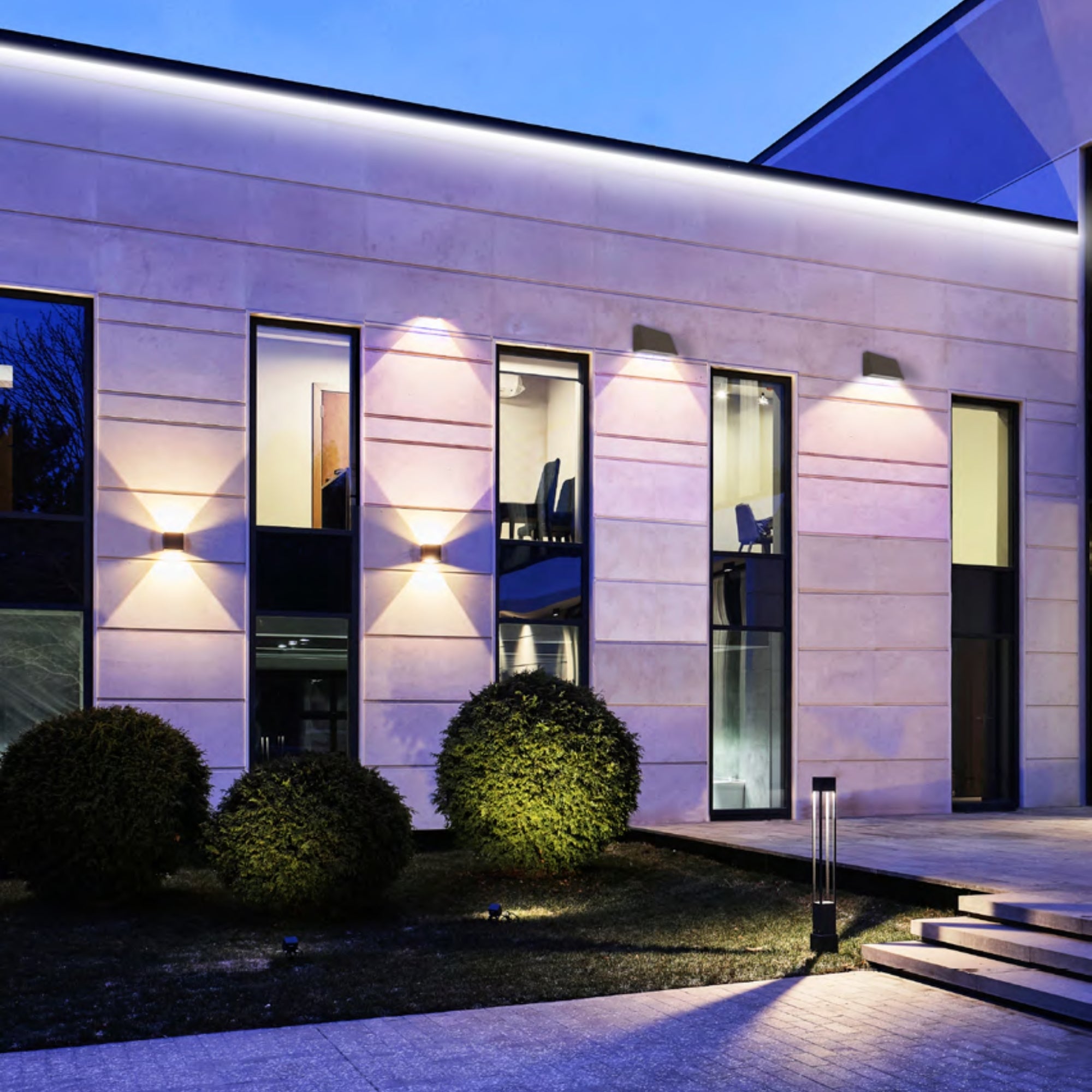

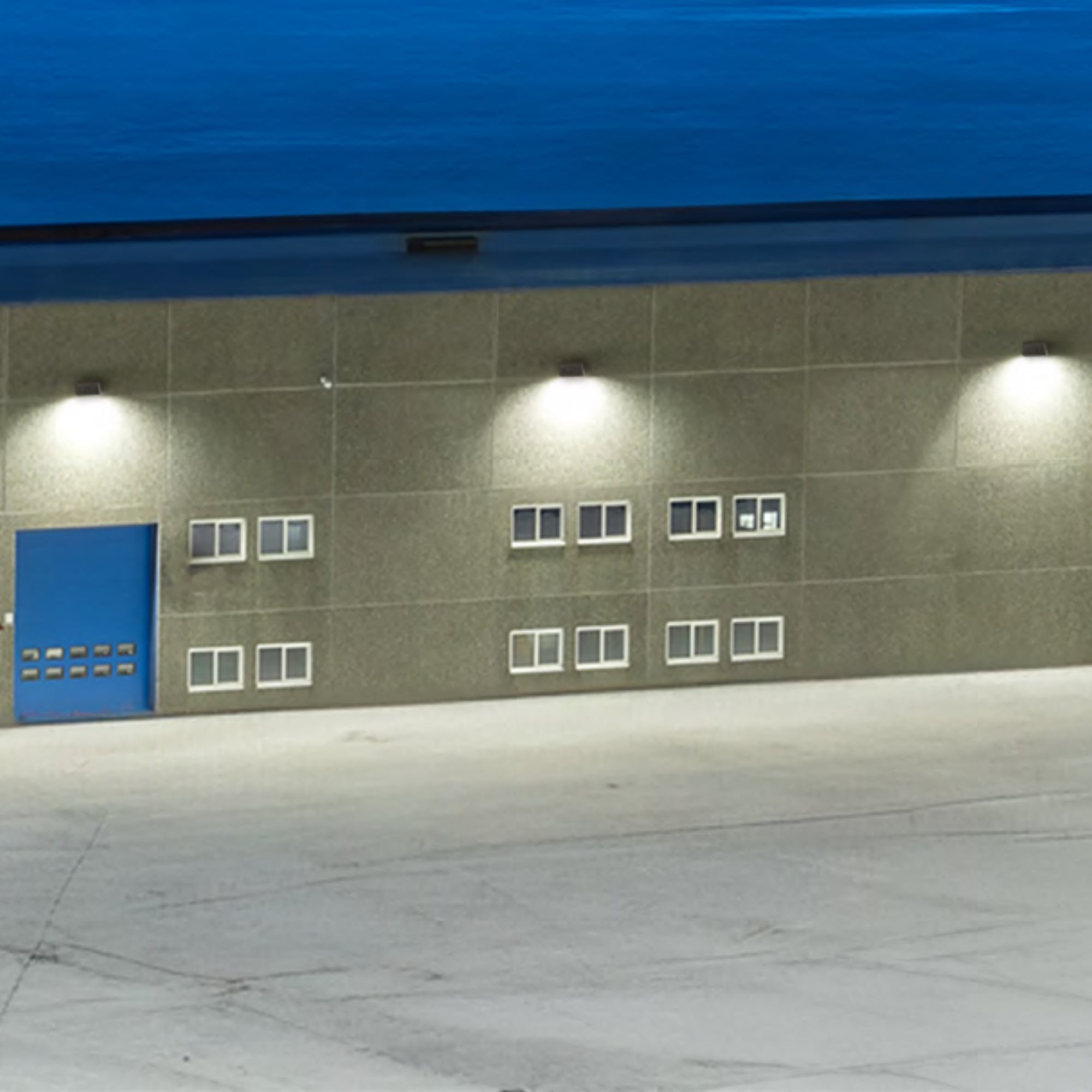

Typical Applications

• Large building perimeters and entryways
• Commercial outdoor walkways
• Educational and healthcare campuses
• Industrial facility exteriors
• Areas requiring light pollution control

Performance & Light Output

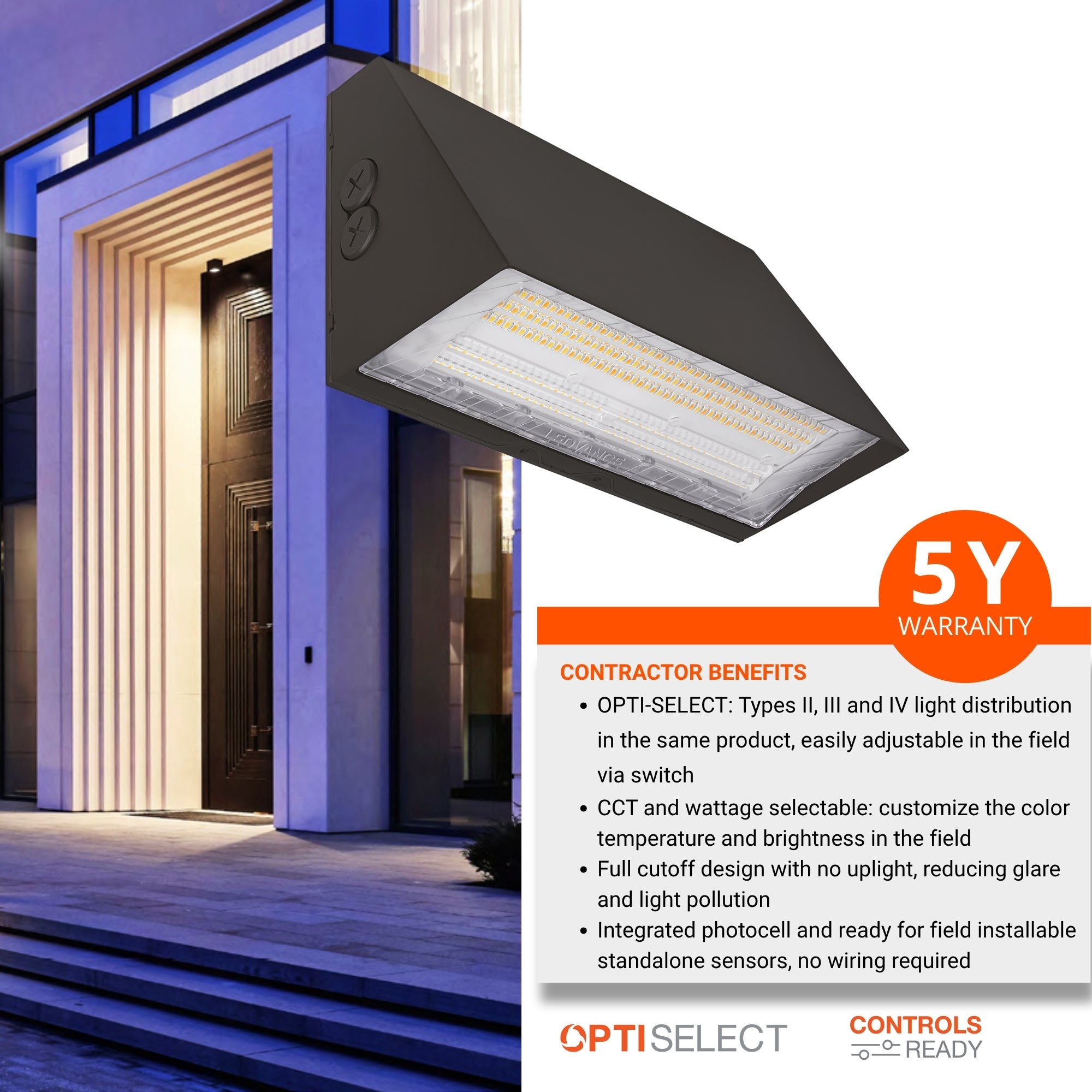

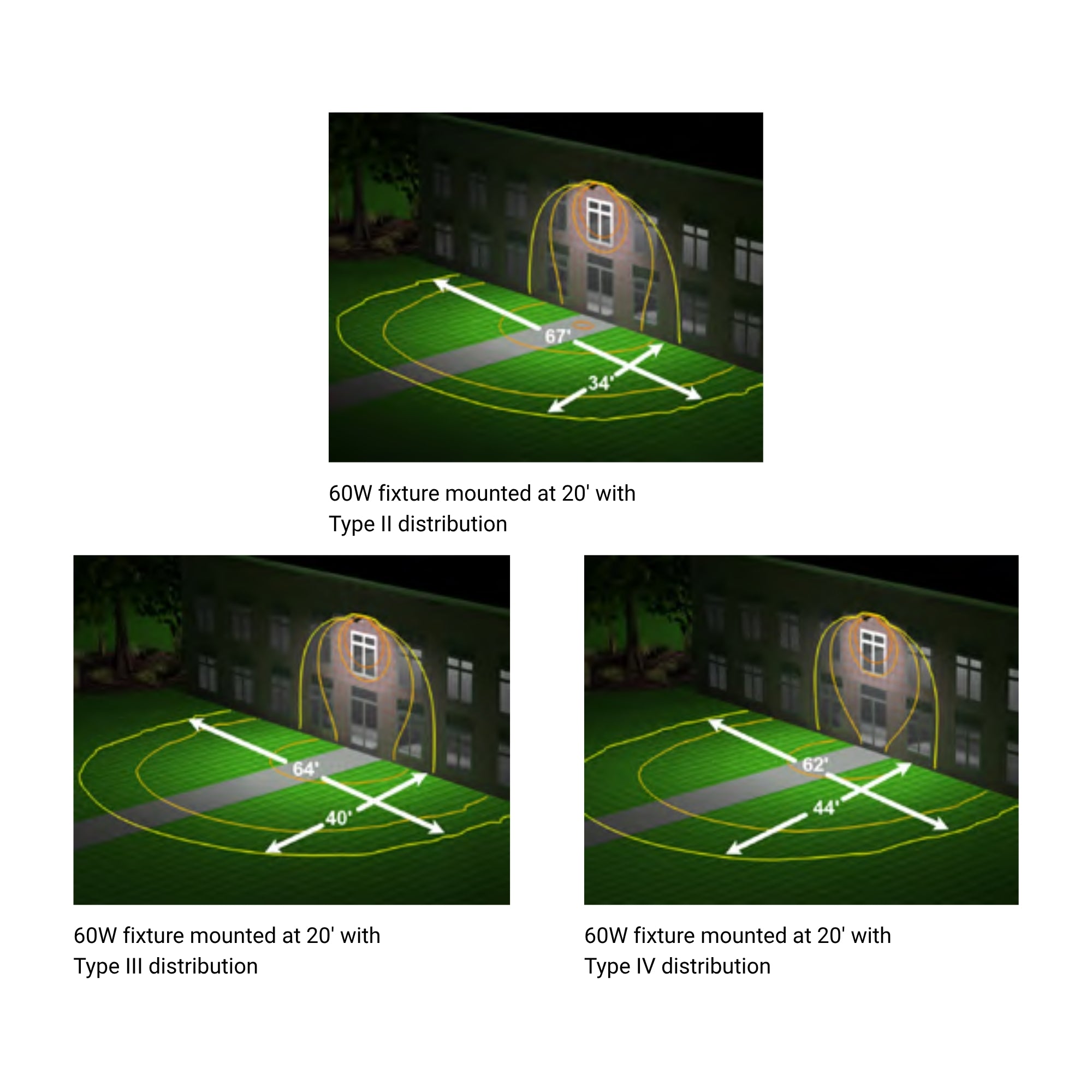

The 66384 delivers up to 15,000 lumens with a high efficacy of 150 LPW, ensuring exceptionally bright and secure environments for high-mounting applications while slashing energy consumption. The standout feature is its OPTI-SELECT technology, which allows installers to instantly switch between Type II, Type III, and Type IV light distributions using a built-in switch, eliminating the need for physical lens swaps. The full cutoff design completely restricts uplight, reducing glare and supporting dark-sky initiatives, all while maintaining excellent color accuracy with a >80 CRI.

Electrical & Controls

Designed for robust multi-volt applications, this fixture operates on a universal 120-347V AC range with a high power factor exceeding 0.9 and low THD below 20%. The integrated LED driver comes standard with 0-10V dimming capabilities and features built-in 4kV surge protection against power anomalies. To maximize energy savings right out of the box, the unit includes an integrated photocell for automated dusk-to-dawn operation, which can be easily disabled in the field if external or network controls are preferred. The fixture is also controls-ready for field-installable standalone sensors with no extra wiring required.

Construction & Durability

This wall pack is constructed to withstand severe outdoor conditions, backed by an IP65 wet location rating that ensures protection against high-pressure water jets and dust ingress. The internal optics and LED arrays are shielded by a heavy-duty, UV-stabilized polycarbonate lens that prevents yellowing over time. Finished in a durable commercial black powder coat, the luminaire operates flawlessly in extreme climates with an ambient temperature range of -40°F to +122°F.

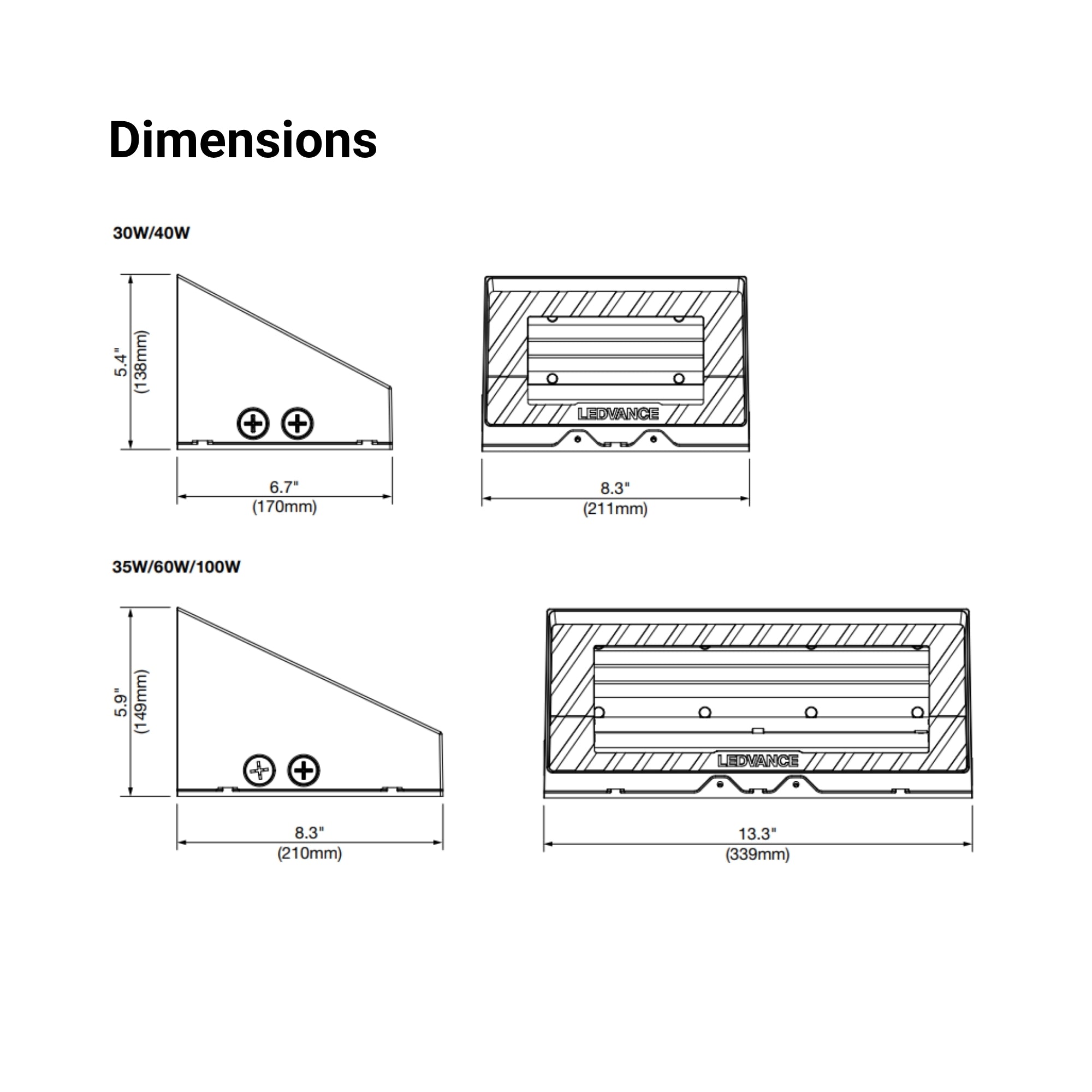

Installation & Mounting

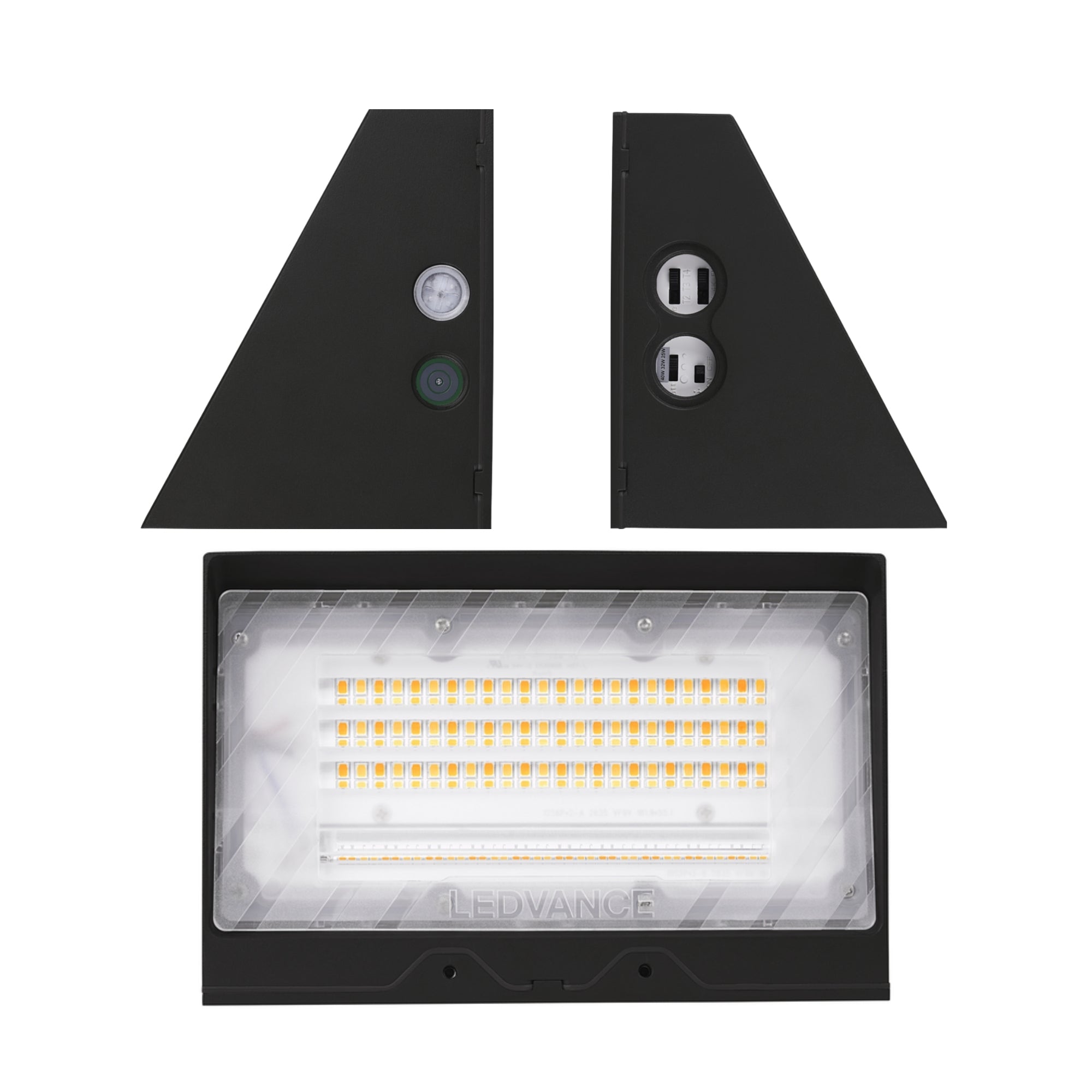

Engineered for rapid deployment, this fixture supports standard direct surface wall mounting. The internal layout provides easy access to the selectable wattage, CCT, and distribution switches during the installation process, streamlining the setup for electrical contractors. Because it does not require ordering or carrying separate physical lenses for different optical distributions, it serves as an excellent all-in-one solution for large-scale retrofits or new construction perimeter lighting.

What's Included

• LEDVANCE Sylvania 66384 Full Cutoff Wall Pack
• Integrated Photocell
