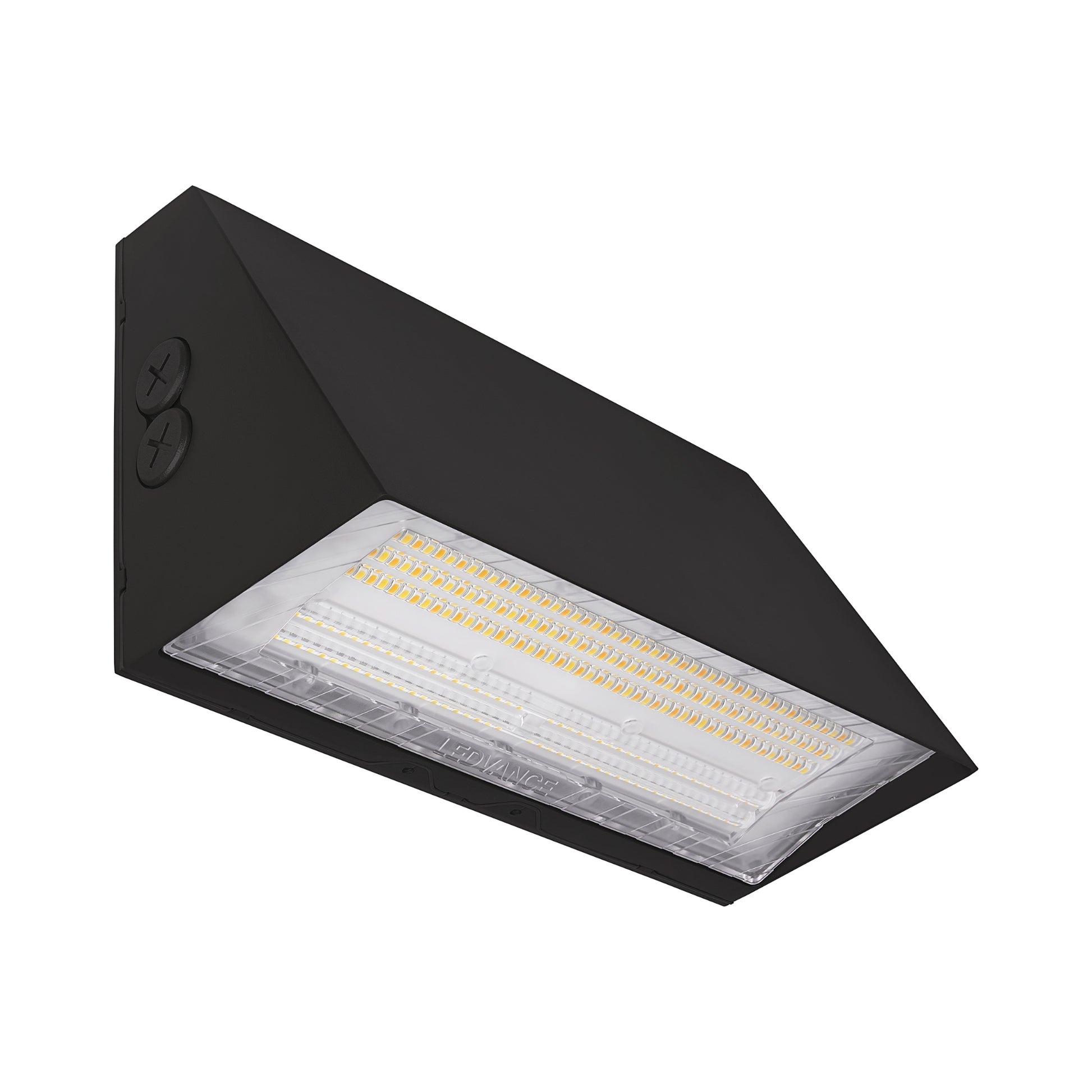

LEDVANCE Sylvania 66383 OPTI-SELECT Full Cutoff LED Wall Pack - 40W/50W/60W Selectable - 3000K/4000K/5000K - 120-347V - Black

The LEDVANCE Sylvania WALPAKCPS060UNHD8SC2ADJBLP (Item 66383) is a commercial Performance Class full cutoff LED wall pack and Wall Pack Cutoff OPTI-SELECT luminaire engineered to deliver up to 9,000 lumens (at 4000K) across field-selectable 40W, 50W, and 60W power settings, switchable 3000K, 4000K, and 5000K color temperatures, and onboard switch-controlled Type II (T2), Type III (T3), and Type IV (T4) optical distributions. Operating on wide-range 120-347V electrical systems with 0-10V dimming, it replaces legacy HID wall packs up to 250W MH/HPS (up to 76% energy savings) while qualifying for DLC Premium utility rebates. Built with a weatherproof IP65 housing and cULus wet-location certification, this B3-U0-G2 zero-uplight cutoff wall pack features a UV-stabilized polycarbonate lens, an integrated photocell that can be disabled in the field, a Controls Ready sensor receptacle, and 6kV surge protection.

Key Features

  • Selectable Wattage: 40W / 50W / 60W field-selectable
  • Wattage Equivalency: Replaces up to 250W MH/HPS (up to 76% energy savings)
  • Maximum Lumen Output: 6,000 / 7,500 / 9,000 lm (up to 9,000 lm at 4000K)
  • Peak Efficacy: Up to 150 lm/W
  • CRI: >80
  • Selectable CCT: 3000K / 4000K / 5000K

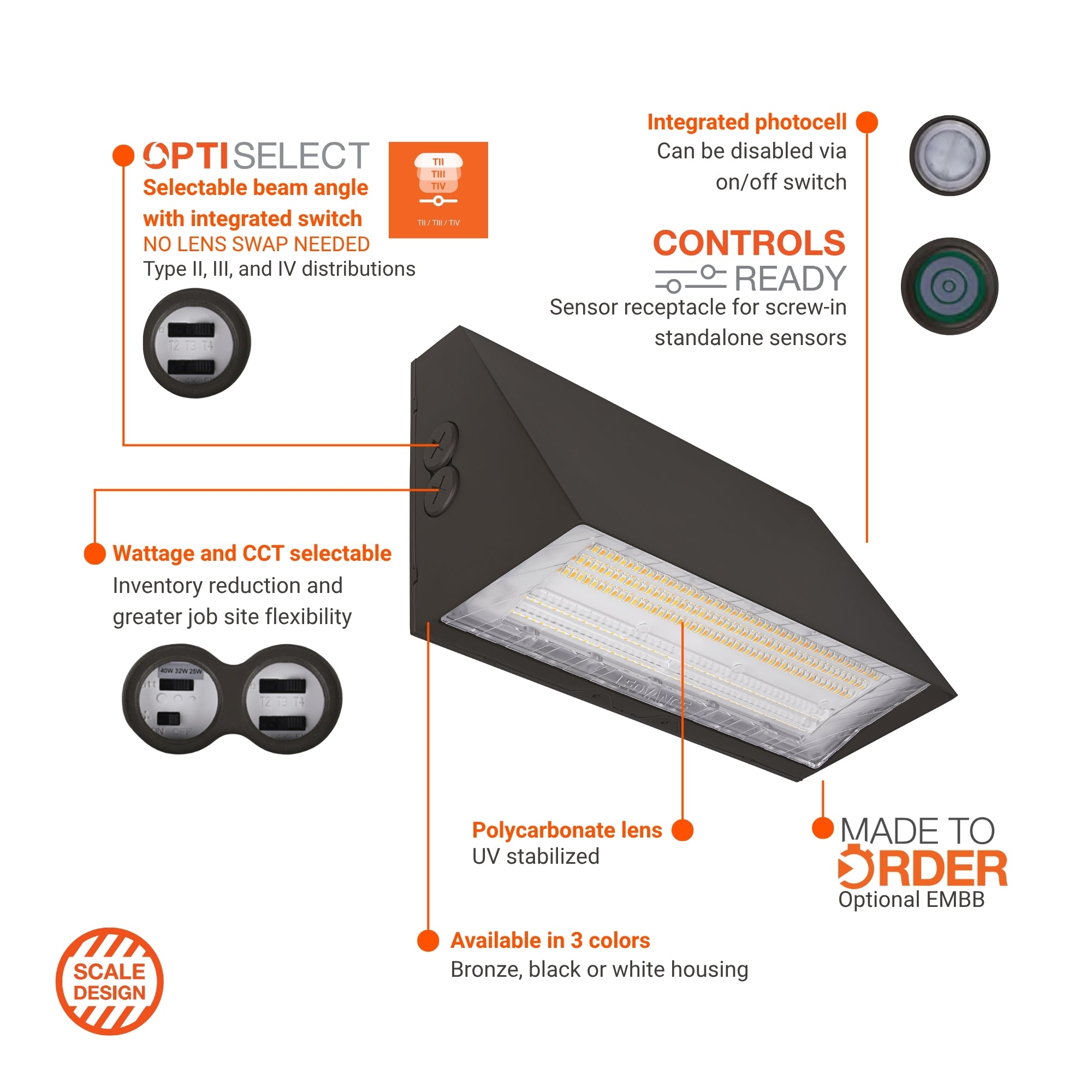

  • OPTI-SELECT Adjustable Optics: Switch-controlled IES Type II (T2), Type III (T3), and Type IV (T4) distributions with no lens swap required
  • Lens & Cutoff Rating: UV-stabilized polycarbonate lens with full cutoff zero-uplight (B3-U0-G2) profile
  • Photocell & Controls Ready: Integrated dusk-to-dawn photocell (On/Off) and Controls Ready port for field-installable standalone or Bluetooth mesh sensors
  • Dimming: 0-10V continuous dimming
  • Voltage & Surge Protection: 120-347V AC; 6kV integrated surge protection
  • Location & Body Rating: cULus Listed to UL 1598 for wet locations; IP65 weatherproof rated
  • Operating Temperature: -40°F (-40°C) to 122°F (50°C)
  • Certifications: DLC Premium, cULus Listed, IP65, FCC, RoHS
  • Rated Life & Warranty: L70 100,000 hours at 25°C ambient; 5-year NLB Trusted Warranty Program - LEDVANCE Sylvania

Performance & Light Output

Selectable Wattage Total Lumens (@ 4000K) Efficacy Legacy HID Replacement & Savings
60W 9,000 lm 150 lm/W 250W MH/HPS (76% energy savings)
50W 7,500 lm 150 lm/W —
40W 6,000 lm 150 lm/W 100W MH/HPS (60% energy savings)

Delivers CRI >80 across all selectable wattage, CCT, and optical distribution settings. Achieves a BUG Rating of B3-U0-G2 with zero uplight (U0). Rated life 100,000 hours (L70) at 25°C ambient.

Lens & Optics

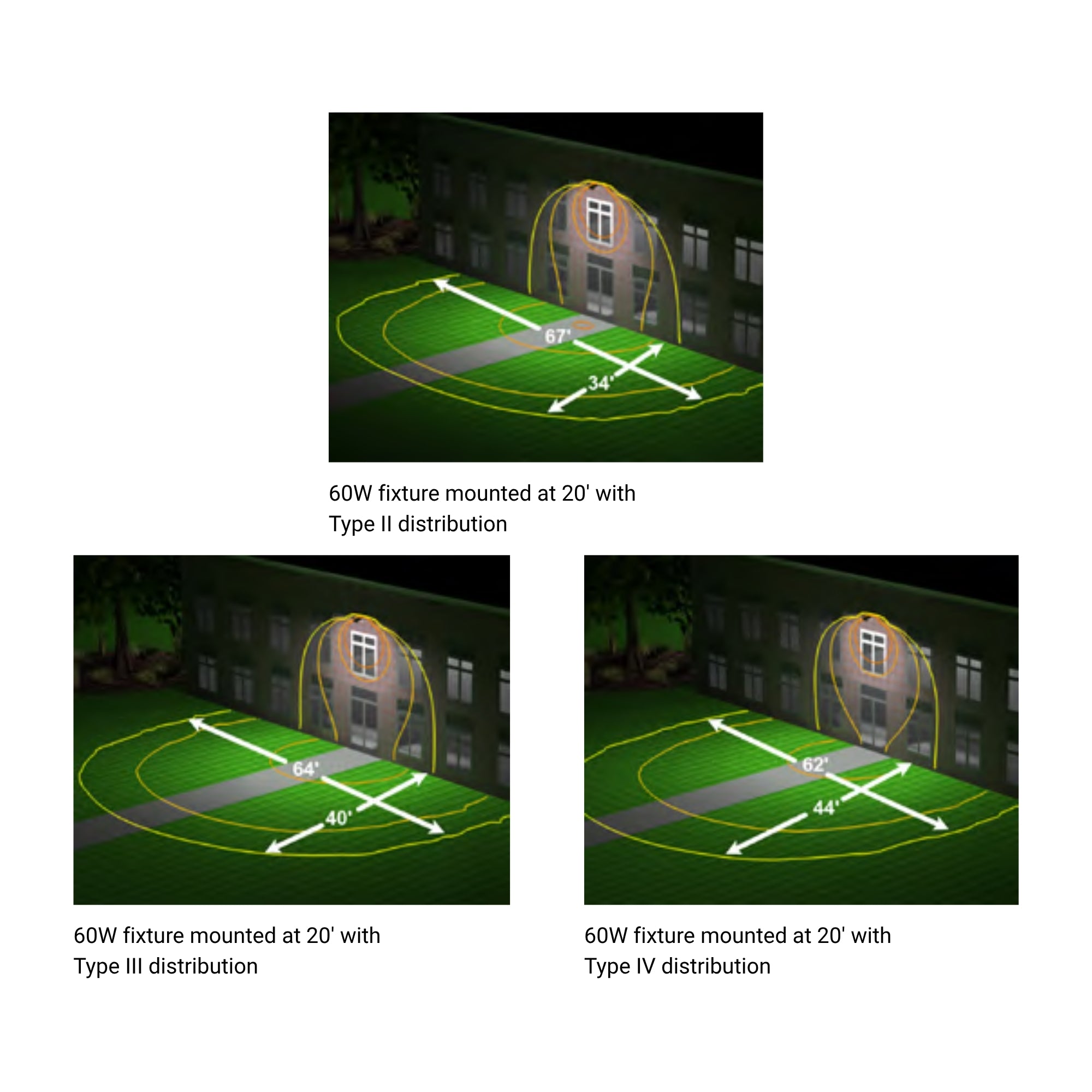

The OPTI-SELECT optical system provides field-selectable exterior light distribution behind a UV-stabilized polycarbonate lens with no lens replacement required:

  • Type II (T2) Distribution (Switch-Controlled): Projects a narrow, elongated lateral beam ideal for pedestrian walkways, narrow side yards, and building perimeters.
  • Type III (T3) Distribution (Switch-Controlled): Projects an asymmetric forward and lateral throw engineered for perimeter building walls, roadways, and parking lot edges.
  • Type IV (T4) Distribution (Switch-Controlled): Projects a wide forward-throw pattern outward from the mounting wall to illuminate loading aprons, drive lanes, and open commercial plazas.

All three distributions are selected instantly via an onboard two-switch optical selector while maintaining a full cutoff zero-uplight (B3-U0-G2) profile that eliminates uplight and reduces glare.

Smart & Control Features

Engineered for automated exterior operation and plug-and-play lighting control expansion:

  • Dusk-to-Dawn Photocell (Integrated): Built-in photocell provides automatic dusk-to-dawn operation and can be disabled in the field when manual switch or timeclock control is preferred.
  • 0-10V Continuous Dimming: Compatible with commercial 0-10V dimming systems, dimmers, and building automation networks.
  • Controls Ready Sensor Expansion: Accepts field-installable standalone PIR/microwave motion and daylight sensors (via required Sensor Adapter 63958) or LEDVANCE LINK Bluetooth Low Energy (BLE) Mesh wireless controllers (via LINK 3-Pin to 3.5mm Adapter 75944) with no internal wiring required.

Compatible plug-in sensors and adapters include Sensor Adapter 63958 (WALPAKNSASENSORADAPTOR), PIR Motion/Daylight Sensor 62664 (HIGHBAYPIRMOTIONDAYSENSOR2, IP65, up to 39 ft mounting height), Microwave Motion/Daylight Sensor 65622 (HIGHBAYMOTIONDAYSENSOR, IP65, up to 49 ft mounting height), Programming Remote 65623 (REMOTE/MOTIONDAY/001), LEDVANCE LINK BLE Mesh PIR Sensor 75913 (SENSOR2ODPIR3.5BLEBLK, IP66, 12VDC, 48-80 ft detection diameter, up to 40 ft mounting height, 200 ft BLE line-of-sight range), and LINK Adapter 75944 (ADAPTER3P3.5SCBK) - all sold separately.

Electrical

Powered by a constant current driver operating on universal high-range 120-347V AC with a Power Factor >0.90 and Total Harmonic Distortion (THD) <20%. Integrated 6kV surge protection safeguards internal electronics against utility line transients and switching surges. Includes 0-10V dimming control leads.

Series Emergency Battery Backup Note: Sister EMBB models in this family (ordered separately with E suffix) incorporate a LiFePO4 battery backup providing 90 minutes of emergency illumination at 8.8W emergency power (1.0W max standby power, 0.5W max charging power, 24h min recharge time, +32°F to +113°F / 0°C to +45°C operating range).

Construction

Housing & Thermal: Commercial full cutoff architectural wall pack housing engineered with passive convection thermal management to dissipate heat from the LED array and 120-347V driver.

Finish: Durable architectural black exterior finish formulated to resist corrosion and outdoor weathering.

Environmental Sealing: IP65 weatherproof rated and cULus Listed to UL 1598 standards for wet locations. Ambient operating temperature: -40°F (-40°C) to 122°F (50°C).

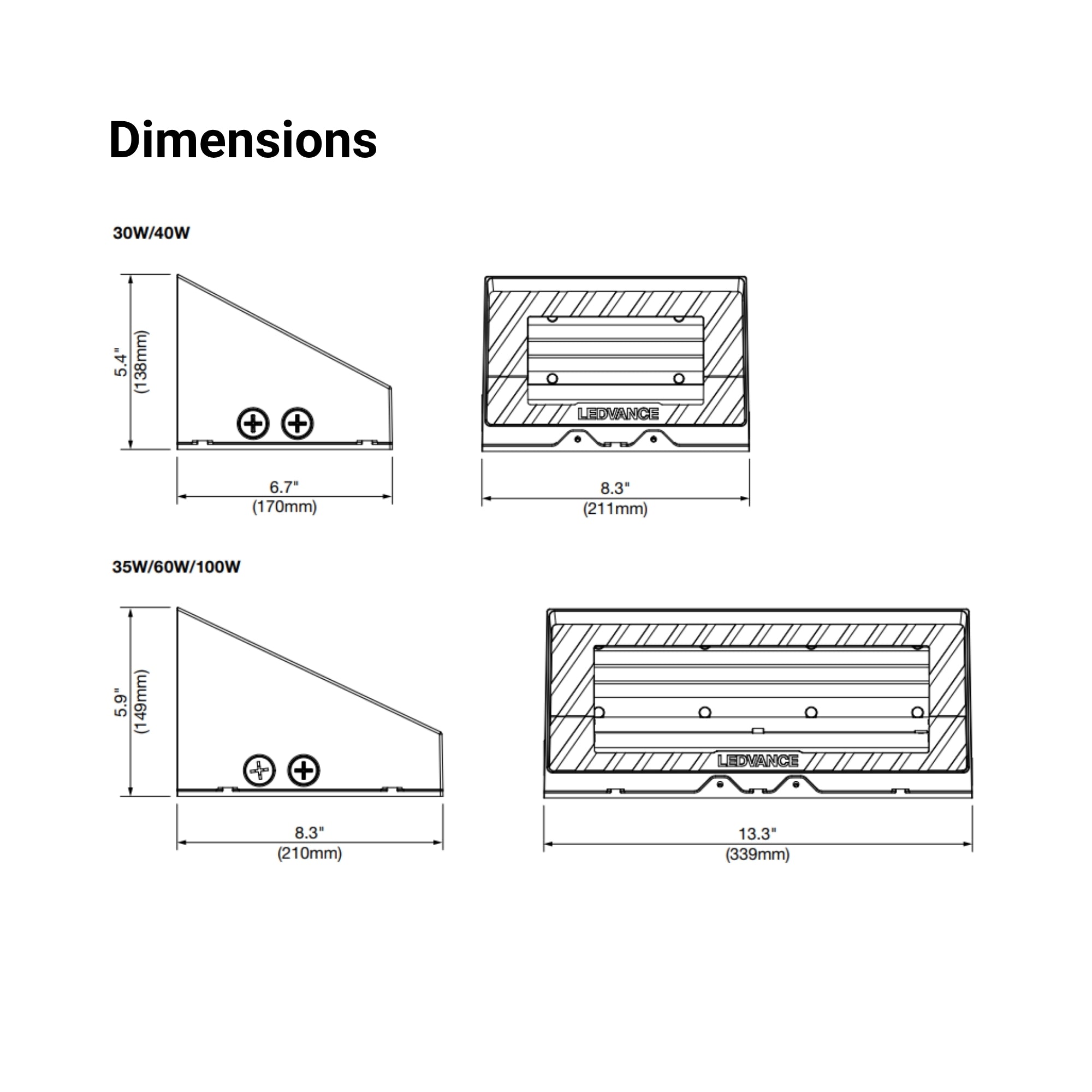

Dimensions & Weight: 13.3" L x 5.9" W x 8.3" H (339mm x 149mm x 210mm). Fixture weight: 6.2 lbs (2.8 kg).

Installation & Mounting

Mounting Hardware: Direct wall-mount backplate installs over standard junction boxes or vertical exterior wall surfaces while maintaining a level 0° full cutoff horizontal plane.

Conduit & Wiring Access: Dual side threaded conduit entry knockouts and rear J-box access support surface conduit or concealed branch-circuit wiring.

Recommended Mounting Height: Optimized for installation heights from 10 to 20 feet (photometric layout reference at 15 feet).

Accessories (Sold Separately):

  • 67370 (WALPAKCPAMBVISORBZ): Visor for Wall Pack OPTI-SELECT 35W, 60W, and 100W, Bronze (12.75" L x 3.52" W x 2.44" H) - sold separately
  • 67371 (WALPAKCPAMBVISORBL): Visor for Wall Pack OPTI-SELECT 35W, 60W, and 100W, Black (12.75" L x 3.52" W x 2.44" H) - sold separately
  • 67372 (WALPAKCPAMBVISORWH): Visor for Wall Pack OPTI-SELECT 35W, 60W, and 100W, White (12.75" L x 3.52" W x 2.44" H) - sold separately
  • 63958 (WALPAKNSASENSORADAPTOR): Daylight/Motion Sensor Adapter (4.31" L, 1/2"-14 NPT thread; required to install standalone sensors 62664 and 65622) - sold separately
  • 62664 (HIGHBAYPIRMOTIONDAYSENSOR2): Field-installable PIR Motion/Daylight Sensor, IP65, max mounting height 39 ft, White (default settings: 100% detection area, 10 min hold time, 50 Lux daylight threshold, 60 min standby period at 30% dimming) - sold separately
  • 65622 (HIGHBAYMOTIONDAYSENSOR): Field-installable Microwave Motion/Daylight Sensor, IP65, max mounting height 49 ft, White (recommended for indoor/sheltered use; PIR sensor 62664 preferred outdoors) - sold separately
  • 65623 (REMOTE/MOTIONDAY/001): Remote Control for Motion/Daylight Sensors (required to change default sensor settings) - sold separately
  • 75913 (SENSOR2ODPIR3.5BLEBLK): LEDVANCE LINK Outdoor Bluetooth Low Energy (BLE) Mesh PIR Sensor with controller, Screw-In Plug & Play, 3.5mm AUX, IP66, 20-40 ft mounting height, Black - sold separately
  • 75944 (ADAPTER3P3.5SCBK): LEDVANCE LINK 3-Pin to 3.5mm Adapter, Black - sold separately

Certifications & Rebates

  • DLC Premium Listed: Qualifies for the highest tier of commercial utility rebates across 120-347V jurisdictions
  • cULus Listed: Certified for wet locations per UL 1598 outdoor luminaire standards
  • IP65 Rated: Ingress protection rating of IP65 for dust and water
  • Full Cutoff Zero-Uplight (B3-U0-G2): Zero-uplight (U0) optical cutoff eliminates skyglow and property-line light trespass
  • FCC Compliant: Complies with FCC electromagnetic interference limits
  • RoHS Compliant: Free of mercury, lead, and restricted hazardous substances

Typical Applications

  • Commercial Building Perimeters & Walkways - Onboard OPTI-SELECT T2/T3/T4 switch tailors beam width and forward throw to match narrow sidewalks or wide drive lanes
  • 120-347V Commercial & Industrial Facilities - Wide-range 120-347V driver supports both standard U.S. 120/277V panels and 347V commercial electrical distribution
  • Retail Centers, Schools & Office Complexes - Full cutoff B3-U0-G2 zero-uplight optics eliminate glare and neighbor light trespass while replacing 250W MH/HPS wall packs

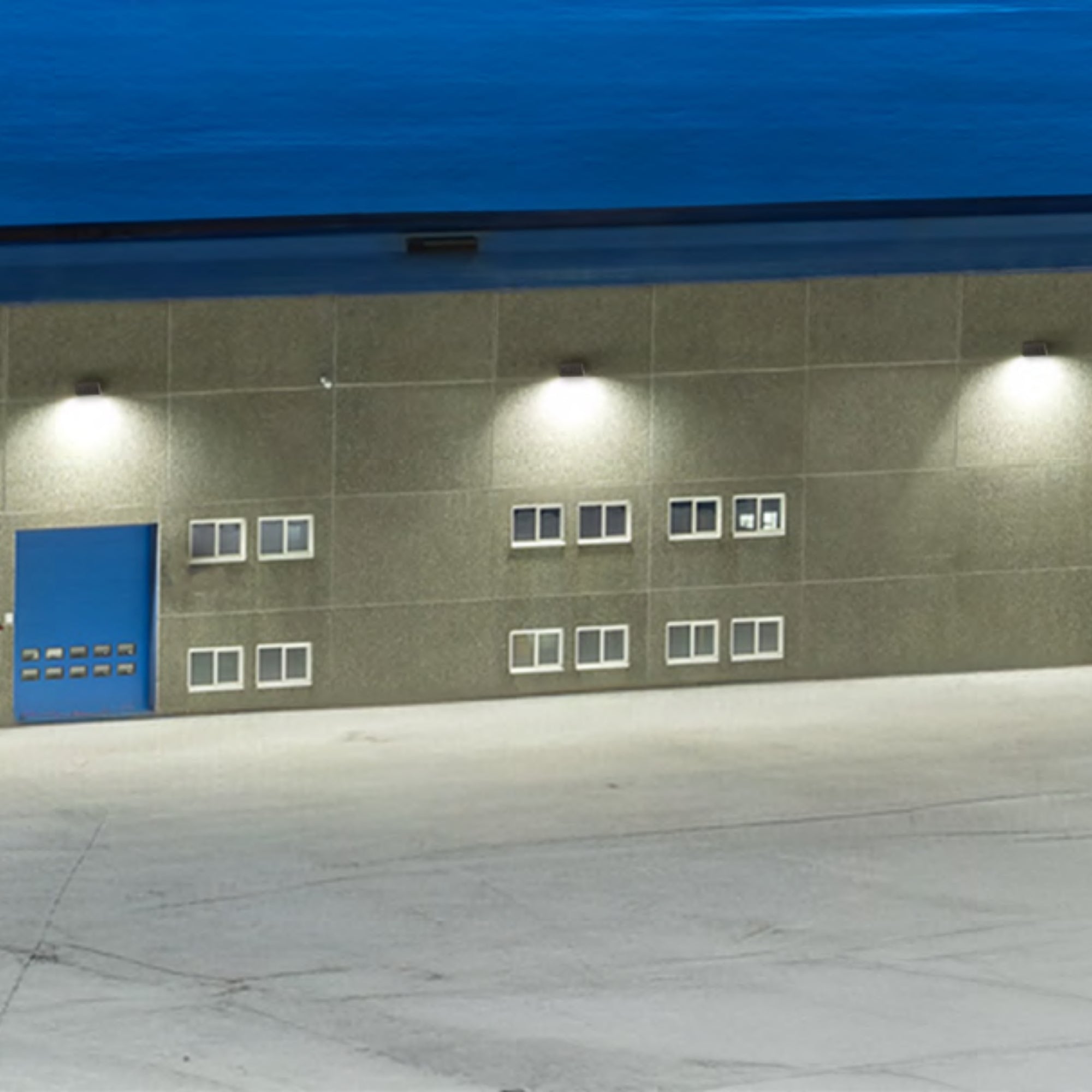

  • Warehouses, Loading Docks & Service Entrances - IP65 weatherproof construction, UV-stabilized polycarbonate lens, and 6kV surge protection withstand harsh outdoor environments
  • Automated Security & Smart Exterior Zones - Integrated On/Off photocell and Controls Ready port simplify standalone motion sensing or LEDVANCE LINK Bluetooth mesh networking

What's Included

  • LEDVANCE Sylvania WALPAKCPS060UNHD8SC2ADJBLP (Item 66383) OPTI-SELECT Full Cutoff Wall Pack - Black
  • Pre-installed integrated dusk-to-dawn photocell (On/Off)
  • Installation hardware and operation manual

Specifications

Dimensions

Length/Depth
13.3 in
Width/Diameter
5.9 in
Height
8.3 in
Weight
6.2 lb

Style & Materials

Material
Aluminum

Characteristics & Features

Lamp Source
led
Lamp Color
3000K, 4000K, 5000K, Selectable CCT
Color Rendering
80 CRI
Delivered Lumens
9000
Beam Angle
Type II,Type III,Type IV
Dimmable
Yes

Electrical Information

Voltage
120-347V
Total Wattage
60W

Item Details

MPN
66383
Brand
Sylvania
Catalog Number
WALPAKCPS060UNHD8SC2ADJBLP
UPC
046135663833

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
100,000 hours
Product Rating
IP65 Rated, Wet Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

How does the OPTI-SELECT light distribution switch work on the LEDVANCE Sylvania 66383, and how does it mount?

The LEDVANCE Sylvania 66383 (WALPAKCPS060UNHD8SC2ADJBLP) features an onboard OPTI-SELECT switch that toggles between Type II (T2), Type III (T3), and Type IV (T4) distributions with a B3-U0-G2 full cutoff rating and no lens swap. Its 13.3" L x 5.9" W x 8.3" H (6.2 lbs) housing mounts directly to exterior walls or junction boxes.

What wattages, lumen outputs, and color temperatures can be selected on the LEDVANCE Sylvania 66383?

Onboard switches select 40W (6,000 lumens), 50W (7,500 lumens), or 60W (9,000 lumens) at up to 150 lm/W, replacing up to 250W MH/HPS fixtures with 76% energy savings. You can also switch between 3000K, 4000K, and 5000K color temperatures with >80 CRI.

Can the built-in photocell on the LEDVANCE Sylvania 66383 be disabled, and is it sensor-ready?

Yes, the integrated dusk-to-dawn photocell can be disabled in the field for manual switch or timer operation, and the 120-347V driver supports 0-10V dimming. The fixture is also Controls Ready to accept plug-and-play PIR/microwave sensors (via adapter 63958) or LEDVANCE LINK Bluetooth sensors (sold separately).

What voltage range, lens material, and surge protection does the LEDVANCE Sylvania 66383 feature?

The LEDVANCE Sylvania 66383 operates on universal 120-347V AC power with >0.90 power factor, <20% THD, and 6kV integrated surge protection. Its black housing and UV-stabilized polycarbonate lens are IP65 weatherproof rated, cULus Wet Location listed, and rated for -40°F (-40°C) to 122°F (50°C).

What are the rated lifespan, utility rebate status, and warranty coverage for the LEDVANCE Sylvania 66383?

This Performance Class wall pack is rated for a 100,000-hour L70 lifespan at 25°C ambient and is DLC Premium listed for maximum commercial utility rebates. It is backed by LEDVANCE Sylvania's 5-year warranty under the NLB Trusted Warranty Program.
