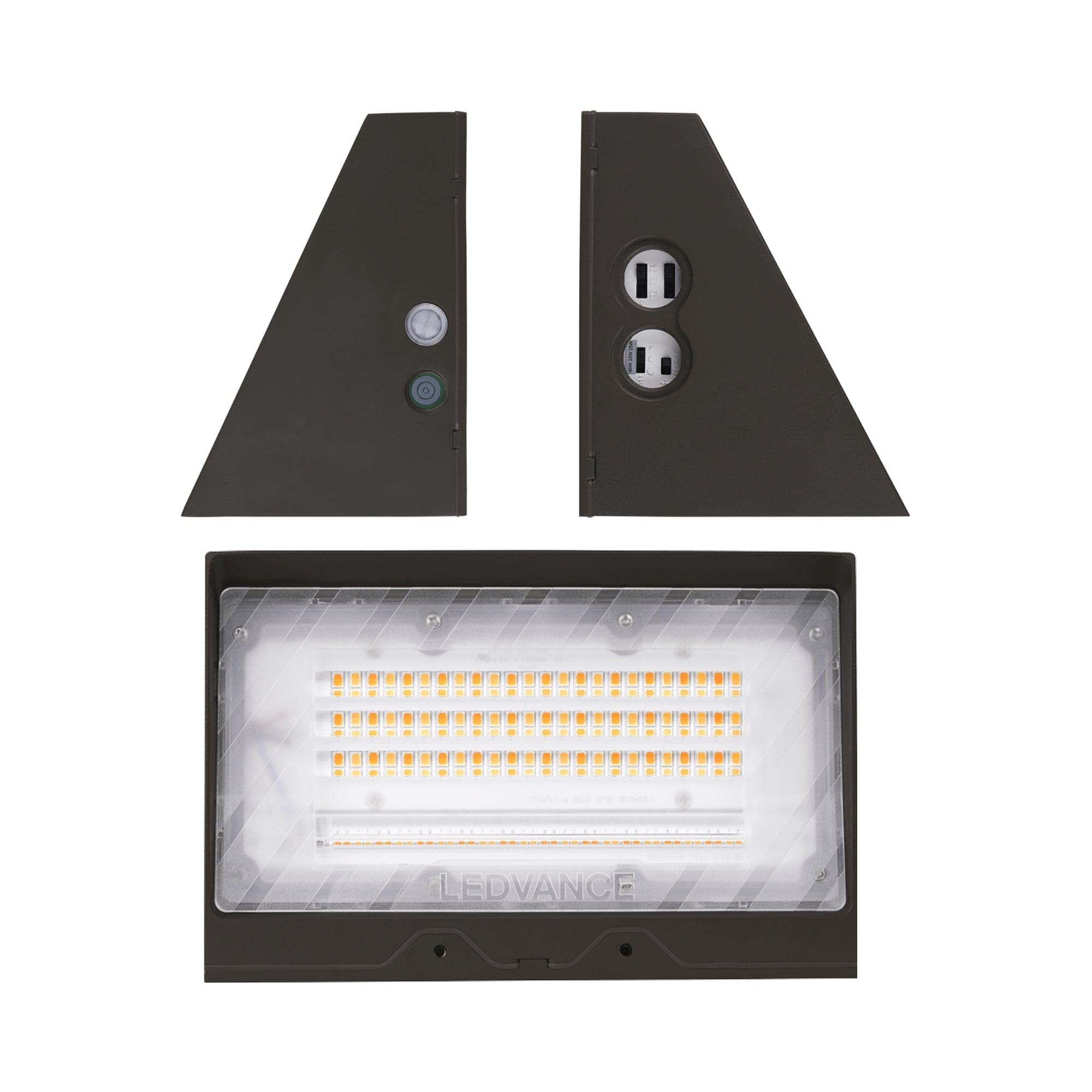

LEDVANCE Sylvania 66381 OPTI-SELECT Full Cutoff Wall Pack — 100W — 3000K/4000K/5000K — 120-347V — Bronze
Available in stock (100)
About this item
About this item
- Selectable Output & Equivalency: Field-selectable 60W, 80W, and 100W power settings deliver up to 15,000 lumens at up to 150 lm/W, replacing up to 400W MH/HPS fixtures.
- OPTI-SELECT Cutoff Optics: Switchable Type II (T2), Type III (T3), and Type IV (T4) optical distributions with a UV-stabilized polycarbonate lens and B3-U0-G2 zero-uplight cutoff rating.
- Selectable CCT: Onboard switch adjusts color temperature across 3000K, 4000K, and 5000K with >80 CRI.
- Photocell & Controls Ready: Integrated On/Off photocell, 120-347V driver, 0-10V dimming, and Controls Ready receptacle for plug-and-play sensors.
- Rebates & Ingress: DLC Premium listed, cULus Wet Location rated, IP65 sealed, with 6kV surge protection.
Description
Description

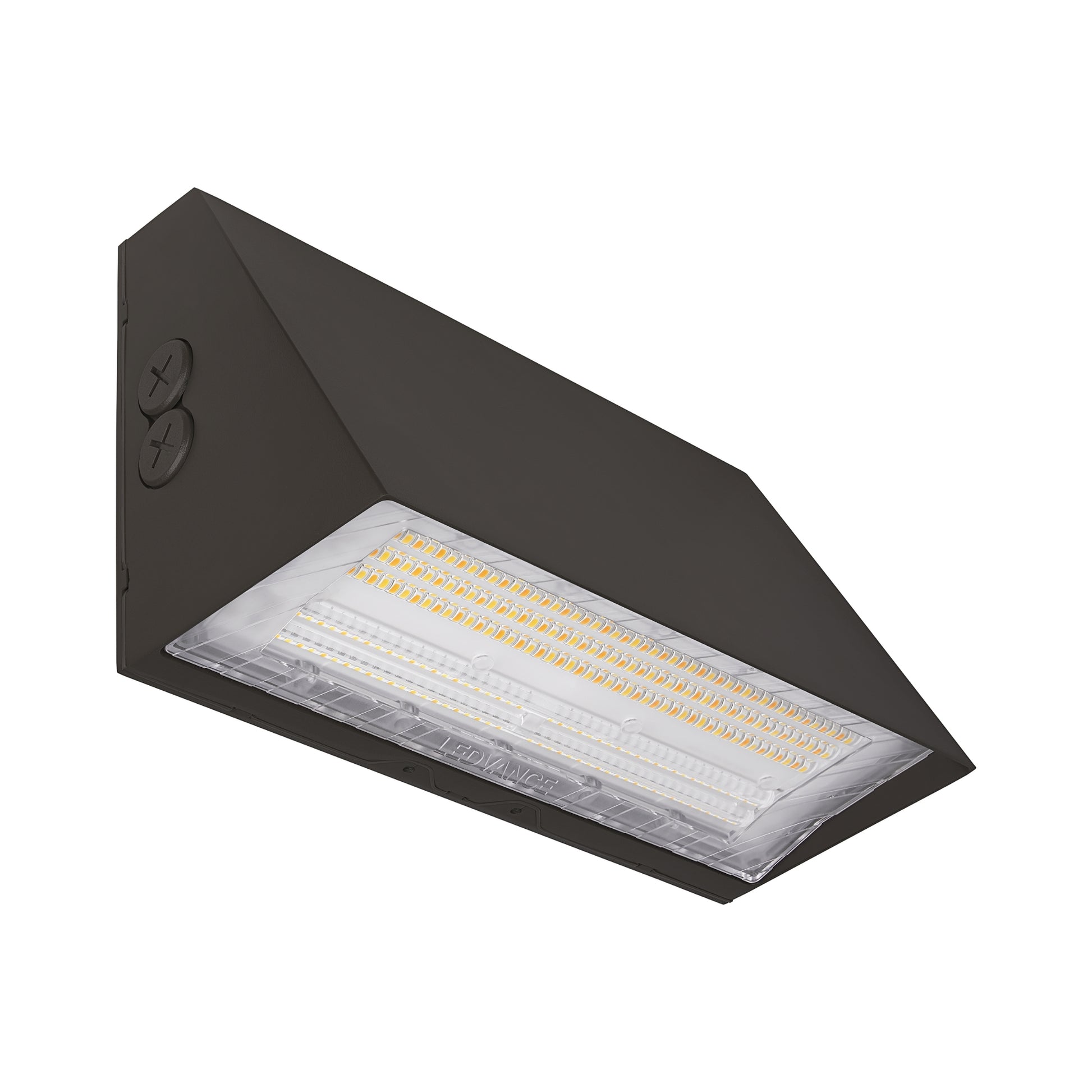

LEDVANCE Sylvania 66381 OPTI-SELECT Full Cutoff LED Wall Pack - 60W/80W/100W Selectable - 3000K/4000K/5000K - 120-347V - Bronze
The LEDVANCE Sylvania WALPAKCPS100UNHD8SC2ADJBZP (Item 66381) is a commercial Performance Class full cutoff LED wall pack and Wall Pack Cutoff OPTI-SELECT luminaire engineered to deliver up to 15,000 lumens (at 4000K) across field-selectable 60W, 80W, and 100W power settings, switchable 3000K, 4000K, and 5000K color temperatures, and onboard switch-controlled Type II (T2), Type III (T3), and Type IV (T4) optical distributions. Operating on wide-range 120-347V electrical systems with 0-10V dimming, it replaces legacy HID wall packs up to 400W MH/HPS (up to 75% energy savings) while qualifying for DLC Premium utility rebates. Built with a weatherproof IP65 housing and cULus wet-location certification, this B3-U0-G2 zero-uplight cutoff wall pack features a UV-stabilized polycarbonate lens, an integrated photocell that can be disabled in the field, a Controls Ready sensor receptacle, and 6kV surge protection.
Key Features
- Selectable Wattage: 60W / 80W / 100W field-selectable
- Wattage Equivalency: Replaces up to 400W MH/HPS (up to 75% energy savings)
- Maximum Lumen Output: 9,000 / 12,000 / 15,000 lm (up to 15,000 lm at 4000K)
- Peak Efficacy: Up to 150 lm/W
- CRI: >80
- Selectable CCT: 3000K / 4000K / 5000K
- OPTI-SELECT Adjustable Optics: Switch-controlled IES Type II (T2), Type III (T3), and Type IV (T4) distributions with no lens swap required
- Lens & Cutoff Rating: UV-stabilized polycarbonate lens with full cutoff zero-uplight (B3-U0-G2) profile
- Photocell & Controls Ready: Integrated dusk-to-dawn photocell (On/Off) and Controls Ready port for field-installable standalone or Bluetooth mesh sensors
- Dimming: 0-10V continuous dimming
- Voltage & Surge Protection: 120-347V AC; 6kV integrated surge protection
- Location & Body Rating: cULus Listed to UL 1598 for wet locations; IP65 weatherproof rated
- Operating Temperature: -40°F (-40°C) to 122°F (50°C)
- Certifications: DLC Premium, cULus Listed, IP65, FCC, RoHS
- Rated Life & Warranty: L70 100,000 hours at 25°C ambient; 5-year NLB Trusted Warranty Program - LEDVANCE Sylvania
Performance & Light Output
| Selectable Wattage | Total Lumens (@ 4000K) | Efficacy | Legacy HID Replacement & Savings |
|---|---|---|---|
| 100W | 15,000 lm | 150 lm/W | 400W MH/HPS (75% energy savings) |
| 80W | 12,000 lm | 150 lm/W | — |
| 60W | 9,000 lm | 150 lm/W | 250W MH/HPS |
Delivers CRI >80 across all selectable wattage, CCT, and optical distribution settings. Achieves a BUG Rating of B3-U0-G2 with zero uplight (U0). Rated life 100,000 hours (L70) at 25°C ambient.
Lens & Optics

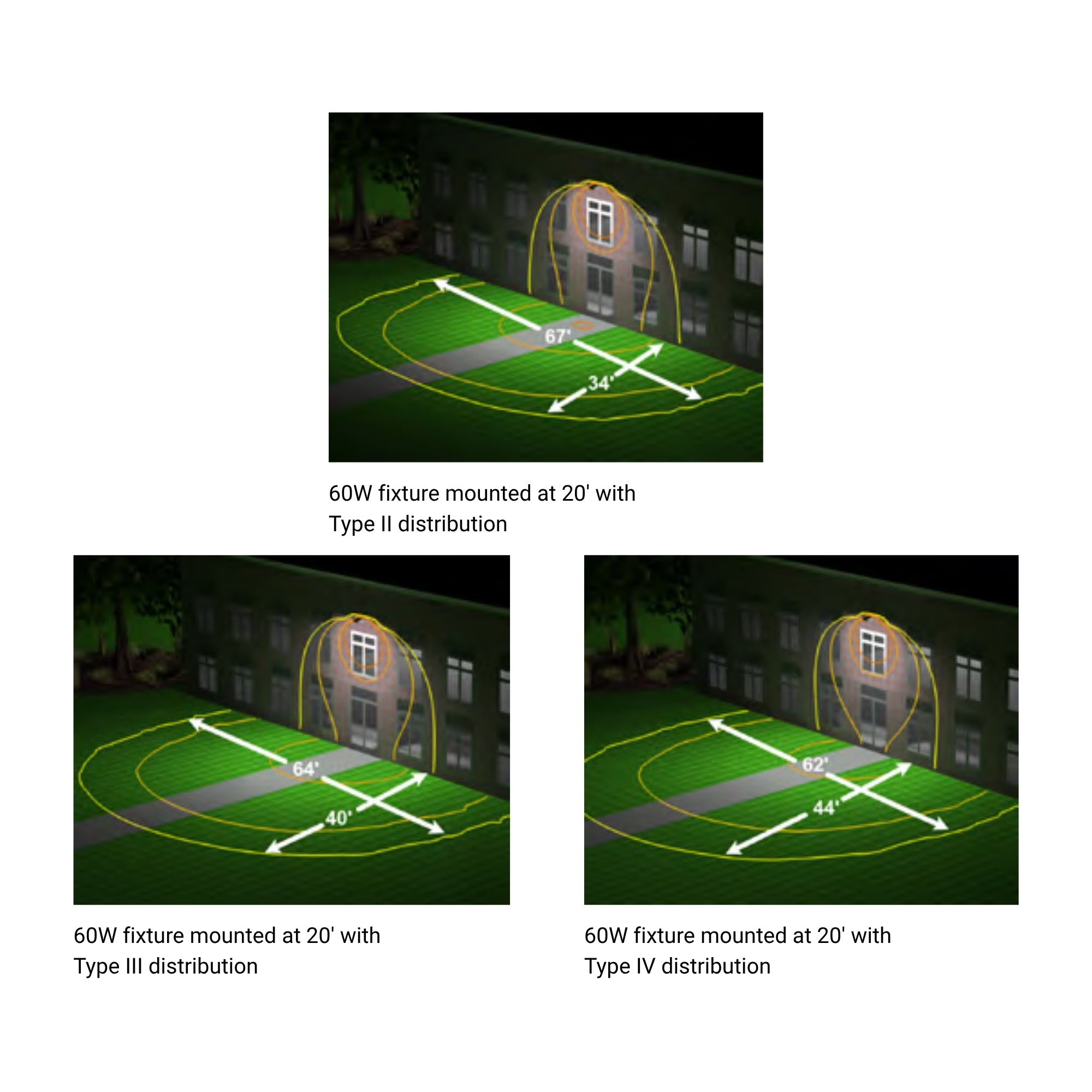

The OPTI-SELECT optical system provides field-selectable exterior light distribution behind a UV-stabilized polycarbonate lens with no lens replacement required:
- Type II (T2) Distribution (Switch-Controlled): Projects a narrow, elongated lateral beam ideal for pedestrian walkways, narrow side yards, and building perimeters.
- Type III (T3) Distribution (Switch-Controlled): Projects an asymmetric forward and lateral throw engineered for perimeter building walls, roadways, and parking lot edges.
- Type IV (T4) Distribution (Switch-Controlled): Projects a wide forward-throw pattern outward from the mounting wall to illuminate loading aprons, drive lanes, and open commercial plazas.

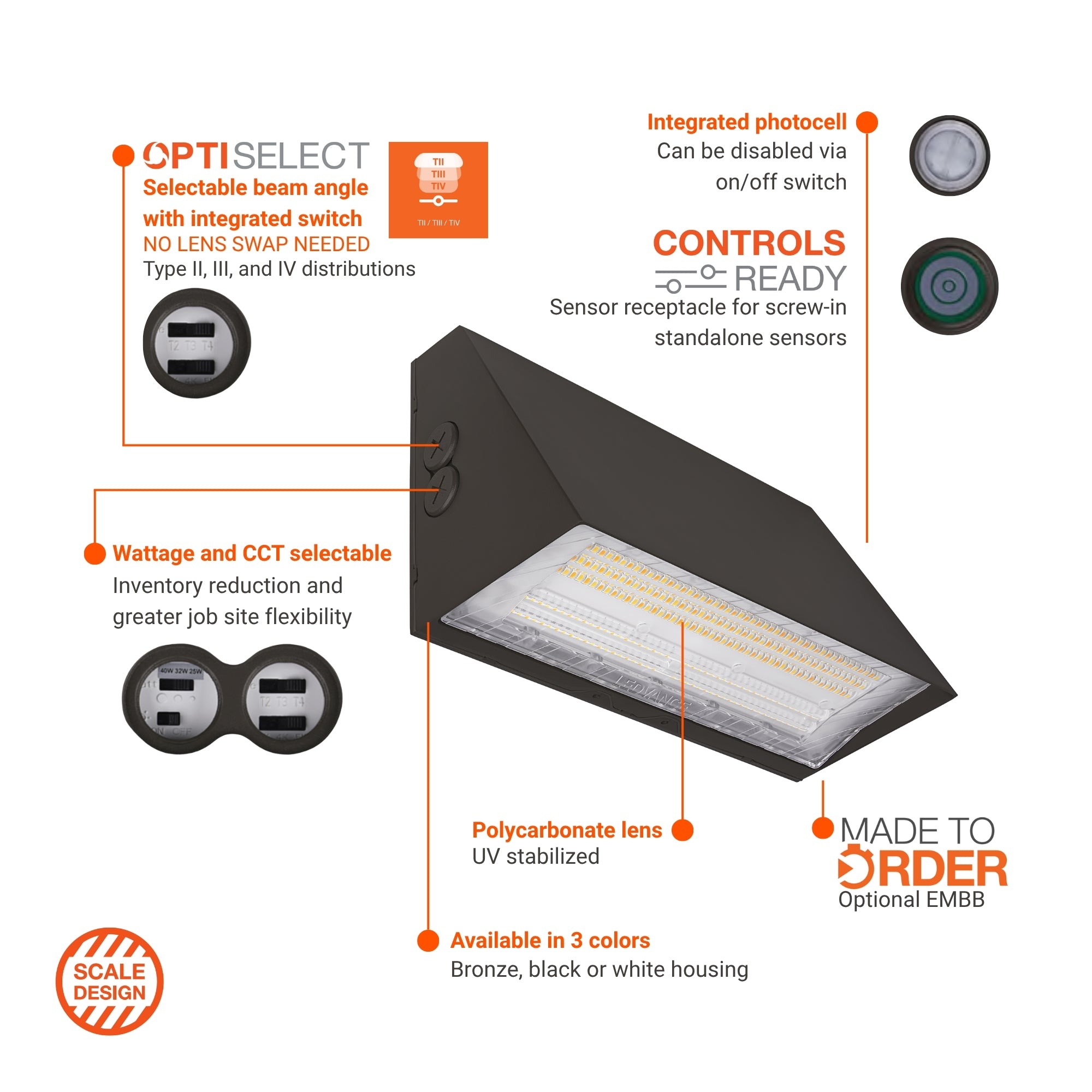

All three distributions are selected instantly via an onboard two-switch optical selector while maintaining a full cutoff zero-uplight (B3-U0-G2) profile that eliminates uplight and reduces glare.
Smart & Control Features
Engineered for automated exterior operation and plug-and-play lighting control expansion:
- Dusk-to-Dawn Photocell (Integrated): Built-in photocell provides automatic dusk-to-dawn operation and can be disabled in the field when manual switch or timeclock control is preferred.
- 0-10V Continuous Dimming: Compatible with commercial 0-10V dimming systems, dimmers, and building automation networks.
- Controls Ready Sensor Expansion: Accepts field-installable standalone PIR/microwave motion and daylight sensors (via required Sensor Adapter 63958) or LEDVANCE LINK Bluetooth Low Energy (BLE) Mesh wireless controllers (via LINK 3-Pin to 3.5mm Adapter 75944) with no internal wiring required.
Compatible plug-in sensors and adapters include Sensor Adapter 63958 (WALPAKNSASENSORADAPTOR), PIR Motion/Daylight Sensor 62664 (HIGHBAYPIRMOTIONDAYSENSOR2, IP65, up to 39 ft mounting height), Microwave Motion/Daylight Sensor 65622 (HIGHBAYMOTIONDAYSENSOR, IP65, up to 49 ft mounting height), Programming Remote 65623 (REMOTE/MOTIONDAY/001), LEDVANCE LINK BLE Mesh PIR Sensor 75913 (SENSOR2ODPIR3.5BLEBLK, IP66, 12VDC, 48-80 ft detection diameter, up to 40 ft mounting height, 200 ft BLE line-of-sight range), and LINK Adapter 75944 (ADAPTER3P3.5SCBK) - all sold separately.
Electrical
Powered by a constant current driver operating on universal high-range 120-347V AC with a Power Factor >0.90 and Total Harmonic Distortion (THD) <20%. Integrated 6kV surge protection safeguards internal electronics against utility line transients and switching surges. Includes 0-10V dimming control leads.
Series Emergency Battery Backup Note: Sister EMBB models in this family (ordered separately with E suffix) incorporate a LiFePO4 battery backup providing 90 minutes of emergency illumination at 8.8W emergency power (1.0W max standby power, 0.5W max charging power, 24h min recharge time, +32°F to +113°F / 0°C to +45°C operating range).
Construction
Housing & Thermal: Commercial full cutoff architectural wall pack housing engineered with passive convection thermal management to dissipate heat from the LED array and 120-347V driver.
Finish: Durable architectural bronze exterior finish formulated to resist corrosion and outdoor weathering.
Environmental Sealing: IP65 weatherproof rated and cULus Listed to UL 1598 standards for wet locations. Ambient operating temperature: -40°F (-40°C) to 122°F (50°C).

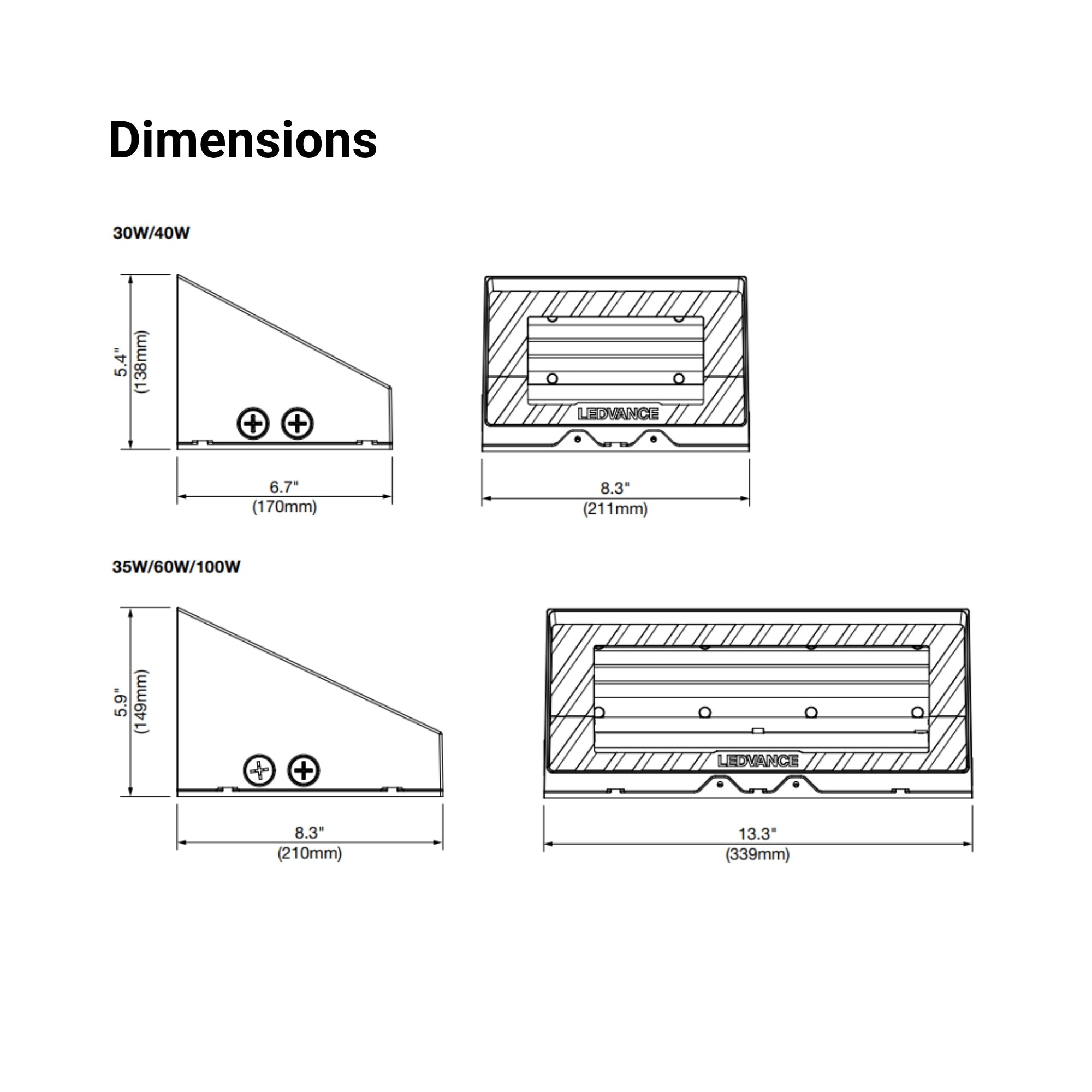

Dimensions & Weight: 13.3" L x 5.9" W x 8.3" H (339mm x 149mm x 210mm). Fixture weight: 6.2 lbs (2.8 kg).
Installation & Mounting
Mounting Hardware: Direct wall-mount backplate installs over standard junction boxes or vertical exterior wall surfaces while maintaining a level 0° full cutoff horizontal plane.
Conduit & Wiring Access: Dual side threaded conduit entry knockouts and rear J-box access support surface conduit or concealed branch-circuit wiring.
Recommended Mounting Height: Optimized for installation heights from 15 to 25 feet (photometric layout reference at 20 feet).
Accessories (Sold Separately):
- 67370 (WALPAKCPAMBVISORBZ): Visor for Wall Pack OPTI-SELECT 35W, 60W, and 100W, Bronze (12.75" L x 3.52" W x 2.44" H) - sold separately
- 67371 (WALPAKCPAMBVISORBL): Visor for Wall Pack OPTI-SELECT 35W, 60W, and 100W, Black (12.75" L x 3.52" W x 2.44" H) - sold separately
- 67372 (WALPAKCPAMBVISORWH): Visor for Wall Pack OPTI-SELECT 35W, 60W, and 100W, White (12.75" L x 3.52" W x 2.44" H) - sold separately
- 63958 (WALPAKNSASENSORADAPTOR): Daylight/Motion Sensor Adapter (4.31" L, 1/2"-14 NPT thread; required to install standalone sensors 62664 and 65622) - sold separately
- 62664 (HIGHBAYPIRMOTIONDAYSENSOR2): Field-installable PIR Motion/Daylight Sensor, IP65, max mounting height 39 ft, White (default settings: 100% detection area, 10 min hold time, 50 Lux daylight threshold, 60 min standby period at 30% dimming) - sold separately
- 65622 (HIGHBAYMOTIONDAYSENSOR): Field-installable Microwave Motion/Daylight Sensor, IP65, max mounting height 49 ft, White (recommended for indoor/sheltered use; PIR sensor 62664 preferred outdoors) - sold separately
- 65623 (REMOTE/MOTIONDAY/001): Remote Control for Motion/Daylight Sensors (required to change default sensor settings) - sold separately
- 75913 (SENSOR2ODPIR3.5BLEBLK): LEDVANCE LINK Outdoor Bluetooth Low Energy (BLE) Mesh PIR Sensor with controller, Screw-In Plug & Play, 3.5mm AUX, IP66, 20-40 ft mounting height, Black - sold separately
- 75944 (ADAPTER3P3.5SCBK): LEDVANCE LINK 3-Pin to 3.5mm Adapter, Black - sold separately
Certifications & Rebates
- DLC Premium Listed: Qualifies for the highest tier of commercial utility rebates across 120-347V jurisdictions
- cULus Listed: Certified for wet locations per UL 1598 outdoor luminaire standards
- IP65 Rated: Ingress protection rating of IP65 for dust and water
- Full Cutoff Zero-Uplight (B3-U0-G2): Zero-uplight (U0) optical cutoff eliminates skyglow and property-line light trespass
- FCC Compliant: Complies with FCC electromagnetic interference limits
- RoHS Compliant: Free of mercury, lead, and restricted hazardous substances
Typical Applications
- Commercial Building Perimeters & Walkways - Onboard OPTI-SELECT T2/T3/T4 switch tailors beam width and forward throw to match narrow sidewalks or wide drive lanes
- 120-347V Commercial & Industrial Facilities - Wide-range 120-347V driver supports both standard U.S. 120/277V panels and 347V commercial electrical distribution
- Retail Centers, Schools & Office Complexes - Full cutoff B3-U0-G2 zero-uplight optics eliminate glare and neighbor light trespass while replacing 400W MH/HPS wall packs

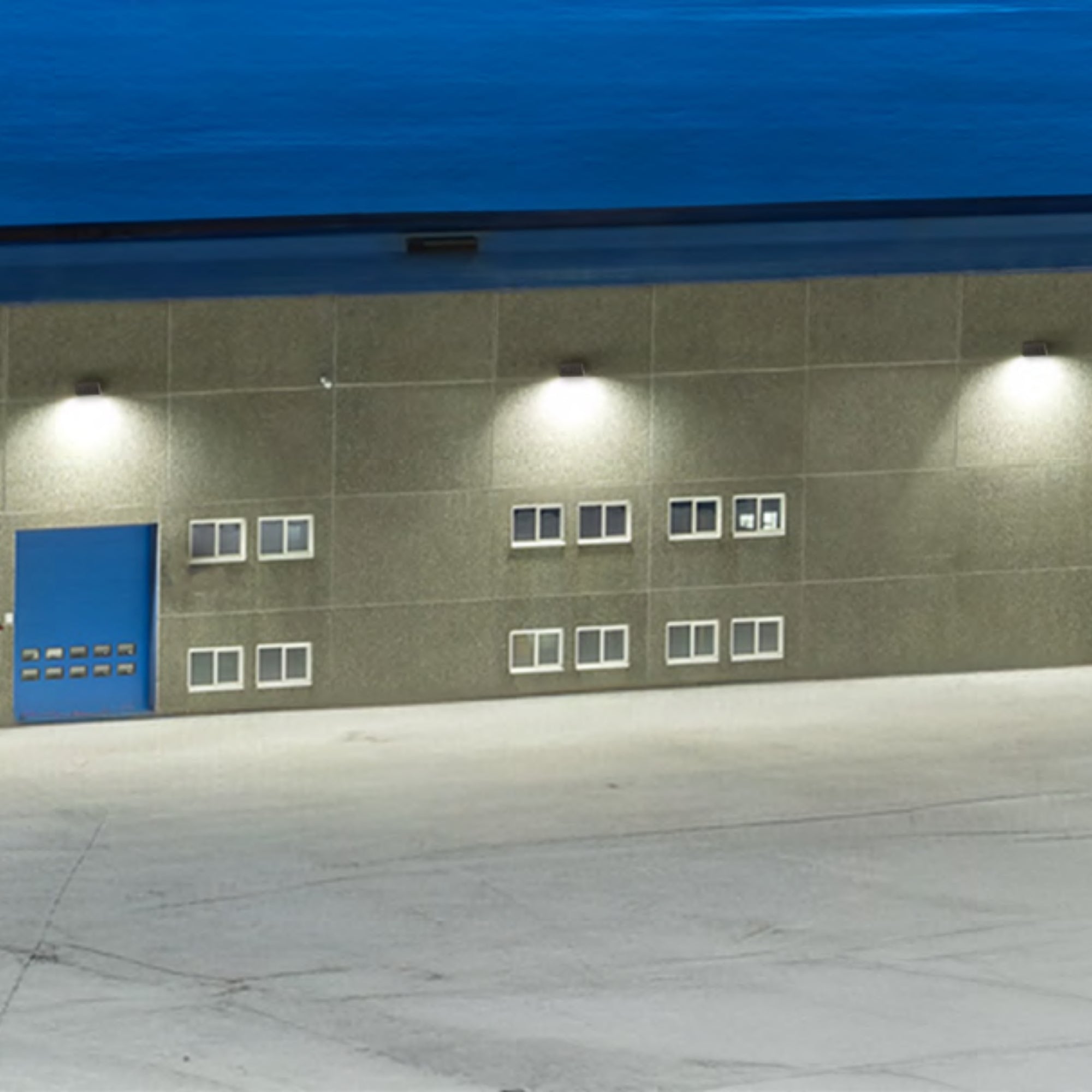

- Warehouses, Loading Docks & Service Entrances - IP65 weatherproof construction, UV-stabilized polycarbonate lens, and 6kV surge protection withstand harsh outdoor environments
- Automated Security & Smart Exterior Zones - Integrated On/Off photocell and Controls Ready port simplify standalone motion sensing or LEDVANCE LINK Bluetooth mesh networking
What's Included
- LEDVANCE Sylvania WALPAKCPS100UNHD8SC2ADJBZP (Item 66381) OPTI-SELECT Full Cutoff Wall Pack - Bronze
- Pre-installed integrated dusk-to-dawn photocell (On/Off)
- Installation hardware and operation manual
