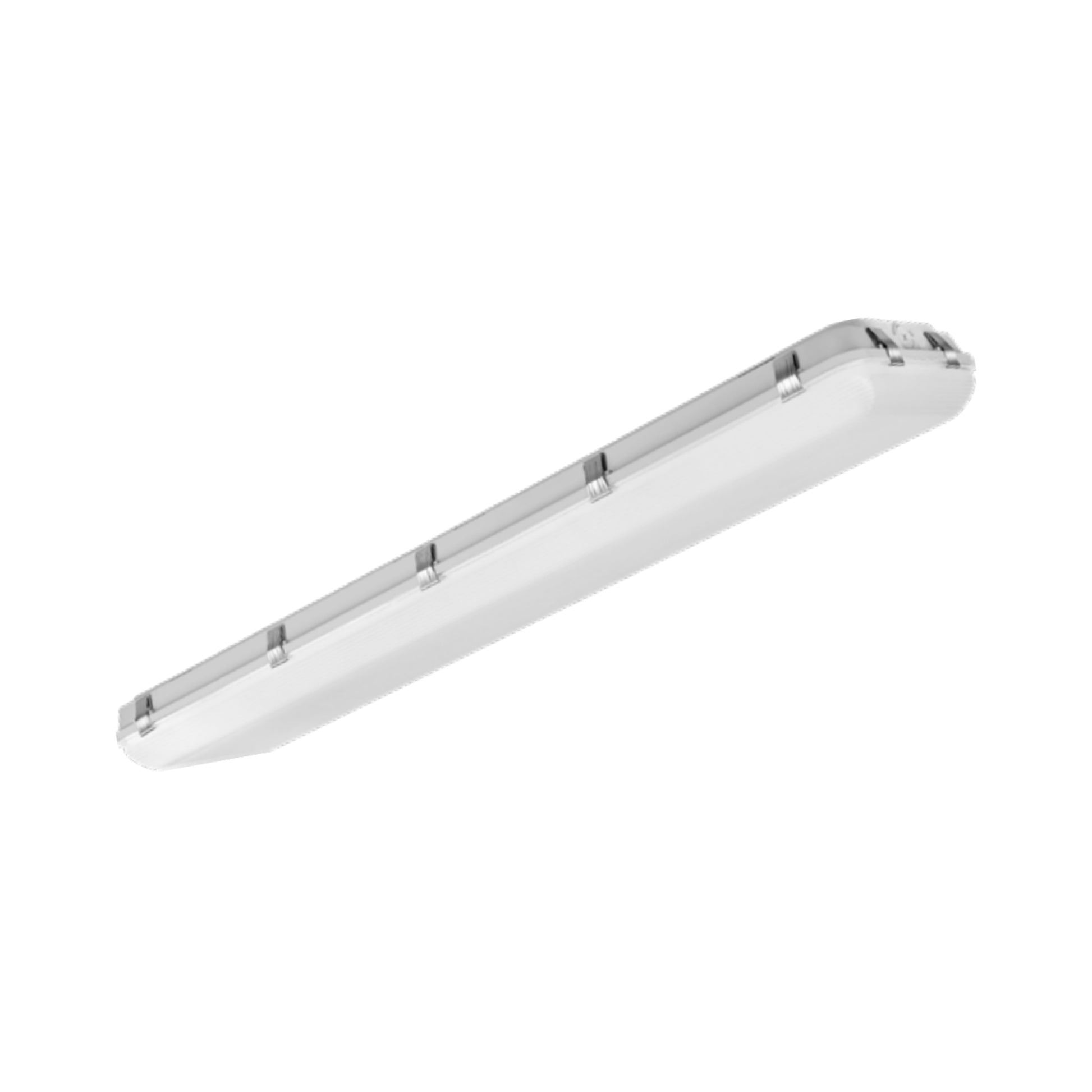

LEDVANCE Sylvania 66309 Performance Class Dual Selectable 4ft Wide Vapor Tight — 265W — 3500K/4000K/5000K — 120–347V — Gray
Available in stock (100)
About this item
About this item
- Output & Equivalency: Switchable 185W/225W/265W variable power settings delivering 28,860/34,425/40,000 lumens (up to 155 lm/W) to replace 400W, 750W, or 1000W MH/HPS HID fixtures.
- Wide Washdown Enclosure: Rugged 4ft (12.1" wide) UV-stabilized polycarbonate lens and housing with stainless steel clips and NEMA 4X corrosion defense.
- Selectable CCT: Onboard switch enables instant selection between 3500K, 4000K, and 5000K switchable Kelvin color temperatures.
- 0–10V Dimming & Aux Output: Wide-range 120–347V AC driver includes 0–10V continuous dimming, 6kV surge suppression, and an internal auxiliary 12V output.
- Rebates & Ingress Defense: DLC 5.1 Premium listed, UL 1598 (cULus) wet rated, IP66 sealed, NSF Splash Zone certified, and IK08 impact rated.
Description
Description
LEDVANCE Sylvania 66309 Performance Class Dual Selectable 4ft Wide Vapor Tight — 185W/225W/265W Selectable — 3500K/4000K/5000K — 120–347V — Gray/UV-Stabilized Polycarbonate Lens
The LEDVANCE Sylvania 66309 (WVAP/PS265UNHD8SC7/48GR) is a commercial 4ft Wide Vapor Tight luminaire from the Performance Class Dual Selectable series engineered to deliver up to 40,000 lumens with field-adjustable 185W/225W/265W power settings and switchable 3500K/4000K/5000K color temperatures. Operating on wide-range 120–347V AC electrical systems with 0–10V continuous dimming, this luminaire provides an energy-efficient replacement for legacy 400W, 750W, or 1000W MH/HPS fixtures with up to 80% energy savings. Built with a UL 1598 (cULus) Wet Location rating, it is qualified for commercial utility rebates under DLC 5.1 Premium standards and features a 12.1-inch wide UV-stabilized polycarbonate enclosure with stainless steel clips, IP66 sealing, NEMA 4X corrosion protection, NSF Splash Zone certification, and IK08 impact resistance.
Key Features
- Selectable Wattage: 185W / 225W / 265W — field-adjustable multi-wattage selectable driver for variable power settings
- Wattage Equivalency: Replaces legacy 400W, 750W, or 1000W MH/HPS fixtures for up to 80% energy savings
- Maximum Lumen Output: 40,000 lm at 265W (28,860 / 34,425 / 40,000 lm steps)
- Peak Efficacy: Up to 155 lm/W (150 lm/W nominal series rating) for high-efficiency commercial operation
- CRI: >80 color rendering across all settings
- Selectable CCT: 3500K / 4000K / 5000K — field-adjustable CCT for tunable white and switchable Kelvin control
- Lens & Optics: UV-stabilized polycarbonate lens secured with stainless steel clips
- Dimming: 0–10V continuous dimming standard with internal auxiliary 12V output
- Voltage: Universal 120–347V AC constant current driver
- Location Rating: UL 1598 (cULus) Listed for wet locations
- Operating Temperature: -40°F (-40°C) to 122°F (50°C) ambient operating range
- Certifications: DLC 5.1 Premium, UL 1598 (cULus), IP66, NEMA 4X, NSF Splash Zone, IK08, FCC, RoHS, NLB Trusted Warranty Program
- Rated Life: 125,000 hours (L70)
- Warranty: 5-year limited warranty — LEDVANCE Sylvania (NLB Trusted Warranty Program)
Performance & Light Output
| Wattage | Total Lumens | Efficacy | Legacy Equivalent |
|---|---|---|---|
| 265W | 40,000 lm | 151 lm/W (Up to 155 LPW rated) | 750W HPS (68% savings) / 1000W MH (75% savings) / 1000W HPS (76% savings) |
| 225W | 34,425 lm | 153 lm/W (Up to 155 LPW rated) | 750W HPS (73% savings) / 1000W MH (79% savings) / 1000W HPS (80% savings) |
| 185W | 28,860 lm | 156 lm/W (Up to 155 LPW rated) | 400W MH (59% savings) / 400W HPS (60% savings) / 750W MH (77% savings) |
CRI >80 across all configurations. Rated life 125,000 hours (L70). Delivers high-efficiency illumination resulting in significant energy reduction compared to traditional HID systems.
Smart & Control Features
The 66309 (WVAP/PS265UNHD8SC7/48GR) wide vapor tight supports standard wired dimming and optional field-installable microwave occupancy and daylight sensing:
- 0–10V Continuous Dimming (Standard): Dims smoothly on standard 0–10V low-voltage control circuits and includes an internal auxiliary 12V output for sensor integration.
- Field-Installable Microwave Motion/Daylight Sensor (Accessory): Compatible with the internal field-installed Microwave Motion/Daylight Sensor (catalog # 66347 / MOTIONDAYSENSORMICRO12M, up to 39 ft / 12m max mounting height, sold separately).
Default settings on sensor 66347 can be customized using the optional sensor remote (catalog # 66592 / HIBAYSENSORG2REMOTE, functional up to 49 ft / 15m, or remote 60105, sold separately).
Electrical
Powered by a wide-range constant current driver operating on 120–347V AC. Delivers high electrical efficiency with a Power Factor >90% and Total Harmonic Distortion (THD) <20%. Integrated 6kV surge suppression protects internal electronics against transient voltage spikes. Includes 0–10V dimming leads and an internal auxiliary 12V output.
Emergency Battery Backup: Available in factory-configured emergency battery backup configurations (`E` models, sold separately) rated for -4°F (-20°C) to 122°F (50°C) ambient operation.
Construction
Durability & Impact Protection: Wide-body housing and UV-stabilized polycarbonate lens secured with stainless steel clips engineered for high-lumen thermal dissipation. IK08 rated for protection against mechanical impact, paired with a NEMA 4X corrosion-resistant rating and NSF Splash Zone certification for commercial sanitation environments.
Ingress Protection: IP66 rated and UL 1598 (cULus) wet location listed for complete protection against airborne dust and powerful water jets.
Operating Temperature: -40°F (-40°C) to 122°F (50°C) ambient operating range.
Lens & Optics: UV-stabilized polycarbonate lens for uniform, glare-controlled wide distribution.
Finish: Gray finish formulated for high resistance against corrosion and surface wear.
Dimensions & Weight: 49.20" L × 12.10" W × 4.30" H (1250mm L × 308mm W × 110mm H). Fixture weight: 24.0 lbs (10.9 kg).
Installation & Mounting
Standard Mounting: Supplied standard with stainless steel surface mounting brackets and V-hooks for suspended mounting.
Accessories (Sold Separately):
- Mounts & Hardware: 60573 / LNHIBA2A/CHAINMT (5-foot Chain Mount, 1 pair, sold separately), 60574 / LNHIBA2A/ACCABLEMT (5-foot Cable Mount, 1 pair, sold separately), 62618 / VAPOR3A/CLIPS (Replacement Lens Clips, 10 per bag, sold separately)
- Sensors & Controls: 66347 / MOTIONDAYSENSORMICRO12M (Internal Field-Installed Microwave Motion/Daylight Sensor, 39 ft max mounting height, sold separately), 66592 / HIBAYSENSORG2REMOTE (Sensor Remote functional up to 49 ft / 15m, sold separately), 60105 (Remote Control, sold separately)
Certifications & Rebates
- DLC 5.1 Premium: Qualifies for maximum tier commercial utility rebate incentives across regional energy programs. To confirm rebate eligibility with your local utility provider, visit designlights.org and search model 66309 or WVAP/PS265UNHD8SC7/48GR.
- UL 1598 (cULus) Listed: Certified for wet locations (UL File E486908).
- NSF: NSF Splash Zone certified for food-service and commercial sanitation environments.
- NEMA & IK Ratings: NEMA 4X rated for corrosion and washdown defense; IK08 impact certified.
- FCC & RoHS Compliant: Complies with FCC electromagnetic interference limits and RoHS hazardous substance restrictions.
- NLB Trusted: Verified under the National Lighting Bureau Trusted Warranty Program.
Typical Applications
- High-Bay Manufacturing & Industrial Plants — Up to 40,000 lumens from a 12.1-inch wide 4ft body replaces high-wattage 400W, 750W, or 1000W MH/HPS high bays.
- Tunnels & Underground Infrastructure — IP66, NEMA 4X, 6kV surge suppression, and IK08 impact protection withstand wet, dusty, and corrosive environments.
- Food & Beverage Processing Facilities — NSF Splash Zone certification and stainless steel clips endure frequent sanitation washdowns.
- Cold Storage & Refrigerated Warehouses — Wide 120–347V AC input and cold-weather starting deliver reliable high-output illumination in freezer aisles.
- Heavy Fleet Maintenance & Wash Bays — UV-stabilized polycarbonate lens and sealed enclosure protect internal LED arrays against high-pressure water spray.
What's Included
- LEDVANCE Sylvania 66309 (WVAP/PS265UNHD8SC7/48GR) Performance Class Dual Selectable 4ft Wide Vapor Tight — Gray
- Stainless steel mounting brackets and V-hooks
- Installation and operation manual
