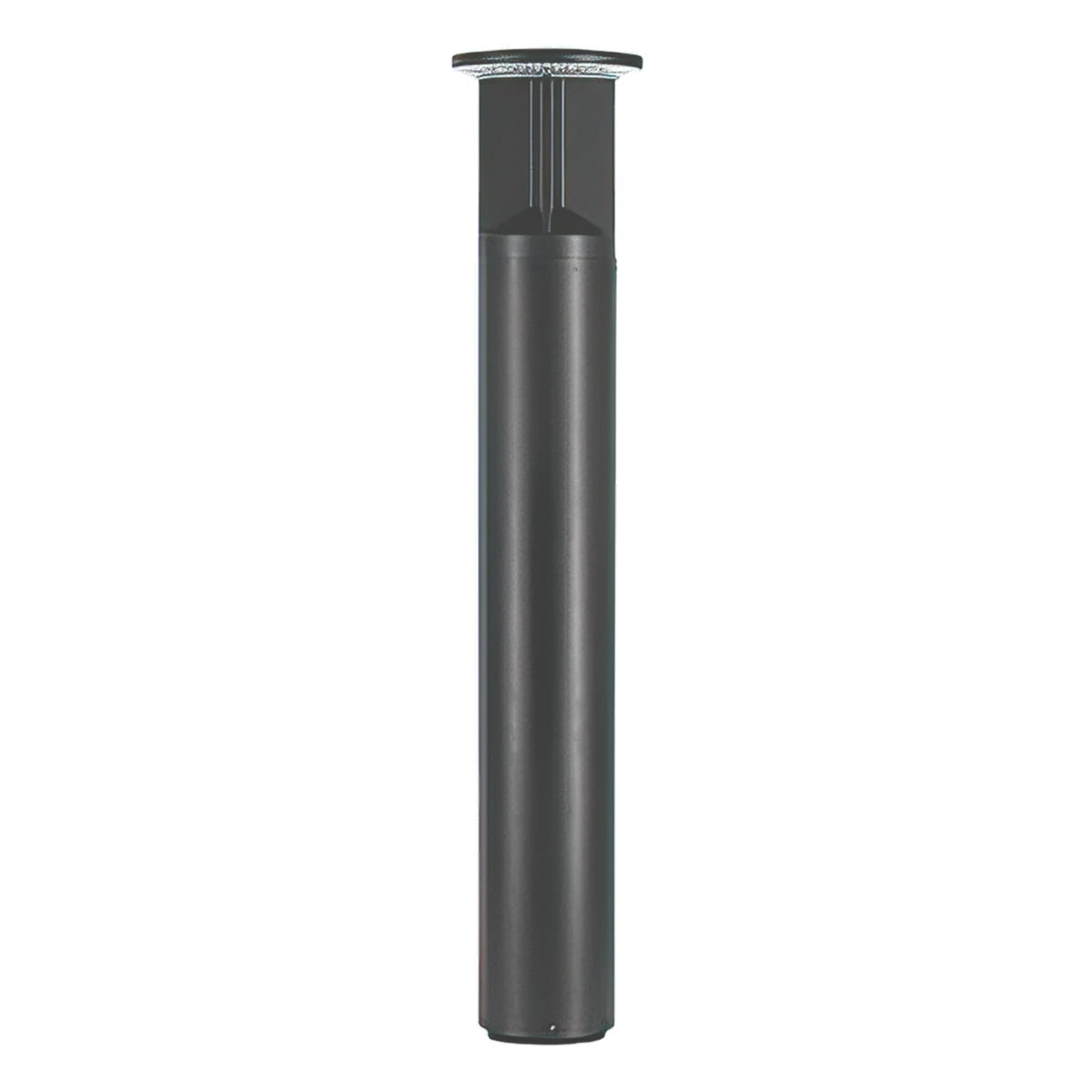

Sylvania Dual Selectable Bollard Light 2650 Lumens 24W 3000K/4000K/5000K 120-347V Opti-Select Gray

Vendor: Sylvania

SKU: SYLV-66281

$299.90
$0.00
Shipping calculated at checkout.
Color: Gray
Distribution: Opti-Select

In stock

Must be ordered in quantities of .

About this item
  • Lumens: This bollard delivers up to 2650 lumens, ensuring bright illumination for outdoor areas.
  • Wattage: This bollard operates at a selectable wattage of 16/20/24W for versatile applications.
  • Input Voltage: Operates on a wide range of 120-347V, suitable for various installations.
  • Beam Angle: OPTISELECT distribution beam angles of 90, 180, 270, and 360 degrees for customized light distribution.
  • IP Rating: Rated IP65 for protection against dust and water, ideal for outdoor use.
View More Details
Payment & Security
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa

We process payments securely and do not store credit card information.

Description

LEDVANCE BOLLARD 2A — 24W Configuration

The 66281 bollard is a versatile lighting solution offering up to2650 lumenswith a selectable wattage of16/20/24W. It supports a wide input voltage range of120-347VAC, making it suitable for various outdoor applications. This bollard isIP65 ratedfor wet locations, ensuring reliable performance in challenging environments. The integrated photocell and selectable CCT (3000K, 4000K, 5000K) enhance its adaptability for different lighting needs.

Key Features

  • Selectable Lumens and Wattage:Offers flexibility with 1800/2200/2650 lumens and 16/20/24W options.
  • Color Temperature:Field-selectable CCT options of 3000K, 4000K, and 5000K.
  • Photocell Integration:Includes an integrated photocell for automatic lighting control.

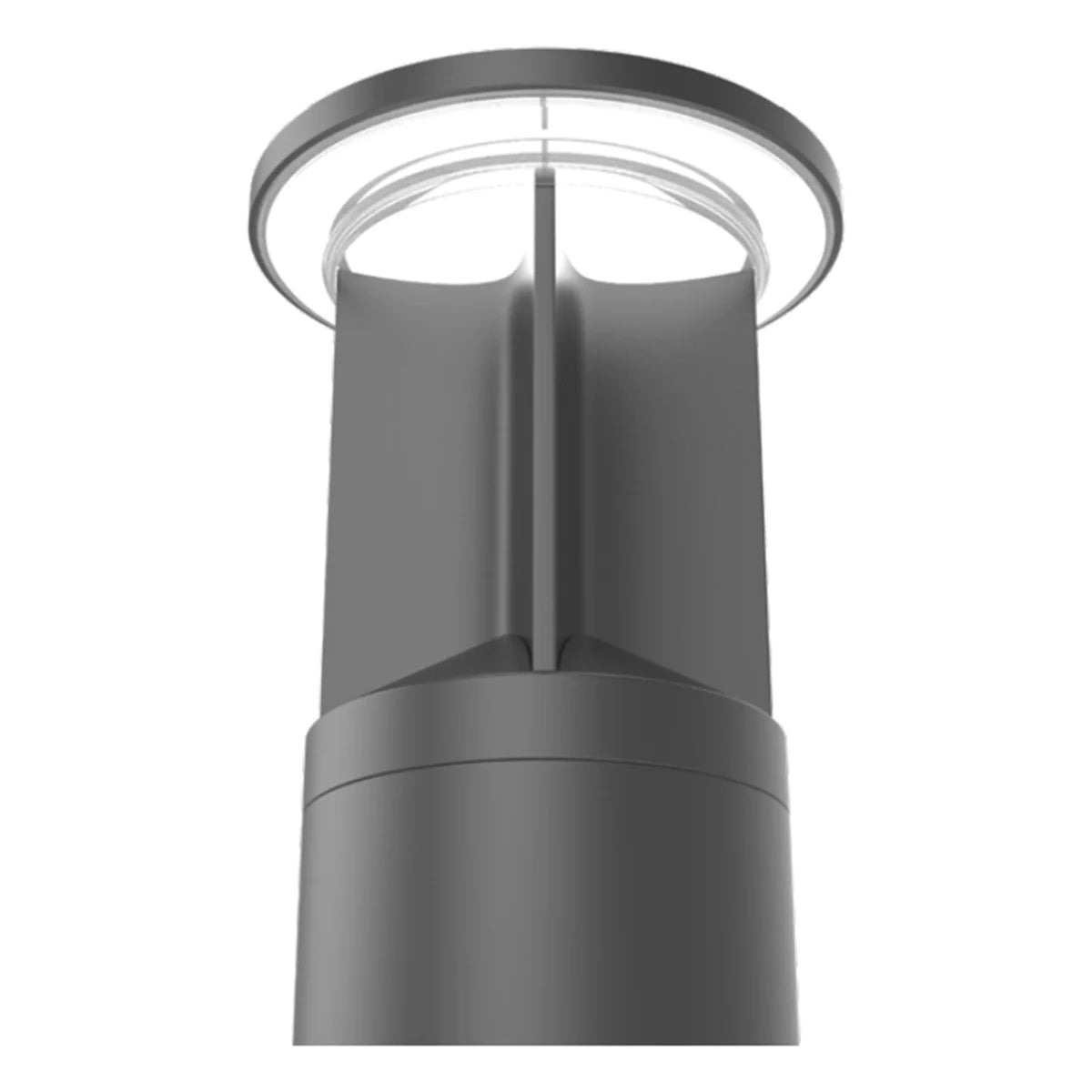

  • Distribution Pattern:Features OPTISELECT field-selectable illumination zones (90, 180, 270, and 360°).
  • Energy Efficiency:DLC 5.1 Standard Listing assures high energy efficiency and qualifies this product for utility rebates.
  • Durability:Constructed with a gray finish and an IP65 rating for wet locations.
  • Surge Protection:Equipped with 10kV surge protection for enhanced safety.
  • Dimming Capability:Supports 0-10V dimming for adjustable light levels.
  • Long Lifespan:Rated for 100,000 hours (L70) at 25°C, ensuring longevity.
  • High CRI:CRI >80 for accurate color rendering.

Typical Applications

  • Walkways
  • Parking lots
  • Gardens
  • Outdoor areas
  • Pathways

Performance & Light Output

This bollard provides up to 2650 lumens with an efficacy of up to 109 LPW. It features a CRI greater than 80 and comes with OPTISELECT field-selectable illumination zones.

Electrical & Controls

Operates on 120-347VAC with a power factor >0.9 and THD <20%. It includes 0-10V dimming capability and 10kV surge protection, alongside an integrated photocell for dusk-to-dawn operation. Its operating temperature ranges from -40°F to +122°F (-40°C to +50°C).

Construction & Durability

The bollard is constructed with a gray finish and is IP65 rated for wet locations. It is cULus listed to UL1598 standards, RoHS compliant, and FCC certified. Additionally, it features a 5-year warranty through the NLB Trusted Warranty Program.

Installation & Mounting

Designed for ground mounting, the bollard installation requires 3x J-bolts and 1x triangular support, which are included.

What's Included

  • Bollard fixture
  • 3x J-bolts
  • 1x Triangular support

Specifications

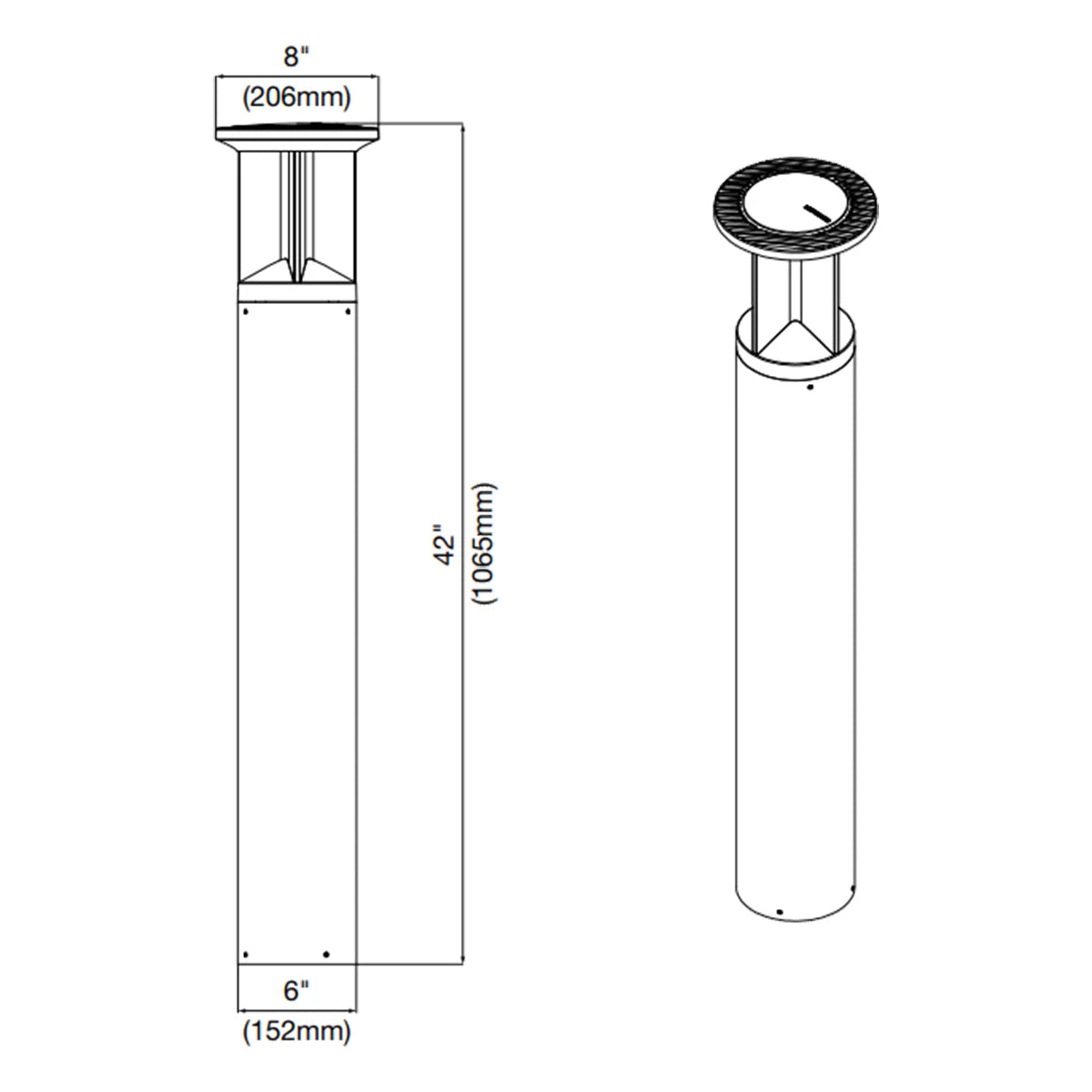

Dimensions

Length/Depth
8 in
Width/Diameter
6 in
Height
42 in
Weight
12 lb

Documents

Style & Materials

Material
Aluminum

Characteristics & Features

Lamp Color
3000K, 4000K, 5000K, Selectable CCT
Color Rendering
80 CRI
Delivered Lumens
2650
Beam Angle
90,180,270,360
Dimmable
Yes

Electrical Information

Voltage
120-347V
Total Wattage
24W

Item Details

MPN
66281
Brand
Sylvania
Catalog Number
BOLLARD2AS024UNHD8SC2R6SZGRP
Family
Dual Selectable Bollard 2A
UPC
046135662812

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
100,000 Hours
Product Rating
IP65 Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

What is the wattage range for the Sylvania 66281 bollard?
The Sylvania 66281 bollard offers a selectable wattage range of 16W, 20W, and 24W. This allows for flexible energy consumption based on lighting needs.

Is the Sylvania 66281 bollard suitable for wet locations?
Yes, the Sylvania 66281 bollard is IP65 rated for wet locations. This ensures it can withstand outdoor environments and weather conditions.

Does the Sylvania 66281 bollard support dimming?
Yes, the Sylvania 66281 bollard supports 0-10V dimming. This feature allows for adjustable light levels to suit different settings.

What color temperatures are available for the Sylvania 66281 bollard?
The Sylvania 66281 bollard offers selectable color temperatures of 3000K, 4000K, and 5000K. This provides flexibility in achieving desired lighting ambiance.

What is included with the Sylvania 66281 bollard for installation?
The Sylvania 66281 bollard includes the fixture, three J-bolts, and a triangular support. These components facilitate secure ground mounting.
