LEDVANCE SYLVANIA 66202 2FT Linear LED High Bay 41,100 Lumens 255/275/300W 4000K/5000K 277–480V White
Available in stock (200)
About this item
About this item
- Output: 36,700–41,100 lumens, 255W/275W/300W
- Controls: Integrated 0–10V dimming with pre-wired sensor base readiness
- Durability: Damp location rated; rugged IP65 construction

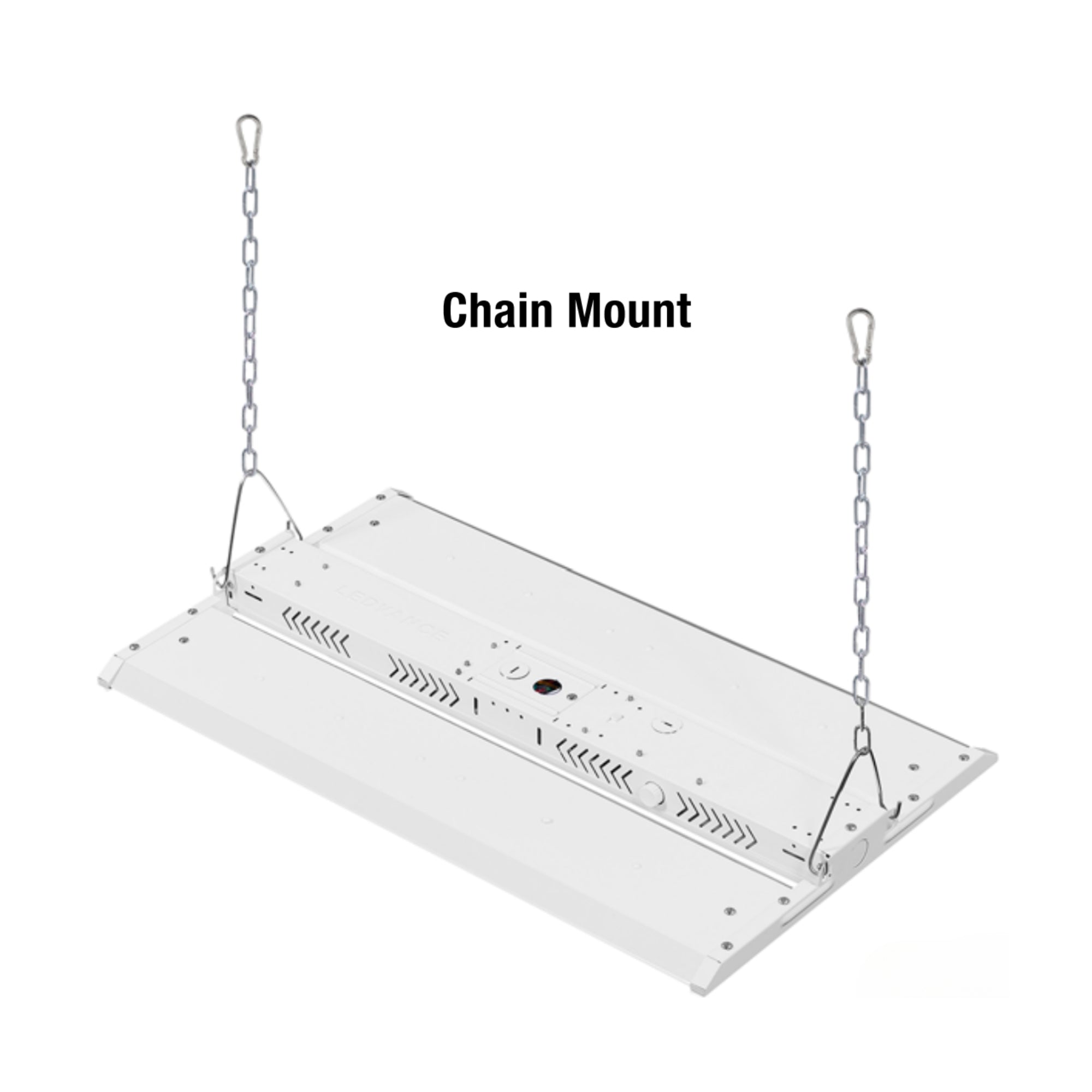

- Mounting: V-hooks with 3′ chains included for suspension
- Compliance: DLC 5.1 Premium and cULus listed
We process payments securely and do not store credit card information.
Description
Description

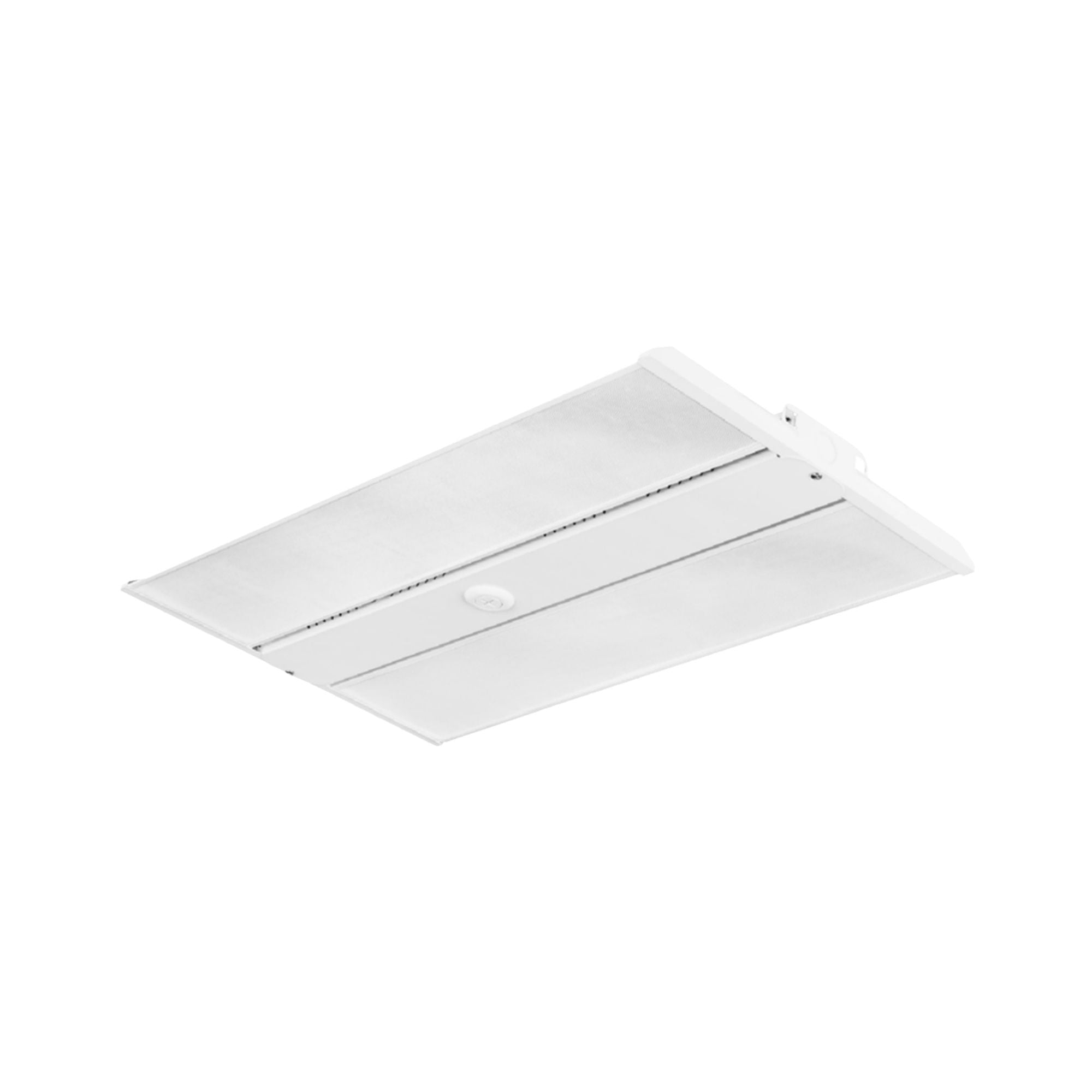

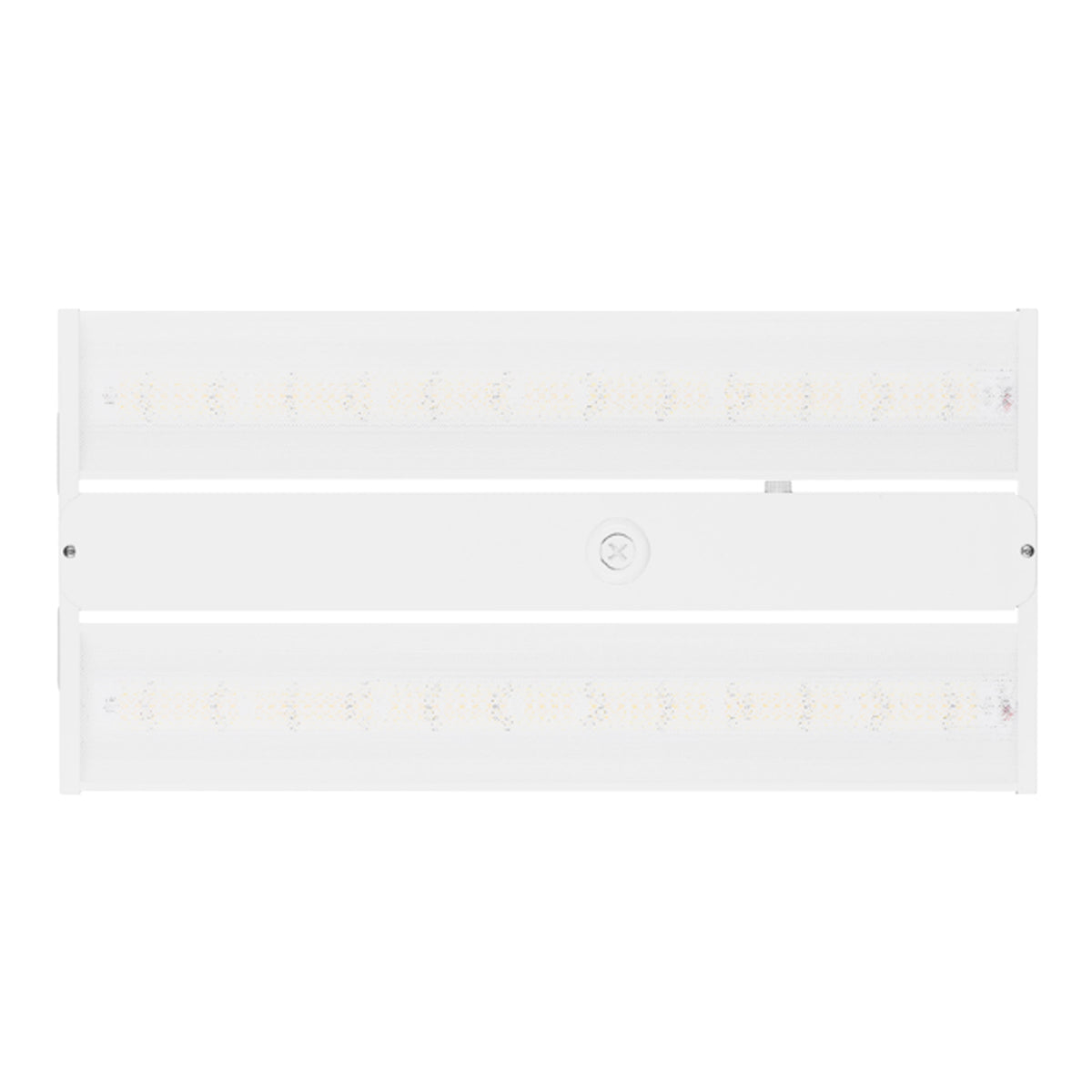

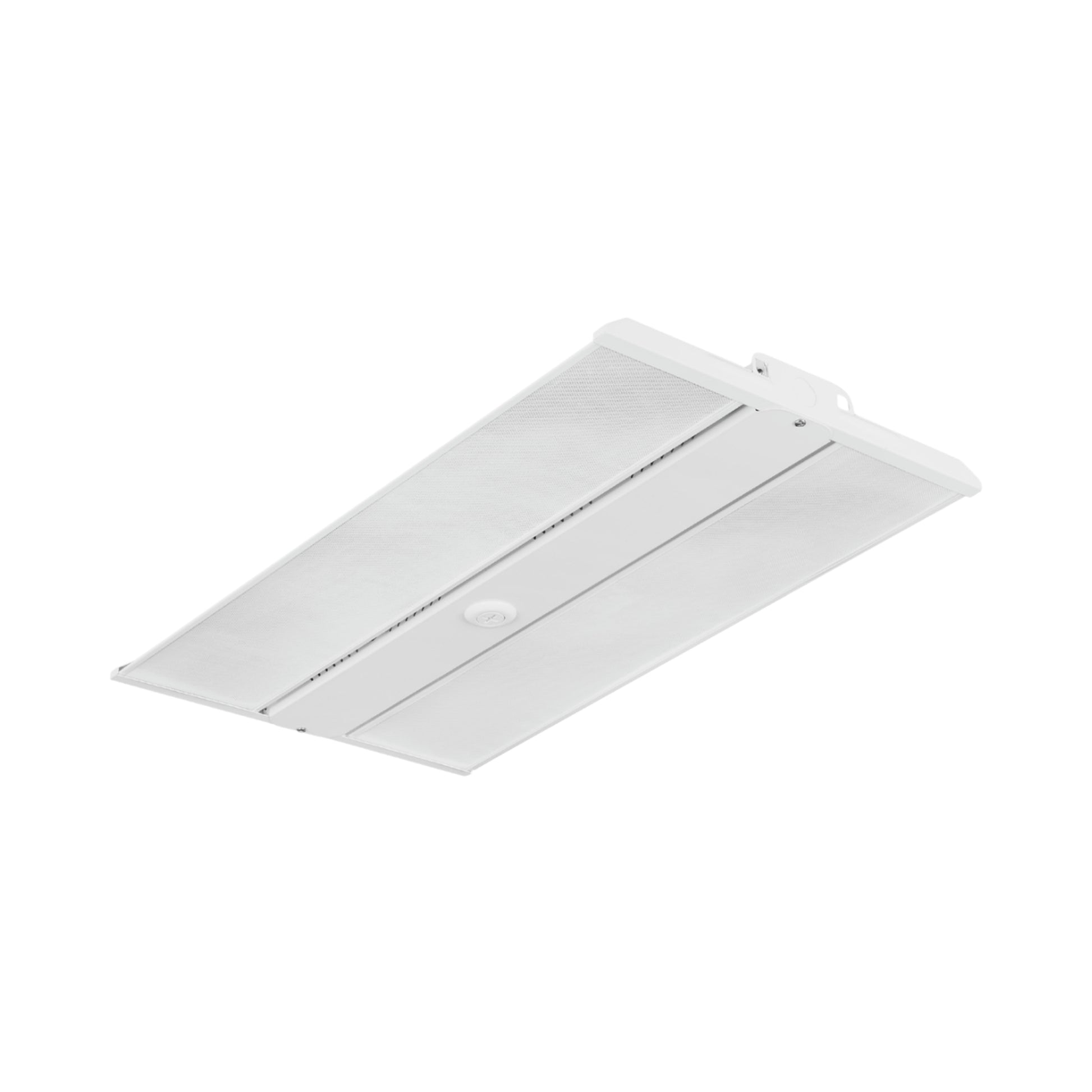

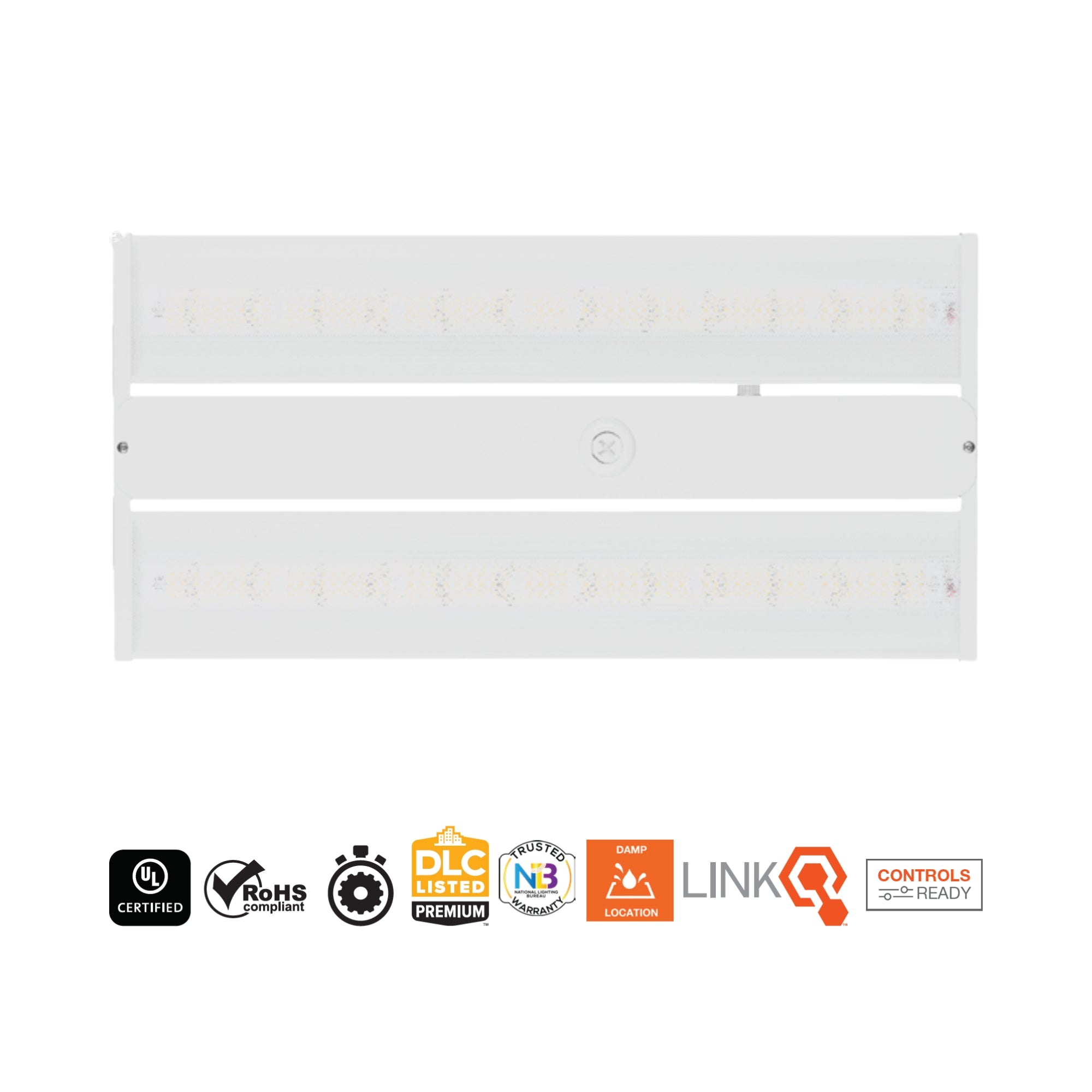

LEDVANCE SYLVANIA 66202 Dual Selectable 5A 2FT Linear LED High Bay — 255/275/300W, 277–480V
The LEDVANCE SYLVANIA 66202 Dual Selectable 5A Linear LED High Bay is a 2FT commercial high bay delivering 36,700 to 41,100 lumens. This fixture features selectable 255W/275W/300W output and selectable 4000K or 5000K color temperature. It operates on 277–480V and is rated for damp locations. Designed for high-ceiling industrial and warehouse environments, this model includes a pre-wired sensor base for optional motion/daylight control integration.

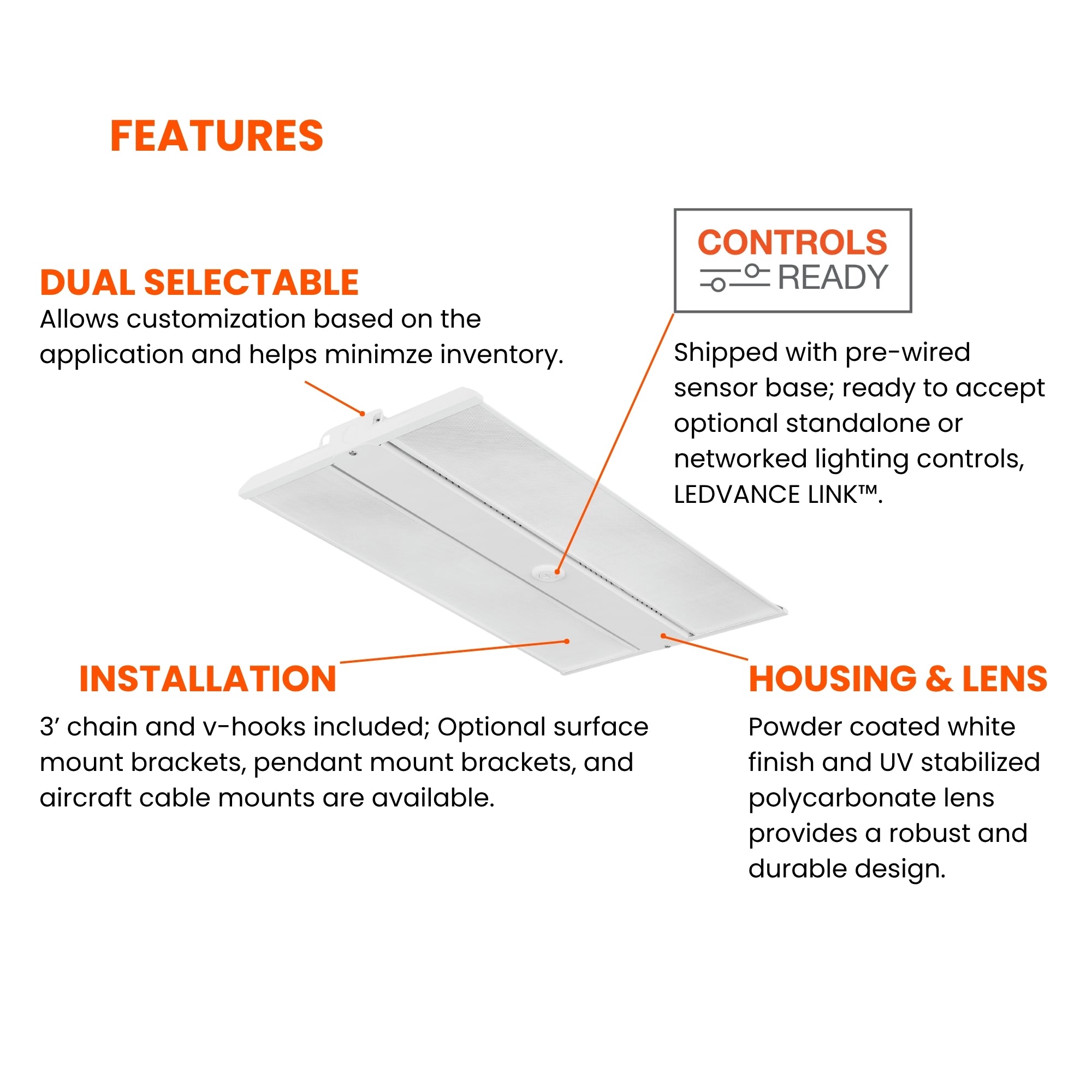

Key Features:

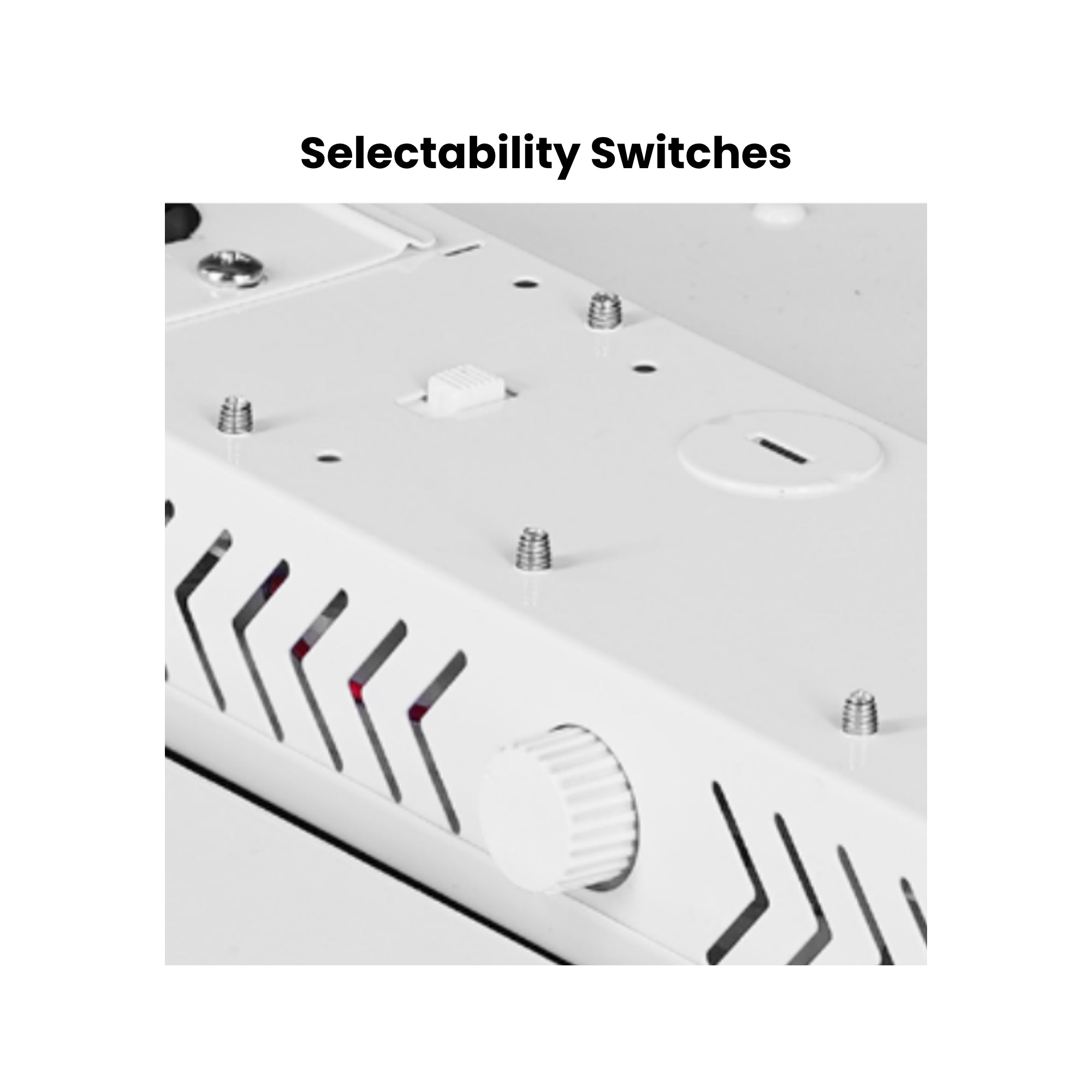

- Selectable Wattage: 255W / 275W / 300W
- Selectable CCT: 4000K / 5000K
- Delivered Lumens (@4000K): 36,700 / 38,700 / 41,100
- Efficacy: Up to 144 lm/W
- Voltage: 277–480V
- Dimming: 0–10V
- CRI: >80
- Surge Protection: 6kV
- Power Factor: >0.9
- THD: <20%
- Rated Life: 100,000 hours (L70)
- Sensor-Ready: Pre-wired screw-in sensor base
- Certifications: cULus Listed, DLC 5.1 Premium, RoHS
- Location Rating: Damp Location

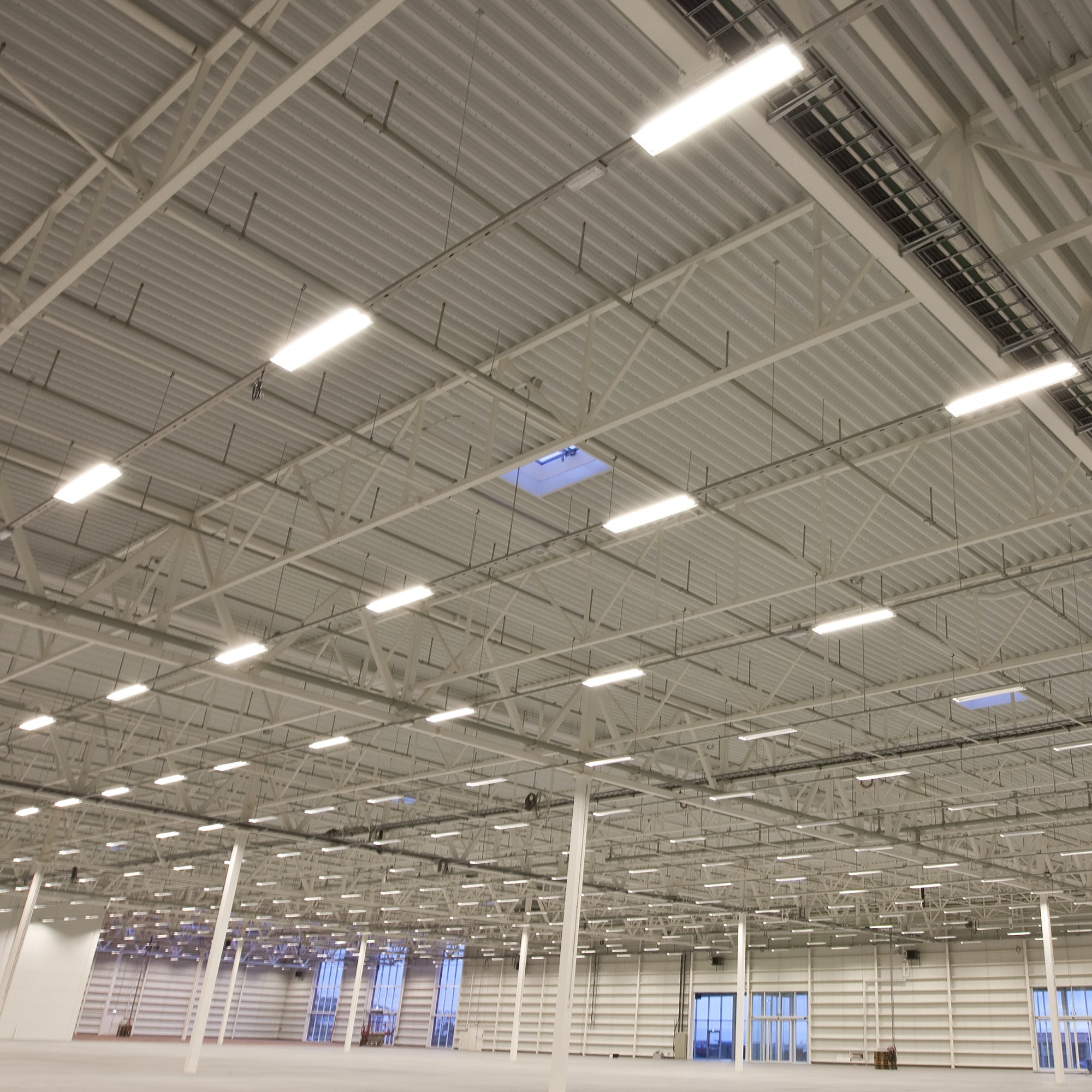

Typical Applications:
- Warehouses
- Manufacturing facilities
- Big-box retail
- Gymnasiums
- Loading docks
Performance & Light Output:
The 66202 delivers 36,700 lumens at 255W, 38,700 lumens at 275W, and 41,100 lumens at 300W (at 4000K) with efficacy up to 144 lm/W. The fixture is rated for 100,000 hours (L70) and maintains CRI greater than 80.
Electrical & Controls:

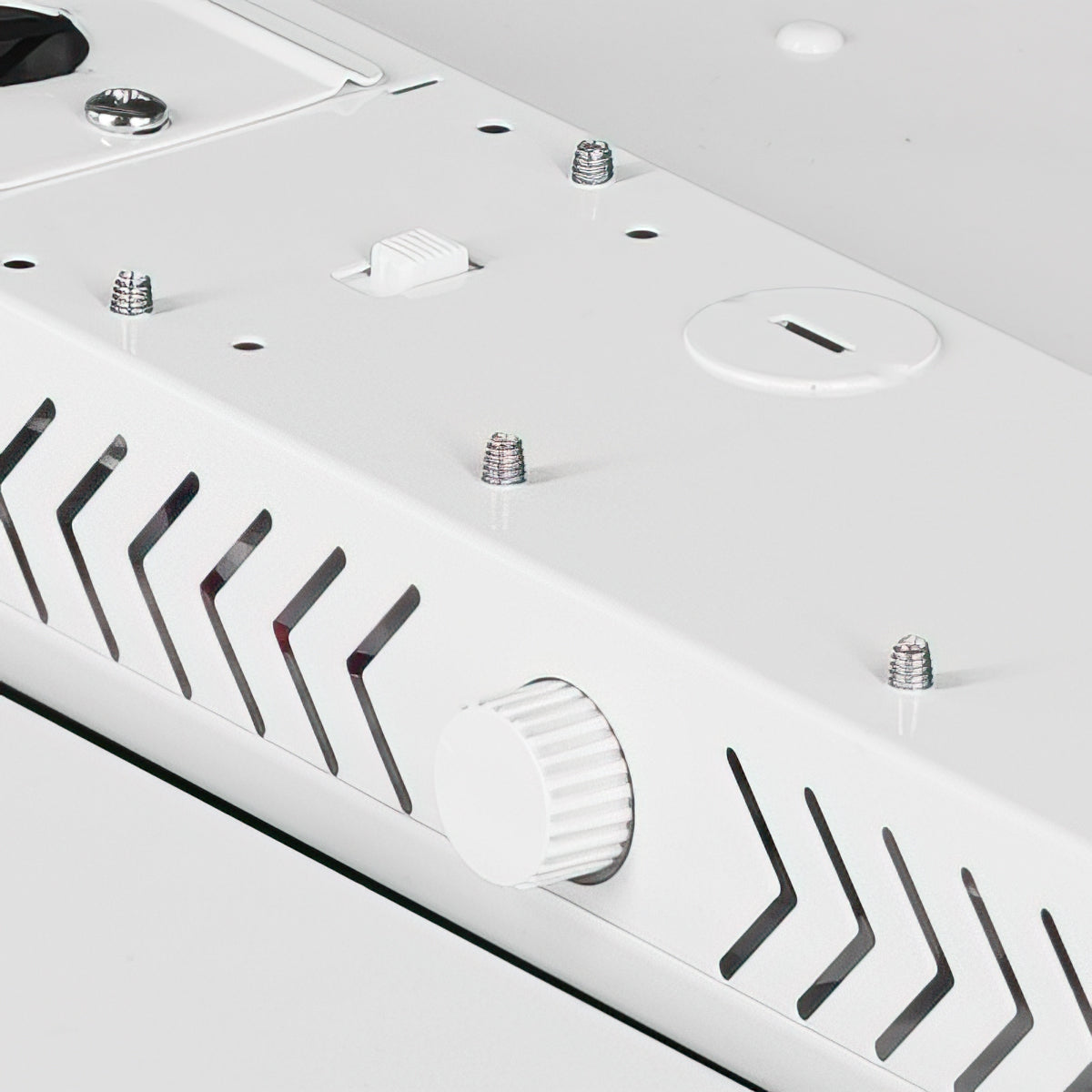

Operates on 277–480V at 50/60Hz with a constant current driver and 0–10V dimming. Surge protection is rated at 6kV. Power factor exceeds 0.9 and THD is below 20%. The pre-wired sensor base supports optional field-installable motion/daylight sensors and LEDVANCE LINK™ components.
Construction & Durability:
White steel housing with polycarbonate lens. Suitable for damp locations. Ambient operating range is -22°F to +122°F (-30°C to +50°C).

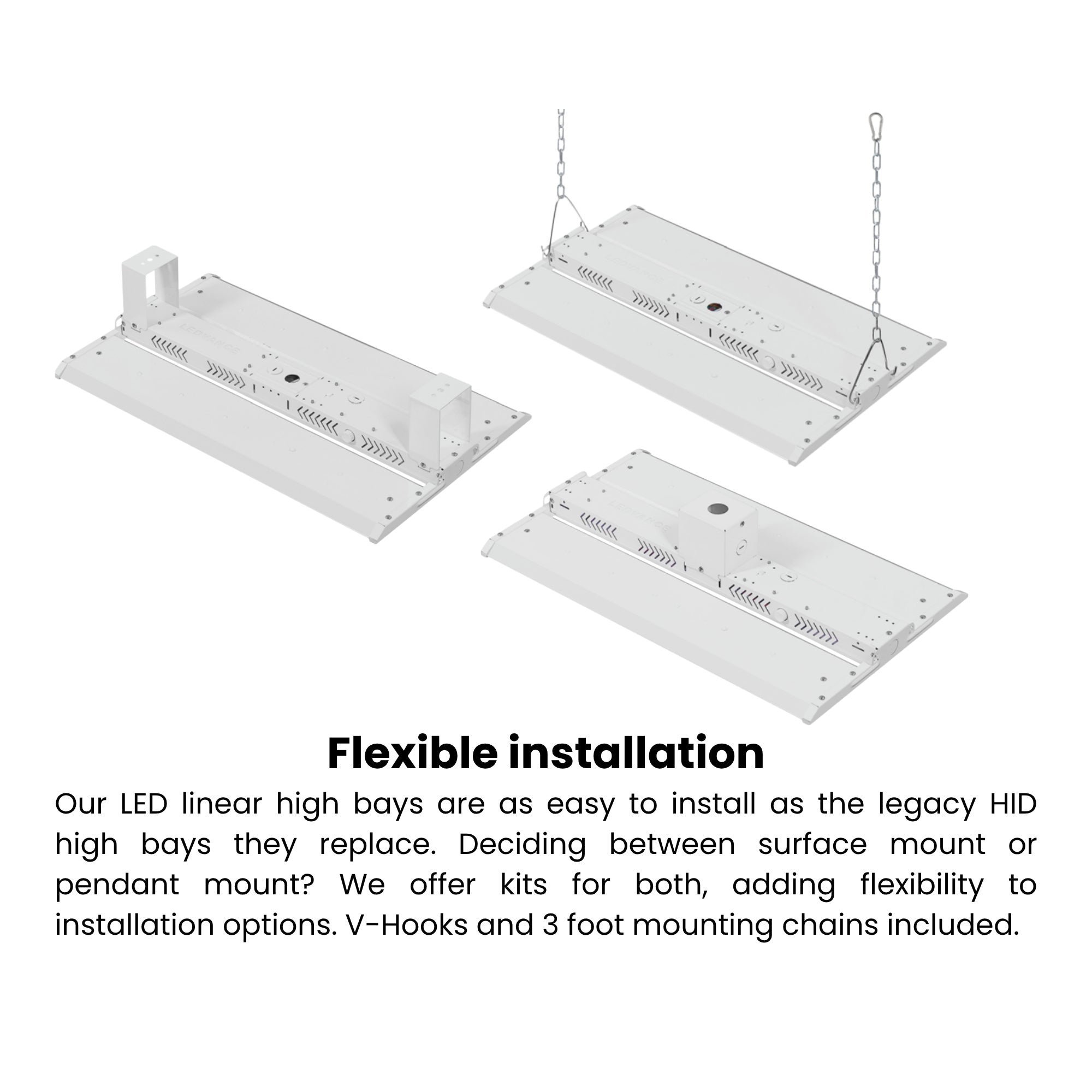

Installation & Mounting:

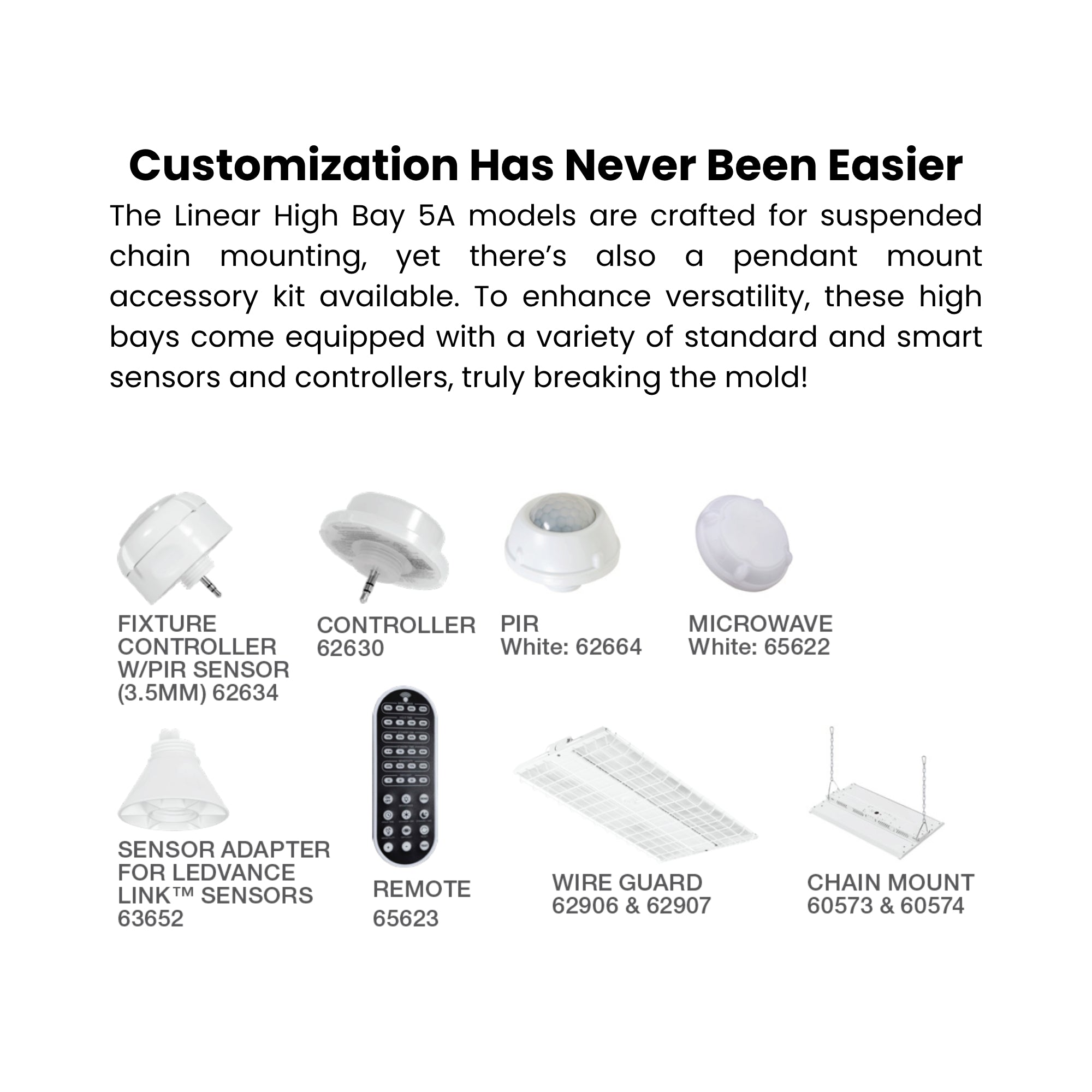

Includes V-hooks and 3-foot mounting chains for suspended installation. Optional surface mount brackets, pendant mount brackets, wire guards, and cable mounting kits are available.
Included:
Linear high bay fixture, V-hooks, and 3-foot mounting chains.
Specifications
Specifications

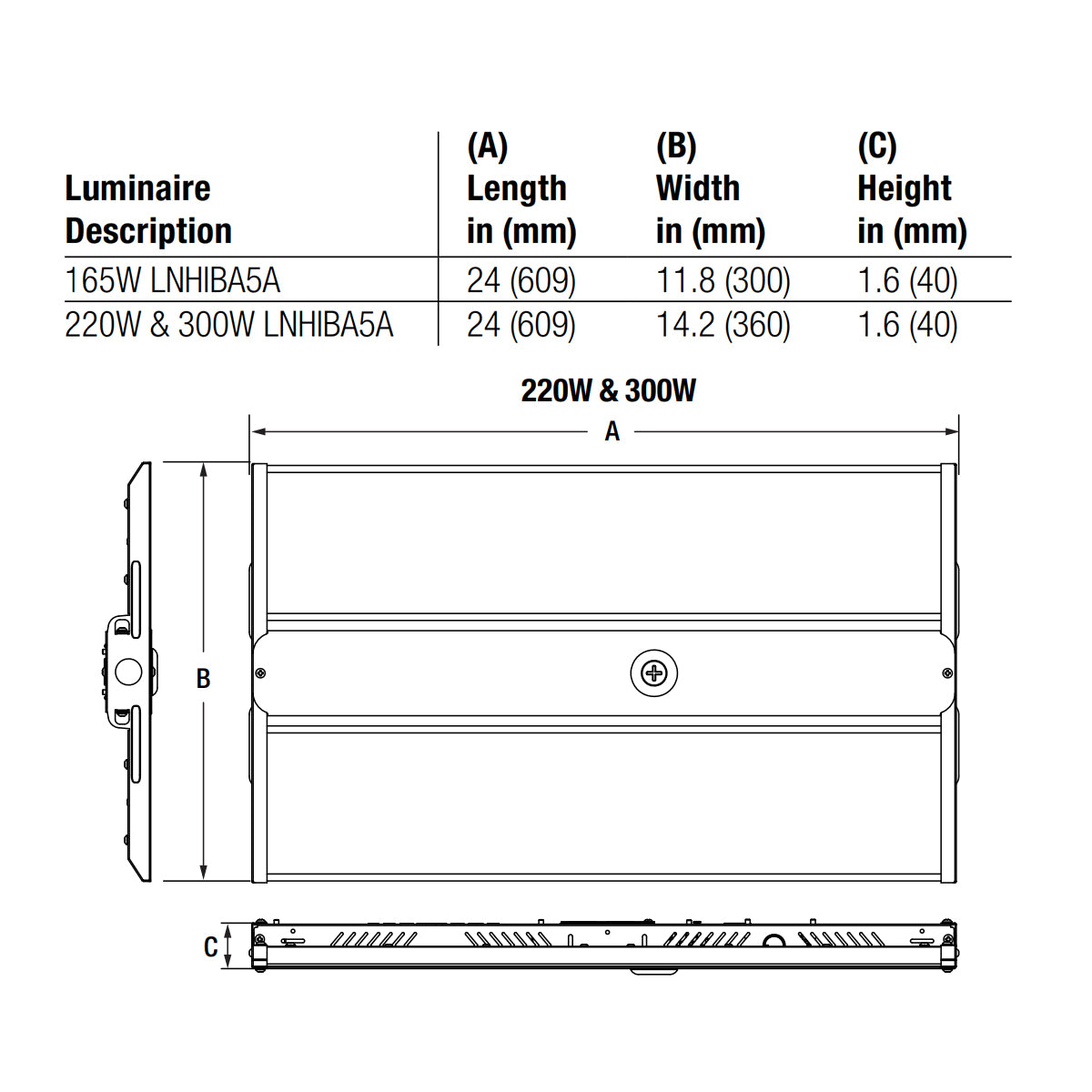

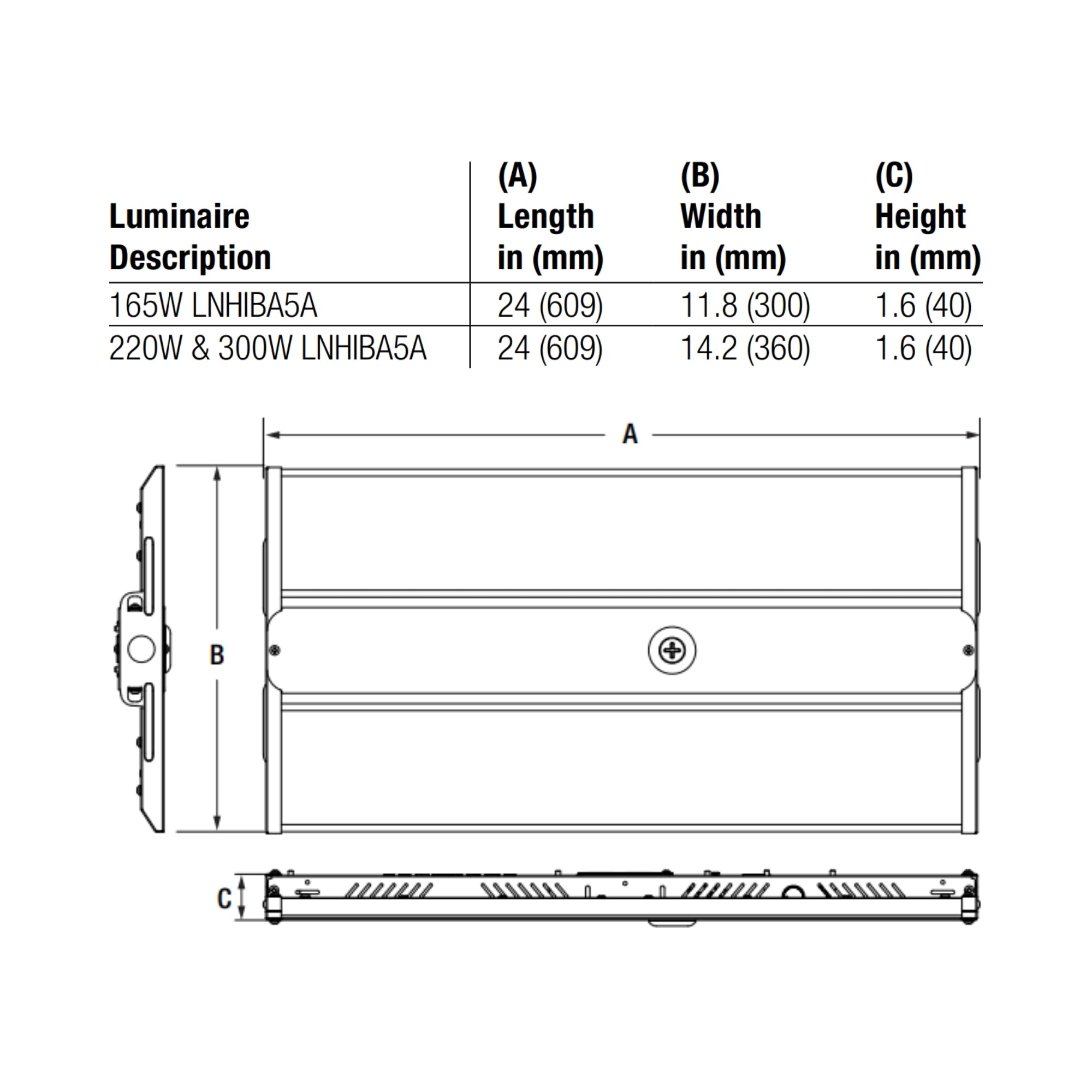

Dimensions
