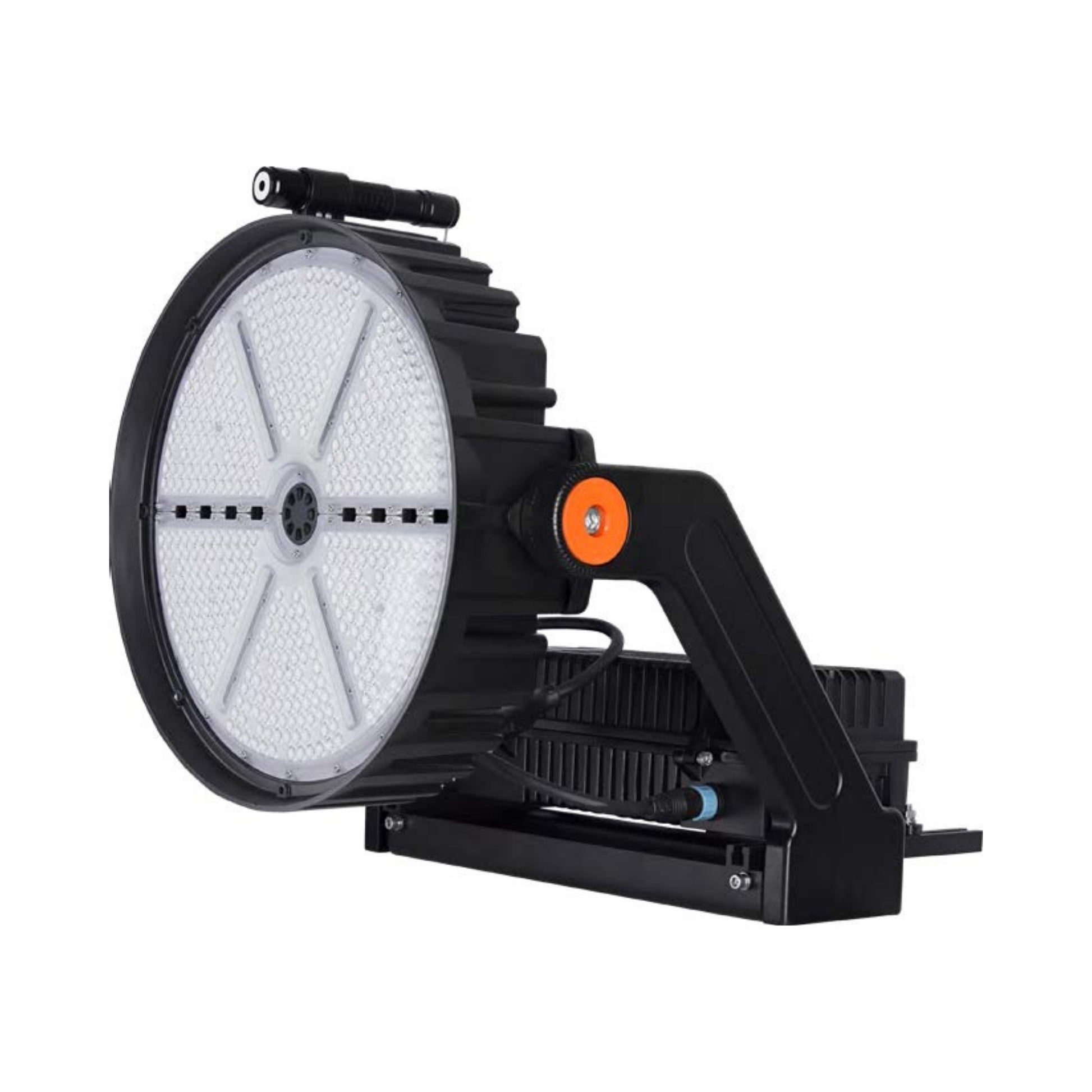

LEDVANCE Sylvania 65934 Sports Light 108750 Lumens 750W 5000K 277-480V 4Hx4V

Sylvania LEDVANCE Wattage Selectable Sports Light Flood Light — 750W Configuration

The Sylvania 65934 is a versatile flood light designed for sports arenas and industrial areas, offering 750W of power and producing 108750 lumens. It operates on 277-480V and features a 4x4 beam angle, making it ideal for large-scale lighting applications. This fixture is IP65 rated, ensuring durability in various environmental conditions.

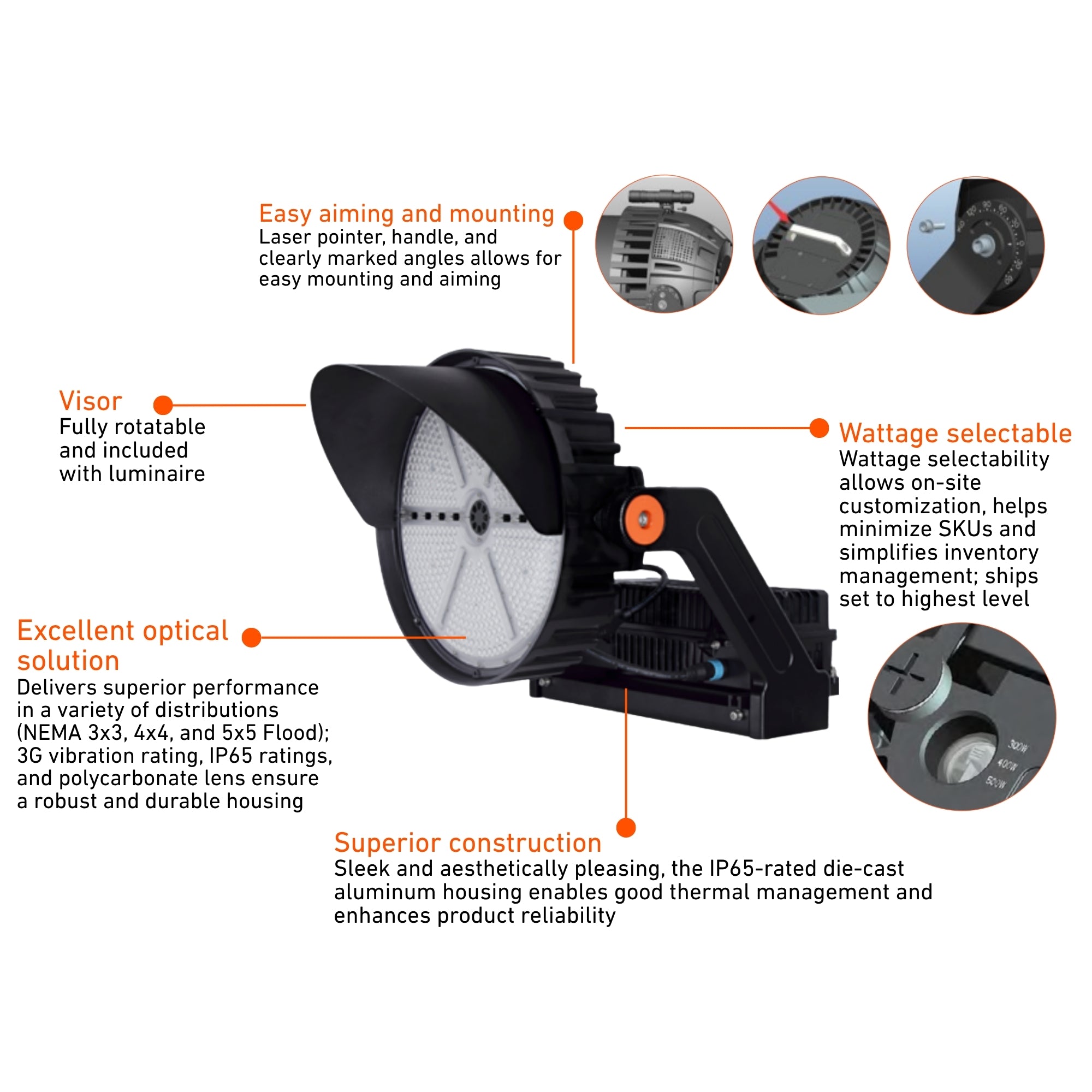

Key Features

• Wattage Selectable:Choose from 450W, 600W, or 750W settings to suit your needs.
• High Efficacy:Achieves up to 145 lumens per watt for energy-efficient performance.
• Vibration Rating:ANSI 3G vibration rating ensures stability in high-mast applications.
• Surge Protection:Equipped with 10kV surge suppression for enhanced protection.
• Remote Driver:Allows for flexible installation and easier maintenance up to 160 feet away.
• Color Temperature:Standard 5000K CCT for bright, daylight-like illumination.
• CRI:Greater than 70 for accurate color rendering.
• Finish:Powder-coated black finish for a sleek appearance.
• Dimming:Supports 0-10V dimming for adjustable light levels.
• Certifications:cULus, RoHS, FCC, and DLC 5.1 premium certified.
• Operating Temperature:Functions efficiently from -40°F to +122°F (-40°C to +50°C).

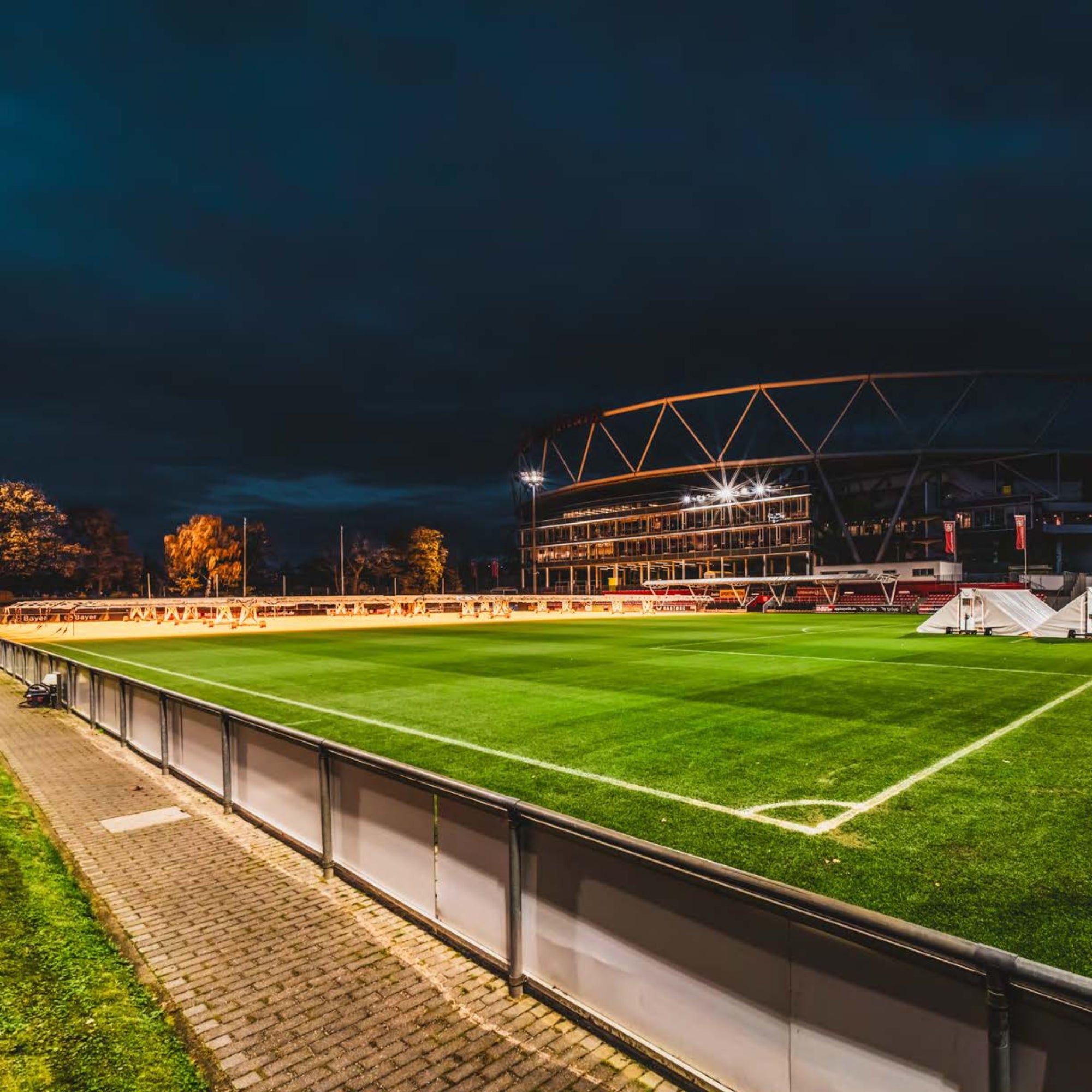

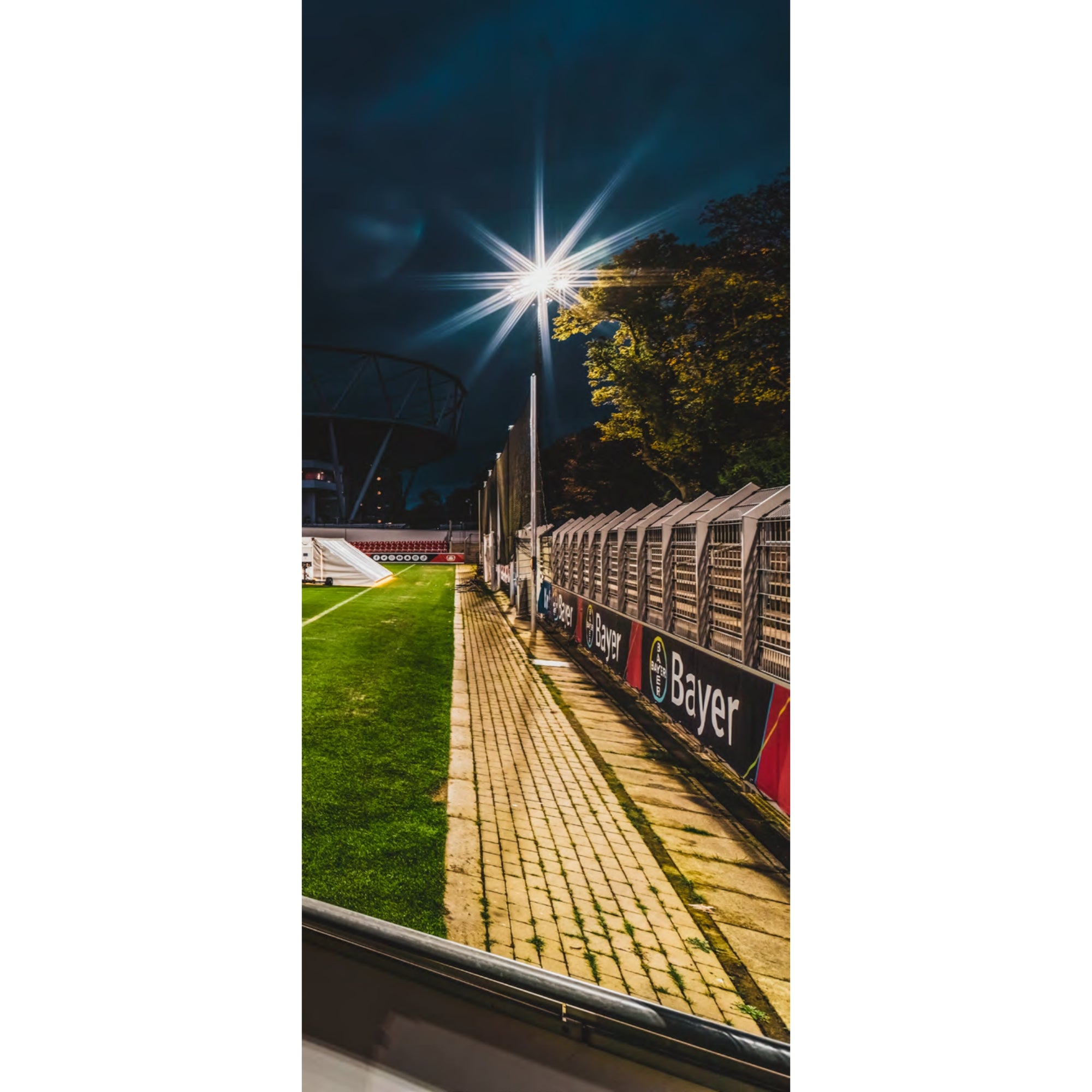

Typical Applications

• Baseball fields
• Football fields
• Soccer fields
• Tennis courts
• Municipal parks
• Industrial areas
• High-mast lighting

Performance & Light Output

This flood light delivers a robust 108750 lumens with a high efficacy of up to 145 LPW, ensuring bright and efficient lighting. It maintains a CRI greater than 70, providing clear and accurate color representation. The fixture is designed for a long lifespan of 100,000 hours (L70).

Electrical & Controls

Operating on a voltage range of 277-480V, the Sylvania 65934 flood light includes a 0-10V dimmable driver with a power factor greater than 0.9 and THD less than 20%. It features 10kV surge protection for added reliability.

Construction & Durability

Constructed with a robust polycarbonate lens and powder-coated black finish, this fixture is IP65 rated for wet locations, ensuring durability in harsh environments. It meets ANSI C136.31 3G vibration standards.

Installation & Mounting

The fixture includes a yoke mount, visor, and laser pointer for precise aiming. Optional slipfitter accessories are available for different mounting needs.

What's Included

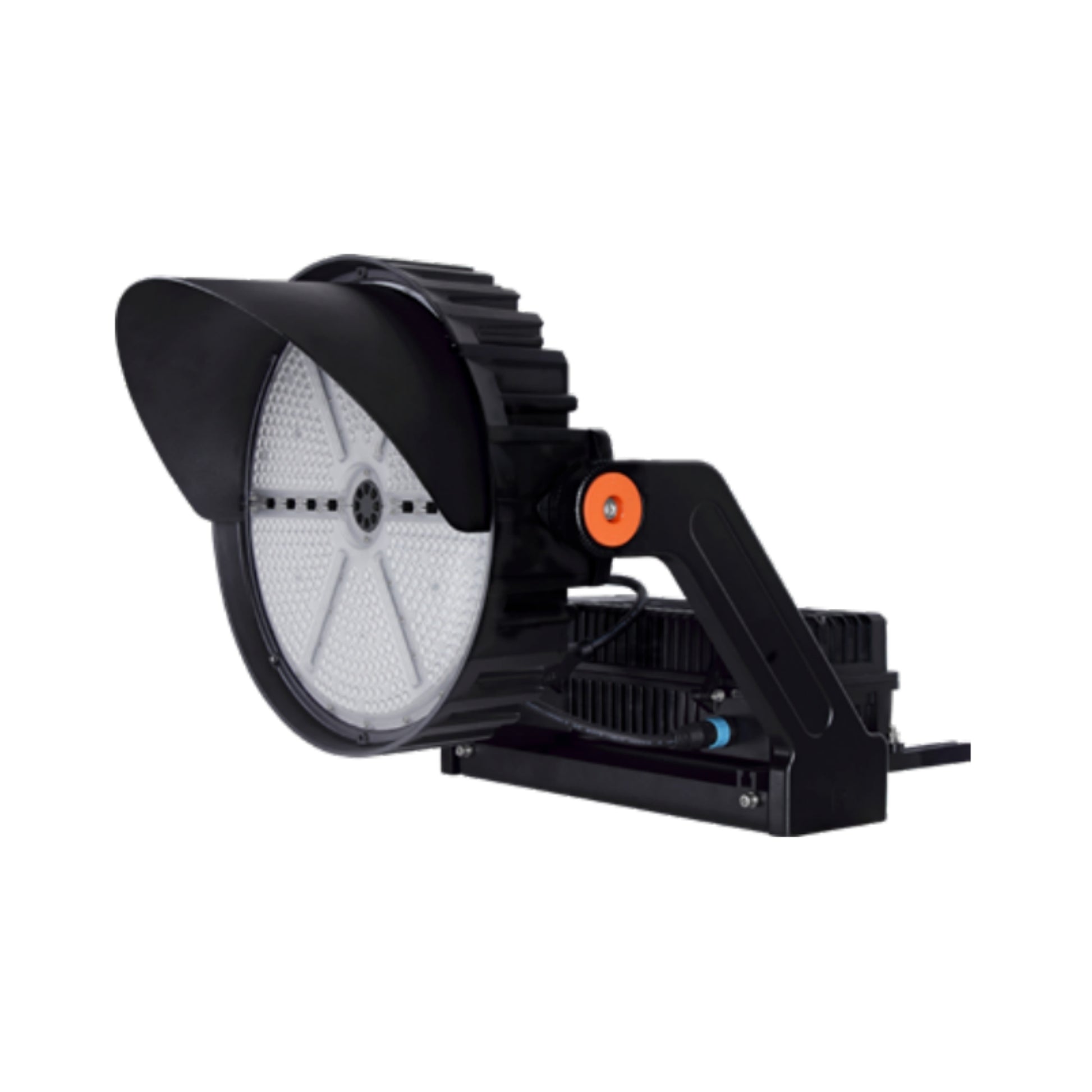

• Visor
• Yoke mount
• Laser pointer
