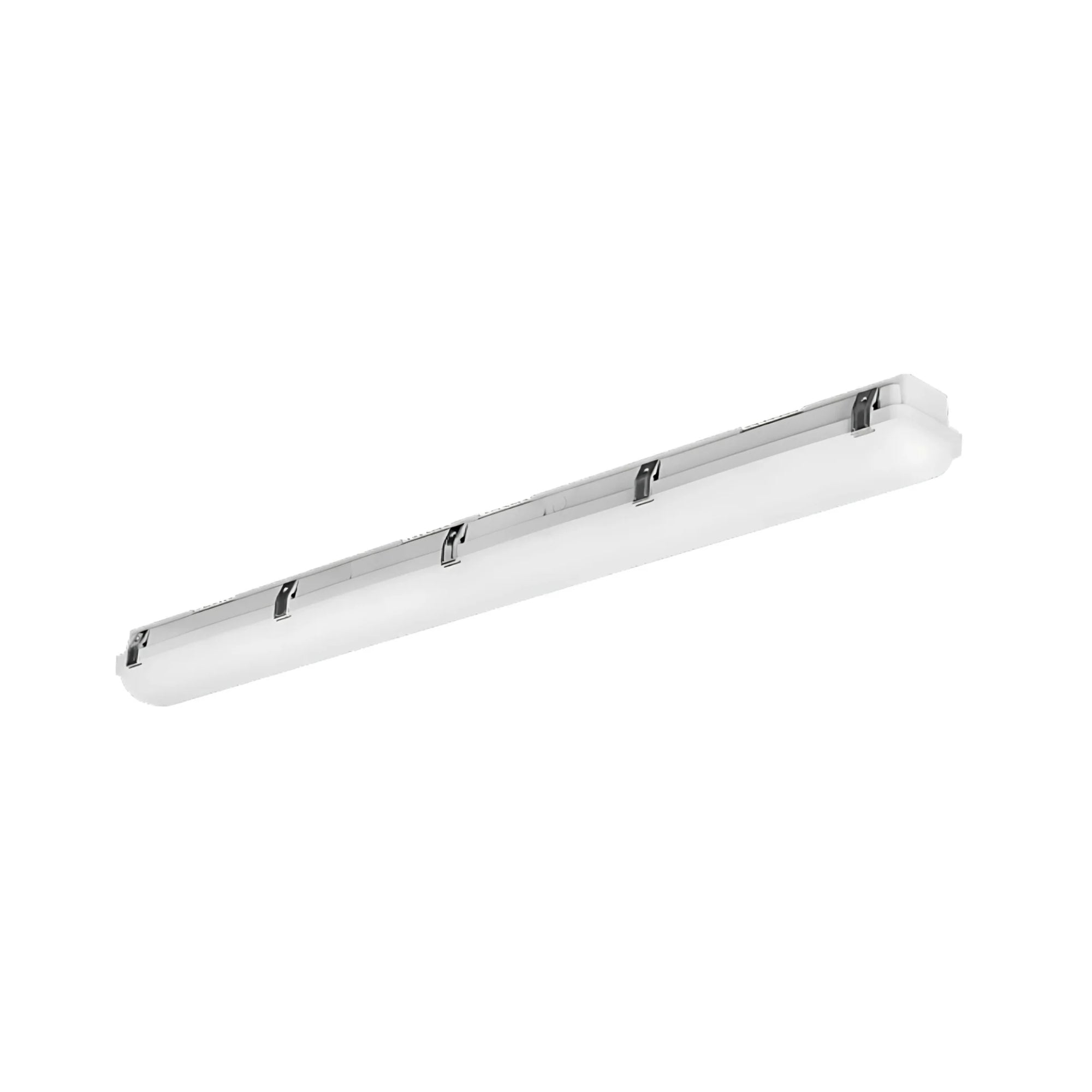

LEDVANCE Sylvania 65906 Performance Class Dual Selectable 4ft Vapor Tight ILT — 50W — 3500K/4000K/5000K — 120–347V
Available in stock (100)
About this item
About this item
- Output & Equivalency: Switchable 20W/30W/40W/50W variable power settings delivering 2,860/4,260/5,640/7,000 lumens (up to 140 lm/W) to replace 1x32W T8, 2x32W T8, 3x28W T8, or 3x32W T8 fluorescent fixtures.
- Integrated Tray & Lens: Rugged 4ft enclosure with an integrated tray and UV-stabilized polycarbonate lens secured by stainless steel clips for quick installation.
- Selectable CCT: Onboard switch enables instant selection between 3500K, 4000K, and 5000K switchable Kelvin color temperatures.
- 0–10V Dimming & Aux Output: Wide-range 120–347V AC driver includes 0–10V continuous dimming, 2.5kV surge suppression, and an auxiliary 12V output.
- Rebates & Ingress Defense: DLC 5.1 Premium listed, UL 1598 (cULus) wet rated, IP66 sealed, NEMA 4X rated, NSF Splash Zone certified, and IK08 rated.
Description
Description
LEDVANCE Sylvania 65906 Performance Class Dual Selectable 4ft Vapor Tight ILT — 20W/30W/40W/50W Selectable — 3500K/4000K/5000K — 120–347V — UV-Stabilized Polycarbonate Lens
The LEDVANCE Sylvania 65906 (VAPORILT/S050UNHD8SC7/48) is a commercial 4ft Vapor Tight ILT luminaire from the Performance Class Dual Selectable series engineered to deliver up to 7,000 lumens with field-adjustable 20W/30W/40W/50W power settings and switchable 3500K/4000K/5000K color temperatures. Operating on wide-range 120–347V AC electrical systems with 0–10V continuous dimming, this luminaire provides an energy-efficient replacement for legacy 1x32W T8, 2x32W T8, 3x28W T8, or 3x32W T8 fluorescent fixtures with up to 49% energy savings. Built with a UL 1598 (cULus) Wet Location rating, it is qualified for commercial utility rebates under DLC 5.1 Premium standards and features an integrated tray and UV-stabilized polycarbonate lens with stainless steel clips, IP66 sealing, NEMA 4X corrosion protection, NSF Splash Zone certification, and IK08 impact resistance.
Key Features
- Selectable Wattage: 20W / 30W / 40W / 50W — field-adjustable multi-wattage selectable driver for variable power settings
- Wattage Equivalency: Replaces legacy 1x32W T8, 2x32W T8, 3x28W T8, or 3x32W T8 fluorescent fixtures for up to 49% energy savings
- Maximum Lumen Output: 7,000 lm at 50W (2,860 / 4,260 / 5,640 / 7,000 lm steps)
- Peak Efficacy: Up to 140 lm/W for high-efficiency commercial operation
- CRI: >80 color rendering across all settings
- Selectable CCT: 3500K / 4000K / 5000K — field-adjustable CCT for tunable white and switchable Kelvin control
- Lens & Optics: Integrated tray and UV-stabilized polycarbonate lens with stainless steel clips
- Dimming: 0–10V continuous dimming standard with auxiliary 12V output
- Voltage: Universal 120–347V AC constant current driver
- Location Rating: UL 1598 (cULus) Listed for wet locations
- Operating Temperature: -40°F (-40°C) to 122°F (50°C) ambient operating range
- Certifications: DLC 5.1 Premium, UL 1598 (cULus), IP66, NEMA 4X, NSF Splash Zone, IK08, FCC, RoHS, NLB Trusted Warranty Program
- Rated Life: 125,000 hours (L70)
- Warranty: 5-year limited warranty — LEDVANCE Sylvania (NLB Trusted Warranty Program)
Performance & Light Output
| Wattage | Total Lumens | Efficacy | Legacy Equivalent |
|---|---|---|---|
| 50W | 7,000 lm | 140 lm/W | 3x32W T8 (89W system, 44% energy savings) |
| 40W | 5,640 lm | 141 lm/W (Up to 140 LPW rated) | 3x28W T8 (74W system, 46% energy savings) |
| 30W | 4,260 lm | 142 lm/W (Up to 140 LPW rated) | 2x32W T8 (59W system, 49% energy savings) |
| 20W | 2,860 lm | 143 lm/W (Up to 140 LPW rated) | 1x32W T8 (31W system, 35% energy savings) |
CRI >80 across all configurations. Rated life 125,000 hours (L70). Delivers high-efficiency illumination resulting in significant energy reduction compared to traditional fluorescent systems.
Smart & Control Features
The 65906 (VAPORILT/S050UNHD8SC7/48) vapor tight supports standard wired dimming and optional field-installable microwave occupancy and daylight sensing:
- 0–10V Continuous Dimming (Standard): Dims smoothly on standard 0–10V low-voltage control circuits and includes an auxiliary 12V output for sensor integration.

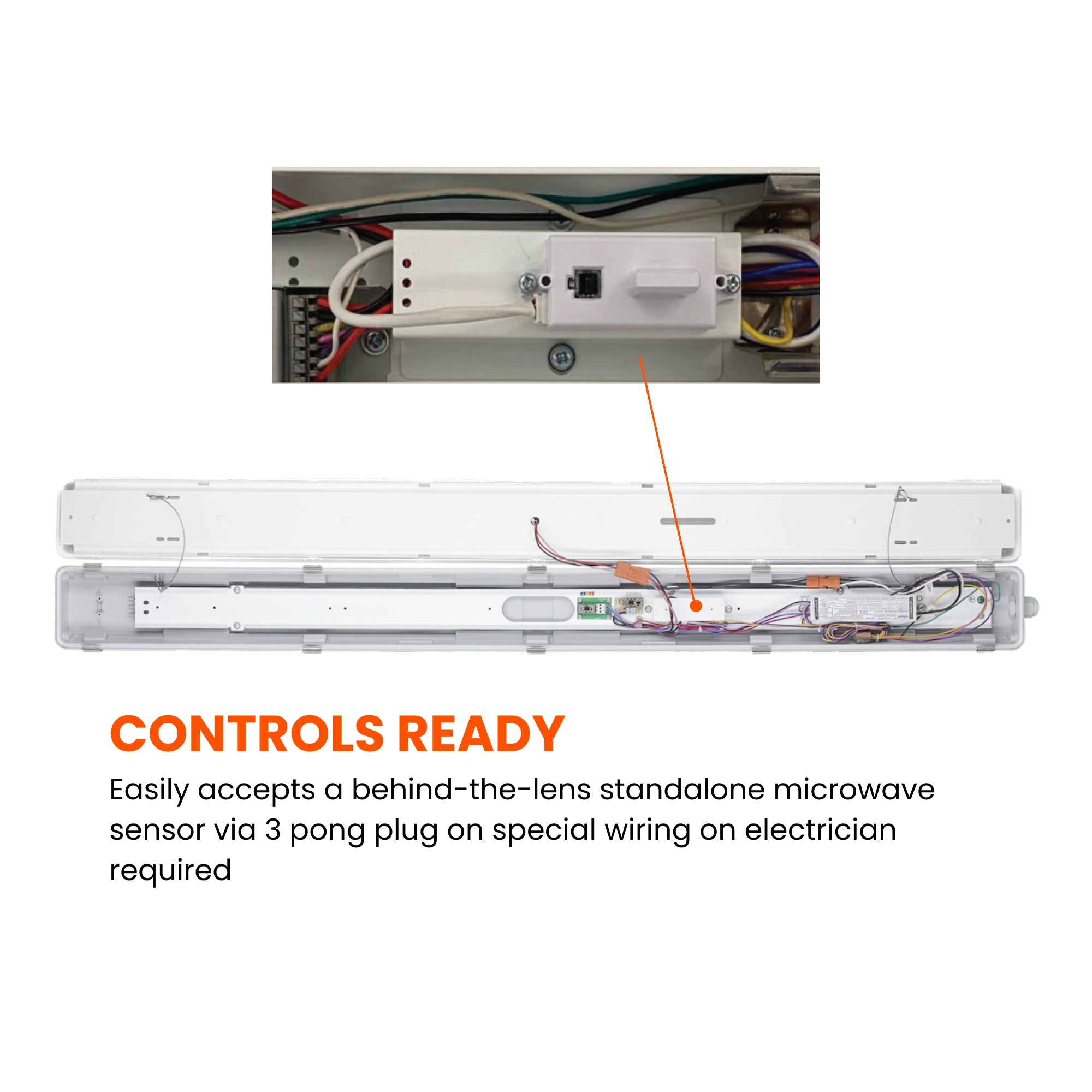

- Field-Installable Microwave Motion/Daylight Sensor (Accessory): Compatible with the internal field-installed Microwave Motion/Daylight Sensor (catalog # 63907 / MOTIONDAYSENSOR/MICRO/6M, up to 19.69 ft / 6m max mounting height, sold separately).
Default settings on sensor 63907 can be customized using the required handheld remote control with screen for Microwave and PIR motion sensors (catalog # 66592 / HIBAYSENSORG2REMOTE, sold separately).
Electrical
Powered by a wide-range constant current driver operating on 120–347V AC. Delivers high electrical efficiency with a Power Factor >90% and Total Harmonic Distortion (THD) <20%. Integrated 2.5kV surge suppression protects internal electronics against transient voltage spikes. Includes 0–10V dimming leads and an auxiliary 12V output.
Emergency Battery Backup: Available in factory-configured emergency battery backup configurations (`E` and `DE` models, sold separately) rated for 32°F (0°C) to 122°F (50°C) ambient operation.
Construction

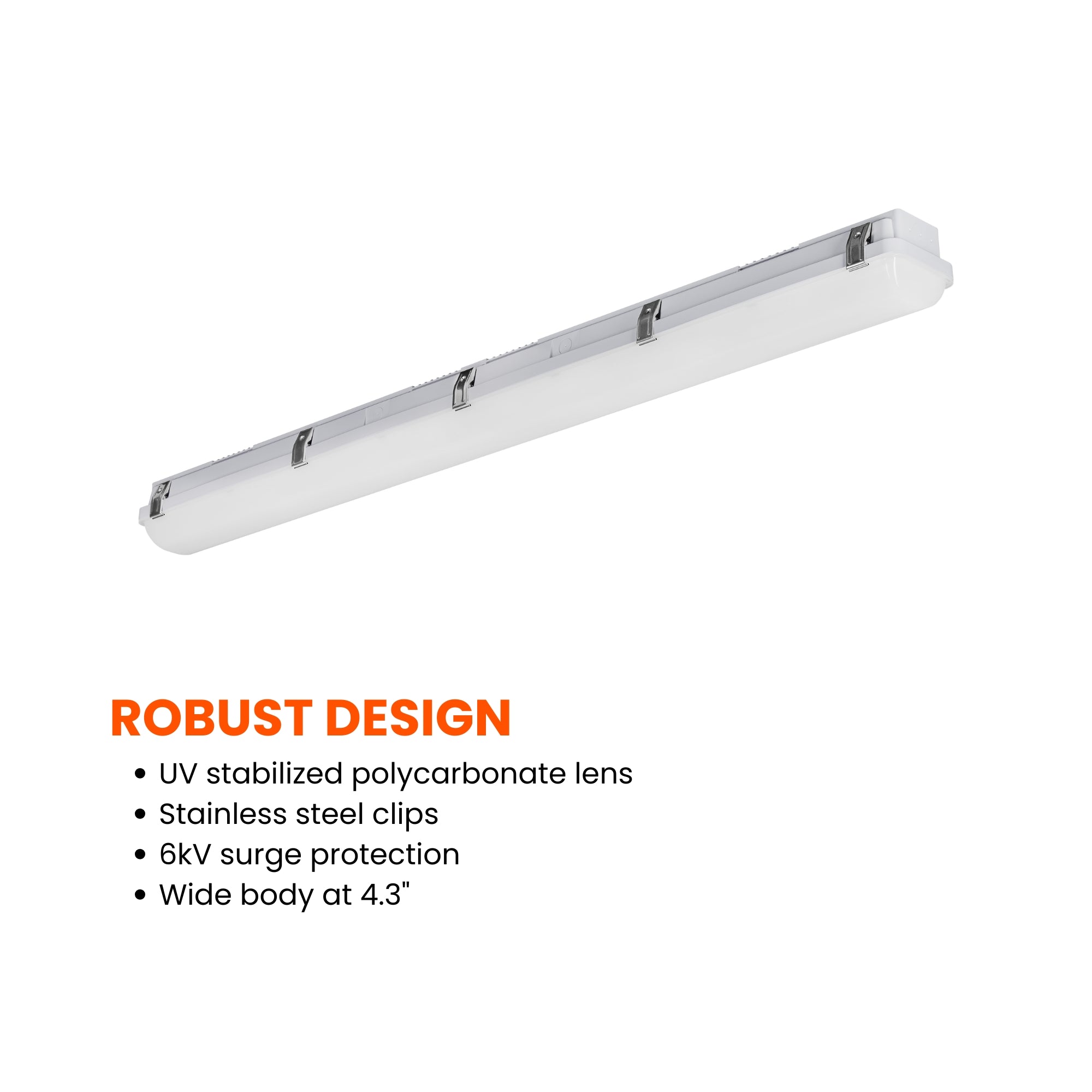

Durability & Impact Protection: Integrated tray and lens architecture engineered for rapid installation and thermal dissipation, secured with stainless steel clips. IK08 rated for protection against mechanical impact, paired with a NEMA 4X corrosion-resistant rating and NSF Splash Zone certification for commercial sanitation environments.
Ingress Protection: IP66 rated and UL 1598 (cULus) wet location listed for complete protection against airborne dust and powerful water jets.
Operating Temperature: -40°F (-40°C) to 122°F (50°C) ambient operating range.
Lens & Optics: UV-stabilized polycarbonate lens integrated with the internal gear tray for uniform, low-glare illumination.

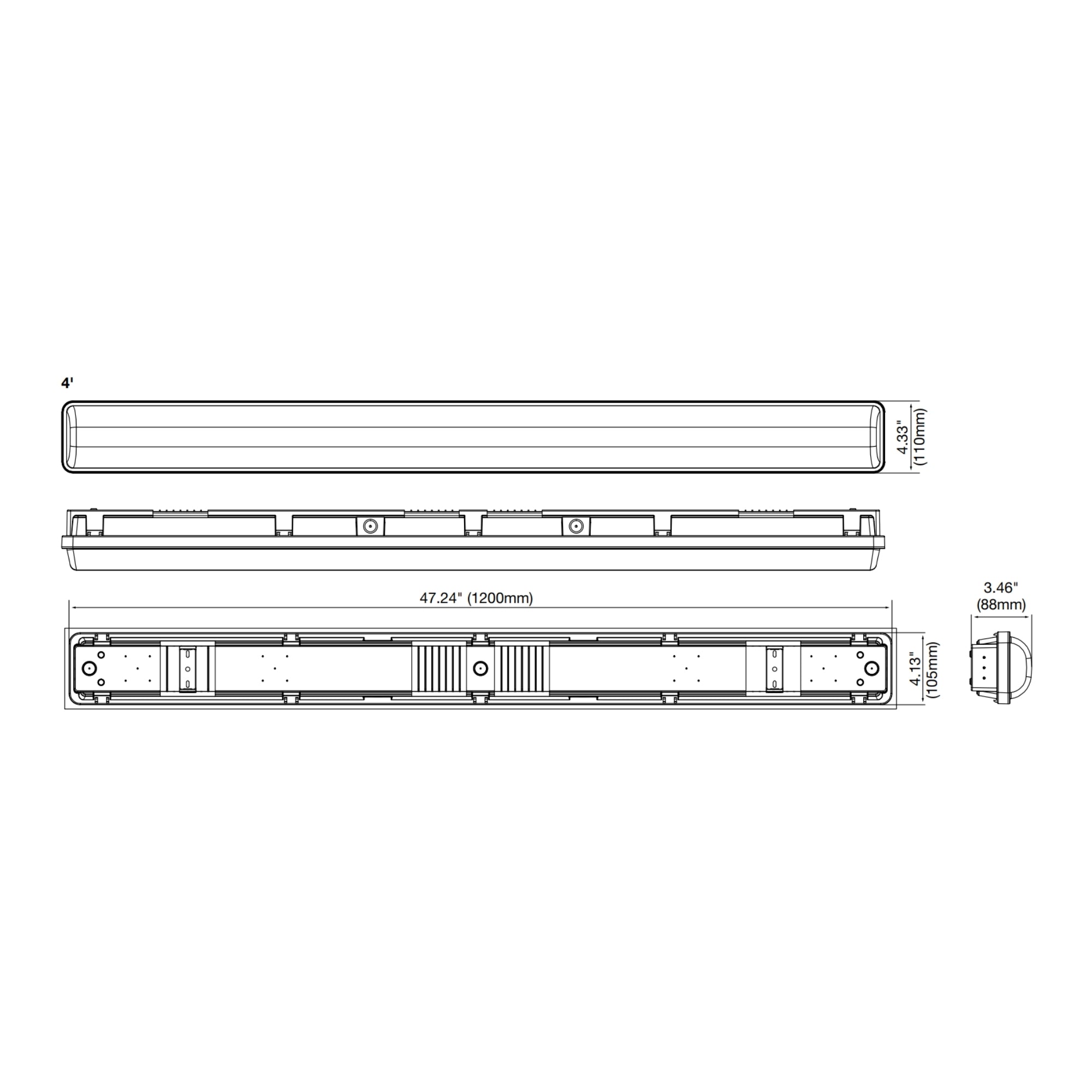

Dimensions & Weight: 47.24" L × 4.33" W × 3.46" H (1200mm L × 110mm W × 88mm H). Fixture weight: 5.5 lbs (2.5 kg).
Installation & Mounting

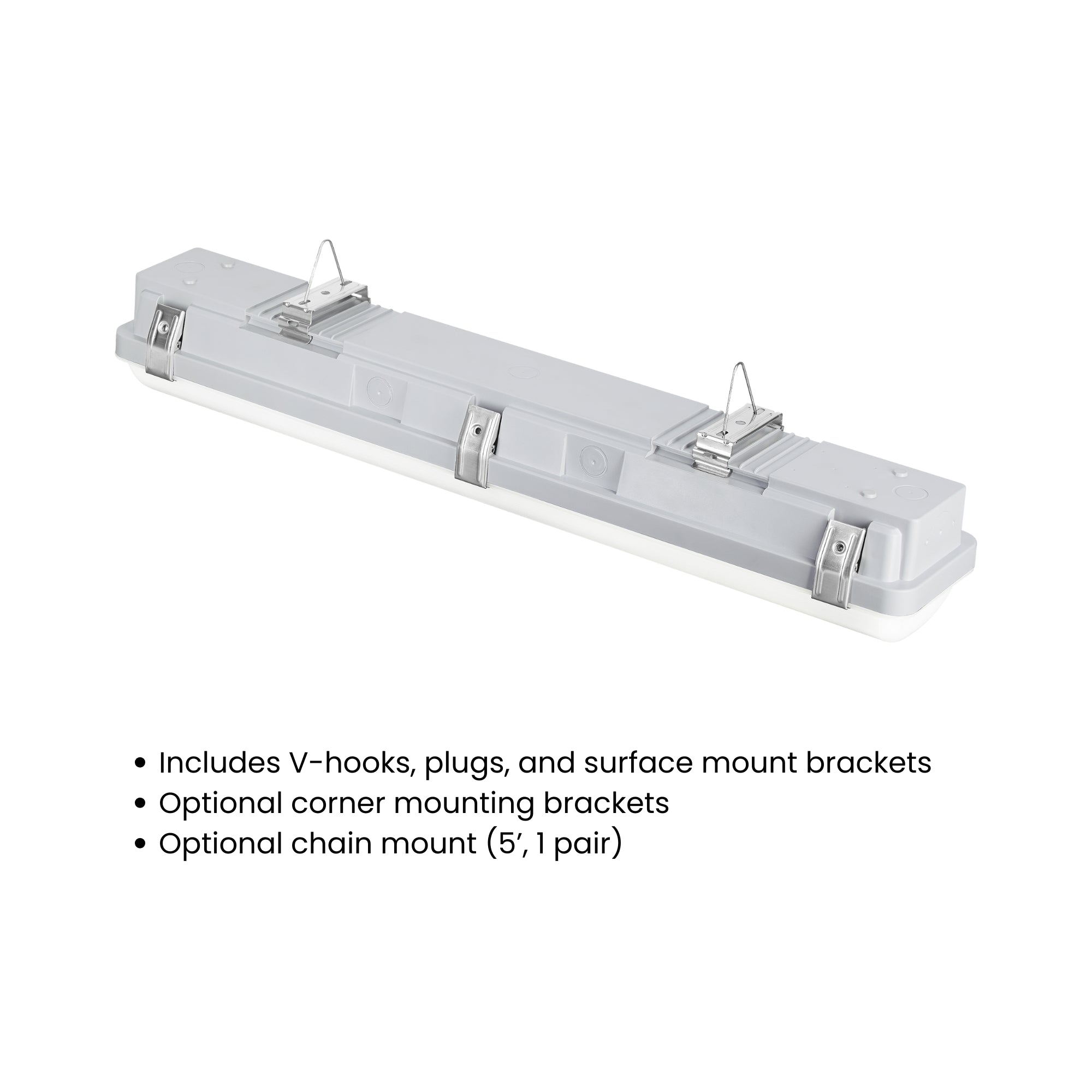

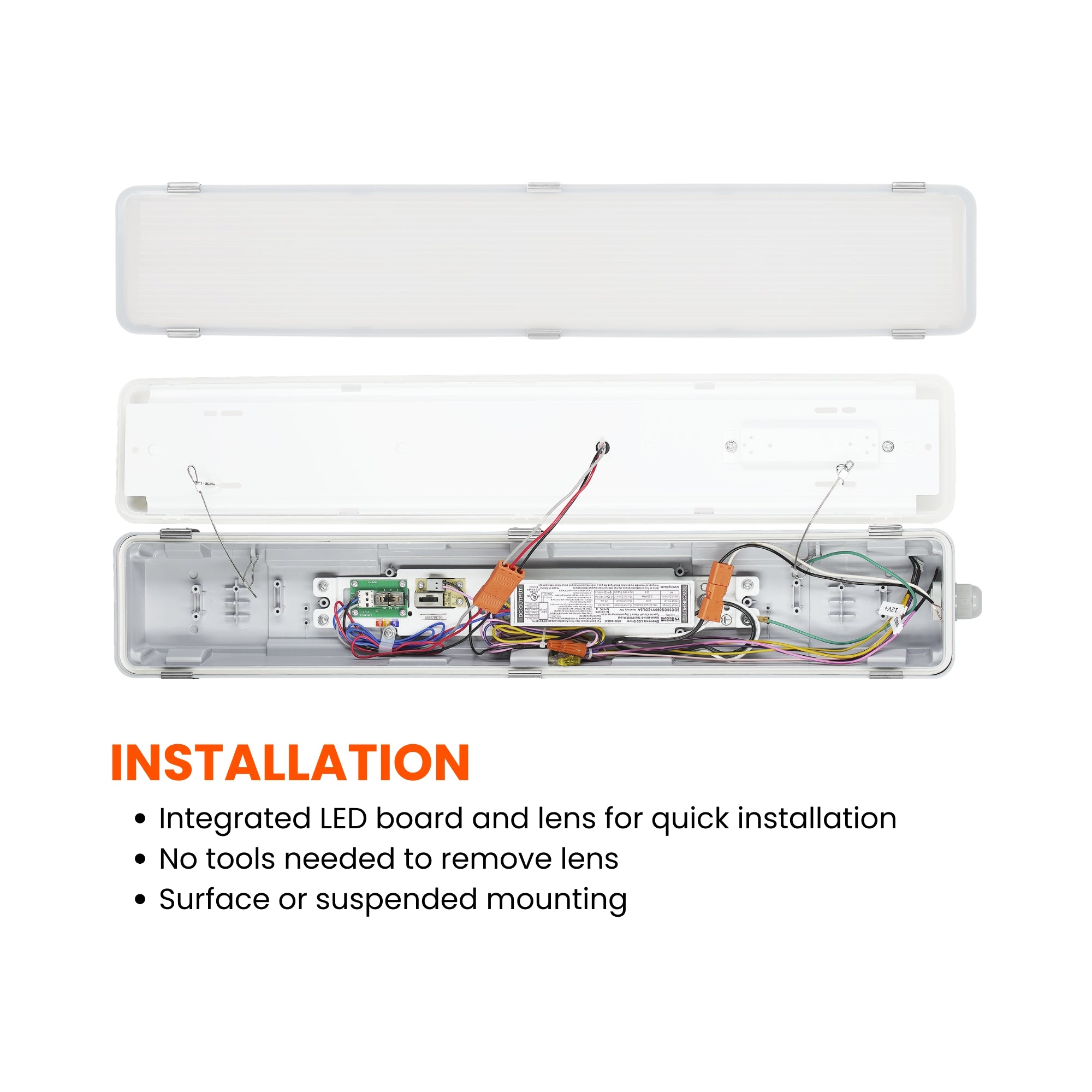

Standard Mounting: Supplied standard with stainless steel surface mounting brackets and V-hooks for suspended mounting, plus an integrated tray and lens assembly for quick wiring access.

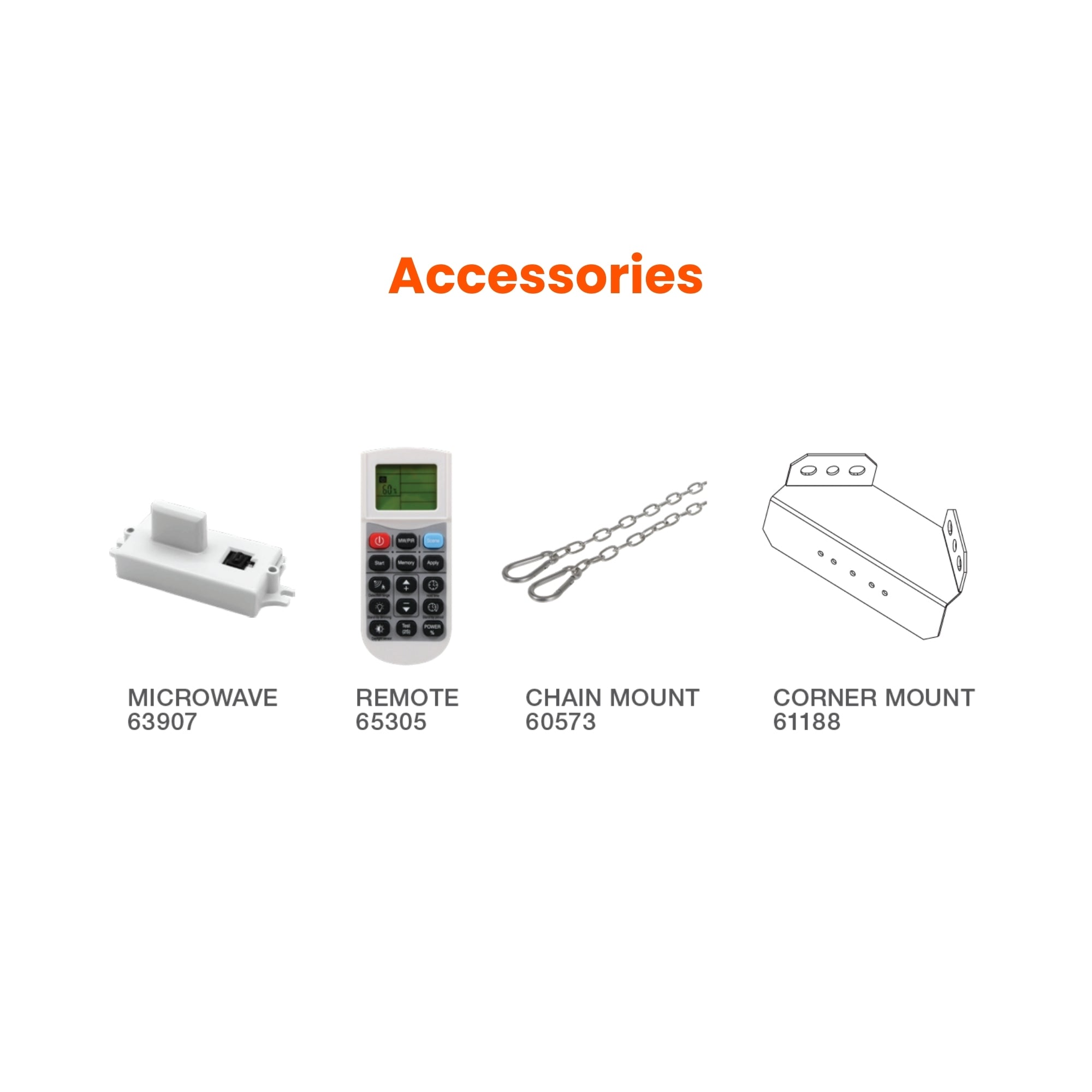

Accessories (Sold Separately):
- Mounts: 60573 / LNHIBA2A/CHAINMT (5-foot Chain Mount, 1 pair, sold separately), 61188 / VAPORILT/CORNERMTBRKT (Corner Mounting Brackets, sold separately)
- Sensors & Controls: 63907 / MOTIONDAYSENSOR/MICRO/6M (Internal Field-Installed Microwave Motion/Daylight Sensor, 19.69 ft max mounting height, sold separately), 66592 / HIBAYSENSORG2REMOTE (Remote with screen required to change default settings of 63907, sold separately)
Certifications & Rebates
- DLC 5.1 Premium: Qualifies for maximum tier commercial utility rebate incentives across regional energy programs. To confirm rebate eligibility with your local utility provider, visit designlights.org and search model 65906 or VAPORILT/S050UNHD8SC7/48.
- UL 1598 (cULus) Listed: Certified for wet locations.
- NSF: NSF Splash Zone certified for food-service and commercial sanitation environments.
- NEMA & IK Ratings: NEMA 4X rated for corrosion and washdown defense; IK08 impact certified.
- FCC & RoHS Compliant: Complies with FCC electromagnetic interference limits and RoHS hazardous substance restrictions.
- NLB Trusted: Verified under the National Lighting Bureau Trusted Warranty Program.
Typical Applications
- Tunnels & Underground Corridors — IP66, NEMA 4X, and IK08 impact ratings protect the luminaire against moisture, dust, corrosion, and physical knocks.
- Industrial Manufacturing & Assembly — Wide 120–347V AC input and 125,000-hour L70 lifespan support continuous operation across commercial and 347V industrial panels.
- Food Processing & Splash Zones — NSF Splash Zone certification and stainless steel clips withstand sanitation splashdowns.
- Cold Storage & Walk-In Freezers — Reliable cold weather starting and wet location sealing ensure consistent output in refrigerated areas.

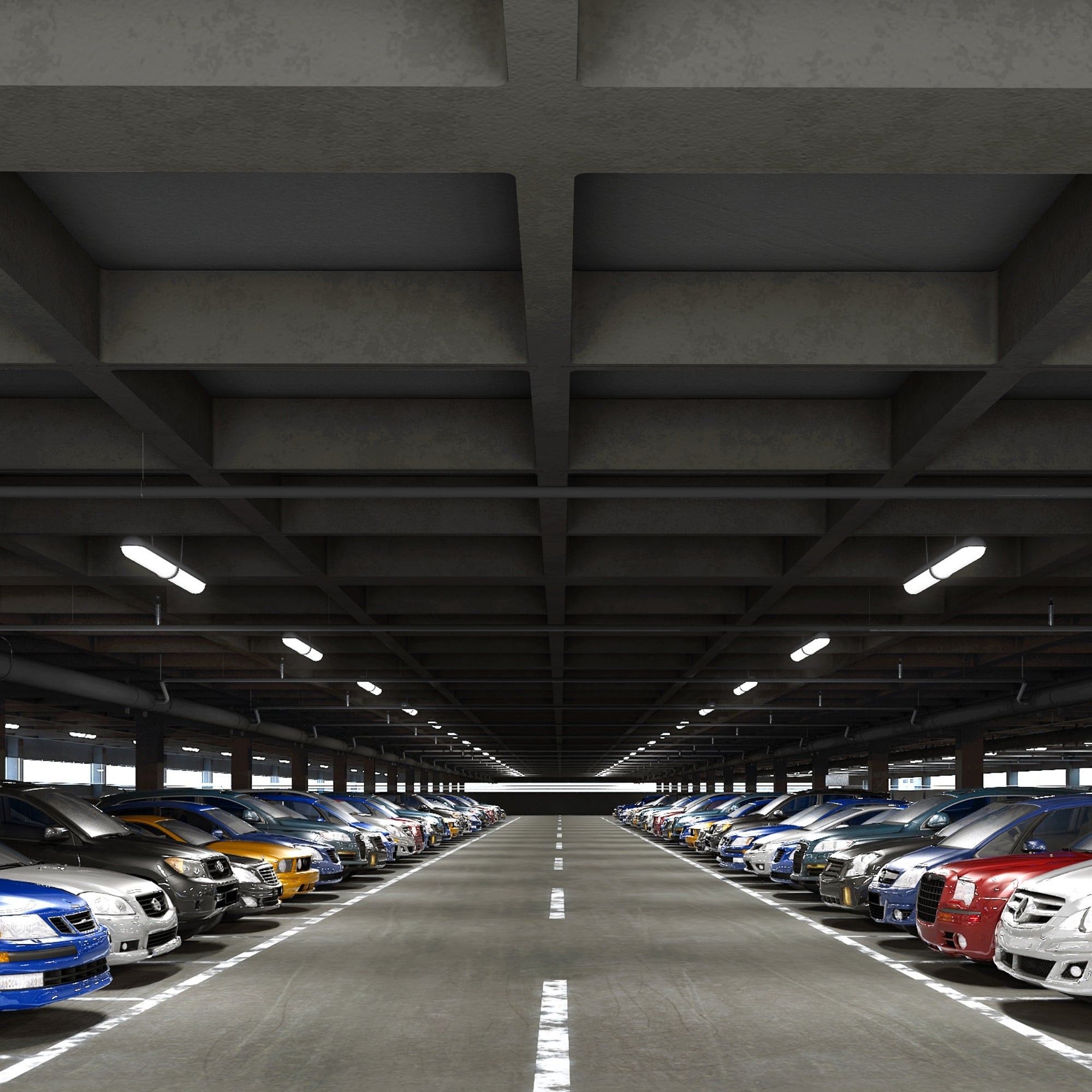

- Parking Garages & Utility Bays — Integrated tray and UV-stabilized polycarbonate lens speed up retrofit installation on ceilings, chains, or optional corner brackets.
What's Included
- LEDVANCE Sylvania 65906 (VAPORILT/S050UNHD8SC7/48) Performance Class Dual Selectable 4ft Vapor Tight ILT
- Stainless steel mounting brackets and V-hooks
- Installation and operation manual
