LEDVANCE SYLVANIA Emergency Dual Selectable Cutoff LED Wall Pack — 40-60W Selectable, 120–347V, Bronze

The LEDVANCE SYLVANIA 65861 (Generation 9A) is a specification-grade emergency dual selectable full cutoff LED wall pack delivering up to 9,000 lumens. Essential for life safety compliance, this fixture features a built-in emergency battery backup that provides 90 minutes of continuous egress illumination during power failures. Designed to maintain a traditional form factor for an easy LED upgrade without unsightly wall patchwork, it provides superior downward illumination. Installers can easily customize the light output by selecting between 40W, 50W, or 60W of power and 3000K, 4000K, or 5000K color temperatures. Operating on a robust 120–347V driver, it includes an integrated photocell for automated security lighting. With its Type III distribution and IP65 Wet Location rating, it is the perfect all-in-one safety and security solution for building perimeters, schools, and commercial properties.

Key Features

• Wattage: 40W / 50W / 60W Selectable
• Selectable CCT: 3000K / 4000K / 5000K
• Delivered Lumens: 6,000 to 9,000 lumens
• Efficacy: Up to 150 Lumens Per Watt (LPW)
• Emergency Backup: Integrated battery for 90-minute egress operation
• Voltage: 120–347V universal input
• Dimming: 0–10V dimming standard
• Controls: Integrated photocell included; ready for field-installable sensors
• Distribution: Type III Full Cutoff
• CRI: 80+
• Environmental Ratings: IP65 rated for Wet Locations
• Certifications: DLC 5.1 Premium Listed, cULus, RoHS Compliant, FCC, Dark Sky Compliant (<3000K)
• Estimated Life: 100,000 hours (L70)

Typical Applications

• Commercial and educational building perimeters
• Walkways, entryways, and stairwells requiring egress lighting
• Security and life safety lighting
• Locations requiring strict Dark Sky compliance and glare control

Performance & Light Output

The 65861 wall pack provides brilliant, targeted illumination ranging from 6,000 to 9,000 lumens depending on the selected wattage setting. Utilizing a Type III distribution, it casts a wide, forward-throwing beam that illuminates perimeters efficiently while keeping light off adjacent properties. With an efficacy reaching 150 LPW and a 100,000-hour rated lifespan, this fixture drastically reduces energy consumption and maintenance cycles compared to legacy HID systems.

Emergency & Controls

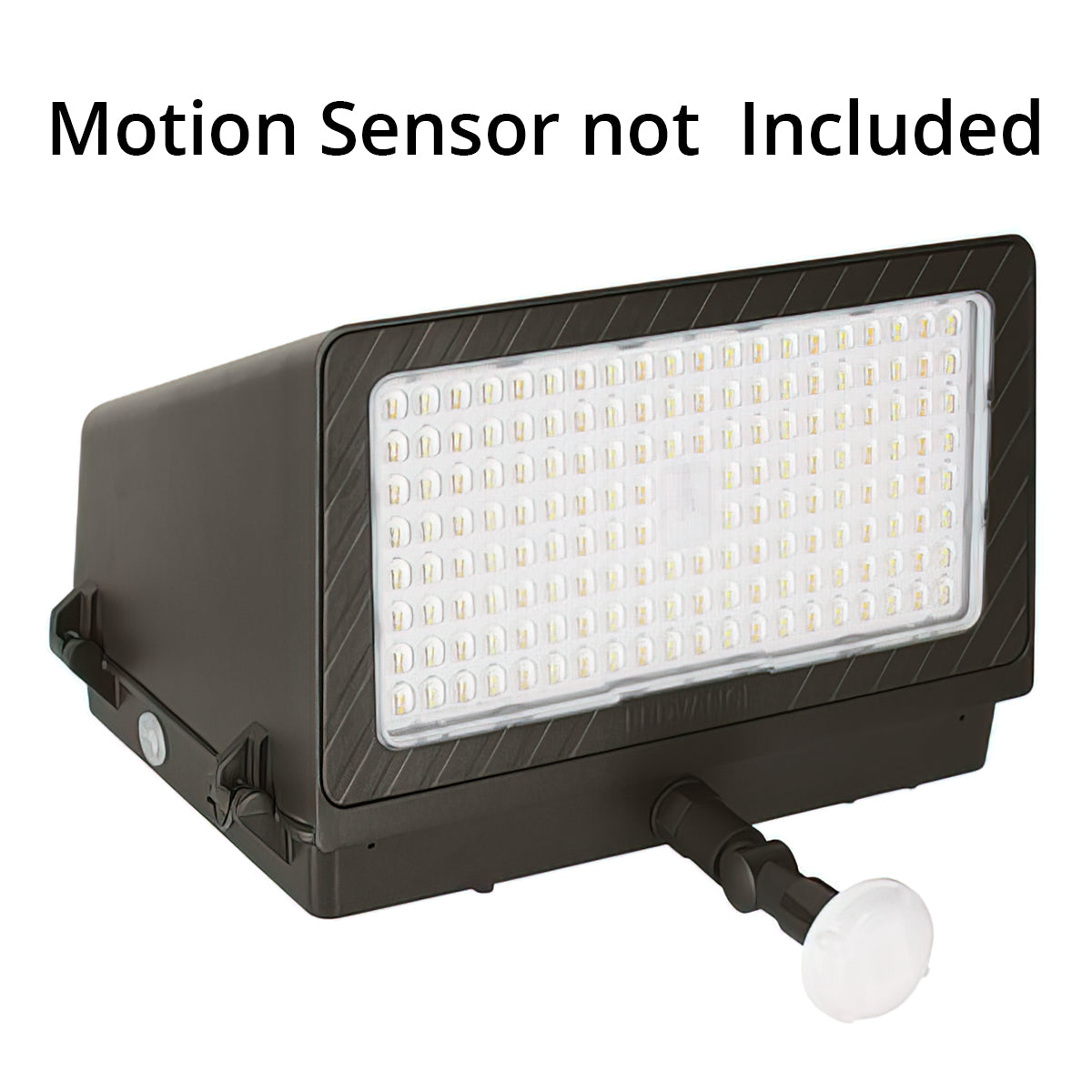

Safety is guaranteed with the built-in emergency battery backup, ensuring uninterrupted egress path lighting when primary power is lost. For everyday use, the integrated photocell guarantees the light only operates when needed from dusk to dawn, while the sensor-ready design allows contractors to easily plug in optional motion/daylight sensors without complicated internal wiring.

Construction & Durability

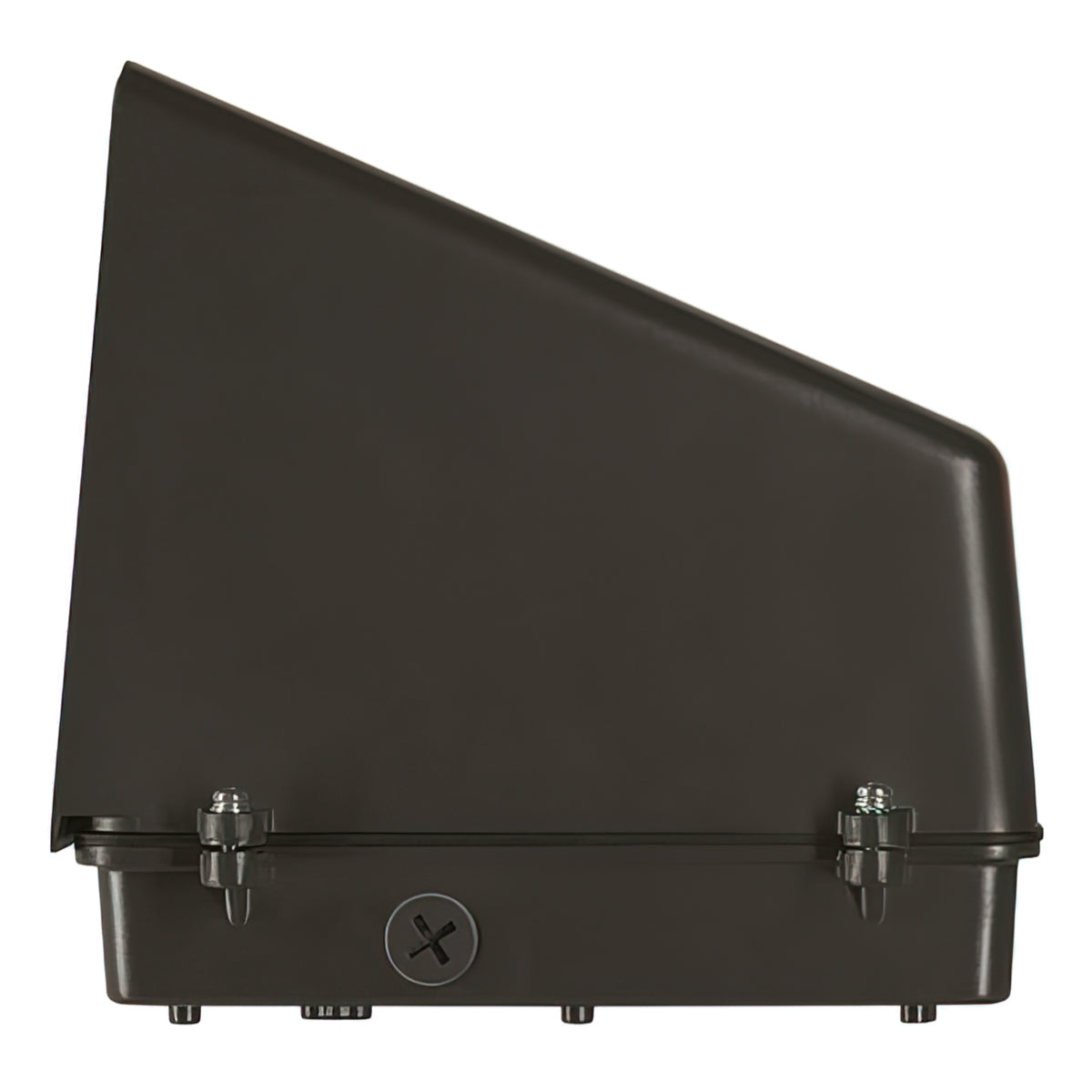

Engineered to withstand harsh environments, the 65861 features a traditional footprint housing finished in a resilient bronze powder coat, ensuring it covers the "ghosting" left by older fixtures. The LED engine is protected by a UV-stabilized, vandal-resistant polycarbonate lens. The fixture is fully IP65 rated, protecting it against dust and water ingress in extreme outdoor conditions.

What's Included

• LEDVANCE SYLVANIA Emergency Dual Selectable Cutoff Wall Pack (Bronze)
• Integrated Emergency Battery Backup
• Integrated Photocell
