LEDVANCE Sylvania 65860 Dual Selectable 9A Full Cutoff Wall Pack — 35W — 3000K/4000K/5000K — 120-347V — Type III — with Battery Backup — Bronze
Available in stock (96)
About this item
About this item
- Selectable Output: Field-selectable 20W, 30W, and 35W power settings deliver up to 5,250 lumens at up to 150 lm/W.
- Type III Full Cutoff Optics: Dedicated IES Type III full cutoff distribution (B2-U0-G1) with a vandal-resistant, UV-stabilized polycarbonate lens and traditional wall-pack footprint.
- Selectable CCT: Onboard switch adjusts color temperature across 3000K, 4000K, and 5000K with >80 CRI.
- Photocell & Dimming: Integrated photocell, 120-347V driver, 0-10V dimming, and factory-installed 8W (>90-min) LiFePO4 emergency battery backup.
- Rebates & Ingress: DLC 5.1 Premium listed, cULus Wet Location rated, IP65 sealed, with 4kV surge protection.
Description
Description
LEDVANCE Sylvania 65860 Dual Selectable 9A Full Cutoff LED Wall Pack - 20W/30W/35W Selectable - 3000K/4000K/5000K - 120-347V - Type III - with Battery Backup - Bronze
The LEDVANCE Sylvania WALPAKC9AS035UNHD8SC2BZPE (Item 65860) is a commercial Performance Class full cutoff LED wall pack and Dual Selectable Wall Pack - Cut Off luminaire engineered to deliver up to 5,250 lumens across field-selectable 20W, 30W, and 35W power settings and switchable 3000K, 4000K, and 5000K color temperatures. Operating on wide-range 120-347V electrical systems with 0-10V dimming, it qualifies for DLC 5.1 Premium utility rebates and includes a factory-installed 8W LiFePO4 emergency battery backup (>90-minute runtime). Built with a weatherproof IP65 housing and cULus wet-location certification, this Type III (B2-U0-G1) zero-uplight cutoff wall pack retains the same form factor as legacy HID wall packs to cover existing wall footprints without patchwork and features a vandal-resistant UV-stabilized polycarbonate lens, an integrated dusk-to-dawn photocell, plug-and-play field-installable sensor compatibility, and 4kV surge protection.
Key Features
- Selectable Wattage: 20W / 30W / 35W field-selectable
- Maximum Lumen Output: 3,000 / 4,500 / 5,250 lm (up to 5,250 lm)
- Peak Efficacy: Up to 150 lm/W
- CRI: >80
- Selectable CCT: 3000K / 4000K / 5000K
- Optical Distribution: IES Type III full cutoff zero-uplight distribution (B2-U0-G1)
- Lens Material: Vandal-resistant, UV-stabilized polycarbonate lens
- Emergency Battery Backup: Factory-installed LiFePO4 battery (Model 26650 3000mAh 3.2V) delivering 8W emergency power for >90 minutes (1-hour charging time)
- Photocell & Sensor Port: Integrated dusk-to-dawn photocell and bottom receptacle for field-installable motion/daylight sensors
- Dimming: 0-10V continuous dimming
- Voltage & Surge Protection: 120-347V AC; 4kV integrated surge protection
- Location & Body Rating: cULus Listed to UL 1598 for wet locations; IP65 weatherproof rated
- Operating Temperature: 41°F (5°C) to 122°F (50°C) with Emergency Battery Backup (standard non-EMBB fixture rating: -40°F/-40°C to 122°F/50°C)
- Certifications: DLC 5.1 Premium, cULus Listed, IP65, FCC, RoHS (family IDA Dark Sky compliant when used at <3000K)
- Rated Life & Warranty: L70 100,000 hours at 25°C ambient; 5-year NLB Trusted Warranty Program - LEDVANCE Sylvania
Performance & Light Output
| Selectable Wattage | Total Lumens | Efficacy |
|---|---|---|
| 35W | 5,250 lm | 150 lm/W |
| 30W | 4,500 lm | 150 lm/W |
| 20W | 3,000 lm | 150 lm/W |
Delivers CRI >80 across all selectable wattage and CCT configurations. Achieves a BUG Rating of B2-U0-G1 with zero uplight (U0). Rated life 100,000 hours (L70) at 25°C ambient.
Lens & Optics
Engineered with a vandal-resistant, UV-stabilized polycarbonate lens delivering a dedicated IES Type III Full Cutoff optical distribution. The zero-uplight (B2-U0-G1) full cutoff geometry projects asymmetric forward and lateral perimeter illumination while eliminating skyglow, uplight, and neighbor light trespass.
Smart & Control Features
Engineered for automated exterior operation and plug-and-play sensor expansion:
- Dusk-to-Dawn Photocell (Integrated): Factory-installed integrated photocell provides automatic dusk-to-dawn nighttime operation.
- 0-10V Continuous Dimming: Compatible with commercial 0-10V dimmers, lighting panels, and building automation systems.

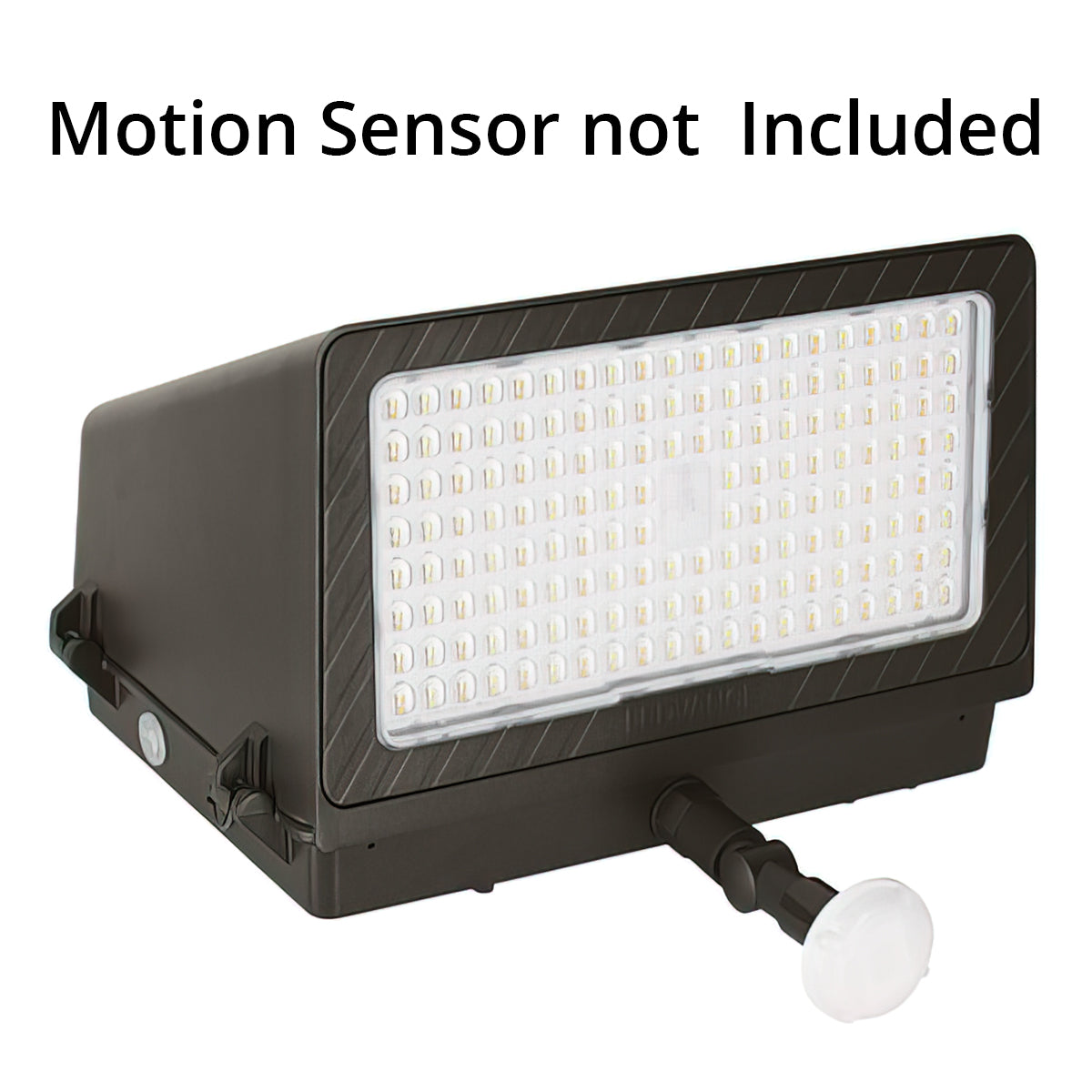

- Field-Installable Motion & Daylight Sensor Expansion: Bottom sensor port accepts plug-and-play PIR or microwave motion/daylight sensors (via Sensor Adaptor 63958). Default sensor settings provide 100% detection area, 10-minute hold time at 100% output, 50 Lux daylight threshold, and 60-minute standby period at 30% dimming before shutoff.
Compatible plug-in sensors and accessories include Daylight/Motion Sensor Adaptor 63958 (WALPAKNBASENSORADAPTOR), Bronze PIR Sensor 63748 (AREA/PIRMOTIONDAYSENSOR/BZ, IP65, max height 39 ft), Bronze Microwave Sensor 65732 (AREA/MWMOTIONDAYSENSOR/BZ, IP65, max height 49 ft), White PIR Sensor 62664 (HIGHBAYPIRMOTIONDAYSENSOR2, IP65, max height 39 ft), White Microwave Sensor 65622 (HIGHBAYMOTIONDAYSENSOR, IP65, max height 49 ft), and Programming Remote 65623 (REMOTE/MOTIONDAY/001) - all sold separately.
Electrical
Powered by a constant current driver operating on universal 120-347V AC with a Power Factor >0.90 and Total Harmonic Distortion (THD) <20%. Integrated 4kV surge protection safeguards internal electronics against utility line transients and switching surges. Includes 0-10V dimming control leads.
Emergency Battery Backup (Included): Equipped with a factory-installed LiFePO4 emergency battery pack (Model 26650, 3000mAh, 3.2V) delivering 8W of emergency power for >90 minutes during utility power outages with a rapid 1-hour charging time (ambient operating temperature +41°F to +122°F / +5°C to +50°C).
Construction

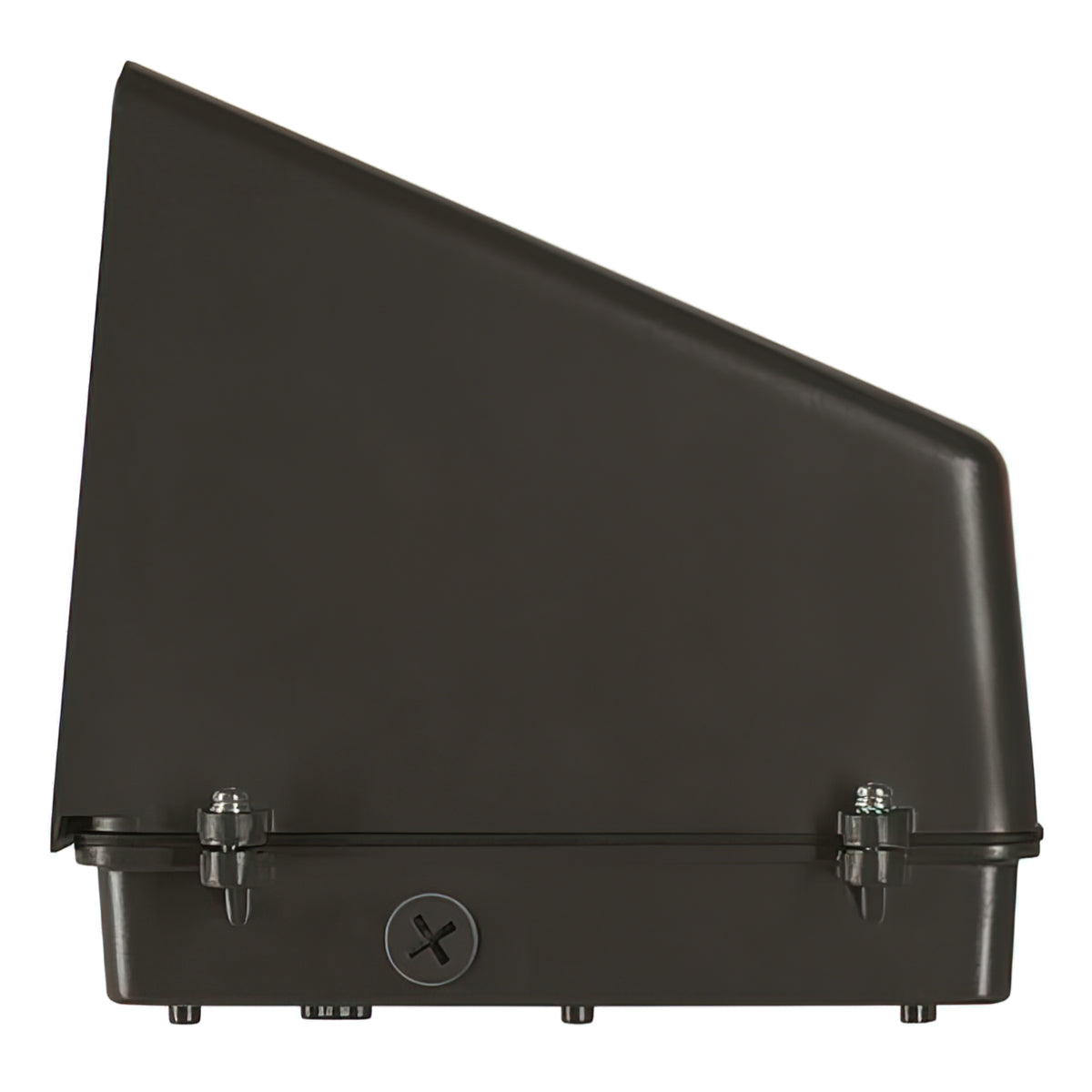

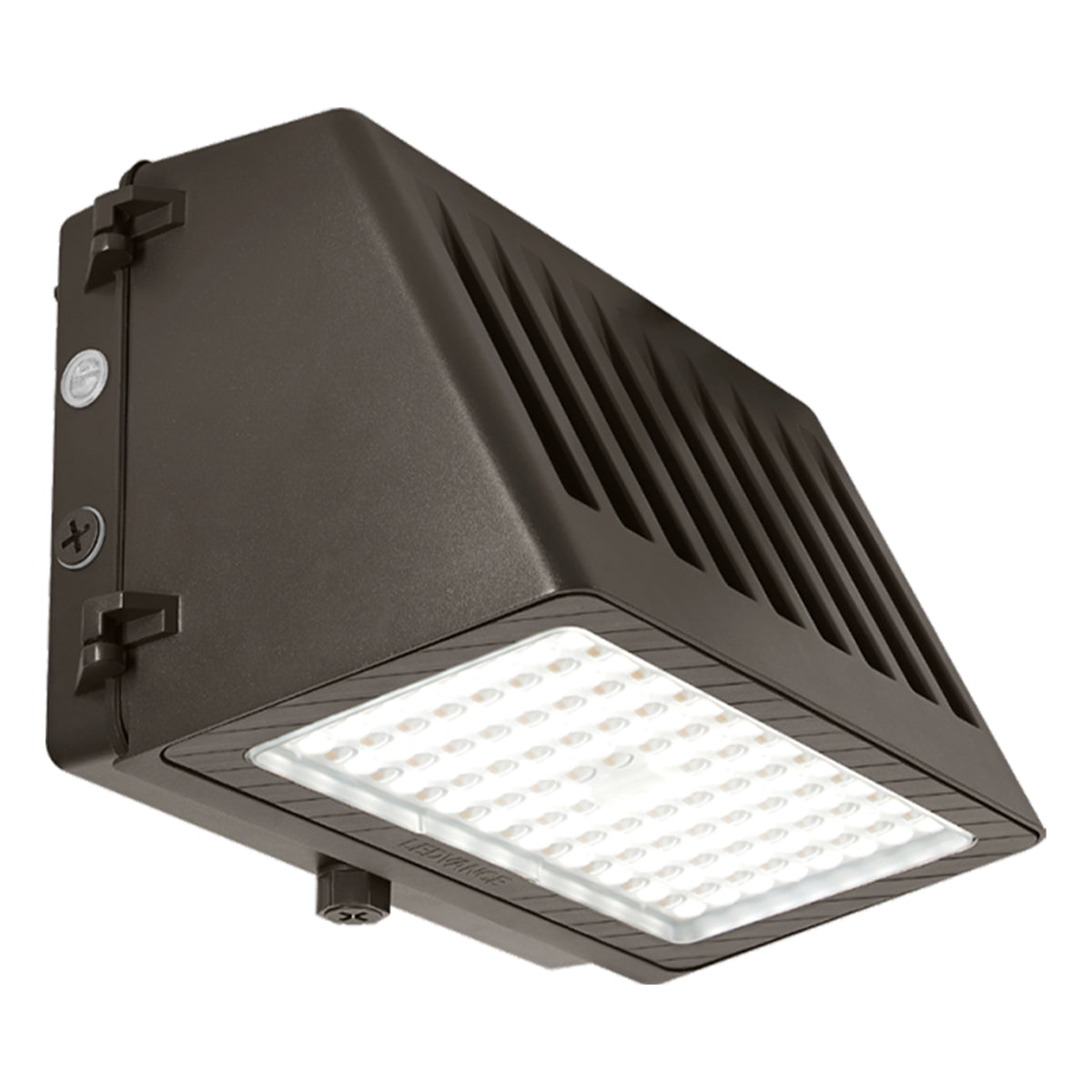

Housing & Thermal: Heavy-duty full cutoff wall pack housing with integrated passive convection cooling fins on the upper sloped hood and dual side hinges, keeping the exact form factor of legacy HID wall packs to cover old wall stains without patchwork.
Finish: Durable architectural bronze powder-coat finish formulated for outdoor corrosion and UV resistance.
Environmental Sealing: IP65 weatherproof rated and cULus Listed to UL 1598 standards for wet locations. Ambient operating temperature: 41°F (5°C) to 122°F (50°C) with Emergency Battery Backup (standard non-EMBB fixture rating: -40°F/-40°C to 122°F/50°C).

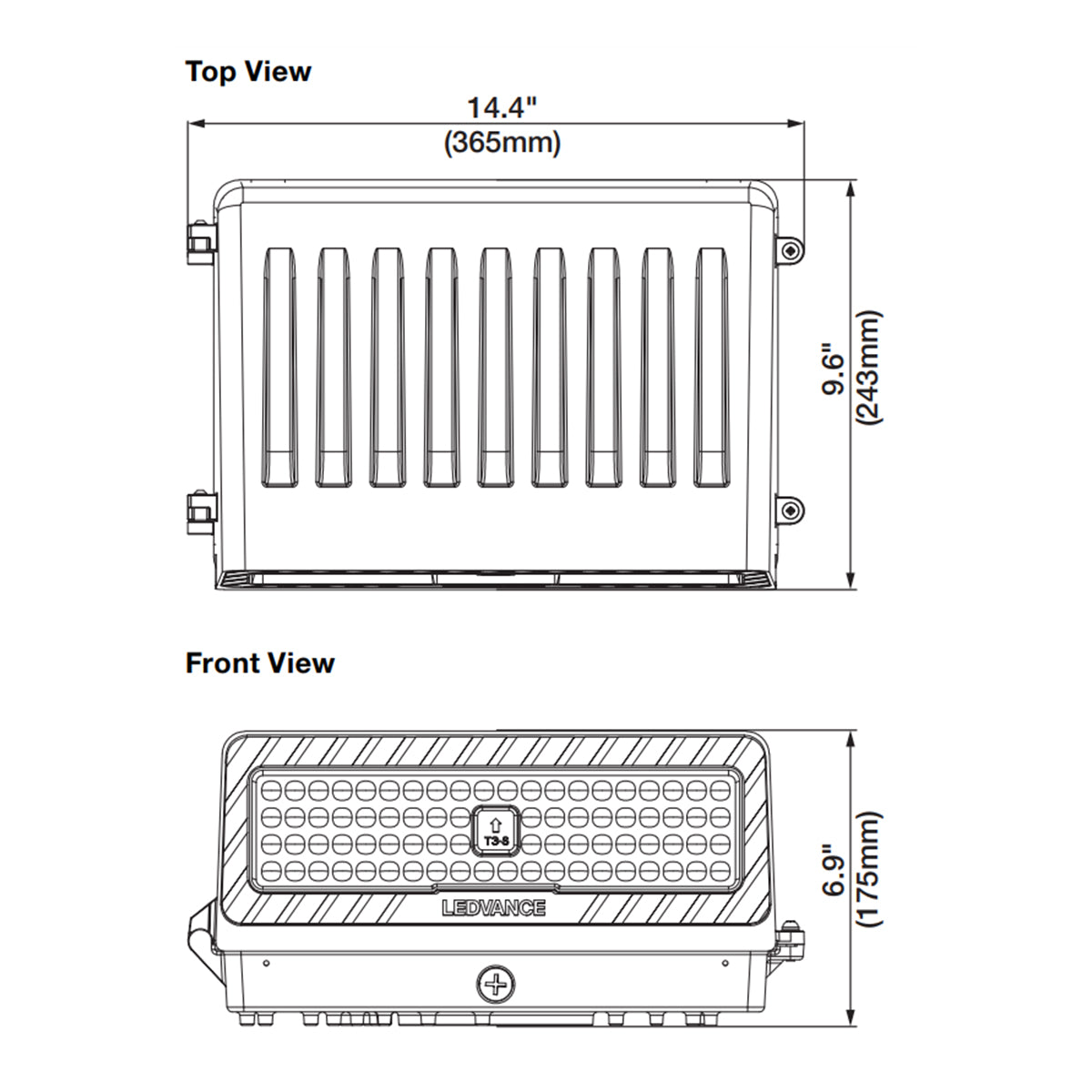

Dimensions & Weight: 14.4" L x 6.9" W x 9.6" H (365mm x 175mm x 243mm). Fixture weight: 6.2 lbs (2.8 kg).
Installation & Mounting
Mounting Hardware: Direct wall-mount backplate with side-hinged housing access covers legacy wall pack footprints over standard junction boxes or vertical exterior wall surfaces while maintaining a level 0° full cutoff horizontal plane.
Conduit & Wiring Access: Threaded side conduit entry knockouts and rear junction box entry support surface conduit or concealed branch-circuit wiring.
Recommended Mounting Height: Optimized for installation heights from 10 to 22 feet (photometric layout reference at 15 feet).
Accessories (Sold Separately):
- 63958 (WALPAKNBASENSORADAPTOR): Daylight/Motion Sensor Adaptor (4.31" L, 1/2"-14 NPT thread) - sold separately
- 63748 (AREA/PIRMOTIONDAYSENSOR/BZ): Field-installable PIR Motion/Daylight Sensor, IP65, max mounting height 39 ft, Bronze - sold separately
- 65732 (AREA/MWMOTIONDAYSENSOR/BZ): Field-installable Microwave Motion/Daylight Sensor, IP65, max mounting height 49 ft, Bronze - sold separately
- 62664 (HIGHBAYPIRMOTIONDAYSENSOR2): Field-installable PIR Motion/Daylight Sensor, IP65, max mounting height 39 ft, White - sold separately
- 65622 (HIGHBAYMOTIONDAYSENSOR): Field-installable Microwave Motion/Daylight Sensor, IP65, max mounting height 49 ft, White - sold separately
- 65623 (REMOTE/MOTIONDAY/001): Remote Control for Motion/Daylight Sensors (required to change default sensor settings) - sold separately
Certifications & Rebates
- DLC 5.1 Premium Listed: Qualifies for the highest tier of commercial utility rebates across 120-347V jurisdictions
- cULus Listed: Certified for wet locations per UL 1598 outdoor luminaire standards
- IP65 Rated: Ingress protection rating of IP65 for dust and water
- Full Cutoff Zero-Uplight (B2-U0-G1): Zero-uplight (U0) Type III optical cutoff eliminates skyglow and light trespass (series IDA Dark Sky compliant when operated at <3000K)
- FCC Compliant: Complies with FCC electromagnetic interference limits
- RoHS Compliant: Free of mercury, lead, and restricted hazardous substances
Typical Applications
- Legacy HID Wall Pack Retrofits - Full-size 14.4" L x 9.6" H footprint covers existing wall pack outlines and paint stains for a fast LED upgrade without masonry patchwork
- Commercial & Industrial Building Perimeters - Type III full cutoff (B2-U0-G1) distribution projects wide lateral and forward security lighting with zero uplight
- 120-347V Facilities, Warehouses & Distribution Centers - Universal 120-347V driver and vandal-resistant polycarbonate lens withstand demanding loading dock and industrial environments
- Emergency Egress Doorways & Exterior Walkways - Factory-installed 8W LiFePO4 battery backup provides >90 minutes of code-compliant emergency egress lighting during power outages
- Automated Dusk-to-Dawn & Motion-Controlled Zones - Integrated photocell and plug-and-play PIR/microwave sensor port streamline exterior energy management
What's Included
- LEDVANCE Sylvania WALPAKC9AS035UNHD8SC2BZPE (Item 65860) Dual Selectable 9A Full Cutoff Wall Pack - Bronze
- Pre-installed integrated dusk-to-dawn photocell
- Factory-installed 8W LiFePO4 Emergency Battery Backup (Model 26650 3000mAh 3.2V)
- Installation hardware and operation manual
