LEDVANCE SYLVANIA 65859 Cutoff LED Wall Pack 22,500 Lumens 120/130/150W Selectable 30K/40K/50K 120-347V Photocell Bronze
Available in stock (96)
About this item
About this item
- Dual Selectability: Simplifies inventory and maximizes on-site flexibility with field-adjustable wattage (120W/130W/150W) and selectable color temperature (3000K/4000K/5000K).
- Extreme Output: Delivers a massive 22,500 lumens with a highly efficient output of up to 150 LPW, providing a direct, energy-saving replacement for traditional 400W HID fixtures.
- Full Cutoff Compliance: Features a Type III full-cutoff distribution that eliminates uplight and minimizes glare, ensuring Dark Sky compliance (when set to 3000K) and preventing light trespass.
- Integrated Photocell & Sensor Ready: Equipped with a built-in photocell for dusk-to-dawn operation, and features a plug-and-play port for easy, field-installable motion/daylight sensors.
- Universal Voltage: Operates on a wide-range 120-347V AC driver, making it fully compatible with a vast array of commercial and industrial electrical systems.
We process payments securely and do not store credit card information.
Description
Description

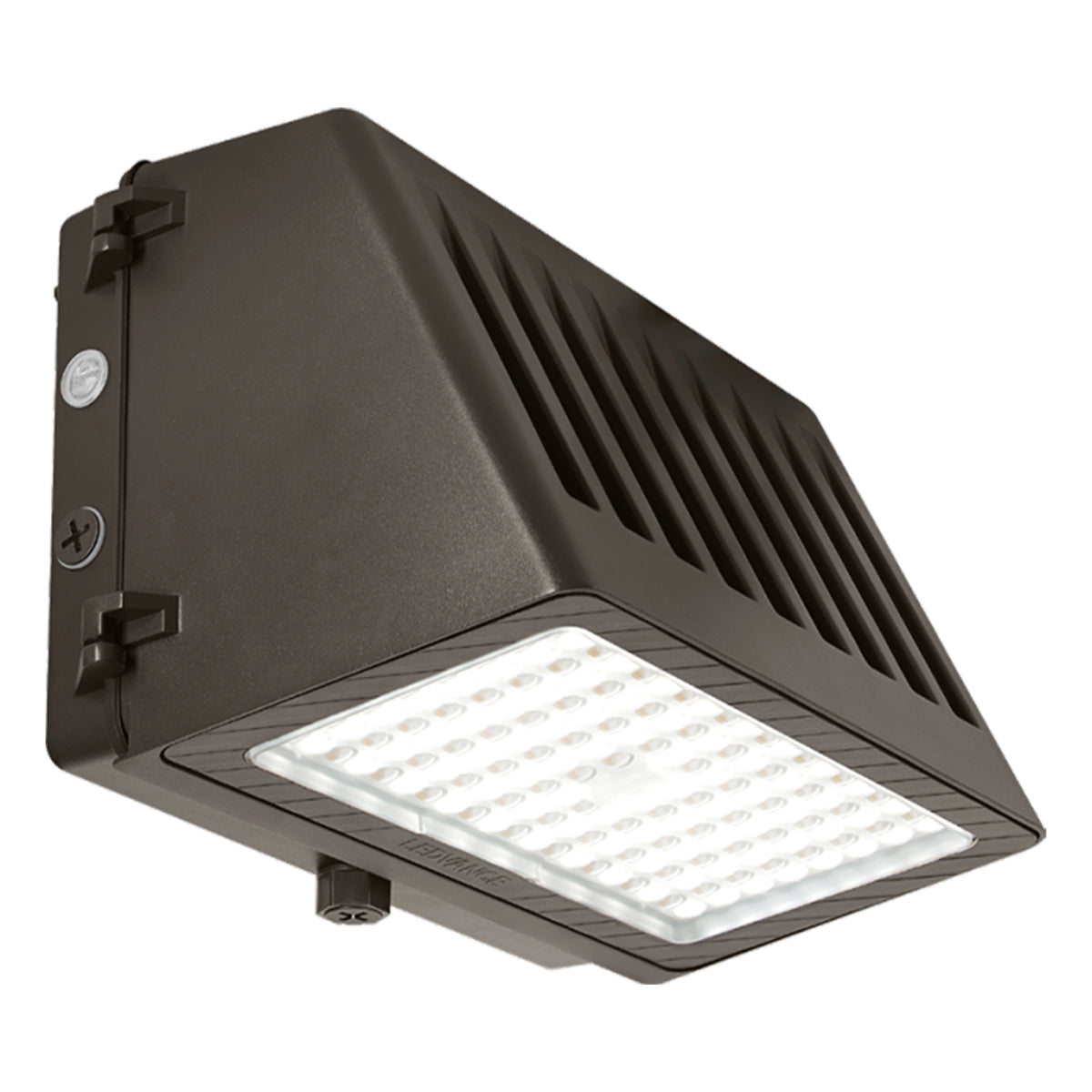

LEDVANCE SYLVANIA Dual Selectable Cutoff LED Wall Pack — 120-150W Selectable, 120–347V, Bronze
The LEDVANCE SYLVANIA 65859 (Generation 9A) is a massive-output, specification-grade dual selectable full cutoff LED wall pack delivering up to 22,500 lumens. Engineered for large-scale industrial and commercial applications, it maintains a traditional footprint for an easy LED upgrade that hides old fixture marks while providing superior downward illumination without light pollution. Installers can easily customize the output by toggling between 120W, 130W, or 150W of power and 3000K, 4000K, or 5000K color temperatures. Operating on a robust 120–347V driver, it includes an integrated photocell for automated security lighting and supports optional plug-and-play sensors. With its Type III distribution and IP65 Wet Location rating, it is the ultimate choice for large parking lots, industrial building perimeters, and high-mounting applications.
Key Features
- Wattage: 120W / 130W / 150W Selectable
- Selectable CCT: 3000K / 4000K / 5000K
- Delivered Lumens: 18,000 to 22,500 lumens
- Efficacy: Up to 150 Lumens Per Watt (LPW)
- Voltage: 120–347V universal input
- Dimming: 0–10V dimming standard

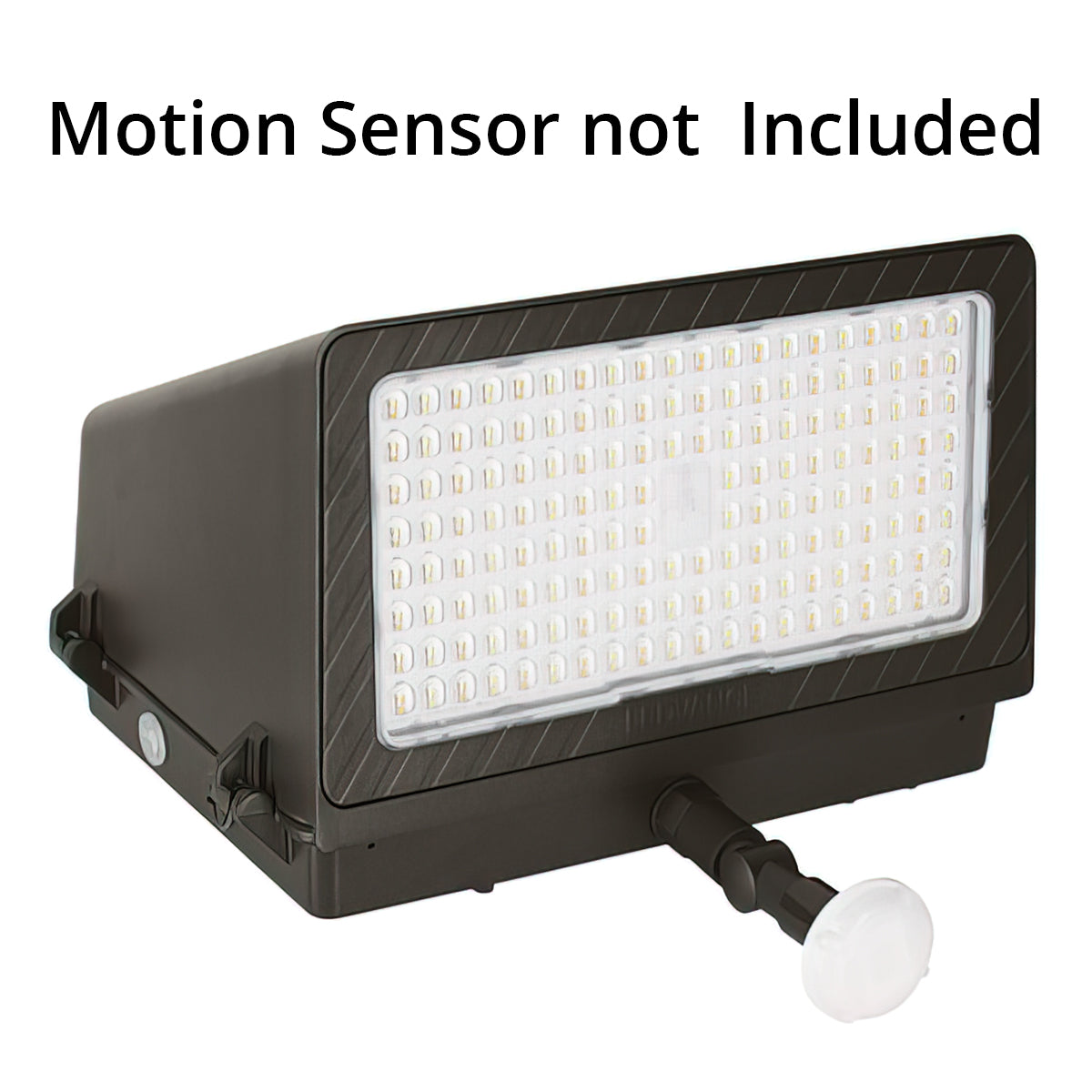

- Controls: Integrated photocell included; ready for field-installable sensors
- Distribution: Type III Full Cutoff
- CRI: 80+
- Environmental Ratings: IP65 rated for Wet Locations
- Certifications: DLC 5.1 Premium Listed, cULus, RoHS Compliant, FCC, Dark Sky Compliant (<3000K)
- Estimated Life: 100,000 hours (L70)
Typical Applications
- Industrial building perimeters and warehouse facades
- Large walkways, high-security entryways, and heavy-duty loading docks
- Security and safety lighting for high-mounting heights
- Locations requiring strict Dark Sky compliance and intense illumination
Performance & Light Output
The 65859 wall pack provides extreme, targeted illumination ranging from 18,000 to 22,500 lumens depending on the selected wattage setting. Utilizing a Type III distribution, it casts a wide, forward-throwing beam that illuminates large perimeters efficiently while keeping light off adjacent properties. With an efficacy reaching 150 LPW and a 100,000-hour rated lifespan, this fixture drastically reduces energy consumption and maintenance cycles compared to legacy 400W HID systems.
Electrical & Controls
This fixture operates on a constant current 120–347V AC driver, making it ideal for standard and high-voltage applications. It supports 0–10V dimming. The integrated photocell ensures the light only operates when needed, while the sensor-ready design allows contractors to easily plug in optional motion/daylight sensors without complicated internal wiring.
Construction & Durability

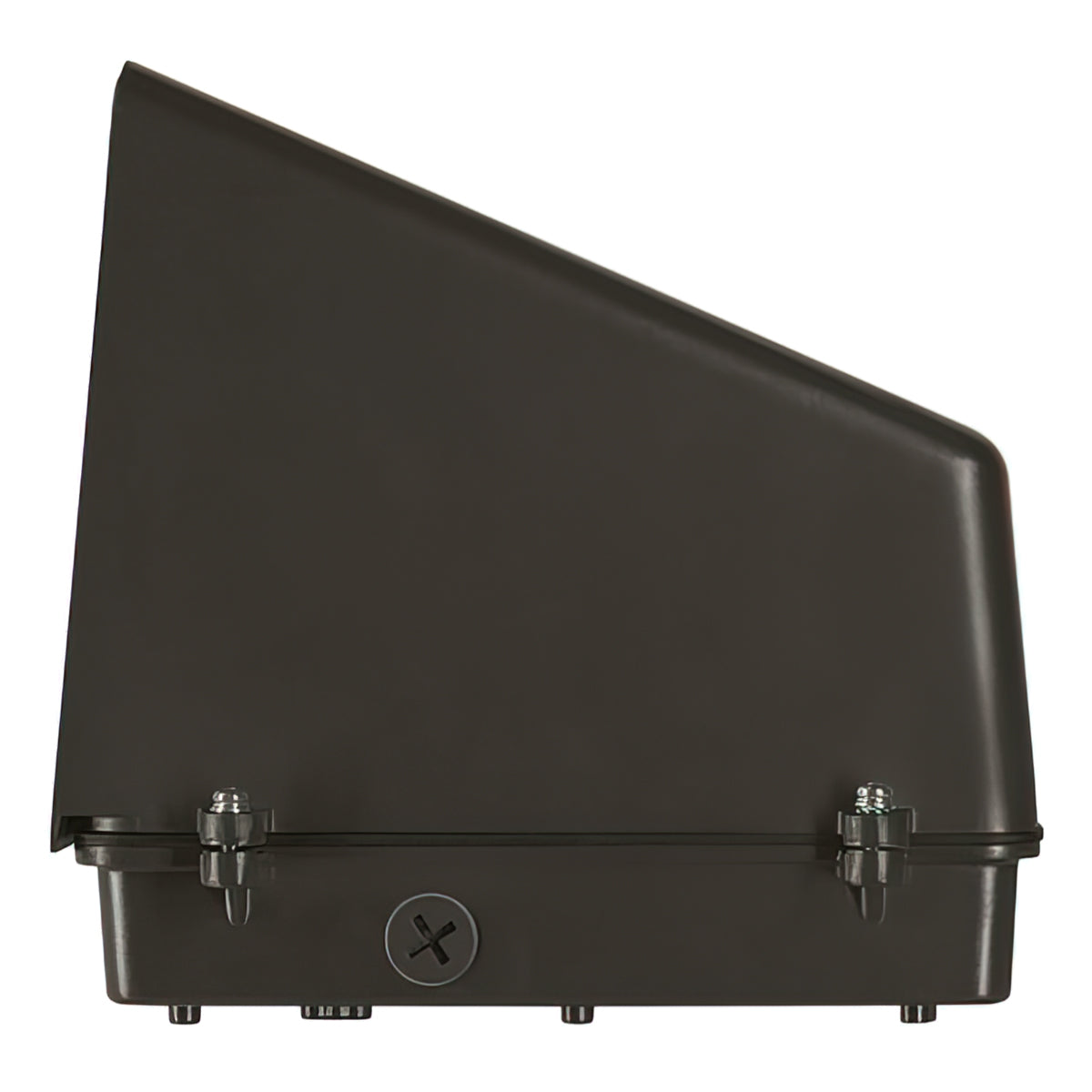

Engineered to withstand harsh environments, the 65859 features a traditional footprint housing finished in a resilient bronze powder coat, ensuring it covers the "ghosting" left by older fixtures. The LED engine is protected by a UV-stabilized, vandal-resistant polycarbonate lens. The fixture is fully IP65 rated, protecting it against dust and water ingress in extreme temperature fluctuations from -40°F to 122°F (-40°C to 50°C).
What's Included
- LEDVANCE SYLVANIA Dual Selectable Cutoff Wall Pack (Bronze)
- Integrated Photocell
Specifications
Specifications

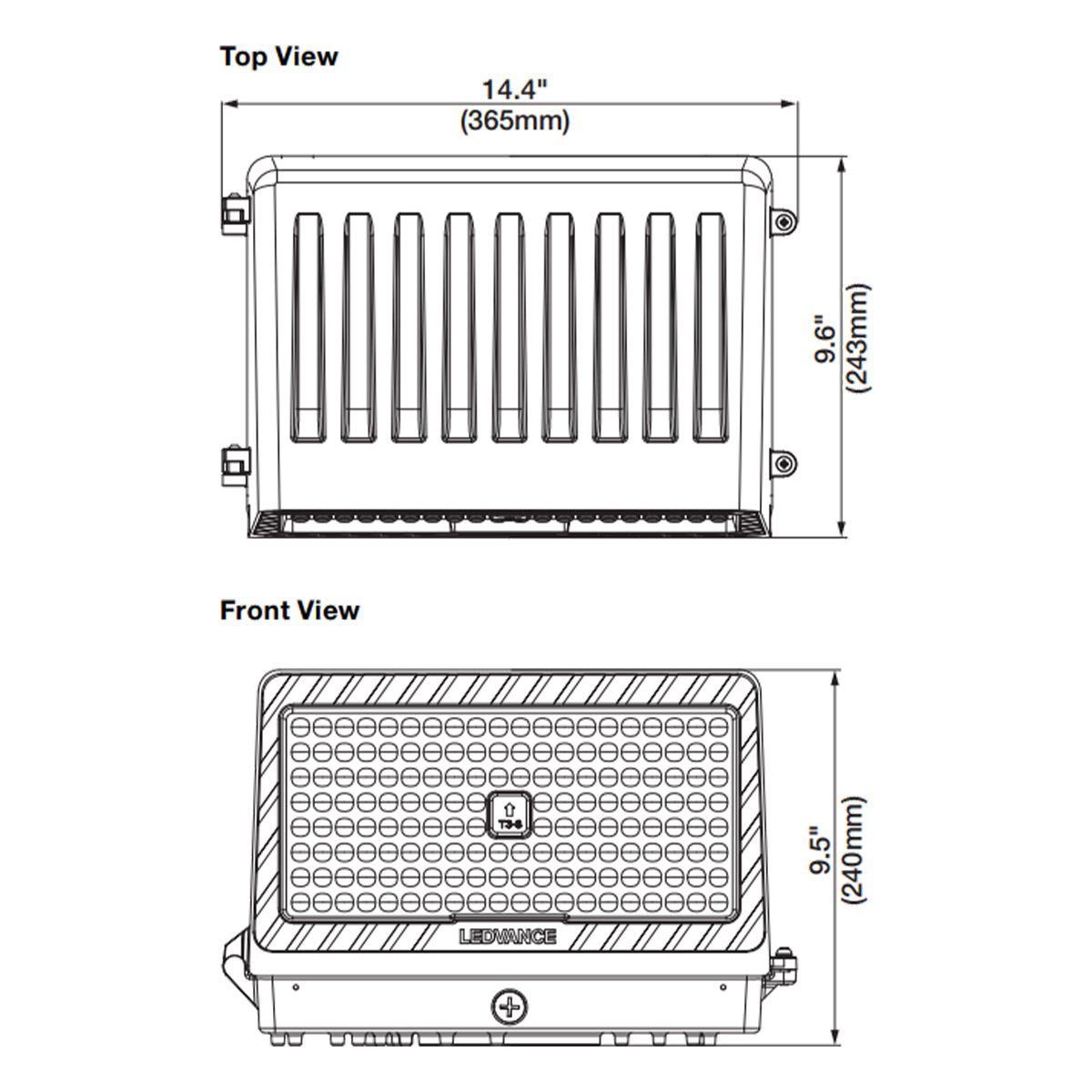

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
How do I adjust the wattage and color temperature on the 65859?
How do I adjust the wattage and color temperature on the 65859?
What traditional lighting does the LEDVANCE 65859 replace?
What traditional lighting does the LEDVANCE 65859 replace?
Does this cutoff wall pack include a photocell?
Does this cutoff wall pack include a photocell?
Can I add a motion sensor to this fixture later?
Can I add a motion sensor to this fixture later?
What is a "Full Cutoff" wall pack?
What is a "Full Cutoff" wall pack?
