LEDVANCE SYLVANIA 65856 Cutoff LED Wall Pack 5,250 Lumens 20/30/35W Selectable 30K/40K/50K 120-347V Photocell Bronze
Available in stock (96)
About this item
About this item
- Dual Selectability: Simplifies inventory and maximizes on-site flexibility with field-adjustable wattage (20W/30W/35W) and selectable color temperature (3000K/4000K/5000K).
- Full Cutoff Compliance: Features a Type III full-cutoff distribution that eliminates uplight and minimizes glare, ensuring Dark Sky compliance (when set to 3000K) and preventing light trespass.
- High Efficacy: Delivers up to 5,250 lumens with a highly efficient output of up to 150 LPW, providing a direct, energy-saving replacement for traditional 100W–150W HID fixtures.

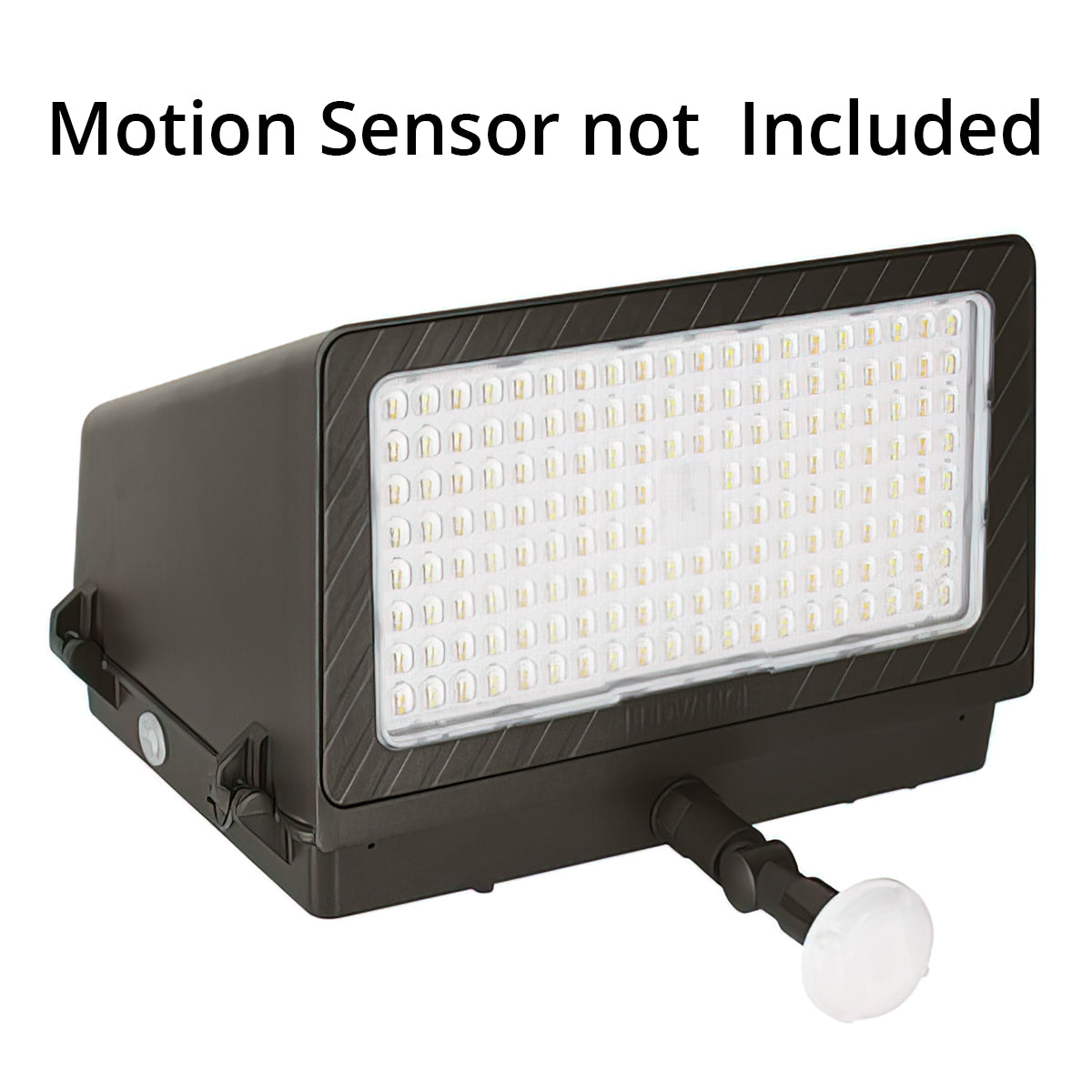

- Integrated Photocell & Sensor Ready: Equipped with a built-in photocell for dusk-to-dawn operation, and features a plug-and-play port for easy, field-installable motion/daylight sensors.
- Universal Voltage: Operates on a wide-range 120-347V AC driver, making it fully compatible with a vast array of commercial and industrial electrical systems.
We process payments securely and do not store credit card information.
Description
Description

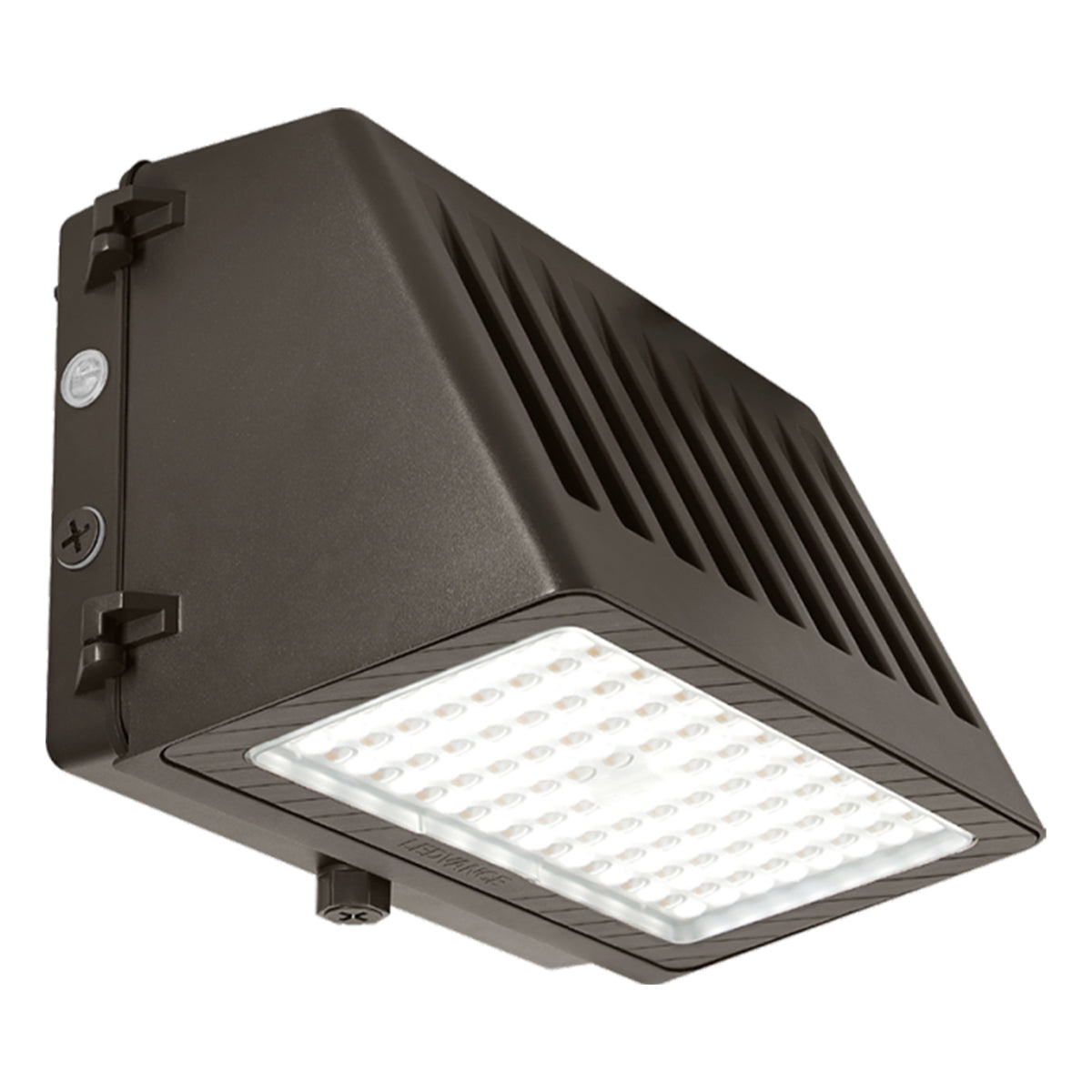

LEDVANCE SYLVANIA Dual Selectable Cutoff LED Wall Pack — 20-35W Selectable, 120–347V, Bronze
The LEDVANCE SYLVANIA 65856 (Generation 9A) is a specification-grade dual selectable full cutoff LED wall pack delivering up to 5,250 lumens. Engineered to keep the same traditional form factor for an easy LED upgrade without unsightly wall patchwork, this fixture provides superior downward illumination without light pollution. It offers exceptional versatility by allowing installers to choose between 20W, 30W, or 35W of power and 3000K, 4000K, or 5000K color temperatures directly on the unit. Operating on a robust 120–347V driver, it includes an integrated photocell for automated security lighting and supports optional plug-and-play sensors. With its Type III distribution and IP65 Wet Location rating, it is the ideal choice for building perimeters, schools, and commercial properties requiring strict lighting control.
Key Features
- Wattage: 20W / 30W / 35W Selectable
- Selectable CCT: 3000K / 4000K / 5000K
- Delivered Lumens: 3,000 to 5,250 lumens
- Efficacy: Up to 150 Lumens Per Watt (LPW)
- Voltage: 120–347V universal input
- Dimming: 0–10V dimming standard
- Controls: Integrated photocell included; ready for field-installable sensors
- Distribution: Type III Full Cutoff
- CRI: 80+
- Environmental Ratings: IP65 rated for Wet Locations
- Certifications: DLC 5.1 Premium Listed, cULus, RoHS Compliant, FCC, Dark Sky Compliant (<3000K)
- Estimated Life: 100,000 hours (L70)
Typical Applications
- Commercial and educational building perimeters
- Walkways, entryways, and loading docks
- Security and safety lighting
- Locations requiring strict Dark Sky compliance and glare control
Performance & Light Output
The 65856 wall pack provides brilliant, targeted illumination ranging from 3,000 to 5,250 lumens depending on the selected wattage setting. Utilizing a Type III distribution, it casts a wide, forward-throwing beam that illuminates perimeters efficiently while keeping light off adjacent properties. With an efficacy reaching 150 LPW and a 100,000-hour rated lifespan, this fixture drastically reduces energy consumption and maintenance cycles compared to legacy HID systems.
Electrical & Controls
This fixture operates on a constant current 120–347V AC driver, making it ideal for standard and high-voltage applications. It supports 0–10V dimming. The integrated photocell ensures the light only operates when needed, while the sensor-ready design allows contractors to easily plug in optional motion/daylight sensors without complicated internal wiring.
Construction & Durability
Engineered to withstand harsh environments, the 65856 features a traditional footprint housing finished in a resilient bronze powder coat, ensuring it covers the "ghosting" left by older fixtures. The LED engine is protected by a UV-stabilized, vandal-resistant polycarbonate lens. The fixture is fully IP65 rated, protecting it against dust and water ingress in extreme temperature fluctuations from -40°F to 122°F (-40°C to 50°C).
What's Included
- LEDVANCE SYLVANIA Dual Selectable Cutoff Wall Pack (Bronze)
- Integrated Photocell
Specifications
Specifications

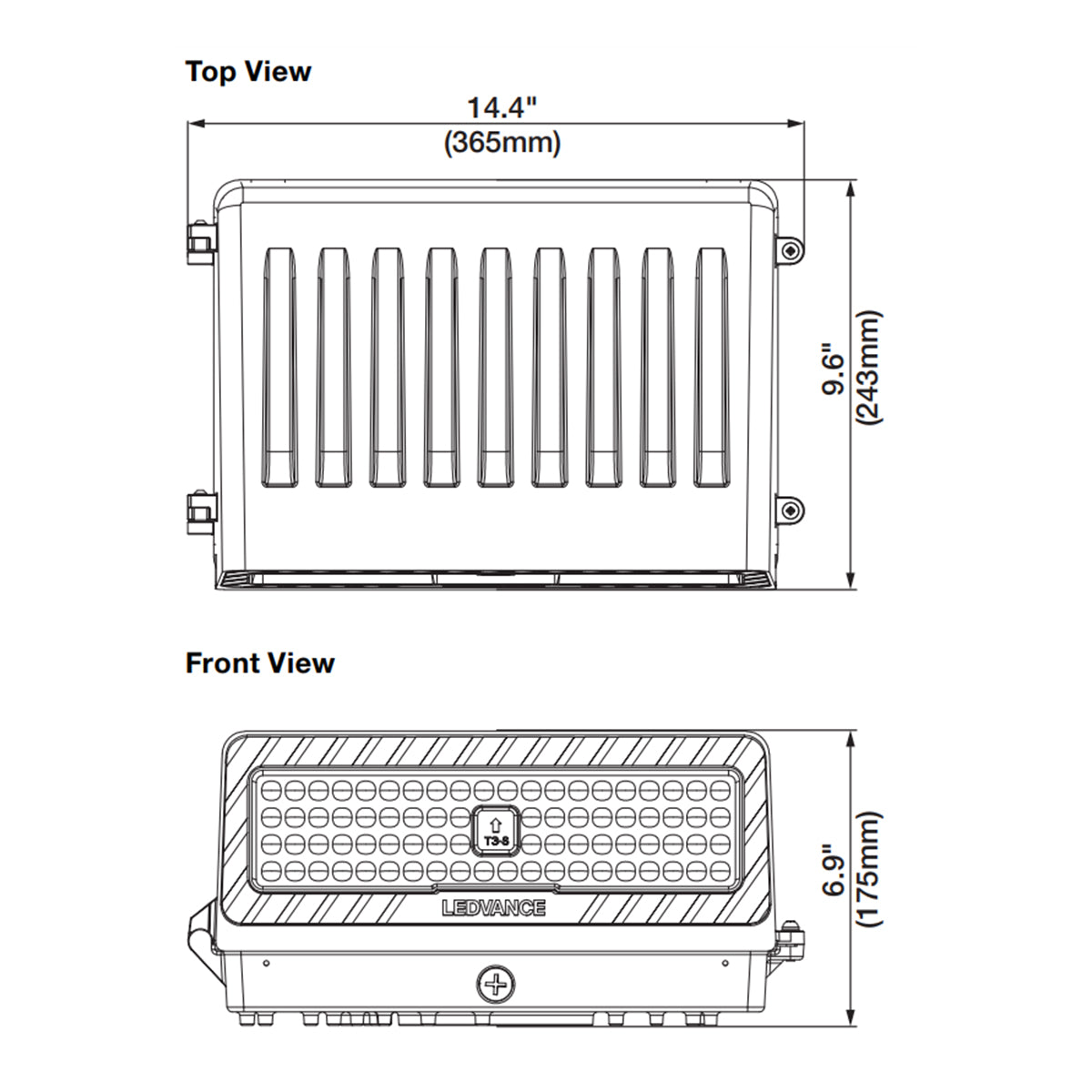

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
How do I adjust the wattage and color temperature on the 65856?
How do I adjust the wattage and color temperature on the 65856?
What is a "Full Cutoff" wall pack?
What is a "Full Cutoff" wall pack?
What traditional lighting does the LEDVANCE 65856 replace?
What traditional lighting does the LEDVANCE 65856 replace?
Does this cutoff wall pack include a photocell?
Does this cutoff wall pack include a photocell?
Can I add a motion sensor to this fixture later?
Can I add a motion sensor to this fixture later?
