Description

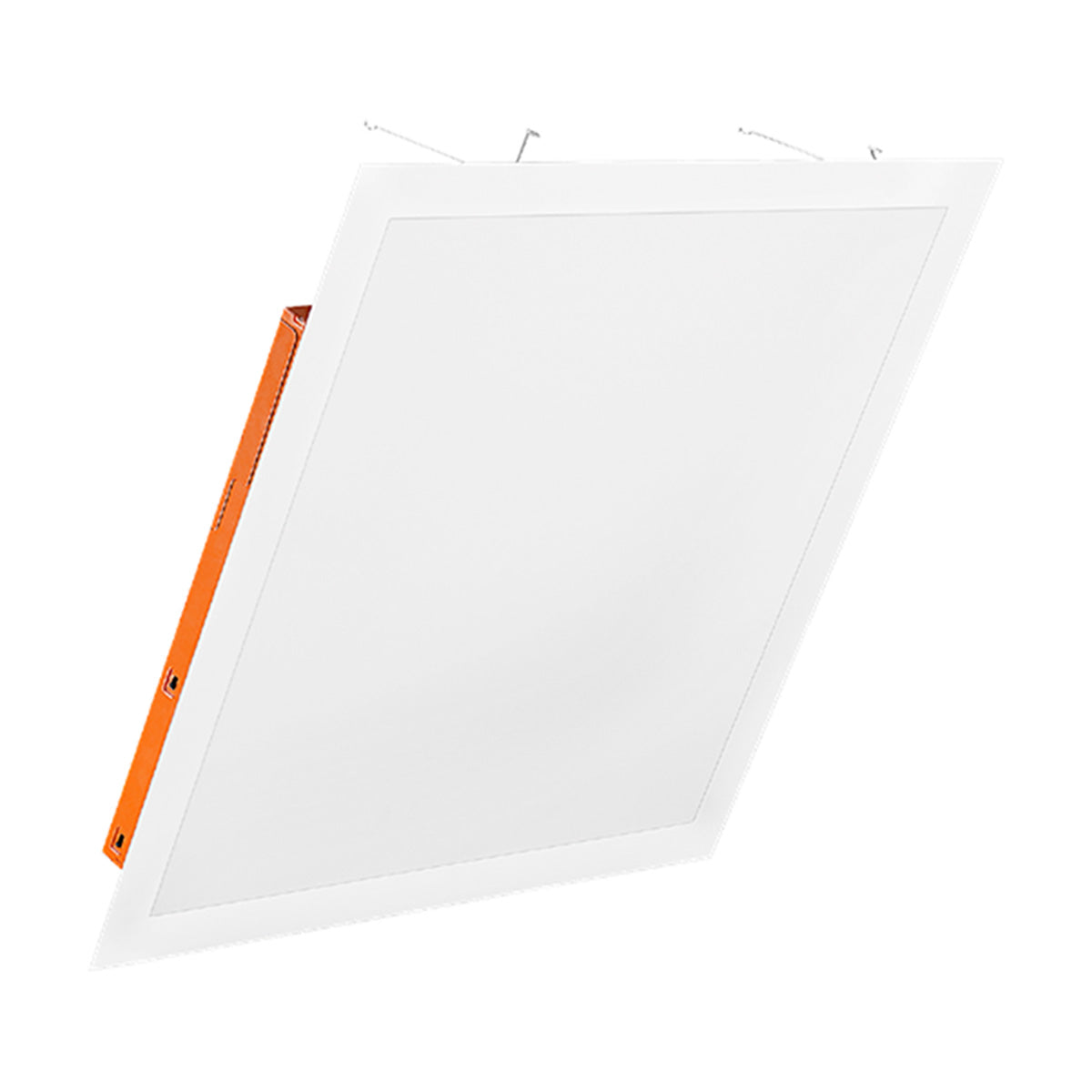

LEDVANCE Sylvania 65851 EZ SWAP Dual Selectable 2x2 Flat Panel Retrofit Kit — 20W/30W/35W Selectable — 3500K/4000K/5000K — 120–347V — White

The LEDVANCE Sylvania PANELRDORKIT2A35UNHD8SC722WH (Item 65851) is a commercial 2x2 EZ SWAP™ Dual Selectable Flat Panel Retrofit Kit engineered to deliver up to 3,850 lumens with field-selectable 20W/30W/35W power settings and switchable 3500K/4000K/5000K color temperatures. Operating on universal 120–347VAC electrical systems with 0–10V continuous dimming, this Performance Class luminaire provides an energy-efficient retrofit replacement for legacy 3-lamp F17T8 (48W system) or 2-lamp F31T8 U-bend (56W system) linear fluorescent troffers. Built with a cETLus Listed damp location rating, it is qualified for commercial utility rebates under DLC 5.1 Standard guidelines and features sliding channel torsion springs with all mounting hardware included for rapid installation into existing ceiling troffer housings.

Key Features

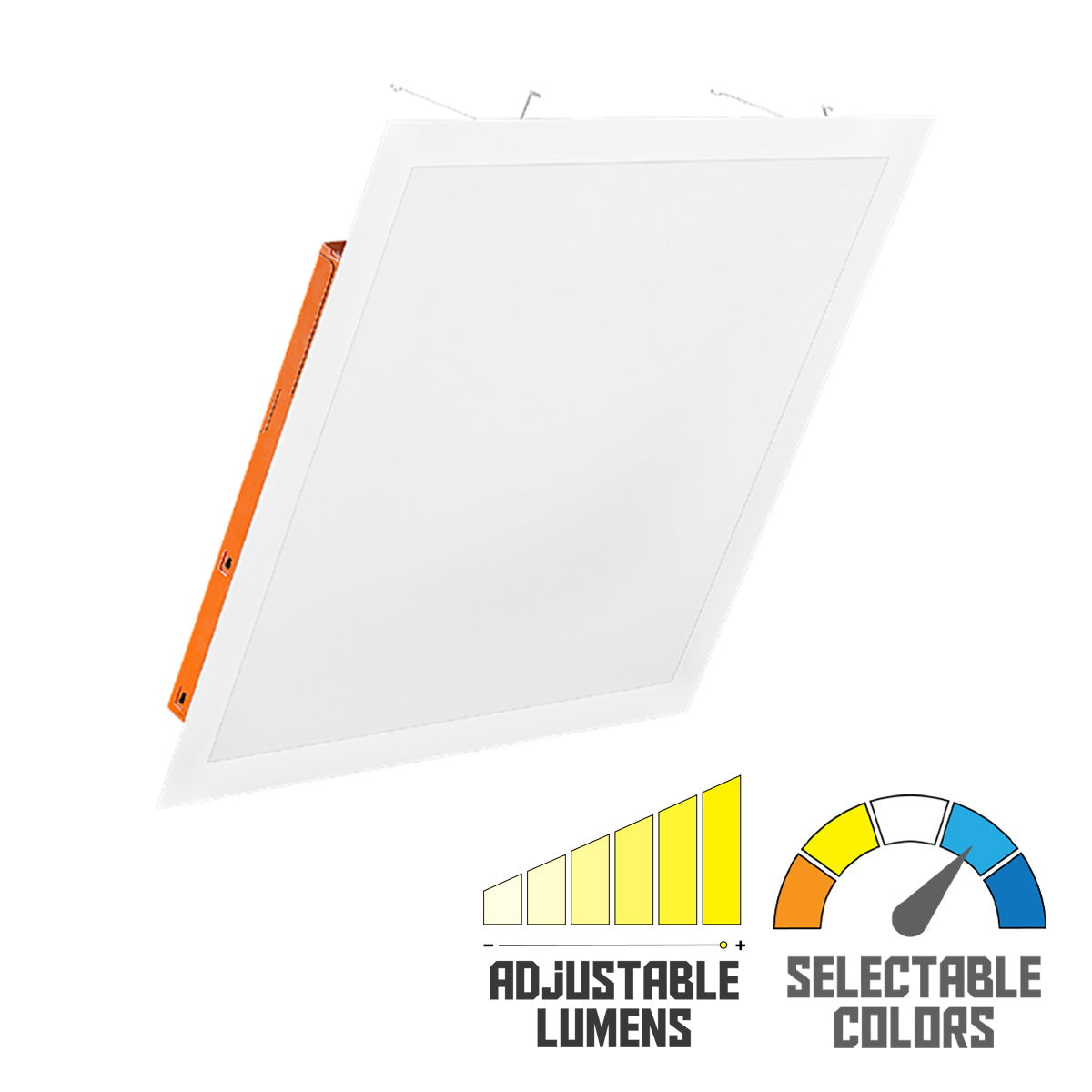

  • Selectable Wattage: 20W / 30W / 35W — field-adjustable via onboard switch
  • Wattage Equivalency: Replaces legacy 3-lamp 17W T8 (48W system — 38% savings at 30W) and 2-U-lamp 31W T8 (56W system — 46% savings at 30W) troffers
  • Maximum Lumen Output: 3,850 lm at 35W
  • Peak Efficacy: Up to 110 lm/W for commercial operation
  • CRI: >80 color rendering across all settings

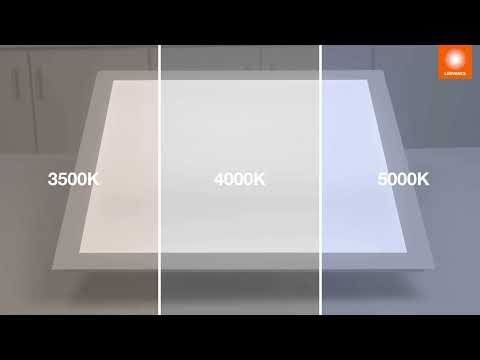

  • Selectable CCT: 3500K / 4000K / 5000K — field-adjustable via onboard switch
  • Lens & Optics: Uniform flat panel diffuser with a 120° distribution (average beam angle at 50%: 115.3° at 20W, 115.4° at 30W, and 115.5° at 35W)
  • Dimming: 0–10V dimmable standard
  • Voltage: Universal 120–347VAC constant current driver
  • Location Rating: cETLus Listed for indoor damp locations
  • Operating Temperature: -4°F (-20°C) to 122°F (50°C) ambient range
  • Certifications: DLC 5.1 Standard Listed, cETLus Listed, FCC, RoHS Compliant, NLB Trusted Warranty Program
  • Rated Life: 50,000 hours (L70)
  • Warranty: 5-year limited warranty — LEDVANCE Sylvania (NLB Trusted Warranty Program)
  • Form Factor & Design: 1.37" (35mm) slim profile with torsion springs that slide in channels to fit existing fluorescent troffer housings; all mounting accessories included

Performance & Light Output

Wattage Total Lumens Efficacy Legacy Equivalent
20W 2,200 lm Up to 110 lm/W 2x2 Fluorescent Troffer
30W 3,300 lm Up to 110 lm/W 3-lamp 17W T8 (48W — 38% savings) / 2-U-lamp 31W T8 (56W — 46% savings)
35W 3,850 lm Up to 110 lm/W 3-lamp 17W T8 / 2-U-lamp 31W T8

CRI >80 across all configurations. Rated life 50,000 hours (L70).

Smart & Control Features

The 65851 (PANELRDORKIT2A35UNHD8SC722WH) includes factory-wired 0–10V dimming control leads compatible with commercial 0–10V wall dimmers and building automation systems, including tested compatibility with Leviton (DS710, IP710), Lutron (NTSTV-DV, DVSTV, DVTV-WH), and Legrand (RH4FBL3PW) 0–10V dimmers.

Electrical

Powered by a universal 120–347VAC driver delivering high electrical efficiency with a Power Factor >0.90 and Total Harmonic Distortion (THD) <20%. Includes 0–10V dimming control leads.

Emergency Battery Backup Options: Made-to-order factory-installed emergency battery backup (EMBB) configurations (Item 64113 (PANELRDKIT2A35UNHD8SC722WHE)) are available within the EZ SWAP series.

Construction

Housing & Build: White retrofit flat panel assembly equipped with channel-sliding torsion springs and safety retention cables to fit directly inside existing fluorescent troffer bodies without disturbing the ceiling grid.

Location & Environmental Rating: cETLus Listed for indoor damp location commercial environments.

Operating Temperature: Wide operating ambient temperature range of -4°F (-20°C) to 122°F (50°C).

Lens & Optics: Uniform flat panel lens delivering a 120° distribution (average beam angle at 50%: 115.3° at 20W, 115.4° at 30W, and 115.5° at 35W) for smooth, low-glare illumination.

Finish: White finish formulated for clean architectural T-grid integration.

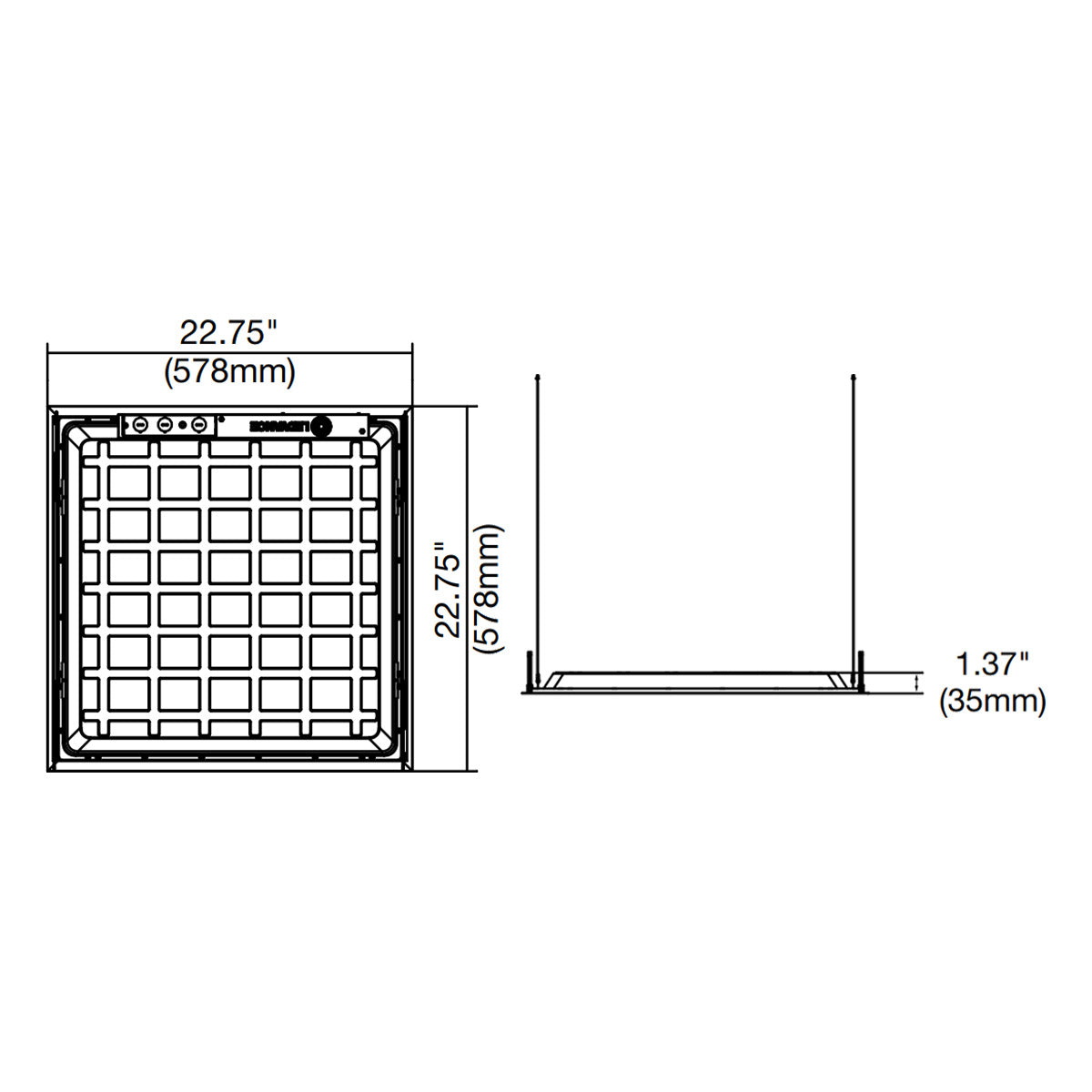

Dimensions: 22.75" L × 22.75" W × 1.37" H (578mm × 578mm × 35mm).

Installation & Mounting

Standard Retrofit Mounting: Engineered to retrofit existing 2x2 fluorescent troffers using torsion springs that slide in channels for flexible alignment; all required mounting accessories are included in the box. Tested compatible with representative 2x2 troffer housings including Lithonia (987218, 2GT8 3 17 A12 MVOLT 1/3 GEIS), Simkar (55-22234), Hubbell (ST822-232U6G-FSA12125-EU), and Cooper (ATW-SW4-2GR8-2U6T8A-UNV-EB81-U) (note: replacing an air-handling fixture with this luminaire will void the air-handling capabilities of the luminaire).

Certifications & Rebates

  • DLC 5.1 Standard Listed: Qualifies for commercial utility rebate incentives across regional energy programs. To confirm rebate eligibility with your local utility provider, visit designlights.org and search model PANELRDORKIT2A35UNHD8SC722WH (Item 65851).
  • cETLus Listed: Certified for indoor damp locations.
  • FCC Compliant: Meets commercial electromagnetic interference requirements.
  • RoHS Compliant: Engineered free of hazardous substances.
  • NLB Trusted: Verified under the National Lighting Bureau (NLB) Trusted Warranty Program.

Typical Applications

  • Commercial Office Troffer Retrofits — Sliding torsion springs upgrade existing 2x2 fluorescent troffers without disturbing the drop-ceiling T-grid.
  • Retail Spaces & Showrooms — Switchable 3500K/4000K/5000K CCT and 120° distribution deliver clean, uniform general lighting.
  • Hallways & Institutional Corridors — Universal 120–347VAC input supports both standard commercial and 347V building power grids.
  • Multipurpose & Conference Rooms — Smooth 0–10V dimming compatibility with Leviton, Lutron, and Legrand dimmers adapts light levels to presentations.
  • Hospitality & Common Areas — 50,000-hour L70 lifespan and NLB Trusted 5-year warranty reduce long-term maintenance costs.

What's Included

  • 2x LEDVANCE Sylvania 65851 — White
  • Sliding channel torsion springs and all required retrofit mounting hardware
  • Installation instructions

Specifications

Dimensions

Length/Depth
22.75 in
Width/Diameter
22.75 in
Height
1.37 in
Weight
9.04 lb

Style & Materials

Material
Aluminum
Mounting Type
Recessed mount

Characteristics & Features

Lamp Source
led
Lamp Color
3500K, 4000K, 5000K, Selectable CCT
Color Rendering
80 CRI
Delivered Lumens
3850
Dimmable
Yes

Electrical Information

Voltage
120-347V
Total Wattage
35W

Item Details

MPN
65851
Brand
Sylvania
Catalog Number
PANELRDORKIT2A35UNHD8SC722WH
Family
Dual Selectable Flat Panel Retrofit Kit 2A
UPC
046135658518

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
50,000 Hours
Product Rating
Damp Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

How do you adjust the wattage, lumen output, and color temperature on the LEDVANCE Sylvania 65851?

The LEDVANCE Sylvania 65851 includes onboard selector switches for field-selectable wattage and color temperature adjustment during installation. Installers can switch between 20W (2,200 lumens), 30W (3,300 lumens), and 35W (3,850 lumens) (up to 110 lm/W efficacy) and choose 3500K, 4000K, or 5000K white light with >80 CRI.

Is the LEDVANCE Sylvania 65851 dimmable, and what voltage does it operate on?

Yes, the LEDVANCE Sylvania 65851 operates on universal 120–347VAC electrical systems (Power Factor >0.90, THD <20%) and includes 0–10V dimming control leads. It is tested compatible with commercial 0–10V dimmers from Leviton (DS710, IP710), Lutron (NTSTV-DV, DVSTV, DVTV-WH), and Legrand (RH4FBL3PW).

Is the LEDVANCE Sylvania 65851 rated for damp locations, and what is its operating temperature range?

Yes, the LEDVANCE Sylvania 65851 is cETLus Listed for indoor damp locations as well as FCC and RoHS compliant. It is engineered to operate reliably across a wide ambient temperature range of -4°F (-20°C) to 122°F (50°C).

How is the LEDVANCE Sylvania 65851 EZ SWAP retrofit kit mounted into an existing troffer?

The LEDVANCE Sylvania 65851 retrofits directly into existing 2x2 fluorescent troffer housings using torsion springs that slide in channels for flexible alignment, with all mounting hardware included. Note that installing this kit into an air-handling troffer will void the fixture's air-handling capabilities.

What is the rated lifespan, warranty, and DLC rebate status of the LEDVANCE Sylvania 65851?

The LEDVANCE Sylvania 65851 (PANELRDORKIT2A35UNHD8SC722WH) features a 50,000-hour L70 rated lifespan and is backed by a 5-year limited warranty under the NLB Trusted Warranty Program. It is DLC 5.1 Standard Listed for commercial utility rebates when replacing up to 3-lamp F17T8 or 2-lamp F31T8 U-bend fluorescent troffers.
