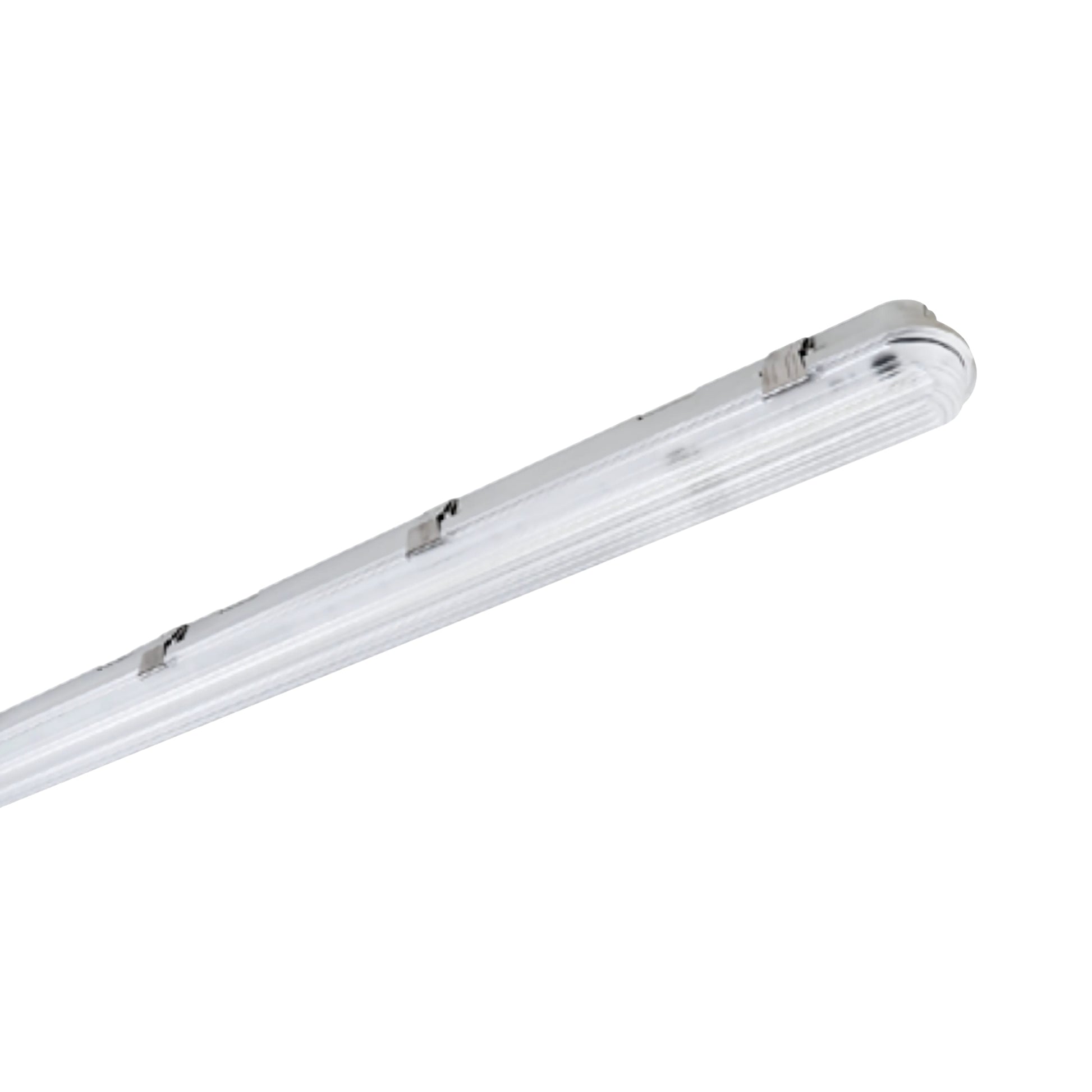

LEDVANCE Sylvania 65700 UltraLED Dual Selectable 4ft Vapor Tight 3A — 50W — 3500K/4000K/5000K — 120–347V — Gray
Available in stock (100)
About this item
About this item
- Output & Equivalency: Switchable 30W/40W/50W variable power settings delivering 4,320/5,760/7,200 lumens (144 lm/W) to replace 2x32W T8, 3x28W T8, 3x32W T8, or 2x54W T5 fluorescent fixtures.
- Rugged Washdown Enclosure: IP66-rated polycarbonate body and lens with stainless steel lens clips and NEMA 4X corrosion protection for harsh environments.
- Selectable CCT: Internal selector switch enables instant selection between 3500K, 4000K, and 5000K switchable Kelvin color temperatures.
- 0–10V Dimming & Aux Output: Wide-range 120–347V AC driver includes 0–10V continuous dimming, 2.5kV surge suppression, and an auxiliary 12V output.
- Rebates & Ingress Defense: DLC 5.1 listed, cULus wet location rated, IP66 sealed, NSF Splash Zone certified, and backed by the 5-year NLB Trusted Warranty.
Description
Description
LEDVANCE Sylvania 65700 UltraLED Dual Selectable 4ft Vapor Tight 3A — 30W/40W/50W Selectable — 3500K/4000K/5000K — 120–347V — Gray/Polycarbonate Lens
The LEDVANCE Sylvania 65700 (VAPOR3A/S050UNHD8SC7/48/GR) is a commercial 4ft Vapor Tight luminaire from the UltraLED Dual Selectable 3A series engineered to deliver up to 7,200 lumens with field-adjustable 30W/40W/50W power settings and switchable 3500K/4000K/5000K color temperatures. Operating on wide-range 120–347V AC electrical systems with 0–10V continuous dimming, this luminaire provides an energy-efficient replacement for legacy 2x32W T8, 3x28W T8, 3x32W T8, or 2x54W T5 fluorescent fixtures with up to 47% energy savings. Built with a UL 1598 (cULus) Wet Location rating, it is qualified for commercial utility rebates under DLC 5.1 standards and features an IP66-sealed polycarbonate body and lens, stainless steel lens clips, NEMA 4X corrosion defense, and NSF Splash Zone certification.
Key Features
- Selectable Wattage: 30W / 40W / 50W — field-adjustable multi-wattage selectable driver via internal switch
- Wattage Equivalency: Replaces legacy 2x32W T8, 3x28W T8, 3x32W T8, or 2x54W T5 fluorescent fixtures for up to 47% energy savings
- Maximum Lumen Output: 7,200 lm at 50W / 4000K (4,320 / 5,760 / 7,200 lm steps)
- Peak Efficacy: 144 lm/W for high-efficiency commercial operation
- CRI: >80 color rendering across all settings
- Selectable CCT: 3500K / 4000K / 5000K — field-adjustable CCT for tunable white and switchable Kelvin control
- Lens & Optics: Polycarbonate lens secured by stainless steel lens clips
- Dimming: 0–10V continuous dimming standard with auxiliary 12V output
- Voltage: Universal 120–347V AC constant current driver
- Location Rating: UL 1598 (cULus) Listed for wet locations
- Operating Temperature: -40°F (-40°C) to 122°F (50°C) chain mount / -40°F (-40°C) to 104°F (40°C) surface mount ambient range
- Certifications: DLC 5.1 Listed, UL 1598 (cULus), IP66, NEMA 4X, NSF Splash Zone, FCC, RoHS, NLB Trusted Warranty Program
- Rated Life: 100,000 hours (L70)
- Warranty: 5-year limited warranty — LEDVANCE Sylvania (NLB Trusted Warranty Program)
Performance & Light Output
| Wattage | Total Lumens (4000K) | Efficacy | Legacy Equivalent |
|---|---|---|---|
| 50W | 7,200 lm | 144 lm/W | 3x32W T8 (75W, 33% savings) / 2x54W T5 (87W, 43% savings) |
| 40W | 5,760 lm | 144 lm/W | 3x28W T8 (64W, 38% savings) / 3x32W T8 (75W, 47% savings) |
| 30W | 4,320 lm | 144 lm/W | 2x32W T8 (56W system, 46% energy savings) |
CRI >80 across all configurations. Rated life 100,000 hours (L70). Delivers high-efficiency illumination resulting in significant energy reduction compared to traditional fluorescent systems.
Smart & Control Features
Equipped with 0–10V dimming leads and an auxiliary 12V output for smooth continuous dimming on commercial 0–10V branch circuits. The UltraLED Vapor Tight 3A series is also offered in made-to-order configurations with an integrated motion/daylight sensor (up to 14.7 ft mounting height, sold separately) programmable via onboard DIP switches or optional handheld remote controls (catalog # 66592 / HIBAYSENSORG2REMOTE or NAED 60105, sold separately).
Electrical
Powered by a wide-range constant current driver operating on 120–347V AC. Delivers high electrical efficiency with a Power Factor >90% and Total Harmonic Distortion (THD) <20%. Integrated 2.5kV surge suppression protects internal electronics against transient voltage spikes. Includes 0–10V dimming leads and an auxiliary 12V output.
Emergency Battery Backup: Available in made-to-order emergency battery backup configurations (`E` and `DE` models, sold separately) producing 1,200 lumens (9W) in 4ft fixtures for 90 minutes during a power outage.
Construction
Durability & Impact Protection: Polycarbonate body and polycarbonate lens with stainless steel lens clips engineered for thermal dissipation and durability, paired with a NEMA 4X corrosion-resistant enclosure and NSF Splash Zone certification for sanitation environments.
Ingress Protection: IP66 rated and UL 1598 (cULus) wet location listed for complete protection against airborne dust and powerful water jets.
Operating Temperature: -40°F (-40°C) to 122°F (50°C) chain mount / -40°F (-40°C) to 104°F (40°C) surface mount ambient range.
Lens & Optics: Polycarbonate lens for durable optical protection and uniform distribution.
Finish: Gray finish formulated for high resistance against corrosion and surface wear.
Dimensions & Weight: 50.24" L × 3.31" W × 3.35" H.
Installation & Mounting
Standard Mounting: Supplied standard with stainless steel surface mounting brackets and V-hooks for suspended chain mounting.
Accessories (Sold Separately):
- Mounts & Hardware: 62619 / VAPOR3A/MOUNTINGKIT (Replacement Mounting Kit, sold separately), 62618 / VAPOR3A/CLIPS (Stainless Steel Clips for 2ft and 4ft Vapor3A, sold separately), 62616 / VAPOR3A/LENS4 (4ft Replacement Lens, sold separately)
- Sensors & Controls: 66592 / HIBAYSENSORG2REMOTE (Standard Remote Control for motion sensor, sold separately), NAED 60105 (Optional Remote Control, sold separately)
Certifications & Rebates
- DLC 5.1 Listed: Qualifies for commercial utility rebate incentives across regional energy programs. To confirm rebate eligibility with your local utility provider, visit designlights.org and search model 65700 or VAPOR3A/S050UNHD8SC7/48/GR.
- UL 1598 (cULus) Listed: Certified for wet locations.
- NSF: NSF Splash Zone certified for food-service and commercial sanitation environments.
- NEMA 4X & IP66 Rated: NEMA 4X corrosion-resistant enclosure and IP66 sealed against dust and high-pressure water jets.
- FCC & RoHS Compliant: Complies with FCC electromagnetic interference limits and RoHS hazardous substance restrictions.
- NLB Trusted: Verified under the National Lighting Bureau Trusted Warranty Program.
Typical Applications
- Tunnels & Underground Corridors — IP66 and NEMA 4X polycarbonate housing with stainless steel clips resists moisture, dust, and corrosion.
- Industrial Manufacturing & Assembly — Wide 120–347V AC input and 100,000-hour L70 lifespan support continuous industrial facility operation.
- Food Processing & Splash Zones — NSF Splash Zone certification and sealed polycarbonate lens withstand commercial washdown procedures.
- Cold Storage & Walk-In Freezers — Broad ambient temperature operating range ensures dependable illumination in refrigerated facilities.
- Parking Garages & Utility Rooms — Surface mount brackets and V-hooks adapt easily to concrete ceilings and suspended chain layouts.
What's Included
- LEDVANCE Sylvania 65700 (VAPOR3A/S050UNHD8SC7/48/GR) UltraLED Dual Selectable 4ft Vapor Tight 3A — Gray
- Stainless steel mounting brackets and V-hooks
- Installation and operation manual
