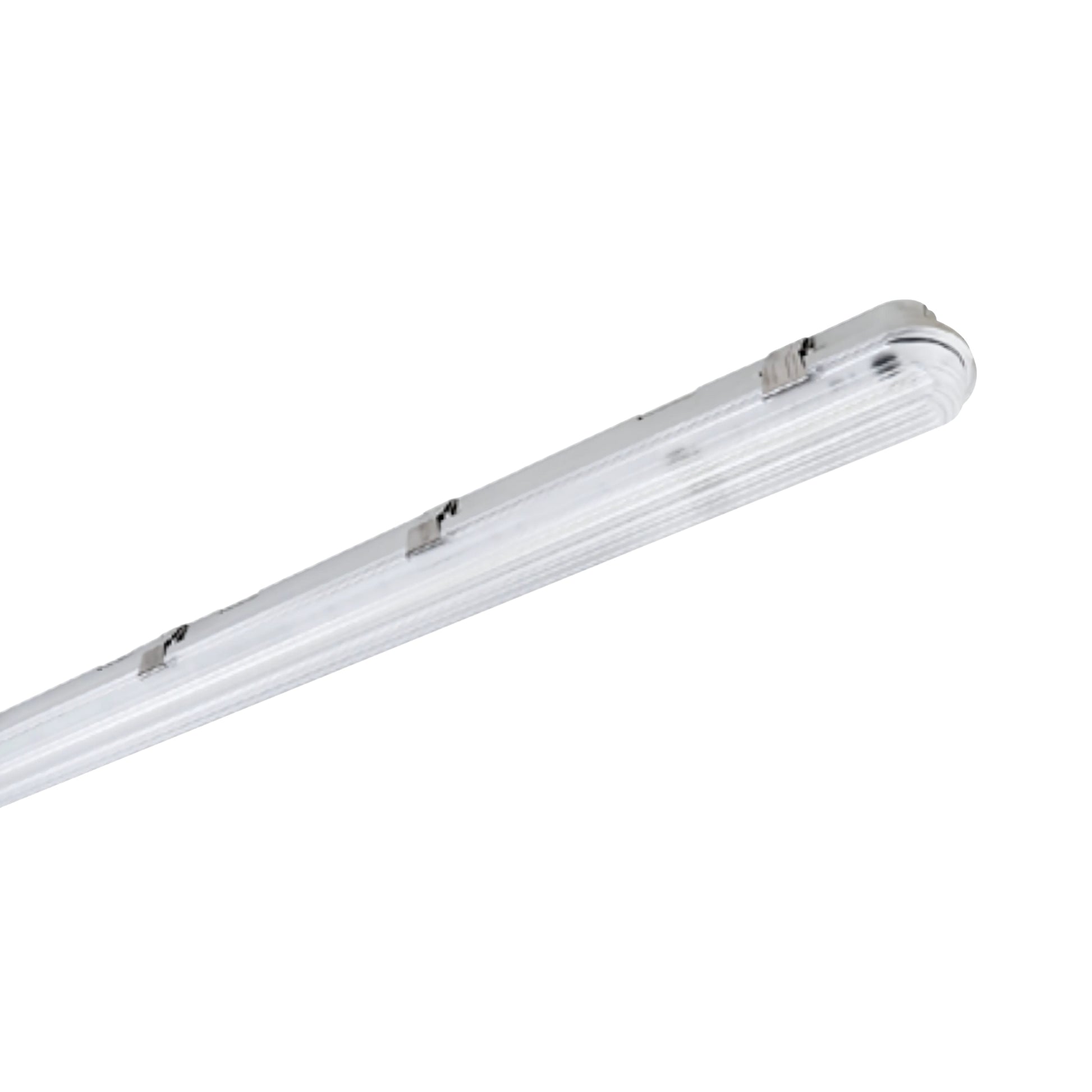

LEDVANCE Sylvania 65699 UltraLED Dual Selectable 2ft Vapor Tight 3A — 15W/20W/25W Selectable — 3500K/4000K/5000K — 120–347V — Gray/Polycarbonate Lens

The LEDVANCE Sylvania 65699 (VAPOR3A/S025UNHD8SC7/24/GR) is a commercial 2ft Vapor Tight luminaire from the UltraLED Dual Selectable 3A series engineered to deliver up to 3,600 lumens with field-adjustable 15W/20W/25W power settings and switchable 3500K/4000K/5000K color temperatures. Operating on wide-range 120–347V AC electrical systems with 0–10V continuous dimming, this luminaire provides an energy-efficient replacement for legacy 1x32W T8 or 2x28W T8 fluorescent fixtures with up to 49% energy savings. Built with a UL 1598 (cULus) Wet Location rating, it is qualified for commercial utility rebates under DLC 5.1 standards and features an IP66-sealed polycarbonate body and lens, stainless steel lens clips, NEMA 4X corrosion defense, and NSF Splash Zone certification.

Key Features

• Selectable Wattage: 15W / 20W / 25W — field-adjustable multi-wattage selectable driver via internal switch
• Wattage Equivalency: Replaces legacy 1x32W T8 or 2x28W T8 fluorescent fixtures for up to 49% energy savings
• Maximum Lumen Output: 3,600 lm at 25W / 4000K (2,160 / 2,880 / 3,600 lm steps)
• Peak Efficacy: 144 lm/W for high-efficiency commercial operation
• CRI: >80 color rendering across all settings
• Selectable CCT: 3500K / 4000K / 5000K — field-adjustable CCT for tunable white and switchable Kelvin control
• Lens & Optics: Polycarbonate lens secured by stainless steel lens clips
• Dimming: 0–10V continuous dimming standard with auxiliary 12V output
• Voltage: Universal 120–347V AC constant current driver
• Location Rating: UL 1598 (cULus) Listed for wet locations
• Operating Temperature: -40°F (-40°C) to 122°F (50°C) chain mount / -40°F (-40°C) to 104°F (40°C) surface mount ambient range
• Certifications: DLC 5.1 Listed, UL 1598 (cULus), IP66, NEMA 4X, NSF Splash Zone, FCC, RoHS, NLB Trusted Warranty Program
• Rated Life: 100,000 hours (L70)
• Warranty: 5-year limited warranty — LEDVANCE Sylvania (NLB Trusted Warranty Program)

Performance & Light Output

CRI >80 across all configurations. Rated life 100,000 hours (L70). Delivers high-efficiency illumination resulting in significant energy reduction compared to traditional fluorescent systems.

Smart & Control Features

Equipped with 0–10V dimming leads and an auxiliary 12V output for smooth continuous dimming on commercial 0–10V branch circuits. The UltraLED Vapor Tight 3A series is also offered in made-to-order configurations with an integrated motion/daylight sensor (up to 14.7 ft mounting height, sold separately) programmable via onboard DIP switches or optional handheld remote controls (catalog # 66592 / HIBAYSENSORG2REMOTE or NAED 60105, sold separately).

Electrical

Powered by a wide-range constant current driver operating on 120–347V AC. Delivers high electrical efficiency with a Power Factor >90% and Total Harmonic Distortion (THD) <20%. Integrated 2.5kV surge suppression protects internal electronics against transient voltage spikes. Includes 0–10V dimming leads and an auxiliary 12V output.

Emergency Battery Backup: Available in made-to-order emergency battery backup configurations (`E` and `DE` models, sold separately) producing 550 lumens (4W) in 2ft fixtures for 90 minutes during a power outage.

Construction

Durability & Impact Protection: Polycarbonate body and polycarbonate lens with stainless steel lens clips engineered for thermal dissipation and durability, paired with a NEMA 4X corrosion-resistant enclosure and NSF Splash Zone certification for sanitation environments.

Ingress Protection: IP66 rated and UL 1598 (cULus) wet location listed for complete protection against airborne dust and powerful water jets.

Operating Temperature: -40°F (-40°C) to 122°F (50°C) chain mount / -40°F (-40°C) to 104°F (40°C) surface mount ambient range.

Lens & Optics: Polycarbonate lens for durable optical protection and uniform distribution.

Finish: Gray finish formulated for high resistance against corrosion and surface wear.

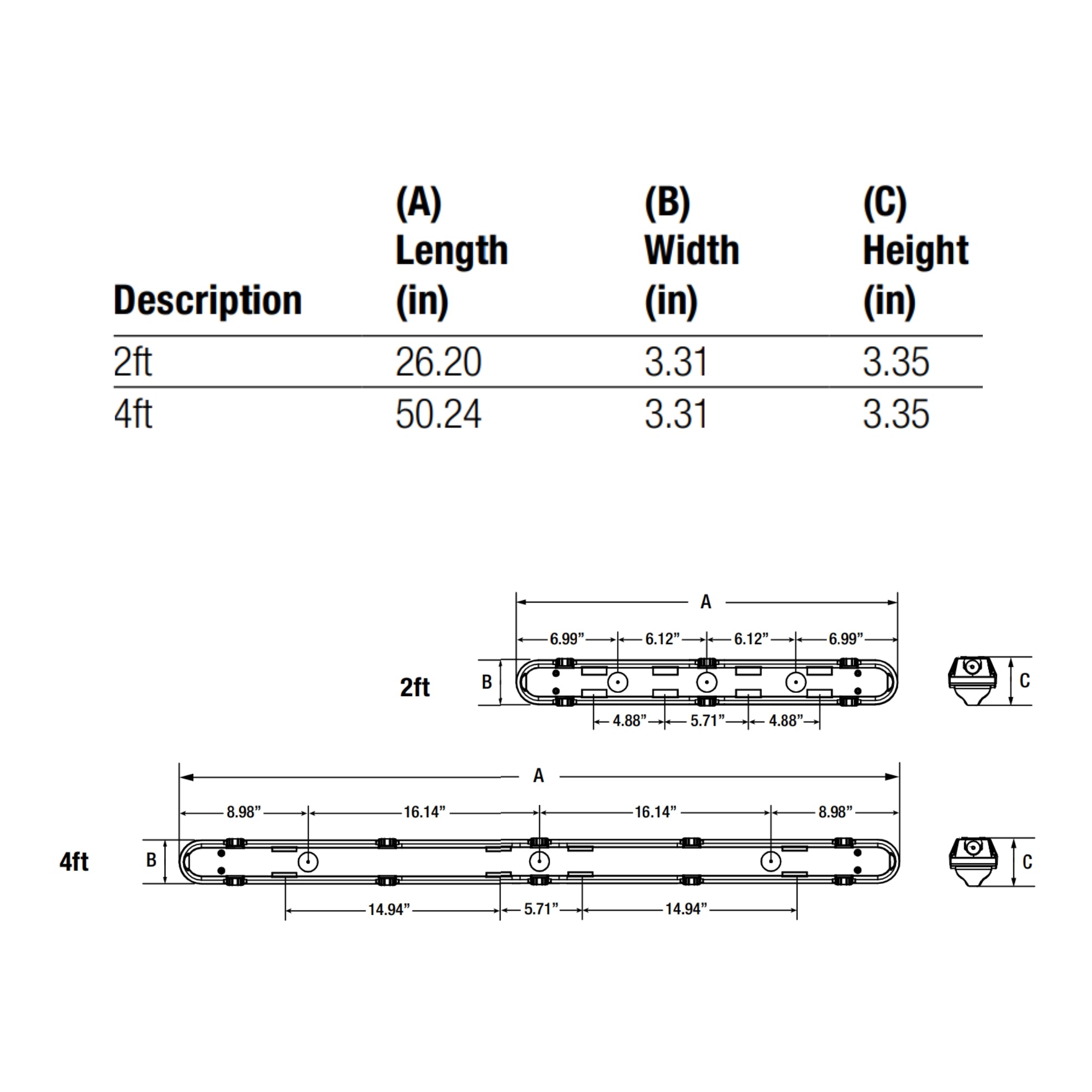

Dimensions & Weight: 26.20" L × 3.31" W × 3.35" H.

Installation & Mounting

Standard Mounting: Supplied standard with stainless steel surface mounting brackets and V-hooks for suspended chain mounting.

Accessories (Sold Separately):

• Mounts & Hardware: 62619 / VAPOR3A/MOUNTINGKIT (Replacement Mounting Kit, sold separately), 62618 / VAPOR3A/CLIPS (Stainless Steel Clips for 2ft and 4ft Vapor3A, sold separately)
• Sensors & Controls: 66592 / HIBAYSENSORG2REMOTE (Standard Remote Control for motion sensor, sold separately), NAED 60105 (Optional Remote Control, sold separately)

Certifications & Rebates

• DLC 5.1 Listed: Qualifies for commercial utility rebate incentives across regional energy programs. To confirm rebate eligibility with your local utility provider, visit designlights.org and search model 65699 or VAPOR3A/S025UNHD8SC7/24/GR.
• UL 1598 (cULus) Listed: Certified for wet locations.
• NSF: NSF Splash Zone certified for food-service and commercial sanitation environments.
• NEMA 4X & IP66 Rated: NEMA 4X corrosion-resistant enclosure and IP66 sealed against dust and high-pressure water jets.
• FCC & RoHS Compliant: Complies with FCC electromagnetic interference limits and RoHS hazardous substance restrictions.
• NLB Trusted: Verified under the National Lighting Bureau Trusted Warranty Program.

Typical Applications

• Tunnels & Underground Corridors — IP66 and NEMA 4X polycarbonate housing with stainless steel clips resists moisture, dust, and corrosion.
• Industrial Manufacturing & Assembly — Wide 120–347V AC input and 100,000-hour L70 lifespan support continuous industrial facility operation.
• Food Processing & Splash Zones — NSF Splash Zone certification and sealed polycarbonate lens withstand commercial washdown procedures.
• Cold Storage & Walk-In Freezers — Broad ambient temperature operating range ensures dependable illumination in refrigerated facilities.
• Parking Garages & Utility Rooms — Surface mount brackets and V-hooks adapt easily to concrete ceilings and suspended chain layouts.

What's Included

• LEDVANCE Sylvania 65699 (VAPOR3A/S025UNHD8SC7/24/GR) UltraLED Dual Selectable 2ft Vapor Tight 3A — Gray
• Stainless steel mounting brackets and V-hooks
• Installation and operation manual
