LEDVANCE Sylvania 65657 LED Tube Ready High Bay — 4-Lamp 4ft T8 — Damp Location — White
Available in stock (537)
About this item
About this item
- Type-B Ballast-Free Design: Pre-wired T8 lamp holders accept any UL Type-B double-ended LED T8 lamp (sold separately) — no ballast, no bypass wiring. Output, wattage, and efficacy are determined by the selected T8 lamps.
- 4-Lamp Configuration: 4×4ft T8 lamp positions in a compact industrial housing — ideal for standard warehouse and manufacturing bay spacings at lower mounting heights.
- Damp Location Rated: cULus Listed for damp locations — suitable for covered outdoor areas, wash-down adjacencies, and high-humidity industrial environments.
- Simple Lamp Upgrades: Replace lamps at end of life without replacing the fixture — future-proof your lighting investment as LED T8 technology improves.
- 5-Year Fixture Warranty: NLB Trusted Warranty Program covers the fixture housing, wiring, and lamp holders for 5 years.
Description
Description

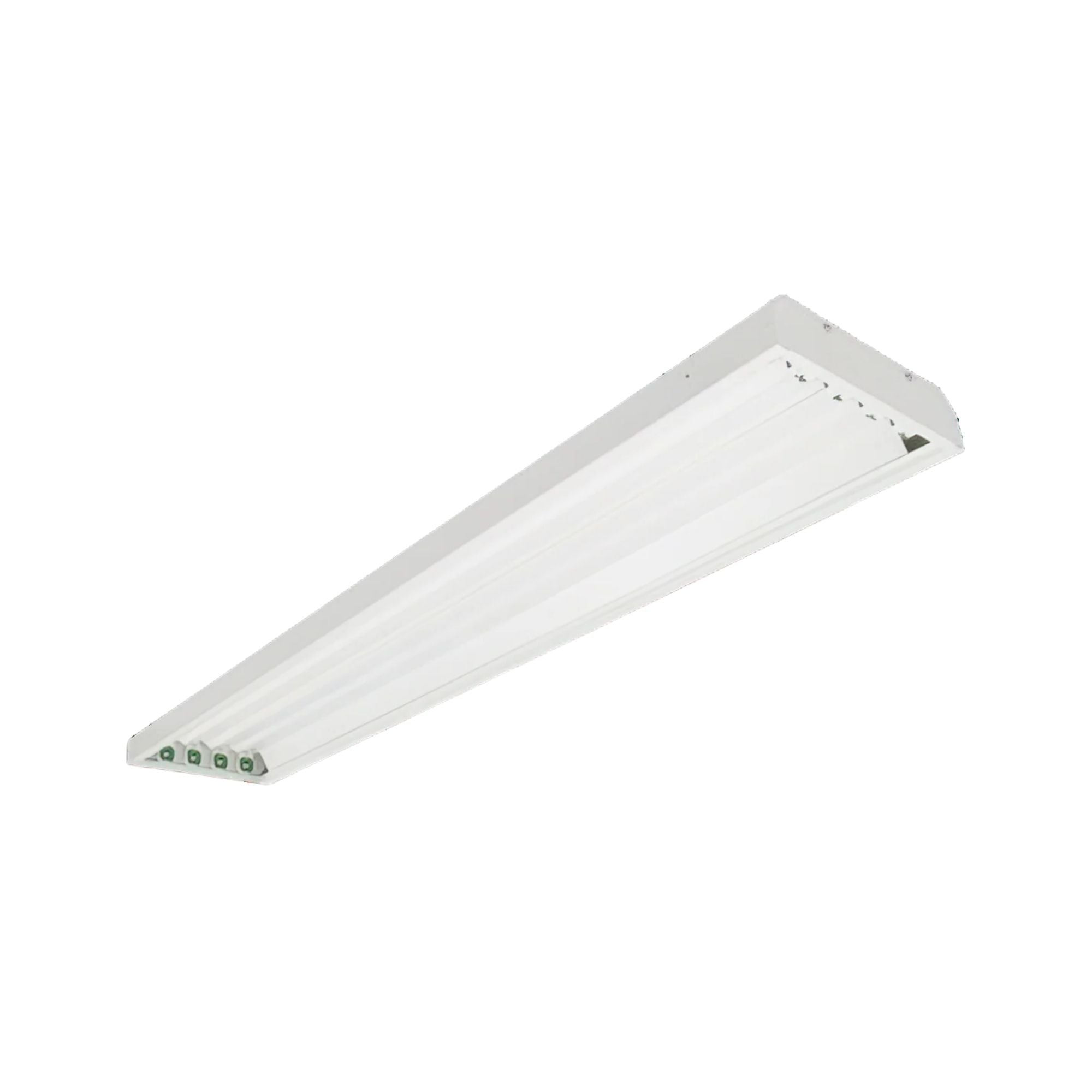

LEDVANCE SYLVANIA 65657 Value Class LED Tube Ready High Bay — 4-Lamp 48", White
The LEDVANCE SYLVANIA 65657 (TUBEREADY/T8BFHIBAY/4LAMP/48WH) is a 4-lamp LED Tube Ready High Bay fixture engineered for direct retrofit of traditional fluorescent high bays. Accepts UL Type-B (ballast-free) double-ended LED T8 lamps — allowing you to select lamp wattage and CCT to match your application. White powder-coated galvanized metal body with integrated reflector. Rated for damp locations, backed by a 5-year warranty. Lamps are not included.
Key Features
- Lamp Type: UL Type-B ballast-free double-ended LED T8 — lamps sold separately
- Number of Lamps: 4 × 48" (4-foot) T8
- Ballast-Free Design: No ballast to maintain or replace — eliminates compatibility issues
- Wattage & CCT: Determined by lamps selected — choose any UL Type-B T8 wattage and color temperature
- Wiring: 600V rated UL-listed sockets and wiring
- Lamp Holders: T8 lamp holders, pre-wired for ballast bypass
- Housing: White powder-coated galvanized metal
- Reflector: Integrated metal reflector for optimized light distribution
- Location Rating: Damp Location

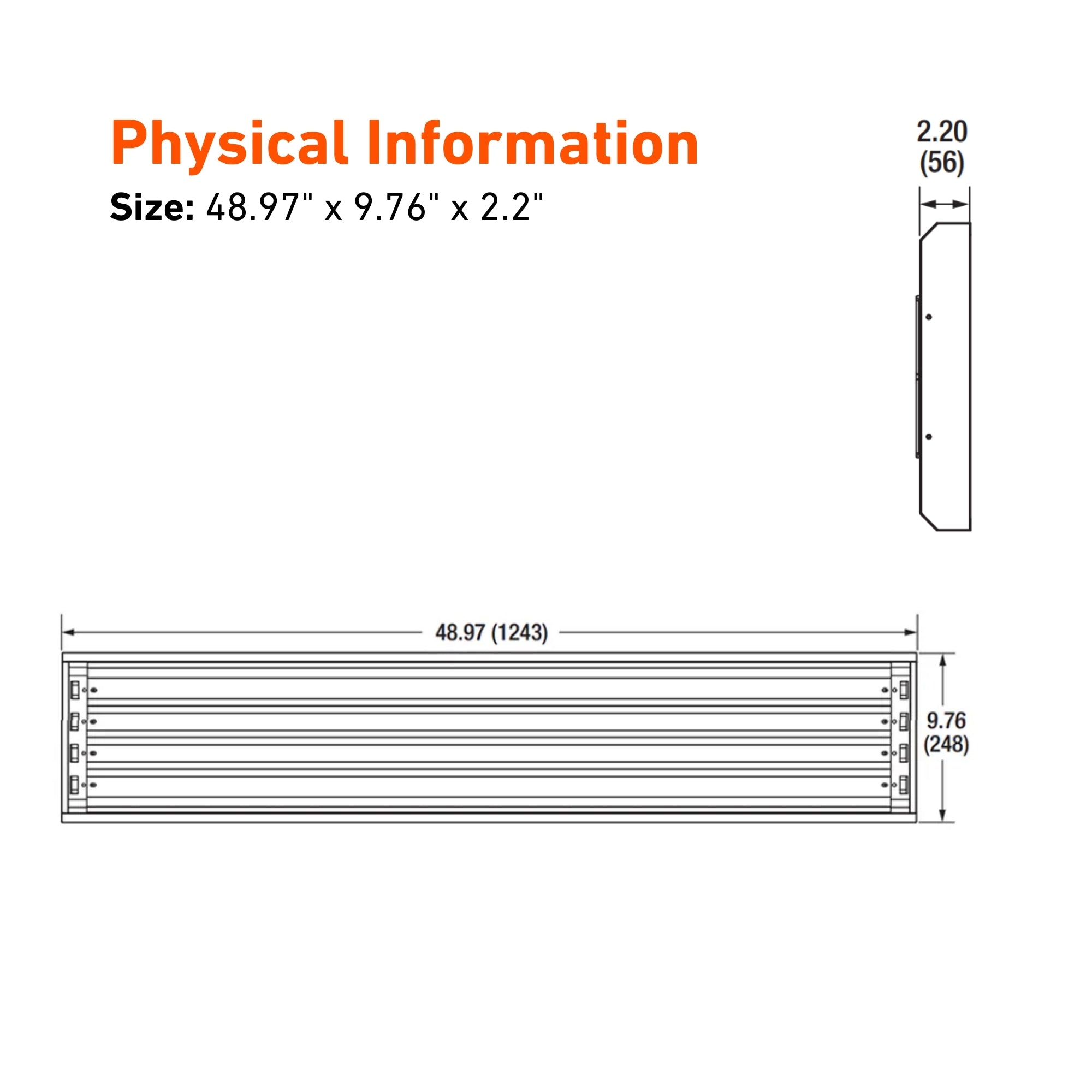

- Dimensions: 48.97" L × 9.76" W × 2.2" H
- Warranty: 5 years (NLB Trusted Warranty Program)
- Certifications: cULus Listed, RoHS Compliant
Electrical

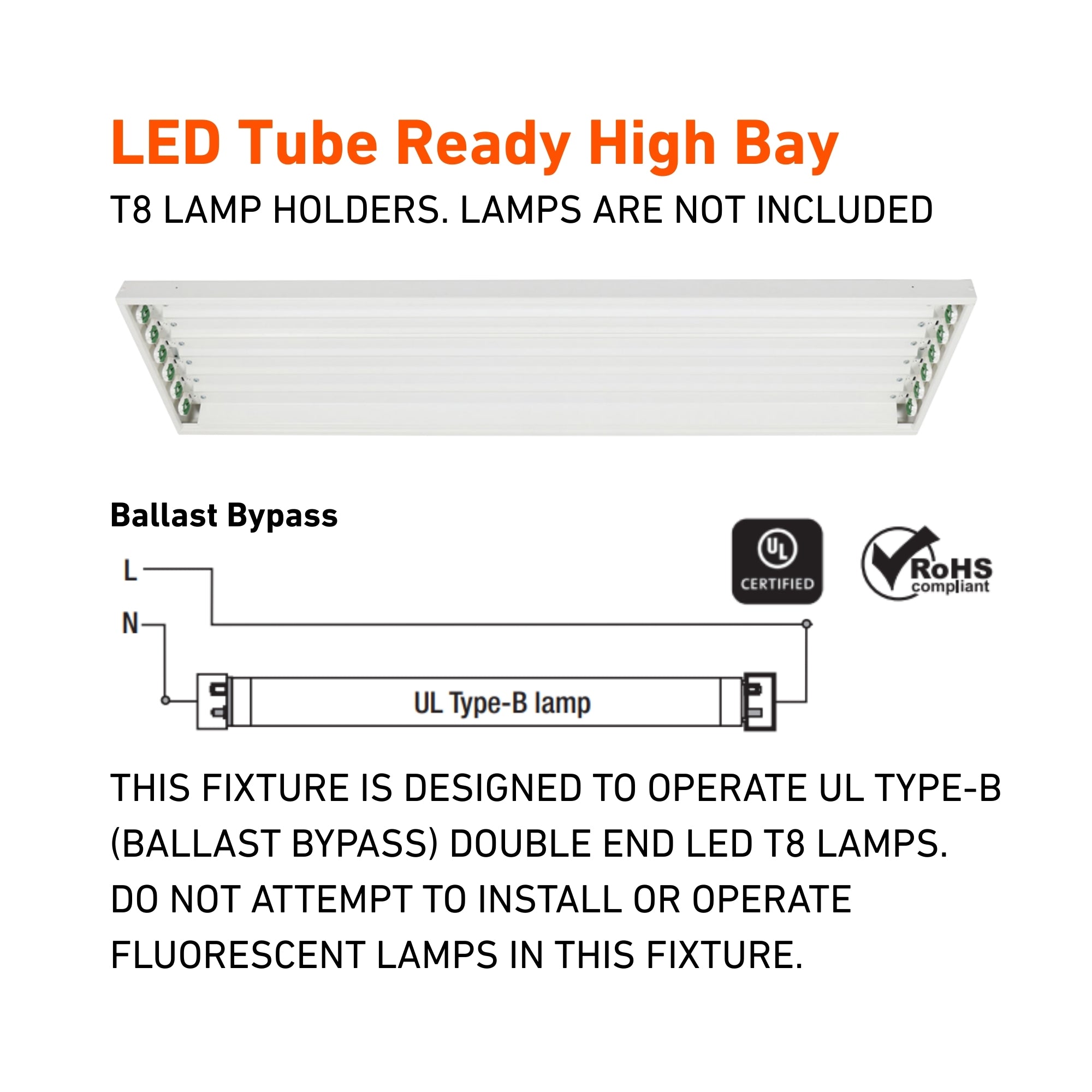

600V rated UL-listed sockets and wiring. T8 lamp holders pre-wired for UL Type-B (ballast bypass) double-ended LED T8 lamps. Operating wattage, voltage draw, and power factor are determined by the specific T8 lamps installed. Do not install fluorescent lamps in this fixture.
Construction
White powder-coated galvanized metal body and integrated reflector. Suitable for damp locations. Dimensions: 48.97" L × 9.76" W × 2.2" H.
Installation & Mounting
Wired to operate four UL Type-B (ballast bypass) double-ended LED T8 lamps — lamps are not included. For 6-lamp capacity, see Item 65658. Standard suspended or surface mounting configurations; consult installation guide for hardware requirements.
Certifications & Rebates
- Ordering Abbreviation: TUBEREADY/T8BFHIBAY/4LAMP/48WH
- cULus Listed — Damp Location rated
- RoHS Compliant
- 5-Year Warranty — NLB Trusted Warranty Program
- Note: This fixture is not DLC listed. DLC eligibility depends on the T8 lamps installed, not the fixture.
Typical Applications
- Warehouses and distribution centers — direct retrofit of 4-lamp fluorescent high bays
- Manufacturing and assembly facilities
- Big-box retail and large commercial spaces
- Gymnasiums and recreational facilities
- Loading docks and high bay storage — damp location rated
- Low bay and general overhead lighting, 12–40 ft
What’s Included
- LEDVANCE SYLVANIA 65657 LED Tube Ready High Bay fixture — White
- Pre-wired T8 lamp holders (4 positions)
- LED T8 lamps are not included — sold separately
