LEDVANCE Sylvania 65654 LED Tube Ready 4ft Strip Light Housing — 2-Lamp T8 Type-B — White
Available in stock (111)
About this item
About this item
- 2-Lamp T8 Retrofit Solution: Energy-efficient 4ft strip luminaire body engineered as a direct alternative to traditional 2-lamp fluorescent strip fixtures (lamps sold separately).
- Surface Mount Metal Body: Streamlined 48.35" L × 2.80" W × 1.80" H white powder-coated metal housing recommended for commercial surface ceiling or wall mounting.
- Custom Wattage & CCT Flexibility: Accepts user-selected double-ended LED T8 Type-B tubes to match exact lumen and color temperature requirements for any application.
- Pre-Wired Ballast-Free Design: Factory-wired with 600V rated UL listed sockets and T8 lamp holders to operate ballast-bypass double-ended LED T8 lamps directly.
- Commercial Compliance & Warranty: cULus Listed for damp locations, RoHS compliant, and backed by a 5-year warranty under the NLB Trusted Warranty Program.
Description
Description
LEDVANCE Sylvania 65654 LED Tube Ready 4ft Strip Light Housing — 2-Lamp T8 Type-B — White
The LEDVANCE Sylvania TUBEREADY/T8BFSTRIP/2LAMP/48WH (Item 65654) is a Value Class commercial 4ft LED Tube Ready Strip housing engineered as an energy-efficient alternative to traditional fluorescent strip fixtures. Pre-wired to operate two UL Type-B (ballast-free / ballast-bypass) double-ended LED T8 lamps (lamps not included), this luminaire gives contractors the flexibility to install their desired lamp wattage and color temperature to match exact project requirements. Built with a cULus Listed damp location rating and a white powder-coated metal body, it is ideal for retail, manufacturing, warehouse, office, education, and low-bay lighting applications.
Key Features
- Lamp Configuration: Designed for (2) 4ft UL Type-B (ballast-free / ballast-bypass) double-ended LED T8 lamps (lamps not included)
- Fluorescent Alternative: Energy-efficient tube-ready strip replacement for traditional 2-lamp fluorescent strip luminaires
- Customizable Output & CCT: Lumen output, efficacy, CRI, and color temperature are determined by the user-selected LED T8 Type-B tubes installed
- Sockets & Wiring: Pre-wired with 600V rated UL listed sockets and T8 lamp holders for direct-wire double-ended operation
- Housing Construction: Durable white powder-coated metal body
- Location Rating: cULus Listed and suitable for damp locations
- Operating Temperature: Ambient operating temperature limitations are based on the specific LED T8 lamps installed in the fixture
- Certifications: cULus Listed, RoHS Compliant, NLB Trusted Warranty Program
- Warranty: 5-year limited warranty — LEDVANCE Sylvania (verified under the NLB Trusted Warranty Program)
- Form Factor & Dimensions: Standard 4ft linear strip profile measuring 48.35" L × 2.80" W × 1.80" H
Performance & Light Output
As a dedicated LED Tube Ready Strip housing, total lumen delivery, system wattage, luminous efficacy, color rendering (CRI), and correlated color temperature (CCT) depend directly on the two 4ft UL Type-B double-ended LED T8 lamps selected and installed by the user (lamps sold separately).
This fixture is specifically wired to operate ballast-bypass double-ended LED T8 tubes and eliminates the maintenance and energy losses associated with legacy fluorescent ballasts. Do not attempt to install or operate traditional fluorescent lamps in this fixture.
Electrical
Pre-wired for ballast-free line-voltage operation using 600V rated UL listed sockets and internal wiring paired with standard T8 lamp holders. Engineered exclusively for UL Type-B (ballast bypass) double-ended LED T8 lamps. Input voltage, power factor, total harmonic distortion (THD), dimming capability, and circuit amp draw are governed by the electrical specifications of the installed Type-B LED T8 tubes.
Construction
Housing & Build: Precision-formed metal luminaire body engineered for commercial durability in retail, warehouse, and industrial environments.
Location & Environmental Rating: cULus Listed for damp locations.
Operating Temperature: Operating temperature limitations are determined by the specific UL Type-B LED T8 lamps installed in the fixture.
Finish: White powder-coated finish formulated for corrosion resistance and clean architectural appearance.

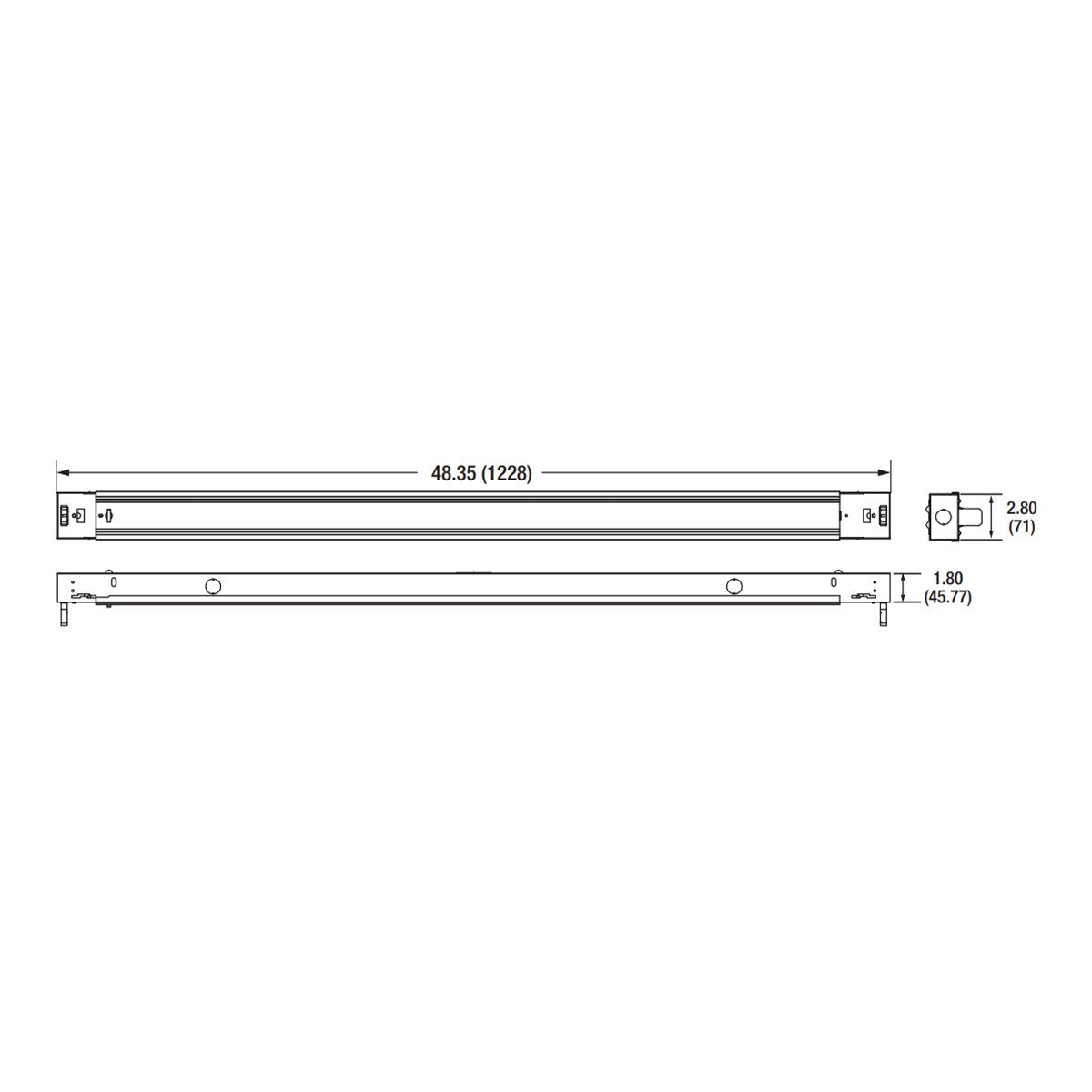

Dimensions: 48.35" L × 2.80" W × 1.80" H (1228 mm × 71 mm × 45.77 mm).
Installation & Mounting
Standard Mounting: Recommended for direct surface mounting on ceilings or walls across commercial and industrial spaces.
Lamp Installation: Pre-wired at the factory to operate two double-ended UL Type-B (ballast-bypass) LED T8 lamps. Lamps are not included and must be purchased separately.
Certifications & Rebates
- cULus Listed: Certified for commercial electrical safety and suitable for damp locations; includes 600V rated UL listed sockets and wiring.
- NLB Trusted: Verified under the National Lighting Bureau (NLB) Trusted Warranty Program with a 5-year limited manufacturer warranty.
- RoHS Compliant: Engineered free of hazardous substances in compliance with RoHS directives.
Typical Applications
- Warehouses & Distribution Aisles — Allows facility managers to pair high-lumen 4ft double-ended Type-B LED T8 tubes with a rugged metal strip body for low-maintenance storage illumination.
- Manufacturing & Assembly Areas — Ballast-free 600V pre-wired T8 sockets eliminate ballast failures and reduce maintenance downtime on industrial production floors.
- Retail & Commercial Supermarkets — Standard 4ft 2-lamp footprint provides broad linear illumination across aisles, stockrooms, and back-of-house areas.
- Offices & Educational Facilities — White powder-coated metal housing delivers clean surface-mounted linear lighting for corridors, stairwells, and utility rooms.
- Low-Bay & General Utility Applications — Damp location suitability supports dependable operation across garages, mechanical rooms, and commercial service areas.
What's Included
- LEDVANCE Sylvania TUBEREADY/T8BFSTRIP/2LAMP/48WH (65654) 4ft 2-Lamp LED Tube Ready Strip Fixture — White (Lamps Not Included)
- Pre-installed 600V rated UL listed T8 sockets and internal ballast-bypass wiring
- Installation instructions
