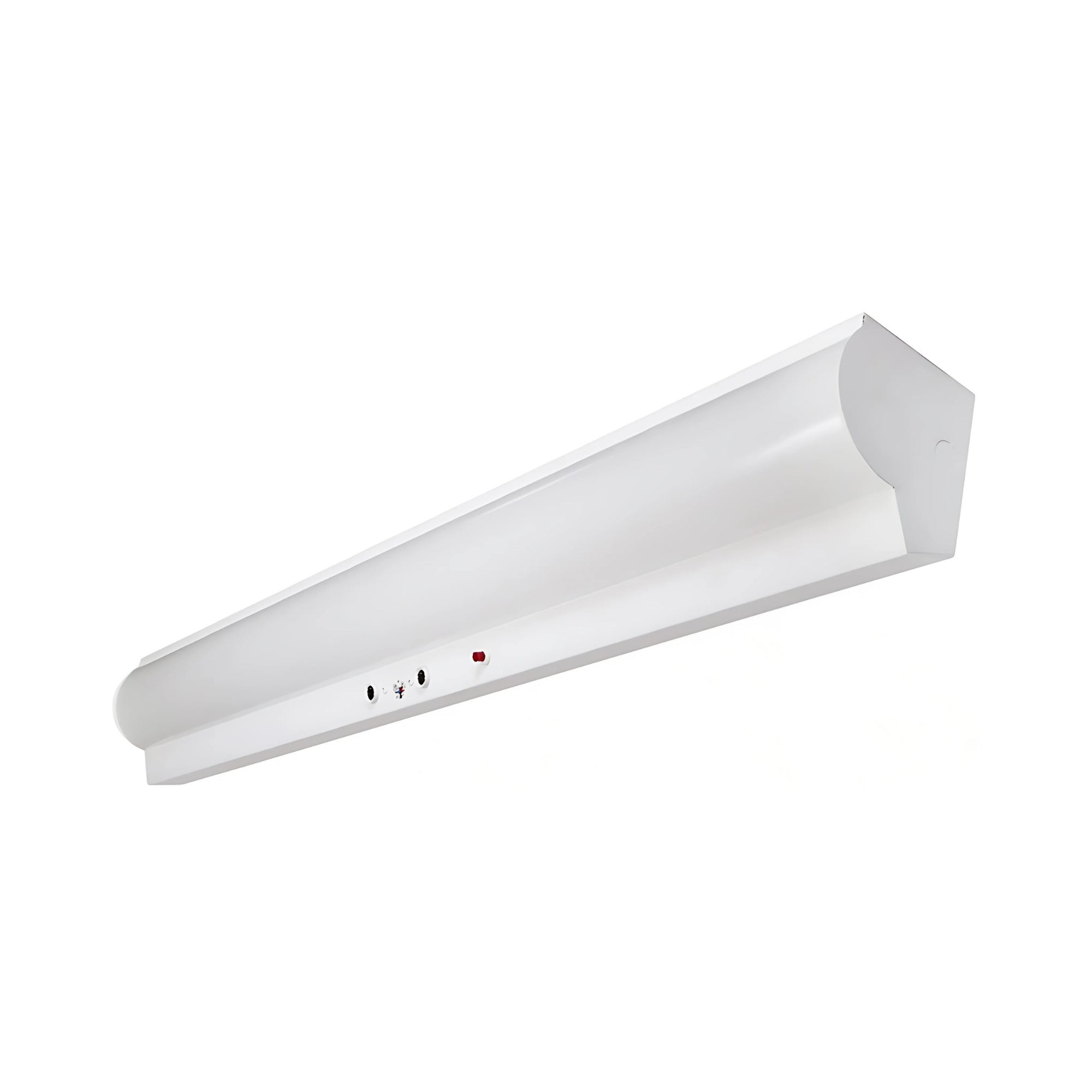

LEDVANCE Sylvania 65584 UltraLED 4ft Stairwell Luminaire — 45W — 3500K/4000K/5000K — Motion Sensor — White
Available in stock (100)
About this item
About this item
- Output & Equivalency: Field-adjustable 30W/35W/45W multi-wattage selectable driver delivers up to 5,445 lumens (121 lm/W), replacing legacy 2x32W and 2x54W fluorescent fixtures for up to 48% energy savings.
- Stairwell Surface Design: Engineered in a 4ft surface-mount profile with a powder-coated metal body and ribbed polycarbonate lens for uniform wall or ceiling illumination.
- Selectable CCT: Integrated sliding selector switch provides field-adjustable CCT across 3500K, 4000K, and 5000K color temperatures (tunable white / switchable Kelvin).
- Ultrasonic Bilevel Control: Factory-installed ultrasonic motion sensor features adjustable detection range trimpots, selectable 1/5/20-minute hold times, and DIP-switchable bilevel dimming (Off, 10%, 25%, or 50%) alongside 0–10V dimming down to 10%.
- Rebates & Ingress: DLC Premium Listed for commercial utility rebates, cULus Damp Rated, FCC and RoHS compliant, and backed by a 150,000-hour L70 life and 5-year warranty.
Description
Description
LEDVANCE Sylvania 65584 UltraLED 4ft Stairwell Luminaire — 30W/35W/45W Selectable — 3500K/4000K/5000K — Motion Sensor — White / Ribbed Polycarbonate Lens
The LEDVANCE Sylvania STAIR1A/S45UNVD8SC7/48S/WH/US is a commercial 4ft UltraLED Ultrasonic Stairwell Luminaire engineered to deliver up to 5,445 lumens with field-adjustable 30W/35W/45W power settings (multi-wattage selectable driver, field-adjustable lumen output, variable power settings) and switchable 3500K/4000K/5000K color temperatures (field-adjustable CCT, color temperature selectable, tunable white, switchable Kelvin). Operating on 120–277V electrical systems with 0–10V continuous dimming down to 10%, this luminaire provides an energy-efficient replacement for legacy 2x32W and 2x54W fluorescent fixtures. Built with a cULus Damp Location rating, it is qualified for commercial utility rebates under DLC Premium standards and features an integrated high-resolution ultrasonic bilevel motion sensor for automated stairwell and hallway occupancy control.
Key Features
- Selectable Wattage: 30W/35W/45W — field-adjustable via sliding switch on side of LED driver (multi-wattage selectable driver / variable power settings)
- Wattage Equivalency: Replaces legacy 2x32W and 2x54W fluorescent fixtures for up to 48% energy savings
- Maximum Lumen Output: 5,445 lm at 45W
- Peak Efficacy: Up to 121 lm/W for high-efficiency commercial operation
- CRI: >80 color rendering across all settings
- Selectable CCT: 3500K/4000K/5000K — field-adjustable via sliding CCT selector switch (color temperature selectable / tunable white / switchable Kelvin)
- Lens & Optics: Ribbed polycarbonate lens for uniform, glare-free distribution (125.3° vertical / 107.7° horizontal spread)
- Dimming: 0–10V continuous dimming down to 10% standard
- Voltage: Universal 120–277V AC, 50/60Hz constant current driver
- Location Rating: cULus Listed for damp locations
- Operating Temperature: -4°F (-20°C) to 122°F (50°C) ambient range
- Certifications: DLC Premium Listed, cULus Listed, FCC, RoHS compliant
- Rated Life: 150,000 hours (L70) @ 25°C per IES TM-21 standards
- Warranty: 5-year limited warranty — LEDVANCE Sylvania
- Sensor Control: Integrated ultrasonic bilevel motion sensor with programmable detection range, time delay, and standby dimming levels
Performance & Light Output
| Wattage | Total Lumens | Efficacy | Legacy Equivalent |
|---|---|---|---|
| 30W | 3,750 lm | 125 lm/W | 2x32W fluorescent (56W system, 46% energy savings) |
| 35W | 4,340 lm | 124 lm/W | 2x32W fluorescent (56W system, 38% energy savings) |
| 45W | 5,445 lm | 121 lm/W | 2x54W fluorescent (87W system, 48% energy savings) |
CRI >80 across all configurations. Rated life 150,000 hours (L70) per IES TM-21 testing. Delivers high-efficiency illumination resulting in significant energy reduction compared to traditional fluorescent systems.
Form Factor & Design Profile
Engineered specifically for commercial stairwells and hallways, the 4ft surface-mount luminaire combines a durable powder-coated metal body with a contoured ribbed polycarbonate diffuser to deliver wide vertical and horizontal light distribution (125.3° vertical / 107.7° horizontal spread). Sliding switches on the internal driver and chassis allow installers to tailor lumen output and color temperature on-site.
Smart & Control Features
The UltraLED Ultrasonic Stairwell luminaire features a factory-installed ultrasonic bilevel motion sensor for high-resolution motion detection in enclosed stairwells and corridors:
- 0–10V Continuous Dimming (Standard): Dims smoothly down to 10% on standard 0–10V low-voltage control circuits.
- Trimpot #1 (Detection Range & Sensitivity): Left trimpot adjusts motion detection sensitivity across three settings: low, medium, and high.
- Trimpot #2 (Time Delay): Right trimpot sets the hold time that the fixture remains at 100% output after motion stops to 1 minute, 5 minutes, or 20 minutes.
- DIP Switches (Bilevel Dimming Level): Dual DIP switches configure the standby dimming level after the time delay expires to Off (Off/Off), 10% (Off/On), 25% (On/Off), or 50% (On/On) until motion is detected again.
- Integrated Test Mode Button: Sets the time delay to 5 seconds and runs for 5 minutes (indicated by 2 LED flashes at start and 3 LED flashes upon completion) to verify sensitivity and dimming levels. Upon initial power-up, the sensor turns on to 100% and dims to Off after 20 seconds before entering programmed operation.
Electrical
Powered by a constant current driver operating on 120–277V AC. Delivers high electrical efficiency with a Power Factor >90% (>0.90) and Total Harmonic Distortion (THD) <20%. Includes 0–10V dimming down to 10%.
Construction
Housing & Thermal: Powder-coated metal body engineered for commercial durability and thermal dissipation.
Lens & Optics: Ribbed polycarbonate lens engineered for uniform, glare-controlled illumination (125.3° vertical / 107.7° horizontal spread).
Finish: White powder-coated finish formulated for resistance against corrosion and surface wear.
Environmental Sealing: cULus damp location rated. Operating ambient temperature range: -4°F (-20°C) to 122°F (50°C).
Dimensions & Weight: 47.9" L × 4.9" W × 5.6" H.
Installation & Mounting
Standard Mounting: Designed for direct wall or ceiling surface mounting. A mounting template is included standard in the box to simplify layout and fastener alignment.
Certifications & Rebates
- DLC Premium Listed: Qualifies for maximum commercial utility rebate incentives across regional energy efficiency programs.
- cULus Listed: Certified for damp locations per UL standards.
- FCC Compliant: Meets commercial electromagnetic interference standards.
- RoHS Compliant: Engineered free of toxic lead, mercury, and hazardous substances.
Typical Applications
- Commercial Egress Stairwells — Integrated ultrasonic bilevel sensor detects movement around corners and landings while maintaining selectable 10%, 25%, or 50% standby light levels
- Interior Hallways & Corridors — Field-selectable 30W/35W/45W output and 3500K/4000K/5000K CCT allow uniform illumination across varying ceiling heights
- Multi-Family & Hospitality Passageways — 150,000-hour L70 rated life and automated occupancy dimming minimize maintenance and 24/7 operating costs
- Educational & Healthcare Facilities — Ribbed polycarbonate lens and powder-coated metal housing provide durable, glare-controlled illumination in high-traffic circulation zones
- Commercial Office Core Areas — Wall or ceiling surface mounting with included template streamlines retrofit upgrades over legacy fluorescent strips and wraps
What's Included
- LEDVANCE Sylvania STAIR1A/S45UNVD8SC7/48S/WH/US 4ft UltraLED Ultrasonic Stairwell Luminaire — White
- Factory-installed Ultrasonic Bilevel Motion Sensor
- Wall/ceiling installation mounting template
- Installation and operation manual
