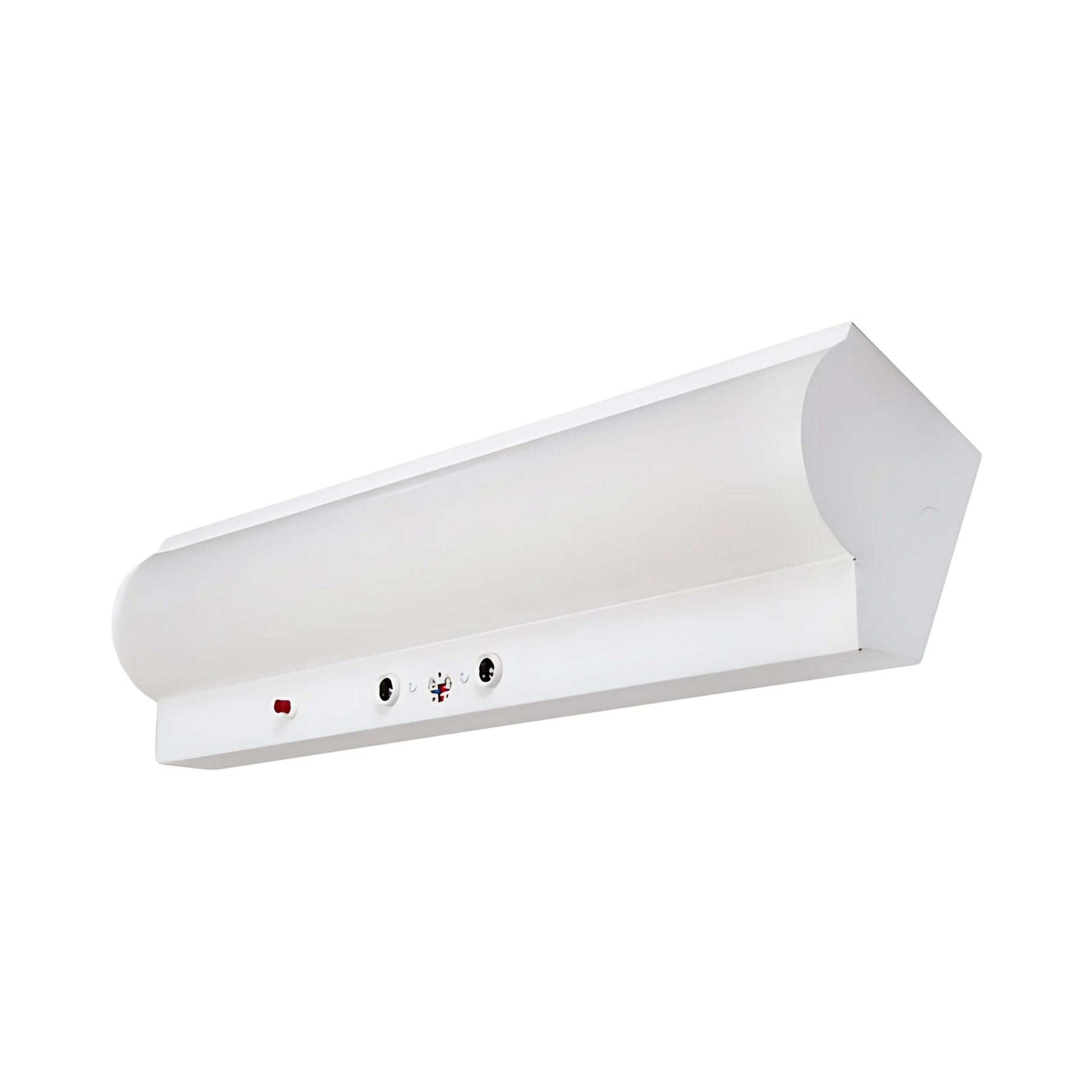

Sylvania Ultrasonic Stairwell 1A Strip Light — 30W Configuration

The Sylvania 65583 is a 2-foot strip light fixture designed for stairwell applications, delivering 3630 lumens at a selectable 30 watts. It operates on 120-277V and features an ultrasonic motion sensor for enhanced motion detection. This fixture offers selectable color temperatures of 3500K, 4000K, and 5000K, making it suitable for various lighting environments.

Key Features

• Ultrasonic Sensor: Provides high-resolution motion detection for stairwell applications.
• Selectable Wattage: Choose between 20, 25, or 30 watts for optimal energy use.
• Selectable CCT: Adjust color temperature to 3500K, 4000K, or 5000K as needed.
• Ribbed Lens: Features a durable ribbed polycarbonate lens for longevity.
• Powder Coated Body: Constructed with a powder-coated metal body for durability.
• Dimming Capability: Supports 0-10V dimming down to 10% for flexible lighting control.
• High Efficacy: Achieves up to 121 lumens per watt for efficient lighting.
• Long Life: Rated for 150,000 hours (L70) at 25°C for extended service life.
• Emergency Option: Optional 10W emergency battery backup available.
• Certifications: cULus, RoHS, FCC, and DLC certified for quality assurance.

Typical Applications

• Stairwells
• Hallways
• Parking Garages
• Warehouses
• Commercial Buildings

Performance & Light Output

This fixture provides a light output of up to 3630 lumens with a color rendering index (CRI) greater than 80, ensuring accurate color representation. It offers a high efficacy of up to 121 lumens per watt and is designed to last up to 150,000 hours (L70).

Electrical & Controls

The strip light operates on a universal voltage range of 120-277V and includes a 0-10V dimming capability, allowing for dimming down to 10%. It features a power factor greater than 90% and a total harmonic distortion (THD) of less than 20%.

Construction & Durability

Constructed with a powder-coated metal body and a ribbed polycarbonate lens, this fixture is designed for durability. It is damp rated and can operate in temperatures ranging from -4°F to 122°F.

Installation & Mounting

The fixture is designed for wall or ceiling mounting and includes a mounting template for ease of installation. Wattage and CCT can be selected via sliding switches on the LED driver.

What's Included

• Strip Light Fixture
• Mounting Template
