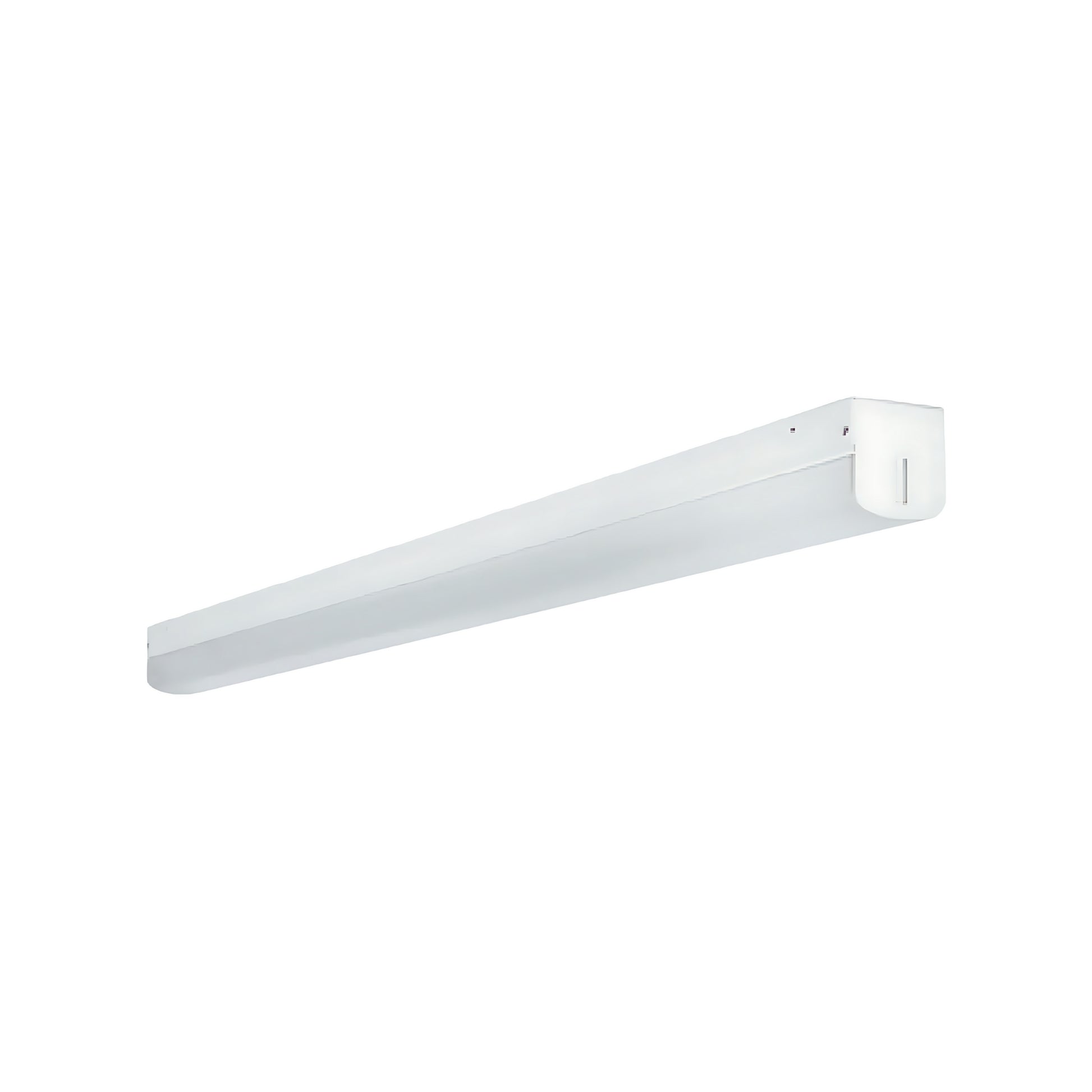

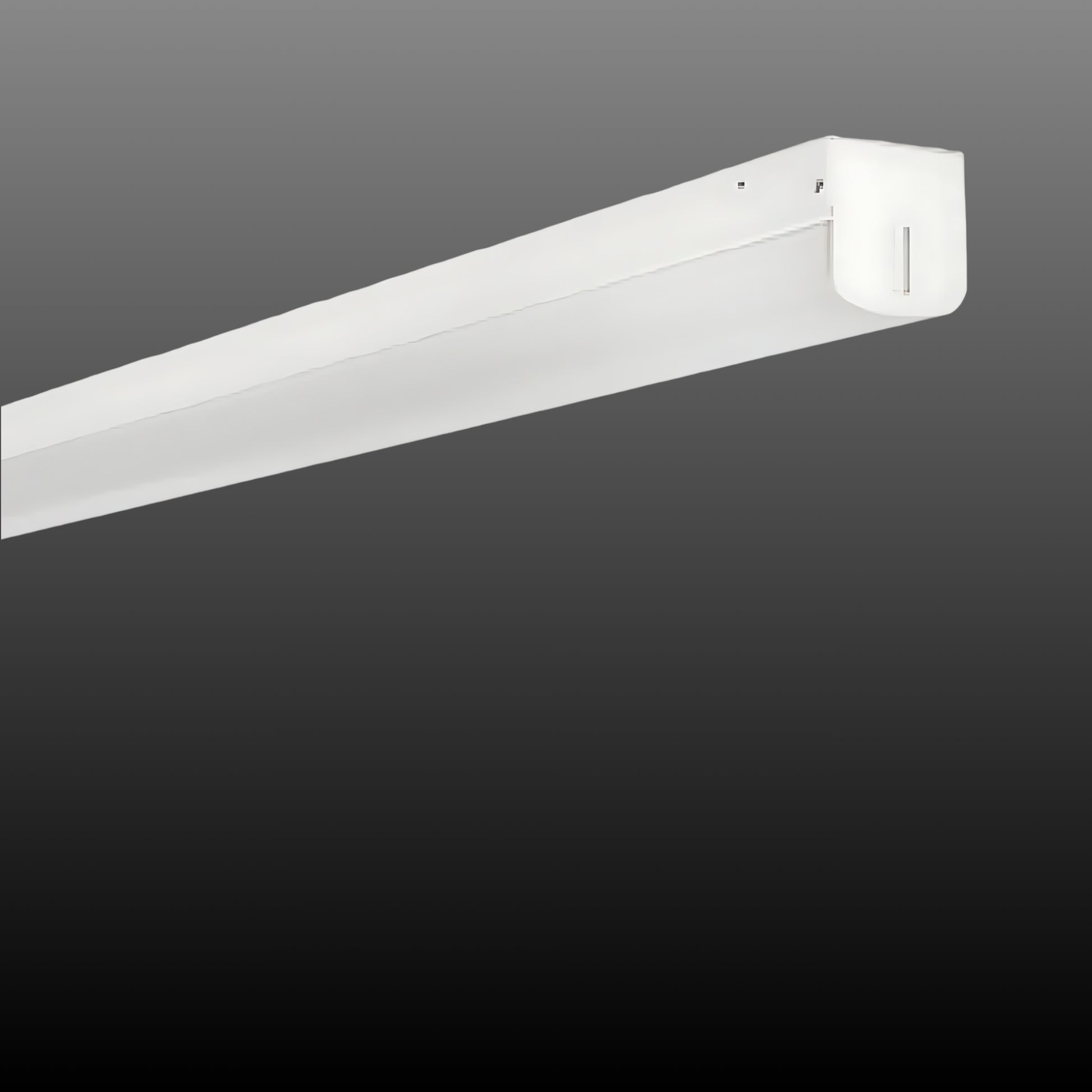

LEDVANCE Sylvania 65178 UltraLED 4ft Strip Luminaire — 22W — 5000K — 120-347V — White / Diffuse Acrylic Lens

The LEDVANCE Sylvania STRIP2A/022UNHD850/48U/WH is a commercial 4ft UltraLED Strip Luminaire engineered to deliver 2,860 lumens at 22W with a dedicated 5000K color temperature. Operating on universal 120-347V electrical systems with 0–10V continuous dimming down to 10%, this luminaire provides an energy-efficient replacement for legacy 1x32W fluorescent (28W system) fixtures. Built with a cULus Damp Location rating, it is qualified for commercial utility rebates under DLC 5.1 Standard standards and features a toolless snap-fit light engine and diffuse acrylic lens module with end-to-end continuous-run mounting capability.

Key Features

• Operating Wattage: 22W fixed power consumption
• Wattage Equivalency: Replaces legacy 1x32W fluorescent (28W system) fixtures for up to 21% energy savings
• Maximum Lumen Output: 2,860 lm at 22W (5000K)
• Peak Efficacy: 130 lm/W for high-efficiency commercial operation
• CRI: >80 color rendering
• Color Temperature: Dedicated 5000K illumination
• Lens & Optics: Diffuse acrylic lens for smooth, even, glare-controlled illumination
• Dimming: 0–10V continuous dimming down to 10% standard
• Voltage: Universal 120-347V AC, 50/60Hz constant current driver
• Location Rating: cULus Listed for damp locations
• Operating Temperature: -13°F (-25°C) to 104°F (40°C) ambient range
• Certifications: DLC 5.1 Listed, cULus Listed, FCC, RoHS compliant, NLB Trusted Warranty Program verified
• Rated Life: 100,000 hours (L70) @ 25°C per IES TM-21 standards
• Warranty: 5-year limited warranty — LEDVANCE Sylvania
• Form Factor & Design: Toolless snap-fit light engine and lens module with dual-end knockouts for through-wiring and continuous-run tandem mounting

Performance & Light Output

Delivers 2,860 lumens at 22W (130 lm/W efficacy), replacing up to 1x32W fluorescent (28W system) systems.

CRI >80 across all configurations. Rated life 100,000 hours (L70) per IES TM-21 testing. Delivers high-efficiency illumination resulting in significant energy reduction compared to traditional fluorescent systems.

Form Factor & Design Profile

Engineered for rapid installation and maintenance in commercial retrofits and new construction, the 4ft UltraLED Strip features a light engine and diffuse acrylic lens module with toolless removal and a secure snap-fit closure. Knockouts on both ends of the white powder-coated metal body facilitate convenient through-wiring and end-to-end continuous row mounting.

Smart & Control Features

The UltraLED Strip luminaire supports standard wired dimming and optional field-installable wireless control upgrades:

• 0–10V Continuous Dimming (Standard): Dims smoothly down to 10% on standard 0–10V low-voltage control circuits. Compatible with commercial dimmers and centralized building automation systems (BAS).
• LEDVANCE LINK Bluetooth Mesh (Accessory): Compatible with field-installable LEDVANCE LINK low-voltage Bluetooth Mesh components via a 1/2" knockout for wireless group control, scheduling, and automated occupancy/daylight sensing up to a 40 ft mounting height using the LEDVANCE LINK smartphone app or wireless wall switch.

Compatible field-installable LEDVANCE LINK accessories include the Bluetooth Mesh Power Pack POWERPACKOUT2.5AUNVBLE (Item #63631), Low Voltage Controller ADAPTER/AUX12V/BLE (Item #62630), PIR Daylight/Motion Sensor SENSORHB/PIRAUX12V/BLE (Item #62634, up to 40 ft mounting height), 3.5mm Pin L-Shaped Receptacle SIDEADAPTERAUX (Item #62637), and 5-Button Wireless Switch WALLSWITCH5KEYBLE (Item #62636) — all sold separately.

Electrical

Powered by a constant current driver operating on universal 120-347V AC. Delivers high electrical efficiency with a Power Factor >90% (>0.90) and Total Harmonic Distortion (THD) <20%. Includes 0–10V dimming down to 10%.

Construction

Housing & Thermal: White powder-coated metal body with toolless snap-fit light engine access and knockouts on both ends for through-wiring.

Lens & Optics: Diffuse acrylic lens engineered for smooth, even illumination.

Finish: White powder-coated finish formulated for resistance against corrosion and surface wear.

Environmental Sealing: cULus damp location rated. Operating ambient temperature range: -13°F (-25°C) to 104°F (40°C).

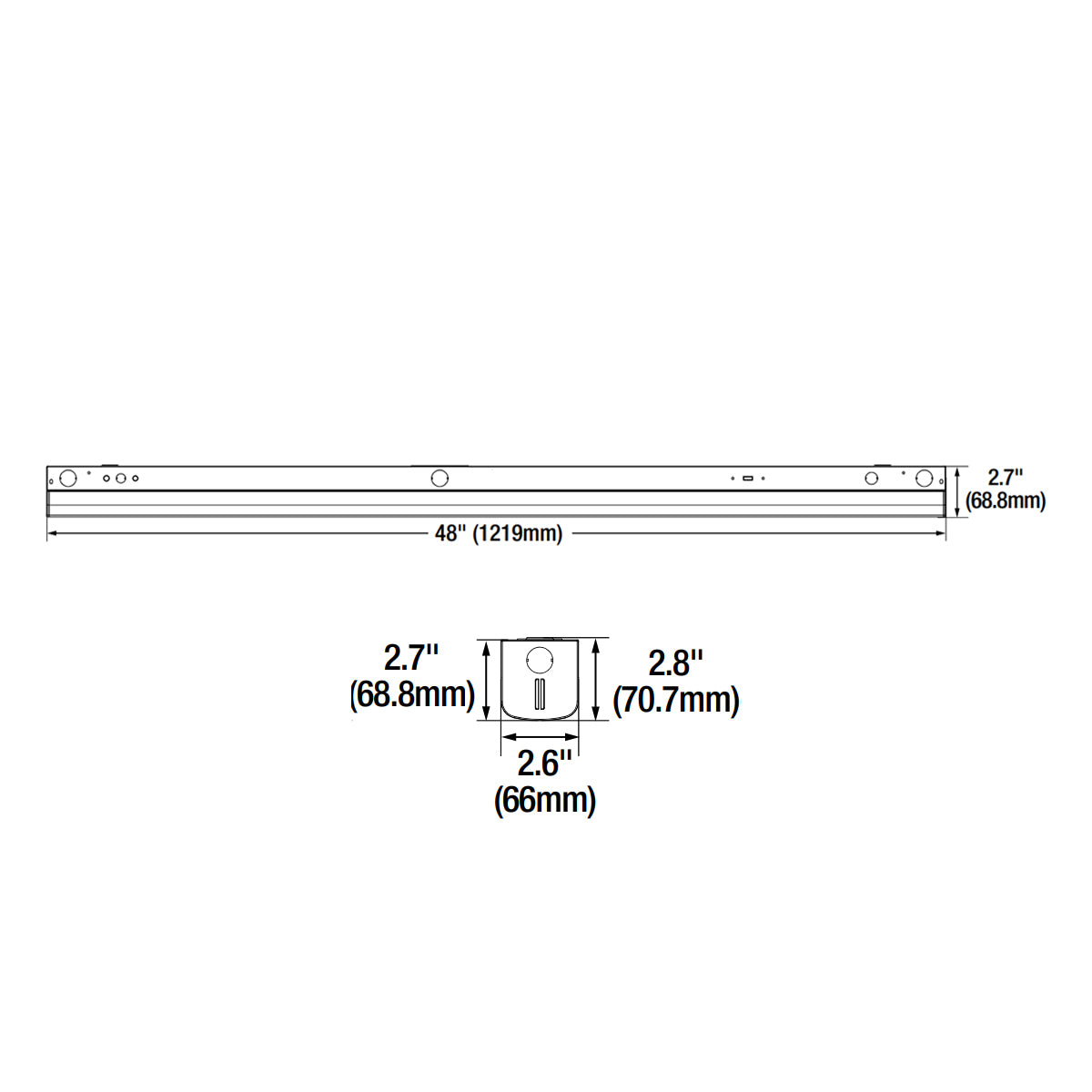

Dimensions & Weight: 48" L × 2.6" W × 2.8" H.

Installation & Mounting

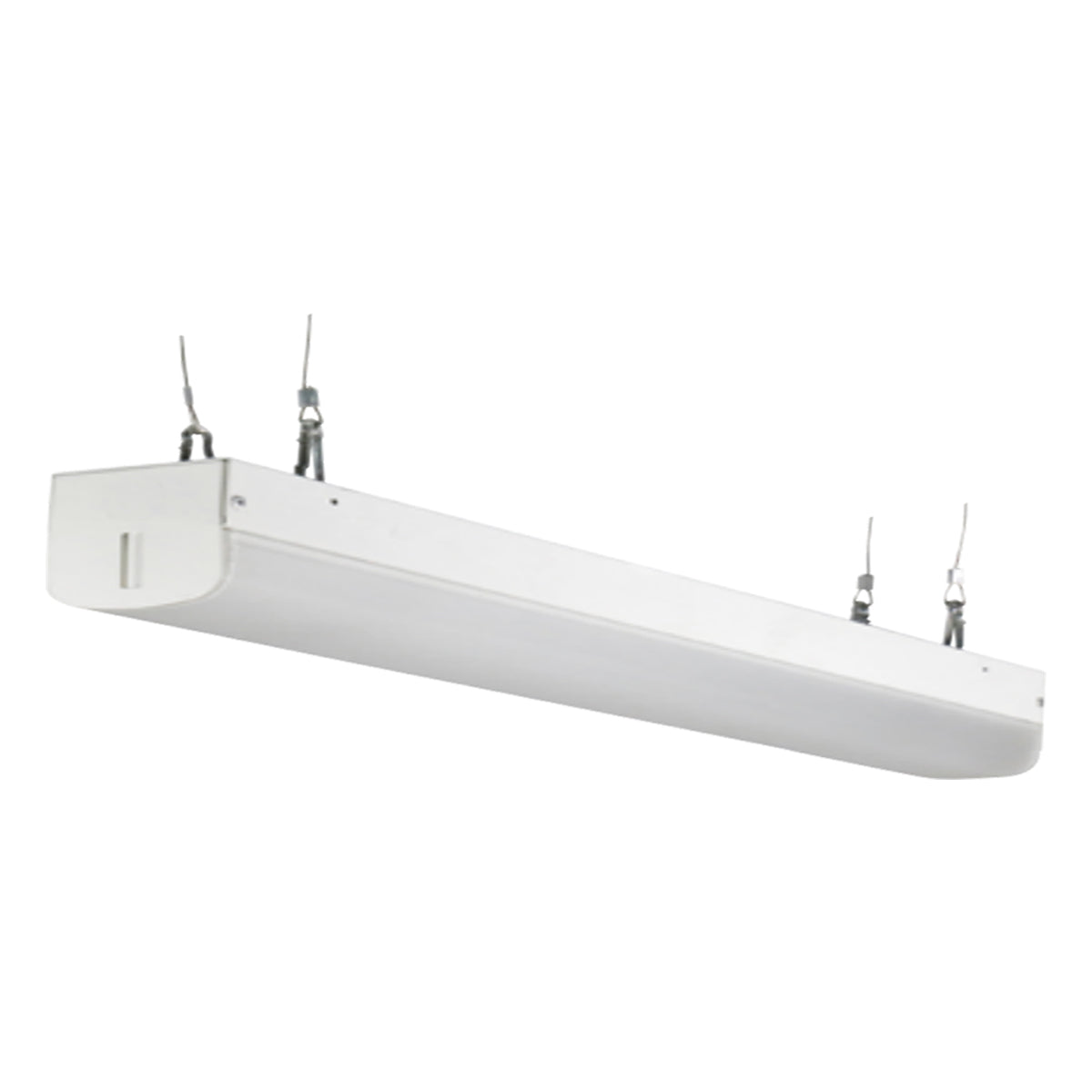

Standard Mounting: Can be surface mounted or suspended. A V-hook mounting bracket and split junction box cover are included standard in the box.

Continuous Run Mounting: Fixtures can be joined end-to-end for tandem row installations using the optional joiner bracket and dual-end through-wiring knockouts.

Accessories (Sold Separately):

• End-to-End Joiner Bracket: STRIP2A/JOINBRKT (Item #65302) — sold separately
• Chain Mount Kit (5 ft, 1 pair): LNHIBA2A/CHAINMT (Item #60573) — sold separately
• Aircraft Cable Mount Kit (5 ft, 1 pair): LNHIBA2A/ACCABLEMT (Item #60574) — sold separately
• 4ft Wire Guard: STRIP2A/4/WG/WH (Item #65417) — sold separately
• Sensor Remote Control: STRIP2A/REMOTE (Item #65305) — sold separately
• LEDVANCE LINK Wireless Controls: POWERPACKOUT2.5AUNVBLE (Item #63631), ADAPTER/AUX12V/BLE (Item #62630), SENSORHB/PIRAUX12V/BLE (Item #62634), WALLSWITCH5KEYBLE (Item #62636), SIDEADAPTERAUX (Item #62637) — sold separately

Certifications & Rebates

• DLC 5.1 Listed: Qualifies for commercial utility rebate incentives across regional energy programs. To confirm rebate eligibility with your local utility provider, visit designlights.org and search DLC Product ID PL4JB0G9Q6Y9.
• cULus Listed: Certified for damp locations per UL standards.
• FCC Compliant: Meets commercial electromagnetic interference requirements.
• RoHS Compliant: Engineered free of toxic lead, mercury, and hazardous substances.
• NLB Trusted: Verified under the National Lighting Bureau Trusted Warranty Program (5-year warranty).

Typical Applications

• Warehouses & Distribution Centers — Universal 120-347V operation and 100,000-hour L70 rated life support continuous row lighting across storage aisles
• Manufacturing & Assembly Facilities — Toolless snap-fit light engine and dual-end through-wiring knockouts streamline installation and maintenance
• Retail Stores & Supermarkets — Diffuse acrylic lens and >80 CRI deliver smooth, uniform general illumination at 130 lm/W efficacy
• Commercial Offices & Educational Facilities — 0–10V continuous dimming down to 10% and optional Bluetooth Mesh controls enable flexible energy management
• Low-Bay & Back-of-House Utility Areas — Damp-rated cULus construction with included V-hook bracket and split junction box cover allows versatile surface or suspended mounting

What's Included

• LEDVANCE Sylvania STRIP2A/022UNHD850/48U/WH 4ft UltraLED Strip Luminaire — White
• V-hook mounting bracket
• Split junction box cover
• Installation instructions
