Sylvania UltraLED Strip 2A Strip Light — 22W Configuration

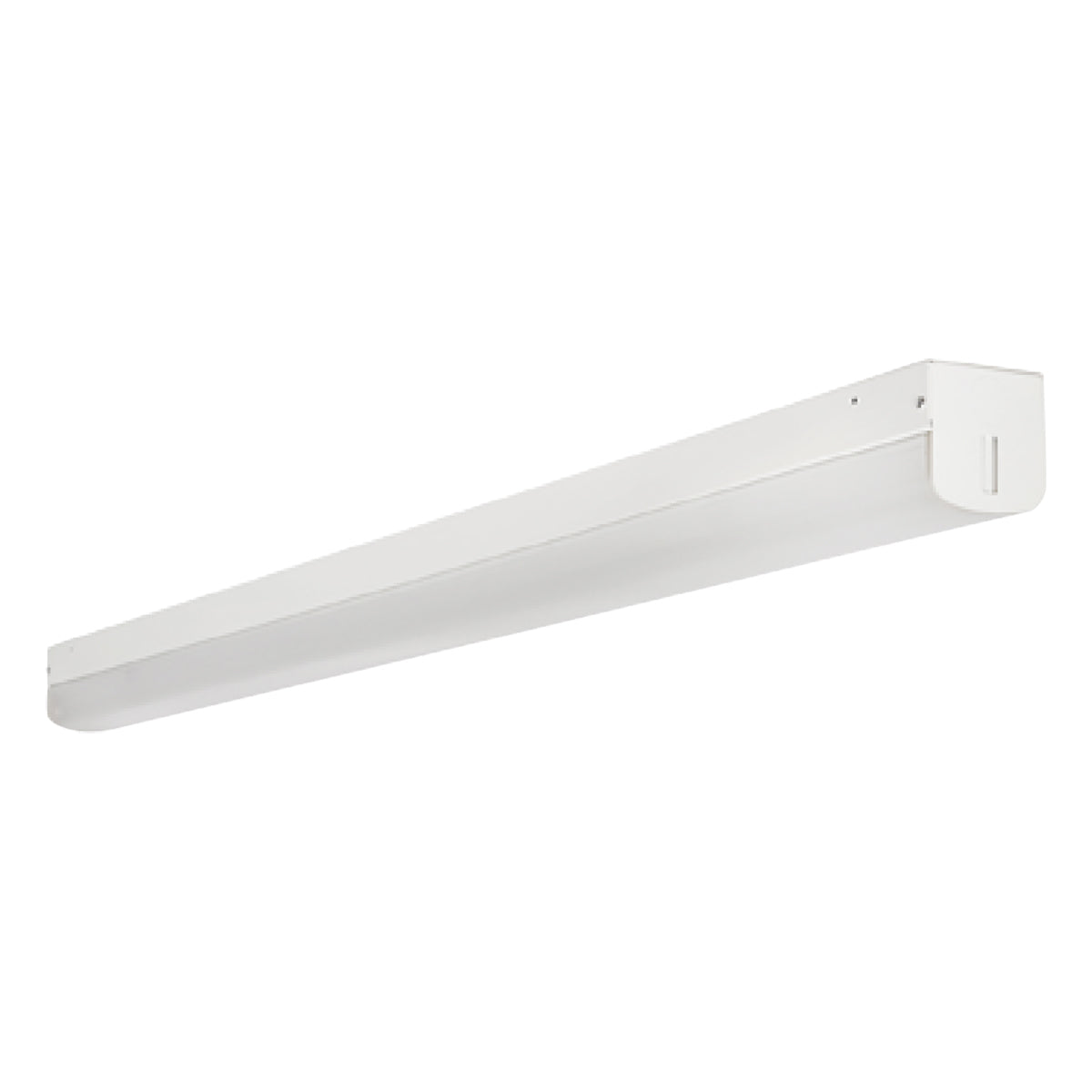

The Sylvania UltraLED Strip 2A, model 65177, is a 4ft strip light fixture delivering 2860 lumens at 22 watts. It operates on a 120-347V input and is ideal for applications such as retail, manufacturing, and warehouse environments. This fixture is DLC Premium certified, ensuring high efficiency and rebate eligibility.

Key Features

• High Efficiency: Designed with a high efficiency LED system for optimal performance.
• Toolless Maintenance: Light engine and lens module allow for toolless removal and secure snap-fit installation.
• Even Illumination: Features a diffuse acrylic lens for smooth, even light distribution.
• Versatile Mounting: Includes knock-outs for through wiring and an optional joiner bracket for end-to-end mounting.
• Optional Controls: Compatible with microwave motion/daylight sensors and 8W battery backup for enhanced functionality.
• Durable Construction: Constructed with a white powder-coated metal body for durability.
• Extended Lifespan: Rated for 100,000 hours (L70) at 25°C, ensuring long-lasting performance.
• Wide Temperature Range: Operates efficiently in ambient temperatures from -13°F to +104°F.
• Power Factor: Maintains a power factor greater than 90% for reliable operation.
• Low THD: Total Harmonic Distortion is less than 20%, ensuring minimal electrical interference.

Typical Applications

• Retail Spaces
• Manufacturing Facilities
• Warehouses
• Offices
• Educational Institutions

Performance & Light Output

This strip light provides 2860 lumens with an efficacy of up to 130 LPW. It has a CRI greater than 80, ensuring accurate color rendering for various applications.

Electrical & Controls

The fixture supports 120-347V input and features a 0-10V dimmable driver, allowing dimming down to 10%. It maintains a power factor over 90% and is compatible with optional microwave motion/daylight sensors.

Construction & Durability

Constructed with a white powder-coated metal body, this fixture is UL damp location rated, ensuring durability in various environments. It operates within a temperature range of -13°F to +104°F.

Installation & Mounting

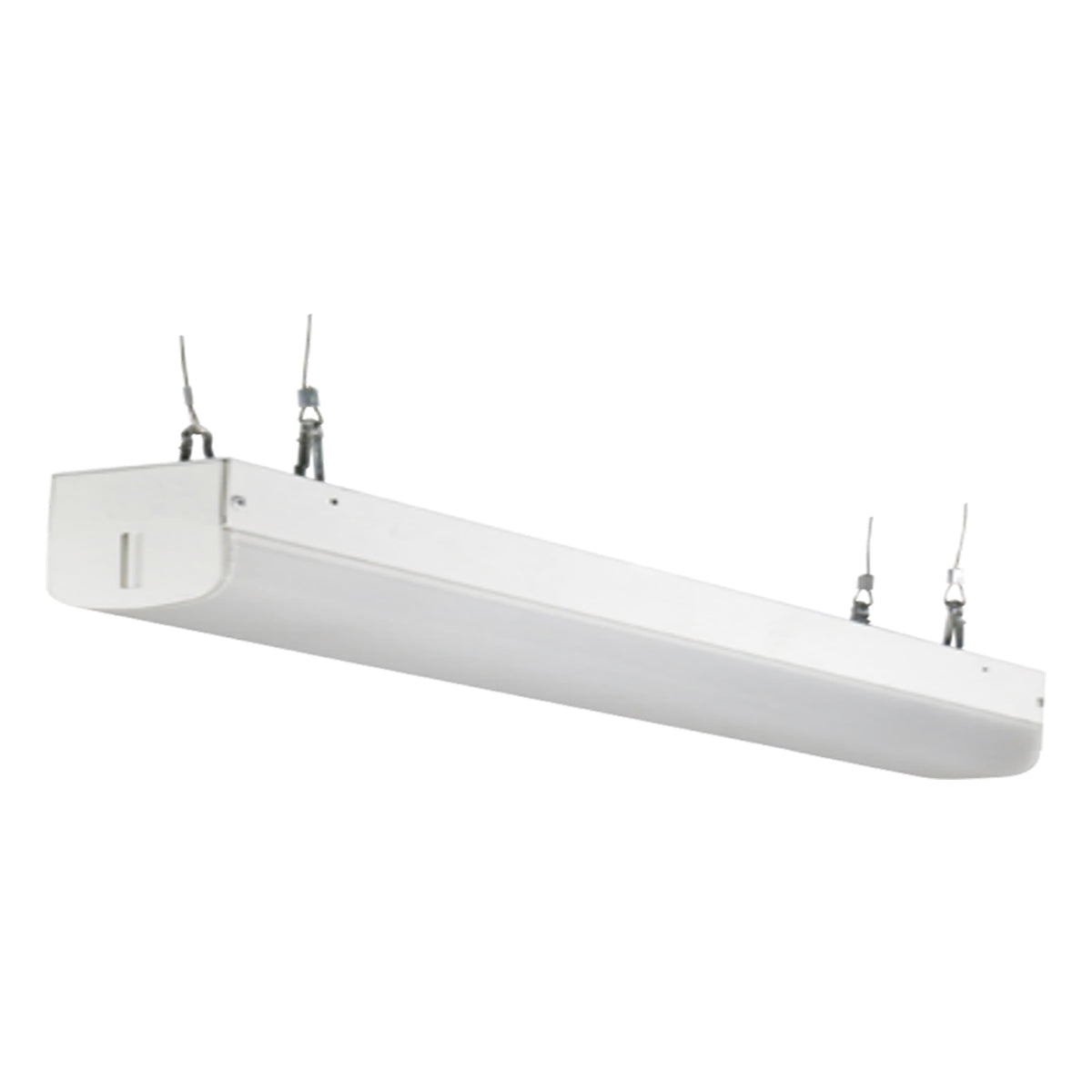

The fixture can be surface mounted or suspended, with a V-hook mounting bracket included. It also features knock-outs for through wiring and supports end-to-end mounting with an optional joiner bracket.

What's Included

• V-hook mounting bracket
• Split junction box cover
