LEDVANCE Sylvania 63862 Dual Selectable Floodlight — 140W, Selectable CCT & Power, Slipfitter & Trunnion, Photocell, 120-347V, Bronze

The LEDVANCE Sylvania 63862 (FLOODLT2AS140UNHD8SC2BZP) is a high-performance, dual-selectable LED flood light designed to deliver bright, expansive illumination with incredible on-site versatility. This powerful luminaire produces up to 21,000 lumens and allows installers to easily toggle between three high-output wattage levels (140W, 100W, 80W) and three color temperatures (3000K, 4000K, 5000K) directly in the field. It features a wide NEMA 7H x 7V beam spread, providing a broad, powerful wash of light ideal for large building perimeters, parking areas, and architectural accents. Operating on a versatile 120-347V driver, this model comes fully equipped with an integrated photocell for automated dusk-to-dawn energy savings. Built for longevity, the 63862 is housed in a sleek LEDVANCE design and earns an IP65 rating for durability against the elements. With a 5-year warranty, DLC 5.1 Premium listing, and standard 0-10V dimming, it is a perfect solution for professional-grade exterior lighting.

Key Features

• Wattage: Field adjustable to 140W, 100W, or 80W.
• Selectable CCT: Field adjustable between 3000K (Warm), 4000K (Neutral), and 5000K (Cool).
• Dimming: Integrated 0-10V dimming capabilities.
• Photocell: Integrated photocell included for dusk-to-dawn operation.
• NEMA Type: Wide NEMA 7H x 7V beam spread.
• Mounting Type: Includes both a slipfitter mount and a trunnion mount in the box.
• Delivered Lumens: Up to 21,000 lumens at the highest 140W setting (150 LPW).
• Environmental Ratings: IP65 rated for dust and water; cULus Listed for wet locations.
• Warranty: 5-Year Manufacturer Warranty.

Typical Applications

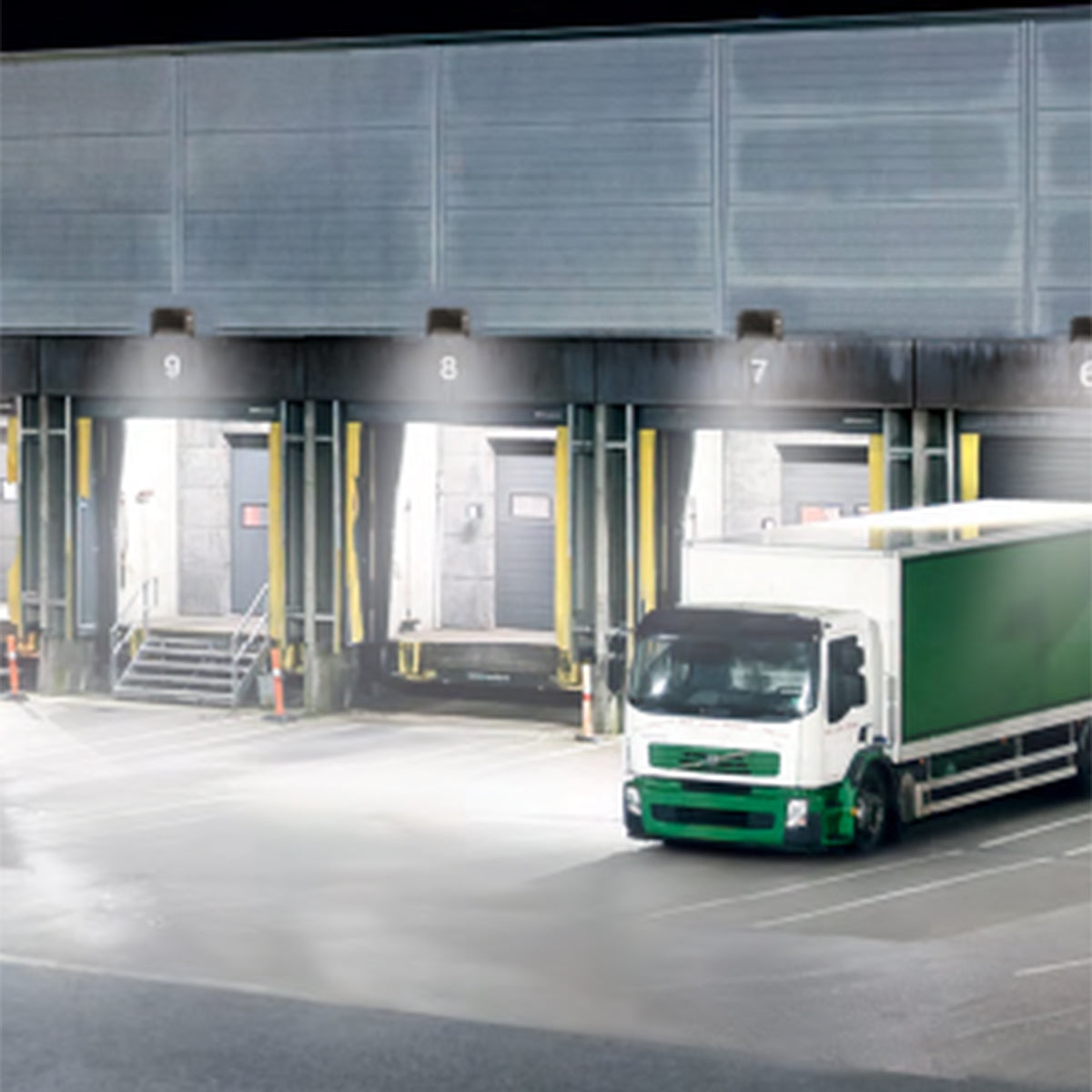

• Large building perimeters and facade illumination
• Commercial parking lots and wide area lighting
• Commercial signage and architectural accents
• General exterior area and security lighting

Performance & Light Output

The LEDVANCE Sylvania 63862 provides high-intensity, uniform light with a maximum output of 21,000 lumens and an excellent efficacy of up to 150 lm/W. Its advanced optical design ensures excellent color consistency (80+ CRI). With long-life LEDs rated for 100,000 hours (L70 at 25°C), this fixture significantly reduces maintenance and energy costs over time.

Electrical & Controls

Equipped with a highly flexible driver, the 63862 is built for exceptionally stable performance across a wide 120-347VAC voltage range. It supports standard 0-10V dimming for integration with motion sensors or building control systems and relies on the integrated photocell to automate daylight operation.

Construction & Durability

The fixture features a rugged aluminum housing finished in bronze. Its IP65 rating confirms total protection against dust and water jets, safely operating in extreme ambient temperatures ranging from -40°F (-40°C) up to 122°F (50°C).

Installation & Mounting

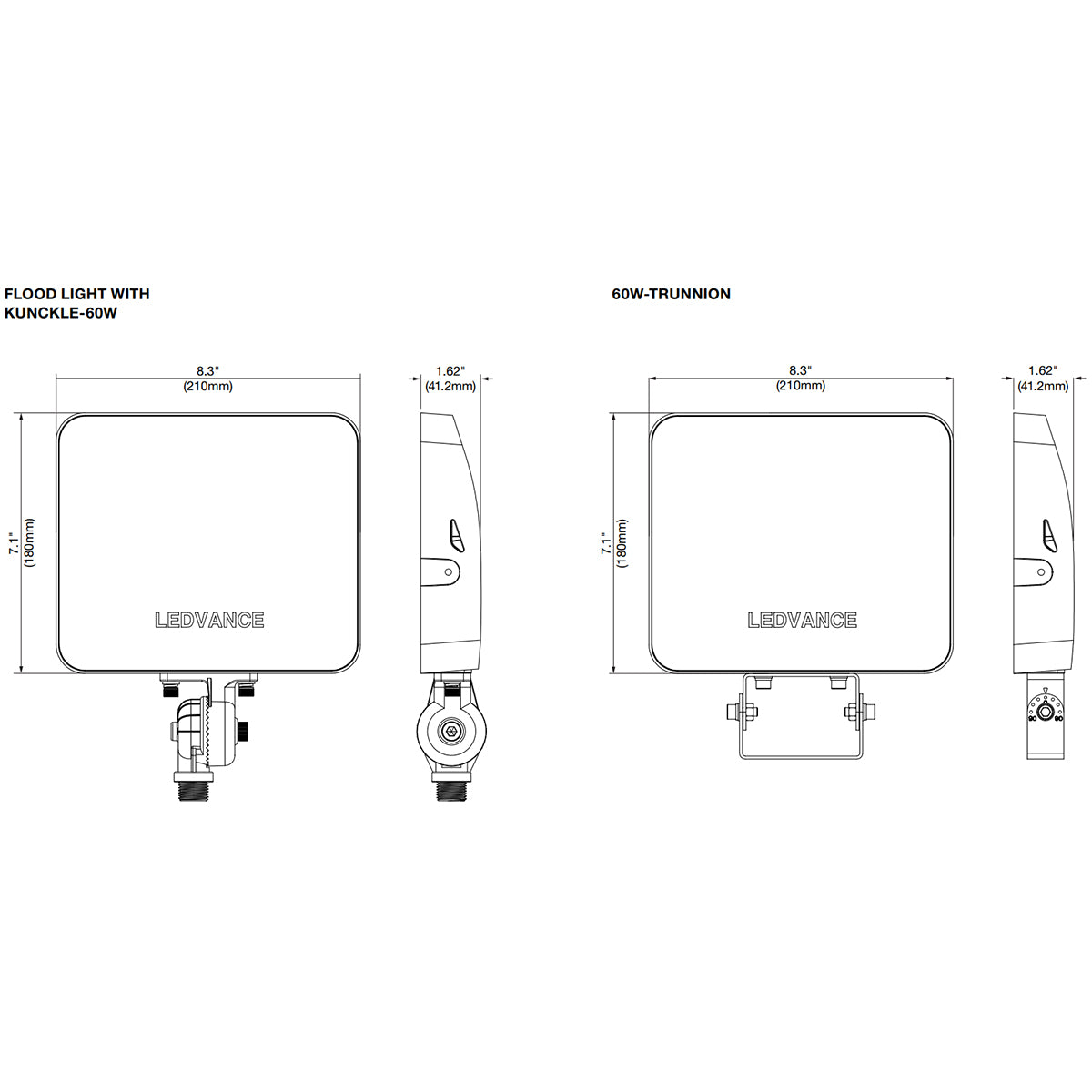

This model provides maximum installation flexibility for large-area fixtures. The box includes both a standard slipfitter mount (ideal for 2 3/8" tenons and poles) and a trunnion mount (for flat surface installations), giving installers exactly what they need right out of the package.

What's Included

• LEDVANCE Sylvania 63862 LED Dual Selectable Floodlight (Bronze)
• Slipfitter Mount
• Trunnion Mount
• Integrated Photocell
• 5-Year Manufacturer Warranty
