LEDVANCE Sylvania 63861 Dual Selectable Floodlight — 60W, Selectable CCT & Power, Knuckle & Trunnion, Photocell, 120-347V, Bronze

The LEDVANCE Sylvania 63861 (FLOODLT2AS060UNHD8SC2BZP) is a high-performance, dual-selectable LED flood light designed to deliver bright illumination with incredible on-site versatility. This powerful luminaire produces up to 9,000 lumens and allows installers to easily toggle between three wattage levels (60W, 45W, 35W) and three color temperatures (3000K, 4000K, 5000K) directly in the field. It features a wide NEMA 7H x 7V beam spread, providing a broad, powerful wash of light ideal for building perimeters, signs, gardens, and architectural accents. Operating on a versatile 120-347V driver, this model comes fully equipped with an integrated photocell for automated dusk-to-dawn energy savings. Built for longevity, the 63861 is housed in a sleek LEDVANCE design and earns an IP65 rating for durability against the elements. With a 5-year warranty, DLC 5.1 Premium listing, and standard 0-10V dimming, it is a perfect solution for professional-grade exterior lighting.

Key Features

• Wattage: Field adjustable to 60W, 45W, or 35W.
• Selectable CCT: Field adjustable between 3000K (Warm), 4000K (Neutral), and 5000K (Cool).
• Dimming: Integrated 0-10V dimming capabilities.
• Photocell: Integrated photocell included for dusk-to-dawn operation.
• NEMA Type: Wide NEMA 7H x 7V beam spread.
• Mounting Type: Includes both a knuckle mount and a trunnion mount in the box.
• Delivered Lumens: Up to 9,000 lumens at the highest 60W setting (150 LPW).
• Environmental Ratings: IP65 rated for dust and water; cULus Listed for wet locations.
• Warranty: 5-Year Manufacturer Warranty.

Typical Applications

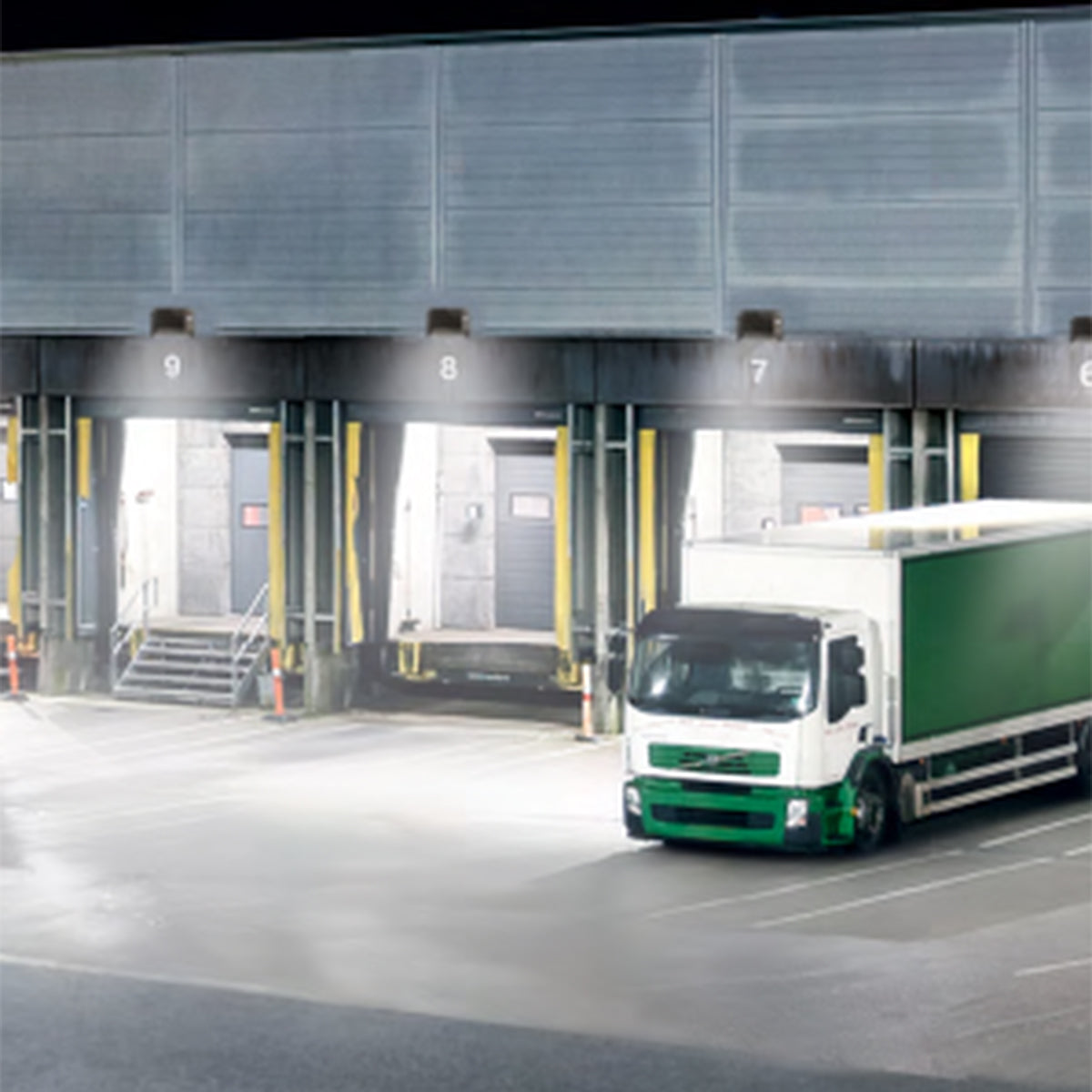

• Building perimeters and facade illumination
• Landscape, garden, and yard lighting
• Commercial signage and architectural accents
• General exterior area and security lighting

Performance & Light Output

The LEDVANCE Sylvania 63861 provides high-intensity, uniform light with a maximum output of 9,000 lumens and an excellent efficacy of up to 150 lm/W. Its advanced optical design ensures excellent color consistency (80+ CRI). With long-life LEDs rated for 100,000 hours (L70 at 25°C), this fixture significantly reduces maintenance and energy costs over time.

Electrical & Controls

Equipped with a highly flexible driver, the 63861 is built for exceptionally stable performance across a wide 120-347VAC voltage range. It supports standard 0-10V dimming for integration with motion sensors or building control systems and relies on the integrated photocell to automate daylight operation.

Construction & Durability

The fixture features a rugged aluminum housing finished in bronze. Its IP65 rating confirms total protection against dust and water jets, safely operating in extreme ambient temperatures ranging from -40°F (-40°C) up to 122°F (50°C).

Installation & Mounting

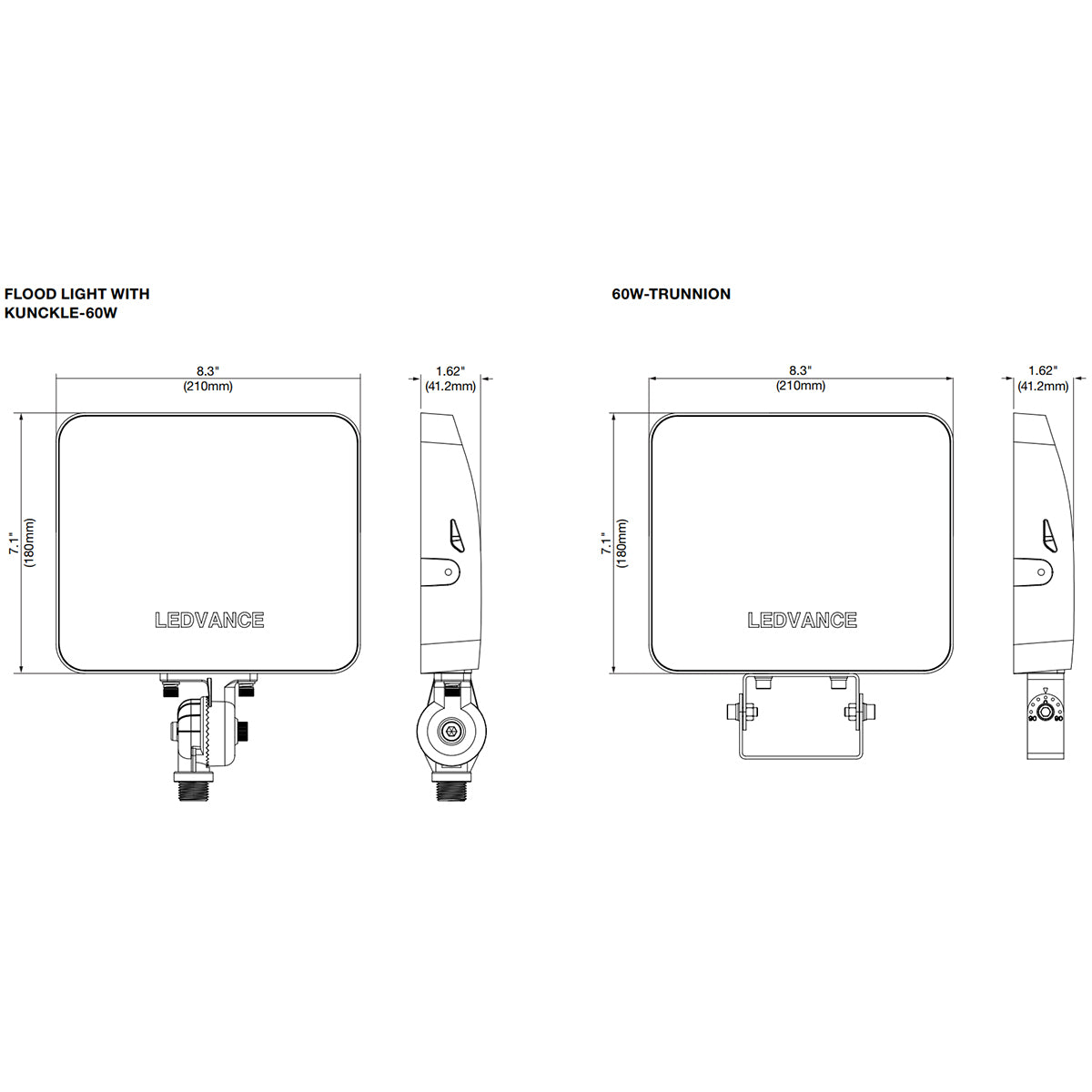

This model provides maximum installation flexibility. The box includes both a standard knuckle mount (ideal for standard junction boxes or landscape posts) and a trunnion mount (for flat surface installations), giving installers exactly what they need right out of the package.

What's Included

• LEDVANCE Sylvania 63861 LED Dual Selectable Floodlight (Bronze)
• Knuckle Mount
• Trunnion Mount
• Integrated Photocell
• 5-Year Manufacturer Warranty
