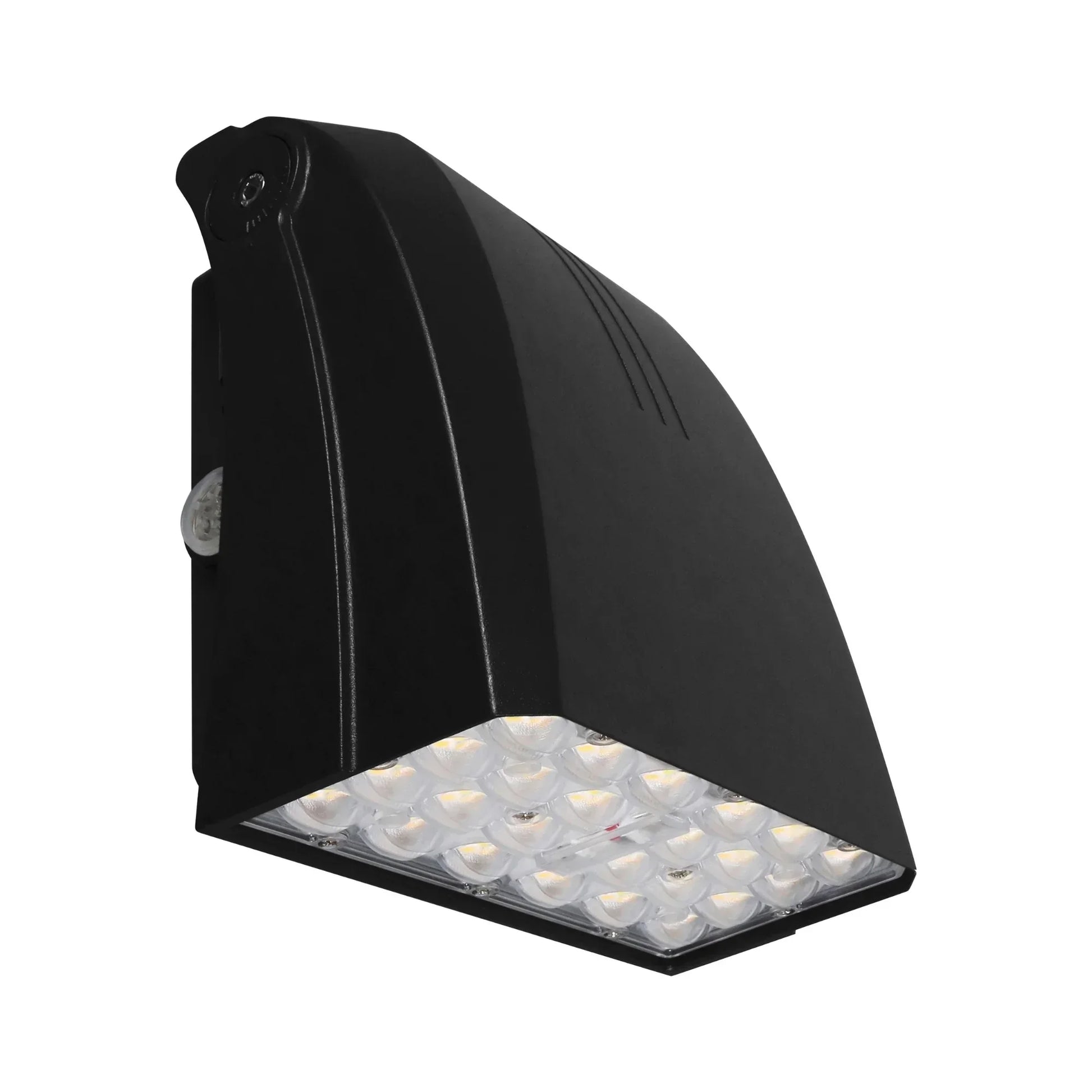

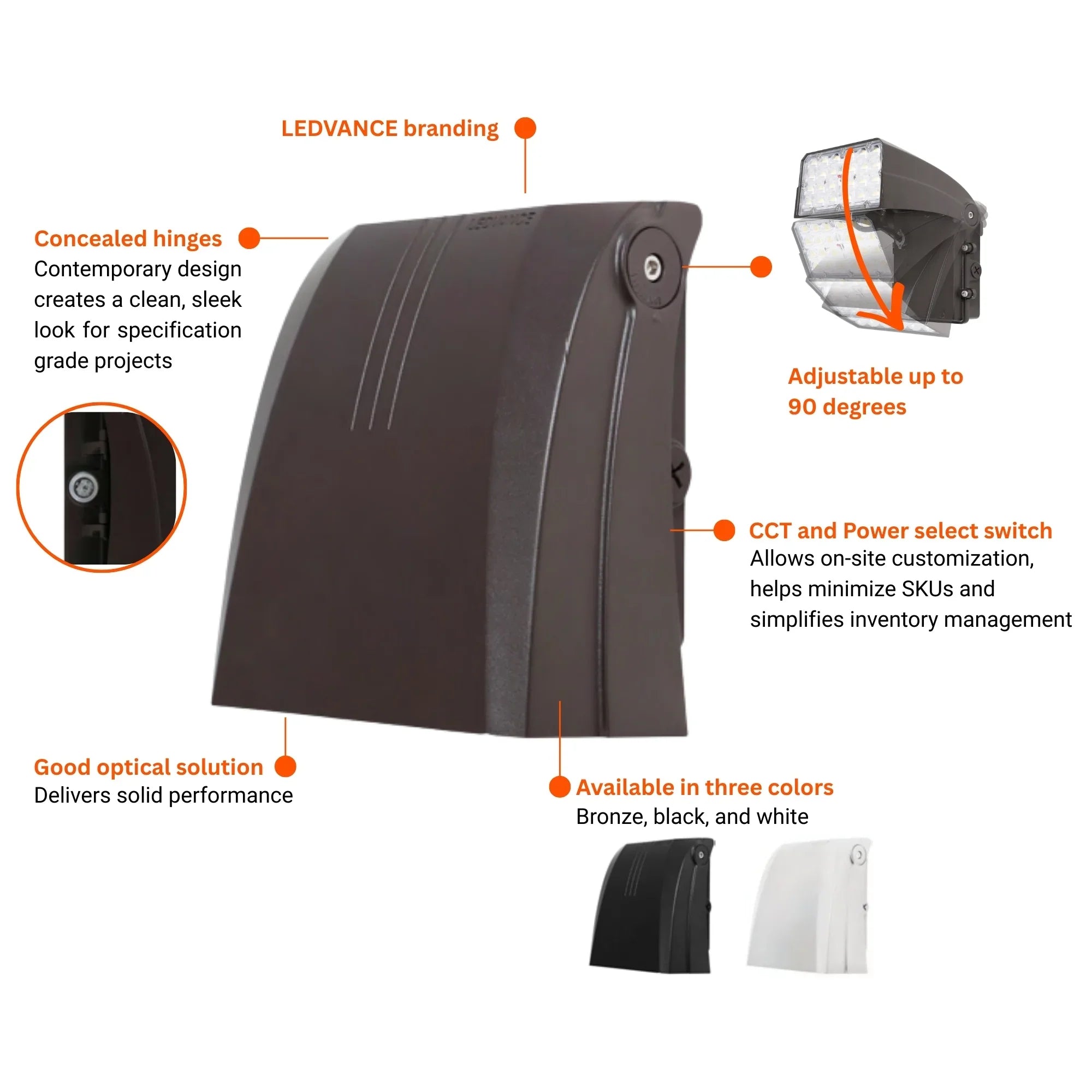

LEDVANCE Sylvania 63839 Dual Selectable 3A Slim LED Wall Pack — 10/20/30W Selectable — 3000K/4000K/5000K — 120-347V — Black

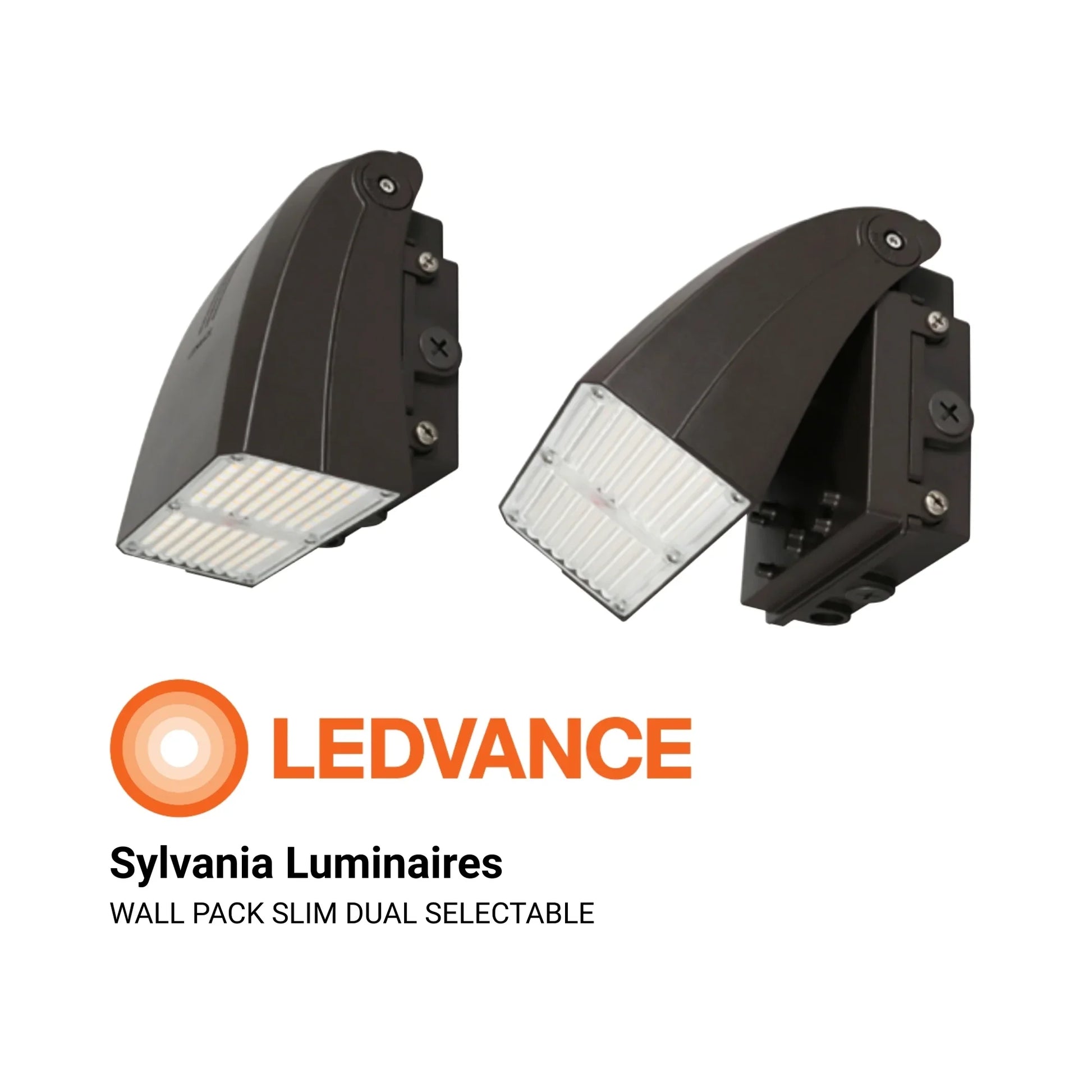

The LEDVANCE Sylvania SLMWPKC3A/S030UNHD8SC2/BLP (Item 63839) is a commercial Performance Class cutoff wall pack from the Wall Pack Slim Dual Selectable 3A series engineered to deliver 1,400 / 2,800 / 4,200 lumens (up to 4,200 lumens at up to 140 lm/W) across field-adjustable 10W / 20W / 30W power settings (factory set to 30W) and switchable 3000K, 4000K, and 5000K color temperatures (factory set to 4000K). Operating on universal 120-347V electrical systems with 0-10V dimming, it replaces legacy 70W HPS, 150W incandescent, and 23W CFL luminaires for up to 90% energy savings while qualifying for DLC 5.1 Premium utility rebates. Built with a weatherproof IP65 black housing and cULus wet-location rating, this versatile exterior luminaire features a slim 4.9" wall projection depth, operates as a 0° full cutoff LED wall pack (B1-U0-G1) or tilts up to 90 degrees, and includes an integrated dusk-to-dawn photocell and 4kV surge protection.

Key Features

  • Selectable Wattage: Field-adjustable 10W / 20W / 30W (factory set to 30W maximum)
  • Wattage Equivalency: Replaces 70W HPS, 150W incandescent, and 23W CFL (up to 90% energy savings)
  • Total Fixture Lumens: 1,400 / 2,800 / 4,200 lm (up to 4,200 lm maximum)
  • Peak Efficacy: Up to 140 lm/W
  • CRI: >80
  • Selectable CCT: 3000K / 4000K / 5000K selectable (factory set to 4000K)
  • Lens & Aiming Optics: Full cutoff (0° tilt, B1-U0-G1) and field-adjustable tilt up to 90 degrees
  • Photocell & Controls: Integrated dusk-to-dawn photocell included standard (MTO microwave daylight/motion sensor variants also in series)
  • Dimming: 0-10V continuous dimming
  • Voltage & Surge Protection: 120-347V AC; Power Factor >90%; THD <20%; 4kV surge protection
  • Dimensions & Weight: 7.3" L x 4.9" W x 7.8" H; 6.5 lbs in Black finish
  • Location & Body Rating: cULus Wet Location rated; IP65 weatherproof rated
  • Operating Temperature: -40°F (-40°C) to 104°F (40°C)
  • Certifications: DLC 5.1 Premium Listed, cULus Listed, IP65, FCC Compliant, RoHS Compliant
  • Rated Life & Warranty: L70 150,000 hours; 5-year limited warranty under the NLB Trusted Warranty Program - LEDVANCE Sylvania

Performance & Light Output

LED System Wattage Total Fixture Lumens Efficacy Selectable CCT Legacy Equivalent
10W 1,400 lm Up to 140 lm/W 3000K / 4000K / 5000K 23W CFL, 100W Incandescent
20W 2,800 lm Up to 140 lm/W 3000K / 4000K / 5000K 150W Incandescent, 50W–70W HPS
30W (Factory Default) 4,200 lm Up to 140 lm/W 3000K / 4000K / 5000K 150W Incandescent, 50W–70W HPS

Delivers CRI >80 across all selectable wattage and color temperature combinations. Achieves a zero-uplight IES BUG Rating of B1-U0-G1 at 0° full cutoff tilt. Rated life of 150,000 hours (L70).

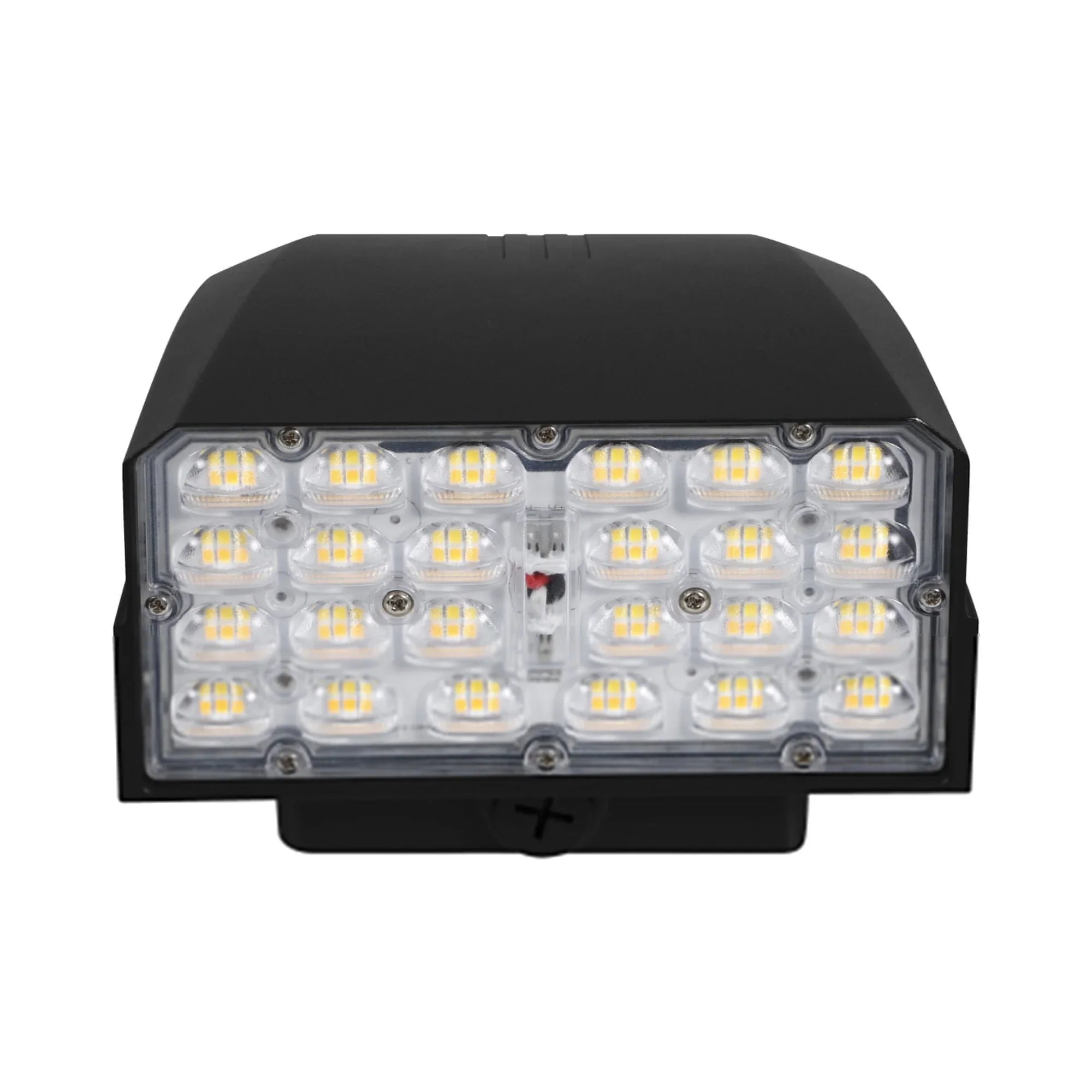

Lens & Optics

The Dual Selectable 3A Slim Wall Pack provides dual-purpose exterior optical control:

  • 0° Full Cutoff Distribution (B1-U0-G1): Directs 100% of lumens below the horizontal plane (U0 zero uplight) to prevent skyglow and property-line light trespass along building perimeters and walkways.

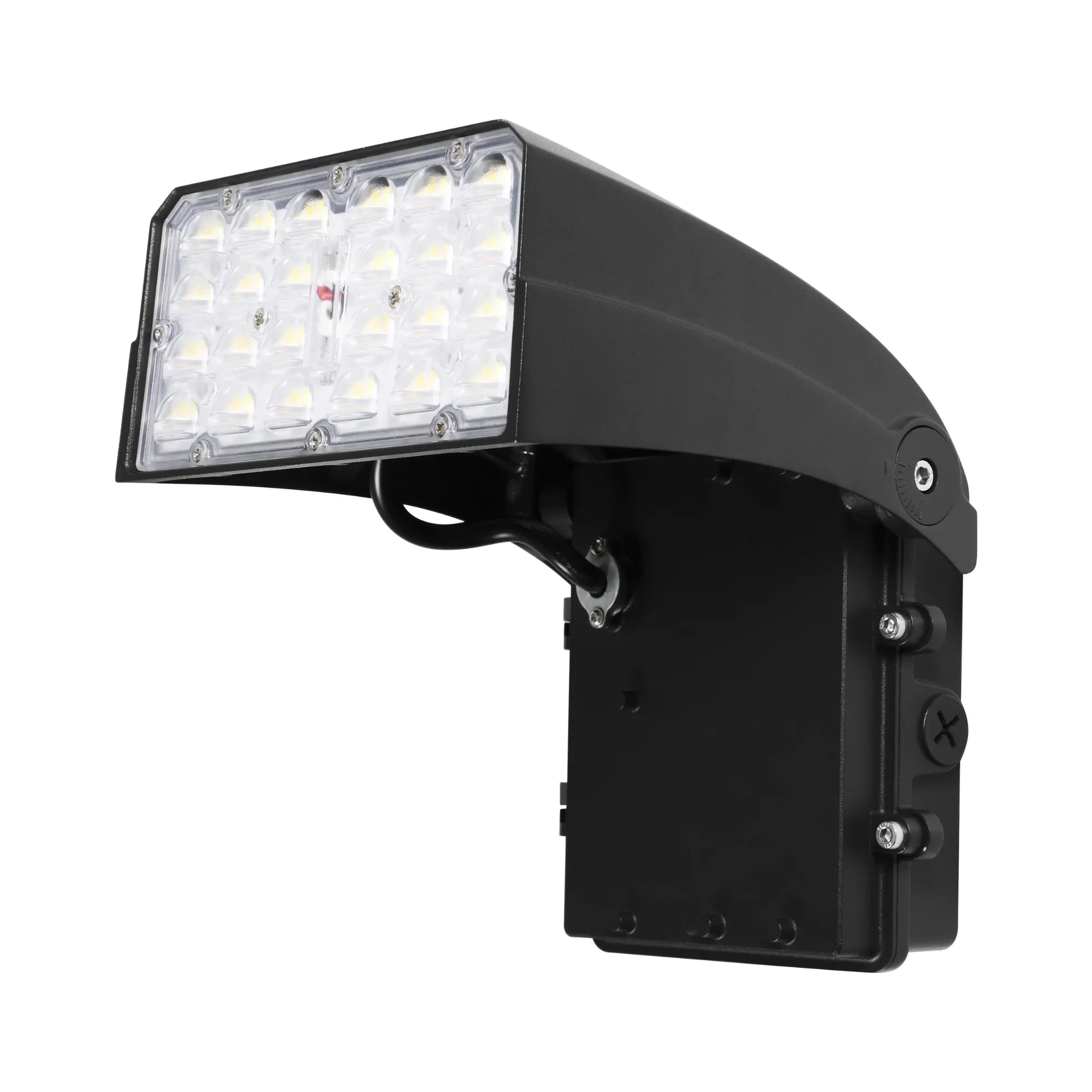

  • Adjustable Forward-Throw Tilt (Up to 90°): Pivoting housing head tilts outward up to 90 degrees (photometrically modeled at 0° full cutoff and 30° forward tilt) to project wide illumination across parking lots, loading docks, and school or warehouse yards.

Adjustable side pivot bolts allow installers to lock in the exact throw angle on-site during installation.

Smart & Control Features

Engineered for automated dusk-to-dawn operation, 9-in-1 field selectability, and commercial dimming:

  • Integrated Dusk-to-Dawn Photocell: Factory-installed photocell (P option) automatically energizes the luminaire at dusk and turns it off at dawn.
  • Dual Selectable Wattage & CCT Switches: Onboard switches adjust between 10W / 20W / 30W (factory set to 30W) and 3000K, 4000K (factory default), or 5000K color temperatures.
  • 0-10V Continuous Dimming: Connects directly to commercial 0-10V dimmers, lighting relay panels, and building automation systems.
  • Series Sensor & Remote Ecosystem: Made-to-Order (MTO) daylight/microwave motion sensor models (D suffix: 5.8GHz HF system, 12V–24V DC, 0-10V dim output, up to 26 ft / 360° detection radius, up to 40 ft mounting height) in the SLMWPKC3A family pair with remote control 62298 (SMWLPAKN2AREMOTE) — sold separately.

Electrical

Powered by a wide-range constant current driver operating on universal 120-347V AC with a Power Factor >90% and Total Harmonic Distortion (THD) <20%. Integrated 4kV surge protection shields internal electronics against electrical line transients and switching surges. Includes 0-10V dimming leads and an integrated photocell, cutting energy consumption by up to 90% compared to legacy HID, CFL, and incandescent wall packs.

Construction

Housing & Thermal: Architectural slim adjustable wall pack housing engineered for passive heat dissipation across all selectable wattage settings.

Finish: Durable Black outdoor finish formulated to resist corrosion and UV weathering.

Environmental Sealing: IP65 weatherproof rated and cULus Wet Location rated. Ambient operating temperature: -40°F (-40°C) to 104°F (40°C).

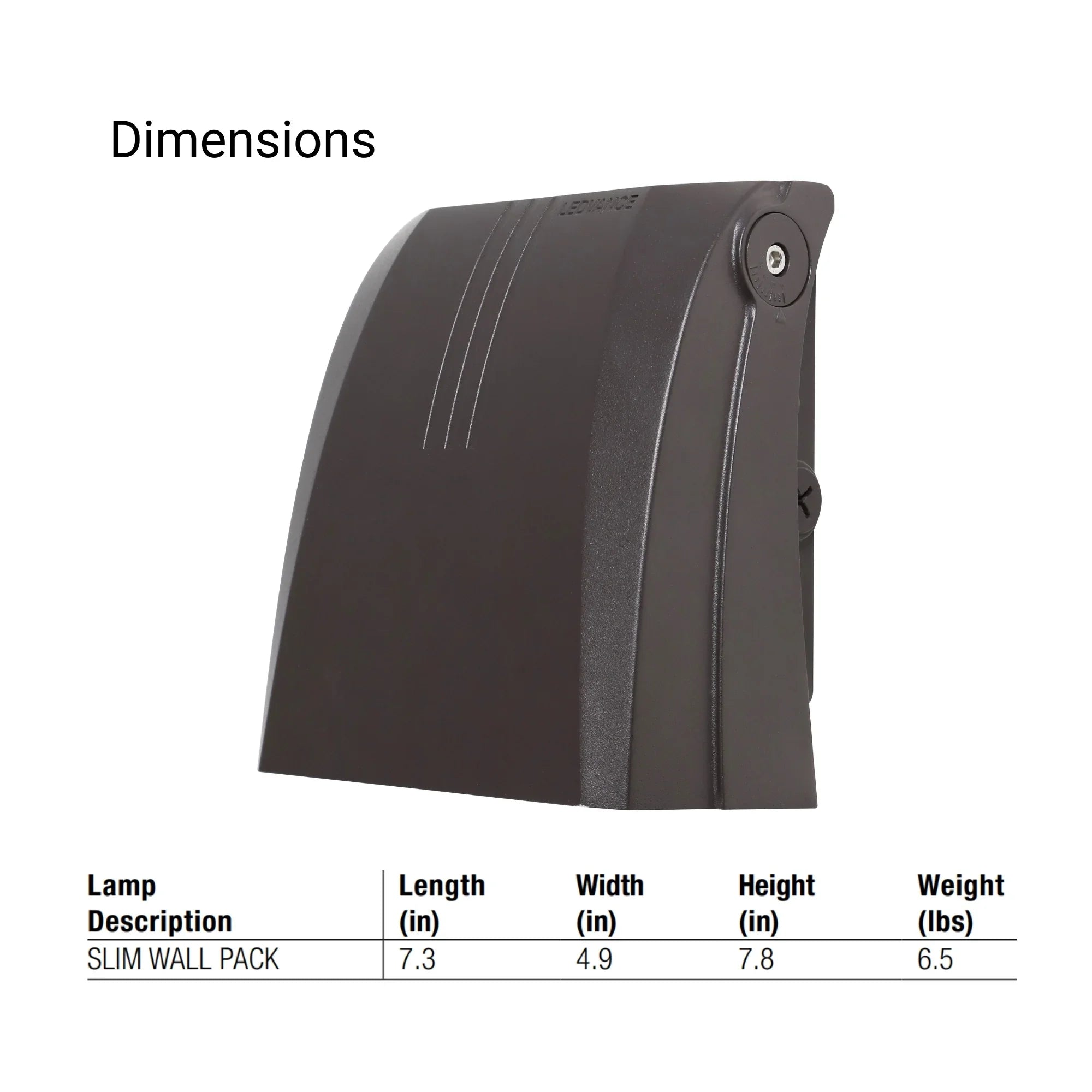

Dimensions & Weight: 7.3" L x 4.9" W x 7.8" H. Fixture weight: 6.5 lbs.

Installation & Mounting

Mounting Hardware: Compact 7.3" L x 4.9" W x 7.8" H (6.5 lbs) wall-mount backbox installs directly onto exterior walls and features a pivot hinge that adjusts the luminaire head from 0° full cutoff up to 90 degrees.

Conduit & Wiring Access: Side fastener screws and threaded side conduit plug knockouts provide convenient access for surface conduit or wall box wiring.

Recommended Mounting Height: Photometrically modeled for installation heights of 15 feet (at 0° full cutoff) and 20 feet (with 30° tilt).

Accessories (Sold Separately):

  • Sensors & Controls: Item 62298 / SMWLPAKN2AREMOTE (Daylight sensor remote control for MTO microwave sensor models — sold separately)

Certifications & Rebates

  • DLC 5.1 Premium Listed: Provides high energy efficiency and optimizes the luminaire for commercial utility rebates (searchable on designlights.org under model SLMWPKC3A/S030UNHD8SC2/BLP)
  • cULus Wet Location Rated: Certified for exposed outdoor wet locations
  • IP65 Rated: Ingress protection rating of IP65 against dust and water jets
  • Full Cutoff (U0) Capable: Achieves B1-U0-G1 zero-uplight performance when mounted at 0° tilt
  • FCC Compliant: Complies with FCC commercial electromagnetic interference limits
  • RoHS Compliant: Free of mercury, lead, and restricted hazardous substances

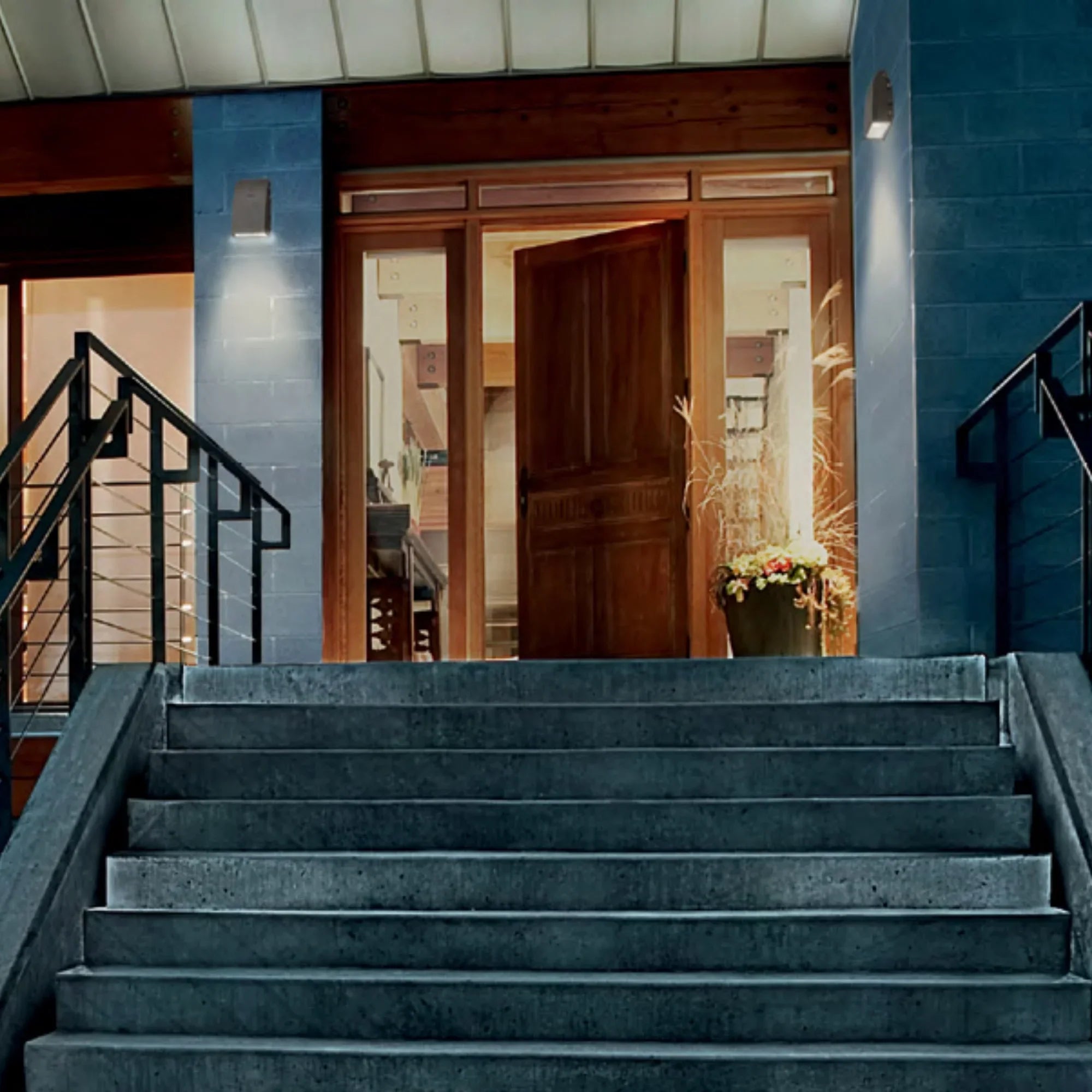

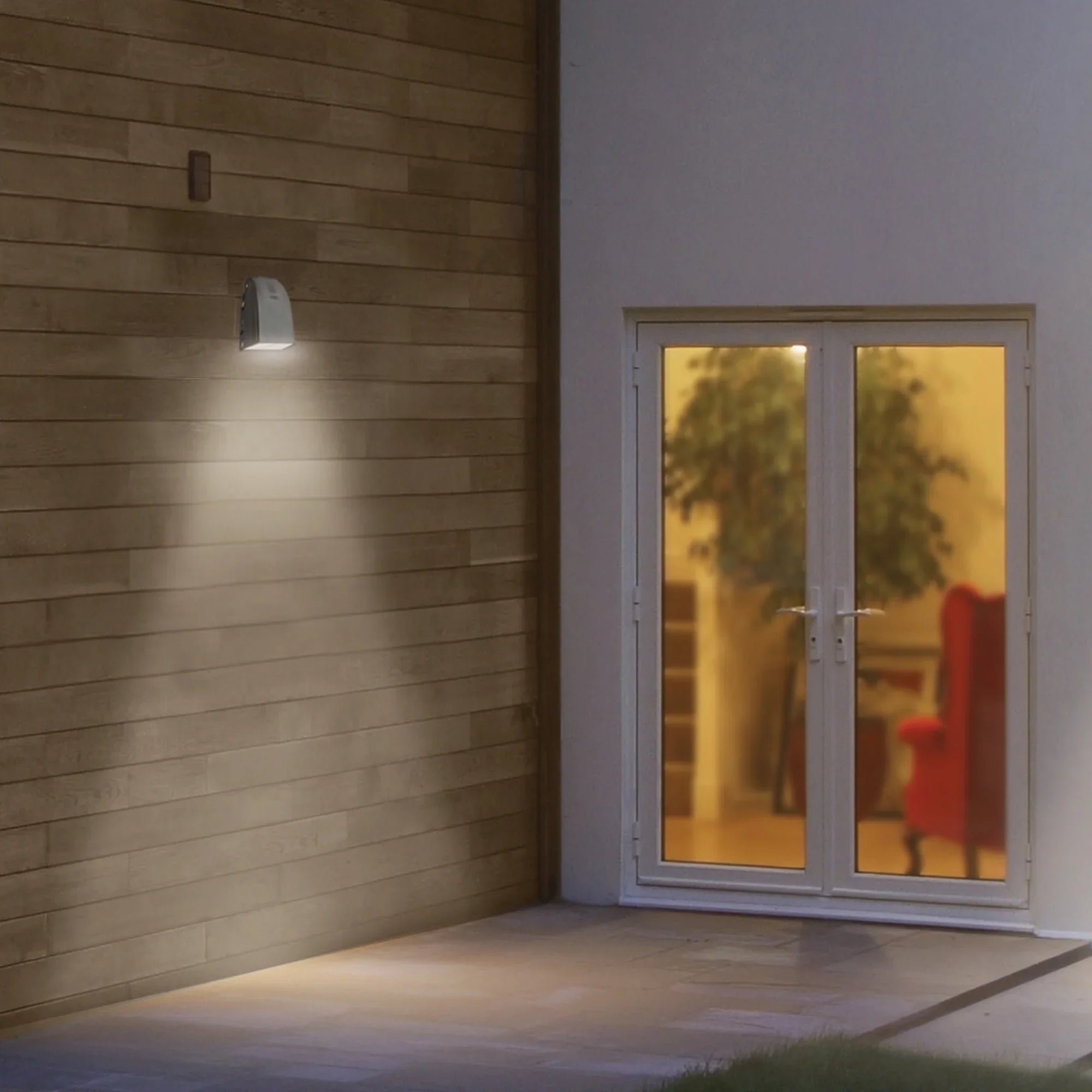

Typical Applications

  • Schools, Universities & Municipal Buildings - Operates at 0° full cutoff (B1-U0-G1) for dark-sky friendly walkways or tilts up to 90° for courtyards and athletic perimeters
  • Warehouses & Distribution Centers - Delivers up to 4,200 lumens at 140 lm/W on 120-347V circuits to replace 70W HPS, 150W incandescent, and 23W CFL fixtures
  • Commercial Building Perimeters & Entryways - Compact 7.3" x 4.9" x 7.8" housing in architectural powder coat blends cleanly onto modern facades
  • Multi-Voltage US & Canadian Facilities - Wide 120-347V driver supports 120V, 208V, 240V, 277V, and 347V branch circuits without step-down transformers
  • All-Weather Security Lighting - Integrated dusk-to-dawn photocell, 4kV surge protection, and -40°F (-40°C) to 104°F (40°C) rating ensure year-round outdoor reliability

What's Included

  • LEDVANCE Sylvania SLMWPKC3A/S030UNHD8SC2/BLP (63839) Dual Selectable 3A Slim LED Wall Pack - Black
  • Pre-installed dusk-to-dawn photocell
  • Installation hardware and operation manual

Specifications

Dimensions

Length/Depth
7.3 in
Width/Diameter
4.9 in
Height
7.8 in
Weight
6.5 lb

Style & Materials

Material
Aluminum
Shape
Slim

Characteristics & Features

Lamp Source
led
Lamp Color
3000K, 4000K, 5000K, Selectable CCT
Color Rendering
80 CRI
Delivered Lumens
4200
Dimmable
Yes

Electrical Information

Voltage
120-347V
Total Wattage
30W

Item Details

MPN
63839
Brand
Sylvania
Catalog Number
SLMWPKC3A/S030UNHD8SC2/BLP
UPC
046135638398

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
150,000 Hours
Product Rating
IP65 Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

Can the LEDVANCE Sylvania 63839 slim wall pack be used as both a full cutoff and an adjustable fixture?

Yes, this versatile slim wall pack operates as a 0° full cutoff luminaire (B1-U0-G1) and tilts outward up to 90 degrees for forward-throw illumination. Its 7.3" L x 4.9" W x 7.8" H (6.5 lbs) exterior wall-mount housing is photometrically modeled for 15 feet (at 0° full cutoff) and 20 feet (with 30° tilt).

What wattages, lumen outputs, and color temperatures can be selected on item 63839?

An onboard switch selects between 10W / 20W / 30W (factory set to 30W), delivering 1,400 / 2,800 / 4,200 lumens at up to 140 lm/W to save up to 90% over legacy HID and incandescent lights. A second selector adjusts between 3000K, 4000K (factory default), and 5000K color temperatures with a CRI above 80.

Does the LEDVANCE Sylvania 63839 include a built-in photocell and support 0-10V dimming?

Yes, this luminaire comes pre-installed with an integrated dusk-to-dawn photocell for automated sunset-to-sunrise exterior operation. Its wide-range 120-347V AC driver features a power factor above 90%, total harmonic distortion below 20%, and standard 0-10V continuous dimming control leads.

What weatherproofing and surge protection protect the 63839 slim wall pack outdoors?

The architectural black enclosure is IP65 weatherproof rated against dust and water jets and cULus listed for outdoor wet locations. It includes integrated 4kV surge protection and operates reliably in ambient temperatures from -40°F (-40°C) to 104°F (40°C).

What is the rated LED lifespan, utility rebate status, and warranty coverage for item 63839?

The LEDVANCE Sylvania 63839 is rated for an extended 150,000-hour L70 LED lifespan and holds DLC 5.1 Premium certification to qualify for commercial utility rebates. It is backed by a 5-year limited warranty under the NLB Trusted Warranty Program and complies with FCC and RoHS standards.
