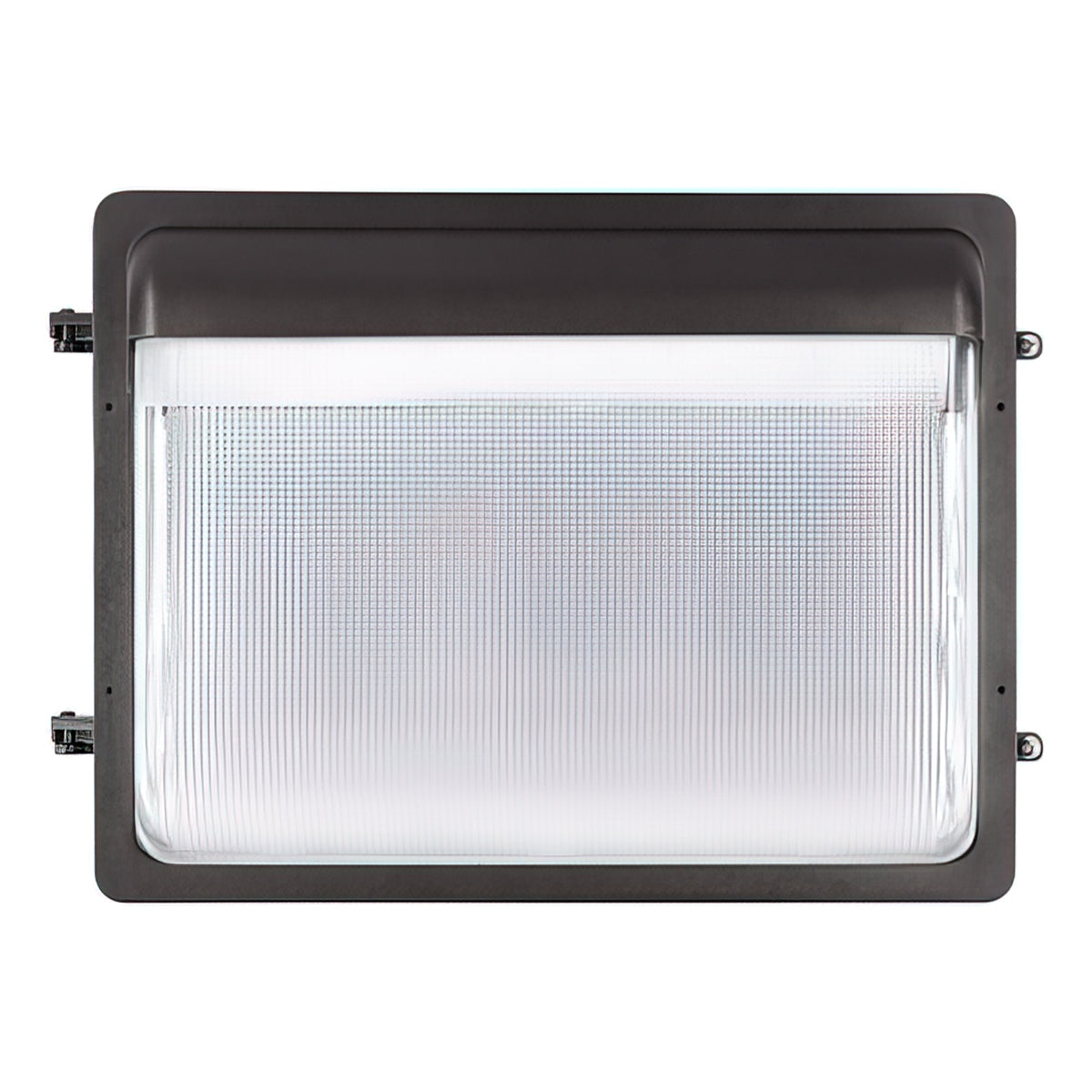

LEDVANCE Sylvania 63832 Dual Selectable 8A Wall Pack — 120W — 3000K/4000K/5000K — 120-347V — with Battery Backup — Bronze
Available in stock (96)
About this item
About this item
- Selectable Wattage & Output: Field-adjustable 80W, 100W, and 120W settings deliver up to 16,800 lumens at 140 lm/W to replace up to 400W MH/HPS fixtures.
- Prismatic Optic & Slim Footprint: Non-cutoff forward-throw prismatic refractor and slim 4.5"-deep side-hinged bronze housing optimize storage, freight, and wall installation.
- Switchable White CCT: Onboard selector switch adjusts between 3000K, 4000K, and 5000K color temperatures with >80 CRI color rendering.
- Photocell, Dimming & Emergency: Includes an integrated photocell, wide-range 120-347V driver with 0-10V dimming, and a factory-installed emergency battery backup.
- Rebates & Ingress: DLC 5.1 Premium qualified for utility rebates, cULus Listed for wet locations, IP65 weatherproof rated, and protected by 4kV surge suppression.
Description
Description
LEDVANCE Sylvania 63832 Dual Selectable Non-Cutoff 8A Traditional LED Wall Pack — 80/100/120W Selectable — 3000K/4000K/5000K — 120-347V — with Battery Backup — Bronze
The LEDVANCE Sylvania WALPAKN8A/S120UNHD8SC2/BZ/PE (Item 63832) is a commercial Value Class traditional LED wall pack from the Dual Selectable Non-Cutoff Wall Pack 8A series engineered to deliver up to 16,800 lumens at up to 140 lm/W across field-adjustable 80W / 100W / 120W power settings and switchable 3000K, 4000K, and 5000K color temperatures. Operating on universal 120-347V electrical systems with 0-10V dimming, it replaces legacy 400W Metal Halide or HPS luminaires for up to 74% energy savings while qualifying for DLC 5.1 Premium utility rebates. Built with a weatherproof IP65 bronze housing and cULus wet-location listing, this exterior wall luminaire features a slim 4.5"-deep (17.8" x 12.8") housing design that optimizes storage and freight while covering wall junction boxes via a side-hinged wiring door, threaded conduit entries, a prismatic forward-throw refractor, an integrated dusk-to-dawn photocell, a factory-installed emergency battery backup (EMBB), and 4kV surge protection.
Key Features
- Selectable Wattage: Field-adjustable 80W / 100W / 120W
- Wattage Equivalency: Replaces up to 400W Metal Halide or HPS (up to 74% energy savings)
- Maximum Lumen Output: Up to 16,800 lm (11,200/14,000/16,800 lm)
- Peak Efficacy: Up to 140 lm/W
- CRI: >80
- Selectable CCT: 3000K / 4000K / 5000K switchable
- Lens & Optics: Prismatic non-cutoff forward-throw refractor (B1-U4-G5)
- Photocell & Emergency Backup: Integrated dusk-to-dawn photocell and factory-installed emergency battery backup (EMBB)
- Dimming: 0-10V continuous dimming
- Voltage & Surge Protection: 120-347V AC; 4kV integrated surge protection
- Location & Body Rating: cULus Wet Location listed; IP65 weatherproof rated
- Operating Temperature: -40°F (-40°C) to 122°F (50°C)
- Certifications: DLC 5.1 Premium, cULus Listed (UL 1598), IP65, FCC, RoHS Compliant
- Rated Life: L70 100,000 hours
- Warranty: 5-year limited warranty under the NLB Trusted Warranty Program - LEDVANCE Sylvania
Performance & Light Output
| Wattage | Typical Lumens | Efficacy | Legacy Equivalent & Energy Savings |
|---|---|---|---|
| 80W | 11,200 lm | Up to 140 lm/W | 150W–175W HPS/MH (up to 62% energy savings) |
| 100W | 14,000 lm | Up to 140 lm/W | 175W–250W HPS/MH (up to 66% energy savings) |
| 120W | 16,800 lm | Up to 140 lm/W | 250W–400W HPS/MH (up to 74% energy savings) |
Delivers CRI >80 across all selectable 3000K, 4000K, and 5000K color temperatures. Achieves an IES BUG Rating of B1-U4-G5. Rated life of 100,000 hours (L70).
Lens & Optics
Engineered with a structured prismatic refractor delivering a dedicated standard forward-throw non-cutoff LED wall pack optical distribution (B1-U4-G5). The prismatic diffuser reduces direct point-source glare while projecting wide outward and downward illumination across building exteriors, outdoor corridors, walkways, and stairwells. Optional bronze cutoff visors (63835 (WALPAKN8ALRGVISORBZ)) and aluminum wire guards (63838 (WALPAKN8ALRGWGAL)) are available sold separately to customize uplight shielding and physical impact protection.
Smart & Control Features
Engineered for automated exterior operation and commercial dimming integration:
- Integrated Dusk-to-Dawn Photocell: Built-in photocell automatically switches the fixture on at dusk and off at dawn to maximize unattended energy savings.
- 0-10V Continuous Dimming: Compatible with commercial 0-10V dimming switches, lighting relay panels, and building automation systems.
Electrical
Powered by a wide-range constant current driver operating on 120-347V AC with a Power Factor >0.9 and Total Harmonic Distortion (THD) <20%. Integrated 4kV surge protection safeguards internal driver and LED circuitry against electrical line transients. Includes 0-10V dimming leads and internal wattage and CCT selector switches.
Emergency Battery Backup: Includes a factory-installed emergency battery backup (EMBB) engineered to provide automatic egress illumination along exterior exits, walkways, and stairwells during power outages.
Construction
Housing & Thermal: Slim 4.5"-deep commercial wall pack housing engineered for passive thermal dissipation while optimizing contractor warehouse storage and freight efficiency.
Finish: Architectural Bronze powder-coat finish formulated to resist outdoor weathering and corrosion.
Environmental Sealing: IP65 weatherproof rated and cULus Listed to UL 1598 standards for wet locations. Ambient operating temperature: -40°F (-40°C) to 122°F (50°C).

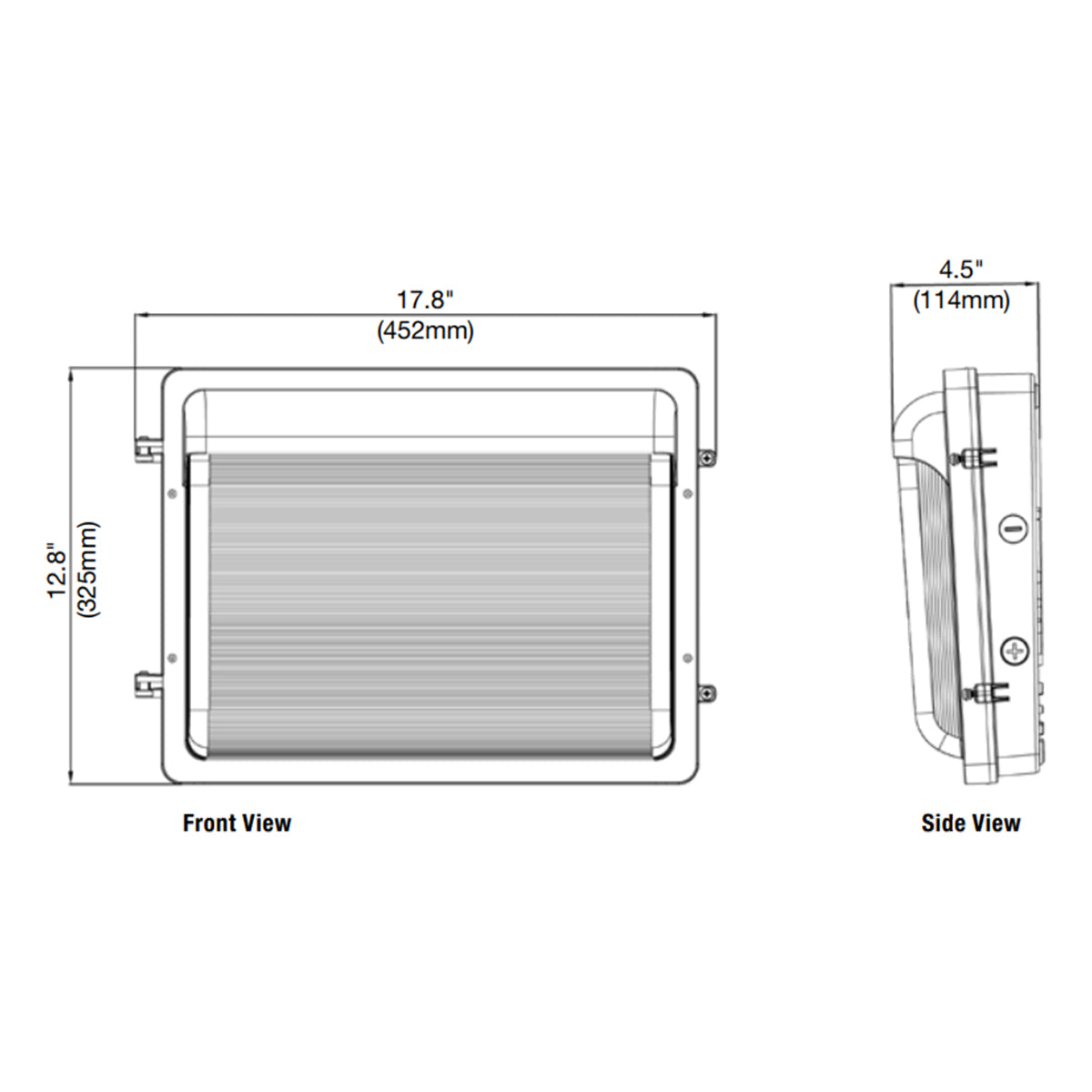

Dimensions & Weight: 17.8" L x 12.8" W x 4.5" H (452mm x 325mm x 114mm). Fixture weight: 7.3 lbs.
Installation & Mounting
Mounting Hardware: Full 17.8" x 12.8" backplate mounts directly over standard recessed junction boxes or exterior wall surfaces while its slim 4.5" depth streamlines handling and installation. Side-hinged door frame swings open and secures via dual side screws for hands-free wiring and quick access to internal wattage and CCT selector switches.
Conduit & Wiring Access: Equipped with threaded conduit plug knockouts on the housing perimeter for surface conduit entry and through-branch wiring.
Recommended Mounting Height: Photometrically optimized for exterior installation heights from 15 to 45 feet (photometric reference at 25 ft for 80W; 35 ft for 100W/120W).
Accessories (Sold Separately):
- Cutoff Visor: Item 63835 (WALPAKN8ALRGVISORBZ - Large Visor, Bronze)
- Wire Guard: Item 63838 (WALPAKN8ALRGWGAL - Large Wire Guard, Aluminum)
Certifications & Rebates
- DLC 5.1 Premium Listed: Assures high energy efficiency and qualifies for commercial utility rebates (searchable on designlights.org under model WALPAKN8A/S120UNHD8SC2/BZ/PE)
- cULus Listed: Certified to UL 1598 standards for wet locations
- IP65 Rated: Ingress protection rating of IP65 against dust and water jets
- FCC Compliant: Complies with FCC commercial electromagnetic interference limits
- RoHS Compliant: Free of mercury, lead, and restricted hazardous substances
Typical Applications
- Exterior Stairwells & Egress Doors - Factory-installed emergency battery backup (EMBB) and integrated photocell maintain emergency path-of-egress lighting during power interruptions
- Outdoor Corridors & Breezeways - Slim housing design and switchable 3000K, 4000K, and 5000K color temperatures adapt to covered and exposed commercial passages
- Pedestrian Walkways & Stairwells - Prismatic forward-throw refractor provides wide, uniform illumination across 15 to 45 ft mounting heights
- Warehouses & Industrial Facilities - Universal 120-347V driver, IP65 weatherproofing, and 4kV surge protection support multi-voltage commercial electrical panels
- Schools, Retail & Multi-Family Properties - DLC 5.1 Premium efficiency and 0-10V dimming lower operating costs up to 74% over traditional HID wall packs
What's Included
- LEDVANCE Sylvania WALPAKN8A/S120UNHD8SC2/BZ/PE (63832) Dual Selectable Non-Cutoff 8A Traditional LED Wall Pack - Bronze
- Pre-installed dusk-to-dawn photocell
- Factory-installed emergency battery backup (EMBB)
- Installation hardware and operation manual
