LEDVANCE Dual Selectable Strip 3A 8ft Strip Light 13000 Lumens 100W Selectable CCT 120-347V White
Available in stock (100)
About this item
About this item
- Lumens: This fixture delivers up to 13,000 lumens, ensuring bright and efficient lighting for large spaces.
- Selectable CCT: Choose from 3500K, 4000K, or 5000K to suit your lighting needs.
- Voltage: Operates on a wide voltage range of 120-347V, making it versatile for various installations.
- Dimmable: Features 0-10V dimming capability down to 10% for customizable light levels.

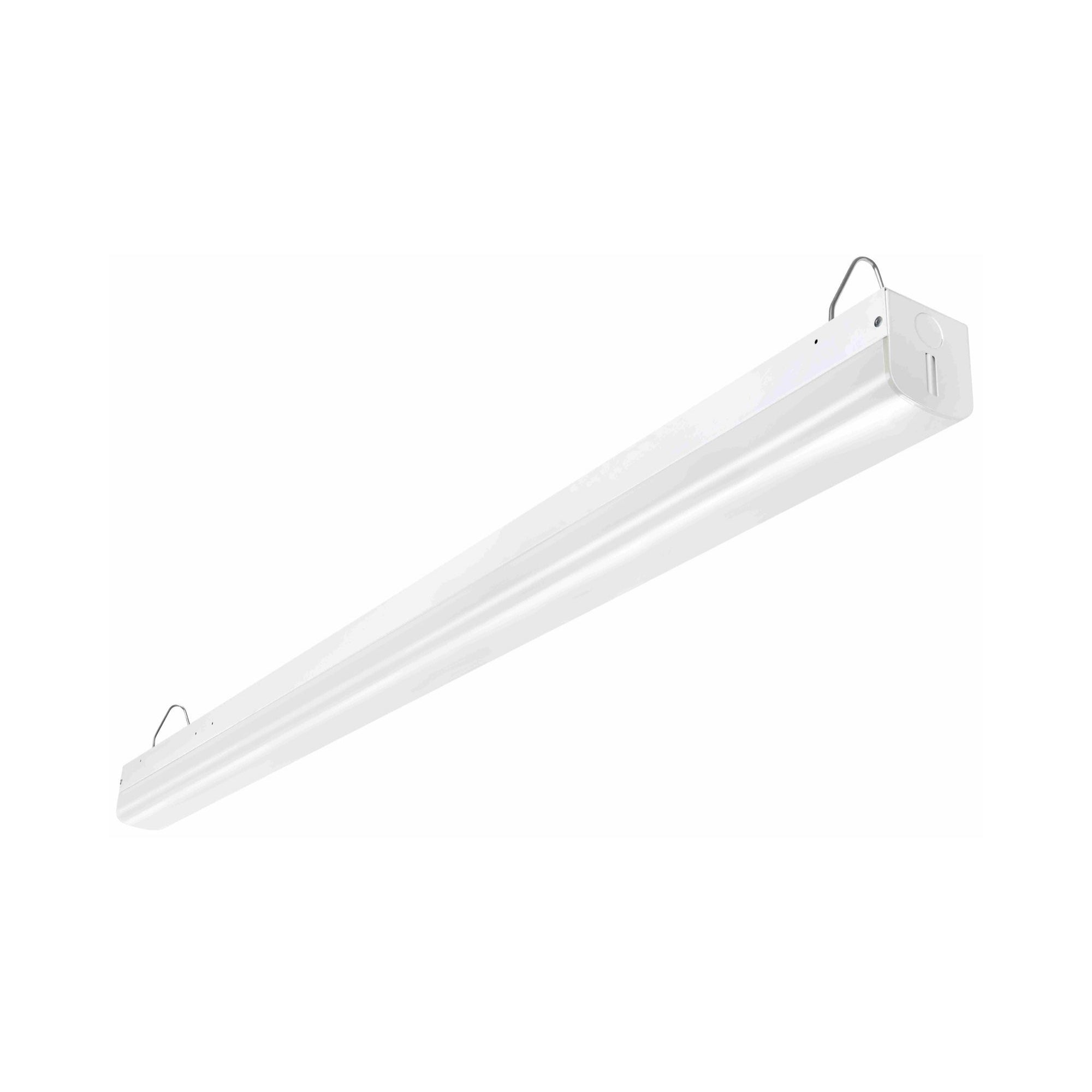

- Mounting Options: Includes V-hook brackets for surface or suspended mounting, facilitating easy installation.
We process payments securely and do not store credit card information.
Description
Description
LEDVANCE Dual Selectable Strip 3A Strip Light — 100W Configuration
The LEDVANCE 63787 is a versatile strip light fixture offering 100W power, delivering up to 13,000 lumens with a selectable CCT of 3500K, 4000K, or 5000K. It operates on a wide voltage range of 120-347V, making it suitable for various applications including retail, manufacturing, and warehouse settings. This fixture is DLC 5.1 Listed, ensuring compliance with energy efficiency standards.
Key Features
- Selectable Wattage: Offers multiple wattage settings (45/65/85/100W) for tailored energy consumption.
- Easy Access Controls: Selection switches are conveniently located on the fixture's exterior.
- Toolless Maintenance: Light engine and lens module can be removed without tools for quick servicing.
- Continuous Row Mounting: Includes end-to-end joiner bracket for seamless installations.
- Pre-Wired: Comes with a factory-installed polarized wiring system for single circuit row mounting.
- Sensor Compatibility: Pre-wired for optional internal microwave or external PIR motion/daylight sensors.
- Durable Construction: Features a white powder-coated metal body and diffuse acrylic lens.
- High CRI: CRI greater than 80 for accurate color rendering.
- Long Lifespan: Rated for over 100,000 hours (L70) at 25°C ambient temperature.
- Surge Protection: Equipped with 2.5kV surge protection for enhanced reliability.
Typical Applications
- Retail Spaces
- Manufacturing Facilities
- Warehouses
- Offices
- Educational Institutions
Performance & Light Output
This strip light provides up to 13,000 lumens with an efficacy of 130 LPW at 4000K. It features a CRI greater than 80 and a diffuse acrylic lens for smooth, even illumination.
Electrical & Controls
The fixture supports 120-347V input, with a power factor greater than 90% and THD less than 20%. It includes 0-10V dimming down to 10% and 2.5kV surge protection.
Construction & Durability
Constructed with a white powder-coated metal body and a diffuse acrylic lens, this fixture is UL Damp rated and suitable for indoor use, operating in temperatures from -25°C to +40°C.
Installation & Mounting
Designed for surface or suspended mounting with included V-hook brackets. It also includes end-to-end joiner brackets and a split junction box cover for easy installation.

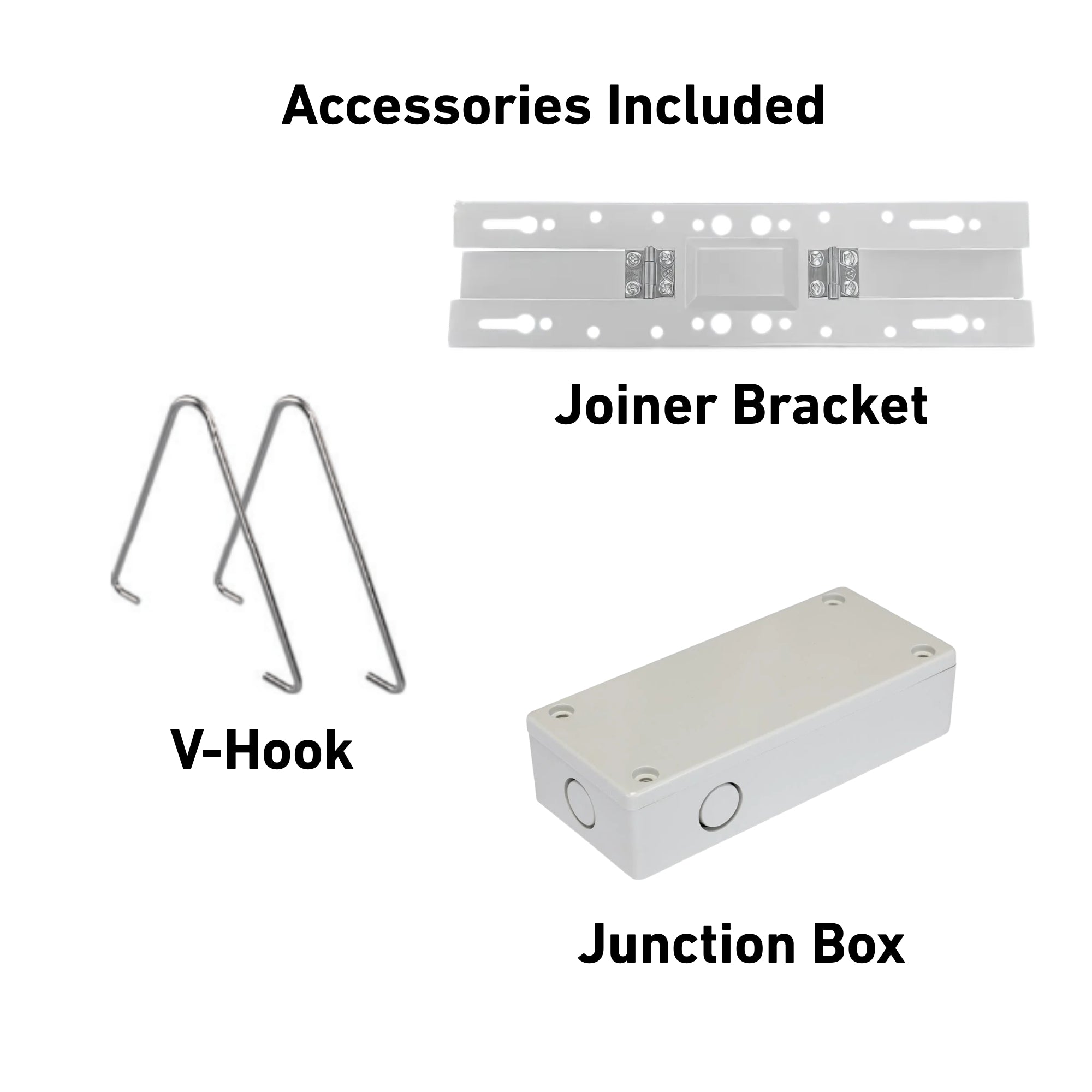

What's Included
- V-hook mounting brackets
- End-to-end joiner bracket
- Split junction box cover
