LEDVANCE Dual Selectable Strip 3A 4ft Strip Light 7150 Lumens 55W Selectable CCT 120-347V White
Available in stock (100)
About this item
About this item
- Lumens: Provides a maximum output of 7150 lumens for bright illumination.
- Wattage: Operates at 55 watts with selectable wattage options for flexibility.
- Voltage: Compatible with a wide range of 120-347V for versatile installation.
- CCT: Features selectable color temperatures of 3500K, 4000K, and 5000K.
- Dimmable: Supports 0-10V dimming down to 10% for customizable lighting levels.
We process payments securely and do not store credit card information.
Description
Description

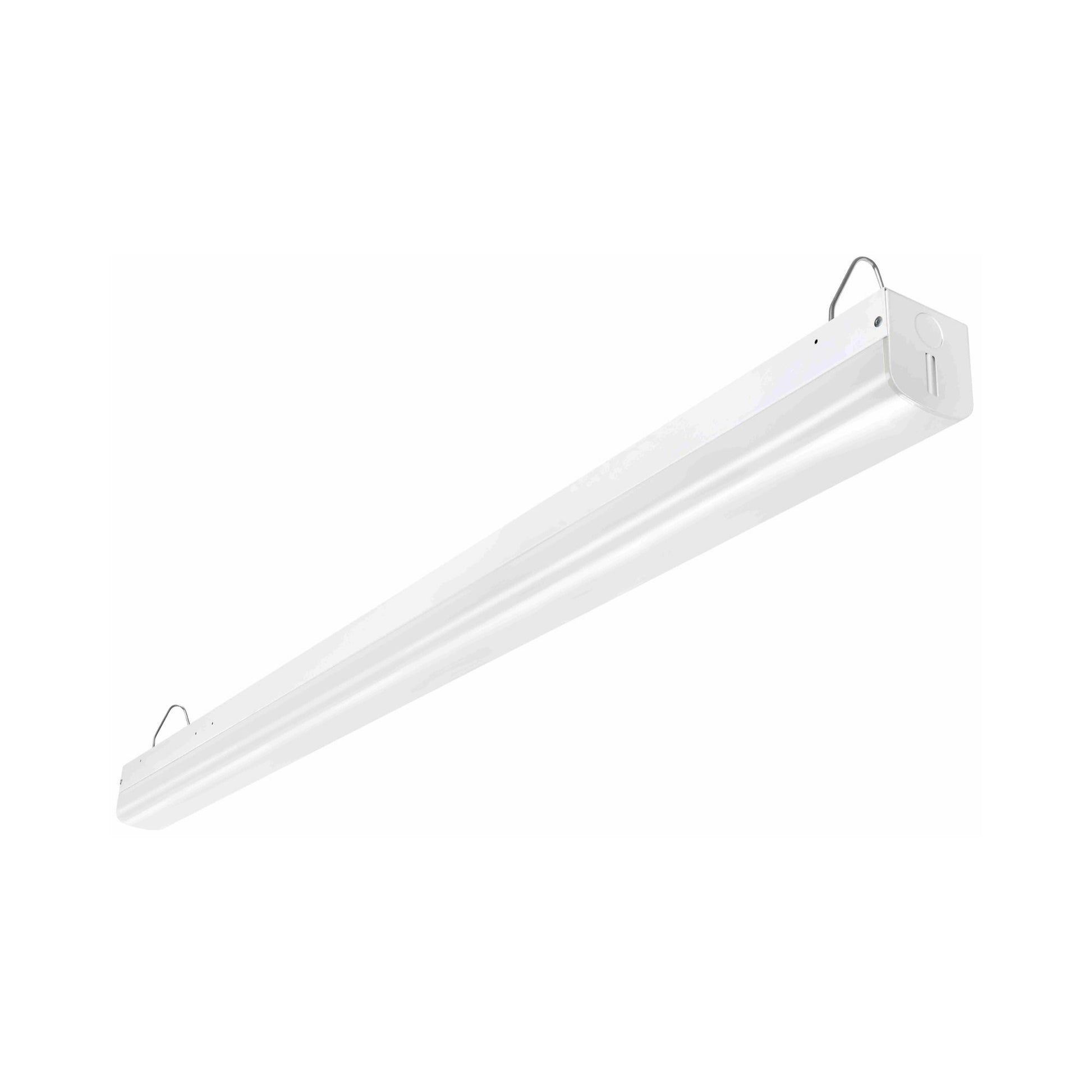

LEDVANCE Dual Selectable Strip 3A Strip Light — 55W Configuration
The LEDVANCE Dual Selectable Strip 3A, MPN 63786, is a versatile strip light fixture offering 55 watts of power, delivering up to 7150 lumens. It operates on a 120-347V input and is ideal for retail, manufacturing, warehouse, office, education, and low-bay applications. The fixture is DLC 5.1 Listed and suitable for damp locations.
Key Features
- Selectable CCT: Easily switch between 3500K, 4000K, and 5000K color temperatures.
- Wattage Options: Offers selectable wattage settings of 22, 35, 45, and 55 watts.
- Efficient Installation: Toolless removal of light engine and lens module for quick setup.
- Mounting Flexibility: Includes V-hook mounting brackets and end-to-end joiner bracket.
- Pre-wired: Ready for single circuit row mounting with no additional wiring needed.
- Optional Sensors: Compatible with field-installable PIR or microwave motion/daylight sensors.
- Durable Construction: Features a white powder-coated metal body with a diffuse acrylic lens.
- High CRI: CRI greater than 80 ensures accurate color rendering.
- Long Lifespan: Rated for over 100,000 hours (L70) at 25°C ambient temperature.
- Surge Protection: Equipped with 2.5kV surge protection for enhanced reliability.
Typical Applications
- Retail Environments
- Manufacturing Facilities
- Warehouses
- Offices
- Educational Institutions
Performance & Light Output
This fixture delivers up to 7150 lumens with an efficacy of 130 LPW. It features a CRI greater than 80 and a diffuse acrylic lens for smooth, even illumination.
Electrical & Controls
Operates on 120-347V with a power factor greater than 90% and THD less than 20%. It supports 0-10V dimming down to 10% and includes 2.5kV surge protection.
Construction & Durability
The fixture is constructed with a white powder-coated metal body and a diffuse acrylic lens. It is UL damp rated and suitable for indoor use.
Installation & Mounting
Can be surface mounted or suspended with included V-hook mounting brackets. Pre-wired for single-circuit row mounting with end-to-end joiner brackets included.

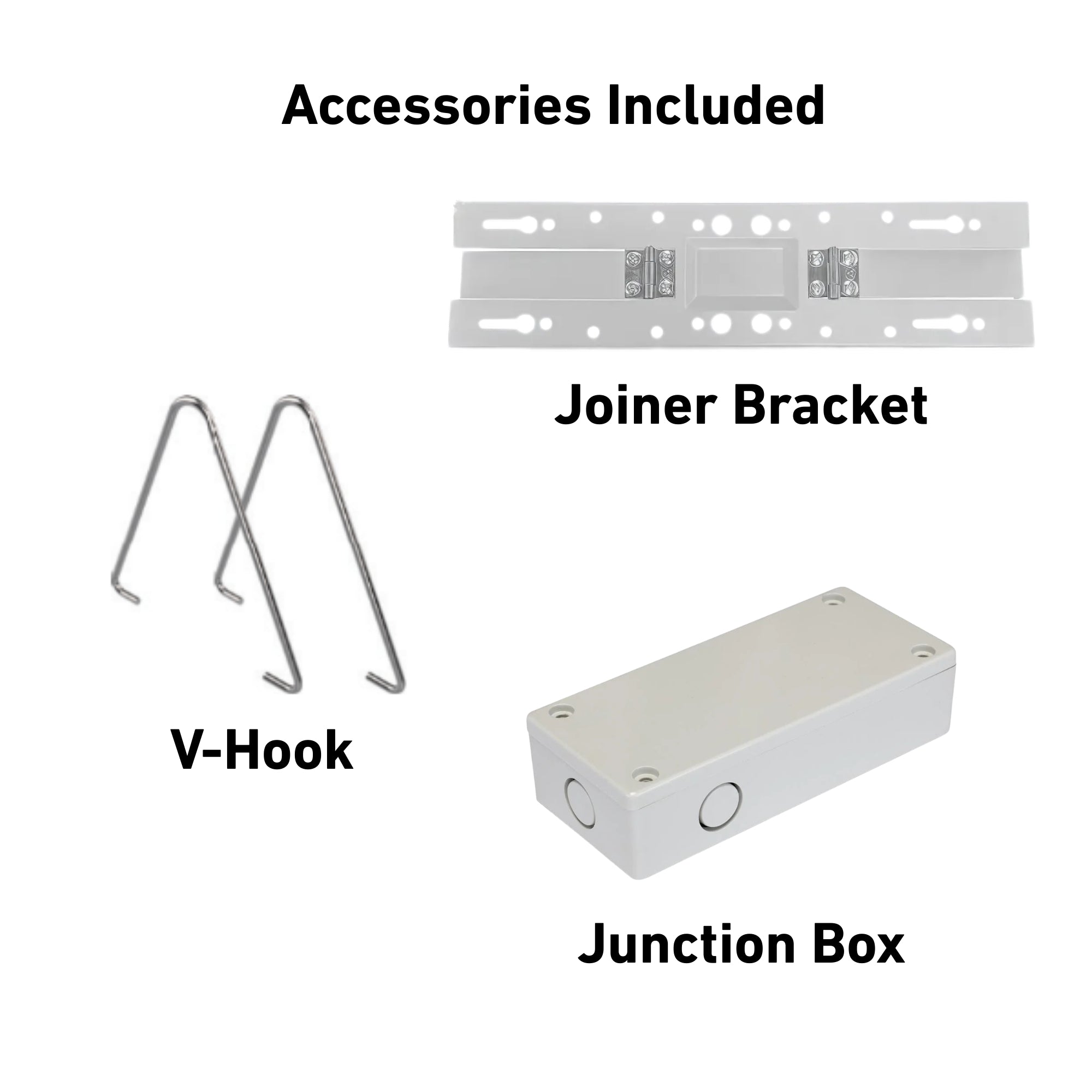

What's Included
- V-hook mounting brackets
- End-to-end joiner bracket
- Split junction box cover
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage of the LEDVANCE 63786 strip light?
What is the wattage of the LEDVANCE 63786 strip light?
Is the LEDVANCE 63786 strip light dimmable?
Is the LEDVANCE 63786 strip light dimmable?
What color temperatures are available for the LEDVANCE 63786?
What color temperatures are available for the LEDVANCE 63786?
What is the lumen output of the LEDVANCE 63786 strip light?
What is the lumen output of the LEDVANCE 63786 strip light?
What mounting options are available for the LEDVANCE 63786?
What mounting options are available for the LEDVANCE 63786?
