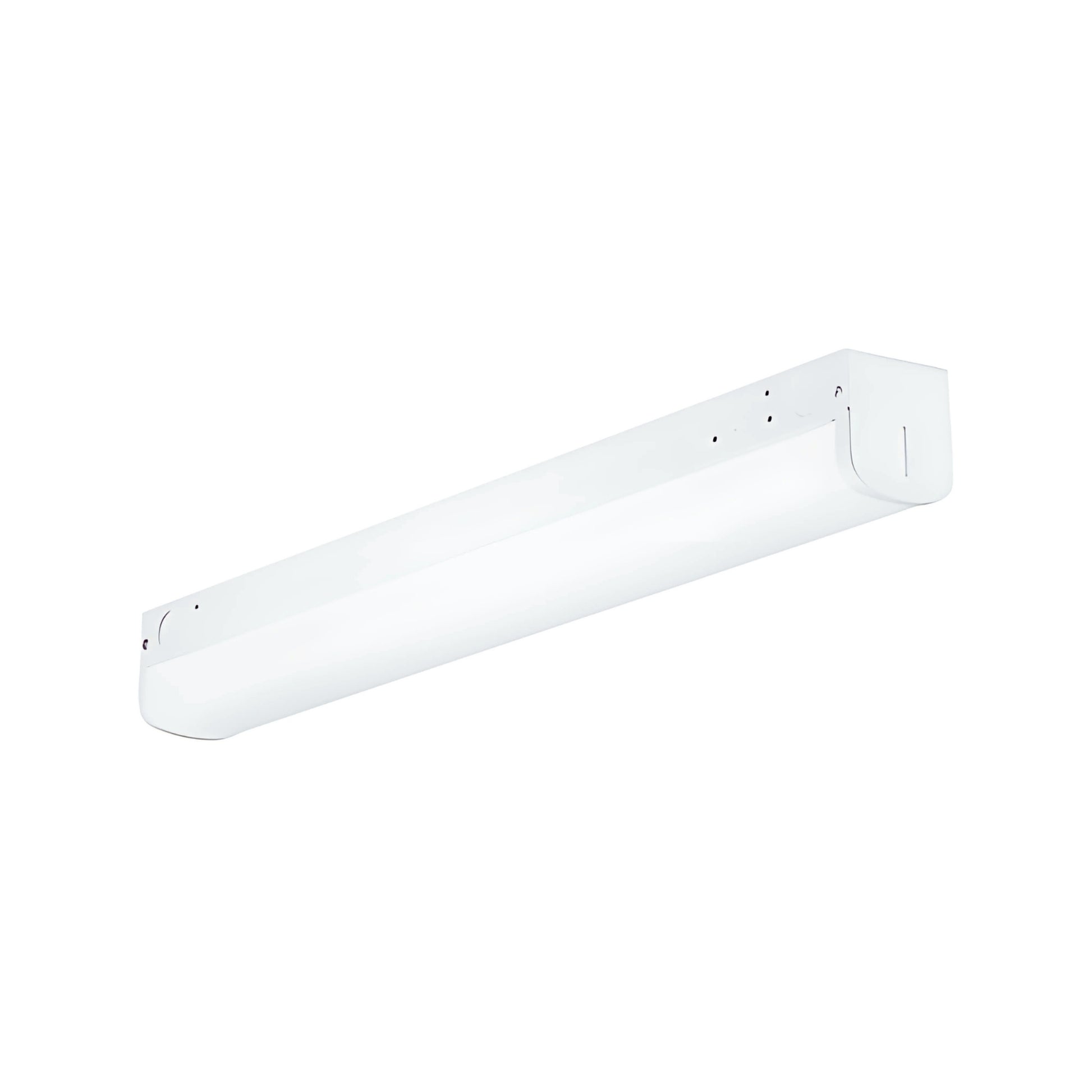

LEDVANCE Sylvania 63785 Dual Selectable 2ft Strip 3A Luminaire — 15W/20W/25W/30W Selectable — 3500K/4000K/5000K — 120–347V — White / Diffuse Acrylic Lens

The LEDVANCE Sylvania STRIP3A/S030UNHD8SC7/24/WH is a commercial 2ft Dual Selectable Strip 3A Luminaire engineered to deliver up to 3,900 lumens with field-adjustable 15W/20W/25W/30W power settings (multi-wattage selectable driver, field-adjustable lumen output, variable power settings) and switchable 3500K/4000K/5000K color temperatures (field-adjustable CCT, color temperature selectable, tunable white, switchable Kelvin). Operating on universal 120–347V electrical systems with 0–10V continuous dimming down to 10%, this luminaire provides an energy-efficient replacement for legacy 1x32W T8, 2x28W T8, and 2x32W T8 fluorescent fixtures. Built with a UL Damp Location rating, it is qualified for commercial utility rebates under DLC 5.1 Standard standards and features a factory-installed polarized wiring system for single-circuit continuous-row through-wiring, exterior selection switches, and pre-wired sensor sockets.

Key Features

• Selectable Wattage: 15W/20W/25W/30W — field-adjustable via exterior switch on outside of fixture (multi-wattage selectable driver / variable power settings)
• Wattage Equivalency: Replaces legacy 1x32W T8, 2x28W T8, and 2x32W T8 fluorescent fixtures for up to 49% energy savings
• Maximum Lumen Output: 3,900 lm at 30W (4000K)
• Peak Efficacy: 130 lm/W for high-efficiency commercial operation
• CRI: >80 color rendering across all settings
• Selectable CCT: 3500K/4000K/5000K — field-adjustable via exterior switch on outside of fixture (color temperature selectable / tunable white / switchable Kelvin)
• Lens & Optics: Diffuse acrylic lens for smooth, even, glare-free distribution
• Dimming: 0–10V continuous dimming down to 10% standard
• Voltage: Universal 120–347V AC, 50/60Hz constant current driver with 2.5kV surge protection
• Location Rating: UL Damp Rated for indoor commercial locations and NEC 410.16 clothes closet storage spaces
• Operating Temperature: -13°F (-25°C) to 104°F (40°C) ambient range
• Certifications: DLC 5.1 Standard Listed, UL Certified for US and Canada (E486908), FCC, RoHS, NLB Trusted
• Rated Life: >100,000 hours (L70) @ 25°C per IES TM-21 standards
• Warranty: 5-year limited warranty — LEDVANCE Sylvania
• Form Factor & Design: Toolless snap-fit lens and light engine with factory-installed polarized through-wiring and pre-wired sensor sockets

Performance & Light Output

CRI >80 across all configurations. Rated life >100,000 hours (L70) per IES TM-21 testing. Delivers high-efficiency illumination resulting in significant energy reduction compared to traditional fluorescent systems.

Form Factor & Design Profile

Engineered for rapid contractor installation in commercial retrofits and new construction, the 2ft Dual Selectable Strip 3A features a toolless snap-fit light engine and diffuse acrylic lens module alongside a factory-installed polarized wiring system that makes every fixture ready for single-circuit row-mounted through-wiring without extra internal wiring. Wattage and CCT selector switches are located on the exterior of the housing for instant adjustments without opening the fixture.

Smart & Control Features

The Strip 3A luminaire is pre-wired with internal sockets for rapid field installation of modular motion/daylight sensors and wireless networked lighting controls:

• 0–10V Continuous Dimming (Standard): Dims smoothly down to 10% on standard 0–10V low-voltage control circuits. Compatible with commercial dimmers and centralized building automation systems (BAS).
• LEDVANCE LINK Bluetooth Mesh (Accessory): Compatible with field-installable 3.5mm pin-based LEDVANCE LINK Bluetooth Mesh controllers and daylight/motion sensors (requires L-shaped bracket PINBRACKET/LSHAPE/ADJUSTABLE, Item #63909) for wireless group control, scheduling, and occupancy sensing.

Compatible field-installable sensors include internal Microwave Motion/Daylight Sensor MOTIONDAYSENSOR/MICRO/6M (Item #63907, 19.69 ft max mounting height), external PIR Motion/Daylight Sensor MOTIONDAYSENSOR/PIR/6M/PIN (Item #63908, 19.69 ft max mounting height, requires bracket #63909), and Bluetooth Mesh PIR Sensor/Controller SENSORHB/PIRAUX12V/BLE (Item #62634, requires bracket #63909) — all sold separately. Default microwave and PIR sensor settings (100% detection area, 5-minute hold time, 50 Lux daylight threshold, 30-minute standby period, 30% standby dimming) can be customized using the optional handheld remote control with screen (catalog # STRIP2A/REMOTE, Item #65305, sold separately).

Electrical

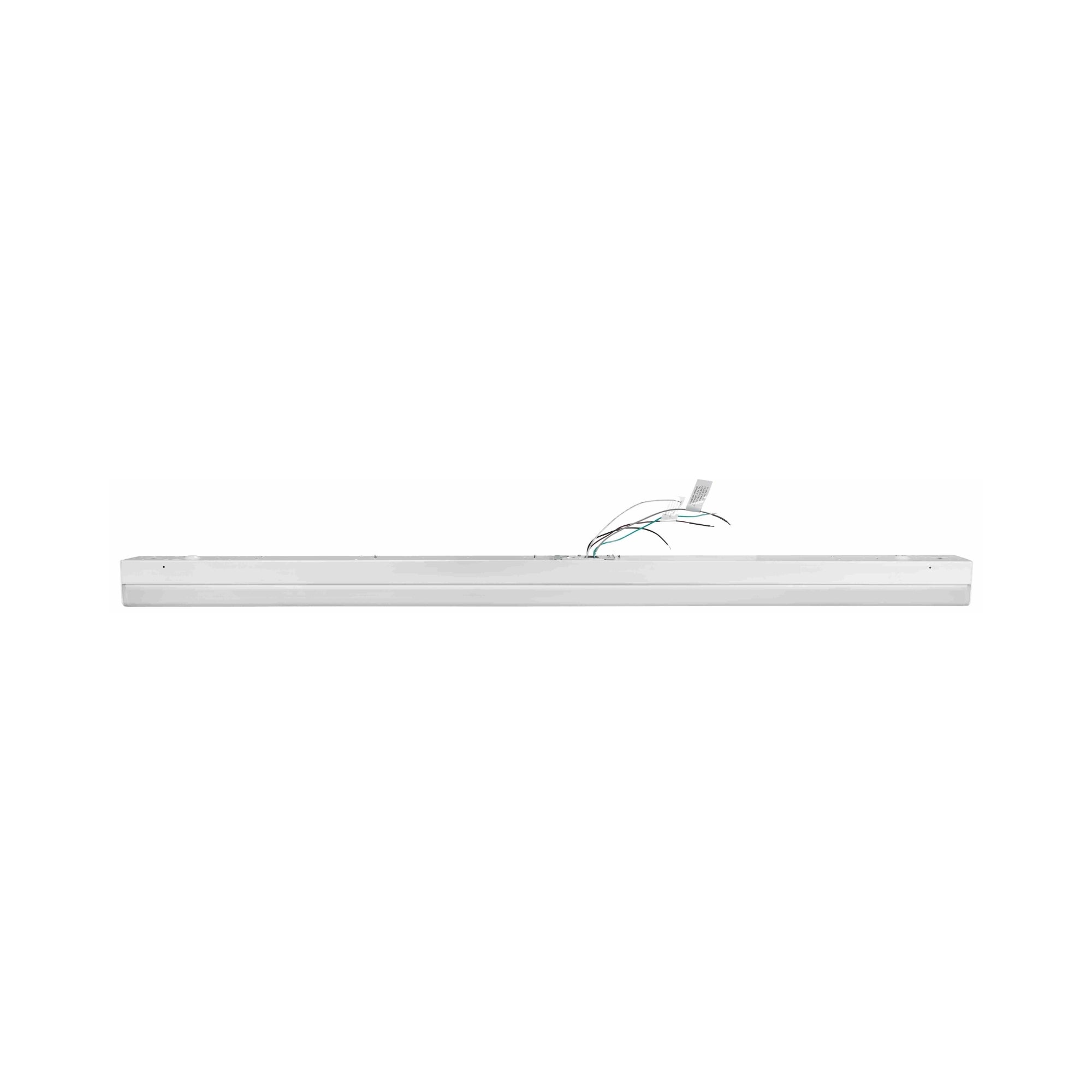

Powered by a constant current driver operating on universal 120–347V AC at 50/60Hz. Delivers high electrical efficiency with a Power Factor >90% (>0.90) and Total Harmonic Distortion (THD) <20%. Integrated 2.5kV surge protection protects internal electronics against transient voltage spikes. Includes pre-wired 0–10V dimming leads and factory-installed polarized single-circuit through-wiring.

Construction

Housing & Thermal: White powder-coated metal body with toolless snap-fit light engine and exterior selector switches.

Lens & Optics: Diffuse acrylic lens engineered for smooth, even, glare-controlled illumination.

Finish: White powder-coated finish formulated for high resistance against corrosion and surface wear.

Environmental Sealing: UL Damp location rated for indoor commercial environments and compliant with NEC 410.16 for clothes closet storage spaces. Operating ambient temperature range: -13°F (-25°C) to 104°F (40°C).

Dimensions & Weight: 24" L × 2.6" W × 2.8" H. Fixture weight: 2.7 lbs.

Installation & Mounting

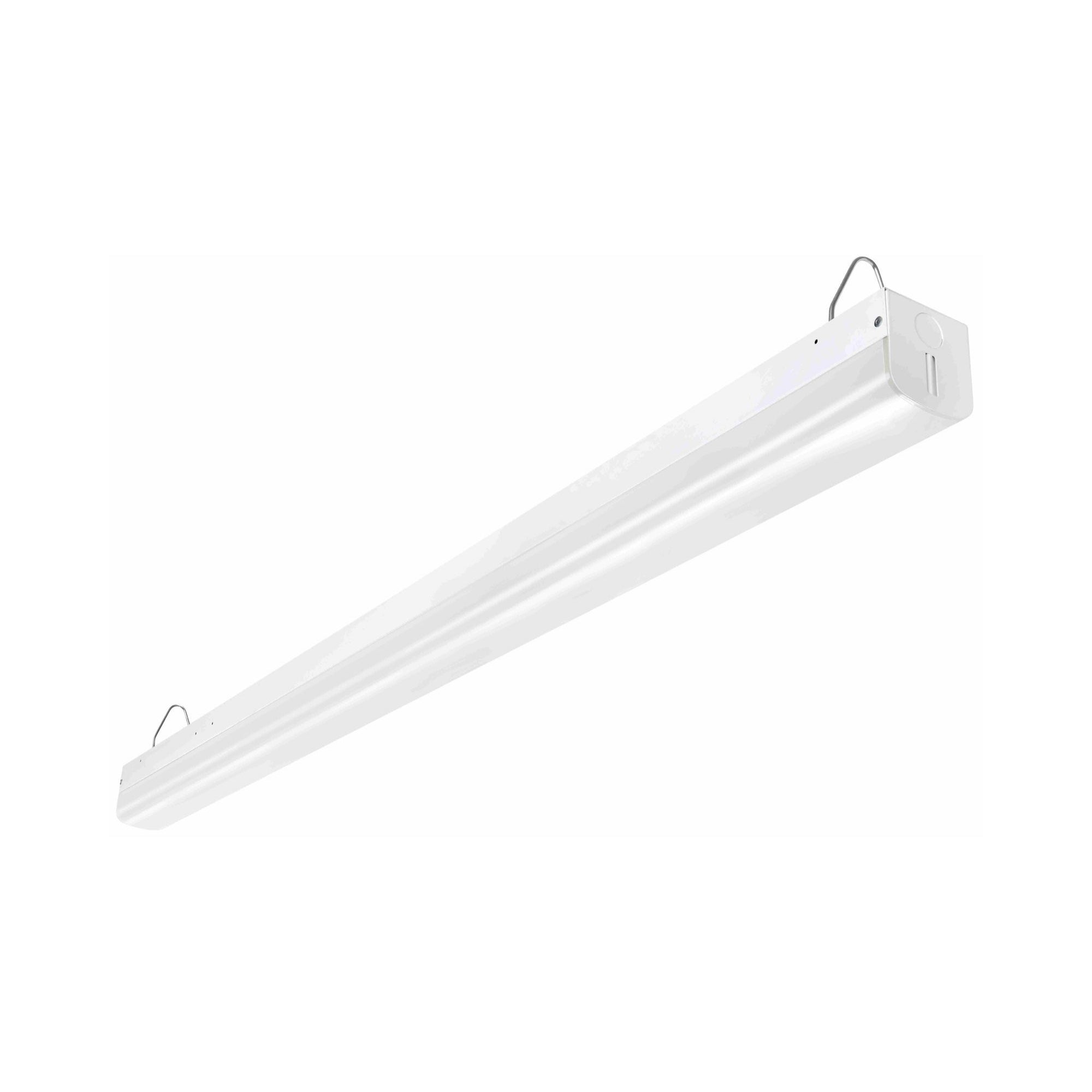

Standard Mounting: Can be surface mounted or suspended using the V-hook mounting brackets and split junction box cover included standard in the box.

Continuous Run Mounting: Pre-wired with a factory-installed polarized wiring system for single-circuit continuous row mounting, and includes an end-to-end joiner bracket in every box.

Accessories (Sold Separately):

• Suspension Mounts: CABLEMOUNT/10FT (Item #63906, 10 ft adjustable aircraft cable pair), LNHIBA2A/CHAINMT (Item #60573, 5 ft chain mount pair) — sold separately
• Wire Guards: STRIP2A/2/WG/WH (Item #65416, 2ft Wire Guard) — sold separately
• Sensors & Controls: MOTIONDAYSENSOR/MICRO/6M (Item #63907), MOTIONDAYSENSOR/PIR/6M/PIN (Item #63908), PINBRACKET/LSHAPE/ADJUSTABLE (Item #63909), STRIP2A/REMOTE (Item #65305), ADAPTER/AUX12V/BLE (Item #62630), SENSORHB/PIRAUX12V/BLE (Item #62634) — sold separately

Certifications & Rebates

• DLC 5.1 Listed: Qualifies for commercial utility rebate incentives across regional energy programs. To confirm rebate eligibility with your local utility provider, visit designlights.org and search Model Number STRIP3A/S030UNHD8SC7/24/WH.
• UL Certified (US & Canada): File E486908 certified for damp locations and NEC 410.16 clothes closet storage spaces.
• FCC Compliant: Meets commercial electromagnetic interference standards.
• RoHS Compliant: Engineered free of toxic lead, mercury, and hazardous substances.
• NLB Trusted: Verified under the National Lighting Bureau Trusted Warranty Program (5-year warranty).

Typical Applications

• Warehouses & Distribution Aisles — Factory-installed polarized through-wiring and included end-to-end joiner brackets streamline single-circuit continuous row installations
• Manufacturing & Assembly Plants — Universal 120–347V input with 2.5kV surge protection and 130 lm/W efficacy support demanding industrial power systems
• Retail Stores & Supermarkets — Exteriorswitches allow instant on-site adjustment across 15W/20W/25W/30W and 3500K/4000K/5000K without removing the diffuse acrylic lens
• Commercial Offices & Educational Facilities — Pre-wired internal sockets accept plug-in microwave or PIR motion/daylight sensors and LEDVANCE LINK Bluetooth Mesh controls
• Closets, Storage & Utility Rooms — NEC 410.16 clothes closet compliance and UL Damp rating provide code-compliant illumination in enclosed storage spaces

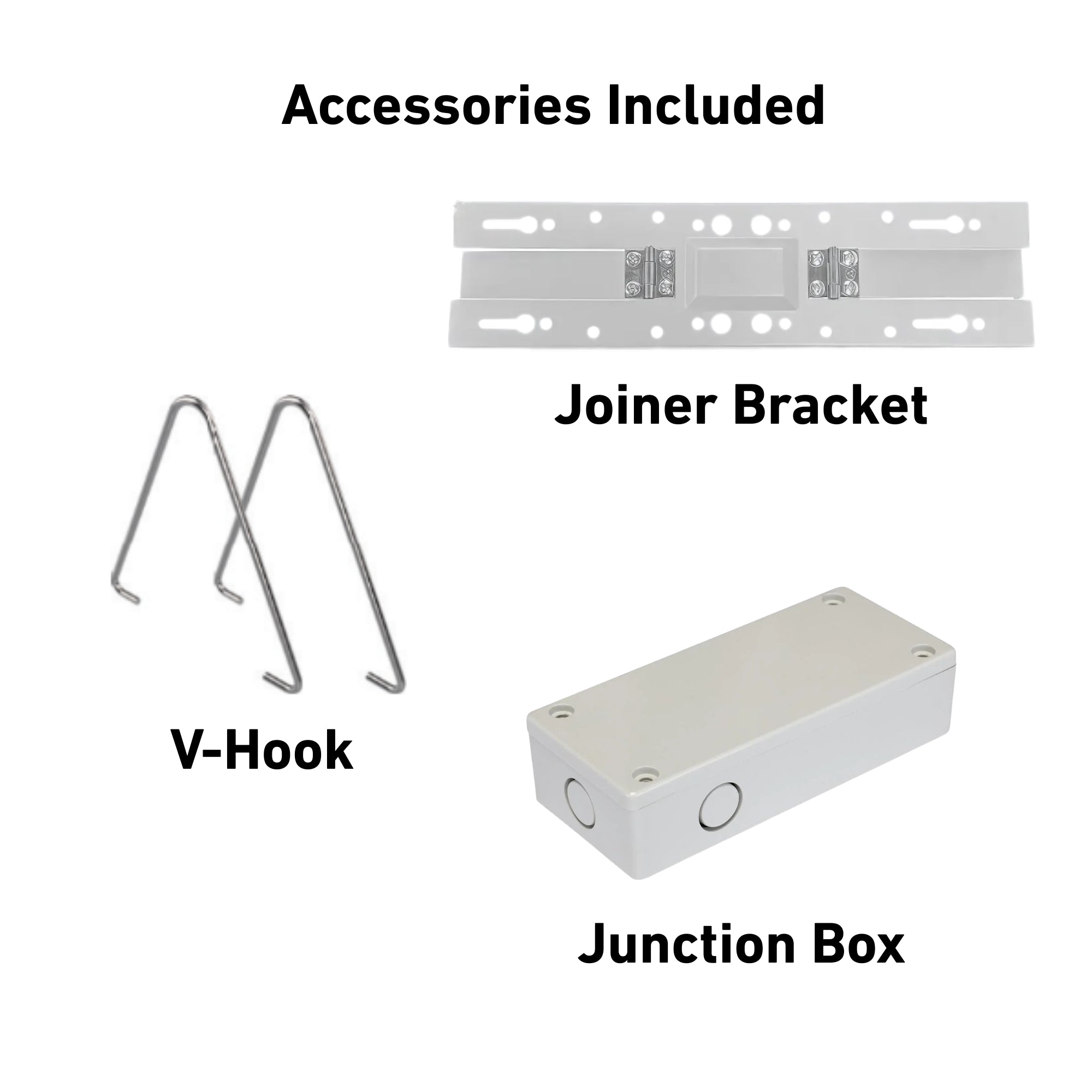

What's Included

• LEDVANCE Sylvania STRIP3A/S030UNHD8SC7/24/WH 2ft Dual Selectable Strip 3A Luminaire — White
• End-to-end joiner bracket for continuous row mounting
• V-hook mounting brackets
• Split junction box cover
• Factory-installed polarized through-wiring system and pre-wired sensor sockets
• Installation instructions
