LEDVANCE SYLVANIA Dual Selectable LED Wall Pack — 85-120W Selectable, 120–347V, Bronze

The LEDVANCE SYLVANIA 63767 (Generation 9A) is an extreme-output, specification-grade dual selectable LED wall pack delivering up to 18,000 lumens. Engineered to maintain a traditional footprint for a seamless LED upgrade that covers old fixture marks, this unit provides wide, forward-throwing general illumination ideal for replacing large HID systems. It offers exceptional versatility by allowing installers to easily toggle between 85W, 100W, or 120W of power and 3000K, 4000K, or 5000K color temperatures. Operating on a robust 120–347V driver, it includes an integrated photocell for automated security lighting and supports optional plug-and-play sensors. With its durable glass lens and IP65 Wet Location rating, it is the premier choice for massive building perimeters, large industrial facades, and high-mounting applications.

Key Features

• Wattage: 85W / 100W / 120W Selectable
• Selectable CCT: 3000K / 4000K / 5000K
• Delivered Lumens: 12,750 to 18,000 lumens
• Efficacy: Up to 150 Lumens Per Watt (LPW)
• Voltage: 120–347V universal input
• Dimming: 0–10V dimming standard
• Controls: Integrated photocell included; ready for field-installable sensors
• Lens: High-transmission, impact-resistant glass
• CRI: 80+
• Environmental Ratings: IP65 rated for Wet Locations
• Certifications: DLC 5.1 Premium Listed, cULus, RoHS Compliant, FCC
• Estimated Life: 100,000 hours (L70)

Typical Applications

• Industrial and large commercial building perimeters
• Expansive walkways, entryways, and high-security loading docks
• High-mounting height security and safety lighting
• General area lighting where maximum wide outward distribution is preferred

Performance & Light Output

The 63767 wall pack provides brilliant, massive illumination ranging from 12,750 to 18,000 lumens depending on the selected wattage setting. It casts a wide and bright pattern, making it ideal for massive perimeters that require maximum visibility. With an efficacy reaching 150 LPW and a 100,000-hour rated lifespan, this fixture drastically reduces energy consumption and maintenance cycles compared to legacy 400W HID systems.

Electrical & Controls

This fixture operates on a constant current 120–347V AC driver, making it ideal for standard and high-voltage applications in North America. It supports 0–10V dimming. The integrated photocell ensures the light only operates when needed, while the sensor-ready design allows contractors to easily plug in optional motion/daylight sensors without complicated internal wiring.

Construction & Durability

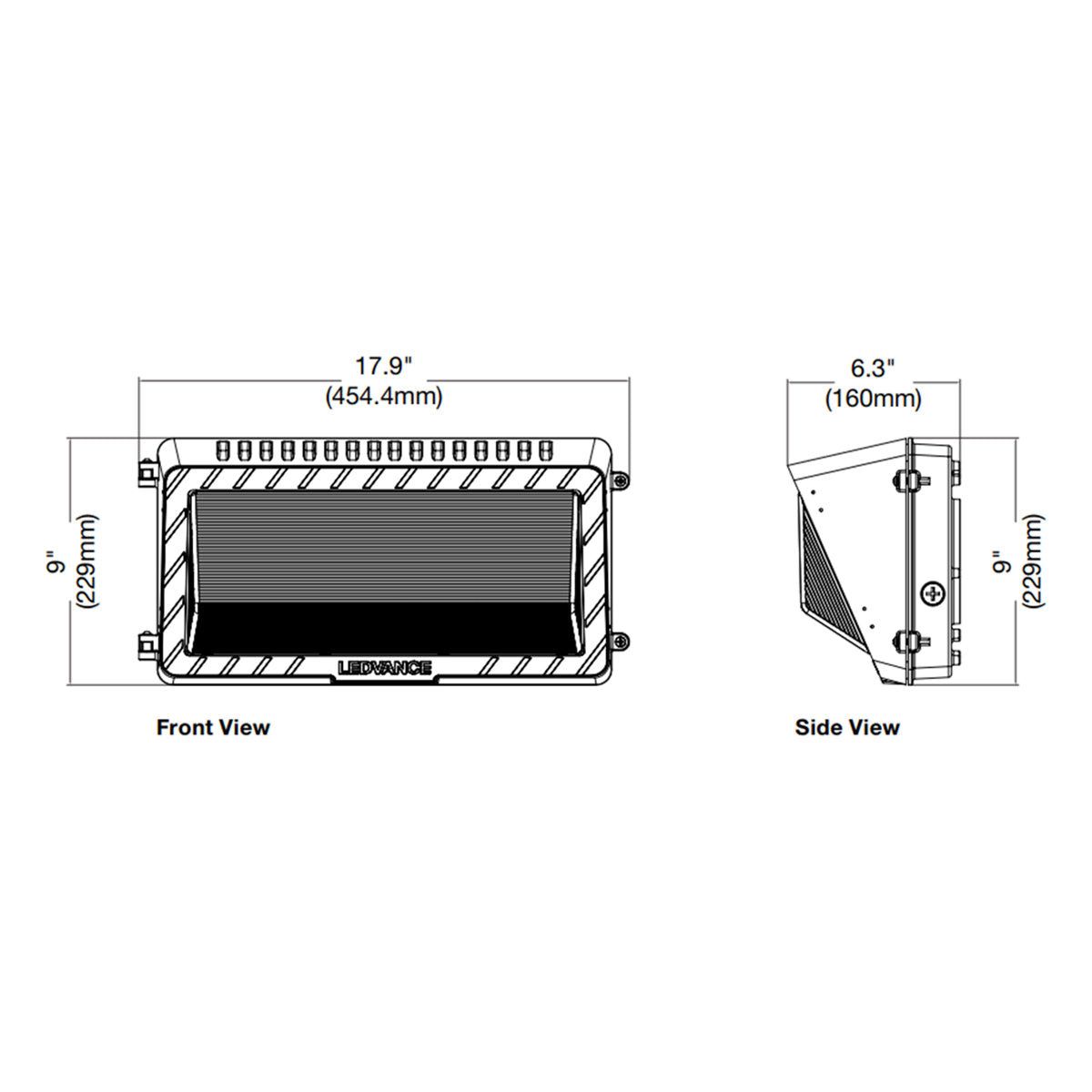

Engineered to withstand harsh environments, the 63767 features a traditional footprint housing finished in a resilient bronze powder coat, ensuring it covers the "ghosting" left by older fixtures. The LED engine is protected by a durable glass lens that resists yellowing and scratching over time. The fixture is fully IP65 rated, protecting it against dust and water ingress in extreme temperature fluctuations from -40°F to 122°F (-40°C to 50°C).

What's Included

• LEDVANCE SYLVANIA Dual Selectable Wall Pack (Bronze)
• Integrated Photocell
