LEDVANCE SYLVANIA 63764 LED Wall Pack 6,000 Lumens 20/30/40W Selectable 30K/40K/50K 120-347V Photocell Bronze
Available in stock (192)
About this item
About this item
- Dual Selectability: Simplifies inventory and maximizes on-site flexibility with field-adjustable wattage (20W/30W/40W) and selectable color temperature (3000K/4000K/5000K) in a single SKU.
- Traditional Footprint: Designed to match the form factor of legacy HID wall packs perfectly, eliminating the need for exterior wall patching or painting during an LED upgrade.
- High Efficacy: Delivers up to 6,000 lumens with a highly efficient output of up to 150 LPW, providing a direct, energy-saving replacement for 100W–150W traditional HID fixtures while qualifying for DLC 5.1 Premium utility rebates.
- Integrated Photocell & Sensor Ready: Equipped with a built-in photocell for reliable, automated dusk-to-dawn operation and features a plug-and-play port for easy, field-installable motion/daylight sensors.
- Universal Voltage: Operates on a wide-range 120-347V AC driver, making it fully compatible with standard commercial and industrial electrical systems.
We process payments securely and do not store credit card information.
Description
Description

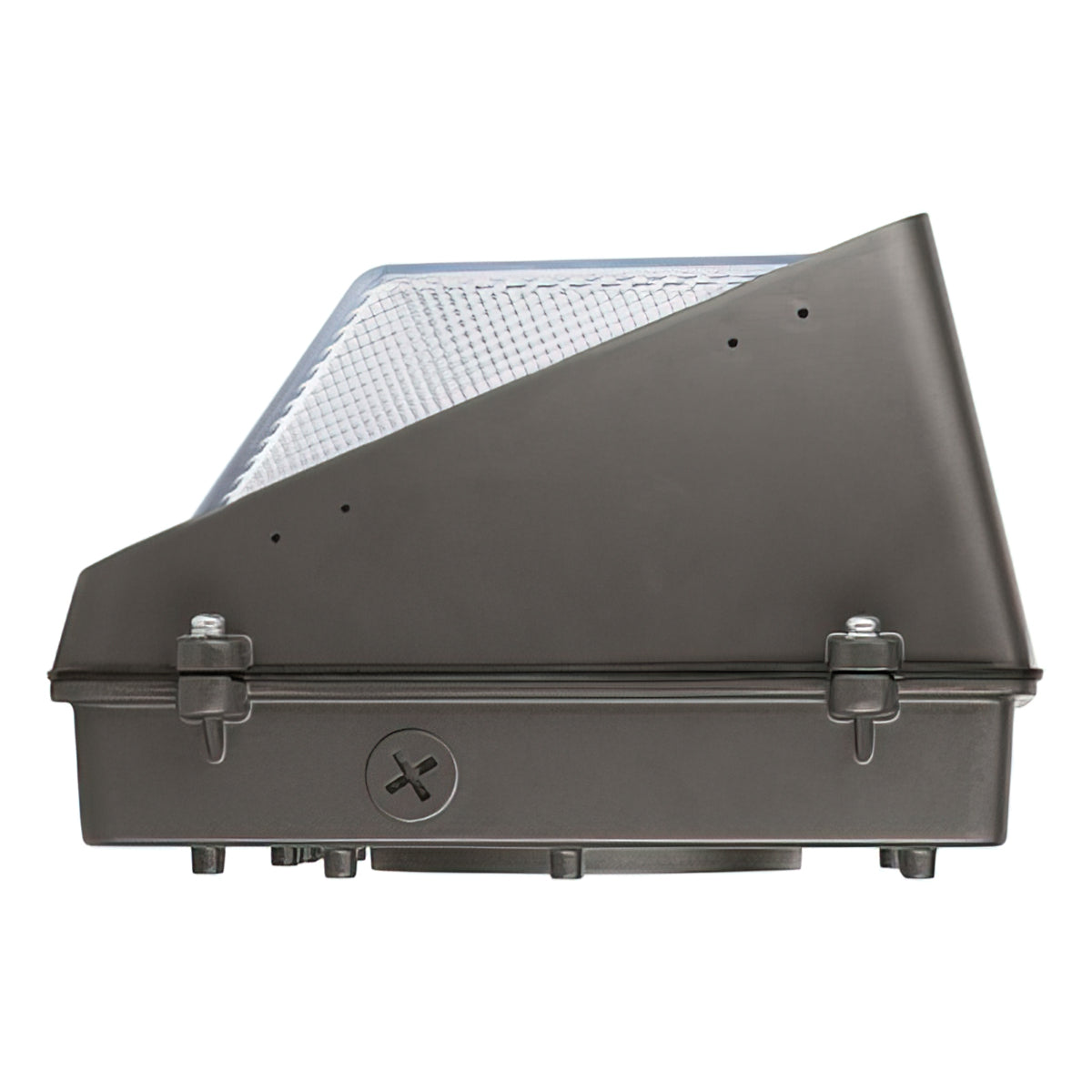

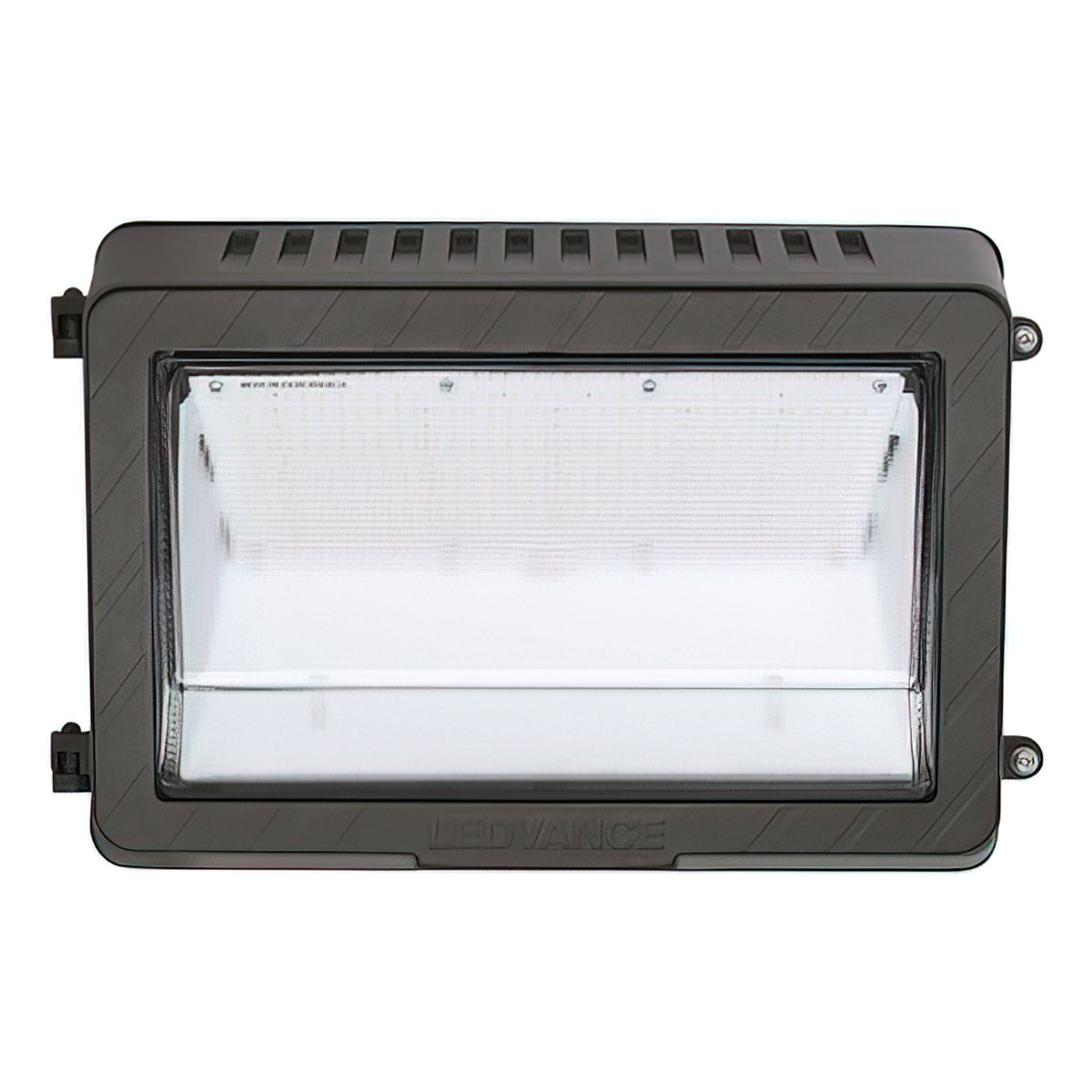

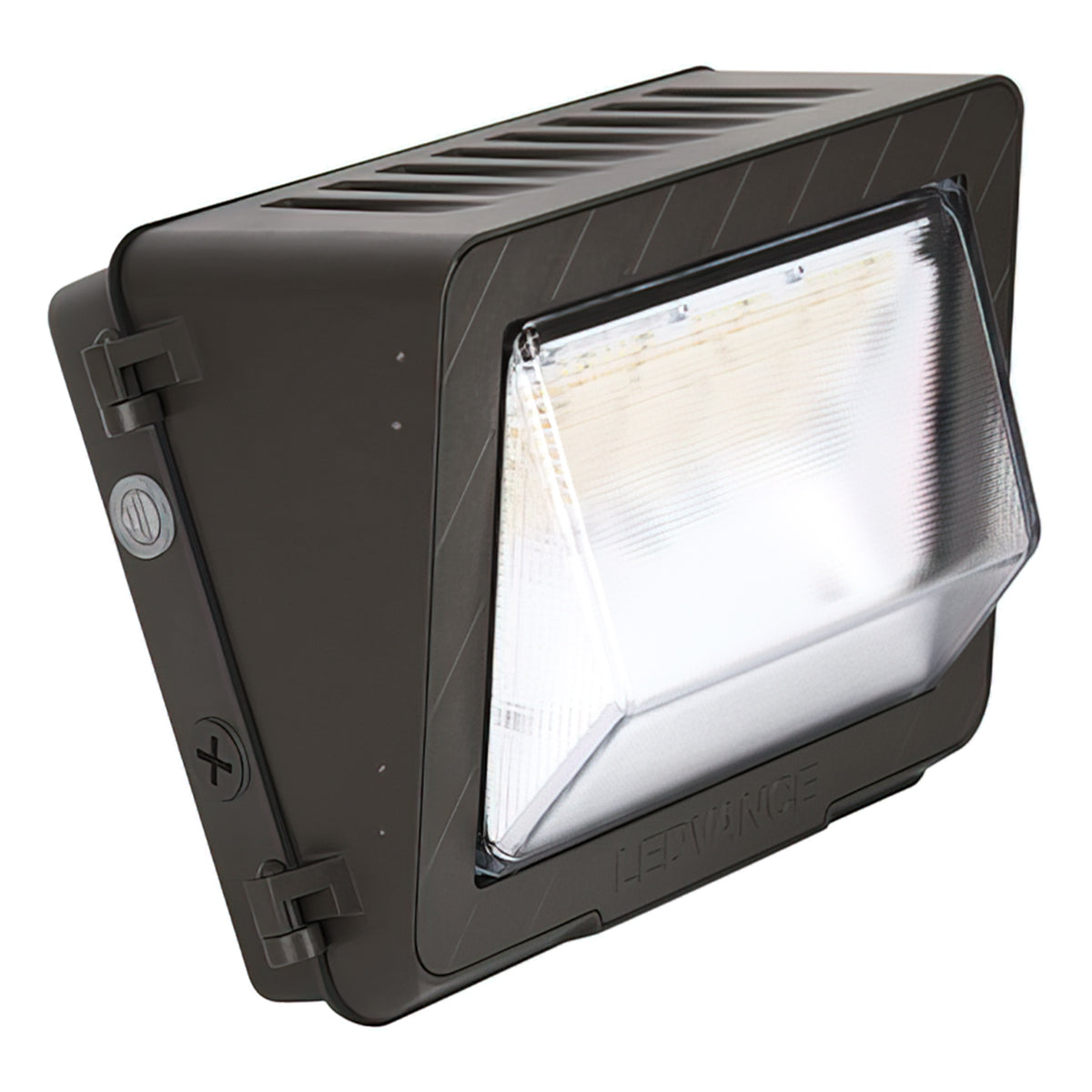

LEDVANCE SYLVANIA Dual Selectable LED Wall Pack — 20-40W Selectable, 120–347V, Bronze
The LEDVANCE SYLVANIA 63764 (Generation 9A) is a specification-grade dual selectable LED wall pack delivering up to 6,000 lumens. Engineered to maintain a traditional footprint for a seamless LED upgrade that covers old fixture marks, this unit provides wide, forward-throwing general illumination. It offers exceptional versatility by allowing installers to easily toggle between 20W, 30W, or 40W of power and 3000K, 4000K, or 5000K color temperatures. Operating on a robust 120–347V driver, it includes an integrated photocell for automated security lighting and supports optional plug-and-play sensors. With its durable glass lens and IP65 Wet Location rating, it is the ideal choice for building perimeters, outdoor corridors, and commercial facades requiring powerful, widespread light.
Key Features
- Wattage: 20W / 30W / 40W Selectable
- Selectable CCT: 3000K / 4000K / 5000K
- Delivered Lumens: 3,000 to 6,000 lumens
- Efficacy: Up to 150 Lumens Per Watt (LPW)
- Voltage: 120–347V universal input
- Dimming: 0–10V dimming standard
- Controls: Integrated photocell included; ready for field-installable sensors
- Lens: High-transmission, impact-resistant glass
- CRI: 80+
- Environmental Ratings: IP65 rated for Wet Locations
- Certifications: DLC 5.1 Premium Listed, cULus, RoHS Compliant, FCC
- Estimated Life: 100,000 hours (L70)
Typical Applications
- Commercial, industrial, and educational building perimeters
- Walkways, entryways, and loading docks
- Security and safety lighting
- General area lighting where wide outward distribution is preferred
Performance & Light Output
The 63764 wall pack provides brilliant, reliable illumination ranging from 3,000 to 6,000 lumens depending on the selected wattage setting. It casts a wide and bright pattern, making it ideal for large perimeters that require maximum visibility. With an efficacy reaching 150 LPW and a 100,000-hour rated lifespan, this fixture drastically reduces energy consumption and maintenance cycles compared to legacy HID systems.
Electrical & Controls
This fixture operates on a constant current 120–347V AC driver, making it ideal for standard and high-voltage applications in North America. It supports 0–10V dimming. The integrated photocell ensures the light only operates when needed, while the sensor-ready design allows contractors to easily plug in optional motion/daylight sensors without complicated internal wiring.
Construction & Durability
Engineered to withstand harsh environments, the 63764 features a traditional footprint housing finished in a resilient bronze powder coat, ensuring it covers the "ghosting" left by older fixtures. The LED engine is protected by a durable glass lens that resists yellowing and scratching over time. The fixture is fully IP65 rated, protecting it against dust and water ingress in extreme temperature fluctuations from -40°F to 122°F (-40°C to 50°C).
What's Included
- LEDVANCE SYLVANIA Dual Selectable Wall Pack (Bronze)
- Integrated Photocell
Specifications
Specifications

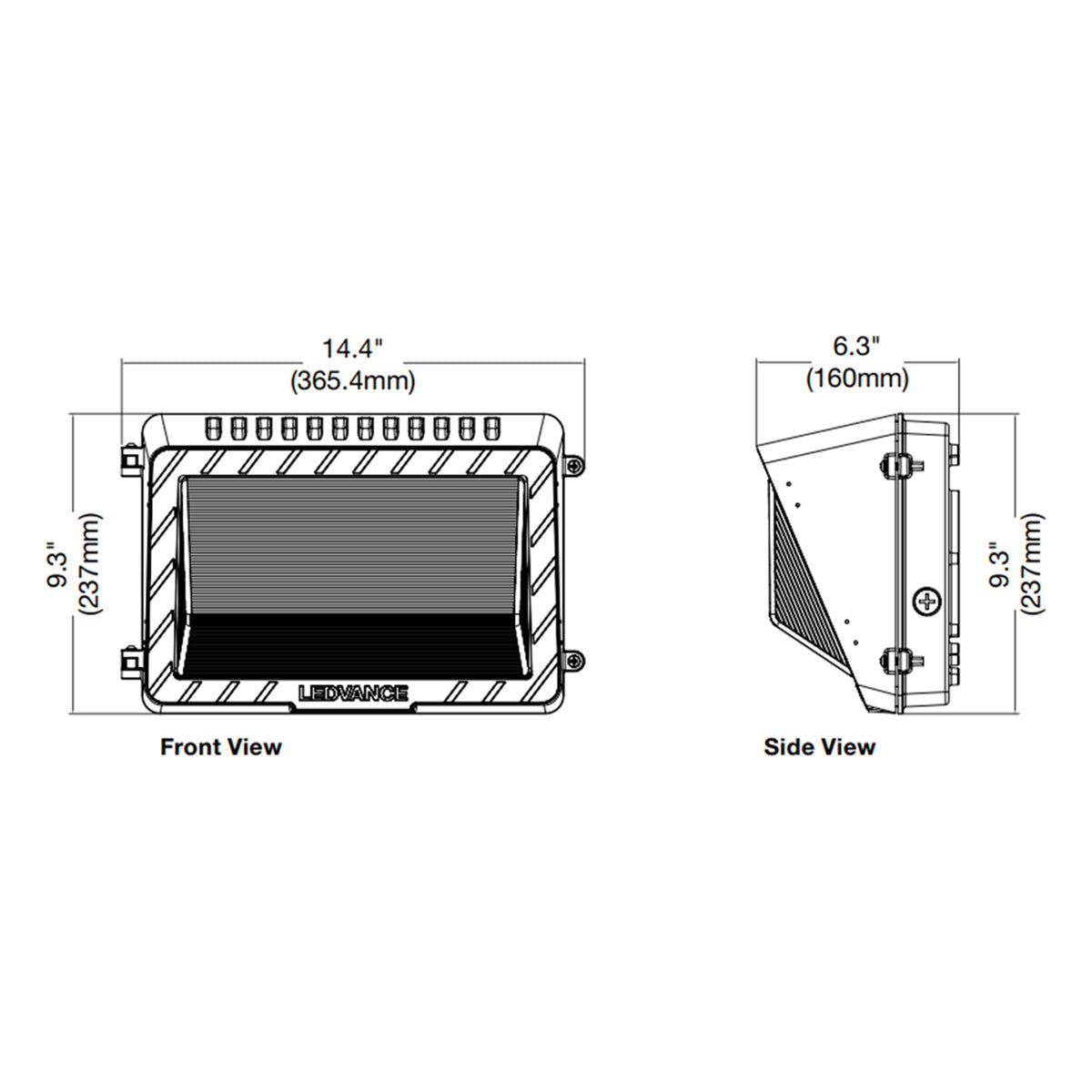

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
How do I adjust the wattage and color temperature on the 63764?
How do I adjust the wattage and color temperature on the 63764?
What traditional lighting does the LEDVANCE 63764 replace?
What traditional lighting does the LEDVANCE 63764 replace?
Does this wall pack include a photocell?
Does this wall pack include a photocell?
Can I add a motion sensor to this fixture later?
Can I add a motion sensor to this fixture later?
What input voltage does this handle?
What input voltage does this handle?
