LEDVANCE CCT Selectable Linear Slot Linear Light — 48W Configuration

The LEDVANCE 63734 Linear Light is a versatile lighting solution offering 48 watts of power, delivering 4800 lumens with selectable CCT options of 3000K, 3500K, and 4000K. Designed for both residential and commercial applications, it supports 120-347V input, making it suitable for various environments. This fixture is Damp Rated and complies with cETLus, RoHS, and FCC certifications.

Key Features

• CCT Selectable: Allows for customizable lighting with 3000K, 3500K, and 4000K options.
• Direct/Indirect Lighting: Provides both direct and indirect lighting with a 70% down, 30% up distribution.
• Mounting Flexibility: Supports suspended, surface, and recessed mounting options.
• Energy Efficiency: Achieves up to 100 lumens per watt, offering significant energy savings.
• High CRI: Features a CRI greater than 80 for accurate color rendering.
• Dimmable: Supports 0-10V dimming for adjustable light levels.
• Durable Construction: Built with robust materials for long-lasting performance.
• Wide Voltage Range: Operates on 120-347V, suitable for various installations.
• Long Lifespan: Rated for 50,000 hours (L70), ensuring longevity.

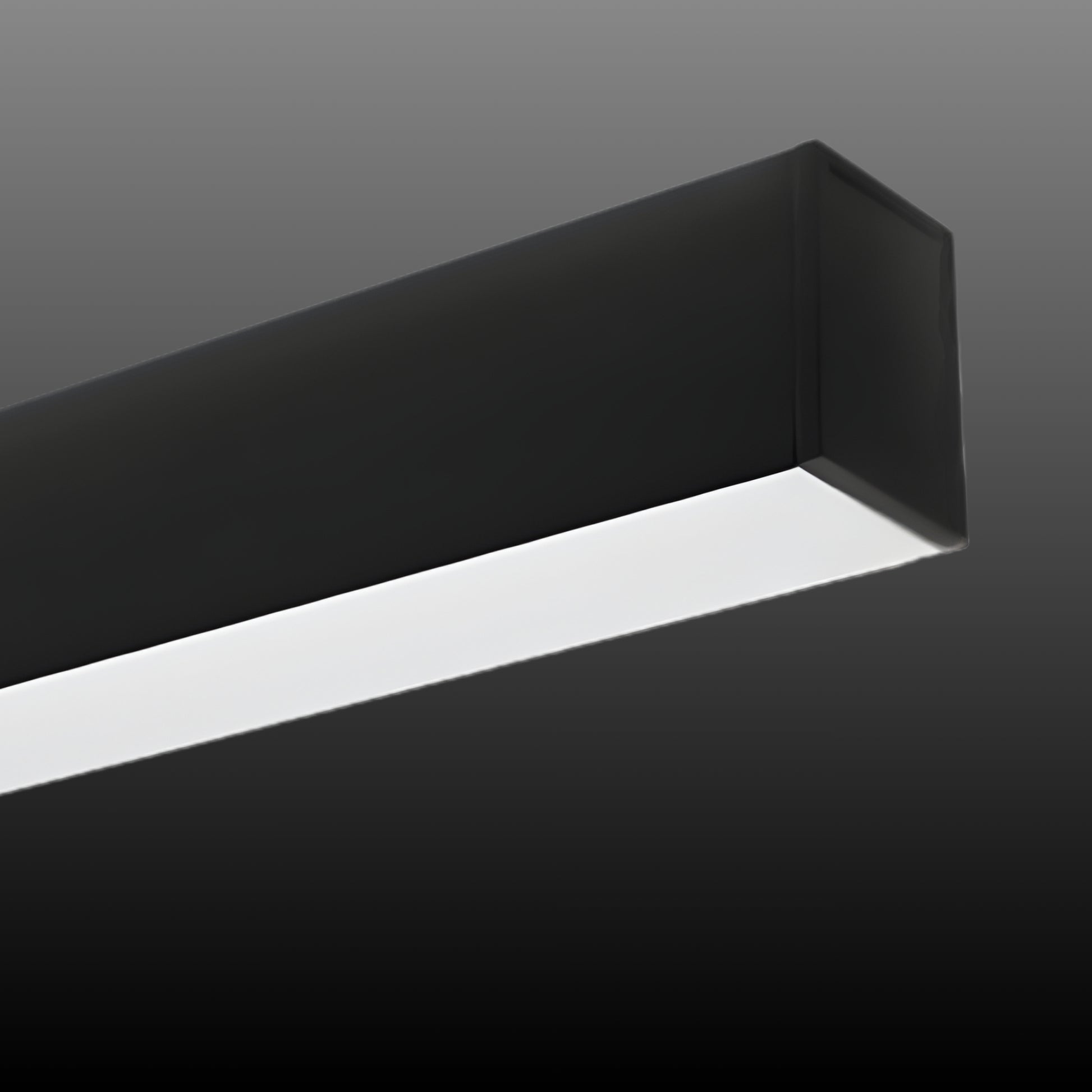

• Black Finish: Comes in a sleek black finish, complementing modern aesthetics.

Typical Applications

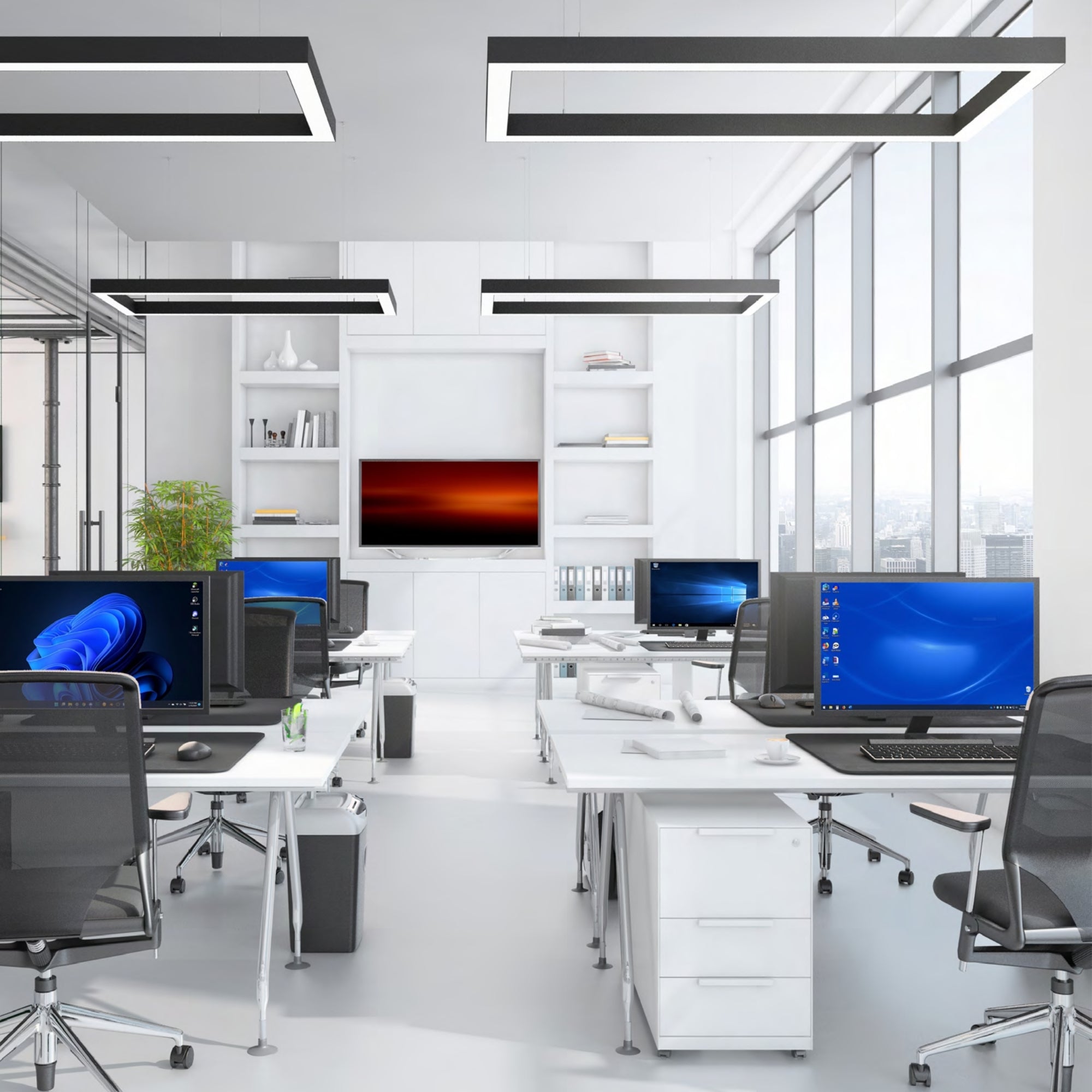

• Offices
• Retail Spaces
• Educational Facilities
• Healthcare Environments

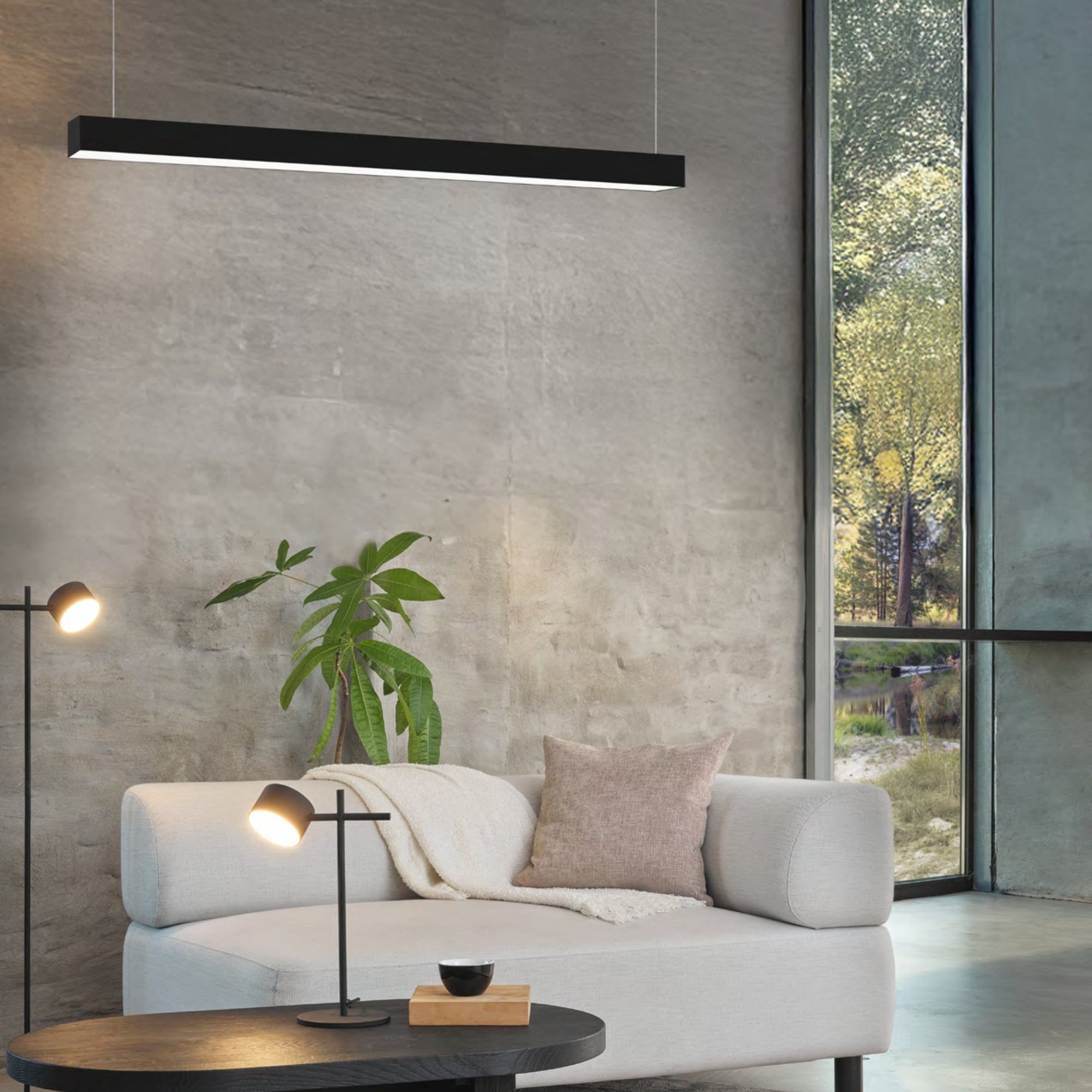

• Residential Areas
• Hospitality Venues

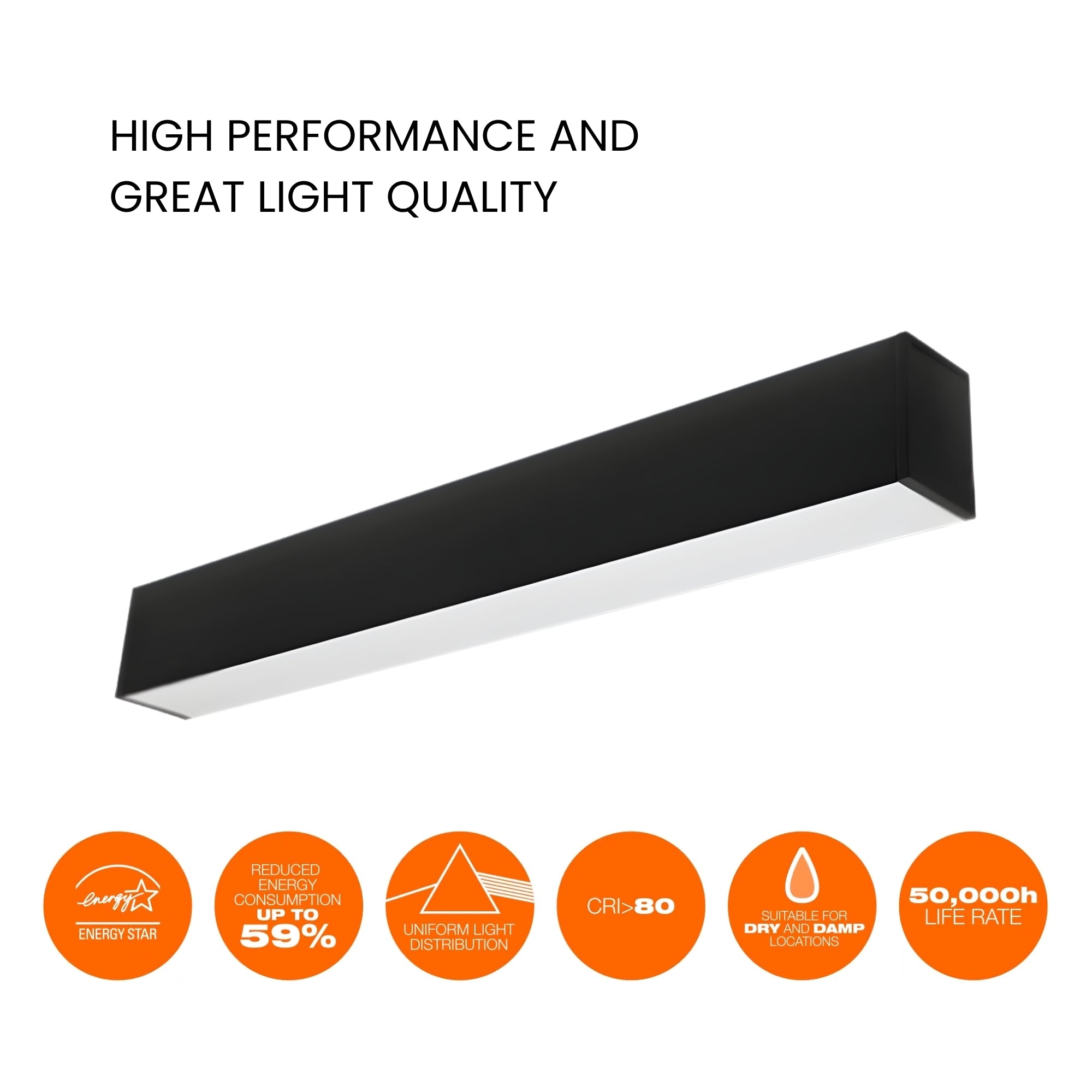

Performance & Light Output

This fixture provides 4800 lumens with a high efficacy of up to 100 LPW. It features a CRI greater than 80, ensuring excellent color accuracy and consistency. The fixture is designed for a long lifespan of 50,000 hours (L70).

Electrical & Controls

Compatible with 120-347V input, this fixture supports 0-10V dimming, allowing for flexible lighting control. It features a power factor greater than 0.9 and a THD of less than 20%.

Construction & Durability

The LEDVANCE Linear Slot Light is constructed with durable materials, ensuring reliability in damp environments. It is certified by cETLus, RoHS, and FCC, and operates within a temperature range of -4°F to +104°F (-20°C to +40°C).

Installation & Mounting

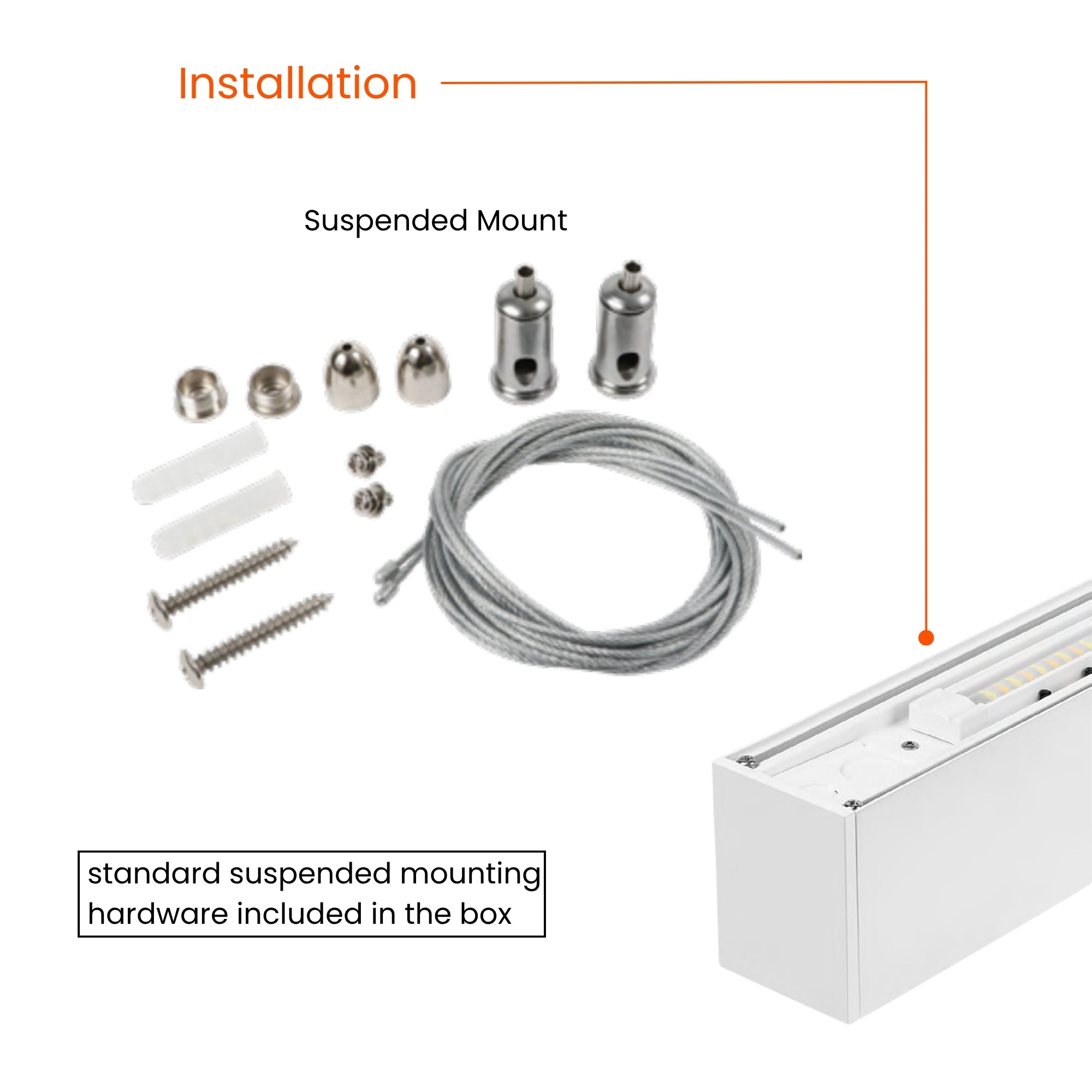

This fixture supports suspended, surface, and recessed mounting options. Suspended accessories are included, while additional mounting accessories are available separately.

What's Included

• Suspended Mount Accessories
