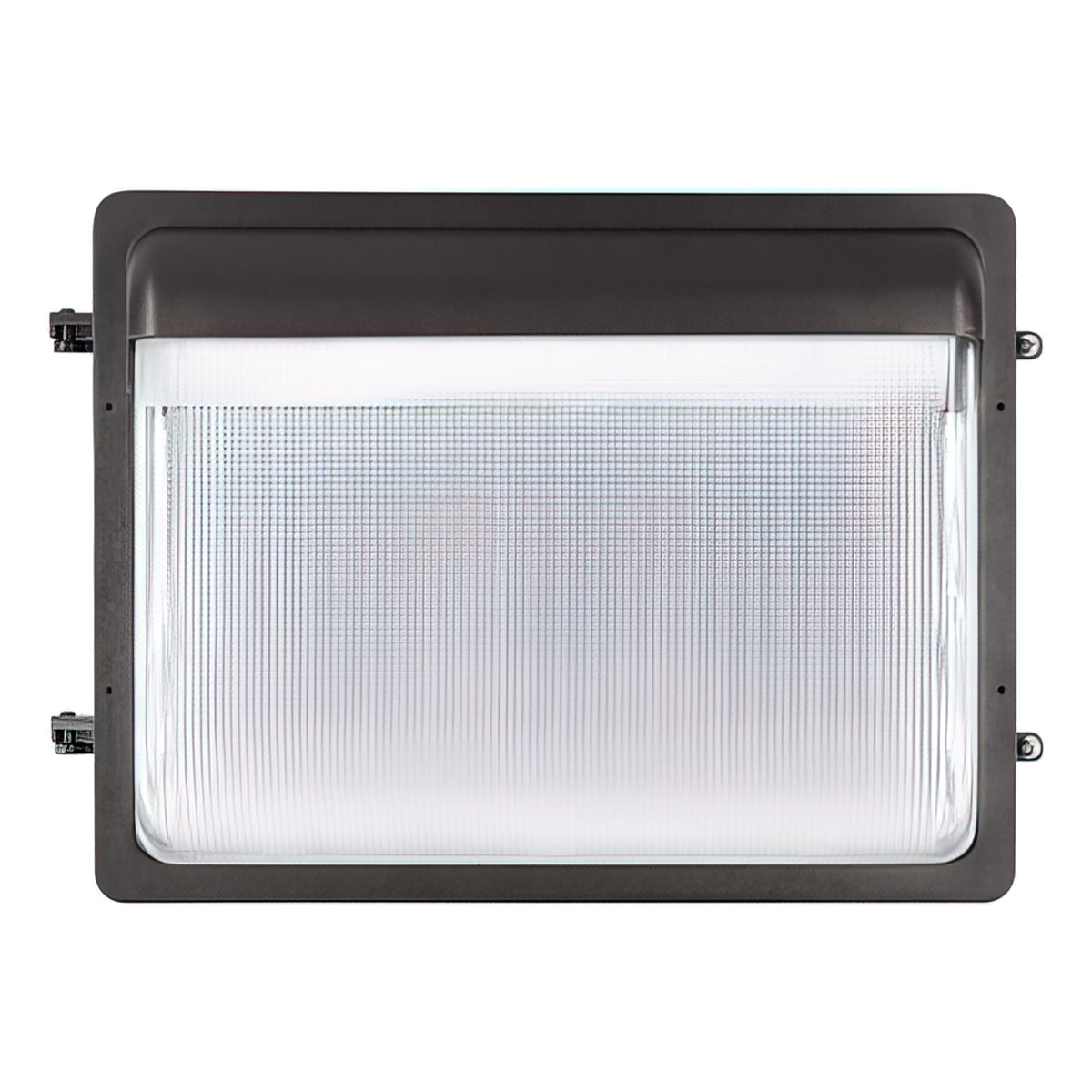

LEDVANCE SYLVANIA Dual Selectable Non-Cutoff LED Wall Pack — 80-120W Selectable, 120–347V, Bronze

The LEDVANCE SYLVANIA 63657 (Generation 8A) is a high-output, highly efficient dual selectable non-cutoff LED wall pack delivering an impressive 16,800 lumens. Engineered with a slim, modernized design, this fixture optimizes freight and wall space while providing the wide, forward-throwing light distribution expected from large traditional non-cutoff fixtures. It offers exceptional versatility by allowing installers to easily choose between 80W, 100W, or 120W of power and 3000K, 4000K, or 5000K color temperatures on-site. Operating on a robust 120–347V driver, it includes an integrated photocell for hands-free automated security lighting. With its robust IP65 Wet Location rating, it is the ideal choice for illuminating massive building exteriors, large parking perimeters, and industrial facades.

Key Features

• Wattage: 80W / 100W / 120W Selectable
• Selectable CCT: 3000K / 4000K / 5000K
• Delivered Lumens: 11,200 to 16,800 lumens
• Efficacy: Up to 140 Lumens Per Watt (LPW)
• Voltage: 120–347V universal input
• Dimming: 0–10V dimming standard
• Controls: Integrated photocell included
• Distribution: Non-Cutoff (Wide Forward Throw)
• CRI: 80+
• Environmental Ratings: IP65 rated for Wet Locations
• Certifications: DLC 5.1 Premium Listed, cULus, RoHS Compliant, FCC
• Estimated Life: 100,000 hours (L70)

Typical Applications

• Industrial and large commercial building perimeters
• Expansive walkways, entryways, and loading docks
• High-mounting height security and safety lighting
• General area lighting where maximum wide outward distribution is preferred

Performance & Light Output

The 63657 provides brilliant, reliable illumination ranging from 11,200 to 16,800 lumens depending on the selected wattage setting. Its non-cutoff design casts a wide and bright pattern, making it ideal for large perimeters that require maximum visibility and light coverage. With an efficacy reaching 140 LPW and a 100,000-hour rated lifespan, this fixture drastically reduces energy consumption and maintenance costs compared to older 400W metal halide wall packs.

Electrical & Controls

This fixture operates on a constant current 120–347V AC driver, making it ideal for facilities utilizing higher voltage systems like 347V. It supports standard 0–10V dimming. The integrated photocell ensures the light only operates when needed, providing reliable dusk-to-dawn automation for hands-free energy management.

Construction & Durability

Engineered for outdoor reliability, the 63657 features a precision die-cast aluminum housing finished in a resilient bronze powder coat. Its low-profile, slim architectural design resists the elements while blending into the building facade seamlessly. The fixture is fully IP65 rated, protecting it against dust and water ingress in extreme temperature fluctuations from -40°F to 122°F (-40°C to 50°C).

What's Included

• LEDVANCE SYLVANIA Dual Selectable Non-Cutoff Wall Pack (Bronze)
• Integrated Photocell
