LED Wall Pack, 11200Lm, 40/60/80W, 30K/40K/50K, On/Off Photocell, 120-347V
LED Wall Pack, 11200Lm, 40/60/80W, 30K/40K/50K, On/Off Photocell, 120-347V
Available in stock (96)
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Selectable Output: 40W / 60W / 80W with up to 11,200 lumens
- Voltage: 120–347V universal commercial driver
- Optics: Non-Cutoff distribution with BUG rating B1U3G4
- Dimming & Control: 0–10V dimming with integrated photocell
- Environmental Rating: IP65 wet location, DLC 5.1 Premium
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

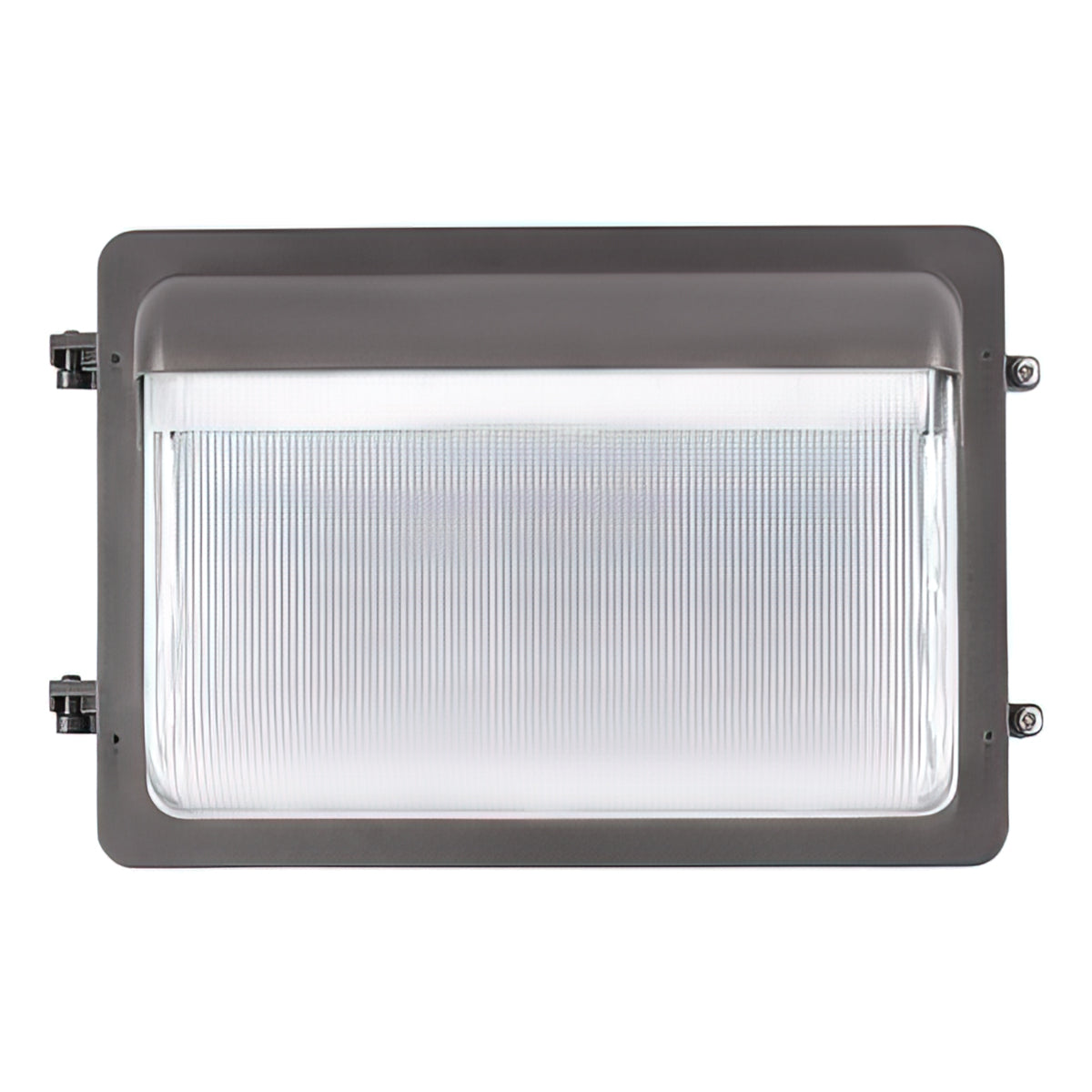

Sylvania 63656 LED Non-Cutoff Wall Pack — Dual Selectable 40W / 60W / 80W
The Sylvania 63656 (WALPAKN8A/S080UNHD8SC2/BZ/P) is a Generation 8A dual selectable non-cutoff LED wall pack designed for exterior building illumination. It delivers up to 11,200 lumens with field-selectable wattage (40W / 60W / 80W) and selectable color temperature (3000K / 4000K / 5000K) on a universal 120–347V driver. This model includes an integrated photocell and is IP65 wet location rated and DLC 5.1 Premium listed for energy-efficient commercial applications.
Key Features
- Selectable Wattage: 40W / 60W / 80W field-adjustable output
- Selectable CCT: 3000K / 4000K / 5000K switchable
- Maximum Output: Up to 11,200 lumens
- Universal Voltage: 120–347V input
- Integrated Photocell: Dusk-to-dawn ON/OFF operation
- Dimming: 0–10V dimmable
- BUG Rating: B1U3G4
- High Efficiency: Up to 140 lm/W
- Compliance: cULus Listed, IP65 Wet Location, DLC 5.1 Premium
- Operating Temperature: -40°F to 122°F
Typical Applications
- Building exteriors
- Commercial entryways
- Outdoor corridors
- Walkways
- Stairwells
Performance & Light Output
Provides 5,600 to 11,200 lumens depending on selected wattage. Rated life is 100,000 hours (L70). CRI >80. Designed as a replacement for 100W–175W HID wall packs.
Electrical & Controls
Operates on 120–347VAC, 50/60Hz with 0–10V dimming capability. Power factor >0.9. THD <20%. Surge protection rated at 4kV. Integrated photocell included for automatic dusk-to-dawn control.
Construction & Durability
Constructed for exterior applications and rated IP65 for wet locations. cULus listed to UL1598 standards. RoHS compliant. Designed for operation from -40°F to +122°F.
Installation & Mounting
Wall mount configuration. Optional visor and wire guard accessories available (sold separately).
Specifications
Specifications

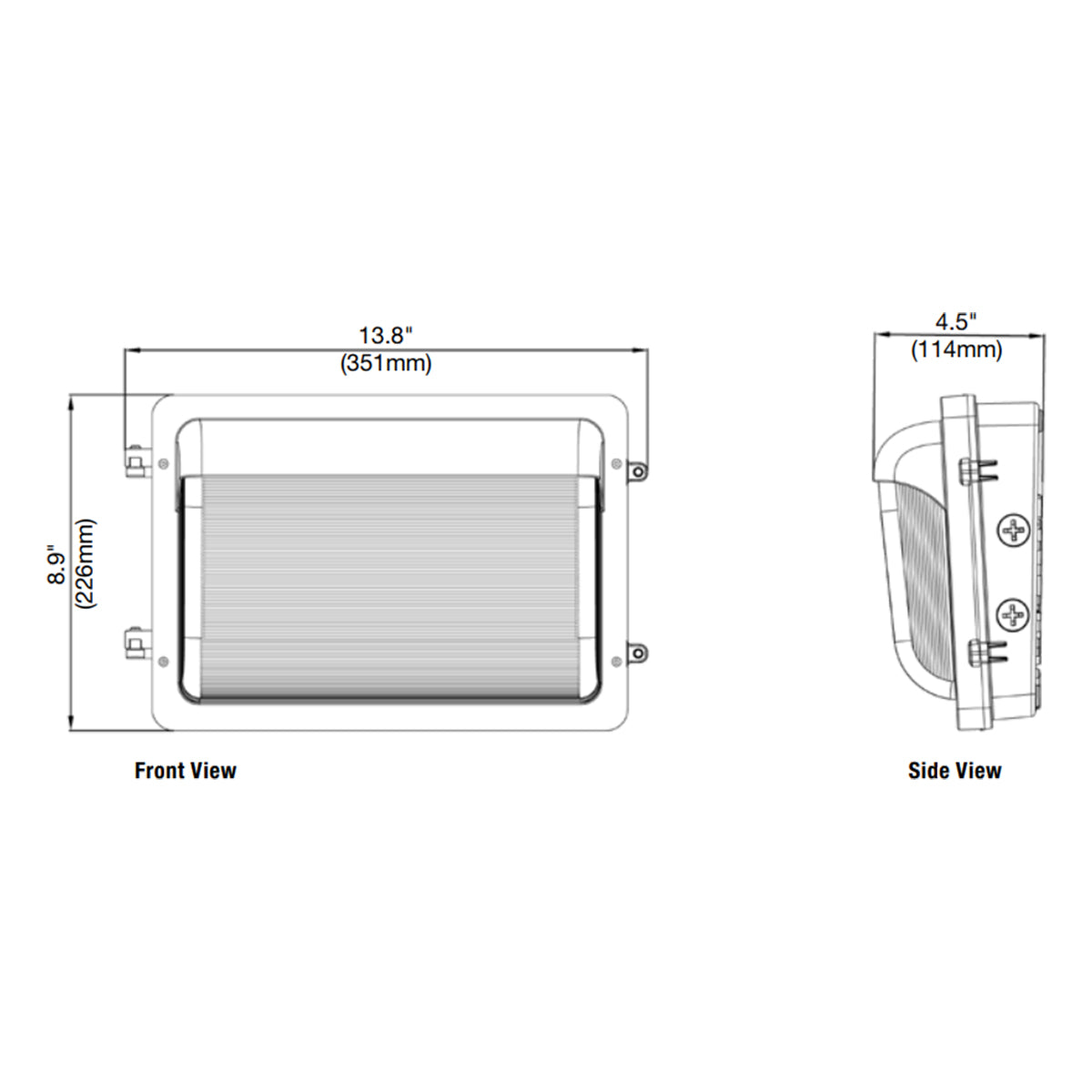

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What is a "Full Cutoff" wall pack?
What is a "Full Cutoff" wall pack?
A full cutoff wall pack is a fixture designed with a shield or housing that prevents any light from being emitted above the horizontal plane (90 degrees). This directs all light downward onto the ground, reducing light pollution (sky glow) and glare. Many municipalities now require these fixtures for new construction.
How do I choose the right wattage to replace my Metal Halide wall pack?
How do I choose the right wattage to replace my Metal Halide wall pack?
175W MH: Replace with a 40W - 60W LED wall pack (approx. 5,000-7,000 lumens).
250W MH: Replace with an 80W LED wall pack (approx. 9,000-10,000 lumens).
400W MH: Replace with a 100W - 120W LED wall pack (approx. 13,000+ lumens).
What mounting height is best for wall packs?
What mounting height is best for wall packs?
Standard wall packs are typically mounted between 10 to 20 feet high.
Mini/Slim Packs: 8-12 feet (doorways, single-story buildings).
Standard/Full Cutoff: 12-18 feet (warehouse perimeters, commercial sides).
High Output: 20+ feet (large loading docks).
Can I add a battery backup to these lights?
Can I add a battery backup to these lights?
Yes. We carry a specific selection of emergency wall packs that feature built-in battery backups. These units will operate normally on AC power but switch to battery power for 90 minutes during an outage to meet life-safety egress codes.
What is the difference between a glass and polycarbonate lens?
What is the difference between a glass and polycarbonate lens?
Glass: Will not yellow over time (UV resistant) but can break if impacted. Common on traditional heavy-duty wall packs.
Polycarbonate: Extremely impact-resistant (vandal-proof) but lower quality versions can yellow over many years of sun exposure. Most modern LED wall packs use UV-stabilized polycarbonate for durability.
