LEDVANCE SYLVANIA Dual Selectable LED Mini Wall Pack — 10-30W Selectable, 120–347V, Black

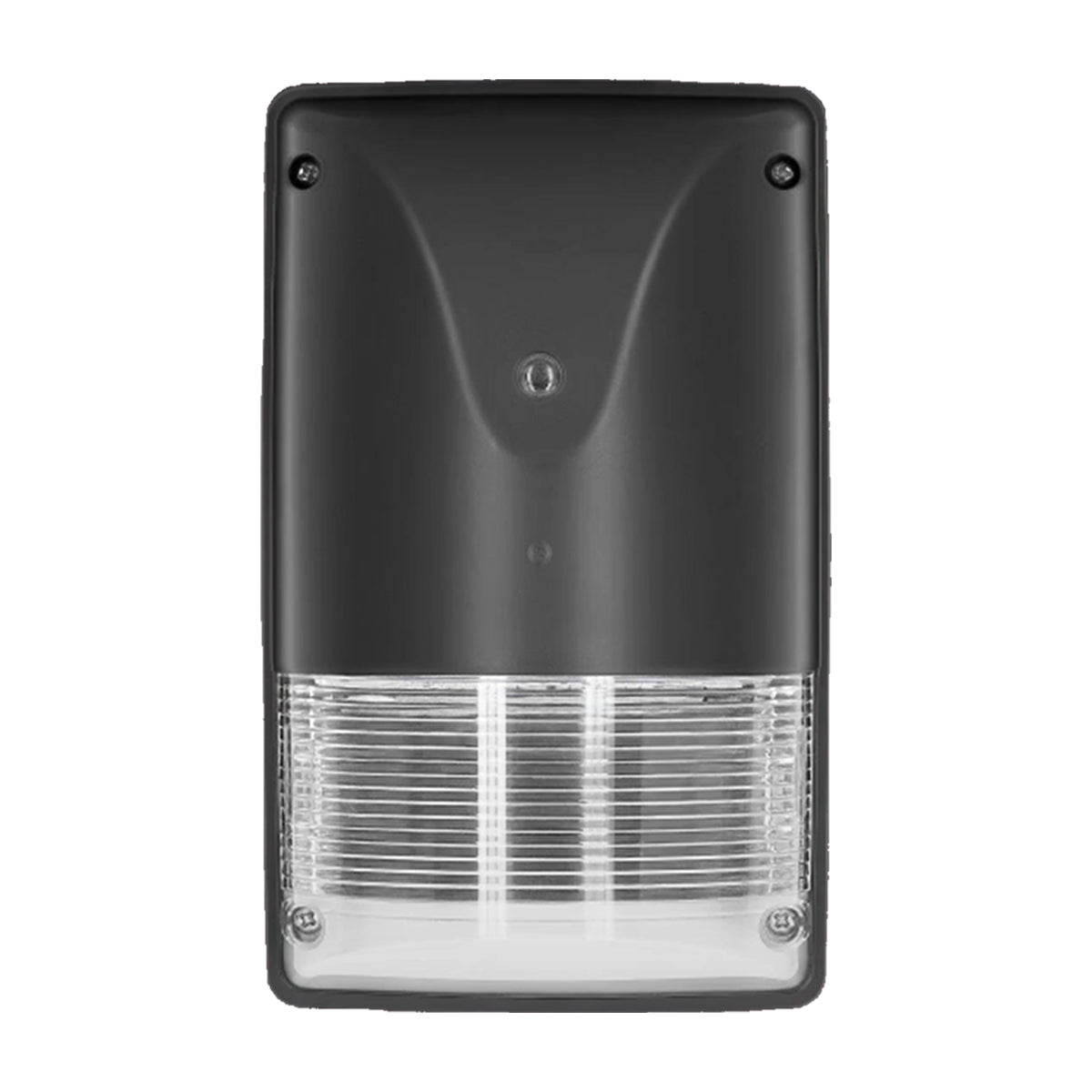

The LEDVANCE SYLVANIA 63654 is a versatile and efficient dual selectable LED mini wall pack delivering up to 3,900 lumens. Designed for ultimate adaptability, this luminaire allows installers to select between 10W, 20W, or 30W of power and 3000K, 4000K, or 5000K color temperatures directly on the fixture. Operating on a wide 120–347V universal driver, it includes an integrated selectable on/off photocell to ensure automated security lighting. Its IP65 rating and durable aluminum housing in a sleek black finish make it a professional choice for building perimeters, entryways, and general outdoor pathways.

Key Features

• Wattage: 10W / 20W / 30W Selectable
• Selectable CCT: 3000K / 4000K / 5000K
• Delivered Lumens: 1,300 to 3,900 lumens
• Efficacy: Up to 130 Lumens Per Watt (LPW)
• Voltage: 120–347V universal input
• Dimming: 0–10V dimming standard
• Controls: Integrated 120-347V selectable on/off photocell included
• CRI: 80+
• Environmental Ratings: IP65 rated for Wet Locations
• Certifications: DLC Premium Listed, cULus, RoHS Compliant, FCC
• Estimated Life: 100,000 hours (L70)

Typical Applications

• Building perimeters and facades
• Security and pathway lighting
• Entryways and walkways
• Commercial and residential exteriors

Performance & Light Output

This mini wall pack provides high-efficacy illumination ranging from 1,300 to 3,900 lumens depending on the selected settings. With an efficacy reaching up to 130 lumens per watt, it significantly reduces energy consumption compared to legacy HID systems. The fixture features long-life LEDs ensuring a 100,000-hour rated life, providing decades of reliable service with virtually no maintenance.

Electrical & Controls

The 63654 operates on a constant current 120–347V AC driver and supports standard 0–10V dimming. The built-in button photocell provides reliable dusk-to-dawn automation, while the integrated on/off switch allows contractors to easily disable the sensor if the fixture is controlled by an external timer or building automation system.

Construction & Durability

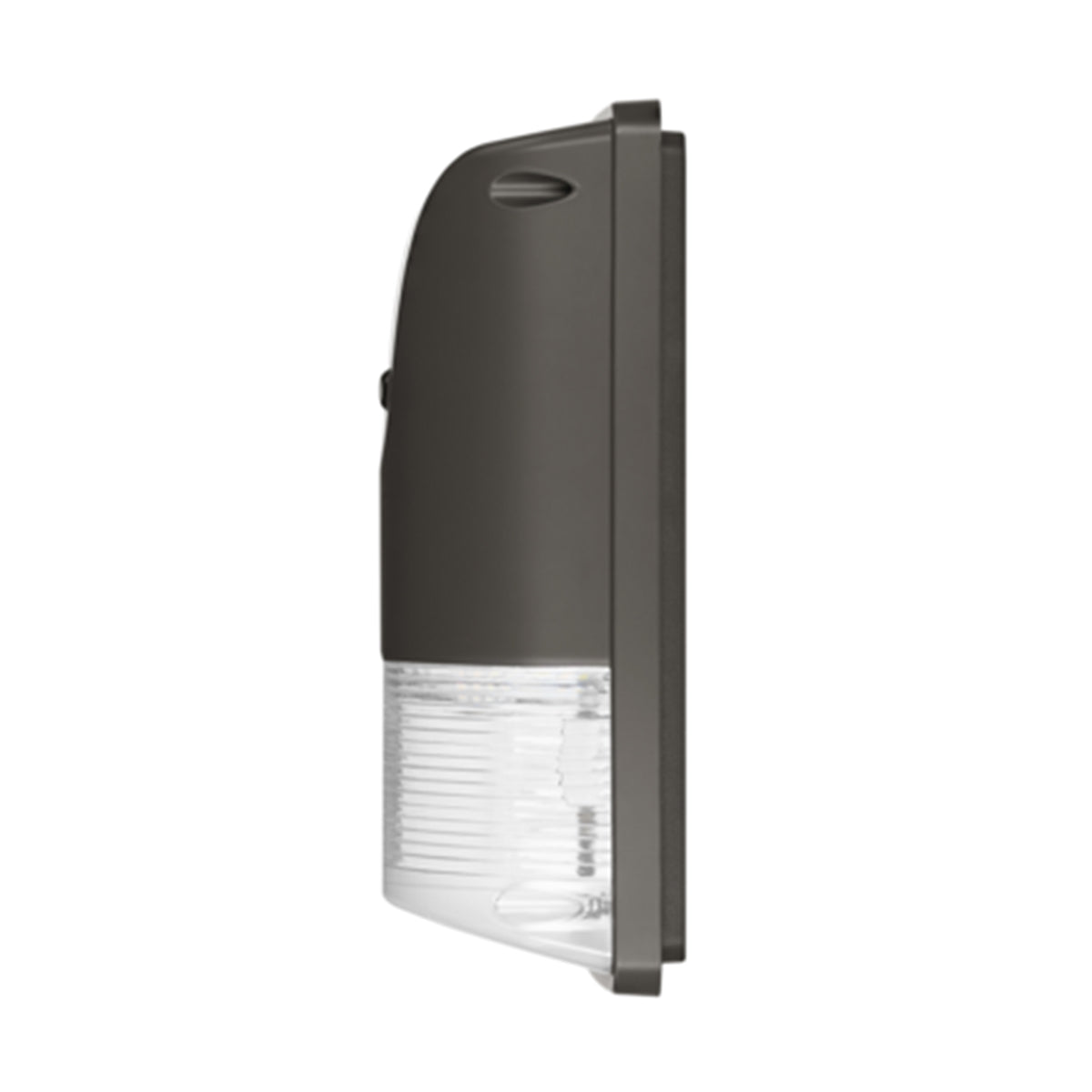

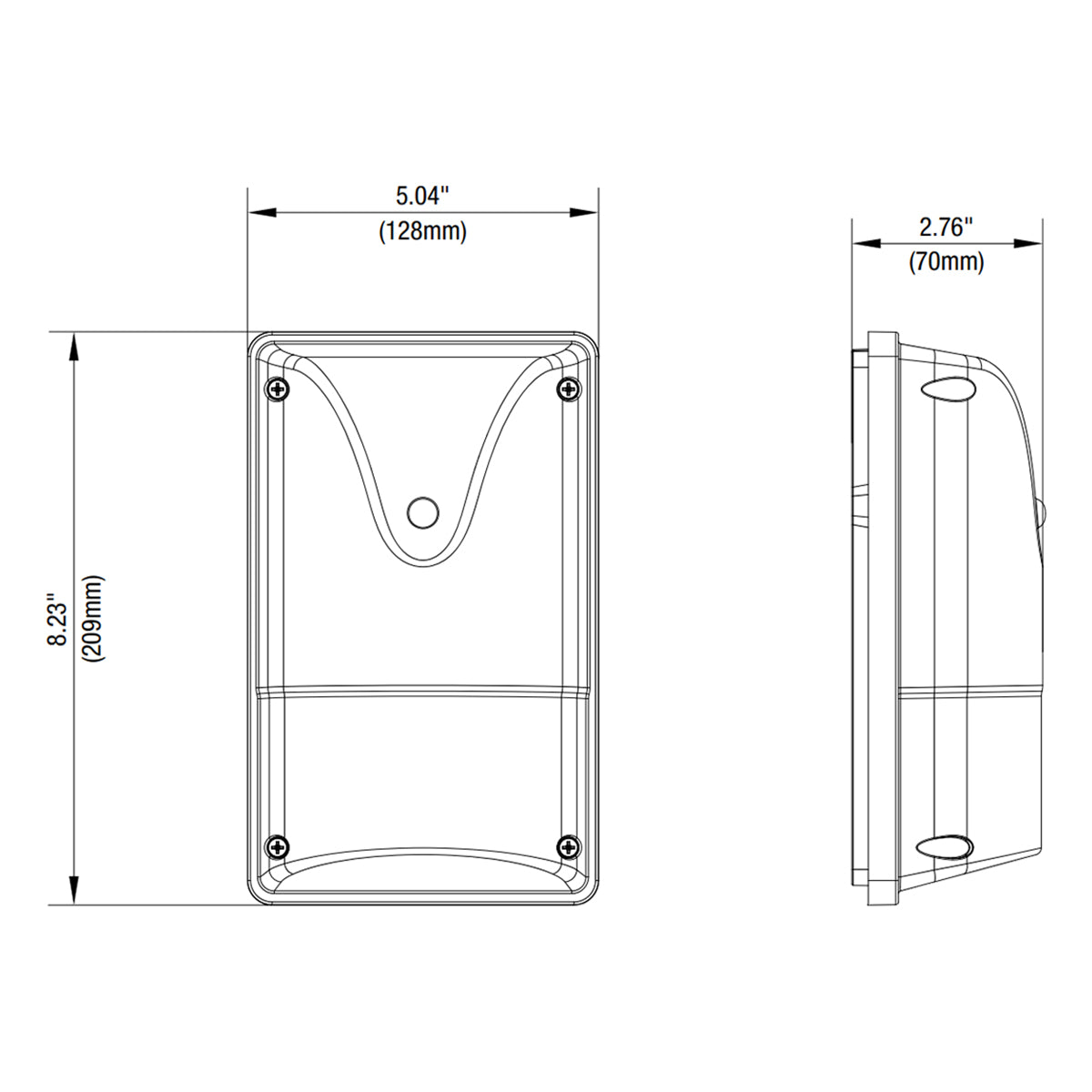

Engineered for outdoor durability, the fixture features a precision aluminum housing with a high-durability black finish. It is IP65 rated, protecting it against dust ingress and water spray. The compact design (approx. 8.2" x 5.0") makes it ideal for mounting over doors or in tight exterior spaces. It operates reliably in extreme temperatures ranging from -40°F (-40°C) to 122°F (50°C).

Installation & Mounting

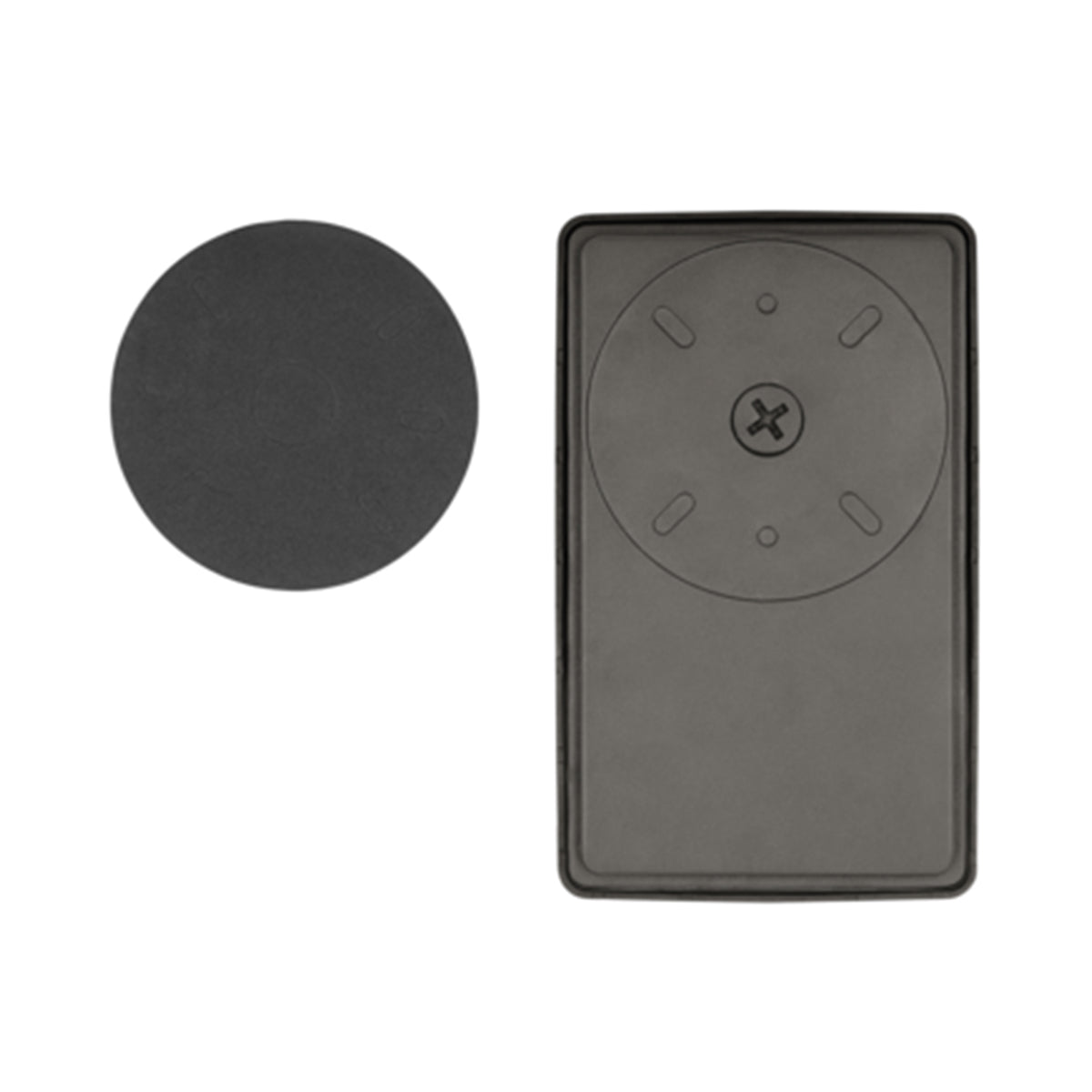

The 63654 is designed for easy surface mounting directly to standard junction boxes. Its lightweight design and multiple conduit entry points facilitate a quick and secure installation on a variety of exterior building surfaces.

What's Included

• LEDVANCE SYLVANIA Dual Selectable Mini Wall Pack (Black)
• Integrated Selectable Photocell
