Sylvania 63056 6 in Round Slim MICRODISK LED Downlight Kit 14W Selectable CCT 120V
Available in stock (16)
About this item
About this item
- 6 in Round Slim MICRODISK — White / 1/2 in Profile / IC Rated: 1/2 in height installs directly under joists; fits 3, 4, 6, 8, and 12 in ceiling cut-outs; IC rated for direct contact with ceiling insulation; closet rated per NFPA 70, NEC 410.16(A)(3) and 410.16(C)(5); FT6 listed cable; wet rated; all necessary quick connectors included
- Field-Selectable CCT (via driver switch): 2700K / 3000K / 3500K / 4000K / 5000K; CRI >90; up to 86 LPW; consistent lamp-to-lamp color
- 14W / 1200 lm / 86 LPW: L70: 50,000 hrs; replaces 23W CFL; up to 30% energy savings; THD <20%
- Phase-Cut Dimmable: 120V only | PF >0.9 | Op temp: -4°F to 104°F (-20°C to +40°C)
- ENERGY STAR / Title 24 / TAA: cETLus Listed; RoHS; FCC; 5-year warranty (NLB Trusted Warranty Program)
Description
Description

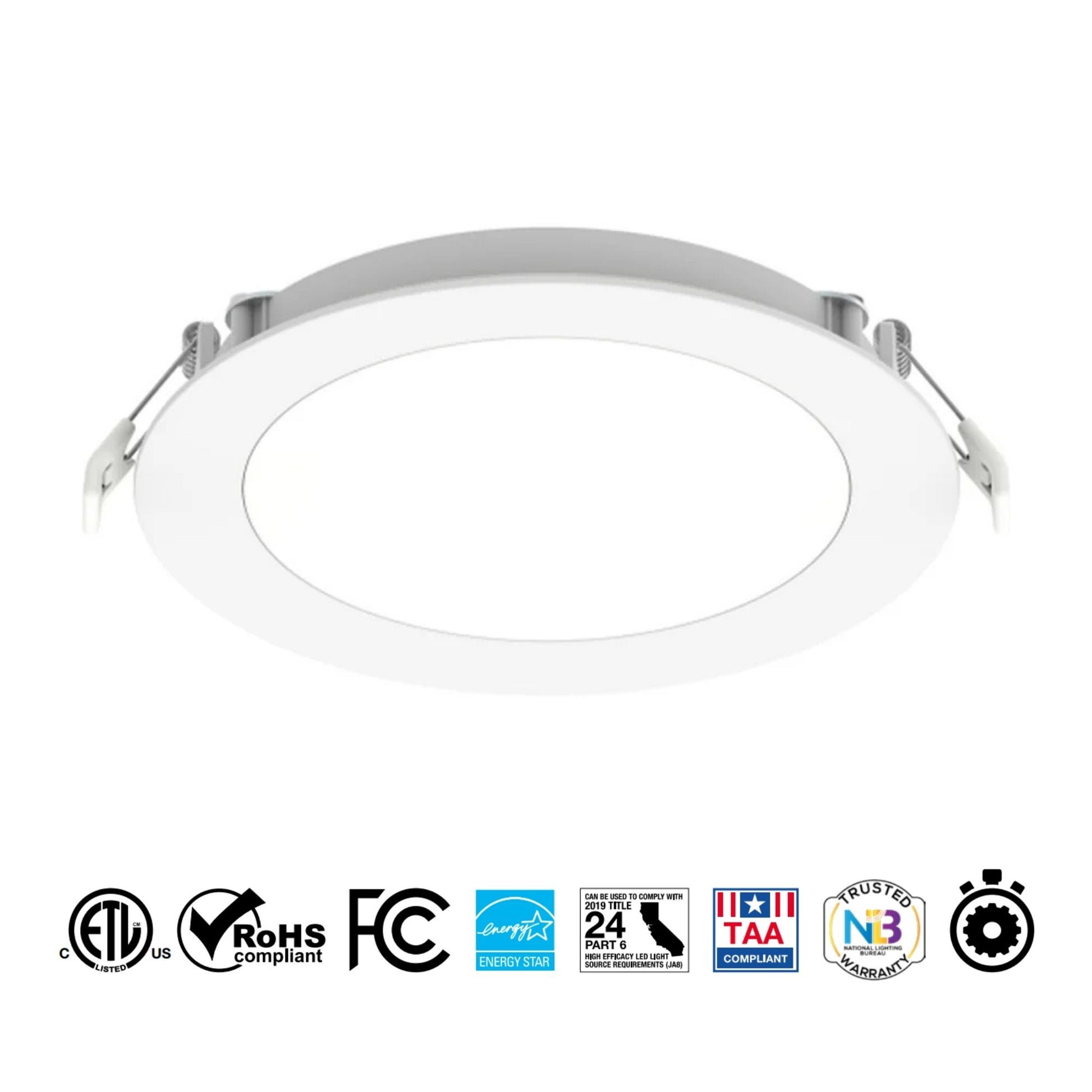

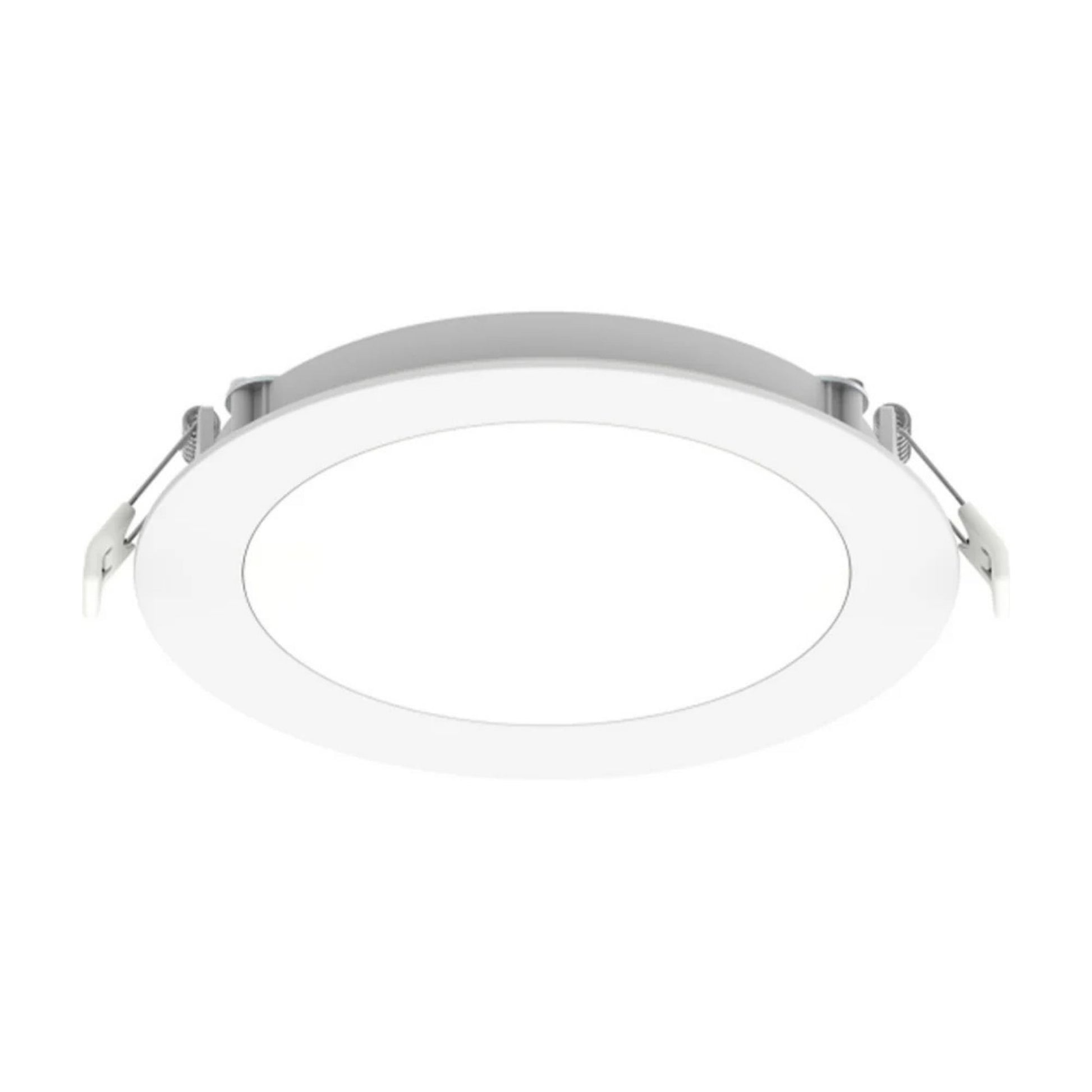

Sylvania 63056 6 in Round Slim MICRODISK LED Downlight Kit — 14W / 1200 lm / Selectable CCT / 120V / White
The Sylvania 63056 (LEDMD6R3A/1200ST9SC3/WH) is a 6 in round slim profile LED downlight kit from the LEDVANCE Performance Class Slim CCT Selectable MICRODISK family. Delivering 1,200 lm at 14W (86 LPW) with field-selectable CCT via driver switch (2700K/3000K/3500K/4000K/5000K). The 1/2 in height allows installation directly under joists in new and remodel construction, fits 3, 4, 6, 8, and 12 in ceiling cut-outs, and includes all necessary quick connectors. IC rated. Wet rated. Closet rated per NFPA 70, NEC 410.16(A)(3) and 410.16(C)(5). FT6 listed cable. Phase-Cut dimmable at 120V. ENERGY STAR certified. Title 24 compliant. TAA compliant. 5-year warranty. L70: 50,000 hours. Replaces 23W CFL with up to 30% energy savings.
Key Features
- Wattage: 14W
- Light Output: 1,200 lm
- Efficacy: 86 LPW
- Field-Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K (via switch on driver)
- CRI: >90
- Profile: 1/2 in height | No housing required | Installs directly under joists
- Cut-Out Compatibility: Fits 3, 4, 6, 8, and 12 in ceiling cut-outs
- Input Voltage: 120V only
- Dimming: Phase-Cut
- Power Factor: >0.9 | THD: <20%
- IC Rating: Yes — IC rated for direct contact with ceiling insulation
- Environment: Wet rated | Op temp: -4°F to 104°F (-20°C to +40°C)
- Closet Rated: Yes — per NFPA 70, NEC 410.16(A)(3) and 410.16(C)(5)
- Cable: FT6 listed

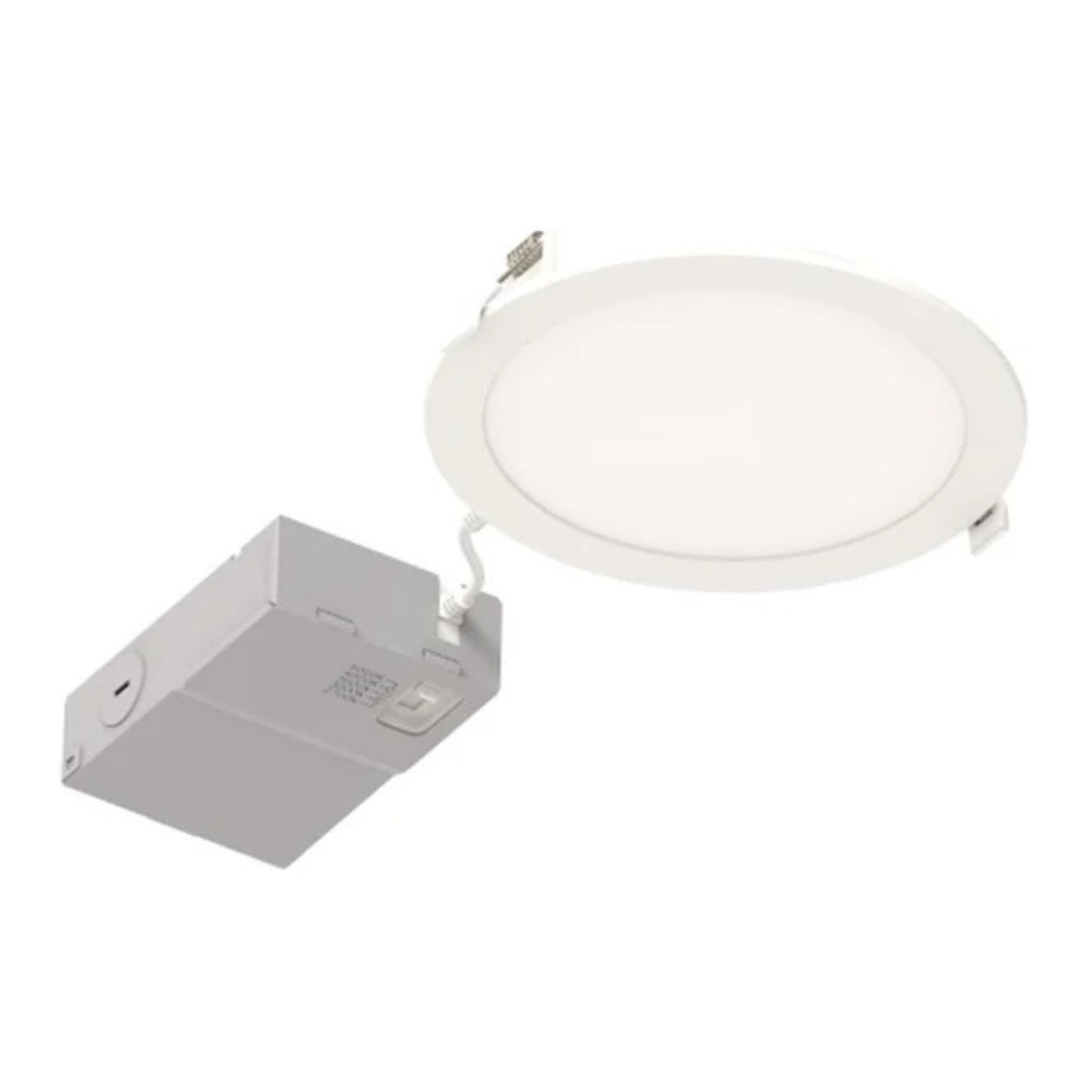

- Installation: Hardwire | Remote driver included | All quick connectors included
- Replaces: 23W CFL | Energy savings: up to 30%
- Lifespan: 50,000 hours L70 | Warranty: 5-year / NLB Trusted Warranty Program
- Certifications: ENERGY STAR Certified | Title 24 Compliant | TAA Compliant | cETLus Listed | RoHS | FCC
Construction & Aesthetics

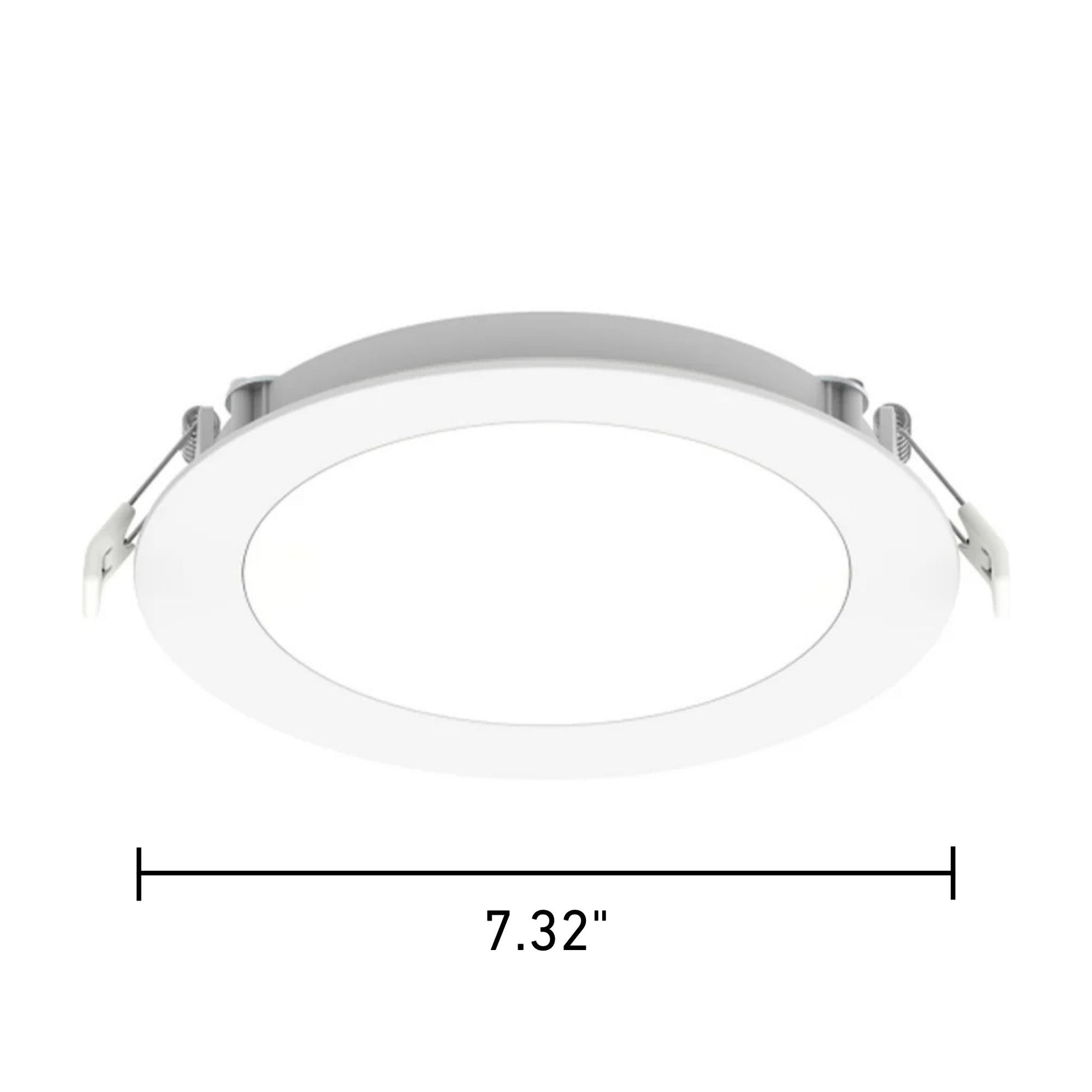

Size: 6 in round | Finish: White | Profile: 1/2 in height. Compatible with Universal Metal Frame (Sylvania 62959 — LEDSLIMMDFRAME, sold separately) for new construction installations. All necessary quick connectors included in box.
Light Output & Performance
The Sylvania 63056 delivers 1,200 lm at 14W (86 LPW) with CRI >90 and uniform, glare-free illumination. CCT is field-selectable via the switch on the remote driver: 2700K / 3000K / 3500K / 4000K / 5000K. L70 lifespan is 50,000 hours.
Electrical & Installation
The Sylvania 63056 operates at 120V only with Phase-Cut dimming. PF >0.9; THD <20%. Hardwire installation. The 1/2 in profile allows installation directly under joists without a housing. Fits 3, 4, 6, 8, and 12 in ceiling cut-outs. IC rated and closet rated. For the 120-277V 0-10V version at 1200 lm in 6 in, see Sylvania 63600.
Compatible Accessories (Sold Separately)
- Black Trim (6 in): Sylvania 63208 — SLIMMD3A6/TRIMBLK
- Bronze Trim (6 in): Sylvania 63209 — SLIMMD3A6/TRIMBZ
- Satin Nickel Trim (6 in): Sylvania 63210 — SLIMMD3A6/TRIMSN
- Extension Cable 6 ft: Sylvania 60793 — LEDMD6FTEXCBL
- Extension Cable 10 ft: Sylvania 60794 — LEDMD10FTEXCBL
- Extension Cable 20 ft: Sylvania 60795 — LEDMD20FTEXCBL
- Universal Metal Frame (new construction): Sylvania 62959 — LEDSLIMMDFRAME (20.72 in x 9.65 in, fits all Slim MICRODISK sizes)
Typical Applications
- Residential bedrooms, living rooms, and hallways
- Kitchens, bathrooms, and closets
- Soffits, stairwells, and corridors
- New construction and remodel with shallow ceiling cavities
- Any application previously using 23W CFL
What’s Included
- Sylvania 63056 6 in round Slim MICRODISK LED downlight (white)
- Remote driver
- All necessary quick connectors
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is the Sylvania 63056 rated for wet locations and closet use?
Is the Sylvania 63056 rated for wet locations and closet use?
What dimming method does the Sylvania 63056 support?
What dimming method does the Sylvania 63056 support?
What ceiling cut-out sizes is the Sylvania 63056 compatible with?
What ceiling cut-out sizes is the Sylvania 63056 compatible with?
Is the Sylvania 63056 IC rated?
Is the Sylvania 63056 IC rated?
What does the Sylvania 63056 replace and what are the energy savings?
What does the Sylvania 63056 replace and what are the energy savings?
Customers praised these 1200 lumen LED lights as "brilliant" with ultra-slim 1/2-inch profile fitting tight spaces. The downlight kit includes all needed accessories for installation. Shoppers noted excellent shopping experience with prompt delivery and well-packaged products. One customer reported a 2% failure rate in AC-DC converters, though replacement was available.

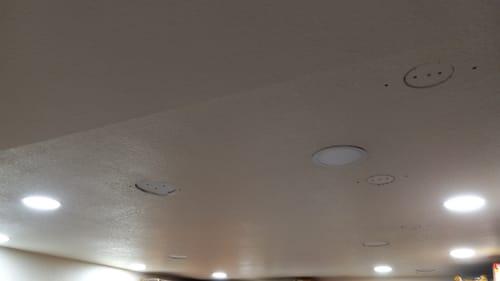

The 1200 lumen recessed lights are brilliant. They are only 1/2-inch thick, so they fit in the drywall even if there is framing behind it. Only 1 out of 48 (2%) did not light up because of a failure in the AC-DC converter (junction box) supplied with the light; I was able to get that one replaced.
