Sylvania 63055 6 in Round Slim MICRODISK LED Downlight Kit 10W Selectable CCT 120V
Available in stock (55)
About this item
About this item
- 6 in Round Slim MICRODISK — White / 1/2 in Profile / IC Rated: 1/2 in height installs directly under joists; fits 3, 4, 6, 8, and 12 in ceiling cut-outs; IC rated for direct contact with ceiling insulation; closet rated per NFPA 70, NEC 410.16(A)(3) and 410.16(C)(5); FT6 listed cable; wet rated; all necessary quick connectors included
- Field-Selectable CCT (via driver switch): 2700K / 3000K / 3500K / 4000K / 5000K; CRI >90; up to 80 LPW; consistent lamp-to-lamp color
- 10W / 800 lm / 80 LPW: L70: 50,000 hrs; replaces 120W incandescent; up to 90% energy savings; THD <20%
- Phase-Cut Dimmable: 120V only | PF >0.9 | Op temp: -4°F to 104°F (-20°C to +40°C)
- ENERGY STAR / Title 24 / TAA: cETLus Listed; RoHS; FCC; 5-year warranty (NLB Trusted Warranty Program)
Description
Description

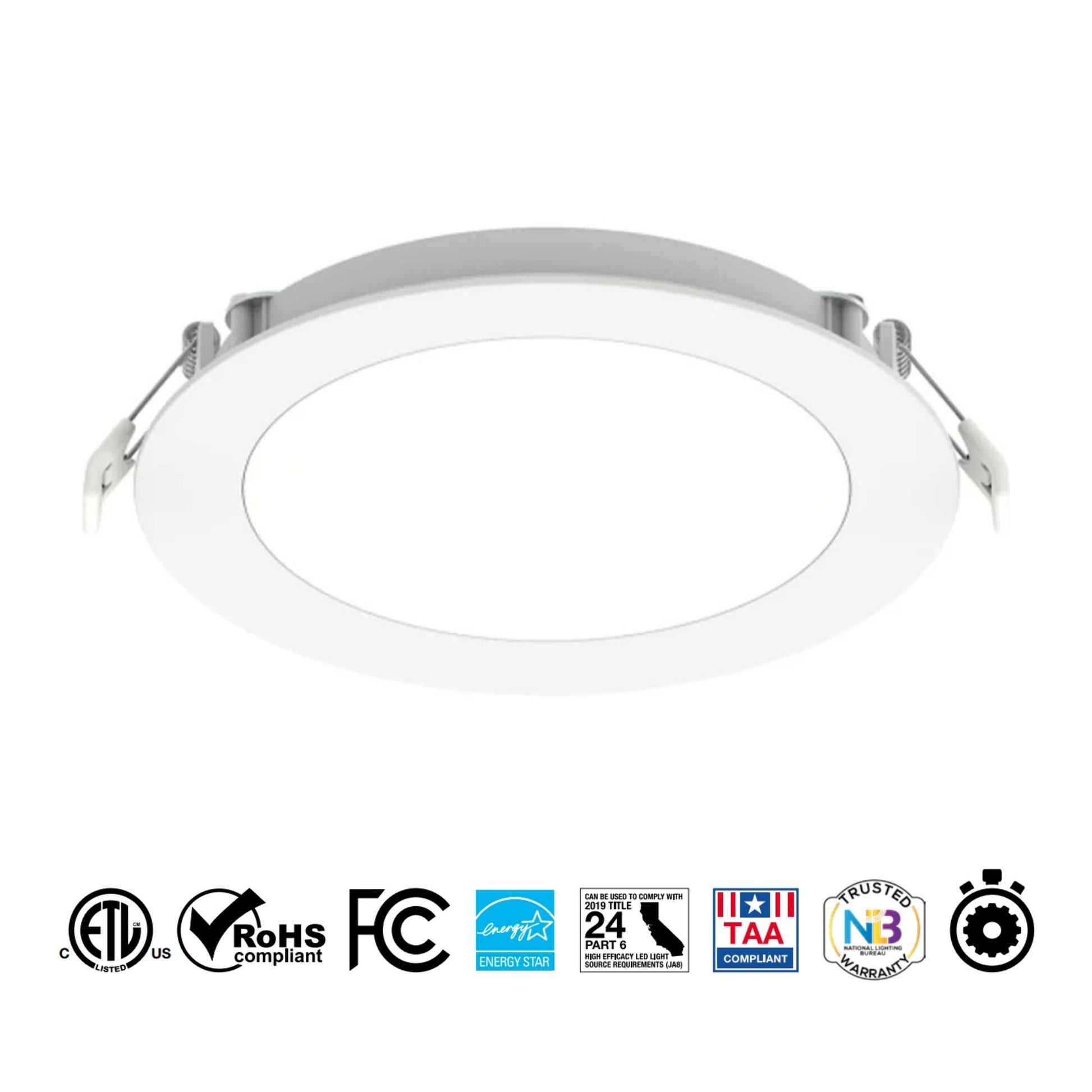

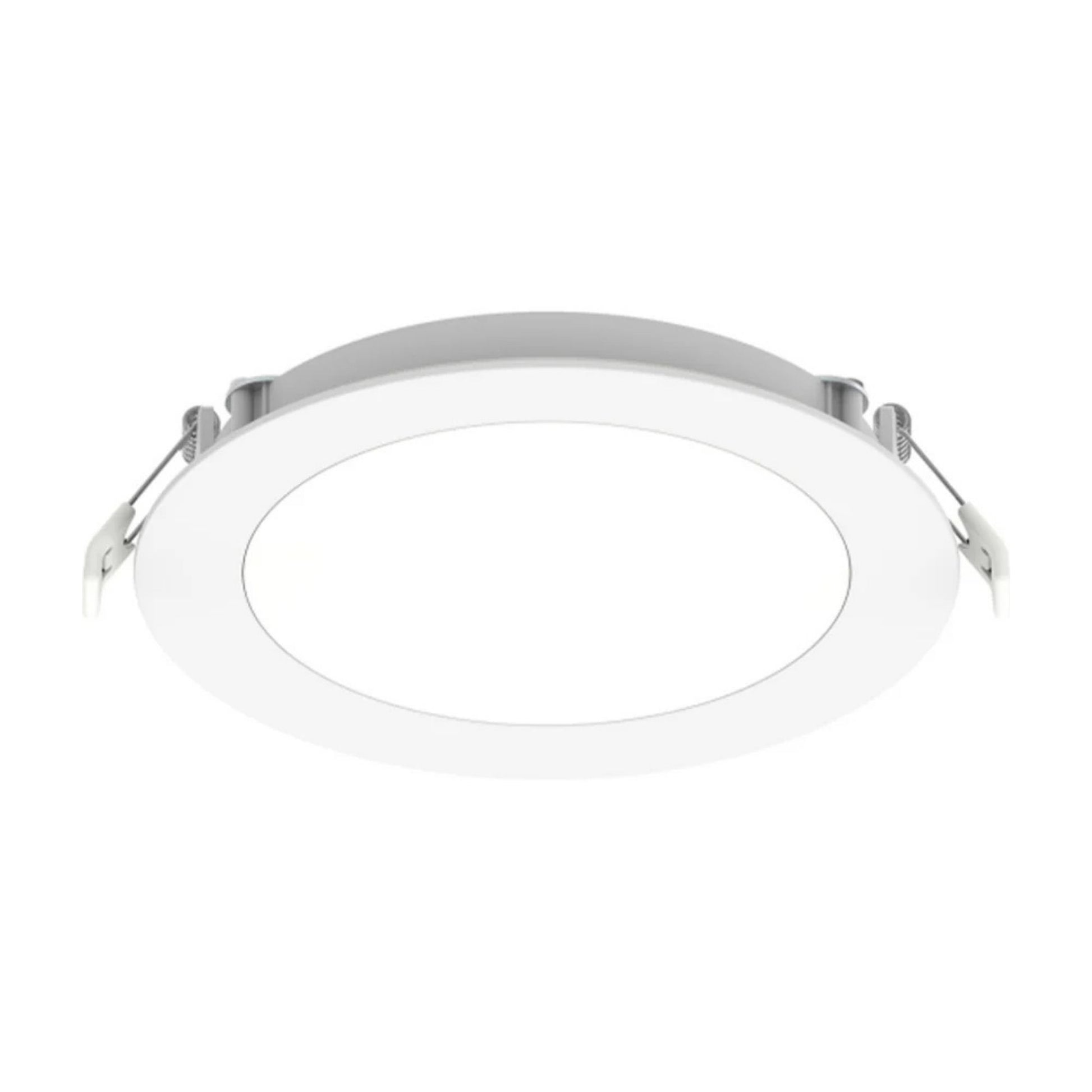

Sylvania 63055 6 in Round Slim MICRODISK LED Downlight Kit — 10W / 800 lm / Selectable CCT / 120V / White
The Sylvania 63055 (LEDMD6R3A/800ST9SC3/WH) is a 6 in round slim profile LED downlight kit from the LEDVANCE Performance Class Slim CCT Selectable MICRODISK family. Delivering 800 lm at 10W (80 LPW) with field-selectable CCT via driver switch (2700K/3000K/3500K/4000K/5000K). The 1/2 in height allows installation directly under joists in new and remodel construction, fits 3, 4, 6, 8, and 12 in ceiling cut-outs, and includes all necessary quick connectors. IC rated. Wet rated. Closet rated per NFPA 70, NEC 410.16(A)(3) and 410.16(C)(5). FT6 listed cable. Phase-Cut dimmable at 120V. ENERGY STAR certified. Title 24 compliant. TAA compliant. 5-year warranty. L70: 50,000 hours. Replaces 120W incandescent with up to 90% energy savings.
Key Features
- Wattage: 10W
- Light Output: 800 lm
- Efficacy: 80 LPW
- Field-Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K (via switch on driver)
- CRI: >90
- Profile: 1/2 in height | No housing required | Installs directly under joists
- Cut-Out Compatibility: Fits 3, 4, 6, 8, and 12 in ceiling cut-outs
- Input Voltage: 120V only
- Dimming: Phase-Cut
- Power Factor: >0.9 | THD: <20%
- IC Rating: Yes — IC rated for direct contact with ceiling insulation
- Environment: Wet rated | Op temp: -4°F to 104°F (-20°C to +40°C)
- Closet Rated: Yes — per NFPA 70, NEC 410.16(A)(3) and 410.16(C)(5)
- Cable: FT6 listed
- Installation: Hardwire | Remote driver included | All quick connectors included
- Replaces: 120W incandescent | Energy savings: up to 90%
- Lifespan: 50,000 hours L70 | Warranty: 5-year / NLB Trusted Warranty Program
- Certifications: ENERGY STAR Certified | Title 24 Compliant | TAA Compliant | cETLus Listed | RoHS | FCC
Construction & Aesthetics

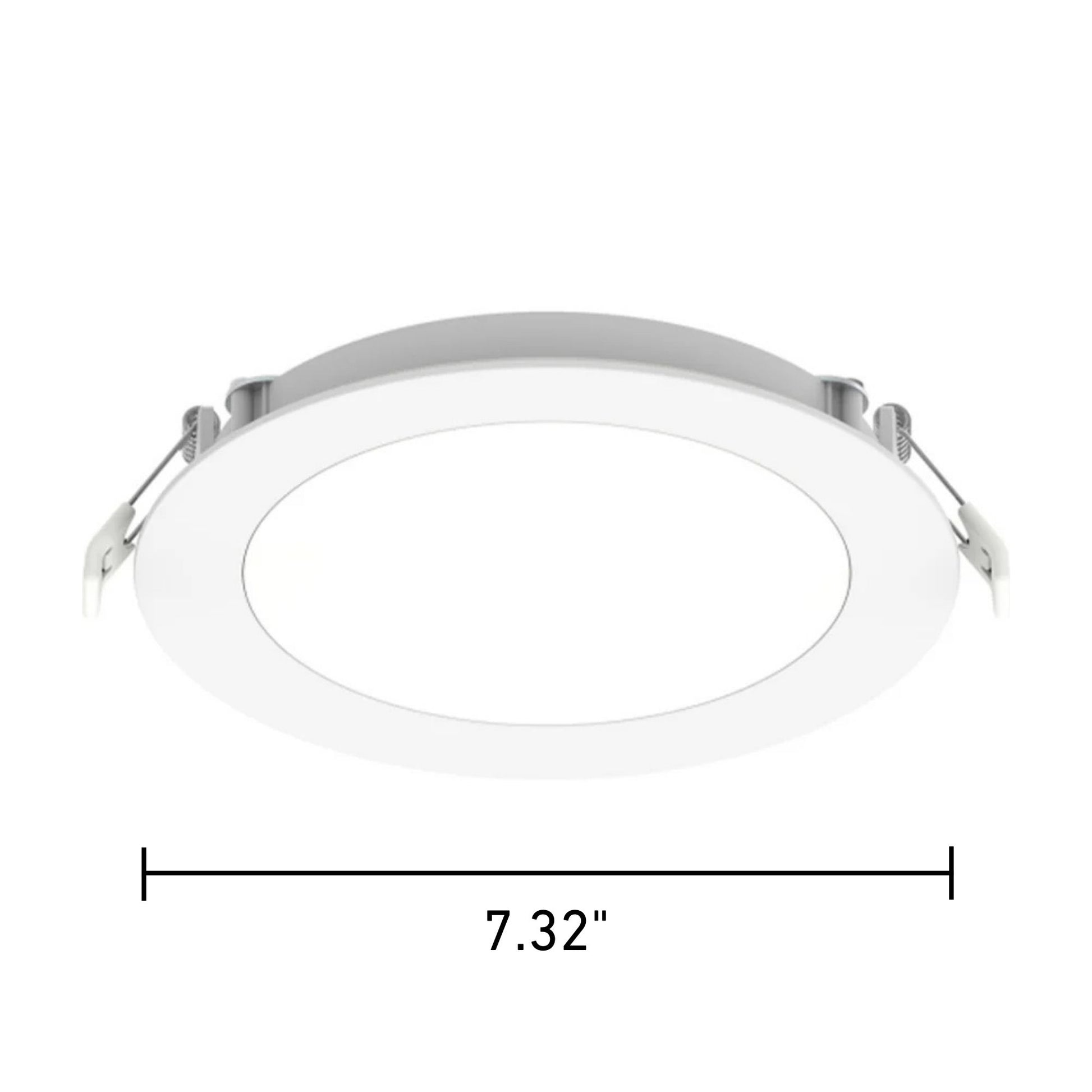

Size: 6 in round | Finish: White | Profile: 1/2 in height. Compatible with Universal Metal Frame (Sylvania 62959 — LEDSLIMMDFRAME, sold separately) for new construction installations. All necessary quick connectors included in box.
Light Output & Performance
The Sylvania 63055 delivers 800 lm at 10W (80 LPW) with CRI >90 and uniform, glare-free illumination. CCT is field-selectable via the switch on the remote driver: 2700K / 3000K / 3500K / 4000K / 5000K. L70 lifespan is 50,000 hours.
Electrical & Installation
The Sylvania 63055 operates at 120V only with Phase-Cut dimming. PF >0.9; THD <20%. Hardwire installation. The 1/2 in profile allows installation directly under joists without a housing. Fits 3, 4, 6, 8, and 12 in ceiling cut-outs. IC rated and closet rated. For 120-277V 0-10V versions in 6 in, see Sylvania 63599 (800 lm), 63600 (1200 lm), and 63601 (1600 lm).
Compatible Accessories (Sold Separately)
- Black Trim (6 in): Sylvania 63208 — SLIMMD3A6/TRIMBLK
- Bronze Trim (6 in): Sylvania 63209 — SLIMMD3A6/TRIMBZ
- Satin Nickel Trim (6 in): Sylvania 63210 — SLIMMD3A6/TRIMSN
- Extension Cable 6 ft: Sylvania 60793 — LEDMD6FTEXCBL
- Extension Cable 10 ft: Sylvania 60794 — LEDMD10FTEXCBL
- Extension Cable 20 ft: Sylvania 60795 — LEDMD20FTEXCBL
- Universal Metal Frame (new construction): Sylvania 62959 — LEDSLIMMDFRAME (20.72 in x 9.65 in, fits all Slim MICRODISK sizes)
Typical Applications
- Residential bedrooms, living rooms, and hallways
- Kitchens, bathrooms, and closets
- Soffits, stairwells, and corridors
- New construction and remodel with shallow ceiling cavities
- Any application previously using 120W incandescent
What’s Included
- Sylvania 63055 6 in round Slim MICRODISK LED downlight (white)
- Remote driver
- All necessary quick connectors
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is the Sylvania 63055 rated for wet locations and closet use?
Is the Sylvania 63055 rated for wet locations and closet use?
What dimming method does the Sylvania 63055 support?
What dimming method does the Sylvania 63055 support?
What ceiling cut-out sizes is the Sylvania 63055 compatible with?
What ceiling cut-out sizes is the Sylvania 63055 compatible with?
Is the Sylvania 63055 IC rated?
Is the Sylvania 63055 IC rated?
What does the Sylvania 63055 replace and what are the energy savings?
What does the Sylvania 63055 replace and what are the energy savings?
