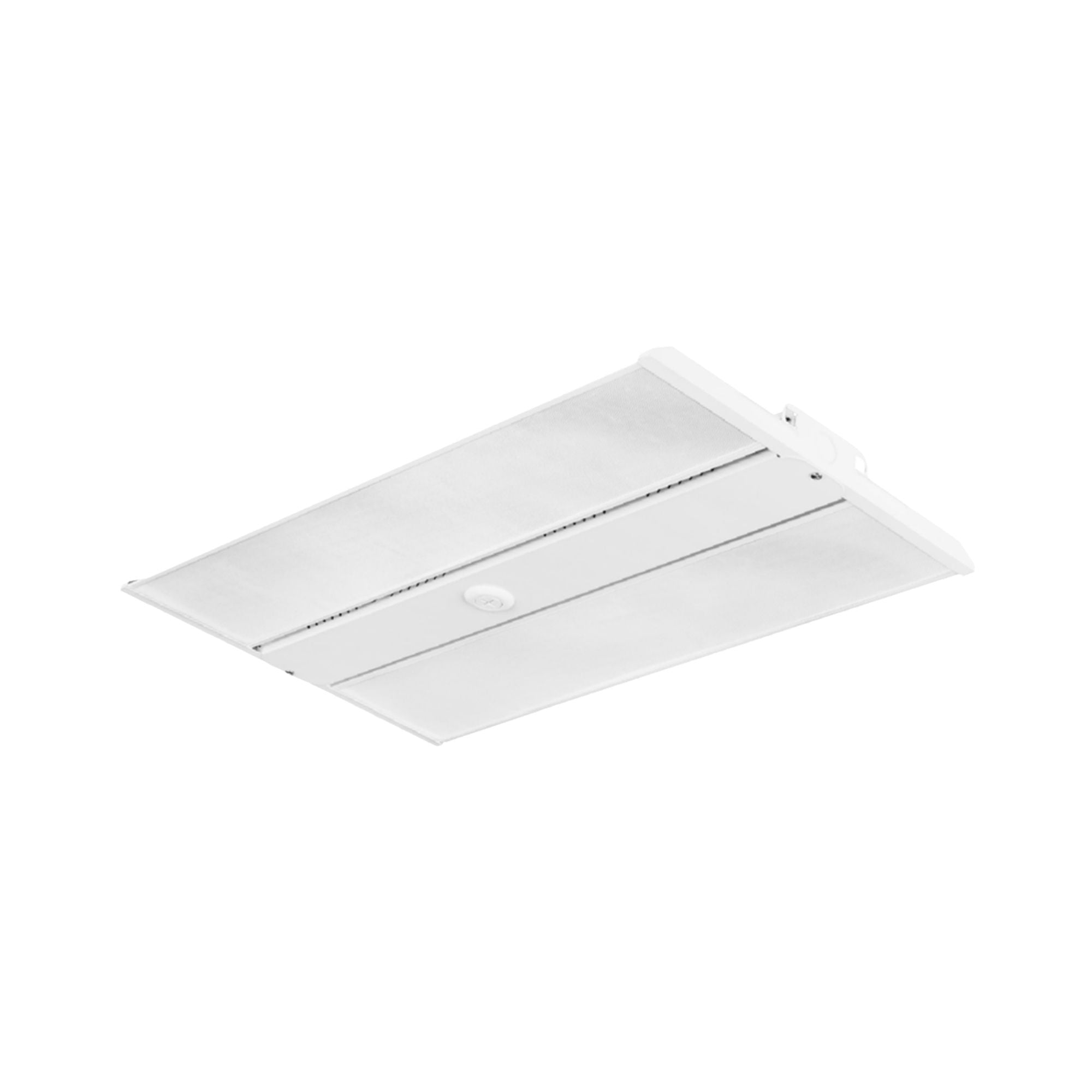

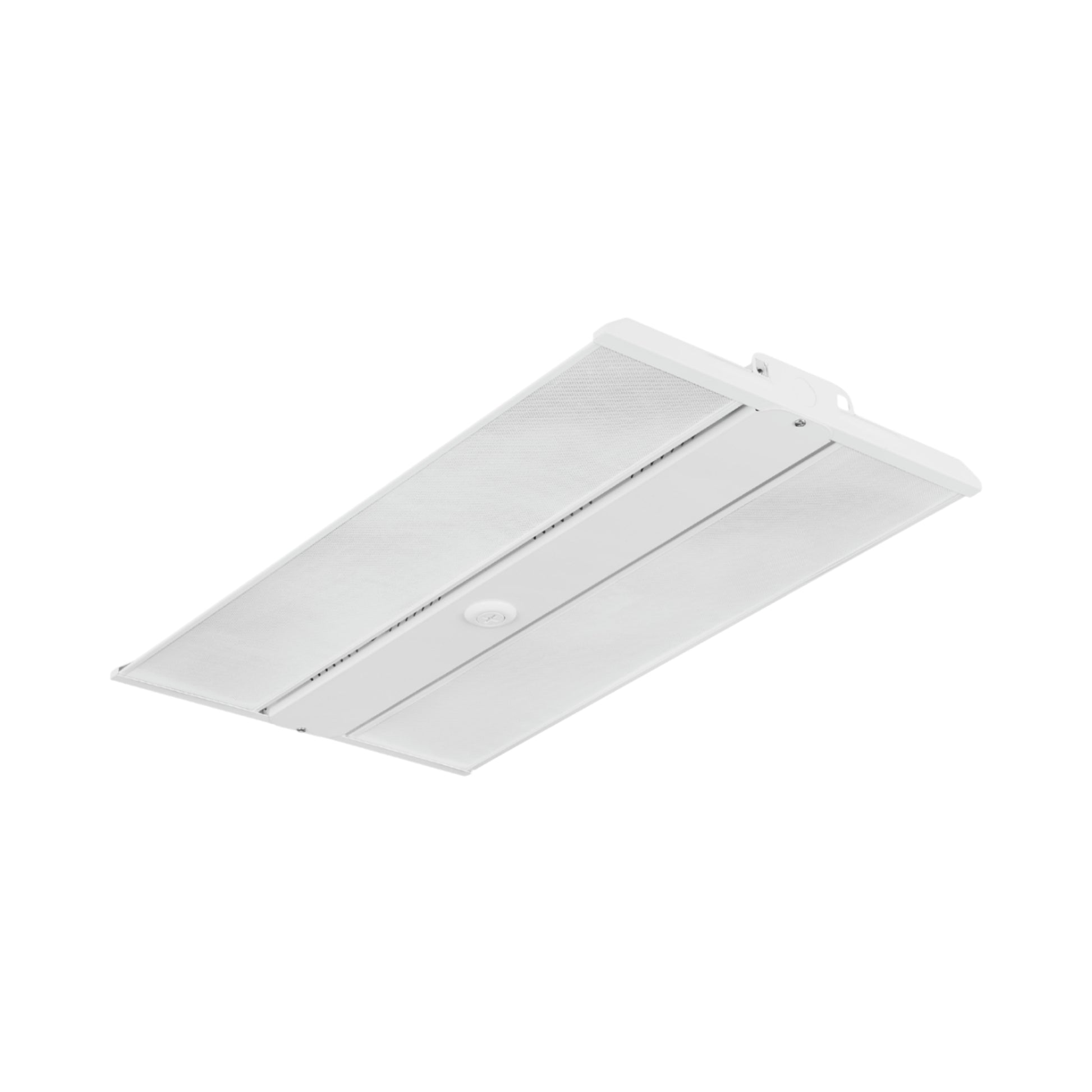

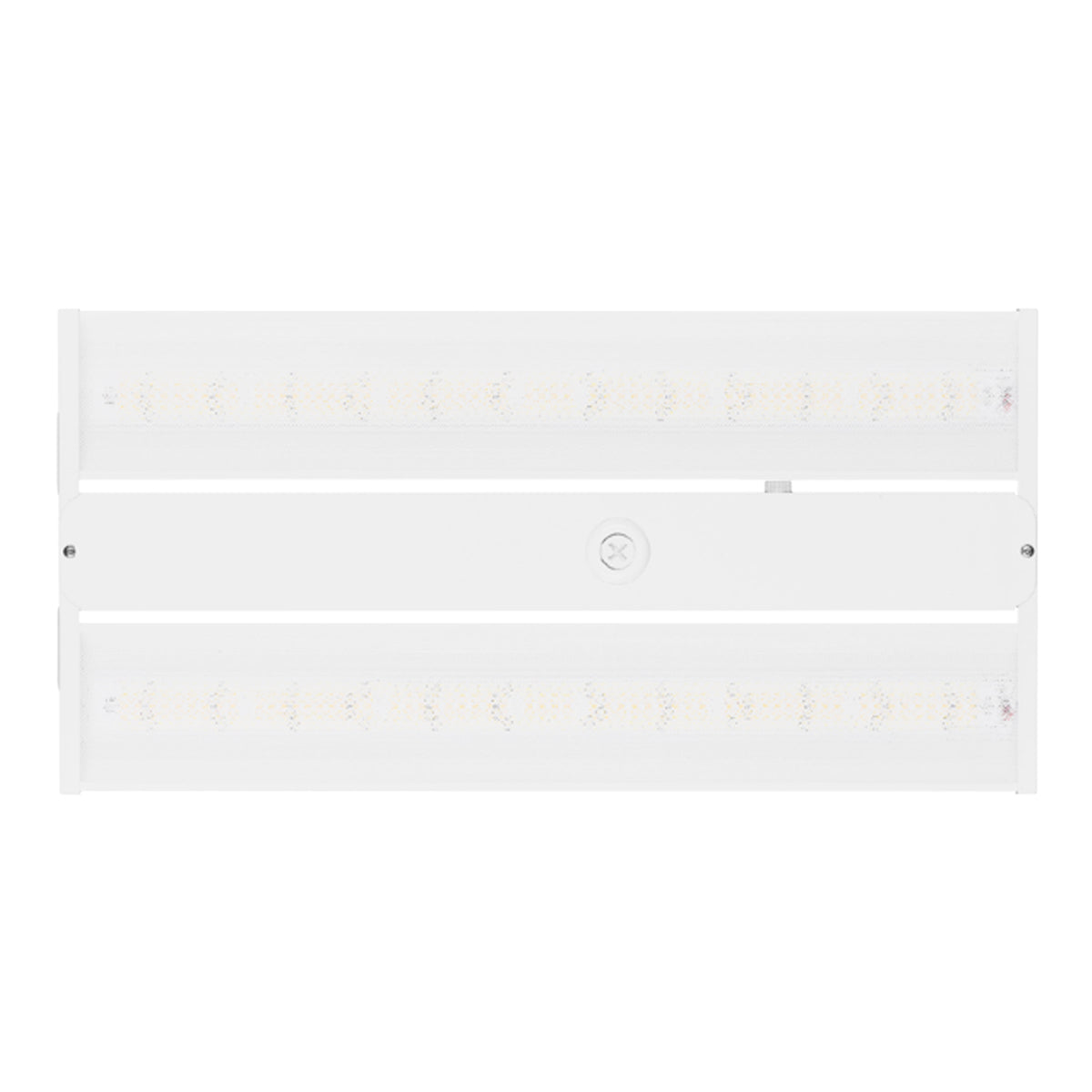

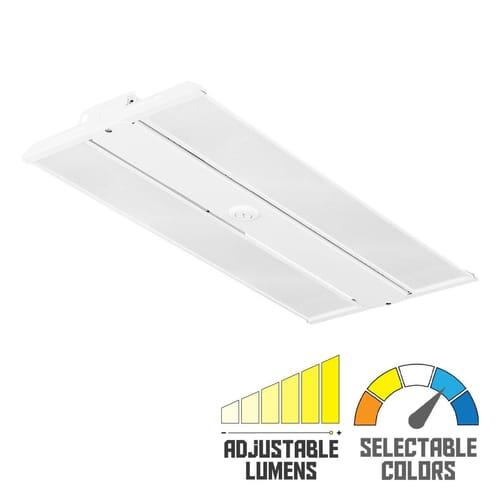

LEDVANCE Sylvania 62877 Dual Selectable Linear High Bay — 300/275/255W Selectable — 4000K/5000K — White
Available in stock (300)
About this item
About this item
- Output & Equivalency: Field-adjustable 300W / 275W / 255W power settings deliver up to 41,100 lumens, replacing legacy fixtures up to 1000W MH.
- Form Factor: Features a compact linear design engineered to easily retrofit traditional linear fluorescent luminaires.
- Selectable Color Temperature: Integrated switch allows on-site selection between 4000K or 5000K without rewiring.
- Controls & Automation: Ships with a pre-wired sensor base ready to accept field-installed screw-in motion/daylight sensors or LEDVANCE LINK Bluetooth modules.
- Rebates & Ingress: Certified DLC Premium for utility rebate qualification nationwide and cULus Listed for damp locations.
Description
Description
LEDVANCE Sylvania 62877 Dual Selectable Linear High Bay — 300/275/255W Selectable — 4000K/5000K — White
The LEDVANCE Sylvania LNHIBA5A/S300UNVD8SC14/12/WH is a commercial linear high bay engineered to deliver up to 41,100 lumens with field-adjustable 300W / 275W / 255W wattage settings and switchable 4000K / 5000K color temperatures. Operating on 120-277V electrical systems with 0–10V continuous dimming, this luminaire provides an environmentally preferable energy-efficient replacement for legacy fixtures up to 1000W MH. Built with a damp location rating and cULus Listing, it is qualified for commercial utility rebates under DLC Premium standards and features a pre-wired sensor base for modular control integration.

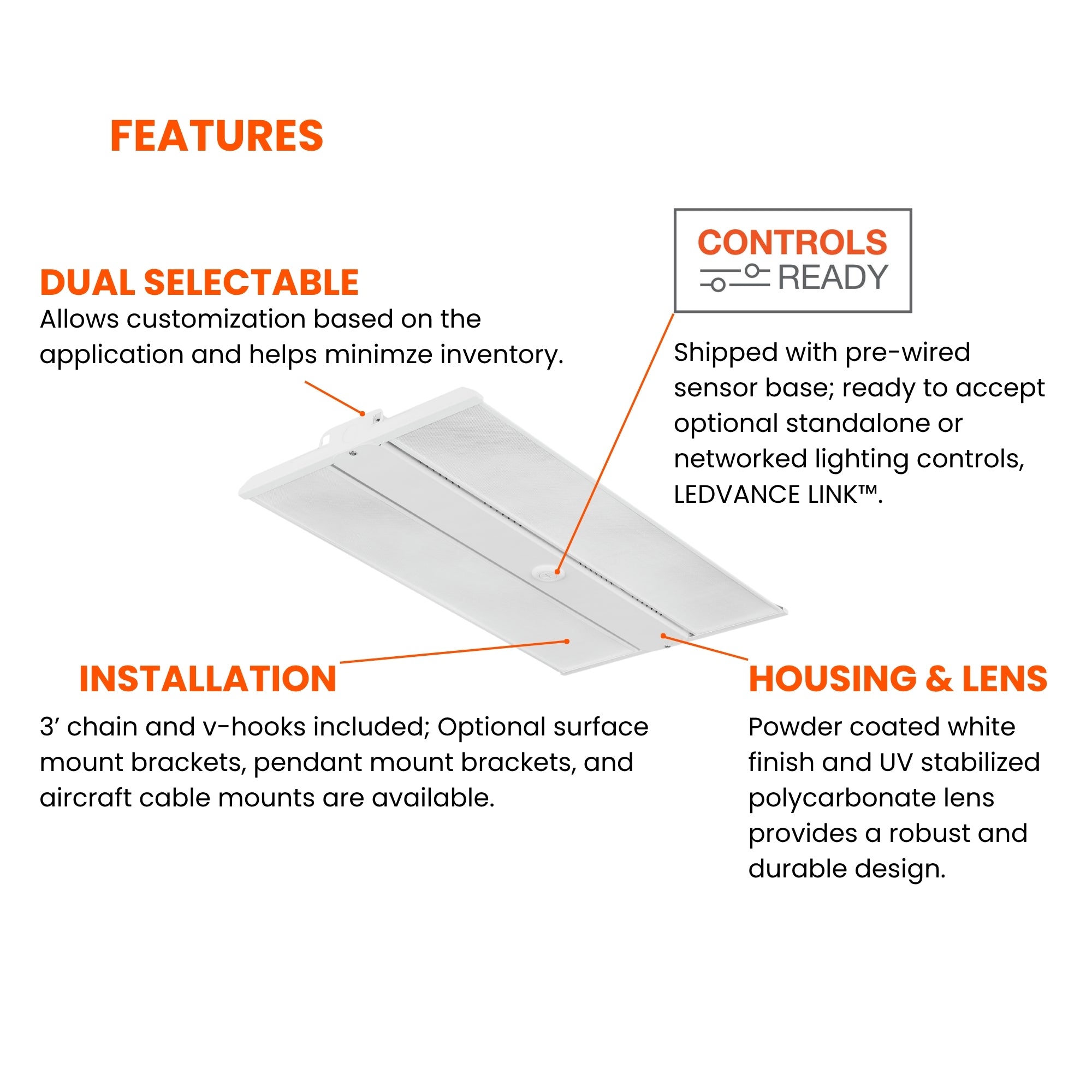

Key Features

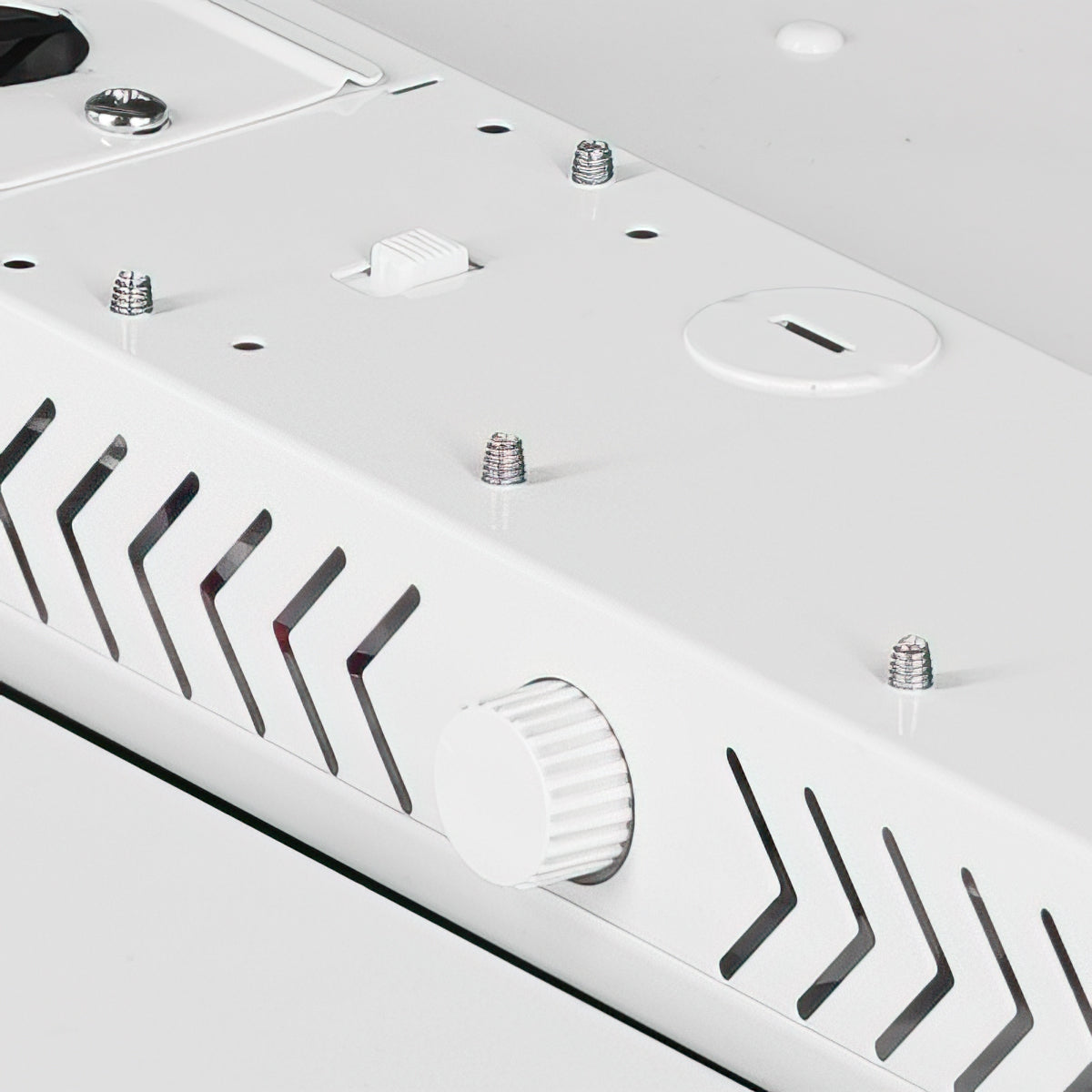

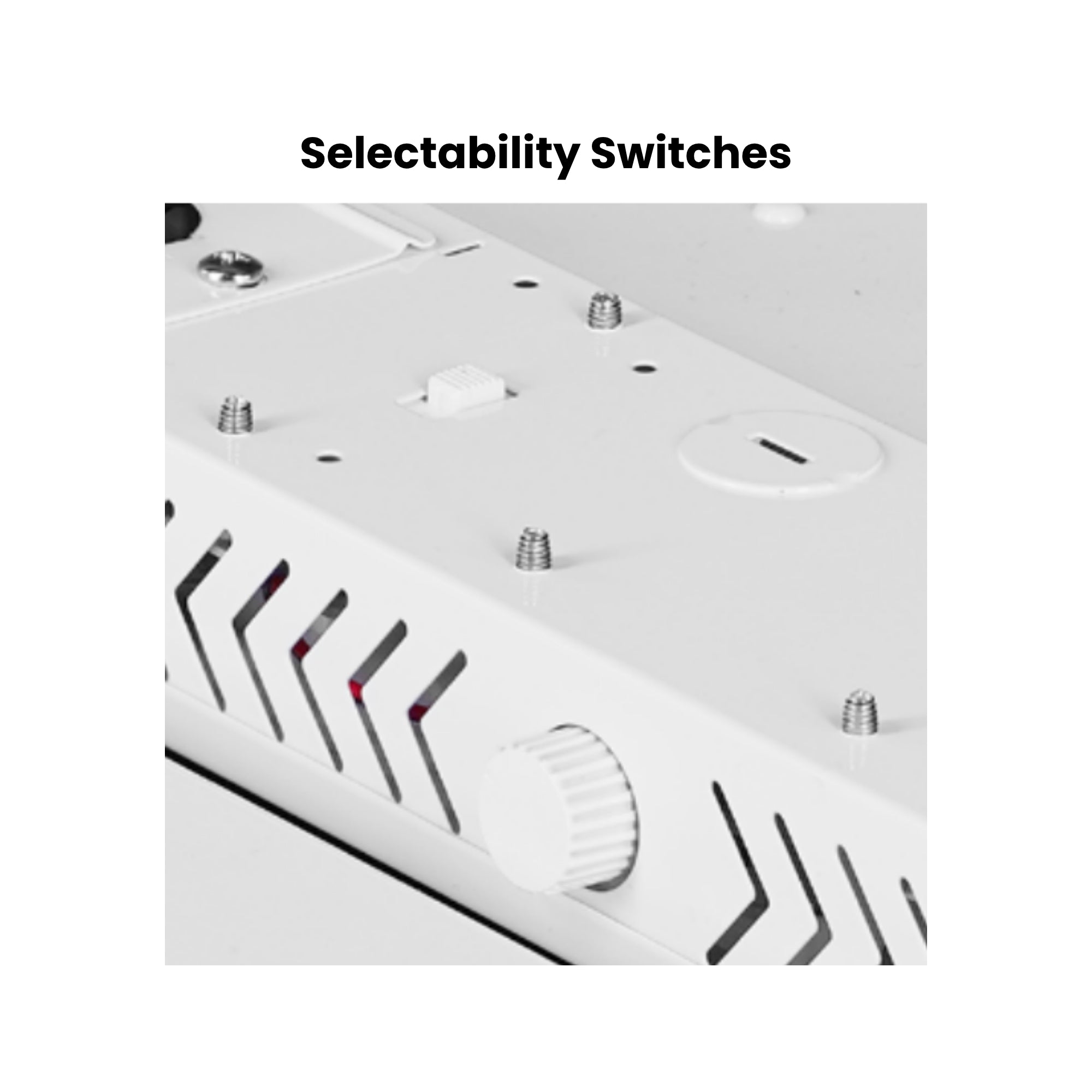

- Selectable Wattage: 300W / 275W / 255W — field-adjustable via onboard switch
- Wattage Equivalency: Replaces legacy 1000W MH and fluorescent fixtures for up to 73% energy savings
- Maximum Lumen Output: 41,100 lm at 300W
- Peak Efficacy: Up to 144 lm/W for high-efficiency commercial operation
- CRI: >80 color rendering across all settings
- Selectable CCT: 4000K / 5000K — field-adjustable via onboard switch
- Dimming: 0–10V continuous dimming standard
- Voltage: Universal 120-277V AC
- Location Rating: cULus Listed for damp locations
- Operating Temperature: −22°F (−30°C) to 122°F (50°C) ambient range

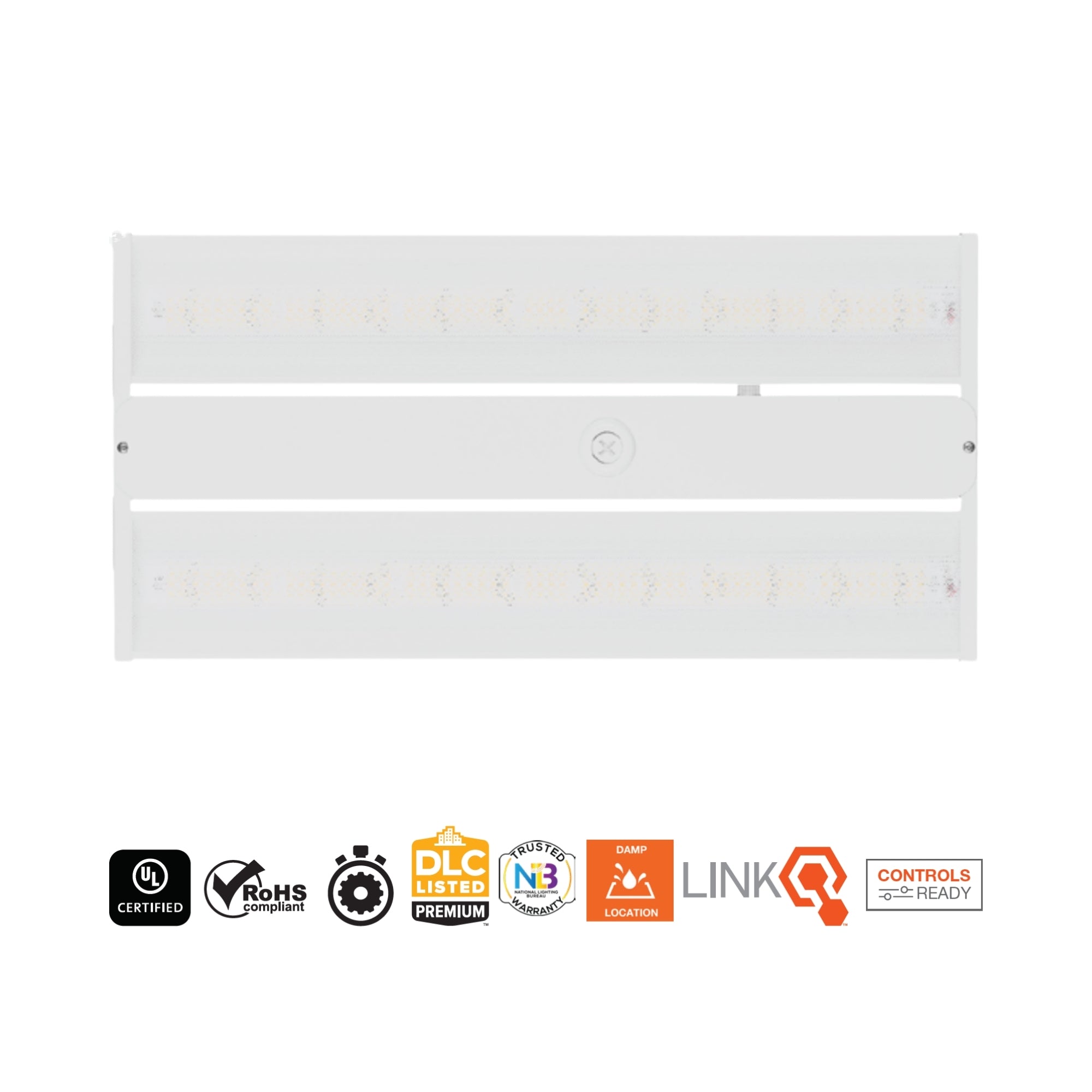

- Certifications: DLC Premium, cULus Listed, RoHS Compliant
- Rated Life: L70 100,000 hours
- Warranty: 5-year warranty — LEDVANCE
- Sensor Compatibility: Pre-wired sensor base accepts field-installed screw-in controls
Performance & Light Output
| Wattage | Total Lumens | Efficacy | Legacy Equivalent |
|---|---|---|---|
| 300W | 41,100 lm | Up to 144 lm/W | ~1000W MH / 8-lamp 54T5HO |
| 275W | 38,700 lm | Up to 144 lm/W | ~750W MH / 8-lamp 54T5HO |
| 255W | 36,700 lm | Up to 144 lm/W | ~750W MH / 8-lamp 54T5HO |
CRI >80 across all configurations. Rated life 100,000 hours (L70). Delivers up to 73% direct energy reduction compared to traditional high-intensity discharge systems.
Smart & Control Features
The Dual Selectable Linear High Bay 5A features a pre-wired sensor base supporting modular sensing and automated facility lighting control:
- 0–10V Continuous Dimming (Standard): Standard dimming control compatible with commercial 0–10V dimmers.
- Sensor Compatibility (Accessory): Accepts field-installable screw-in microwave or PIR occupancy sensors.
- LEDVANCE LINK (Accessory): Compatible with LEDVANCE LINK Bluetooth Mesh low-voltage components for wireless control via the LEDVANCE LINK App or wireless wall controllers. (Requires Sensor Adapter 63652).
Compatible plug-and-play sensors include the 65622 (Microwave Sensor), 62664 (PIR Sensor), and 62634 (LEDVANCE LINK Bluetooth Sensor) — sold separately.
Electrical
Powered by a constant current driver operating on 120-277V AC. Delivers high electrical efficiency with a Power Factor >0.90 and Total Harmonic Distortion (THD) <20%. Integrated 6kV surge protection protects internal electronics against transient voltage spikes. RoHS compliant.
Construction
Housing & Thermal: Compact linear housing engineered for optimal thermal management to preserve lumen maintenance across the 100,000-hour rated lifespan.
Finish: Commercial finish in White.
Environmental Sealing: cULus Listed for damp locations. Ambient operating temperature range: −22°F (−30°C) to 122°F (50°C).

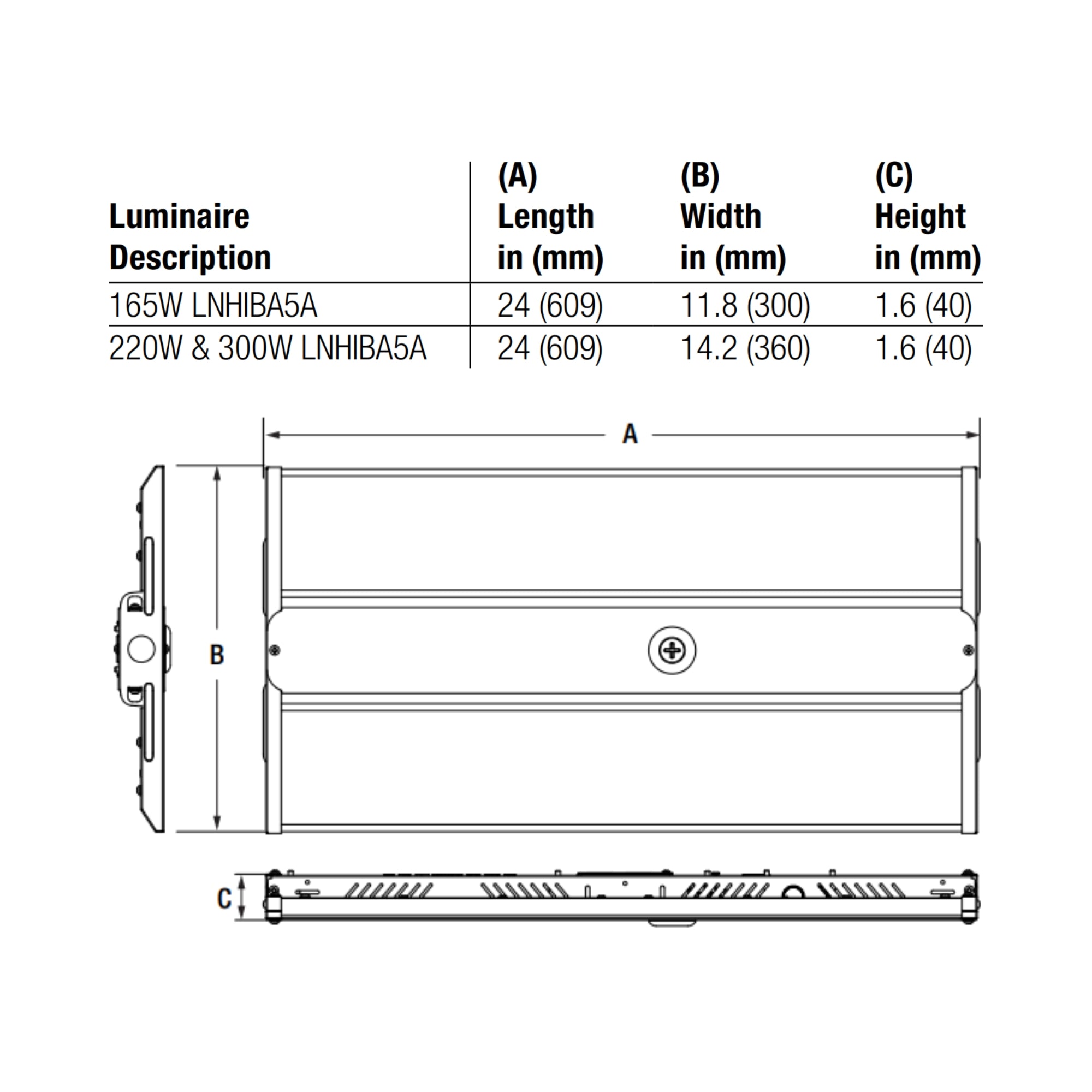

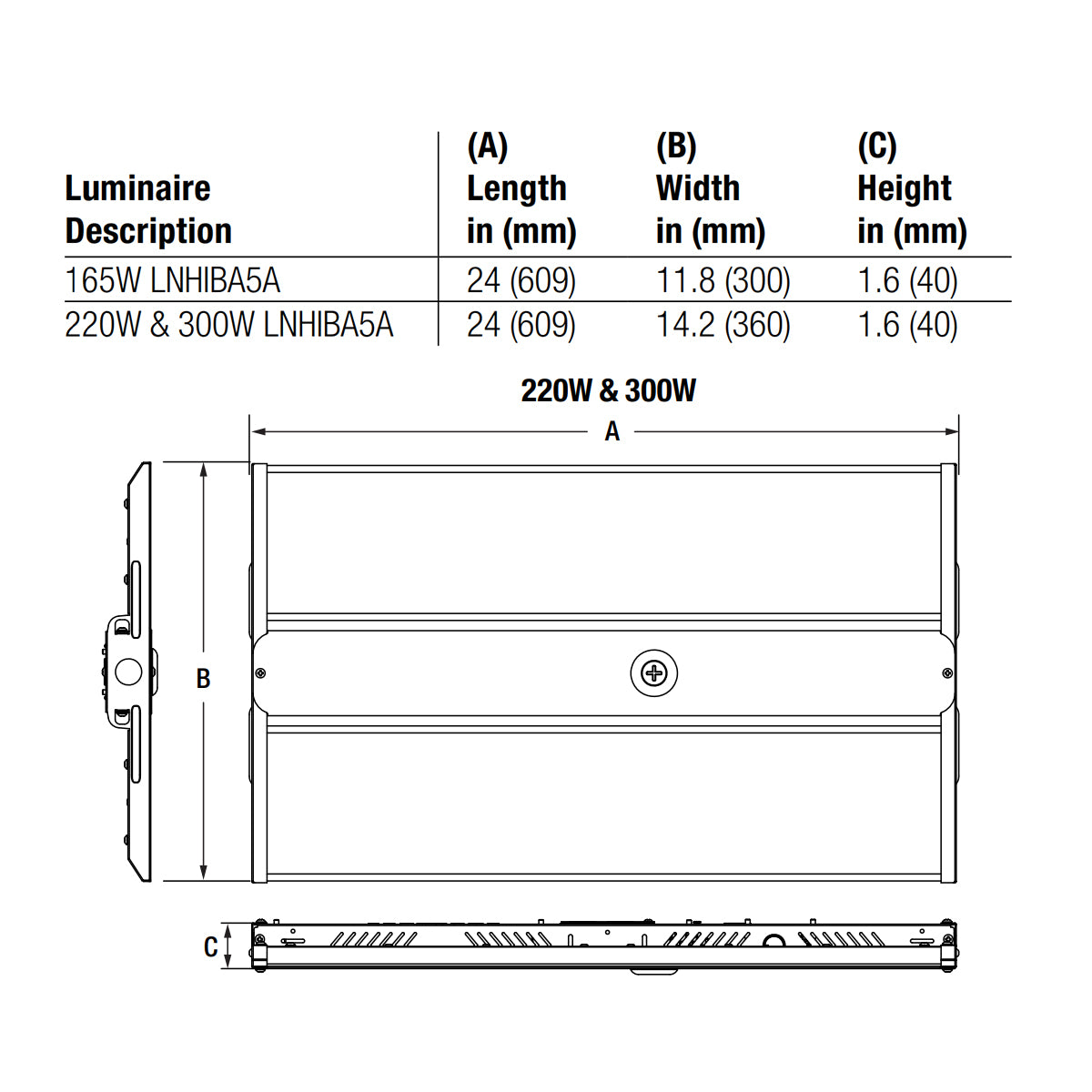

Dimensions: 24.0" L × 14.2" W × 1.6" H.

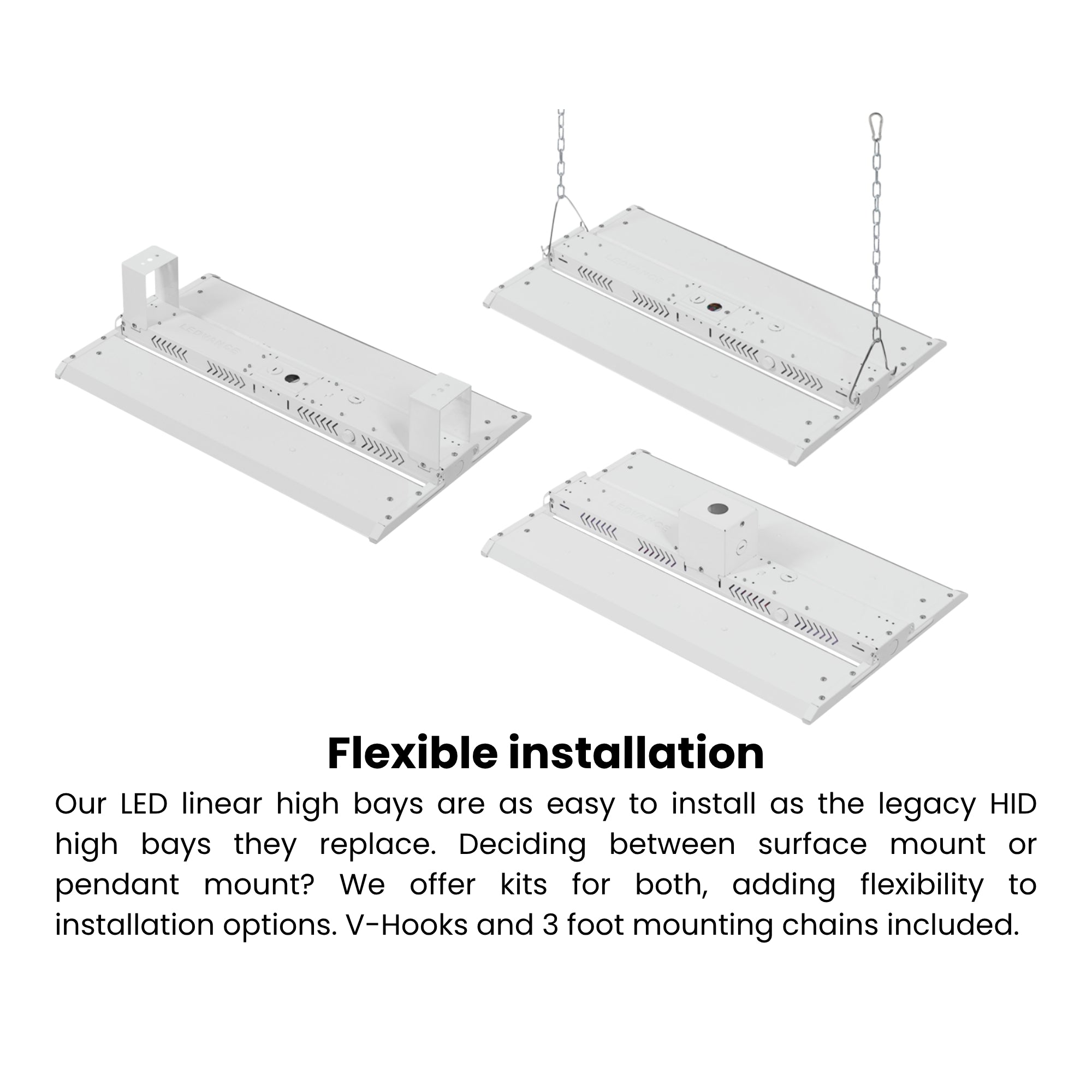

Installation & Mounting

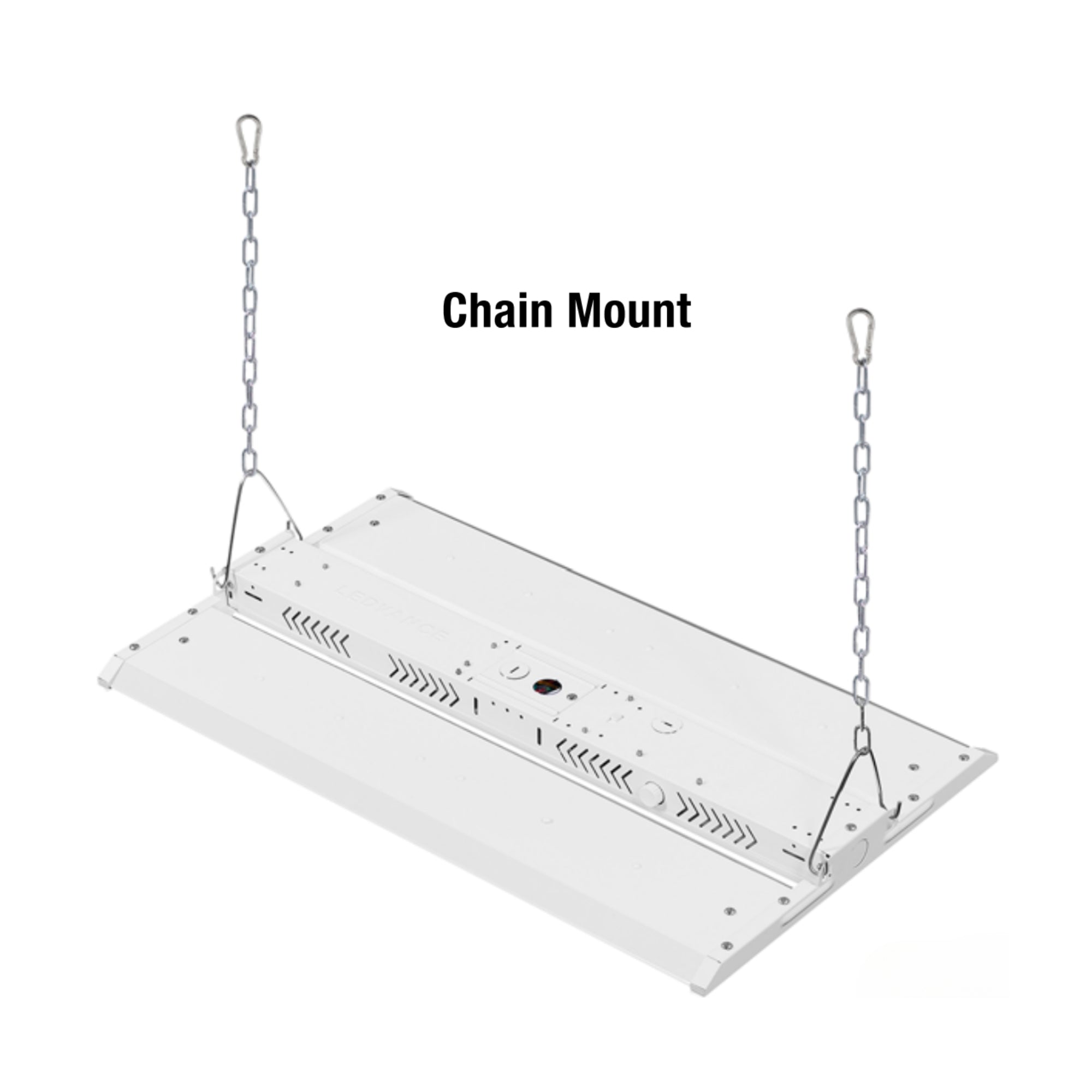

Standard Hardware: Ships standard with V-hooks and 3-foot mounting chains.
Mounting Options: Compatible with surface mounting brackets, pendant mounting brackets, and aircraft cable mounts (sold separately).

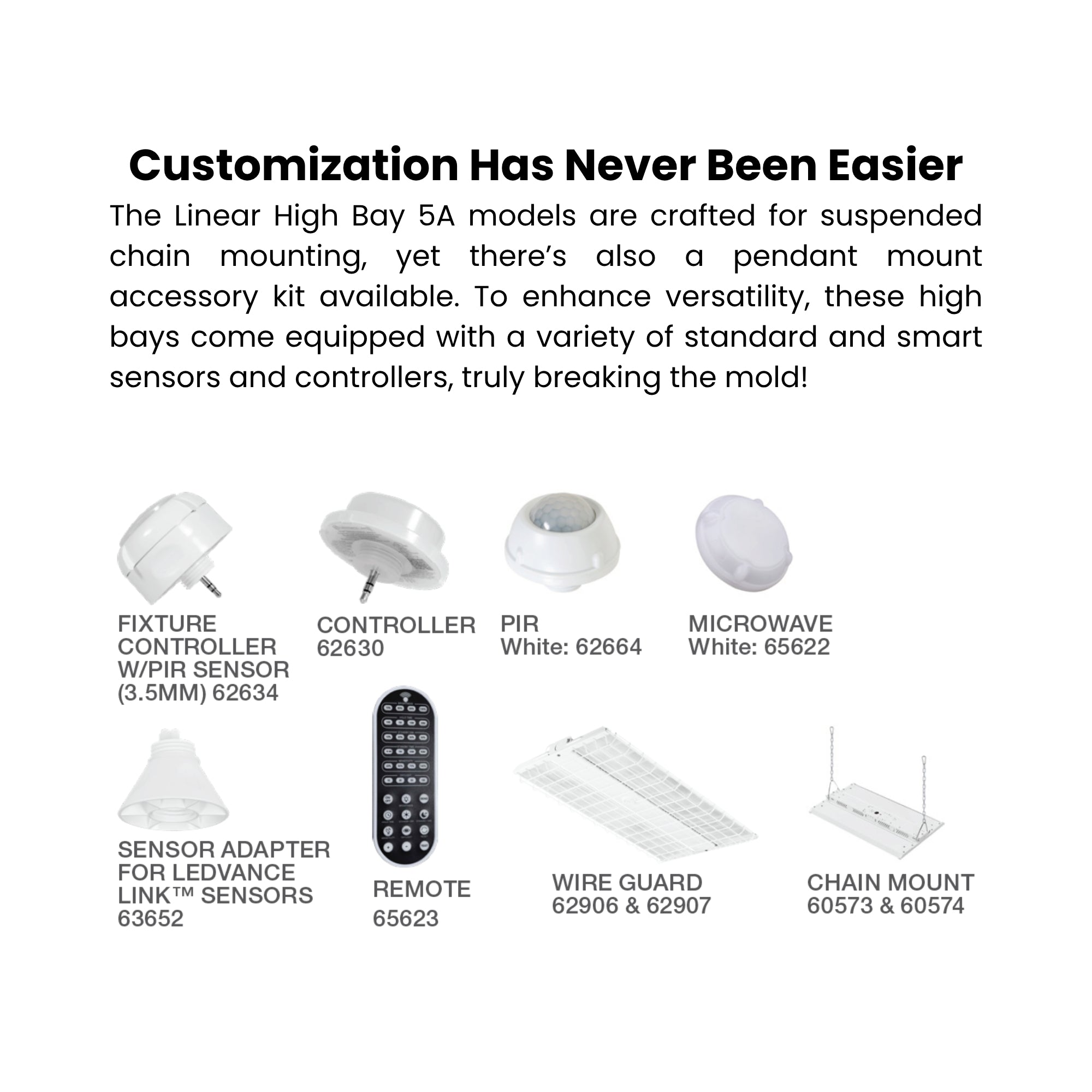

Accessories (Sold Separately):
- Mounting Brackets: LNHIBA5A/SURFMTGBRACKET/WH (Surface Mount Bracket) | LNHIBA5A/PENDMTGBRACKET/WH (Pendant Mount Bracket) | LNHIBA2A/ACCABLEMT (Cable Mount)
- Sensors & Controls: 65622 (Microwave Sensor) | 62664 (PIR Sensor) | 65623 (Sensor Remote) | 62634 (LEDVANCE LINK Bluetooth Sensor) | 63652 (Sensor Adapter) | 62630 (LINK Controller)
Certifications & Rebates
- DLC Premium: Qualifies for commercial lighting utility rebate programs nationwide
- cULus Listed: Certified for damp locations per UL standards for commercial luminaires
- RoHS Compliant: Manufactured free of lead, mercury, and hazardous heavy metals
Typical Applications

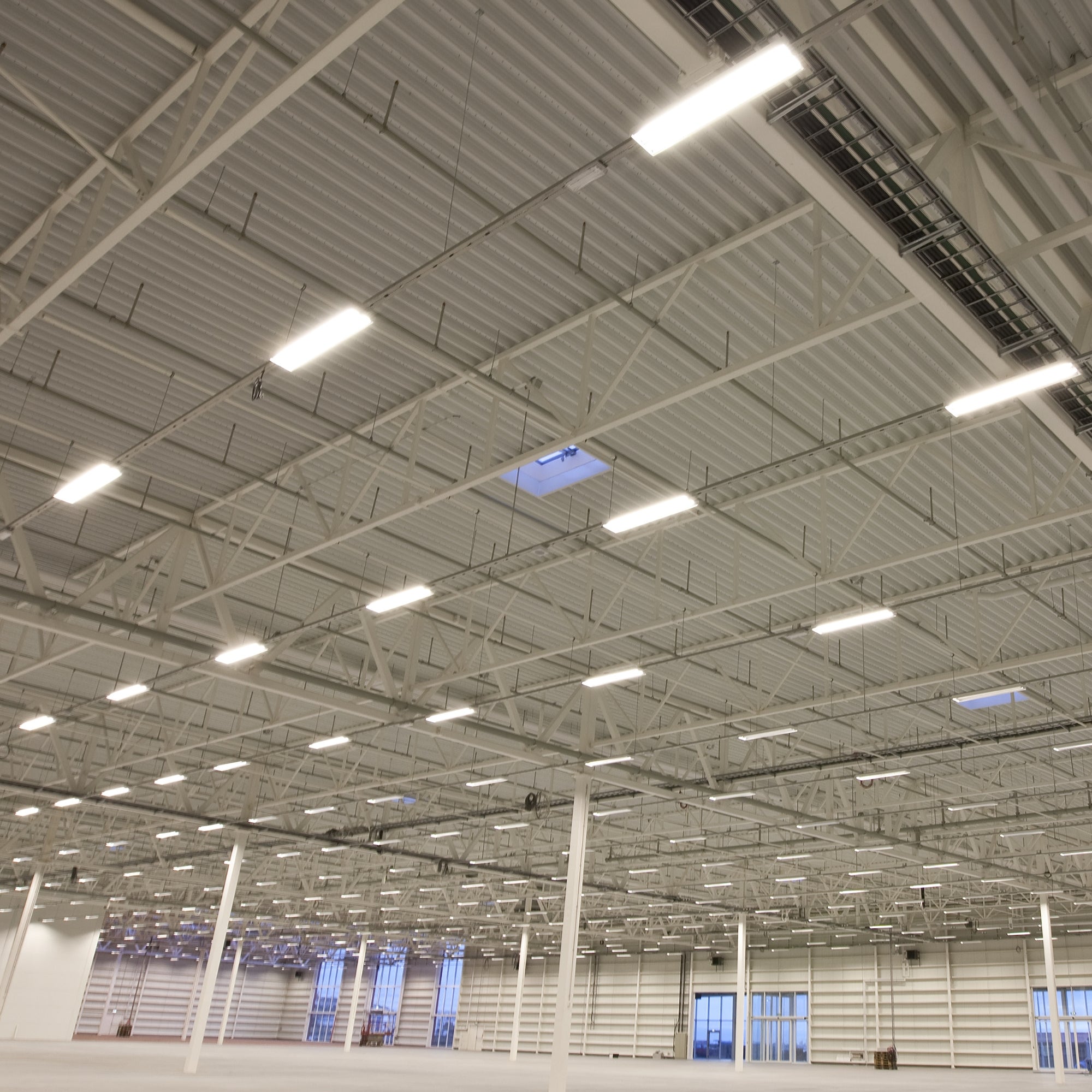

- Open Warehouse & Distribution Floors — linear form factor provides broad, uniform footcandle distribution across large spaces and racking aisles
- Unconditioned Warehouses & Cold Storage — −22°F (−30°C) minimum ambient temperature rating supports reliable ignition in freezing environments
- Precision Assembly & Inspection Areas — field-adjustable 4000K/5000K CCT allows illumination tuning for visual task accuracy
- Gymnasiums & Athletic Facilities — compact design and optional wire guards provide robust durability against mechanical impacts
What's Included
- LEDVANCE Sylvania 62877 Dual Selectable Linear LED High Bay — White
- V-hooks and 3-foot mounting chains
- Pre-wired sensor base
- Installation and operation instructions
