LEDVANCE Sylvania 62875 Dual Selectable 2FT Linear LED High Bay — 105/135/165W Selectable — 4000K/5000K — 120–277V — White
Available in stock (302)
About this item
About this item

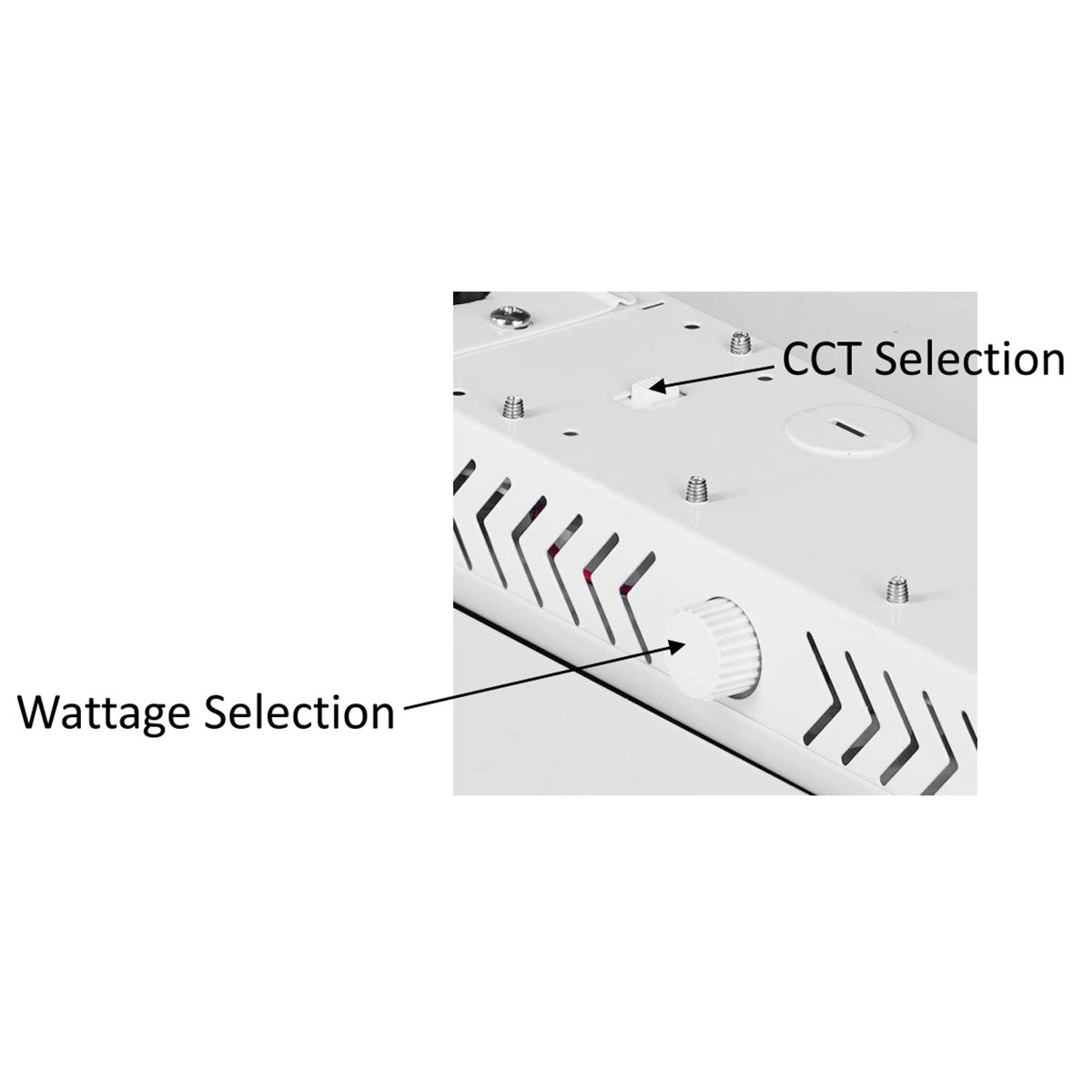

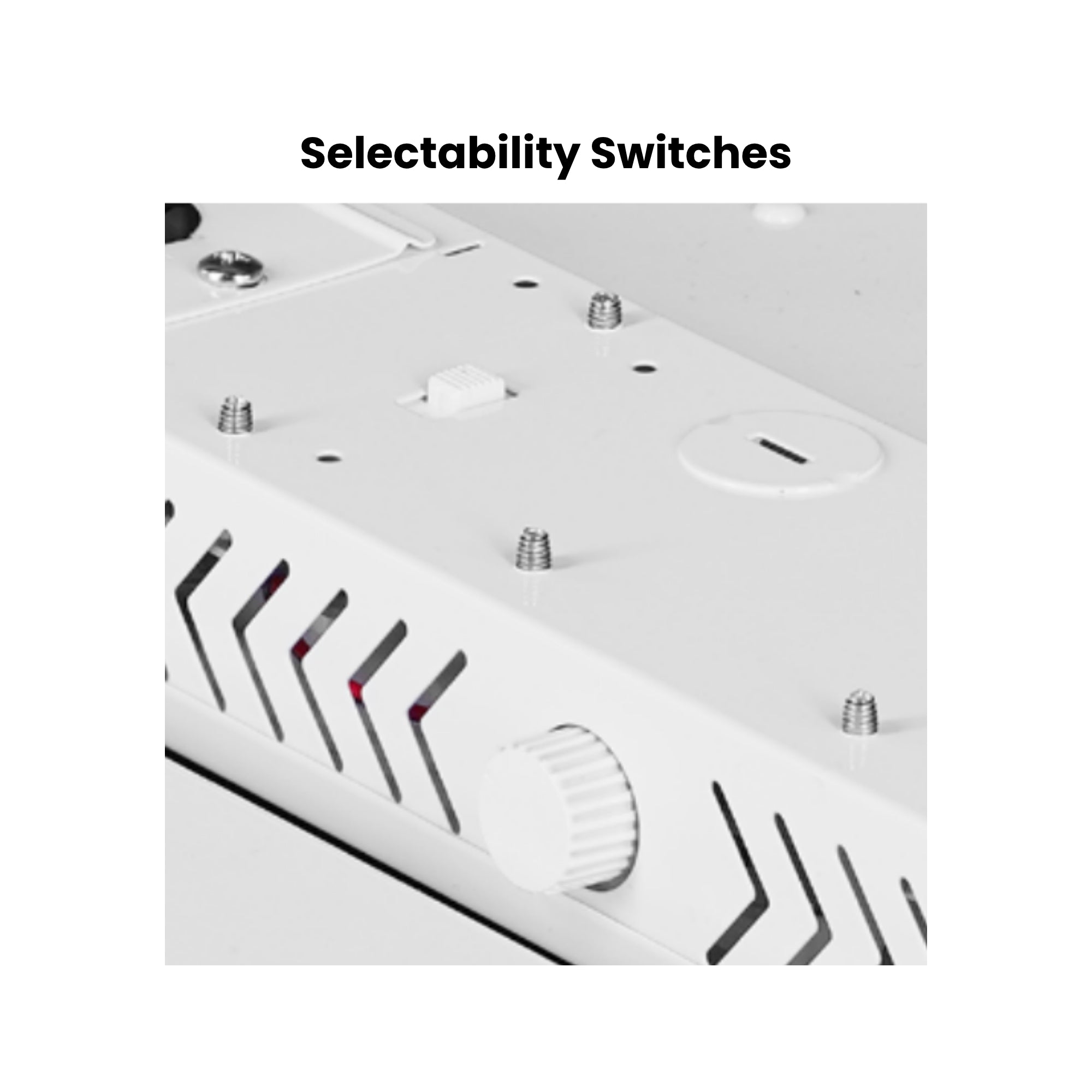

- Selectable Output: Field-select 165W, 135W, or 105W at the fixture — delivers up to 22,100 lumens at up to 139 lm/W. No rewiring required.
- Selectable CCT: Field-select 4000K or 5000K at the fixture — one SKU covers neutral white and cool white for any facility environment.
- Compact 2FT Form Factor: Designed for lower mounting heights and tighter bay spacing — ideal for mezzanines, loading docks, and facilities where standard 4FT fixtures are oversized.
- DLC 5.1 Premium: Qualifies for the highest tier of utility rebate programs in most U.S. markets.
- LEDVANCE LINK™ Bluetooth® Mesh Ready: Pre-wired sensor base accepts LEDVANCE LINK motion and daylight sensors for occupancy-based automation. 0–10V dimming standard.
We process payments securely and do not store credit card information.
Description
Description

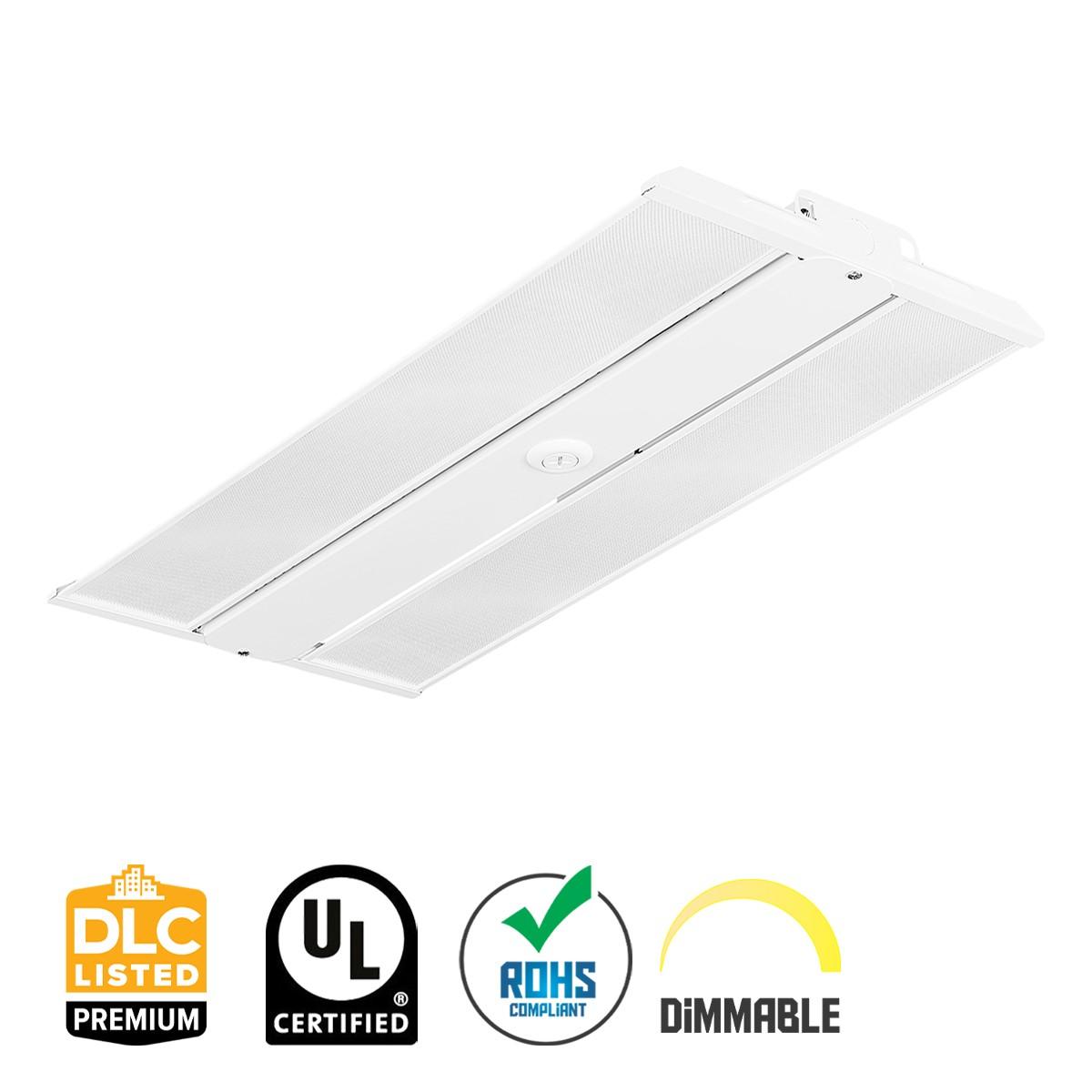

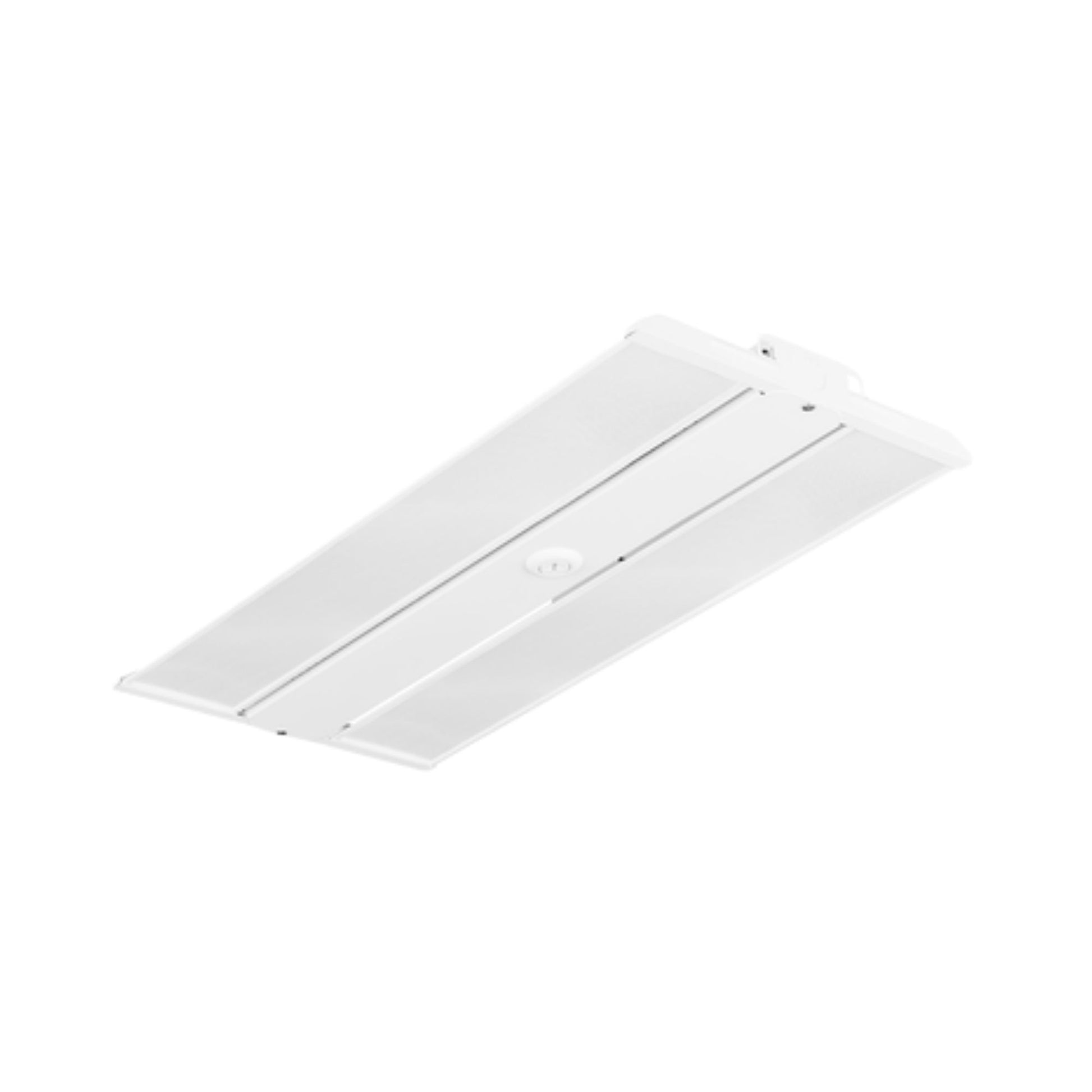

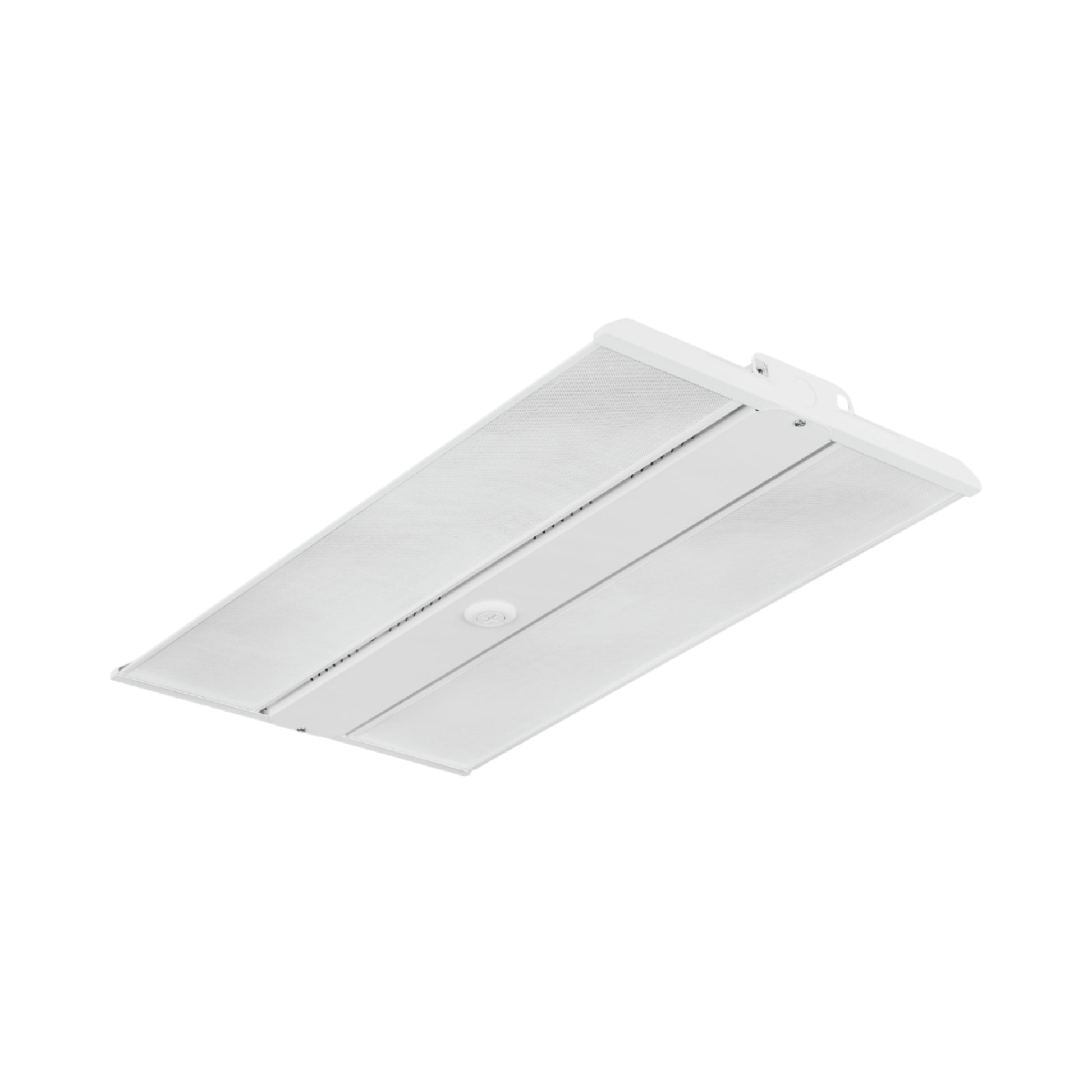

LEDVANCE SYLVANIA 62875 Dual Selectable 2FT Linear LED High Bay — 105/135/165W Selectable — 4000K/5000K — 120–277V — White
The LEDVANCE SYLVANIA 62875, MPN LNHIBA5A/S165UNVD8SC14/12/WH, is a 2FT linear LED high bay delivering up to 22,100 lm with field-selectable 105W / 135W / 165W output and 4000K/5000K CCT. It operates on 120–277V AC with 0–10V dimming, is cULus Listed for damp locations, carries DLC 5.1 Premium qualification, and replaces 4-lamp 54T5HO fluorescent or up to 250W HID.
Key Features
- Selectable Wattage: Field-selectable 105W / 135W / 165W output at the fixture.
- Wattage Equivalency: Replaces 4-lamp 54T5HO fluorescent fixtures or up to 250W HID.
- Maximum Lumen Output: Delivers up to 22,100 lm at the 165W setting.
- Peak Efficacy: Up to 139 lm/W.
- CRI: Greater than 80 across all wattage and CCT settings.
- Selectable CCT: Field-selectable 4000K / 5000K CCT at the fixture.

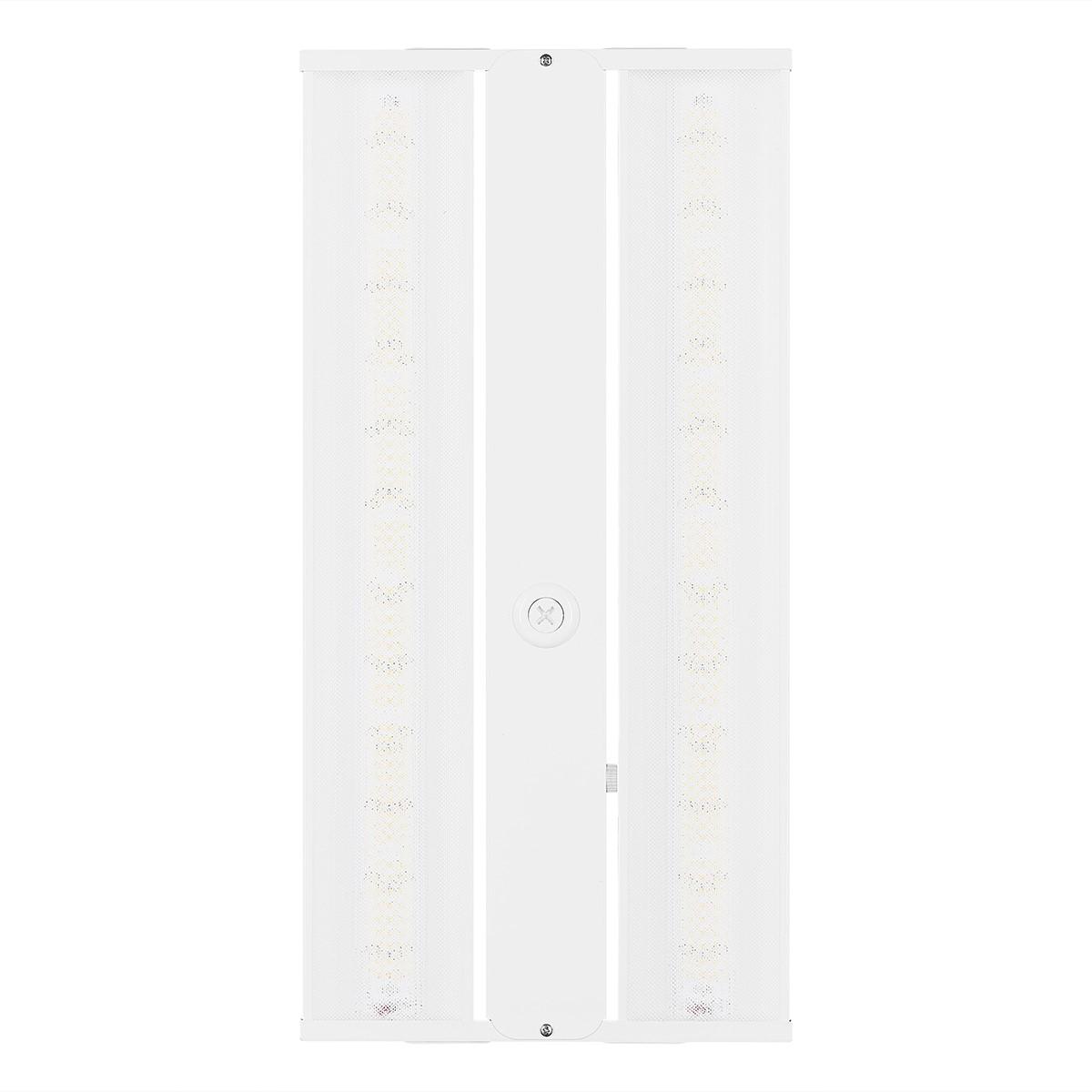

- Lens and Optics: Polycarbonate lens.
- Dimming: Standard 0–10V dimming.
- Voltage and Driver: 120–277V AC, 50/60Hz with a constant-current LED driver.
- Location Rating: Suitable for damp locations.
- Operating Temperature: -22°F to +122°F (-30°C to +50°C).

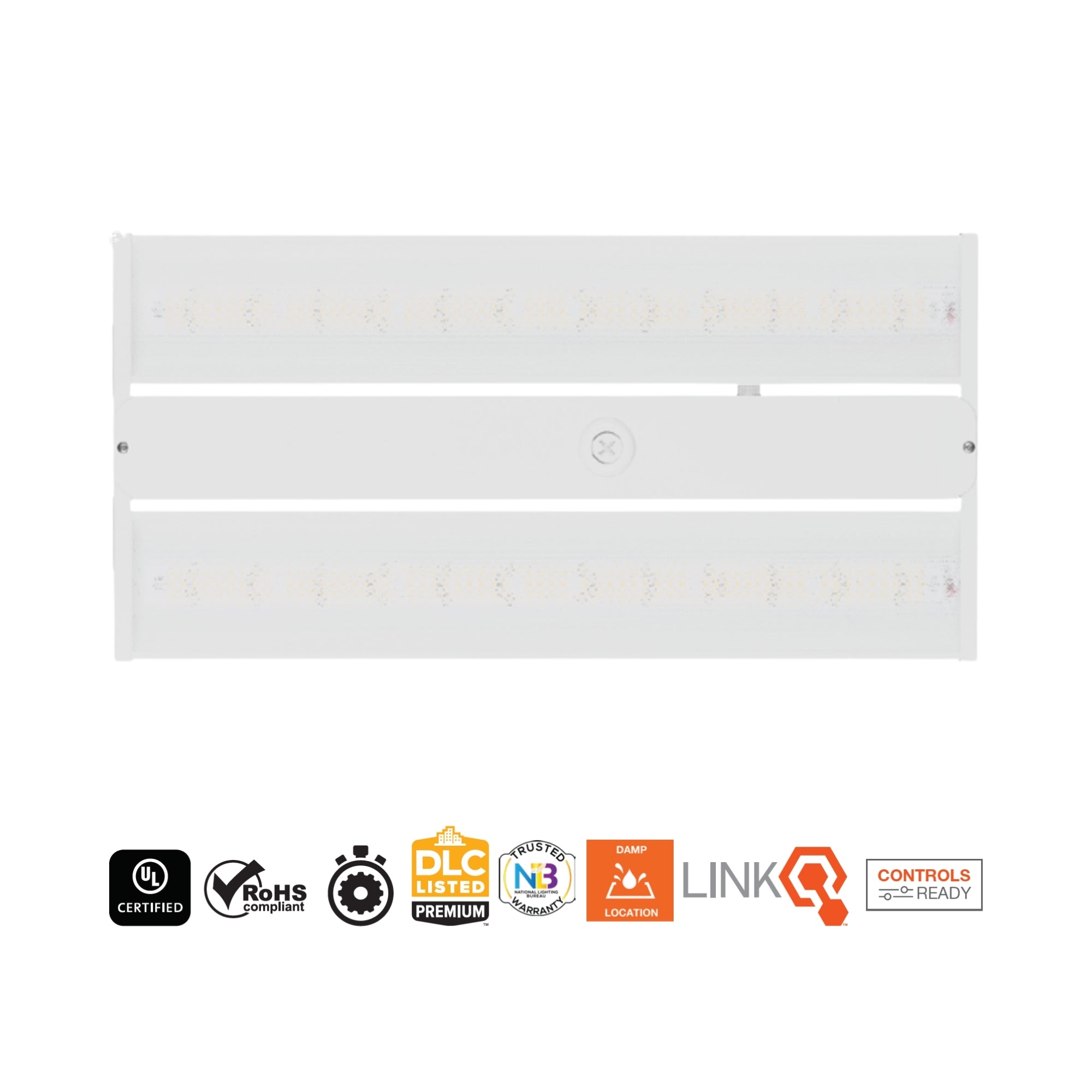

- Certifications: cULus Listed for damp locations and DLC 5.1 Premium qualified.
- Rated Life: 100,000 hours (L70).
- Warranty: 5 years through the NLB Trusted Warranty Program.
Performance & Light Output
At 4000K, the fixture delivers 14,600 lm at 105W, 18,600 lm at 135W, and 22,100 lm at 165W. Efficacy is 139 lm/W, 138 lm/W, and 134 lm/W, respectively. The corresponding fluorescent equivalent is a 4-lamp 54T5HO fixture, with HID equivalency of approximately 175W, 200W, and 250W.
CRI is greater than 80 across all wattage and CCT settings, and rated life is 100,000 hours (L70).
Smart & Control Features

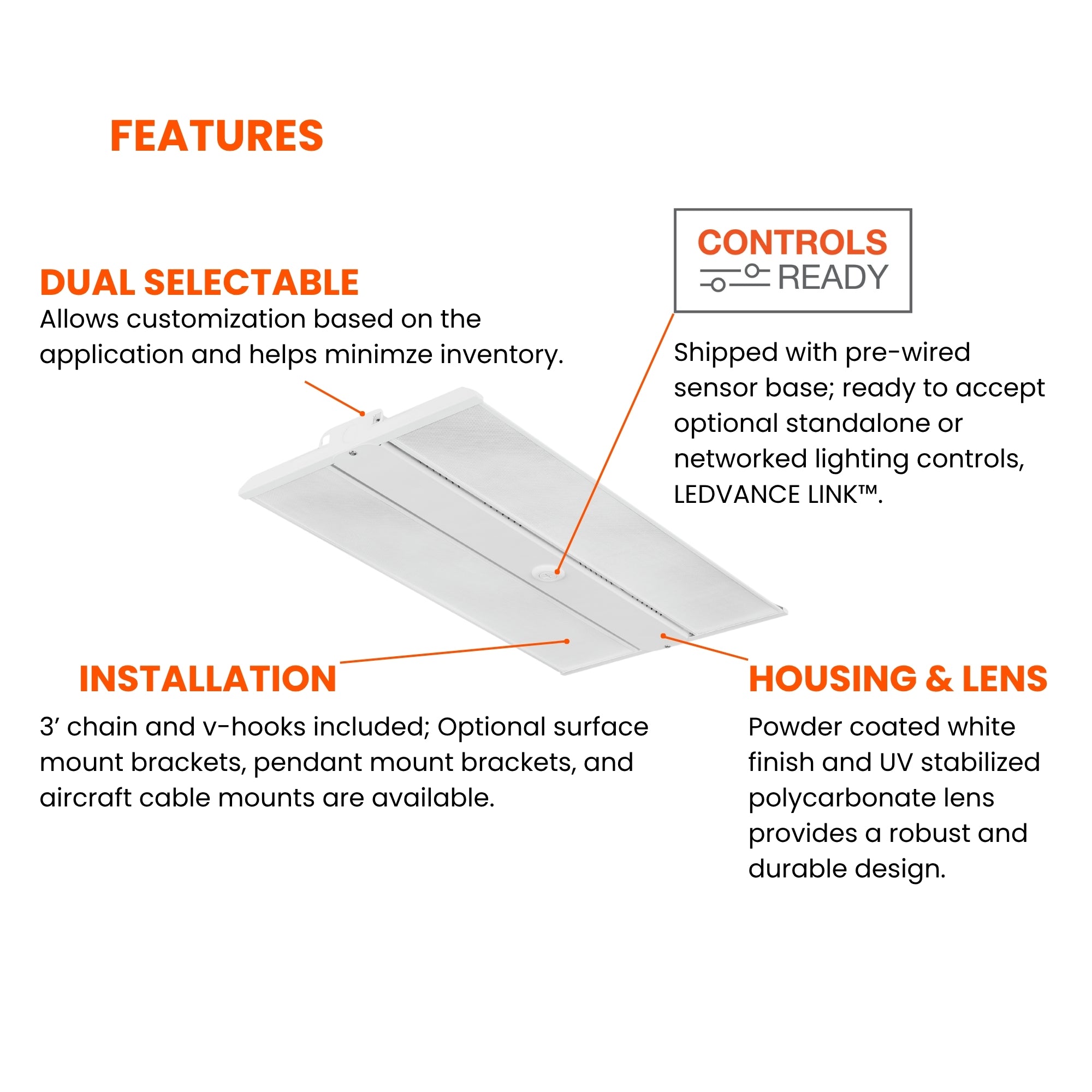

The fixture includes a pre-wired sensor base for adding compatible controls after installation. Optional sensors and control modules are sold separately.
- Motion and Daylight Sensors: The sensor base accepts field-installable microwave or PIR motion/daylight sensors.
- LEDVANCE LINK™: Compatible with LEDVANCE LINK™ Bluetooth® Mesh modules through the sensor base.
Electrical
Constant-current LED driver with 120–277V AC, 50/60Hz input, power factor greater than 0.9, THD less than 20%, and 6kV surge protection. Standard 0–10V dimming. RoHS compliant.
Construction
Housing & Thermal: White steel housing with an ambient operating range of -22°F to +122°F (-30°C to +50°C).
Lens & Optics: Polycarbonate lens.
Finish: White.
Environmental & Safety: Suitable for damp locations and cULus Listed for damp locations.

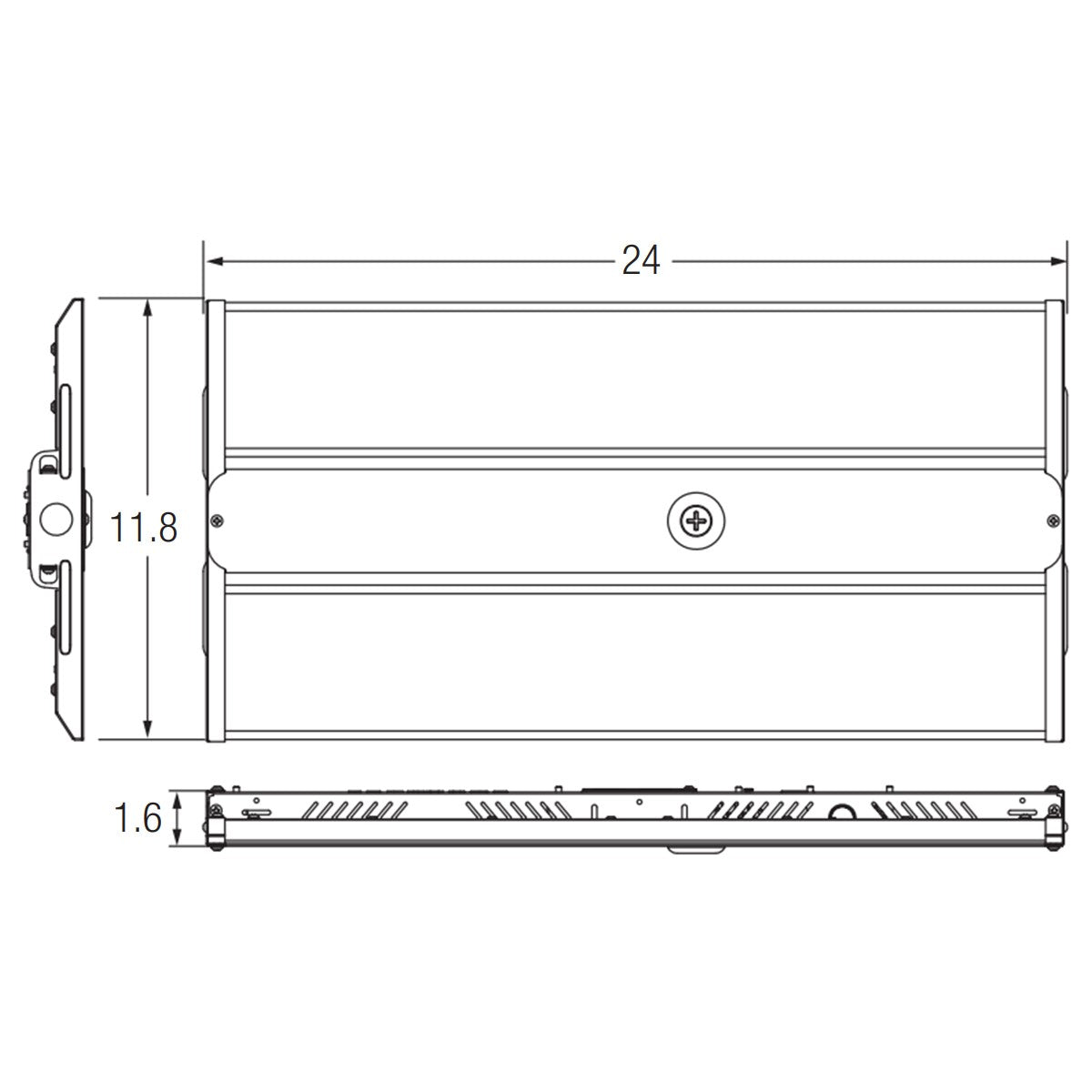

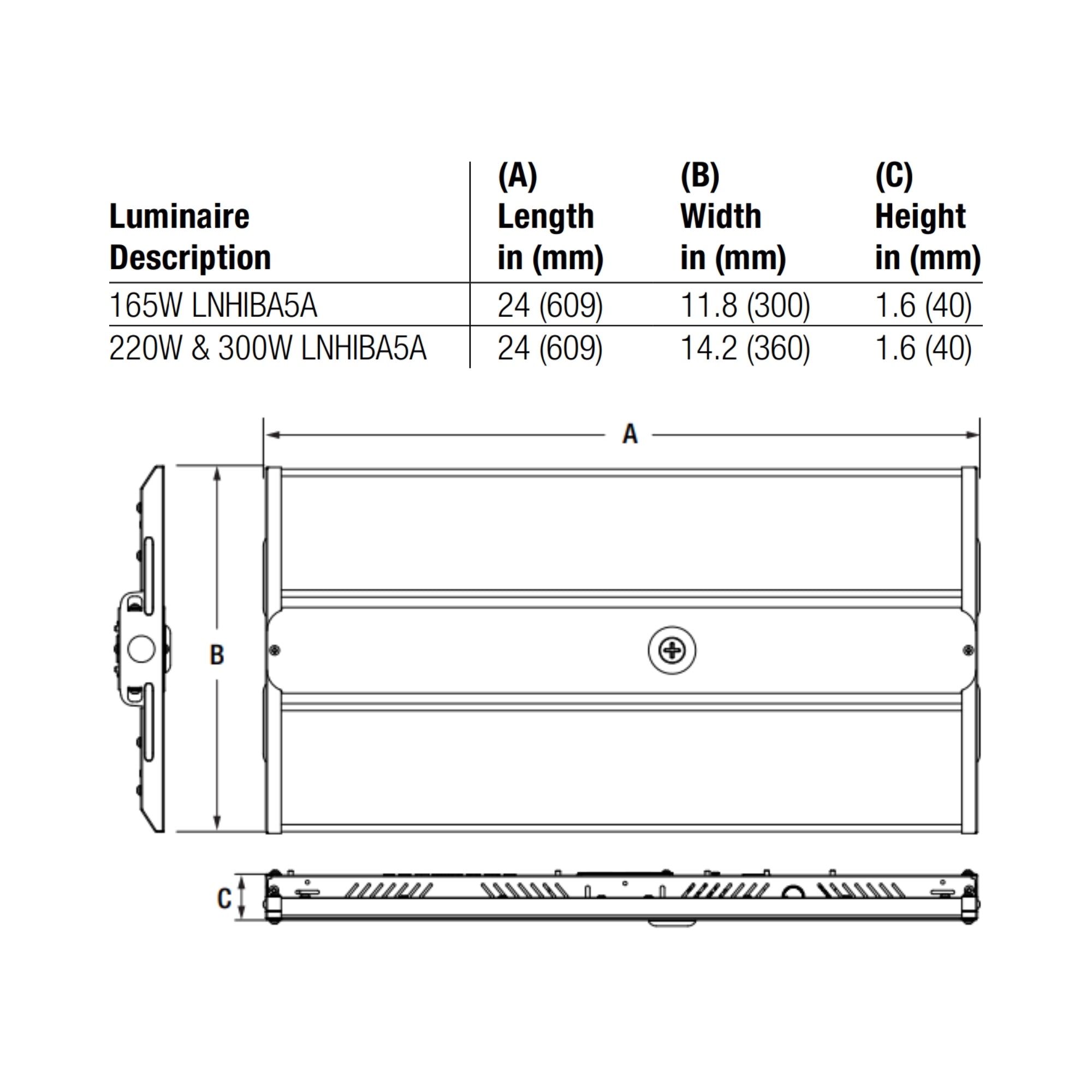

Dimensions & Weight: 24.0 in. L × 11.8 in. W × 1.6 in. H; 5.5 lb.

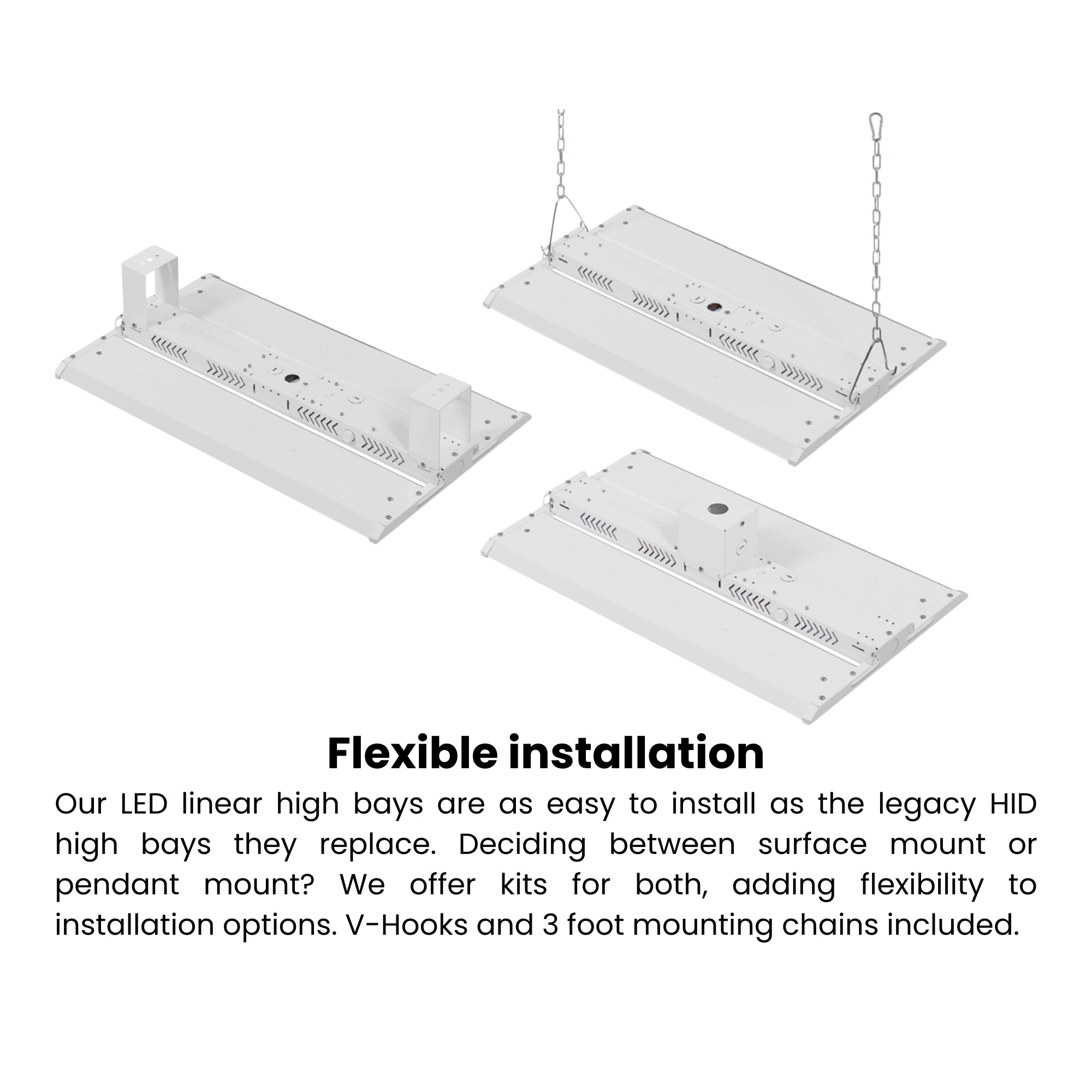

Installation & Mounting

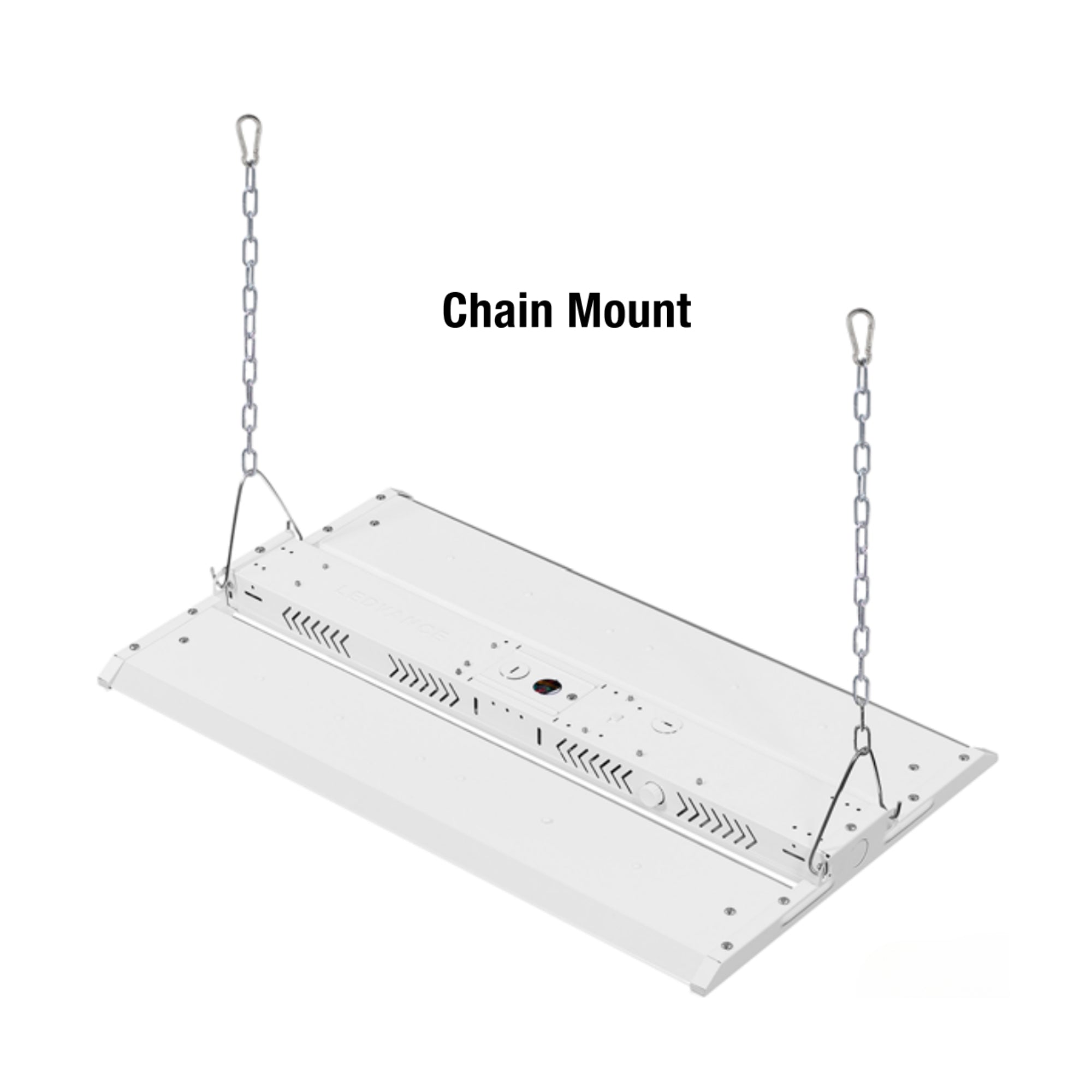

Standard Hardware: Ships with V-hooks and 3-foot mounting chains.
Mounting Options: Surface mount bracket, pendant mount bracket, chain mount, and cable mount options are available separately.
Wiring: Includes a pre-wired sensor base and supports standard 0–10V dimming.

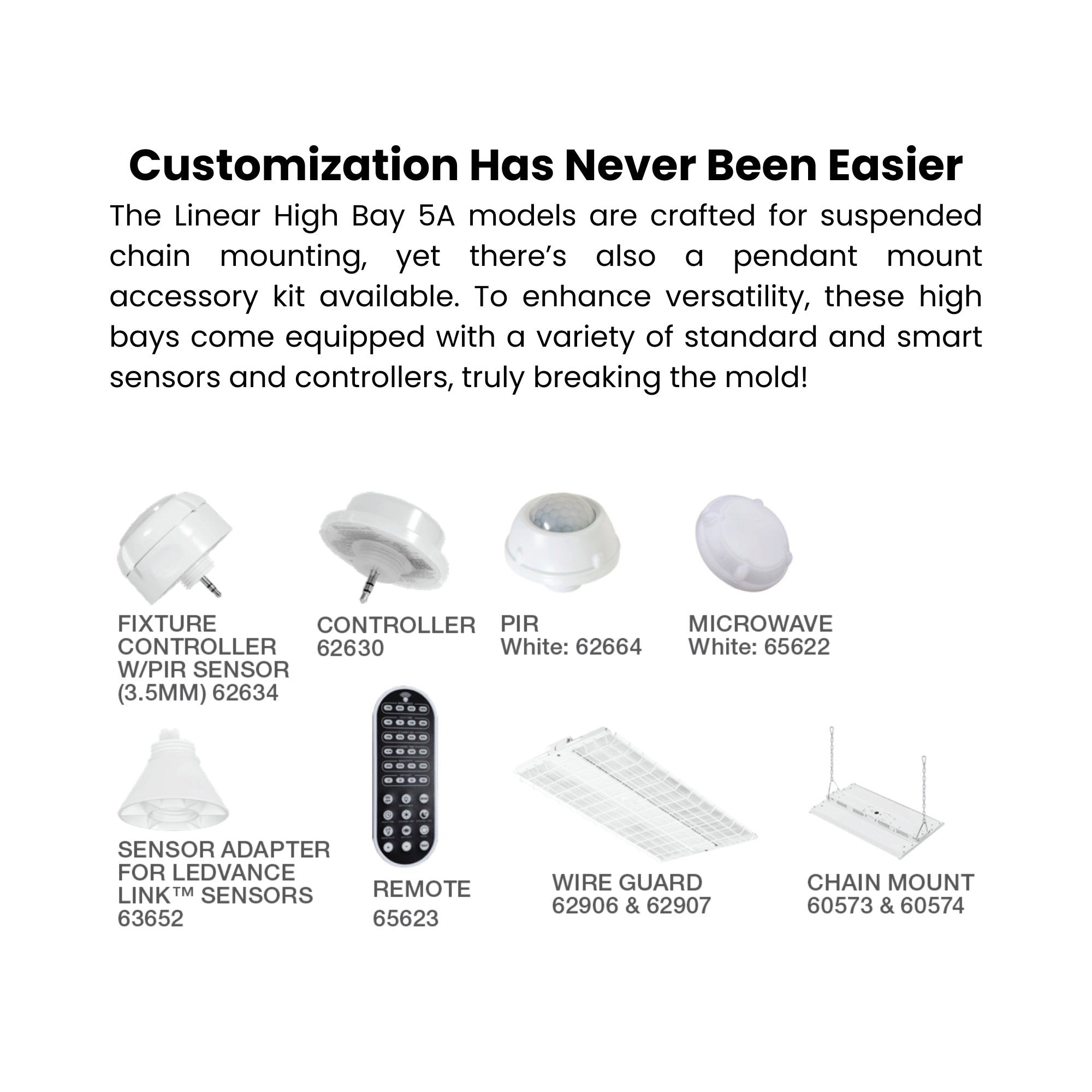

Accessories:
- Surface Mount Bracket — Item 62904
- Pendant Mount Bracket — Item 62905
- Wire Guard for 165W — Item 62906
- Chain Mount, 5 ft — Item 60573, two per SKU
- Cable Mount, 5 ft — Item 60574, two per SKU
- Microwave Motion/Daylight Sensor, IP65, maximum 49 ft mounting height — Item 65622
- PIR DC Motion/Daylight Sensor, IP65, maximum 30 ft mounting height — Item 62664
- Remote Control for sensors — Item 65623
Certifications & Compliance
- cULus Listed: Damp Location rated.
- DLC 5.1 Premium: Qualified for utility rebate programs in most U.S. markets.
- RoHS: Compliant.
- Ordering Abbreviation: LNHIBA5A/S165UNVD8SC14/12/WH.
Typical Applications

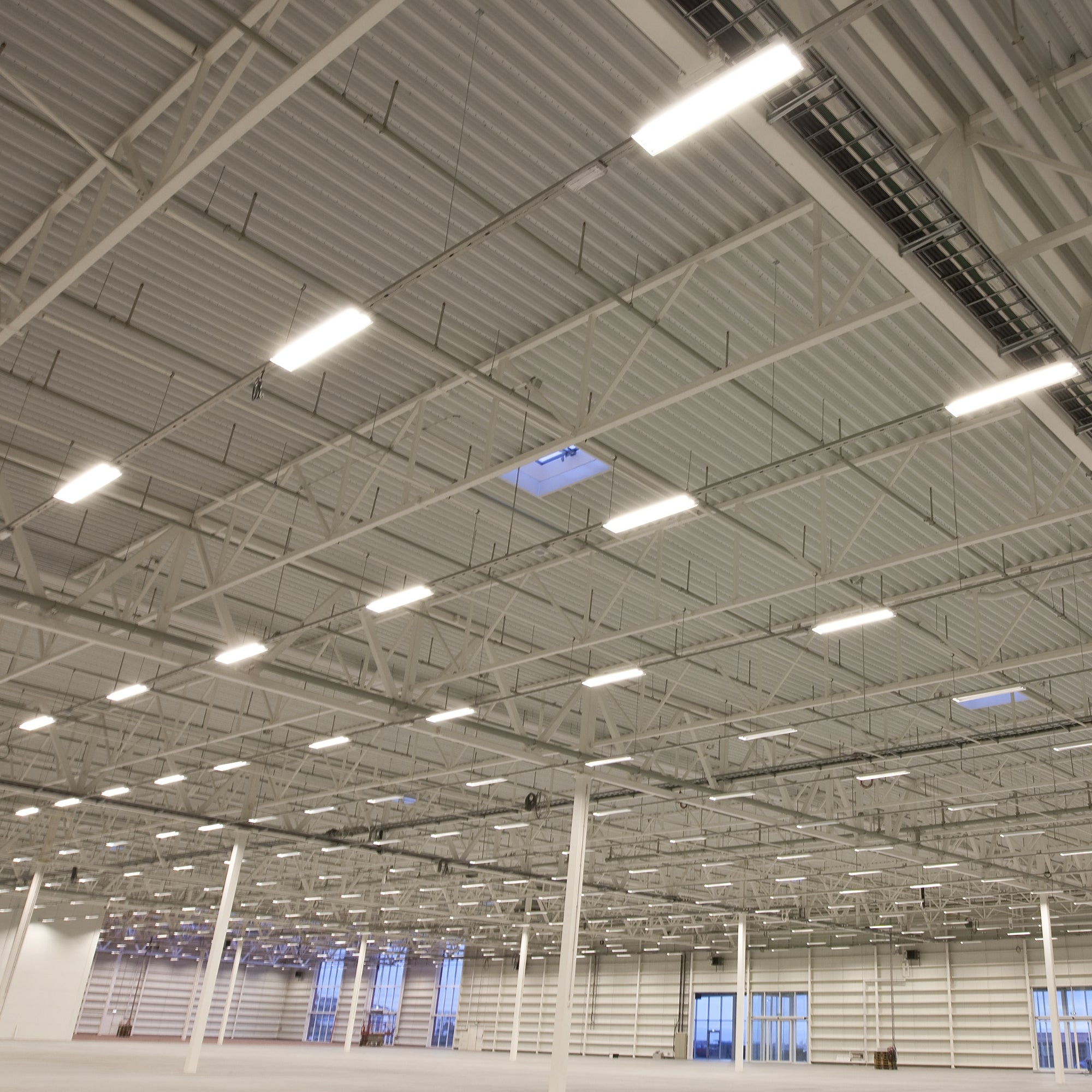

- Warehouses and distribution centers — selectable 105W / 135W / 165W output delivers up to 22,100 lm from a compact 2FT fixture.
- Manufacturing and assembly facilities — selectable 4000K / 5000K CCT and CRI greater than 80 support adaptable general lighting.
- Big-box retail — 0–10V dimming supports adjustable light levels.
- Gymnasiums and recreational facilities — 165W output delivers up to 22,100 lm for large interior spaces.
- Loading docks and industrial storage — damp-location suitability and an operating range down to -22°F support demanding environments.
What's Included
- LEDVANCE SYLVANIA 62875 2FT Linear LED High Bay — White
- V-hooks
- 3-foot mounting chains
