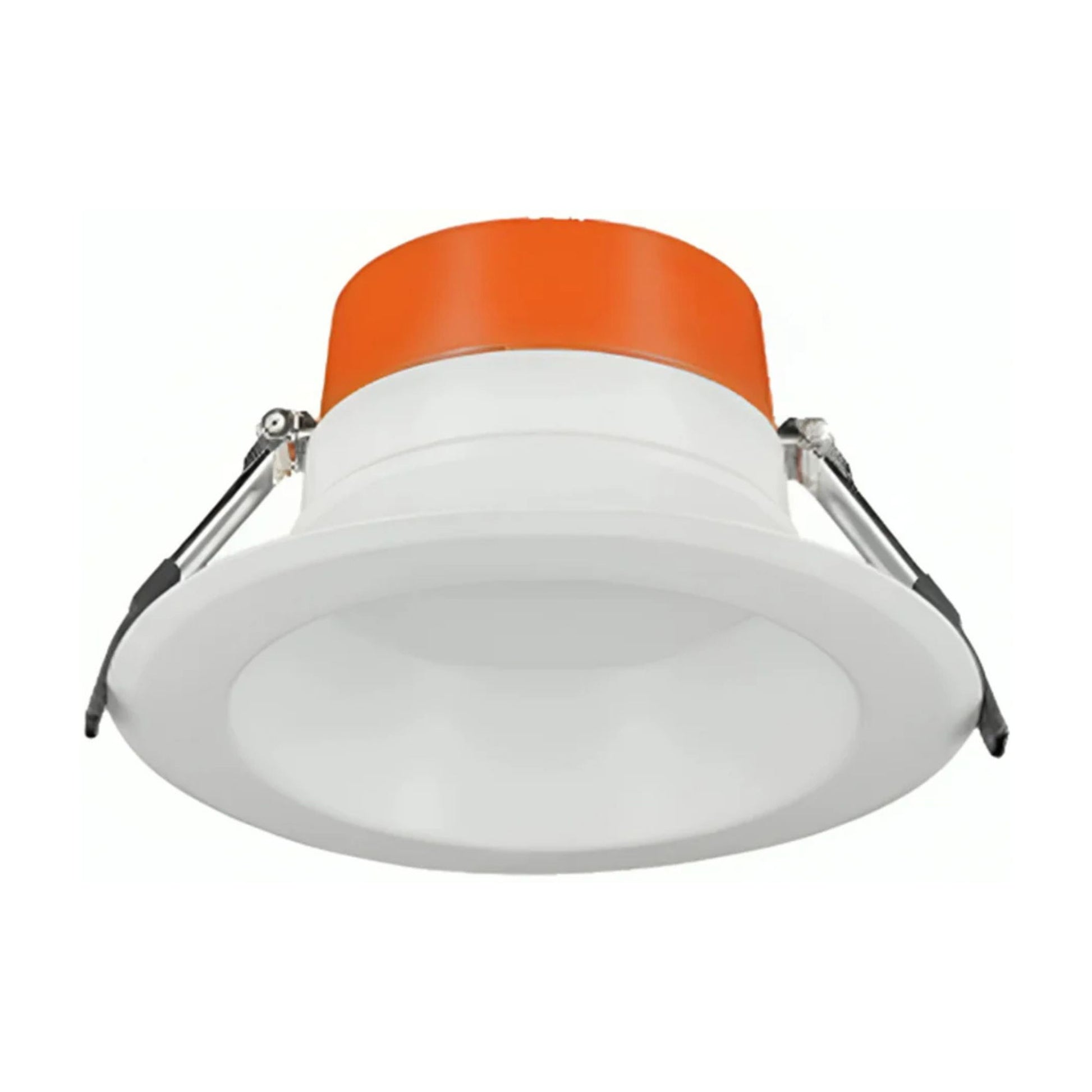

Sylvania 62809 8 in Round Open Deep Regressed LED Downlight — 12/16/22W / 1000/1500/2000 lm / Selectable CCT / 120-277V / White

The Sylvania 62809 (RT8S2000UNVD9SC85ATAA) is an 8 in round open deep regressed LED downlight from the LEDVANCE Performance Class Dual Selectable RT Downlight family. Delivering up to 2,000 lm at 22W with field-selectable 3-step output (1000/1500/2000 lm) and CCT (3000K/3500K/4000K/5000K). Features an 85° beam angle, uniform glare-free illumination, CRI >90, IC rated, wet rated, and emergency battery backup ready. Supports both TRIAC/ELV and 0-10V dimming at 120-277V. ENERGY STAR certified. Title 24 compliant. TAA compliant. 5-year warranty. L70: 50,000 hours. Up to 41% energy savings versus traditional lighting.

Key Features

• Wattage: 12W / 16W / 22W (3-step field selectable)
• Light Output: 1,000 lm / 1,500 lm / 2,000 lm (3-step field selectable)
• Beam Angle: 85° | Uniform, glare-free illumination

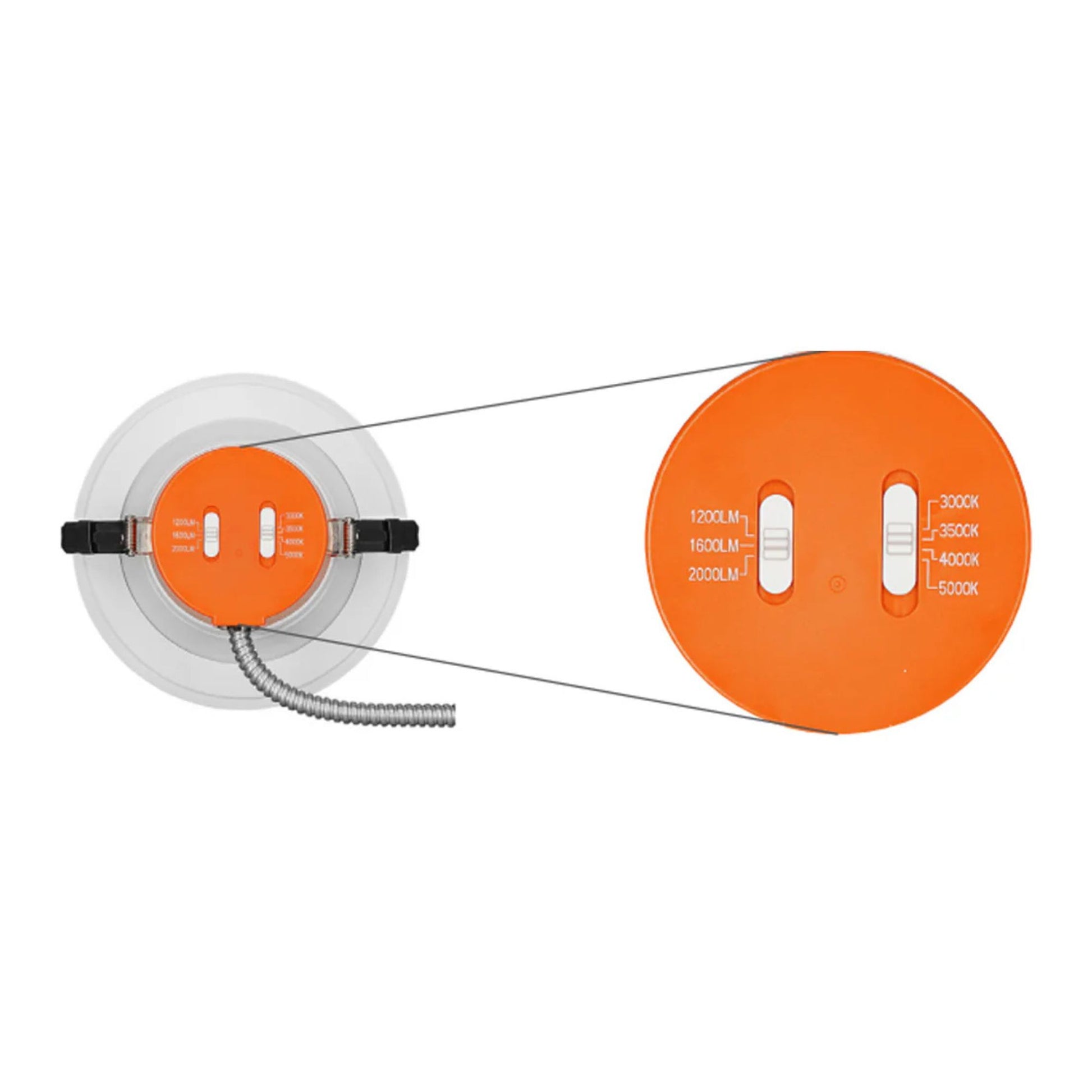

• Field-Selectable CCT: 3000K / 3500K / 4000K / 5000K (note: 2700K not available on this model)
• CRI: >90
• Input Voltage: 120-277V
• Dimming: TRIAC/ELV AND 0-10V | Both methods in same product
• Power Factor: >0.9
• THD: <20%
• IC Rating: Yes — IC rated for direct contact with ceiling insulation
• Environment: Wet rated | Op temp: -4°F to 104°F (-20°C to +40°C)
• Emergency Battery: Backup ready — field-installable
• Construction: Spinning aluminum
• Lifespan: 50,000 hours L70 | Warranty: 5-year / NLB Trusted Warranty Program

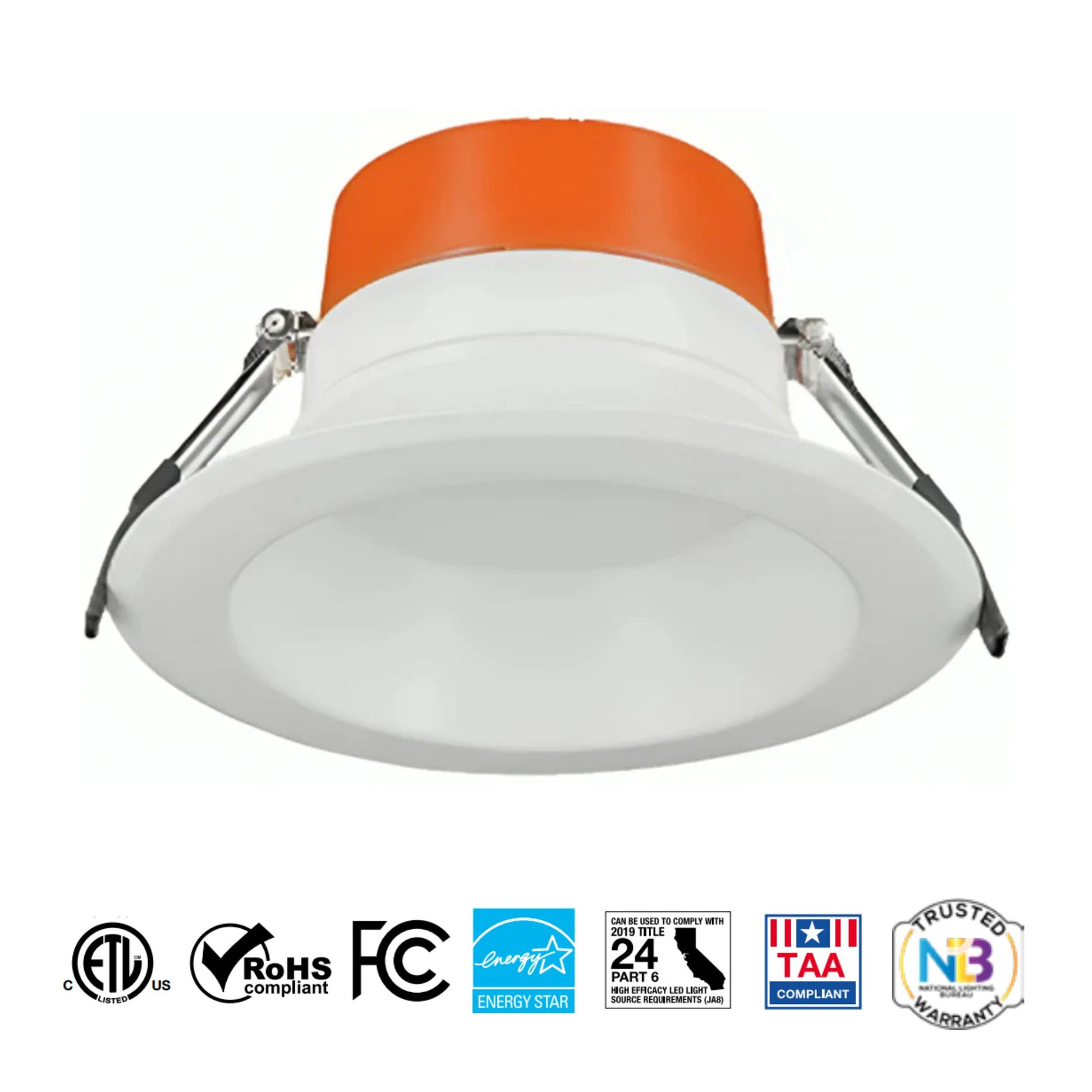

• Certifications: ENERGY STAR Certified | Title 24 Compliant | TAA Compliant | cETLus Listed | RoHS | FCC

Construction & Aesthetics

Housing: Spinning aluminum | Trim: Open deep regressed | Finish: White. The deep regressed profile minimizes glare and suits both new construction and retrofit applications. Trim extenders available as accessories for use with larger can openings.

Light Output & Performance

The Sylvania 62809 delivers up to 2,000 lm at 22W with CRI >90. The 85° beam angle provides uniform, glare-free illumination. Field-selectable 3-step output (1000/1500/2000 lm) and 4 CCT options allow a single SKU to cover multiple applications. L70 rated lifespan is 50,000 hours.

Electrical & Installation

The Sylvania 62809 operates at 120-277V with both TRIAC/ELV and 0-10V dimming in the same product. PF >0.9; THD <20%. IC rated. Installs in most standard frames; recessed rough-in frame available for new construction. Emergency battery backup field-installable.

Compatible Accessories — 8 in Only (Sold Separately)

• Bronze Trim Ring: Sylvania 65716 — RT8TRIM5ADKBZ
• Satin Trim Ring: Sylvania 65717 — RT8TRIM5ASN
• Black Trim Ring: Sylvania 65718 — RT8TRIM5ABLK
• Trim Extender (8 in cans): Sylvania 65683 — RT68TRIMEXT5A
• Trim Extender (10 in cans): Sylvania 65684 — RT810TRIMEXT5A

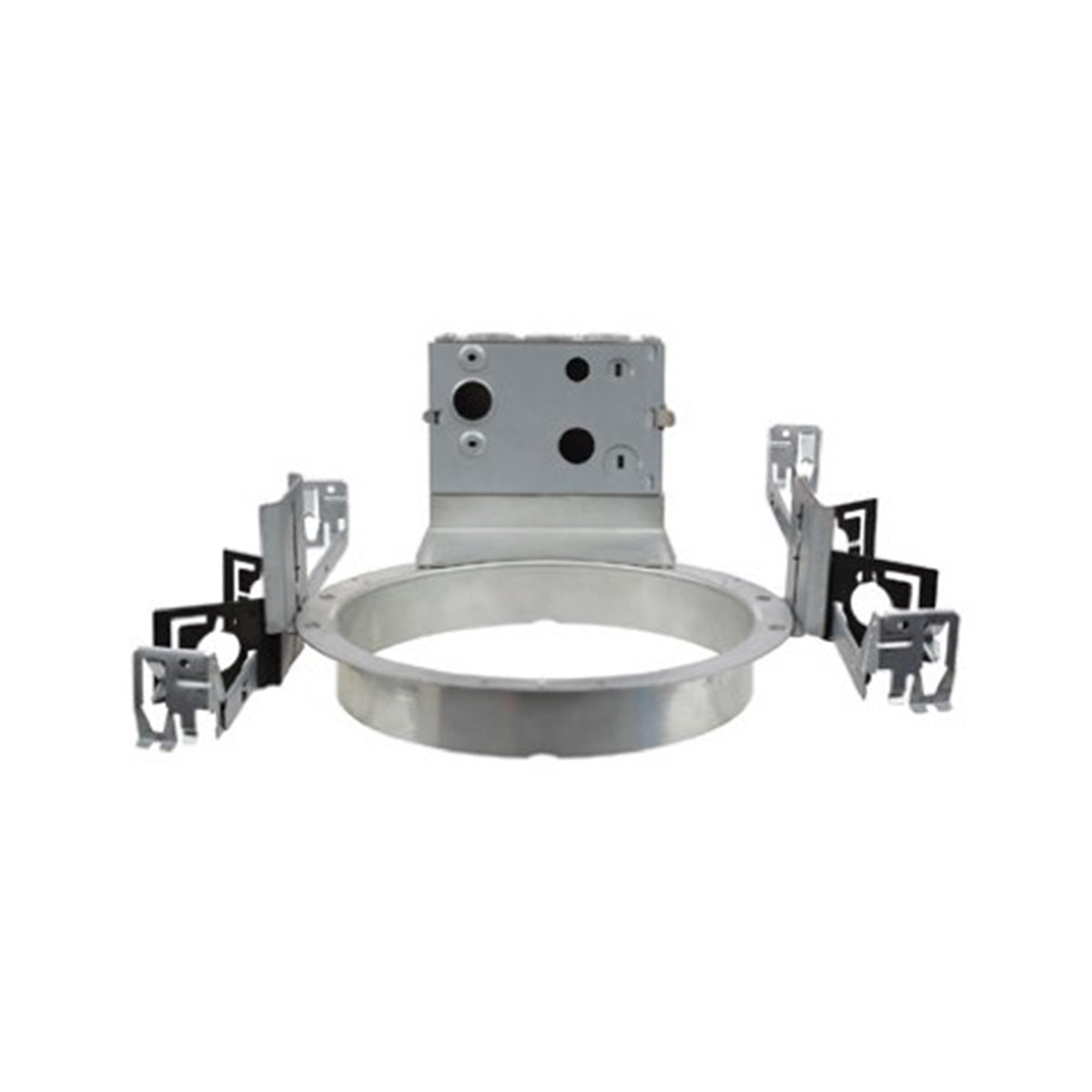

• Recessed Rough-In Frame: Sylvania 71709 — LED/RT8/FRAME (8 in)

Typical Applications

• Commercial offices, schools, and retail spaces
• Hotels and hospitality environments
• Public and commercial buildings
• Residential interiors
• New construction and retrofit of existing installations
• Wet and damp locations
• Emergency lighting applications

What’s Included

• Sylvania 62809 8 in round open deep regressed LED downlight (white)
