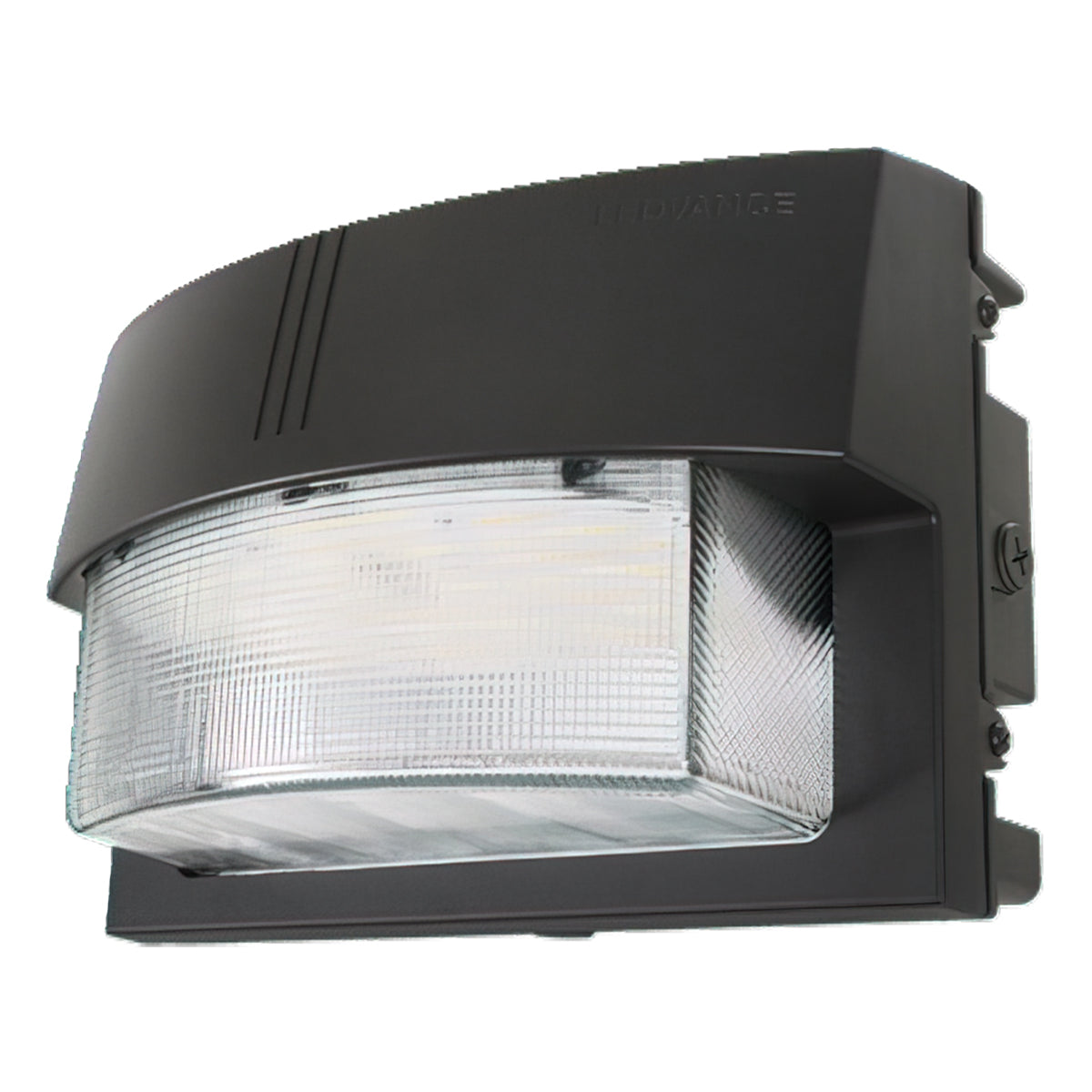

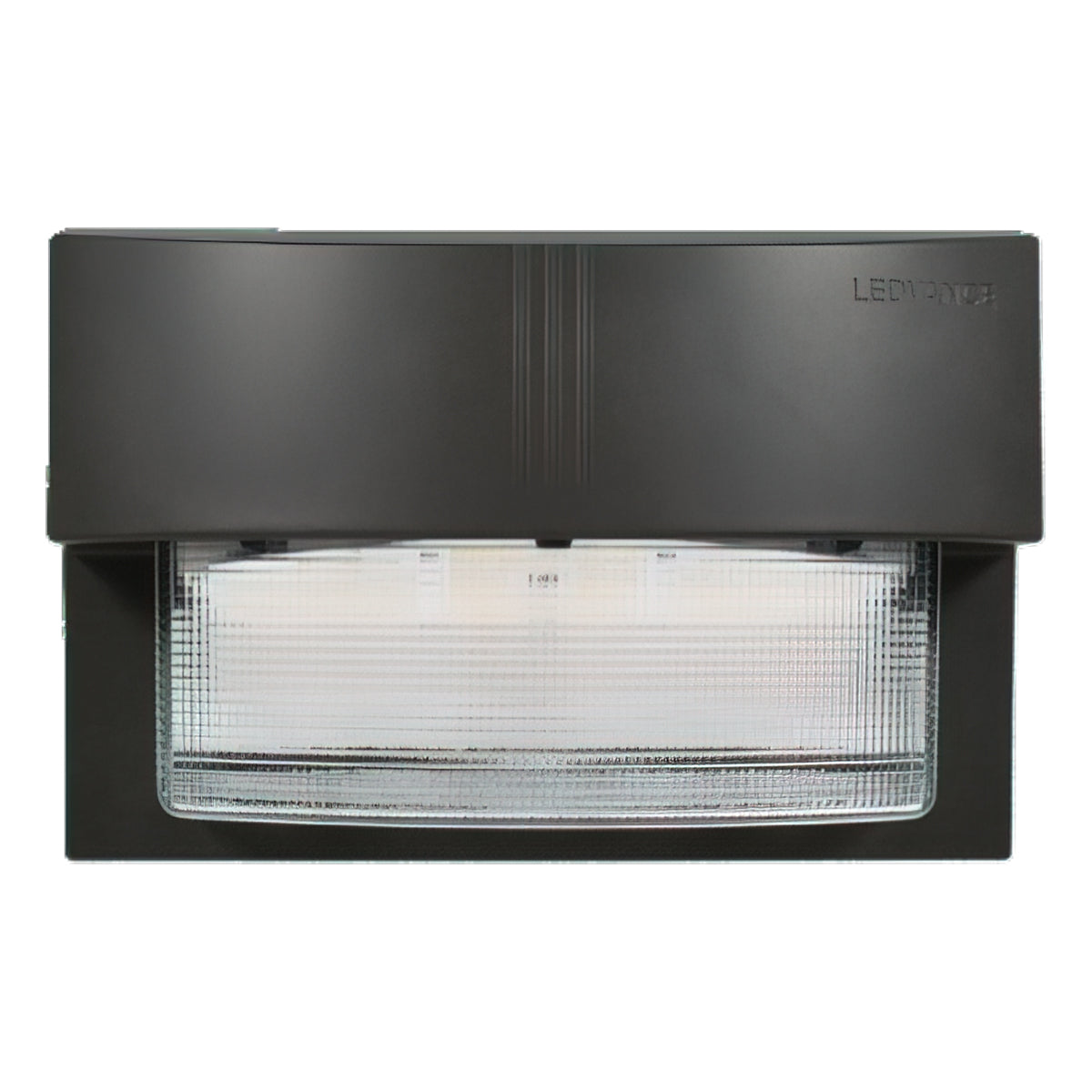

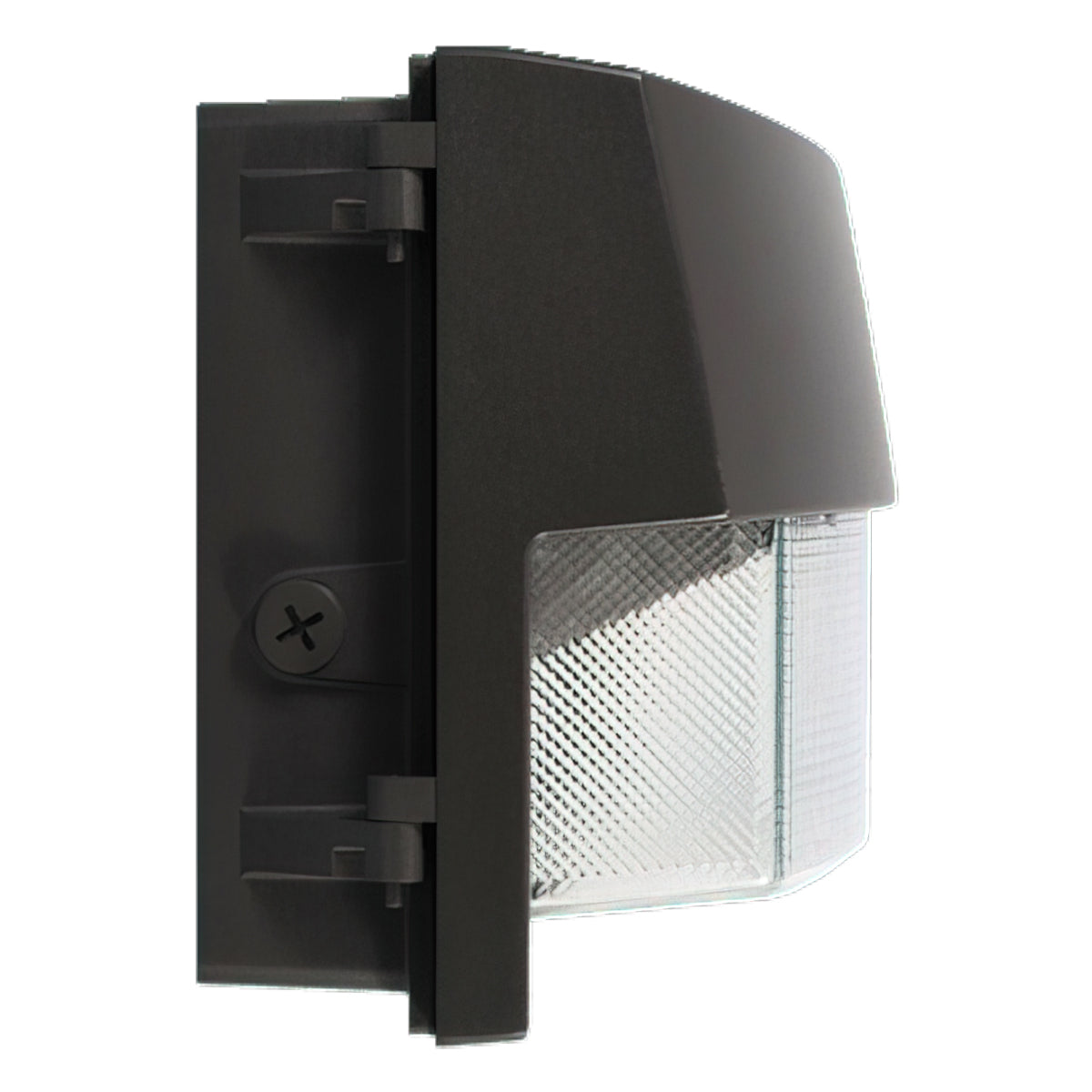

LED Wall Pack, 16800Lm, 120W, Polycarbonate Lens. 30K/40K/50K, 120-277V, Bronze
LED Wall Pack, 16800Lm, 120W, Polycarbonate Lens. 30K/40K/50K, 120-277V, Bronze
Available in stock (96)
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Selectable Wattage and Lumens: Choose from 75W/10500lm, 95W/13300lm, or 120W/16800lm to suit your lighting requirements
- Adjustable Color Temperature: Select between 3000K, 4000K, or 5000K for optimal ambiance
- Dimmable with Integrated Photocell: 0-10V dimming capability and built-in photocell for automated operation
- Robust Construction: Aluminum housing with UV-stabilized polycarbonate lens for durability
- Wide Operating Temperature Range: Performs in extreme conditions from -40°F to +102°F (-40°C to +40°C)
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
Specifications
Specifications

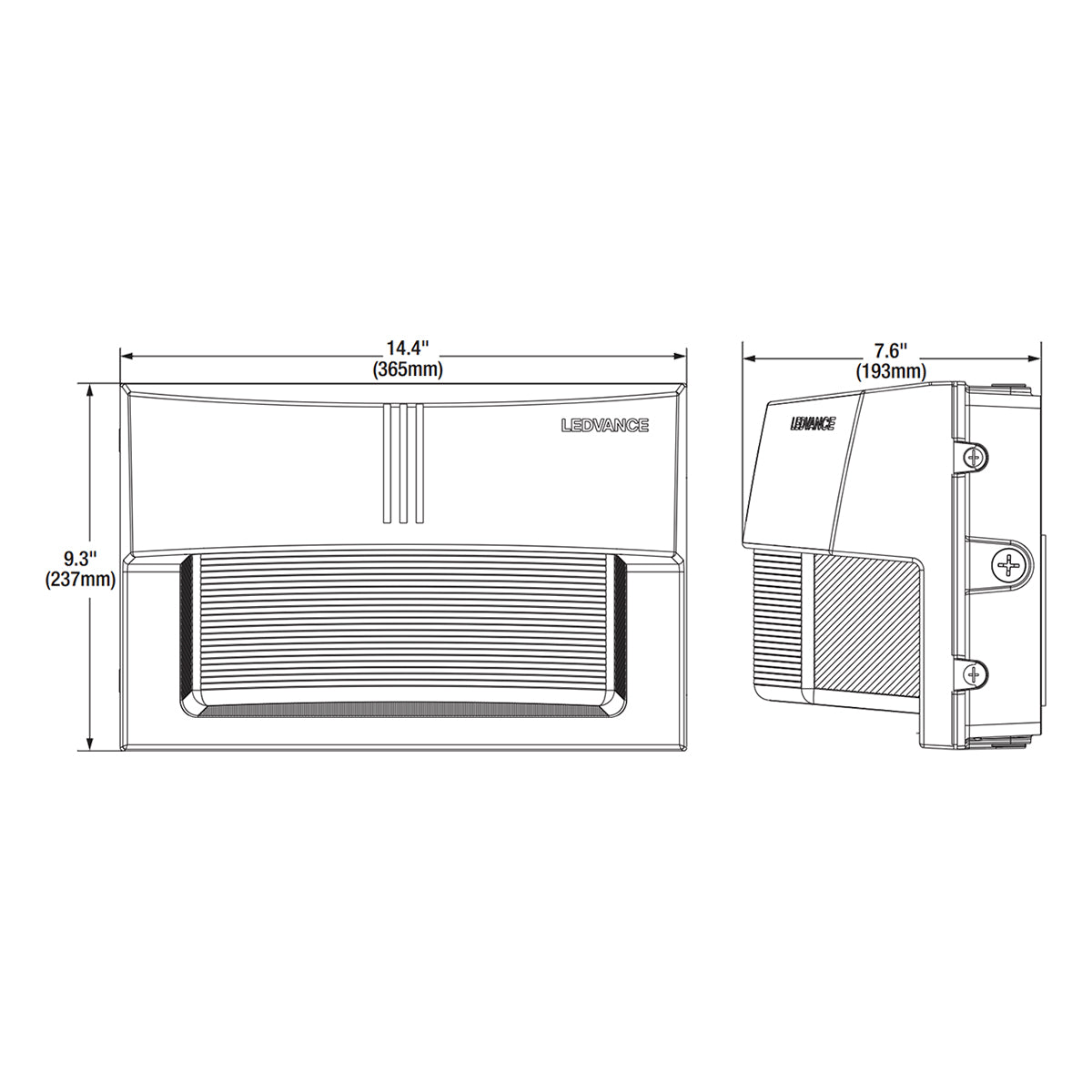

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What is a "Full Cutoff" wall pack?
What is a "Full Cutoff" wall pack?
A full cutoff wall pack is a fixture designed with a shield or housing that prevents any light from being emitted above the horizontal plane (90 degrees). This directs all light downward onto the ground, reducing light pollution (sky glow) and glare. Many municipalities now require these fixtures for new construction.
How do I choose the right wattage to replace my Metal Halide wall pack?
How do I choose the right wattage to replace my Metal Halide wall pack?
175W MH: Replace with a 40W - 60W LED wall pack (approx. 5,000-7,000 lumens).
250W MH: Replace with an 80W LED wall pack (approx. 9,000-10,000 lumens).
400W MH: Replace with a 100W - 120W LED wall pack (approx. 13,000+ lumens).
What mounting height is best for wall packs?
What mounting height is best for wall packs?
Standard wall packs are typically mounted between 10 to 20 feet high.
Mini/Slim Packs: 8-12 feet (doorways, single-story buildings).
Standard/Full Cutoff: 12-18 feet (warehouse perimeters, commercial sides).
High Output: 20+ feet (large loading docks).
Can I add a battery backup to these lights?
Can I add a battery backup to these lights?
Yes. We carry a specific selection of emergency wall packs that feature built-in battery backups. These units will operate normally on AC power but switch to battery power for 90 minutes during an outage to meet life-safety egress codes.
What is the difference between a glass and polycarbonate lens?
What is the difference between a glass and polycarbonate lens?
Glass: Will not yellow over time (UV resistant) but can break if impacted. Common on traditional heavy-duty wall packs.
Polycarbonate: Extremely impact-resistant (vandal-proof) but lower quality versions can yellow over many years of sun exposure. Most modern LED wall packs use UV-stabilized polycarbonate for durability.
