LEDVANCE Sylvania 62726 Dual Selectable 6A Wall Pack — 120W — 3000K/4000K/5000K — Type IV — Bronze
Available in stock (48)
About this item
About this item
- Selectable Output & Equivalency: Field-selectable 75W, 95W, and 120W power settings deliver up to 16,800 lumens at up to 140 lm/W, replacing up to 400W MH/HPS fixtures.
- Type IV Polycarbonate Optics: Dedicated IES Type IV forward-throw distribution (B3-U3-G2) with a UV-stabilized polycarbonate lens and side-hinged cast aluminum alloy housing covering existing luminaire footprints.
- Selectable CCT: Onboard switch adjusts color temperature across 3000K, 4000K, and 5000K with >80 CRI.
- Photocell & IoT Dimming: Integrated dusk-to-dawn photocell, 120-277V driver, 0-10V dimming, and Zhaga Bluetooth sensor compatibility.
- Rebates & Ingress: DLC 5.1 Premium listed, cULus Wet Location rated, IP65 weatherproof and IK08 impact rated, with 6kV surge protection.
Description
Description
LEDVANCE Sylvania 62726 Dual Selectable 6A Traditional LED Wall Pack - 75W/95W/120W Selectable - 3000K/4000K/5000K - Type IV - Bronze
The LEDVANCE Sylvania WALPAKC6AS120UNVD8SC2T4BZP (Item 62726) is a commercial Superior Class traditional LED wall pack engineered to deliver up to 16,800 lumens across field-selectable 75W, 95W, and 120W power settings and switchable 3000K, 4000K, and 5000K color temperatures. Operating on universal 120-277V electrical systems with 0-10V dimming, it replaces legacy HID wall packs up to 400W MH/HPS while qualifying for DLC 5.1 Premium utility rebates. Built with a weatherproof IP65 cast aluminum alloy body and an IK08 impact rating, this cULus wet-location luminaire features a traditional wall-pack footprint for seamless replacement of existing luminaires, a side-hinged housing door with threaded conduit entries, and includes a UV-stabilized polycarbonate lens, dedicated IES Type IV (B3-U3-G2) distribution, an integrated photocell, IoT Zhaga Bluetooth sensor readiness, and 6kV surge suppression.
Key Features
- Selectable Wattage: 75W / 95W / 120W field-selectable
- Wattage Equivalency: Replaces up to 400W MH/HPS
- Maximum Lumen Output: 10,500 / 13,300 / 16,800 lm (up to 16,800 lm)
- Peak Efficacy: Up to 140 lm/W
- CRI: >80
- Selectable CCT: 3000K / 4000K / 5000K
- Lens & Optics: UV-stabilized polycarbonate lens with IES Type IV optical distribution (B3-U3-G2)
- Photocell & IoT Controls: Integrated dusk-to-dawn photocell; compatible with optional LEDVANCE LINK Zhaga Bluetooth Mesh PIR/daylight sensors
- Dimming: 0-10V continuous dimming
- Voltage & Surge Protection: 120-277V AC; 6kV integrated surge suppression
- Location & Body Rating: cULus Wet Location rated; IP65 weatherproof rated; IK08 impact rated
- Operating Temperature: -40°F (-40°C) to 102°F (40°C)
- Certifications: DLC 5.1 Premium, cULus Listed, IP65, IK08, FCC/ICES, RoHS
- Rated Life: L70 100,000 hours
- Warranty: 10-year NLB Trusted Warranty Program - LEDVANCE Sylvania
Performance & Light Output
| Selectable Wattage | Total Lumens | Efficacy | Legacy Equivalent |
|---|---|---|---|
| 120W | 16,800 lm | 140 lm/W | 400W MH / 400W HPS |
| 95W | 13,300 lm | 140 lm/W | 320W MH / 250W HPS |
| 75W | 10,500 lm | 140 lm/W | 175W-250W MH |
Delivers CRI >80 across all selectable wattage and CCT configurations. Achieves a BUG Rating of B3-U3-G2. Rated life 100,000 hours (L70).
Lens & Optics
Engineered with a durable, impact-resistant UV-stabilized polycarbonate lens delivering a dedicated IES Type IV standard forward-throw optical distribution. Designed for exterior perimeter walls, loading docks, and parking lot edges, the semicircular forward-throw refractor projects wide outward illumination across drive lanes and open aprons with a B3-U3-G2 BUG rating.
Smart & Control Features
Engineered for automated dusk-to-dawn operation and IoT wireless lighting control integration:
- Dusk-to-Dawn Photocell (Integrated): Factory-installed photocell provides automatic dusk-to-dawn nighttime switching.
- 0-10V Continuous Dimming: Compatible with commercial 0-10V dimmers, lighting control panels, and building automation systems.
- LEDVANCE LINK Zhaga Bluetooth Mesh Expansion: Bottom socket accepts optional LEDVANCE LINK Bluetooth Low Energy (BLE) Mesh Zhaga sensors (sold separately) for wireless on/off switching, 0-10V dimming, occupancy detection, and daylight harvesting via the LEDVANCE LINK smartphone app or wireless wall switch.
Optional LEDVANCE LINK Zhaga Bluetooth Sensor specifications (sold separately): 12VDC input, 55mA rated current, omni-directional quad element pyroelectric infrared sensor, 15-40 ft mounting height, 48-80 ft detection diameter, 100 ft Bluetooth transmit line distance, 1-10 ft/sec (0.3-3 m/sec) detectable speed, IP66 rated, and -40°F (-40°C) to 131°F (55°C) operating range (2.6" / 66mm Dia x 1.14" / 29mm H).
Electrical
Powered by a constant current driver operating on universal 120-277V AC with a Power Factor >0.90 and Total Harmonic Distortion (THD) <20%. Integrated 6kV surge suppression protects internal electronics against utility line transients and lightning strikes. Includes 0-10V dimming control leads.
Construction
Housing & Thermal: Specification-grade cast aluminum alloy body with passive convection thermal management and an IK08 impact rating to resist physical impacts and vandalism in commercial environments.
Finish: Architectural bronze powder-coat paint finish formulated for corrosion and UV weather resistance.
Environmental Sealing: IP65 weatherproof rated and cULus Listed for wet locations. Ambient operating temperature: -40°F (-40°C) to 102°F (40°C).

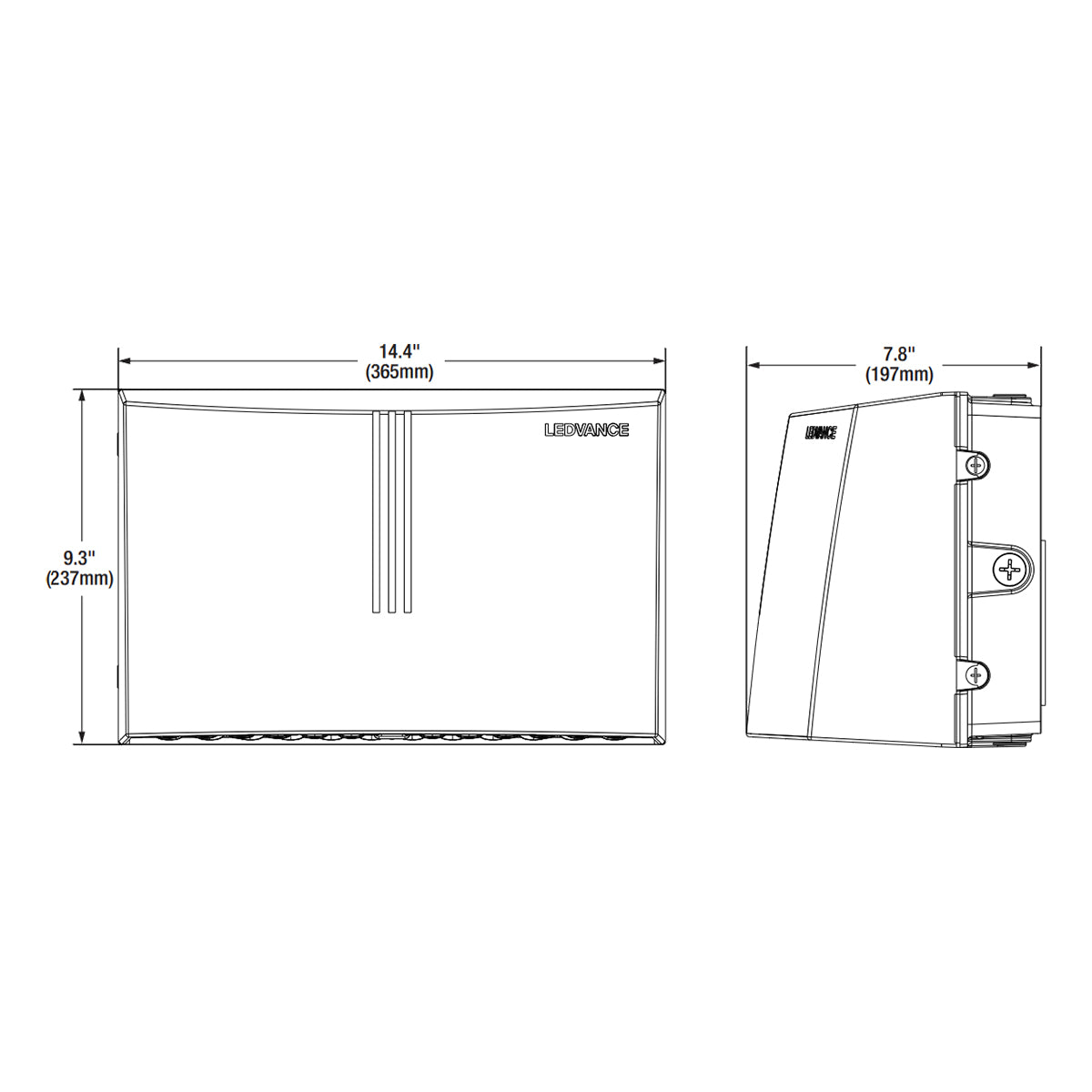

Dimensions & Weight: 14.4" L x 7.8" W x 9.3" H (365mm x 197mm x 237mm). Fixture weight: 8.5 lbs.
Installation & Mounting
Mounting Hardware: Traditional 14.4" L x 9.3" H cast aluminum alloy backplate covers existing HID wall pack footprints and wall stains for seamless replacement over standard junction boxes or exterior walls, featuring a side-hinged door with captive screws for hands-free wiring.
Conduit & Wiring Access: Threaded side conduit entry plug knockouts and rear junction box access accommodate surface conduit or concealed branch-circuit wiring.
Recommended Mounting Height: Optimized for installation heights from 15 to 35 feet (photometric layout reference at 25 feet).
Accessories (Sold Separately):
- LEDVANCE LINK Zhaga Bluetooth Mesh Sensor: Optional 12VDC plug-in omni-directional quad element PIR/daylight sensor (IP66, 15-40 ft mounting height, 48-80 ft detection range, 100 ft BLE range; consult LEDVANCE sales representative for part availability) - sold separately
Certifications & Rebates
- DLC 5.1 Premium Listed: Qualifies for the highest tier of commercial utility rebates
- cULus Listed: Certified for wet locations per outdoor luminaire safety standards
- IP65 & IK08 Rated: IP65 ingress protection against dust and water jets plus IK08 mechanical impact resistance
- FCC / ICES Compliant: Complies with commercial electromagnetic interference limits
- RoHS Compliant: Free of mercury, lead, and restricted hazardous substances
Typical Applications
- Legacy HID Wall Pack Retrofits - Traditional 14.4" L x 9.3" H housing footprint covers existing 100W–400W MH/HPS wall pack outlines without masonry patching or repainting
- Commercial Loading Docks, Aprons & Service Yards - IES Type IV forward-throw distribution projects wide outward illumination across truck bays and drive lanes
- Schools, Universities & Municipal Complexes - IK08 impact-rated cast aluminum housing, UV-stabilized polycarbonate lens, and 10-year warranty withstand high-traffic public perimeters
- Warehouses, Industrial Parks & Distribution Centers - 6kV surge suppression and IP65 weatherproofing ensure reliable operation from -40°F to 102°F
- Smart Bluetooth Mesh Exterior Perimeters - Integrated photocell and optional LEDVANCE LINK Zhaga BLE sensor readiness enable app-configured occupancy and daylight control up to 40 ft mounting heights
What's Included
- LEDVANCE Sylvania WALPAKC6AS120UNVD8SC2T4BZP (Item 62726) Dual Selectable 6A Type IV Wall Pack - Bronze
- Pre-installed integrated dusk-to-dawn photocell
- Installation hardware and operation manual
