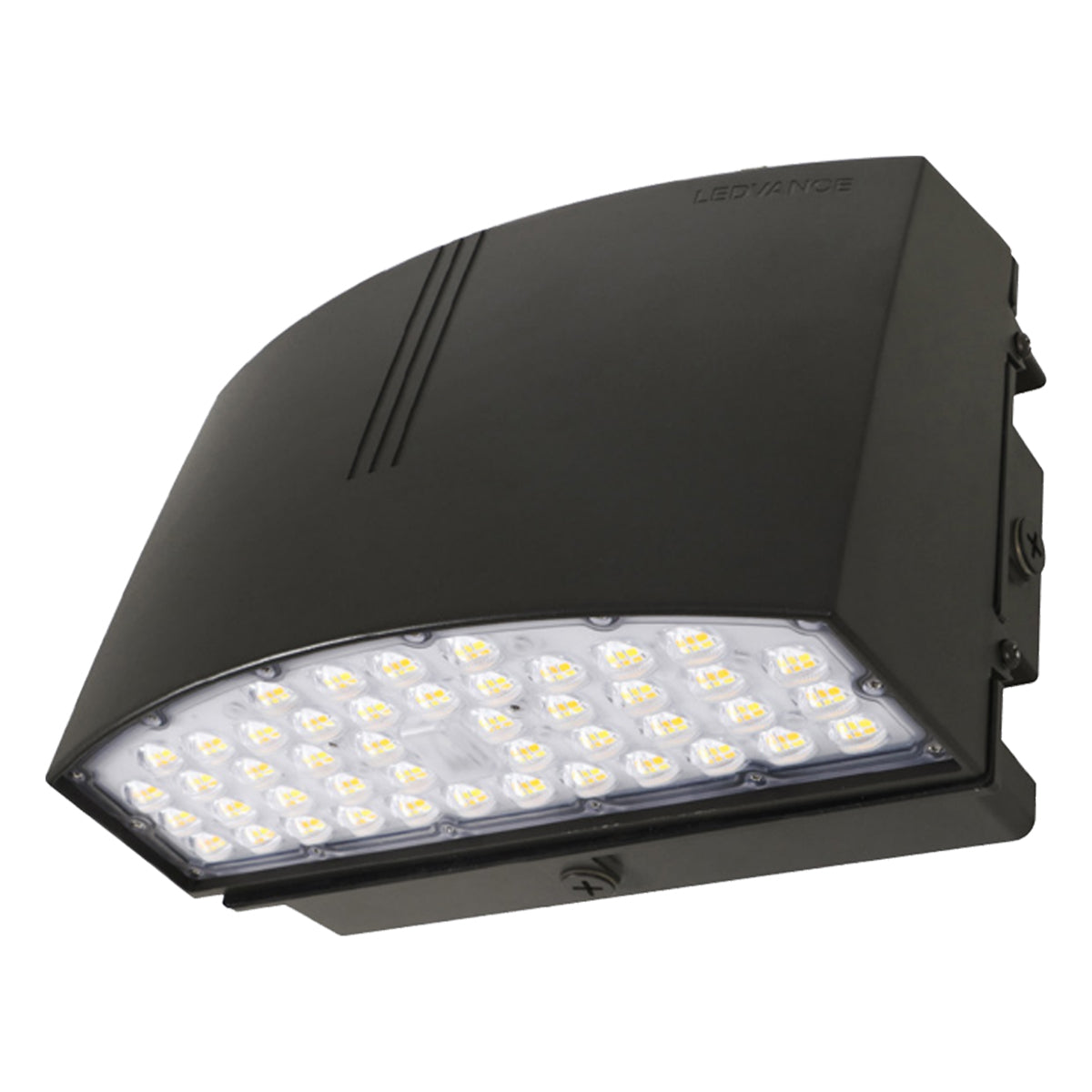

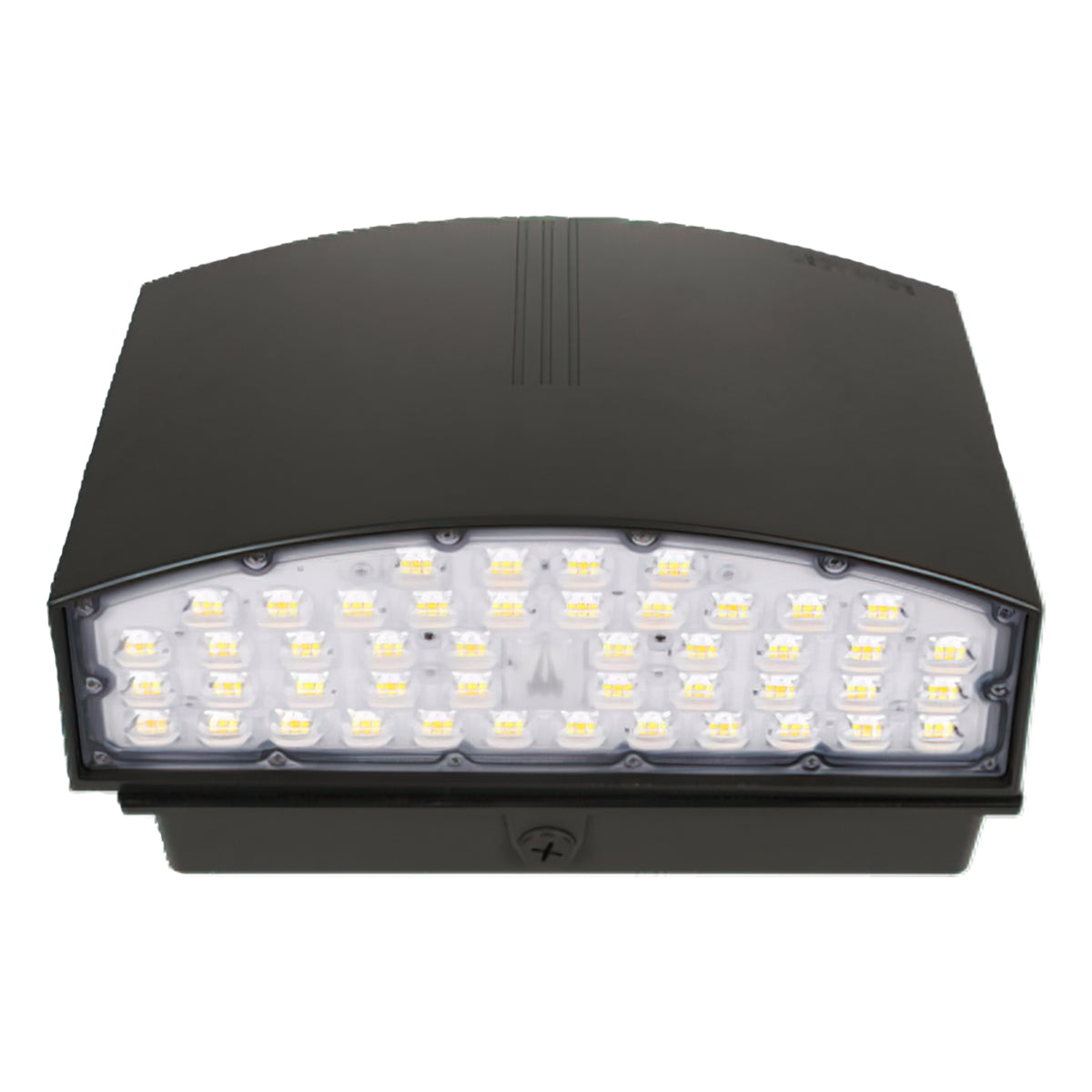

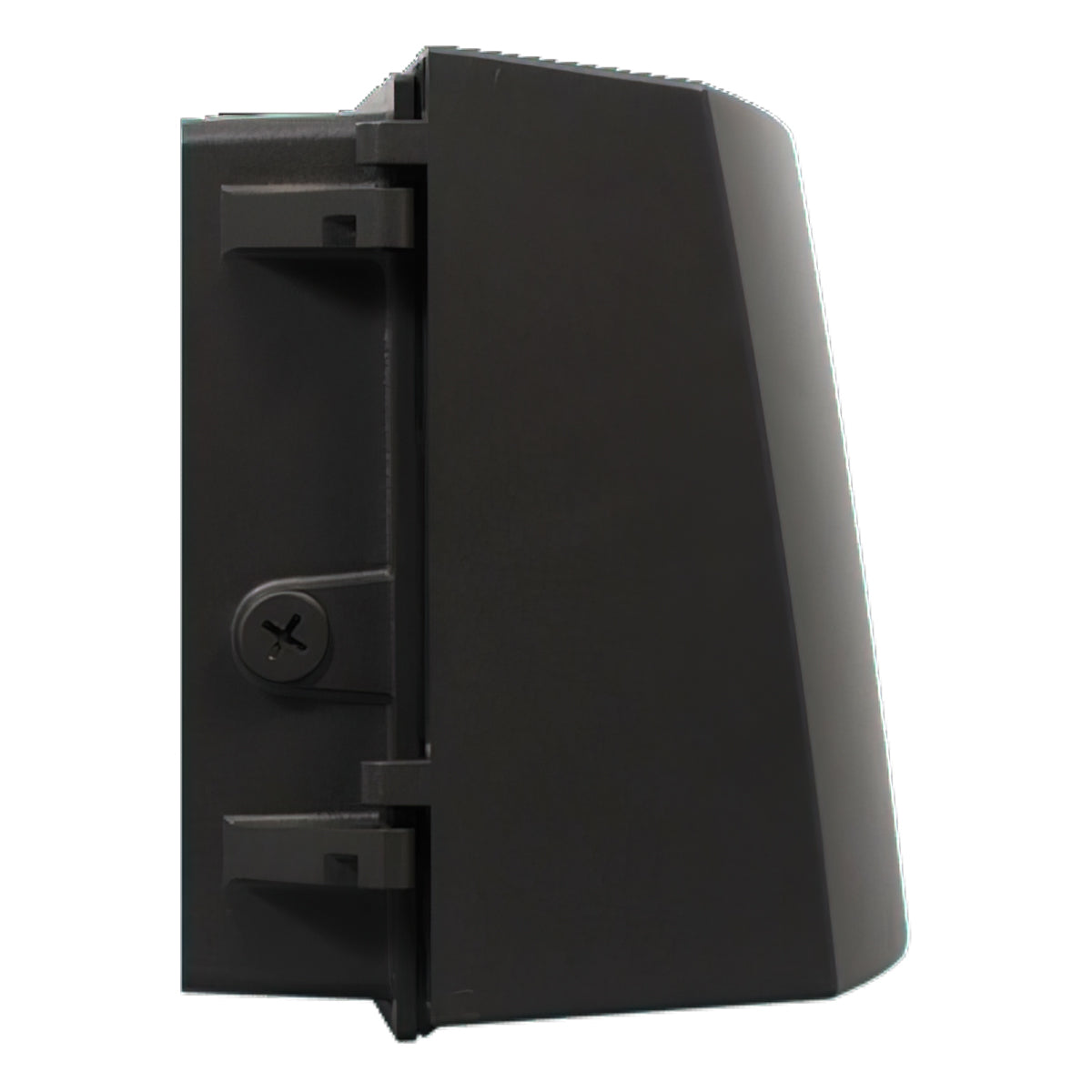

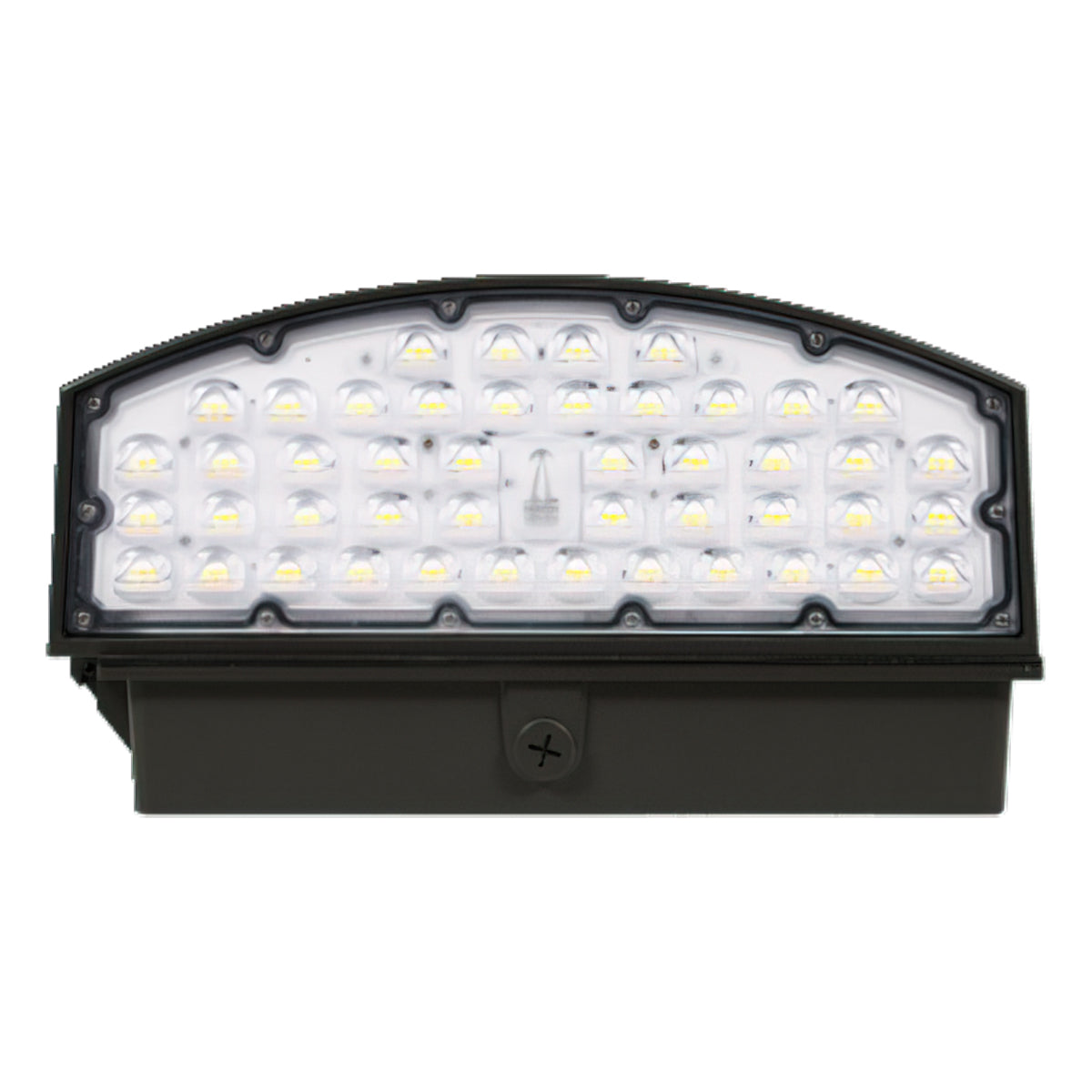

LEDVANCE SYLVANIA Dual Selectable Cutoff LED Wall Pack — 45-80W Selectable, 120–277V, Bronze

The LEDVANCE SYLVANIA 62725 is a specification-grade dual selectable full cutoff LED wall pack delivering up to 11,200 lumens. Designed to provide superior downward illumination without light trespass, this fixture features a robust full-cutoff housing that meets Dark Sky requirements. It offers exceptional versatility by allowing installers to choose between 45W, 65W, or 80W of power and 3000K, 4000K, or 5000K color temperatures directly on the fixture. Operating on a universal 120–277V driver, it includes an integrated photocell for automated security lighting. With its Type IV light distribution and IP65 Wet Location rating, it is the premier choice for parking areas, building perimeters, and high-traffic commercial facades.

Key Features

• Wattage: 45W / 65W / 80W Selectable
• Selectable CCT: 3000K / 4000K / 5000K
• Delivered Lumens: 6,300 to 11,200 lumens
• Efficacy: Up to 140 Lumens Per Watt (LPW)
• Voltage: 120–277V universal input
• Dimming: 0–10V dimming standard
• Controls: Integrated 120-277V photocell included
• Distribution: Type IV (Forward Throw)
• CRI: 80+
• Environmental Ratings: IP65 rated for Wet Locations
• Certifications: DLC Premium Listed, cULus, RoHS Compliant, FCC, Dark Sky Compliant
• Estimated Life: 100,000 hours (L70)

Typical Applications

• Commercial and industrial building perimeters
• Parking areas and expansive walkways
• Security and safety lighting
• Locations requiring strict Dark Sky compliance

Performance & Light Output

The 62725 provides brilliant, targeted illumination ranging from 6,300 to 11,200 lumens depending on the selected wattage setting. Utilizing a Type IV distribution, it pushes light forward and outward, making it highly effective for illuminating large perimeters while keeping light out of neighboring properties. With an efficacy of 140 LPW and a 100,000-hour rated lifespan, this fixture drastically reduces both energy consumption and maintenance cycles.

Electrical & Controls

This fixture operates on a constant current 120–277V AC driver and supports 0–10V dimming for integration with advanced lighting controls. The integrated photocell ensures the light only turns on when ambient light levels drop, providing hands-free operation and ensuring security areas are always illuminated at night.

Construction & Durability

Engineered to withstand the elements, the 62725 features a heavy-duty aluminum housing finished in a resilient bronze powder coat. The LED engine is protected by a UV-stabilized, impact-resistant polycarbonate lens that will not yellow over time. The fixture is fully IP65 rated, protecting it against dust, wind-driven rain, and extreme temperature fluctuations from -40°F to 104°F (-40°C to 40°C).

What's Included

• LEDVANCE SYLVANIA Dual Selectable Cutoff Wall Pack (Bronze)
• Integrated Photocell
