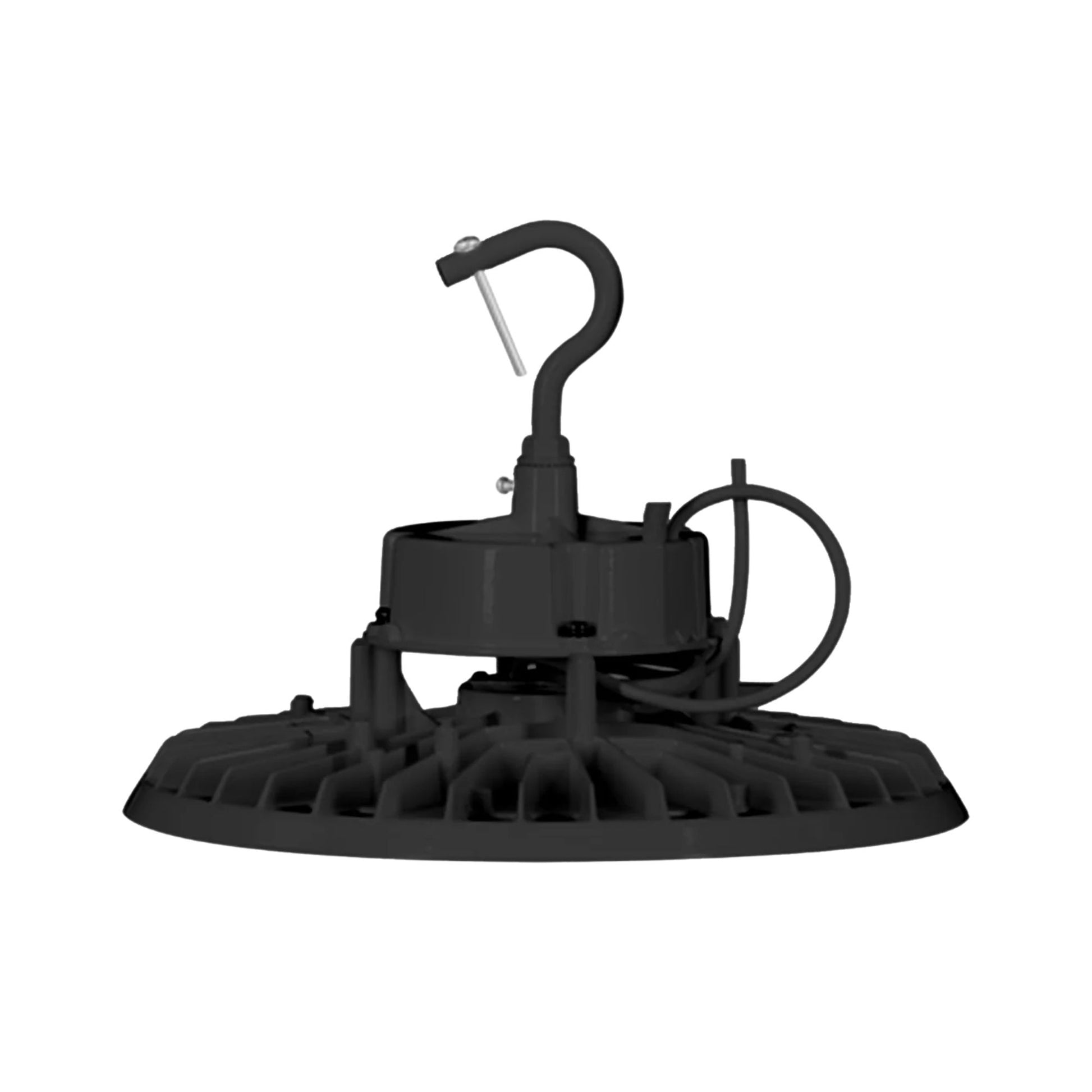

LEDVANCE SYLVANIA 62696 UFO LED High Bay 36,000 Lumens 200/220/240W 3500K/4000K/5000K 120–277V Black

LEDVANCE SYLVANIA 62696 Dual Selectable 3A UFO LED High Bay — 200/220/240W, 120–277V

The LEDVANCE SYLVANIA 62696 is a UFO LED high bay delivering up to 36,000 lumens with selectable 200W/220W/240W output and selectable 3500K/4000K/5000K color temperature. Operating on 120–277V, this fixture is rated IP65 and UL Wet Location. Designed for warehouses, gymnasiums, and industrial facilities, it includes a pre-wired sensor base for optional motion/daylight integration.

Key Features:

• Selectable Wattage: 200W / 220W / 240W
• Selectable CCT: 3500K / 4000K / 5000K
• Delivered Lumens (@4000K): Up to 30,000 / 33,000 / 36,000
• Efficacy: Up to 150 lm/W
• Voltage: 120–277V
• Dimming: 0–10V
• CRI: >80
• Surge Protection: 6kV
• Power Factor: >90%
• THD: <20%
• Rated Life: 150,000 hours (L70)

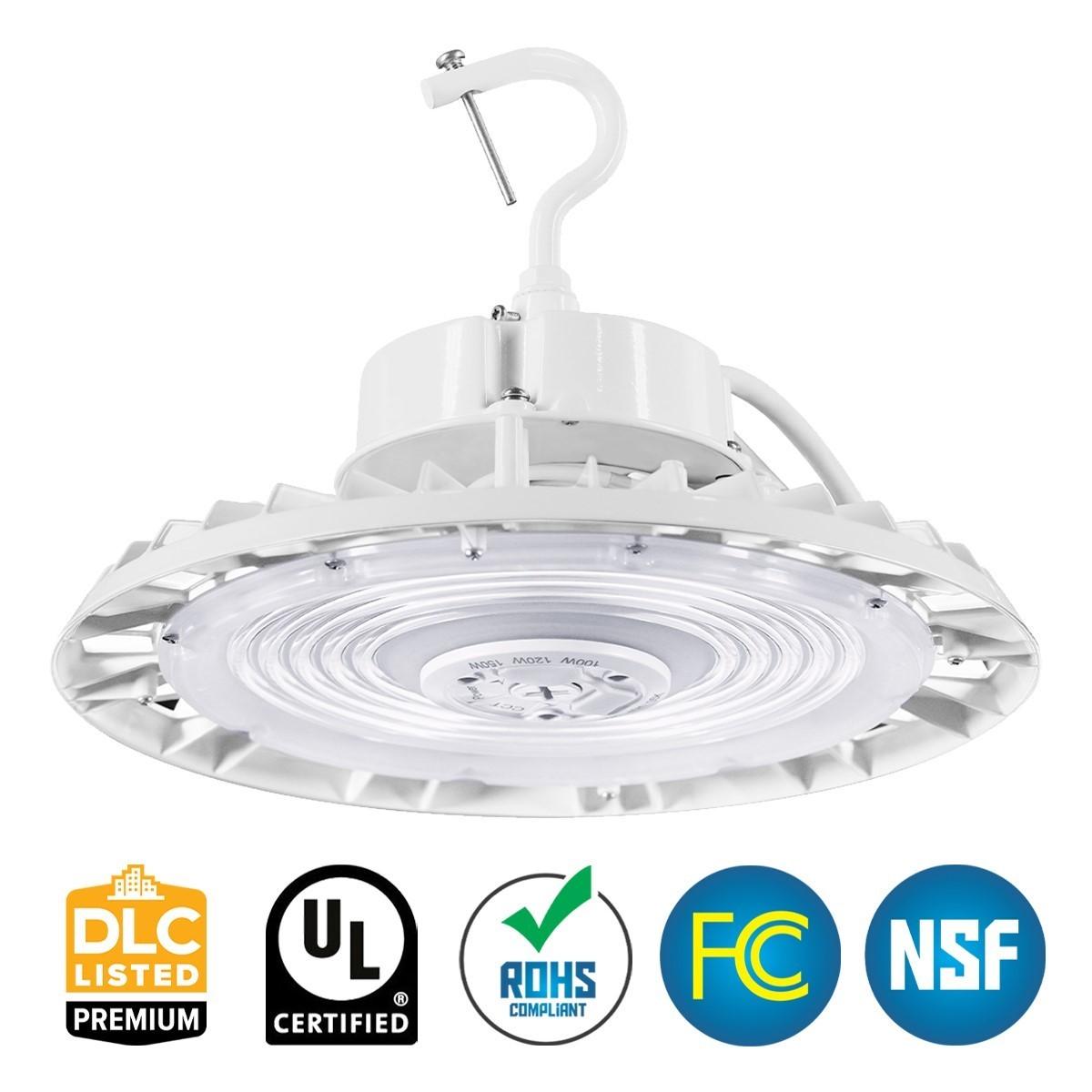

• Certifications: cULus, DLC 5.1 Premium, NSF, FCC, RoHS, NEMA 4X
• Environmental Ratings: IP65, UL Wet Rated
• Operating Temperature: -40°F to +122°F (-40°C to +50°C)*
• Controls Ready: Pre-wired screw-in sensor base

Performance & Light Output:
Produces up to 30,000 lumens at 200W, 33,000 lumens at 220W, and 36,000 lumens at 240W. Rated for 150,000 hours (L70).

Electrical & Controls:
Operates on 120–277V at 50/60Hz with constant current driver and 0–10V dimming. Includes 6kV surge suppression with power factor greater than 90%.

Construction & Durability:
Die-cast aluminum housing with IP65 protection and 90° polycarbonate lens. UL Wet Location listed.

Installation & Mounting:
Includes heavy-duty hook for suspended mounting. Surface and pendant mounting available via optional brackets. Includes 6' power cable and 3' dimming cable.

Included:
UFO high bay fixture with pre-installed hook, 6' power cable, and 3' dimming cable.

*240W setting operating temperature limited to -40°F to +109°F (-40°C to +43°C).
