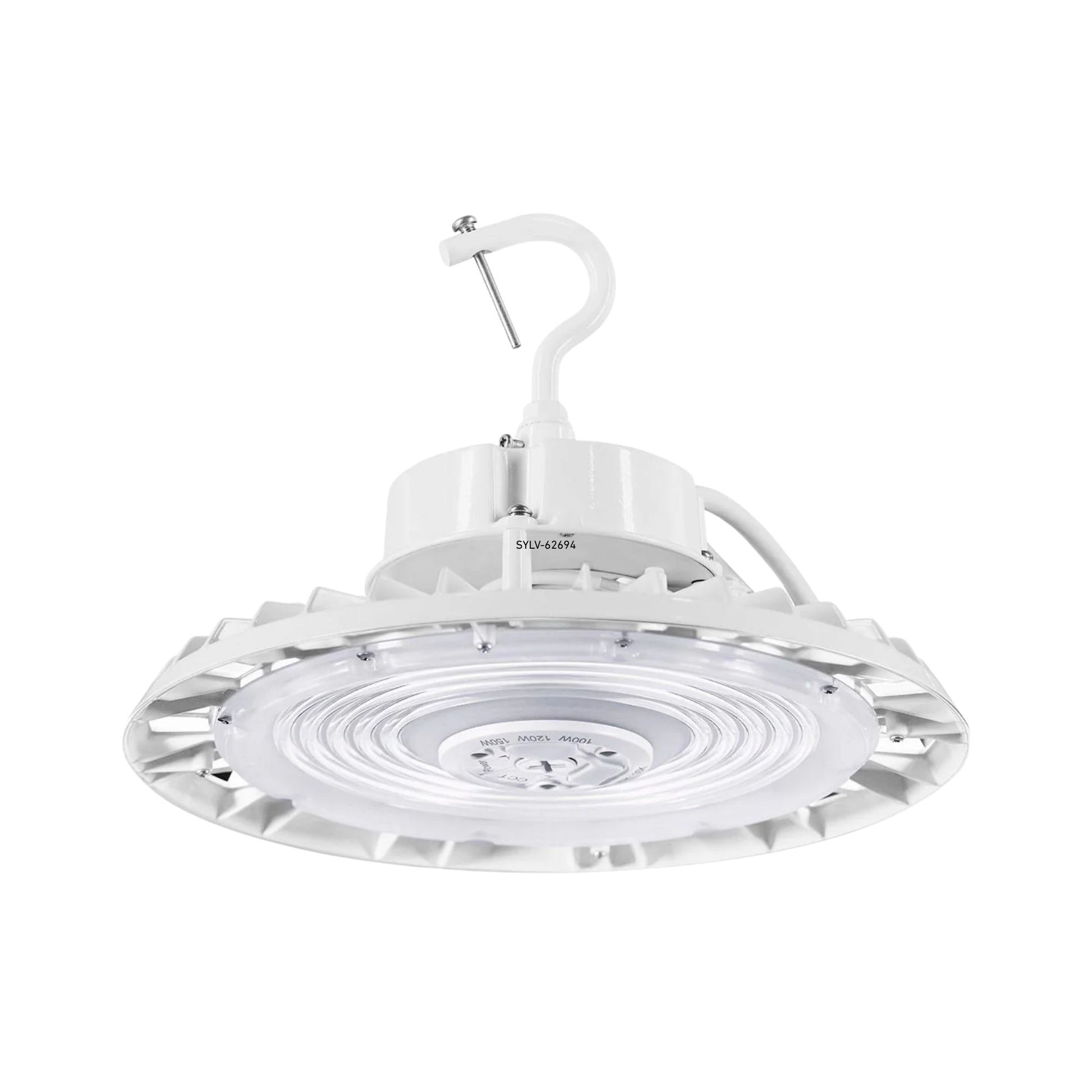

LEDVANCE SYLVANIA 62694 Dual Selectable 3A UFO LED High Bay — 200/220/240W, 120–277V

The LEDVANCE SYLVANIA 62694 is a UFO LED high bay delivering up to 36,000 lumens with selectable 200W/220W/240W output and selectable 3500K/4000K/5000K color temperature. Operating on 120–277V, this fixture is rated IP65 and UL Wet Location. Designed for warehouses, manufacturing facilities, and gymnasiums, it includes a pre-wired sensor base for optional motion/daylight sensor integration.

Key Features:

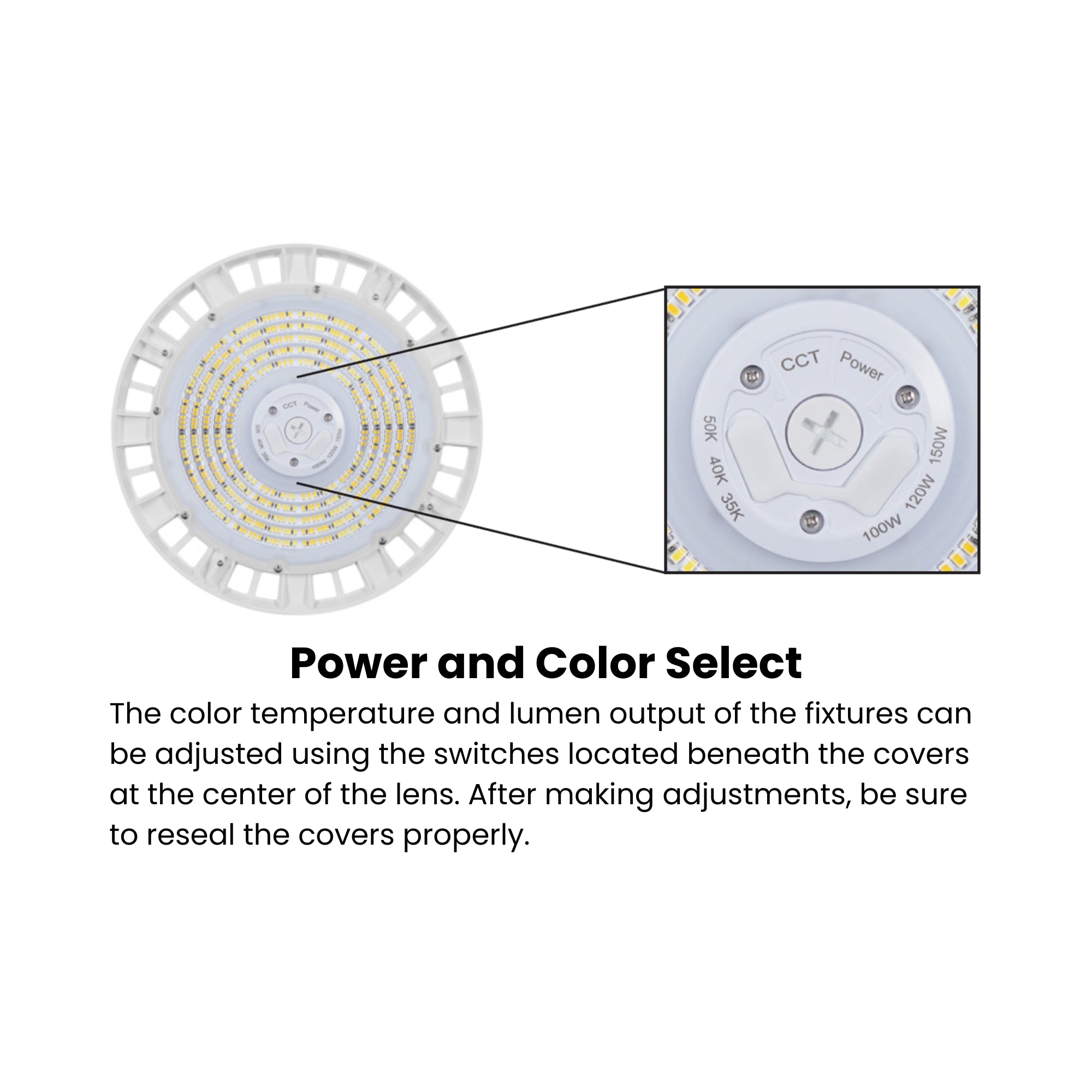

• Selectable Wattage: 200W / 220W / 240W

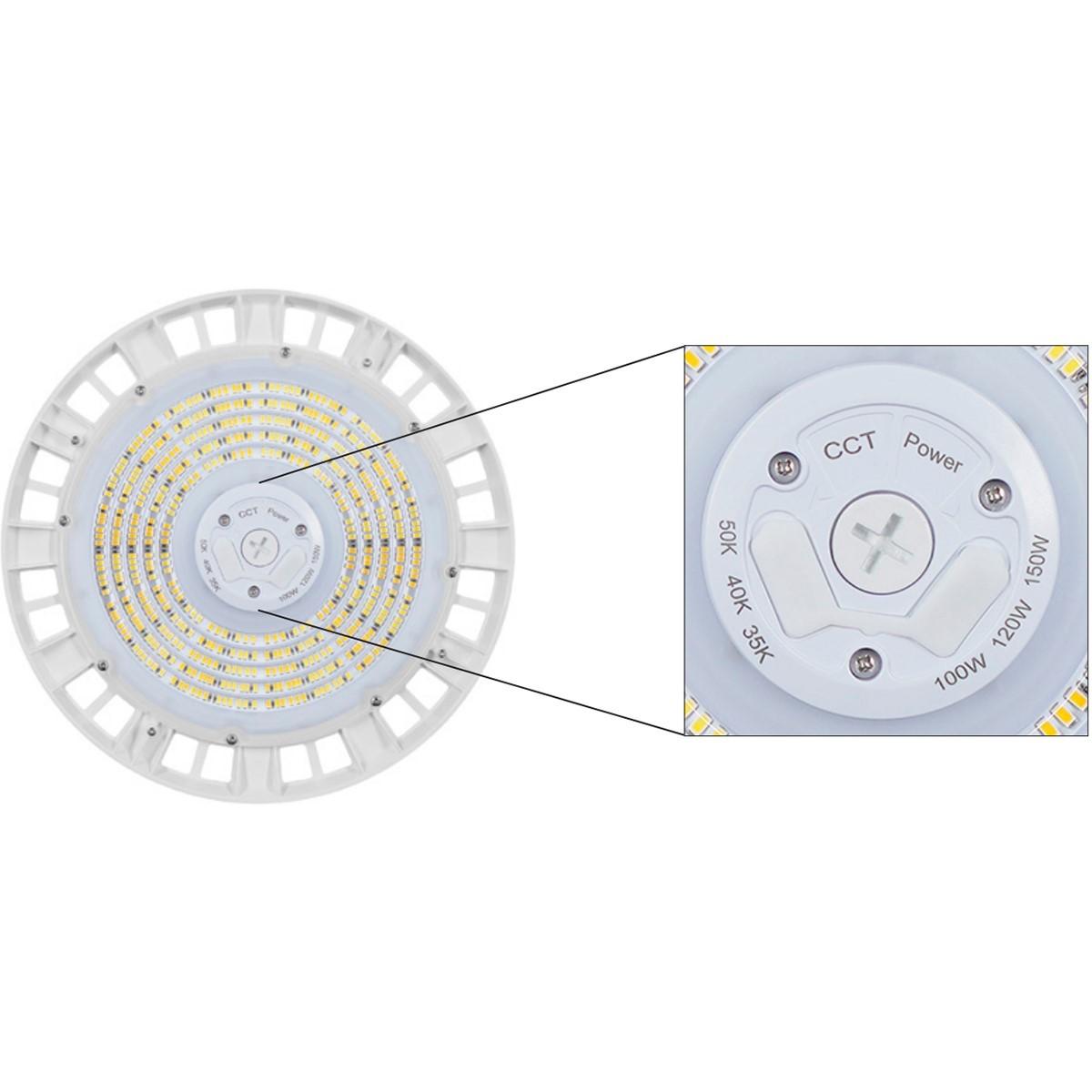

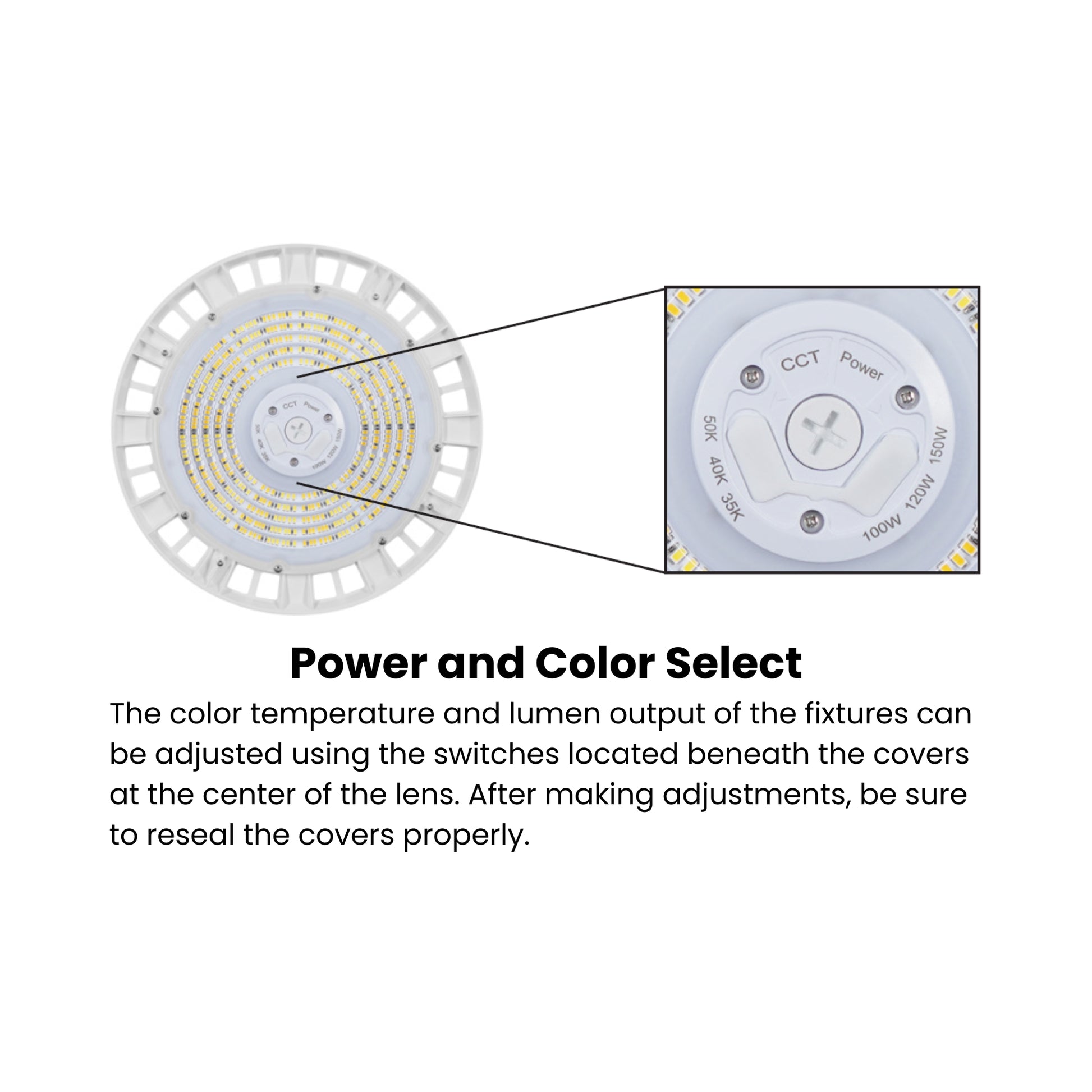

• Selectable CCT: 3500K / 4000K / 5000K
• Delivered Lumens (@4000K): Up to 30,000 / 33,000 / 36,000
• Efficacy: Up to 150 lm/W
• Voltage: 120–277V
• Dimming: 0–10V
• CRI: >80
• Surge Protection: 6kV
• Power Factor: >90%
• THD: <20%
• Rated Life: 150,000 hours (L70)

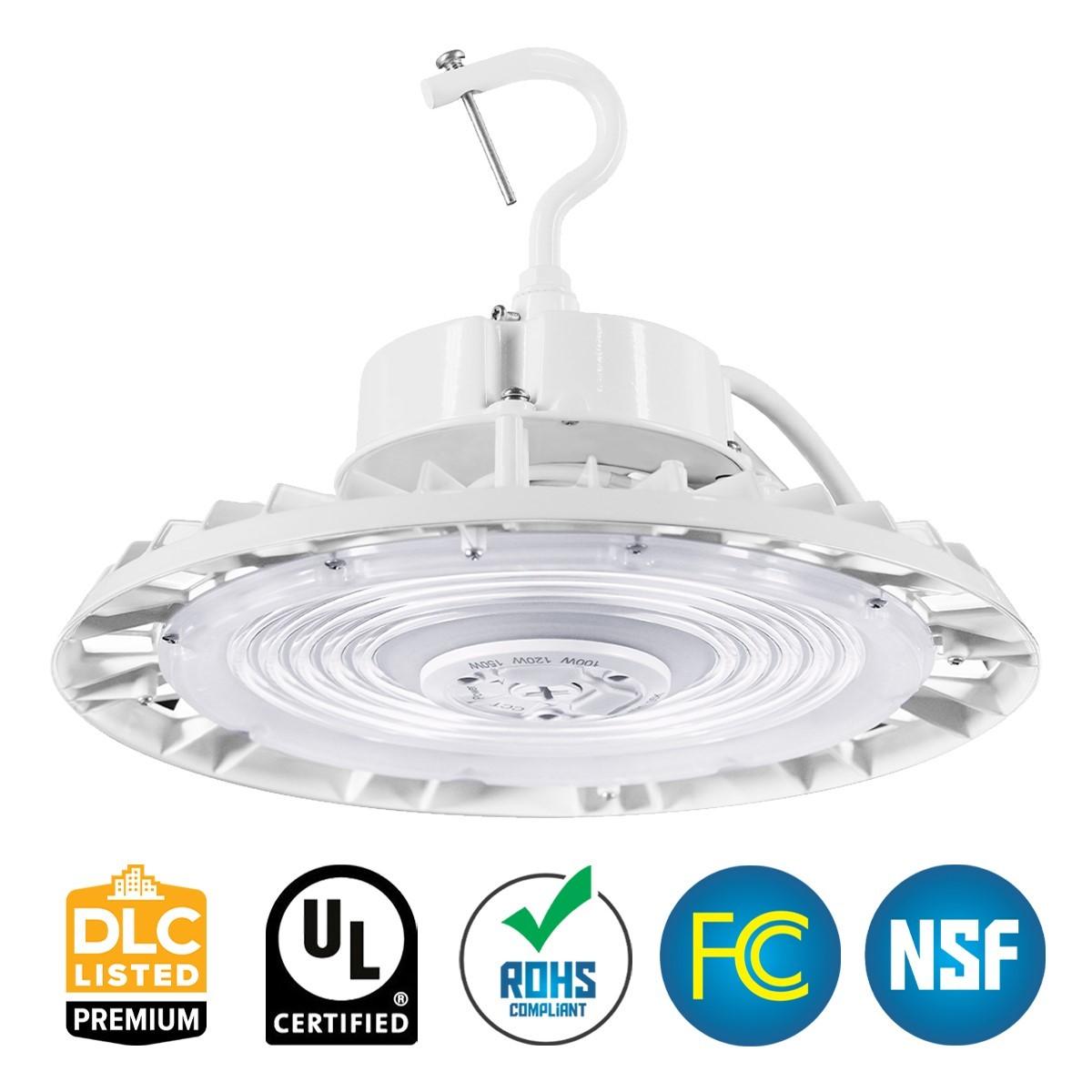

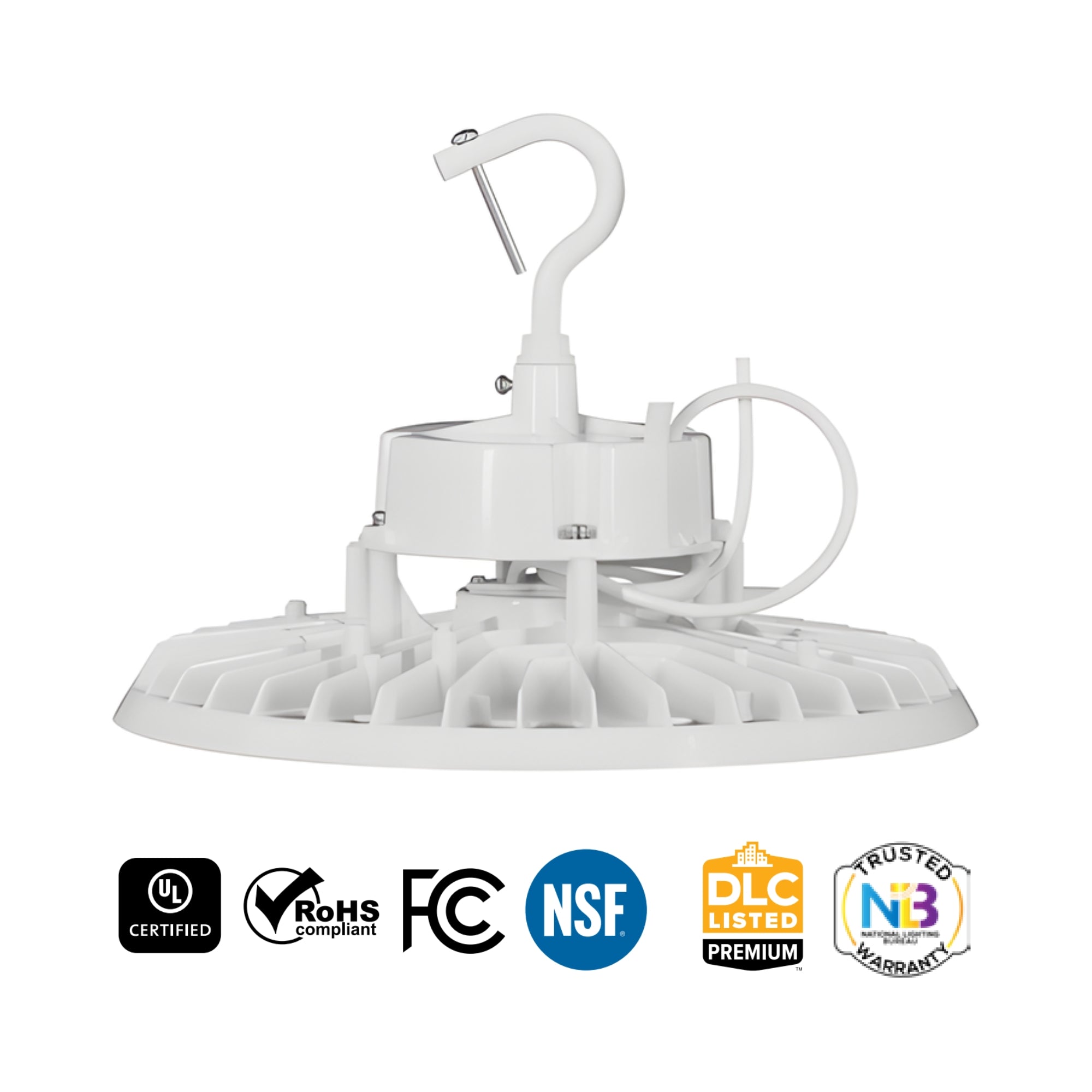

• Certifications: cULus, DLC 5.1 Premium, NSF, FCC, RoHS
• Environmental Ratings: IP65, UL Wet Rated
• Operating Temperature: -40°F to +122°F (-40°C to +50°C)*
• Controls Ready: Pre-wired screw-in sensor base

Typical Applications:

• Warehouses
• Manufacturing facilities

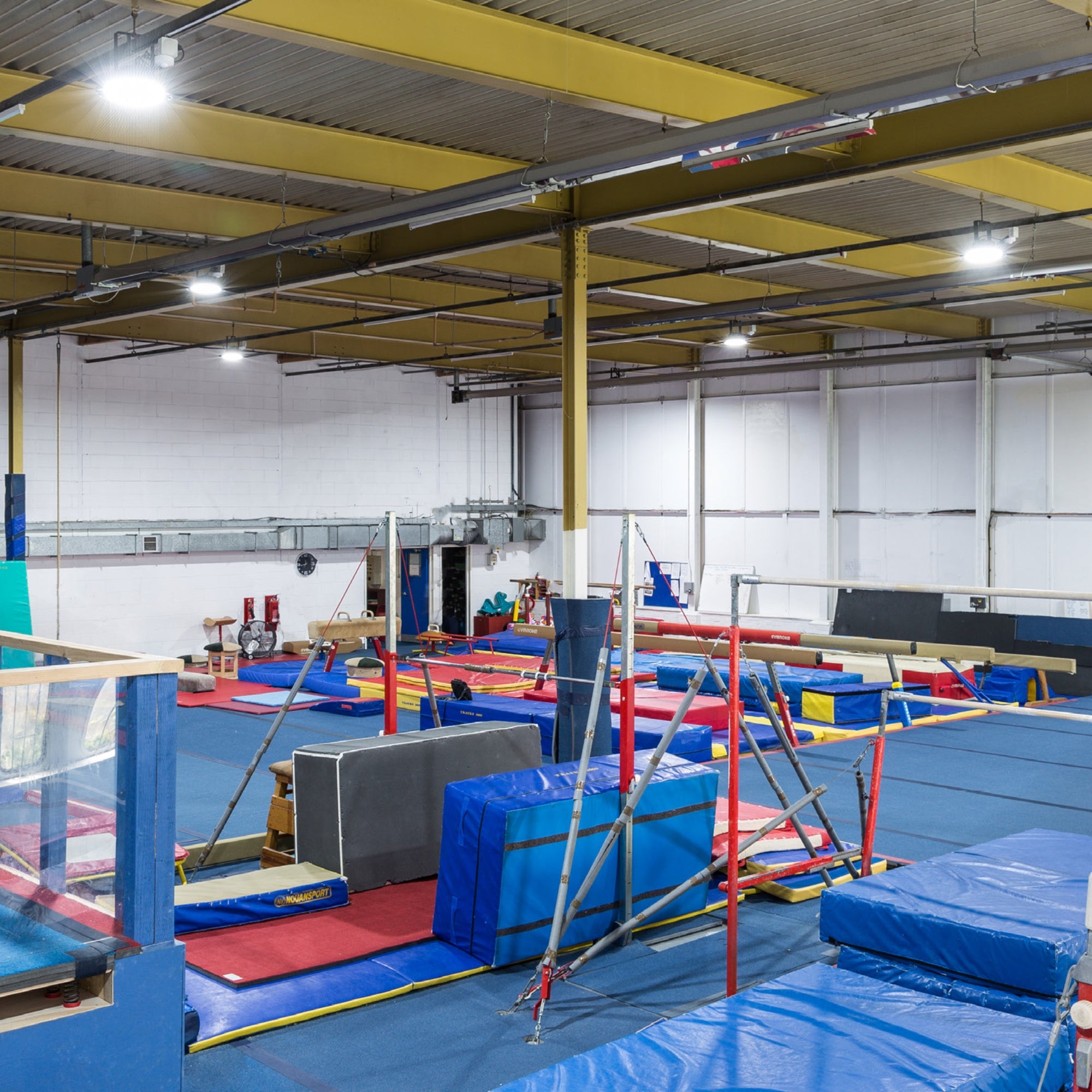

• Gymnasiums
• Industrial storage

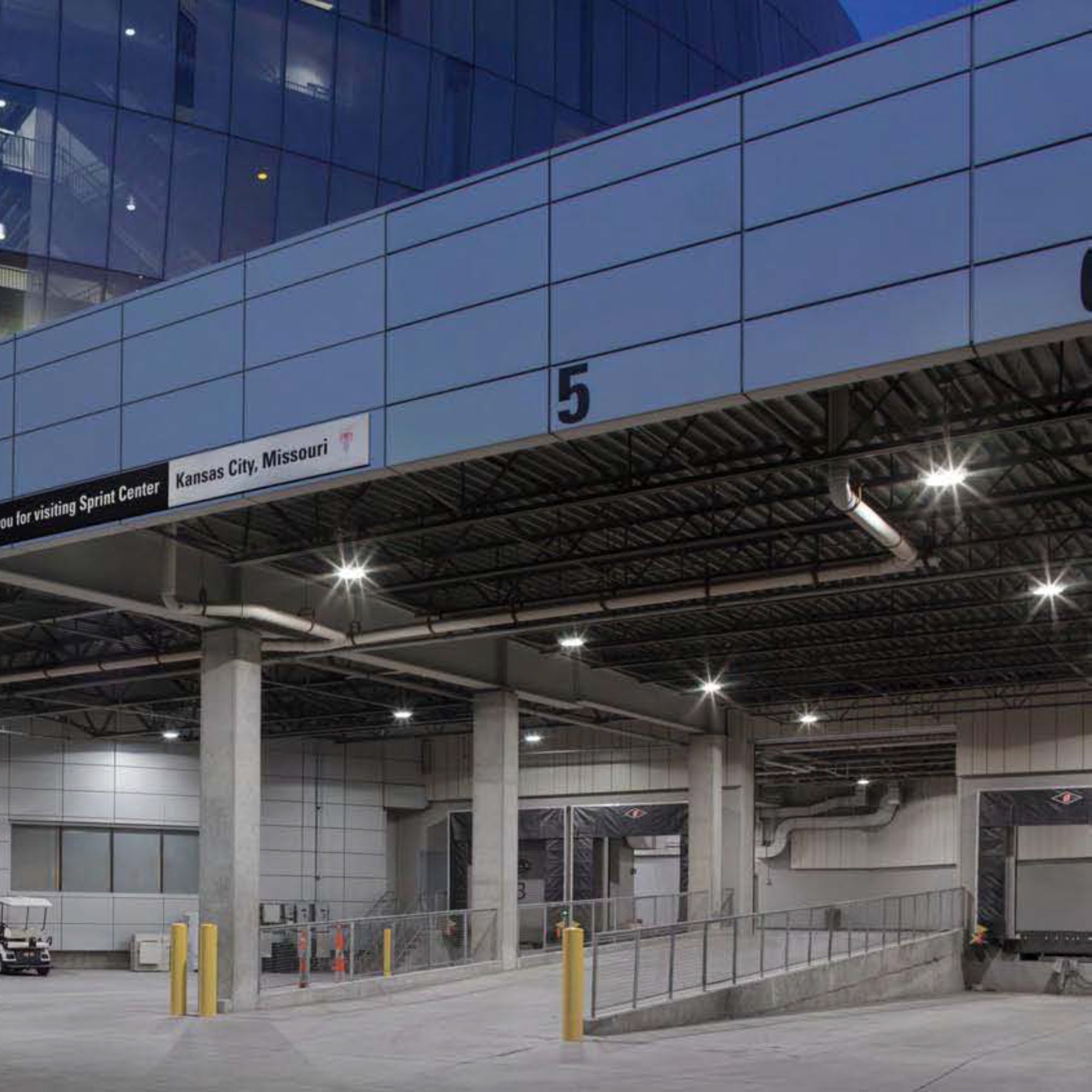

• Loading docks

Performance & Light Output:
Provides up to 30,000 lumens at 200W, 33,000 lumens at 220W, and 36,000 lumens at 240W with efficacy up to 150 lm/W. Rated for 150,000 hours (L70) with CRI greater than 80.

Electrical & Controls:

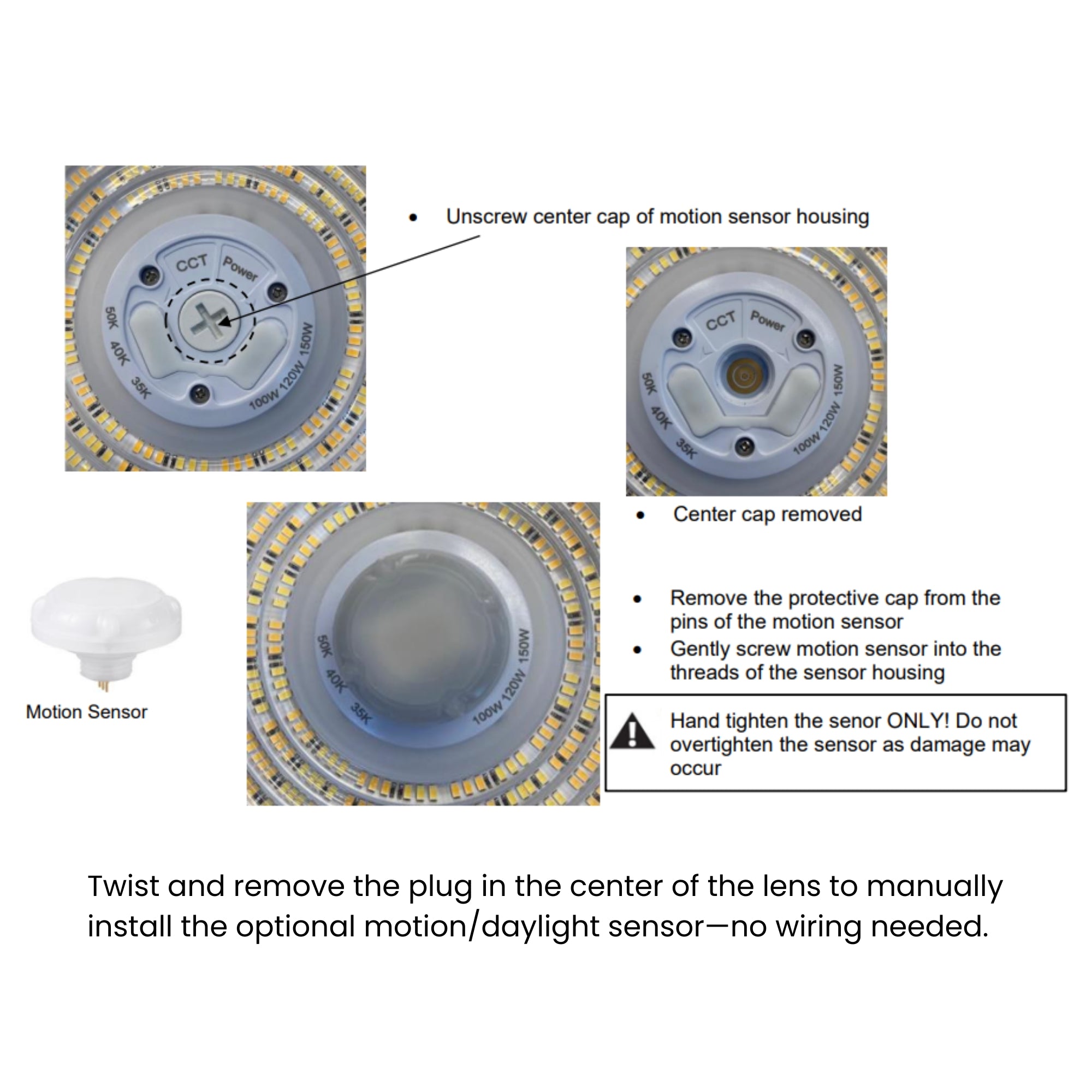

Operates on 120–277V at 50/60Hz using a constant current driver with 0–10V dimming. Includes 6kV surge suppression with power factor greater than 90% and THD below 20%. The pre-wired sensor base supports optional field-installable motion/daylight sensors.

Construction & Durability:
Die-cast aluminum housing with IP65 protection and a 90° polycarbonate front lens to minimize glare. UL Wet Location listed for use in exposed environments when installed per manufacturer guidelines.

Installation & Mounting:

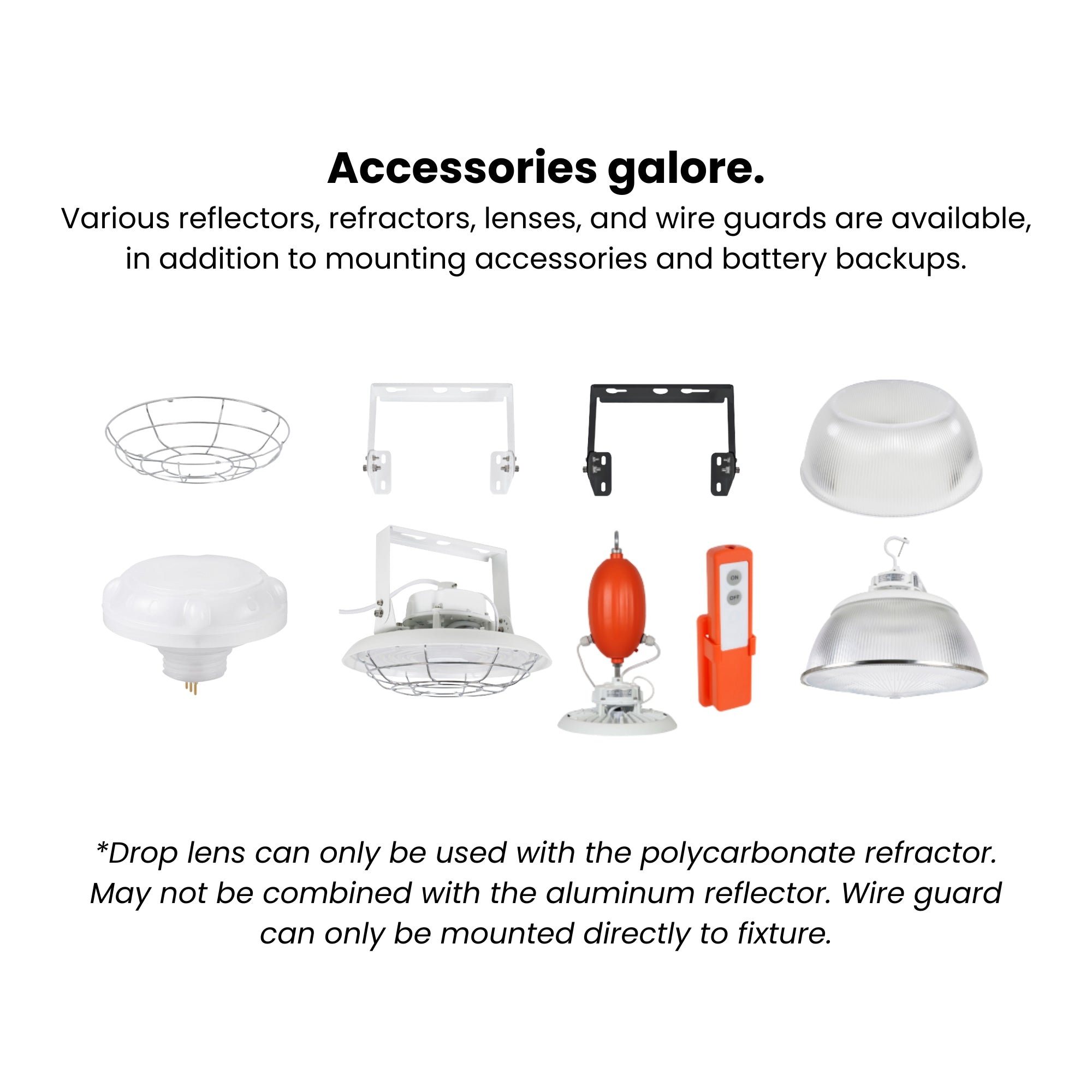

Includes a heavy-duty hook for suspended mounting. Surface and pendant mounting options are available using optional brackets. Includes 6' power cable and 3' dimming cable.

Included:
UFO high bay fixture with pre-installed hook, 6' power cable, and 3' dimming cable.

*240W setting operating temperature limited to -40°F to +109°F (-40°C to +43°C).
