Description

LEDVANCE Sylvania 62489 UltraLED Dual Selectable 4ft Vapor Tight 3A — 30W/40W/50W Selectable — 3500K/4000K/5000K — 120–347V — Motion/Daylight Sensor — Gray/Polycarbonate Lens

The LEDVANCE Sylvania 62489 (VAPOR3A/S050UNHD8SC7/48/GR/D) is a commercial 4ft Vapor Tight luminaire from the UltraLED Dual Selectable 3A series engineered to deliver up to 7,200 lumens with field-adjustable 30W/40W/50W power settings and switchable 3500K/4000K/5000K color temperatures. Operating on wide-range 120–347V AC electrical systems with 0–10V continuous dimming, this luminaire provides an energy-efficient replacement for legacy 2x32W T8, 3x28W T8, 3x32W T8, or 2x54W T5 fluorescent fixtures with up to 47% energy savings. Equipped with a factory-installed motion/daylight sensor (up to 14.7 ft mounting height), it automates occupancy detection and daylight harvesting out of the box. Built with a UL 1598 (cULus) Wet Location rating, it is qualified for commercial utility rebates under DLC 5.1 standards and features an IP66-sealed polycarbonate body and lens, stainless steel lens clips, NEMA 4X corrosion defense, and NSF Splash Zone certification.

Key Features

  • Selectable Wattage: 30W / 40W / 50W — field-adjustable multi-wattage selectable driver via internal switch
  • Wattage Equivalency: Replaces legacy 2x32W T8, 3x28W T8, 3x32W T8, or 2x54W T5 fluorescent fixtures for up to 47% energy savings
  • Maximum Lumen Output: 7,200 lm at 50W / 4000K (4,320 / 5,760 / 7,200 lm steps)
  • Peak Efficacy: 144 lm/W for high-efficiency commercial operation
  • CRI: >80 color rendering across all settings
  • Selectable CCT: 3500K / 4000K / 5000K — field-adjustable CCT for tunable white and switchable Kelvin control
  • Lens & Optics: Polycarbonate lens secured by stainless steel lens clips
  • Dimming: 0–10V continuous dimming standard with auxiliary 12V output
  • Voltage: Universal 120–347V AC constant current driver
  • Location Rating: UL 1598 (cULus) Listed for wet locations
  • Operating Temperature: -31°F (-35°C) to 122°F (50°C) chain mount / -31°F (-35°C) to 104°F (40°C) surface mount ambient range (-31°F (-35°C) minimum ambient for motion sensor models)
  • Certifications: DLC 5.1 Listed, UL 1598 (cULus), IP66, NEMA 4X, NSF Splash Zone, FCC, RoHS, NLB Trusted Warranty Program
  • Rated Life: 100,000 hours (L70)
  • Warranty: 5-year limited warranty — LEDVANCE Sylvania (NLB Trusted Warranty Program)
  • Sensor Compatibility: Factory-installed integrated motion/daylight sensor with DIP switch and remote control programmability (14.7 ft max mounting height)

Performance & Light Output

Wattage Total Lumens (4000K) Efficacy Legacy Equivalent
50W 7,200 lm 144 lm/W 3x32W T8 (75W, 33% savings) / 2x54W T5 (87W, 43% savings)
40W 5,760 lm 144 lm/W 3x28W T8 (64W, 38% savings) / 3x32W T8 (75W, 47% savings)
30W 4,320 lm 144 lm/W 2x32W T8 (56W system, 46% energy savings)

CRI >80 across all configurations. Rated life 100,000 hours (L70). Delivers high-efficiency illumination resulting in significant energy reduction compared to traditional fluorescent systems.

Smart & Control Features

The 62489 (VAPOR3A/S050UNHD8SC7/48/GR/D) vapor tight luminaire includes a factory-installed motion/daylight sensor and supports 0–10V continuous dimming:

  • 0–10V Continuous Dimming (Standard): Dims smoothly on standard 0–10V low-voltage control circuits and includes an auxiliary 12V output.
  • Integrated Motion/Daylight Sensor (/D): Factory-installed standalone motion and daylight sensor rated for mounting heights up to 14.7 ft (-31°F (-35°C) minimum ambient temperature). Default settings: 100% Detection Area, 10-minute Hold Time, 30% Stand-by Dimming Level, 1-minute Stand-by Period, and 50 lux Daylight Threshold.

Sensor settings can be adjusted via onboard DIP switches (Detection Area: 100%/50%; Hold-Time: 5s/30s/1min/10min; Daylight Threshold: Disable/50lux; Stand-by Period: 0s/1min; Stand-by Dimming Level: 10%/30%) or programmed with additional choices using optional handheld remote controls (catalog # 66592 / HIBAYSENSORG2REMOTE or NAED 60105, sold separately).

Electrical

Powered by a wide-range constant current driver operating on 120–347V AC. Delivers high electrical efficiency with a Power Factor >90% and Total Harmonic Distortion (THD) <20%. Integrated 2.5kV surge suppression protects internal electronics against transient voltage spikes. Includes 0–10V dimming leads and an auxiliary 12V output.

Emergency Battery Backup: Available in made-to-order emergency battery backup configurations (`E` and `DE` models, sold separately) producing 1,200 lumens (9W) in 4ft fixtures for 90 minutes during a power outage.

Construction

Durability & Impact Protection: Polycarbonate body and polycarbonate lens with stainless steel lens clips engineered for thermal dissipation and durability, paired with a NEMA 4X corrosion-resistant enclosure and NSF Splash Zone certification for sanitation environments.

Ingress Protection: IP66 rated and UL 1598 (cULus) wet location listed for complete protection against airborne dust and powerful water jets.

Operating Temperature: -31°F (-35°C) to 122°F (50°C) chain mount / -31°F (-35°C) to 104°F (40°C) surface mount ambient range (-31°F (-35°C) minimum ambient for motion sensor models).

Lens & Optics: Polycarbonate lens for durable optical protection and uniform distribution.

Finish: Gray finish formulated for high resistance against corrosion and surface wear.

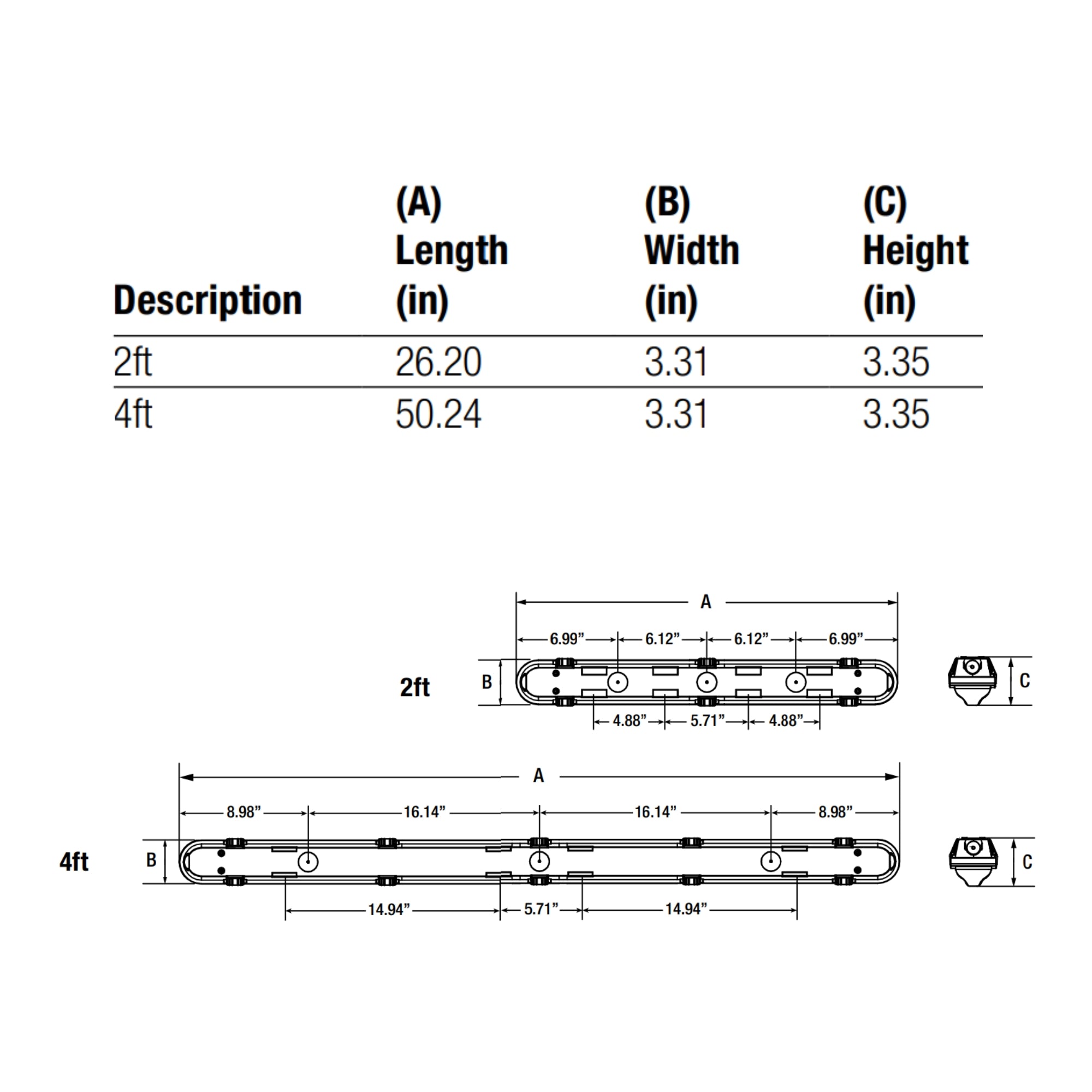

Dimensions & Weight: 50.24" L × 3.31" W × 3.35" H.

Installation & Mounting

Standard Mounting: Supplied standard with stainless steel surface mounting brackets and V-hooks for suspended chain mounting.

Accessories (Sold Separately):

  • Mounts & Hardware: 62619 / VAPOR3A/MOUNTINGKIT (Replacement Mounting Kit, sold separately), 62618 / VAPOR3A/CLIPS (Stainless Steel Clips for 2ft and 4ft Vapor3A, sold separately), 62616 / VAPOR3A/LENS4 (4ft Replacement Lens, sold separately)
  • Sensors & Controls: 66592 / HIBAYSENSORG2REMOTE (Standard Remote Control for motion sensor, sold separately), NAED 60105 (Optional Remote Control, sold separately)

Certifications & Rebates

  • DLC 5.1 Listed: Qualifies for commercial utility rebate incentives across regional energy programs. To confirm rebate eligibility with your local utility provider, visit designlights.org and search model 62489 or VAPOR3A/S050UNHD8SC7/48/GR/D.
  • UL 1598 (cULus) Listed: Certified for wet locations.
  • NSF: NSF Splash Zone certified for food-service and commercial sanitation environments.
  • NEMA 4X & IP66 Rated: NEMA 4X corrosion-resistant enclosure and IP66 sealed against dust and high-pressure water jets.
  • FCC & RoHS Compliant: Complies with FCC electromagnetic interference limits and RoHS hazardous substance restrictions.
  • NLB Trusted: Verified under the National Lighting Bureau Trusted Warranty Program.

Typical Applications

  • Tunnels & Underground Corridors — IP66 and NEMA 4X polycarbonate housing with stainless steel clips resists moisture, dust, and corrosion.
  • Industrial Manufacturing & Assembly — Wide 120–347V AC input and 100,000-hour L70 lifespan support continuous industrial facility operation.
  • Food Processing & Splash Zones — NSF Splash Zone certification and sealed polycarbonate lens withstand commercial washdown procedures.
  • Cold Storage & Walk-In Freezers — Broad ambient temperature operating range ensures dependable illumination in refrigerated facilities.
  • Parking Garages & Utility Rooms — Surface mount brackets and V-hooks adapt easily to concrete ceilings and suspended chain layouts.

What's Included

  • LEDVANCE Sylvania 62489 (VAPOR3A/S050UNHD8SC7/48/GR/D) UltraLED Dual Selectable 4ft Vapor Tight 3A with Motion/Daylight Sensor — Gray
  • Stainless steel mounting brackets and V-hooks
  • Installation and operation manual

Specifications

Dimensions

Length/Depth
50.24 in
Width/Diameter
3.31 in
Height
3.35 in
Weight
4.35 lb

Style & Materials

Material
Polycarbonate

Characteristics & Features

Lamp Source
led
Lamp Color
3500K, 4000K, 5000K, Selectable CCT
Color Rendering
80 CRI
Delivered Lumens
7200
Dimmable
Yes

Electrical Information

Voltage
120-347V
Total Wattage
50W

Item Details

MPN
62489
Brand
Sylvania
Catalog Number
VAPOR3A/S050UNHD8SC7/48/GR/D
Family
UltraLED Dual Selectable Vapor Tight 3A
UPC
046135624896

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
100,000 Hours
Product Rating
IP66 Rated, NEMA 4X

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

How is the LEDVANCE Sylvania 62489 Vapor Tight 3A mounted?

The LEDVANCE Sylvania 62489 (VAPOR3A/S050UNHD8SC7/48/GR/D) can be surface mounted or chain suspended using the included stainless steel mounting brackets and V-hooks. Replacement mounting kits (62619), stainless steel lens clips (62618), and sensor remote controls (66592) are sold separately.

How do you adjust the wattage and color temperature on the 62489?

The 62489 features internal selector switches located inside the luminaire that let installers choose between 30W, 40W, 50W power settings (4,320, 5,760, 7,200 lumens at 4000K) and 3500K, 4000K, or 5000K color temperatures. It delivers 144 lm/W efficacy across its selectable output range.

What environmental and sanitation ratings apply to the 62489?

The LEDVANCE Sylvania 62489 is UL 1598 (cULus) listed for wet locations and carries IP66, NEMA 4X, and NSF Splash Zone certifications for washdown environments. With the integrated motion sensor, its polycarbonate enclosure is rated for -31°F (-35°C) to 122°F (50°C) chain mount and up to 104°F (40°C) surface mount.

How do you adjust the motion and daylight sensor on the LEDVANCE Sylvania 62489?

The LEDVANCE Sylvania 62489 includes a factory-installed motion and daylight sensor pre-set to 100% detection area, 10-minute hold time, 30% standby dimming, 1-minute standby period, and 50 lux daylight threshold. Installers can customize settings via onboard DIP switches or with the optional remote control (66592 or 60105, sold separately).

What fluorescent fixtures does the LEDVANCE Sylvania 62489 replace and is it rebate eligible?

The LEDVANCE Sylvania 62489 replaces legacy 2x32W T8, 3x28W T8, 3x32W T8, or 2x54W T5 fluorescent luminaires, providing up to 47% energy savings. It is DLC 5.1 listed for commercial utility rebates, rated for a 100,000-hour L70 lifespan, and backed by a 5-year NLB Trusted Warranty.
