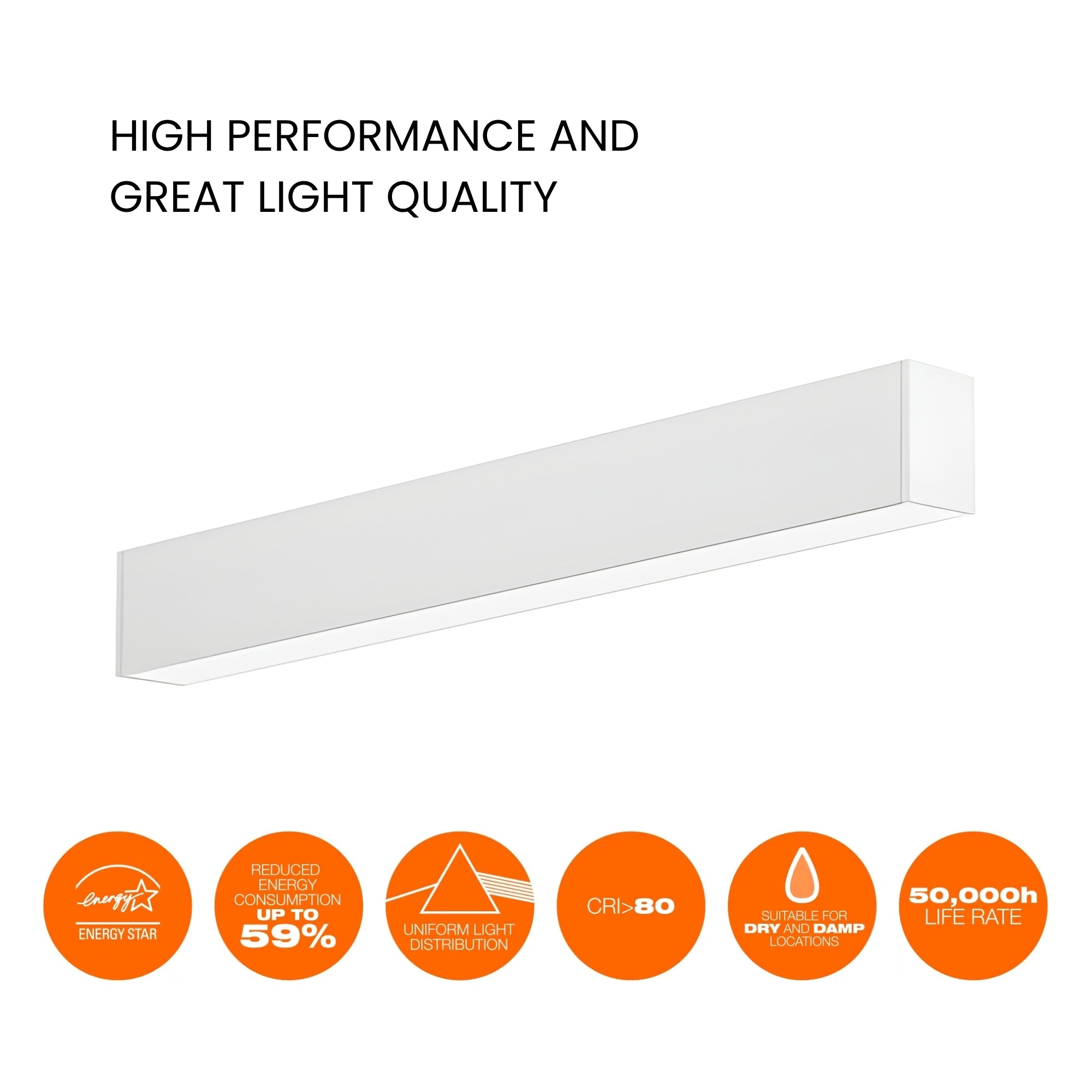

LEDVANCE CCT Selectable Linear Slot Linear Light — 48W Configuration

The LEDVANCE 62455 is a versatile linear light designed for both residential and commercial applications. It features a 48W power consumption, delivering 4800 lumens with a selectable CCT of 3000K, 3500K, and 4000K. The fixture operates on a 120-347V input, making it suitable for various electrical environments. This product is damp rated, ensuring reliable performance in moisture-prone areas.

Key Features

• CCT Selectable: Allows for customizable lighting with 3000K, 3500K, and 4000K options.
• Direct/Indirect Lighting: Provides both direct and indirect light distribution for enhanced ambiance.
• Mounting Flexibility: Can be surface, suspended, or recessed mounted to suit different installation needs.
• Energy Efficiency: Achieves up to 100 lumens per watt, promoting energy savings.
• High CRI: Features a CRI greater than 80 for accurate color rendering.
• Dimmable: Supports 0-10V dimming for adjustable light levels.
• Durable Construction: Built to withstand damp environments with a robust design.
• Long Lifespan: Rated for 50,000 hours (L70) for extended use.
• Power Factor: Maintains a power factor greater than 0.9 for efficient operation.
• Compliance: Meets cETLus, RoHS, and FCC standards for safety and quality.

Typical Applications

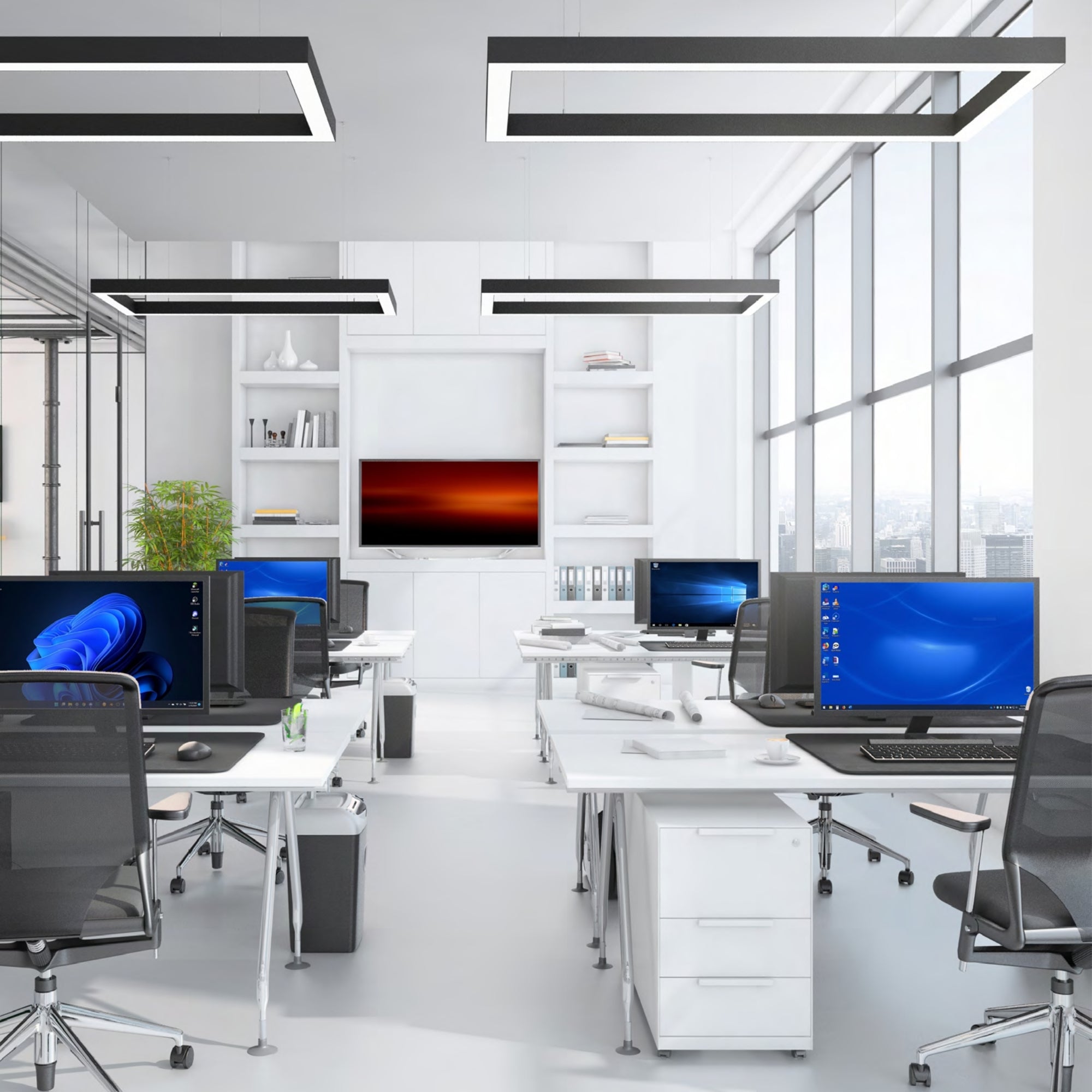

• Office Spaces
• Retail Environments
• Educational Facilities
• Healthcare Settings
• Hospitality Venues

Performance & Light Output

This fixture delivers a total light output of 4800 lumens with an efficacy of up to 100 LPW. It features a CRI greater than 80, ensuring vibrant and true-to-life colors. The fixture is designed for a long lifespan of 50,000 hours (L70).

Electrical & Controls

The LEDVANCE 62455 operates on a wide voltage range of 120-347V and supports 0-10V dimming for flexible control. It maintains a power factor greater than 0.9 and a THD of less than 20%.

Construction & Durability

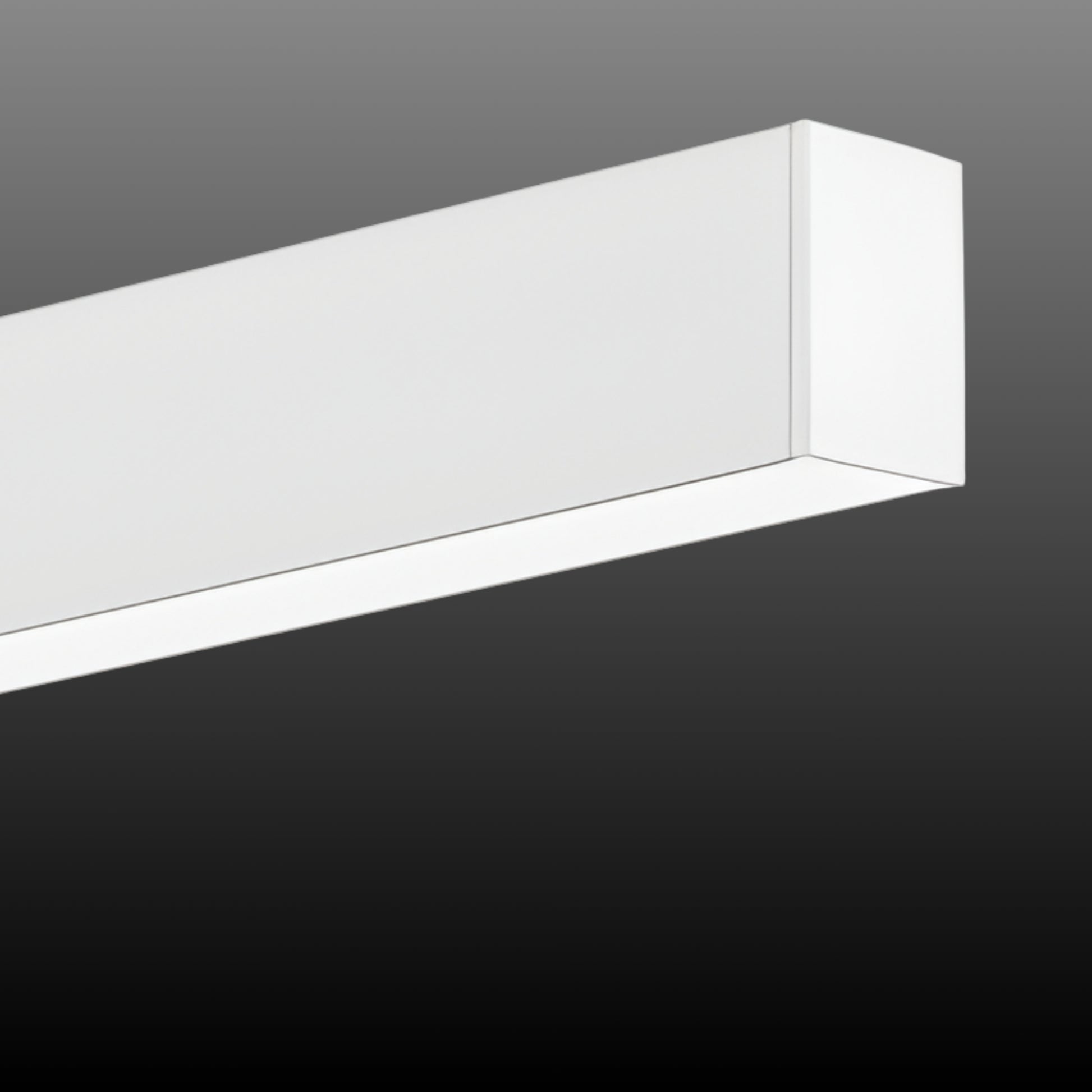

Constructed with a sleek white finish, this fixture is damp rated, making it suitable for environments with occasional moisture. It is compliant with cETLus, RoHS, and FCC standards.

Installation & Mounting

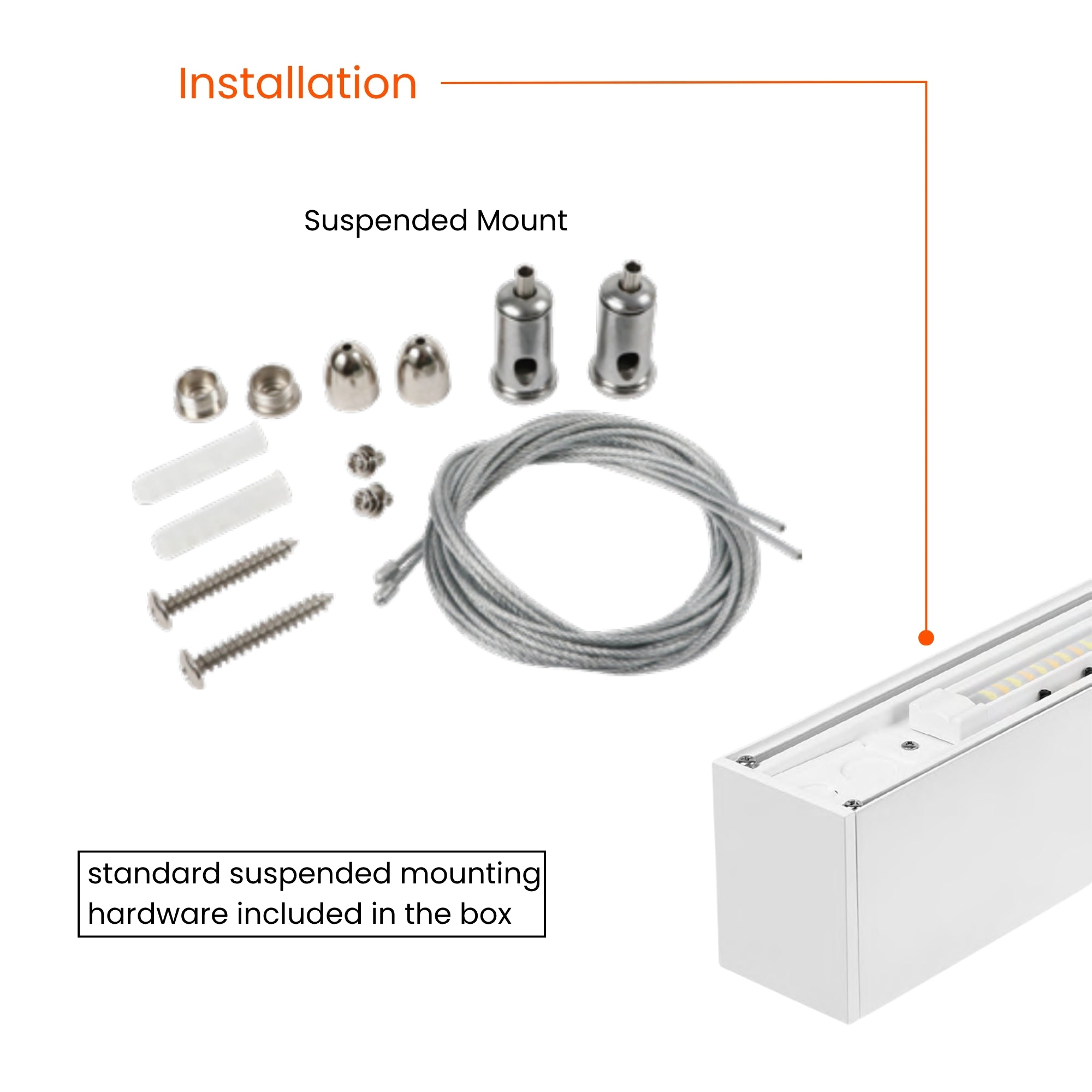

The fixture supports suspended mounting and includes necessary accessories for installation. Additional mounting accessories are available separately.

What's Included

• Suspended Mount Accessories
