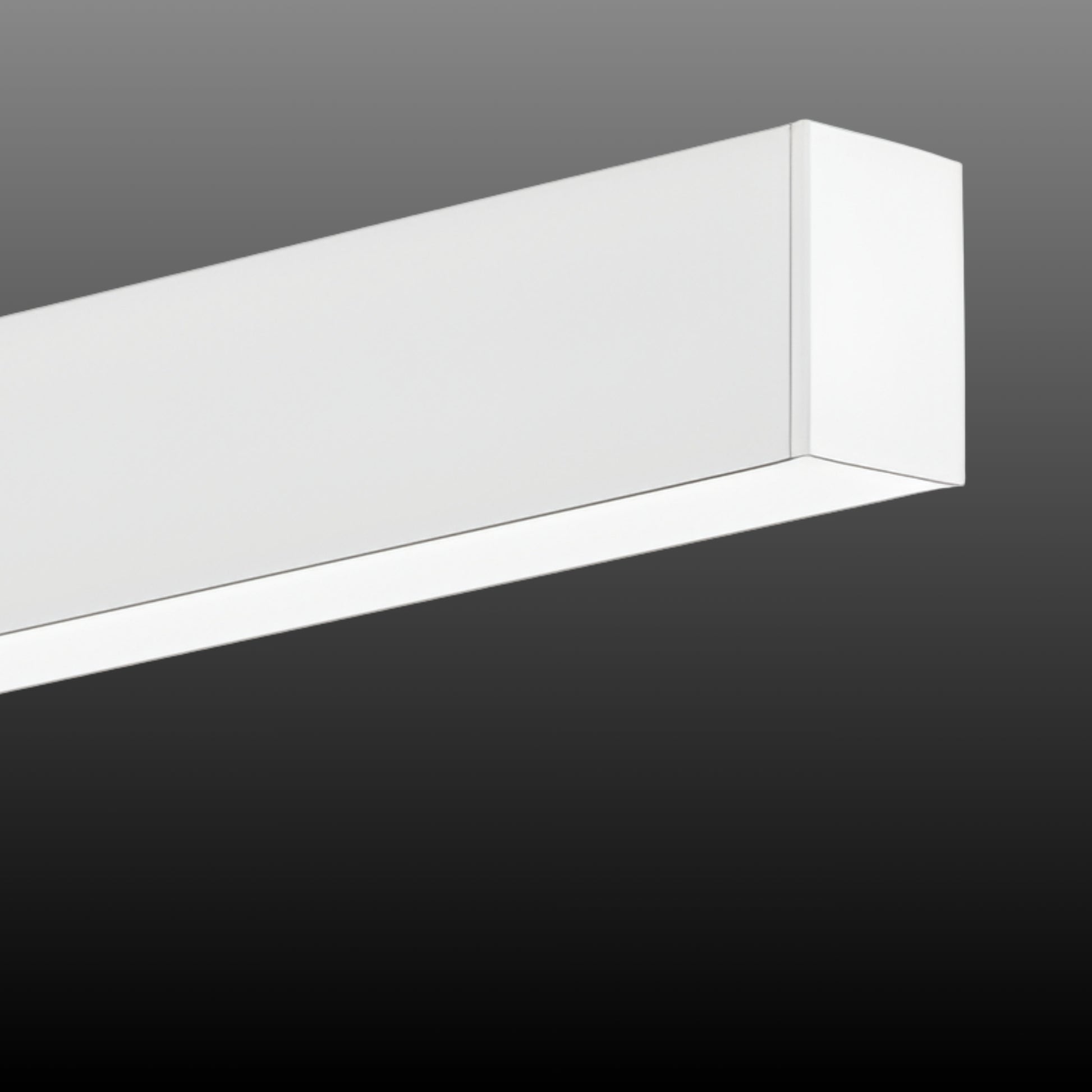

LEDVANCE CCT Selectable Linear Slot Linear Light — 48W Configuration

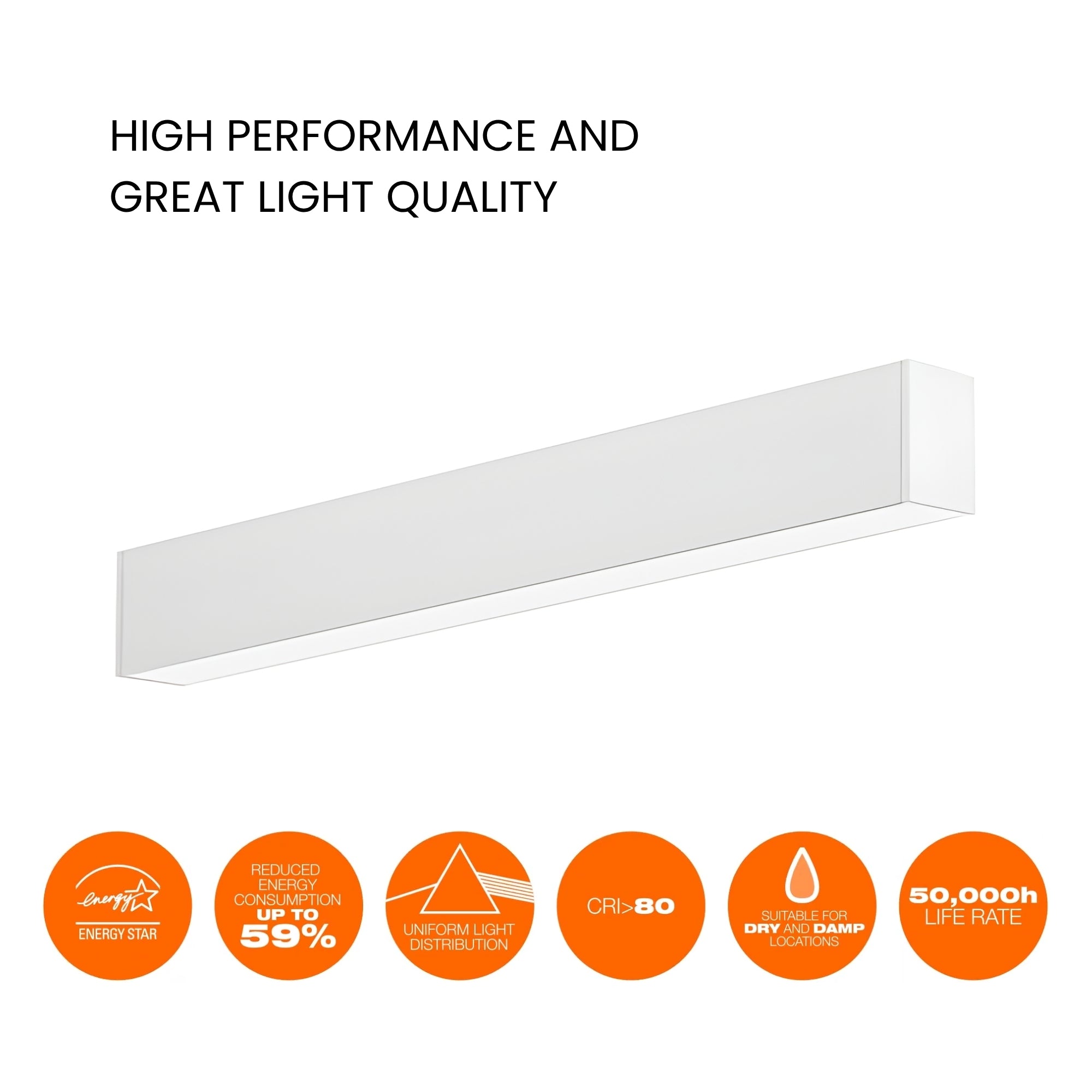

The LEDVANCE 62454 is a versatile linear light offering 4800 lumens with a 48W power consumption. It supports a wide 120-347V input range, making it suitable for various commercial and residential applications. This fixture features a CCT selectable design, allowing users to choose between 3000K, 3500K, and 4000K color temperatures for tailored lighting environments.

Key Features

• CCT Selectable: Adjust the color temperature to 3000K, 3500K, or 4000K as needed.
• Direct/Indirect Lighting: Provides 70% downlight and 30% uplight for balanced illumination.
• Dimmable: Supports 0-10V dimming for customizable light levels.
• High Efficacy: Achieves up to 100 lumens per watt for energy savings.
• Durable Construction: Features a sleek white finish and robust design.
• Mounting Flexibility: Can be installed on walls, suspended, or recessed.
• Long Lifespan: Rated for 50,000 hours (L70) for extended use.
• Power Factor: Greater than 0.9 for efficient power usage.
• THD: Less than 20% for improved power quality.
• Operating Temperature: Functions effectively from -4°F to +104°F.

Typical Applications

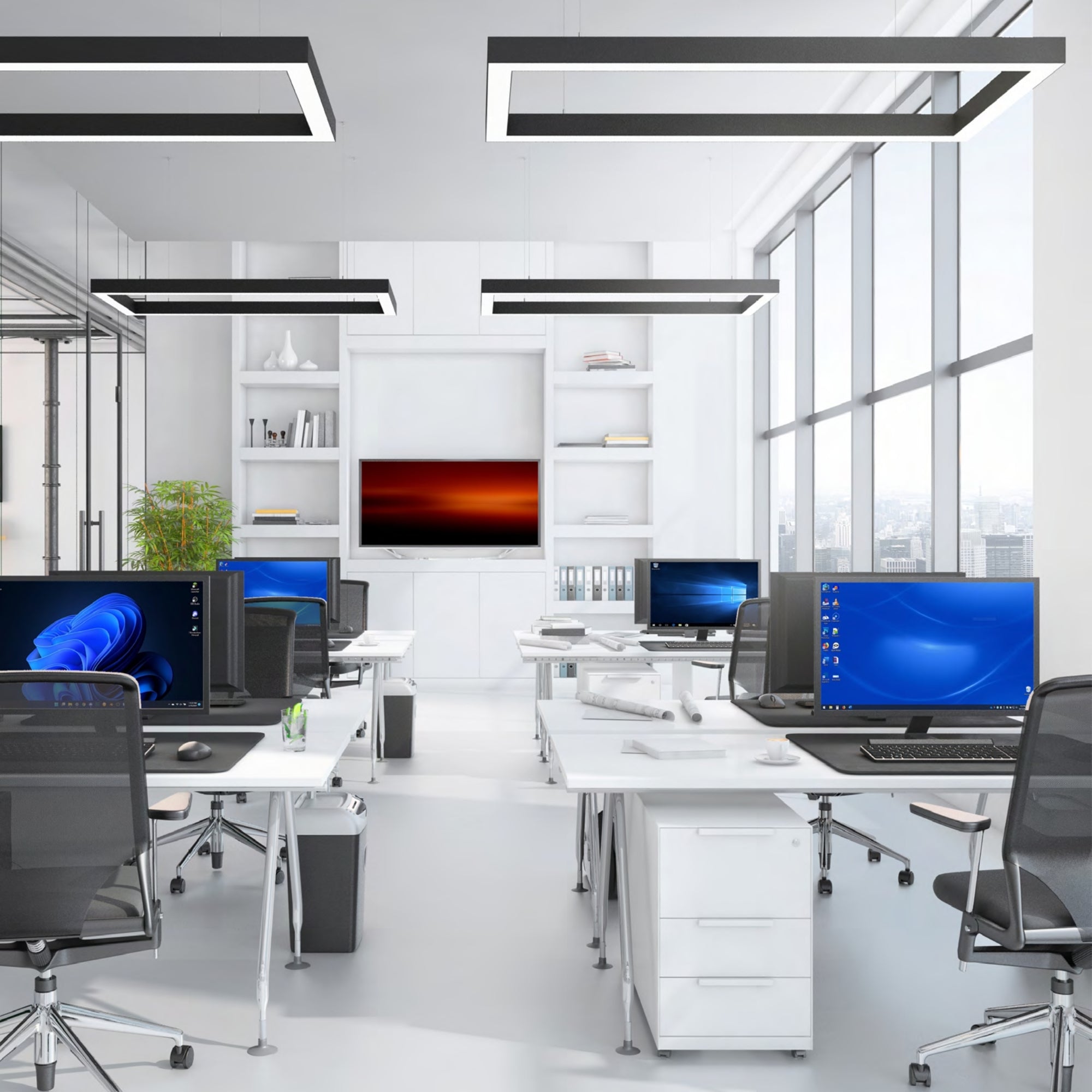

• Office spaces
• Retail environments
• Educational facilities
• Healthcare settings
• Residential areas

Performance & Light Output

This fixture provides a luminous output of 4800 lumens with a color rendering index (CRI) greater than 80, ensuring vibrant and accurate color representation. It offers a high efficacy of up to 100 LPW, making it an energy-efficient choice for various settings.

Electrical & Controls

The LEDVANCE 62454 operates on a wide voltage range of 120-347V and includes 0-10V dimming capabilities. It maintains a power factor greater than 0.9 and a total harmonic distortion (THD) of less than 20%, ensuring reliable performance.

Construction & Durability

Constructed with a sleek white finish, this fixture is damp rated, making it suitable for environments with occasional moisture exposure. It is designed to operate within a temperature range of -4°F to +104°F.

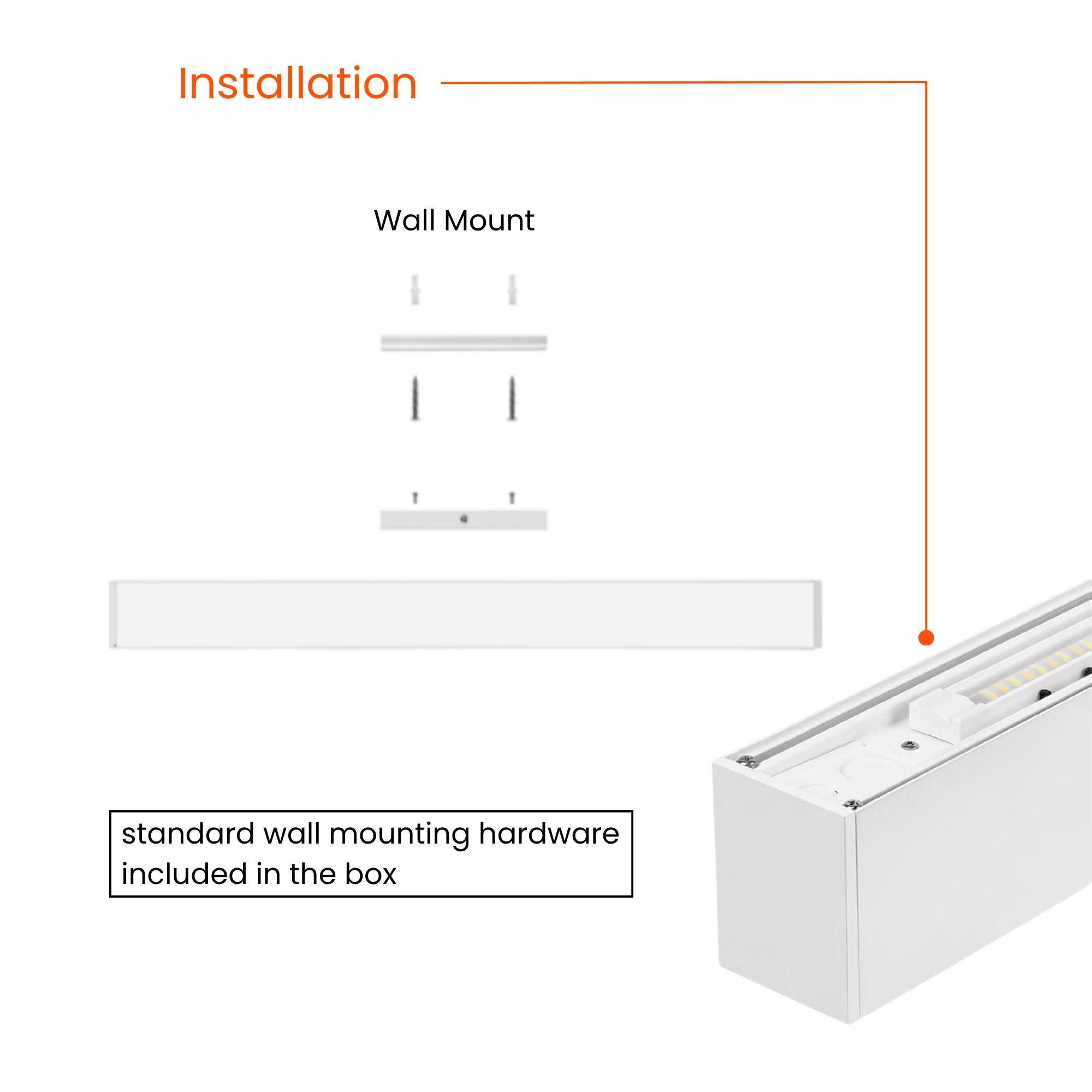

Installation & Mounting

The LEDVANCE 62454 supports multiple mounting options, including wall, suspended, and recessed installations. Accessories for suspended mounting are included, while additional accessories are available separately.

What's Included

• Wall mounting accessories
