LEDVANCE Sylvania 62448 Value Class Dual Selectable FlexMount Jelly Jar Vapor Tight — 20W — 3000K/4000K/5000K — 120–347V — Gray
Available in stock (100)
About this item
About this item
- Output & Equivalency: Switchable 10W and 20W variable power settings delivering 1,000 or 2,000 lumens (100 lm/W) to replace up to 75W or 150W incandescent fixtures.
- FlexMount Jelly Jar Enclosure: Lightweight, compact vapor tight design with FlexMount hardware supporting wall, ceiling, or pendant mounting and a frosted glass lens.
- Selectable CCT: Onboard switch enables instant selection between 3000K, 4000K (factory default), and 5000K switchable Kelvin steps.
- 120–347V & 0–10V Dimming: Wide-range 120–347V AC driver includes continuous 0–10V dimming for commercial and industrial voltage systems.
- Ingress Defense & Warranty: cULus listed to UL 1598 standards, IP65 wet location rated, FCC and RoHS compliant, and backed by the 5-year NLB Trusted Warranty Program.
Description
Description
LEDVANCE Sylvania 62448 Value Class Dual Selectable FlexMount Jelly Jar Vapor Tight — 10W/20W Selectable — 3000K/4000K/5000K — 120–347V — Gray/Frosted Glass Lens

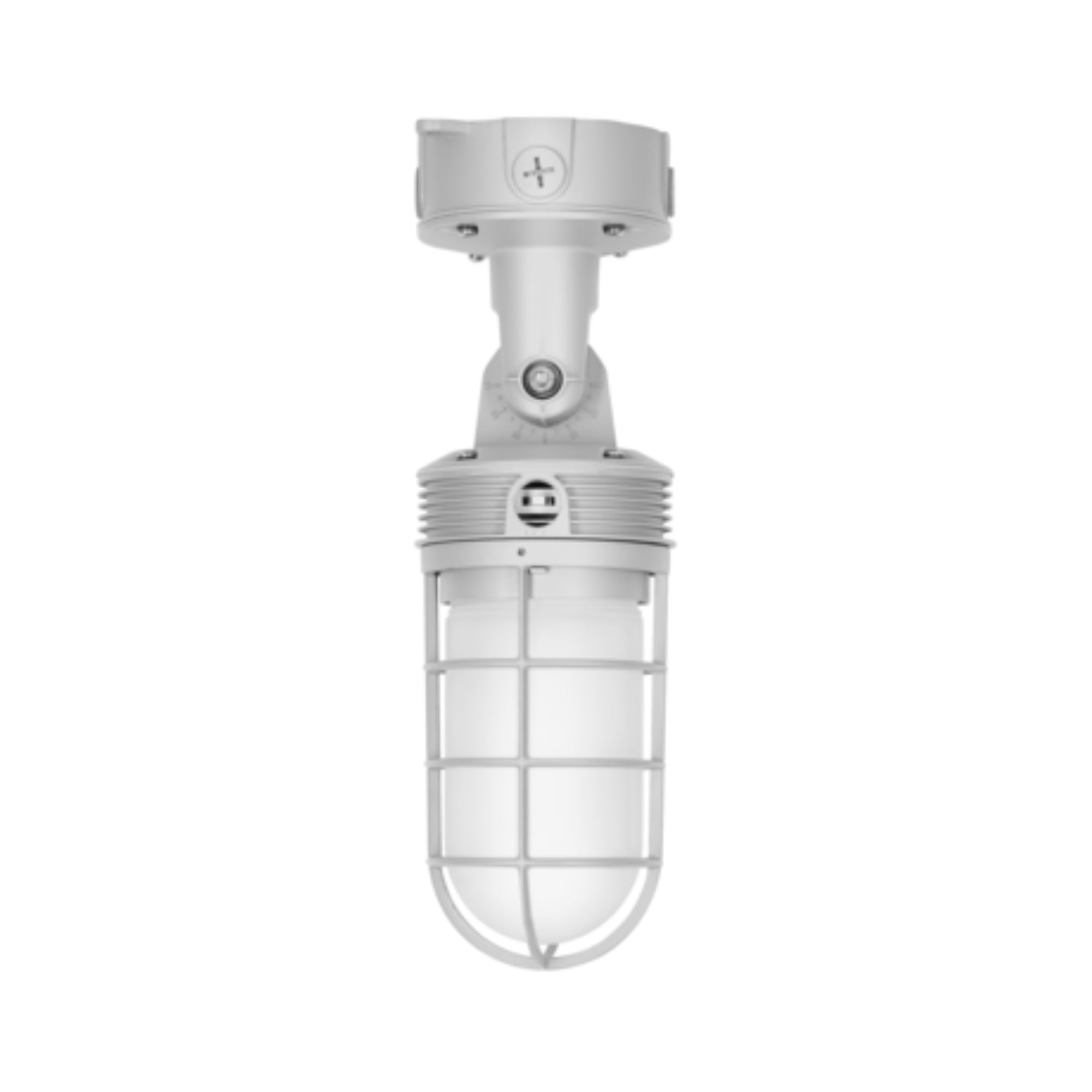

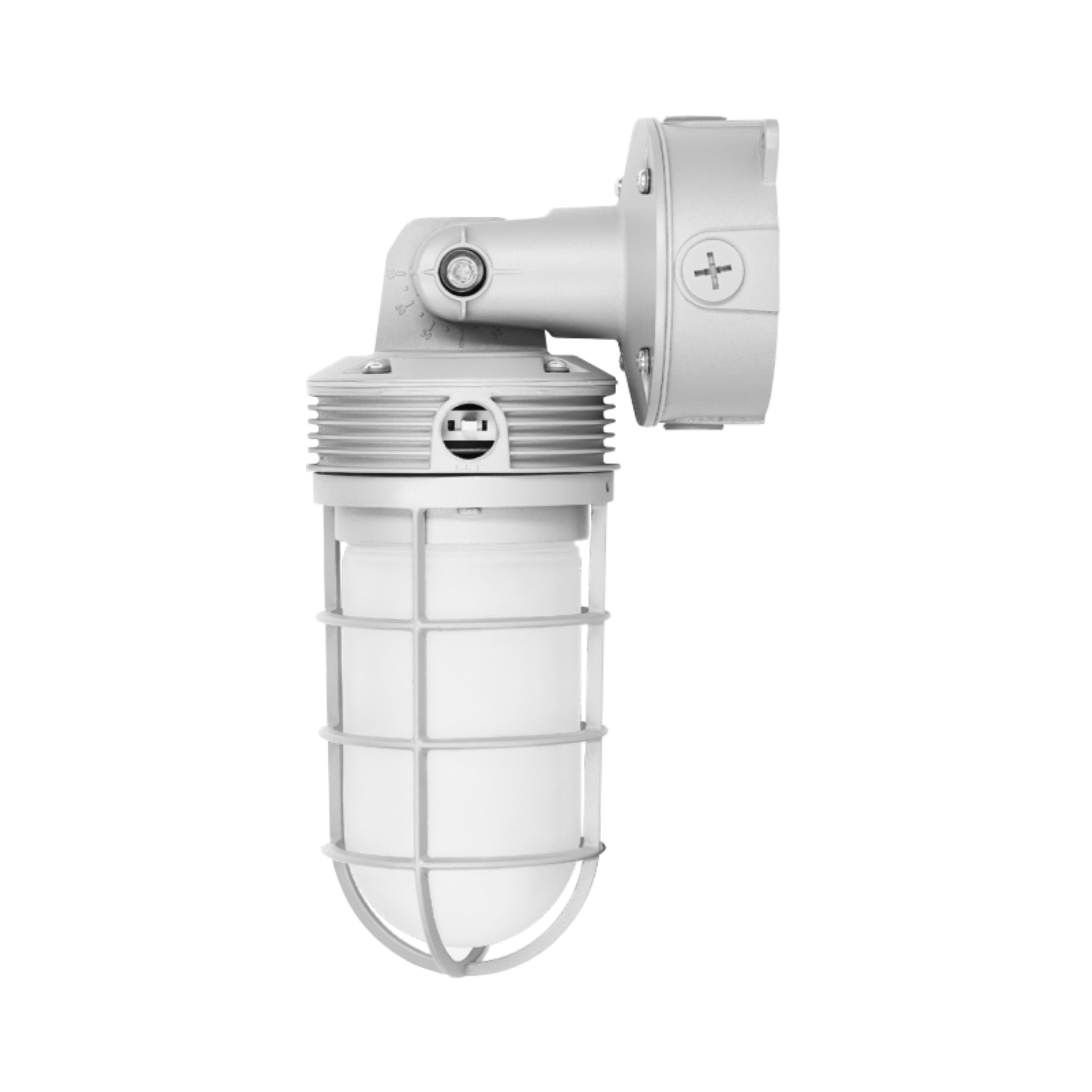

The LEDVANCE Sylvania 62448 (JELYJAR2A/S020UNHD8SC2/GR) is a commercial Value Class Dual Selectable Jelly Jar Vapor Tight luminaire engineered to deliver up to 2,000 lumens with field-adjustable 10W/20W power settings and switchable 3000K/4000K/5000K color temperatures. Operating on wide-range 120–347V electrical systems with 0–10V continuous dimming, this luminaire provides an energy-efficient replacement for legacy up to 75W or 150W incandescent and traditional HID fixtures with up to 87% energy savings. Built with a cULus Wet Location rating, it features an IP65-sealed enclosure, a frosted glass lens, and an articulated FlexMount knuckle supporting wall, ceiling, or pendant installation in a single SKU.
Key Features
- Selectable Wattage: 10W / 20W (factory default 20W) — field-adjustable multi-wattage selectable driver for variable power settings
- Wattage Equivalency: Replaces legacy up to 75W (at 10W) or up to 150W (at 20W) incandescent and traditional HID fixtures for up to 87% energy savings
- Maximum Lumen Output: 2,000 lm at 20W / 1,000 lm at 10W (4000K)
- Peak Efficacy: 100 lm/W for high-efficiency commercial operation
- CRI: >80 color rendering across all settings
- Selectable CCT: 3000K / 4000K / 5000K (factory default 4000K) — field-adjustable CCT for tunable white and switchable Kelvin control
- Lens & Optics: Frosted glass lens with Type V optical distribution and B1-U3-G1 BUG rating
- Dimming: 0–10V continuous dimming standard
- Voltage: Universal 120–347V AC driver
- Location Rating: cULus Listed for wet locations; IP65 rated
- Operating Temperature: -40°F (-40°C) to 122°F (50°C) ambient range
- Certifications: cULus Listed to UL 1598, IP65, FCC, RoHS, NLB Trusted Warranty Program
- Rated Life: 50,000 hours (L70)
- Warranty: 5-year limited warranty — LEDVANCE Sylvania (NLB Trusted Warranty Program)
- Form Factor & Design: FlexMount articulated knuckle supports wall, ceiling, or pendant mounting in the same product
Performance & Light Output
| Wattage | Total Lumens | Efficacy | Legacy Equivalent |
|---|---|---|---|
| 20W | 2,000 lm | 100 lm/W | Up to 150W Incandescent (87% energy savings) |
| 10W | 1,000 lm | 100 lm/W | Up to 75W Incandescent (87% energy savings) |
CRI >80 across all configurations with Type V distribution and a B1-U3-G1 BUG rating. Rated life 50,000 hours (L70). Delivers high-efficiency illumination resulting in significant energy reduction compared to traditional incandescent and HID systems.
Smart & Control Features
Equipped with 0–10V dimming control leads for smooth continuous dimming when paired with compatible commercial 0–10V dimmers and building lighting controls.
Electrical
Powered by a wide-range driver operating on 120–347V AC. Delivers high electrical efficiency with a Power Factor >0.9 and Total Harmonic Distortion (THD) <20%. Includes 0–10V dimming leads and ships factory pre-set at 20W and 4000K.
Construction

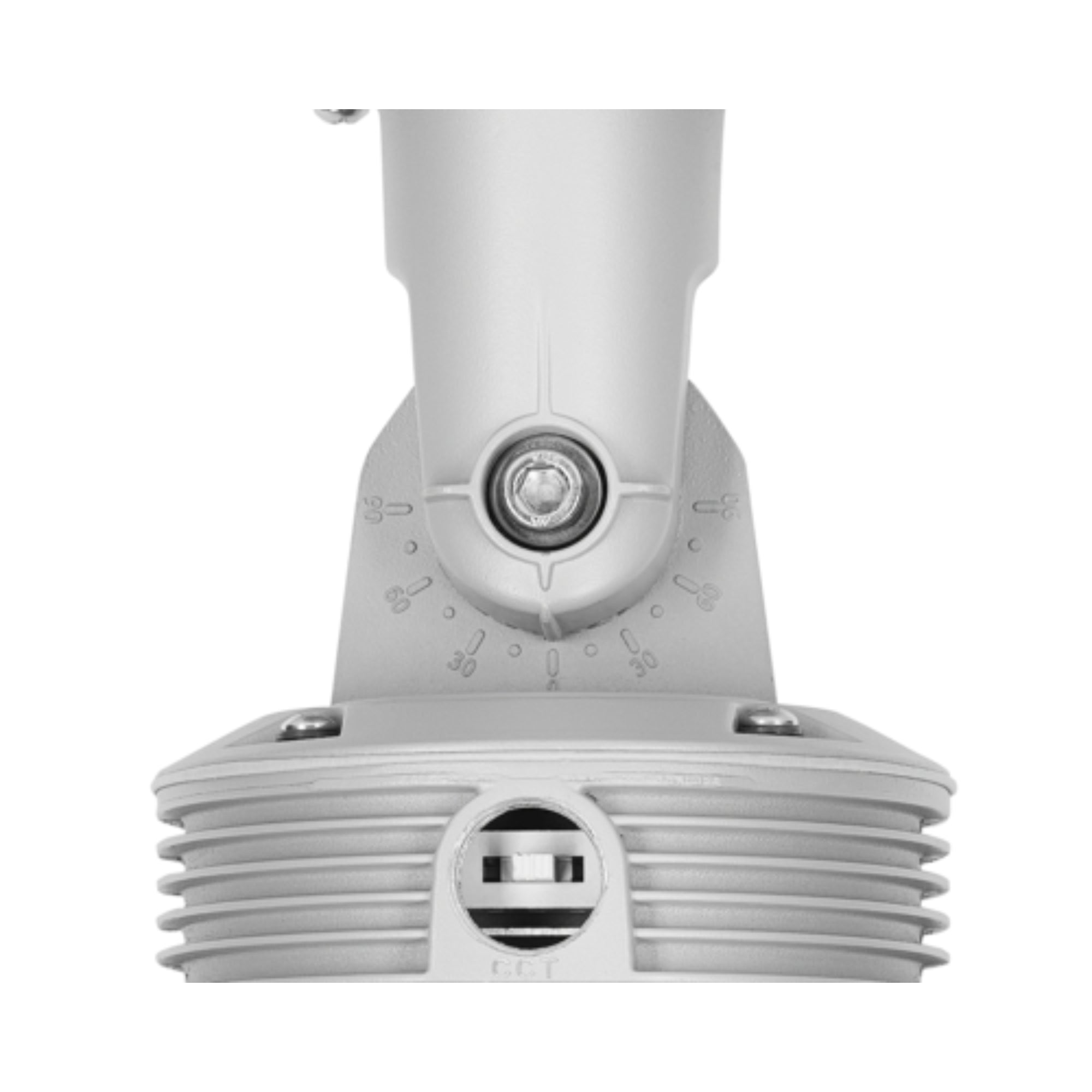

Durability & Impact Protection: Lightweight, compact enclosure with protective cage guard and FlexMount adjustable knuckle engineered for wall, ceiling, or pendant orientation.
Ingress Protection: IP65 rated and cULus wet location listed for complete protection against airborne dust and water jets.
Operating Temperature: Operating ambient temperature range of -40°F (-40°C) to 122°F (50°C).
Lens & Optics: Frosted glass lens delivering uniform Type V distribution (B1-U3-G1 BUG rating).
Finish: Gray finish formulated for high resistance against corrosion and surface wear.

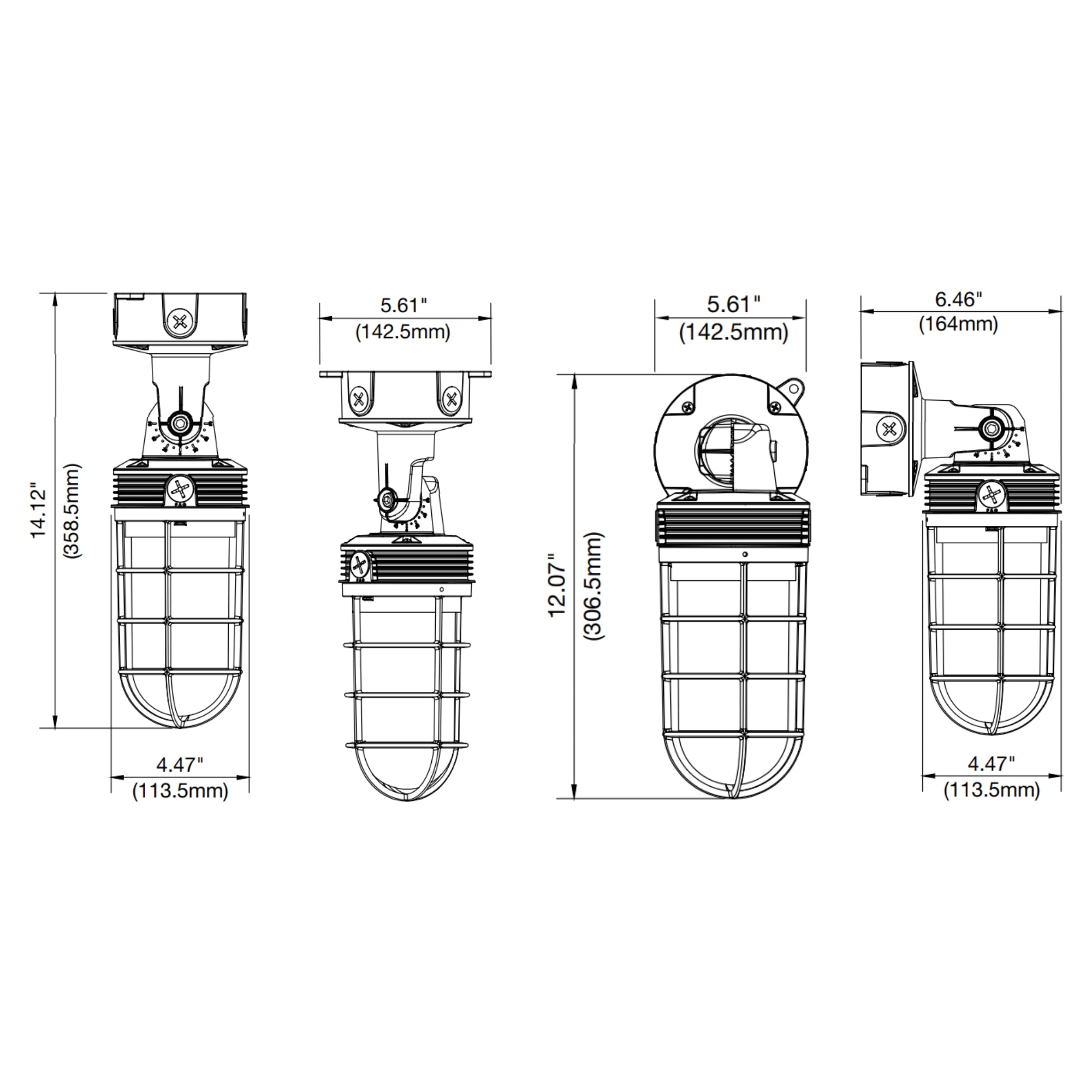

Dimensions & Weight: 5.61" L × 5.61" W × 14.12" H (142.5mm L × 142.5mm W × 358.5mm H in ceiling-mount position; 6.46" L × 5.61" W × 12.07" H / 164mm L × 142.5mm W × 306.5mm H in wall-mount position; 4.47" / 113.5mm cage diameter). Fixture weight: 3.1 lbs (1.4 kg).
Installation & Mounting

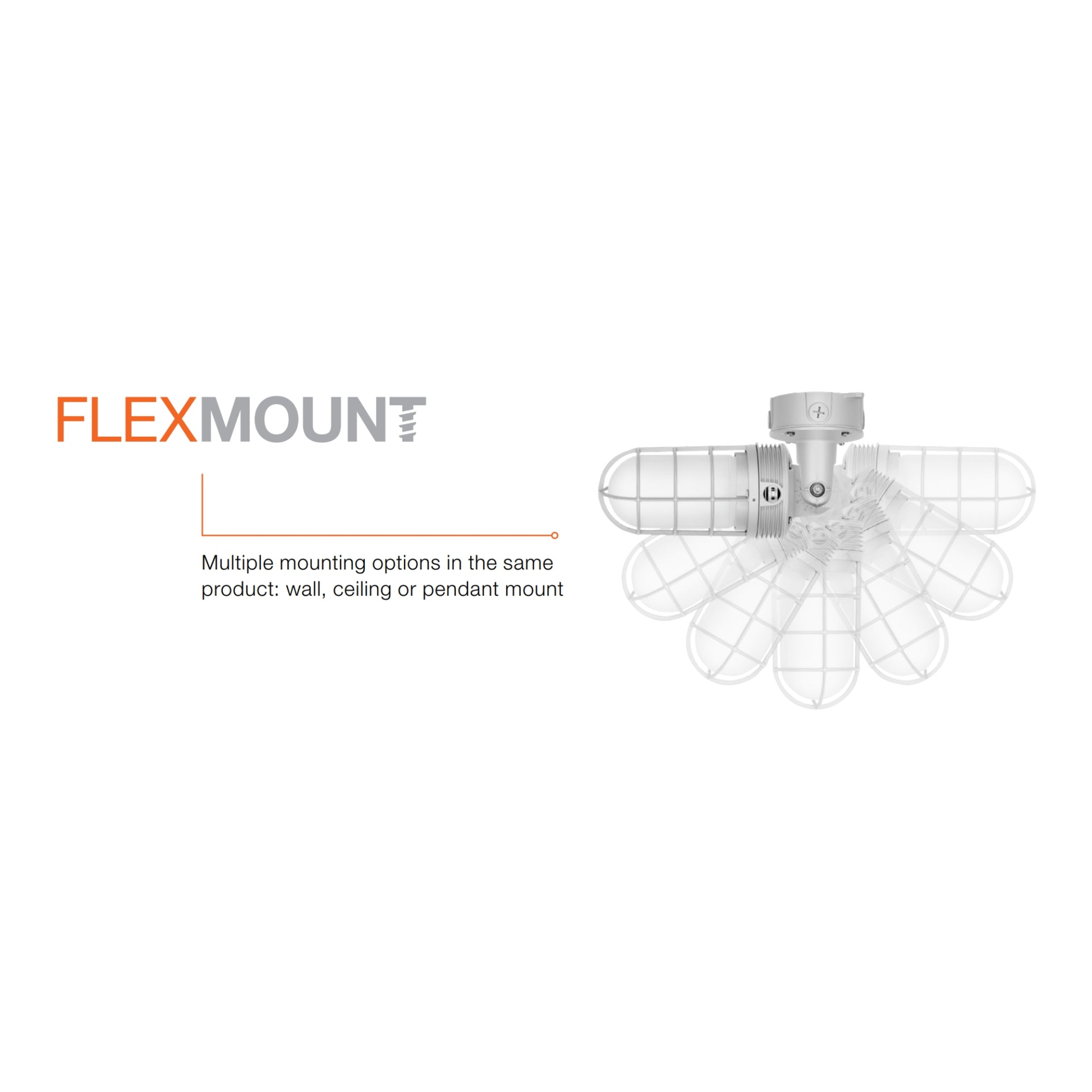

Standard Mounting: FlexMount multi-position design supports wall mount, ceiling mount, or pendant mount installation in a single fixture (1/2" conduit supplied by others).
Accessories (Sold Separately):
- Colored & Replacement Lenses: 63789 / JELYJAR2AREDLENS (Red Lens, sold separately), 63903 / JELYJAR2ABLUELENS (Blue Lens, sold separately), 64275 / JELYJAR2AGREENLENS (Green Lens, sold separately), 64276 / JELYJAR2AYELLOWLENS (Yellow Lens, sold separately), 64277 / JELYJAR2AFROSTEDLENS (Frosted Replacement Lens, sold separately)
Certifications & Rebates
- cULus Listed: Certified for wet locations per UL 1598 standards.
- IP65 Rated: Sealed against dust ingress and water jets for outdoor and washdown corridors.
- FCC Compliant: Complies with FCC electromagnetic interference requirements.
- RoHS Compliant: Engineered free of toxic lead, mercury, and hazardous substances.
- NLB Trusted: Verified under the National Lighting Bureau Trusted Warranty Program.
Typical Applications

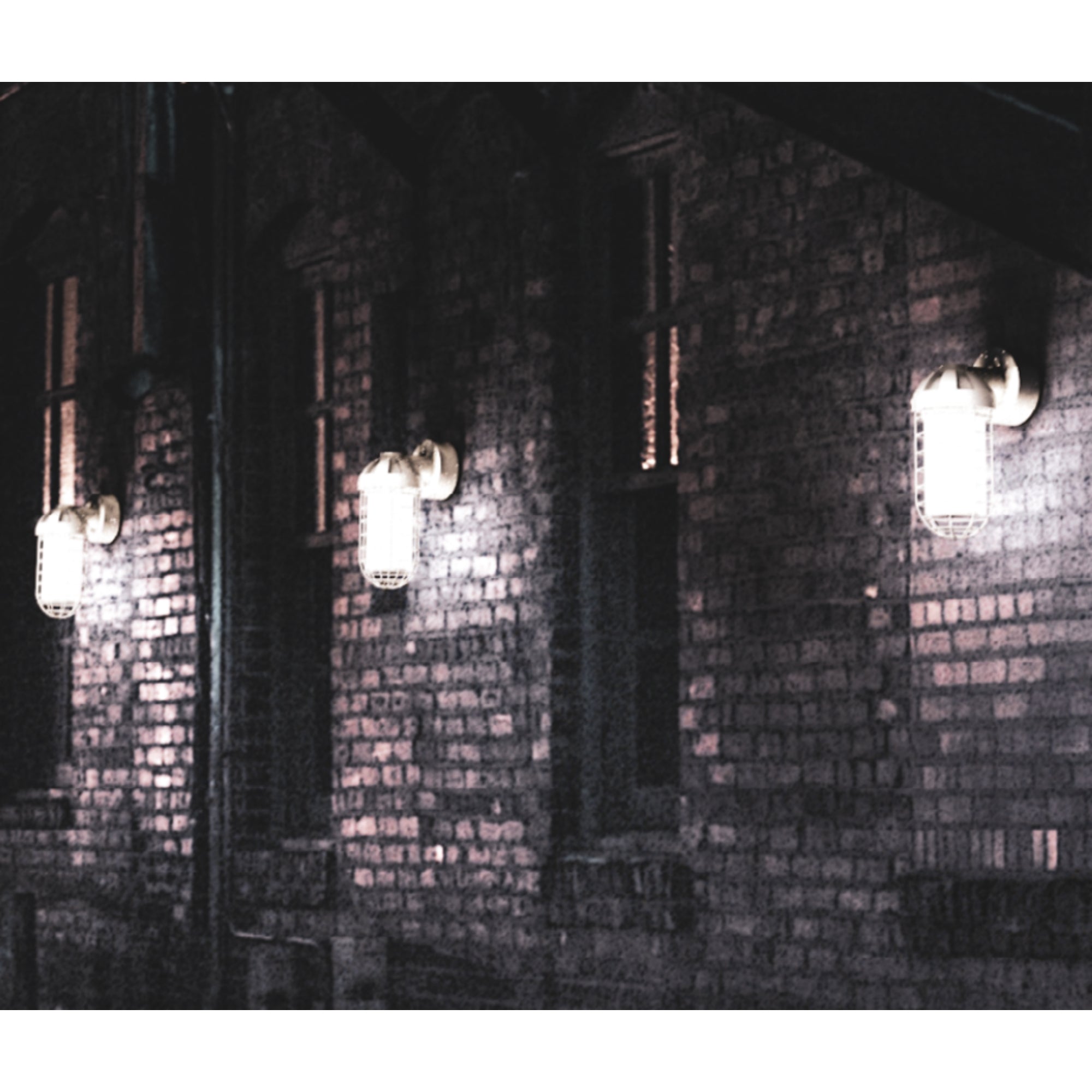

- Building Exteriors & Entrances — IP65 wet-location sealing and -40°F (-40°C) to 122°F (50°C) operating range withstand year-round outdoor exposure.
- Outdoor Corridors & Breezeways — FlexMount knuckle adapts to wall, ceiling, or pendant conduit runs along covered walkways.
- Walkways & Pedestrian Tunnels — Type V distribution and frosted glass lens provide uniform, low-glare perimeter illumination.
- Commercial & Industrial Stairwells — Switchable 10W/20W lumen packages and 0–10V dimming tailor light levels to stairwell mounting heights.
- 120–347V Commercial & Industrial Facilities — Wide-range 120–347V AC driver connects directly to standard US and 347V commercial branch circuits without step-down transformers.
What's Included
- LEDVANCE Sylvania 62448 (JELYJAR2A/S020UNHD8SC2/GR) Dual Selectable Jelly Jar — Gray
- Pre-installed frosted glass lens and protective cage guard

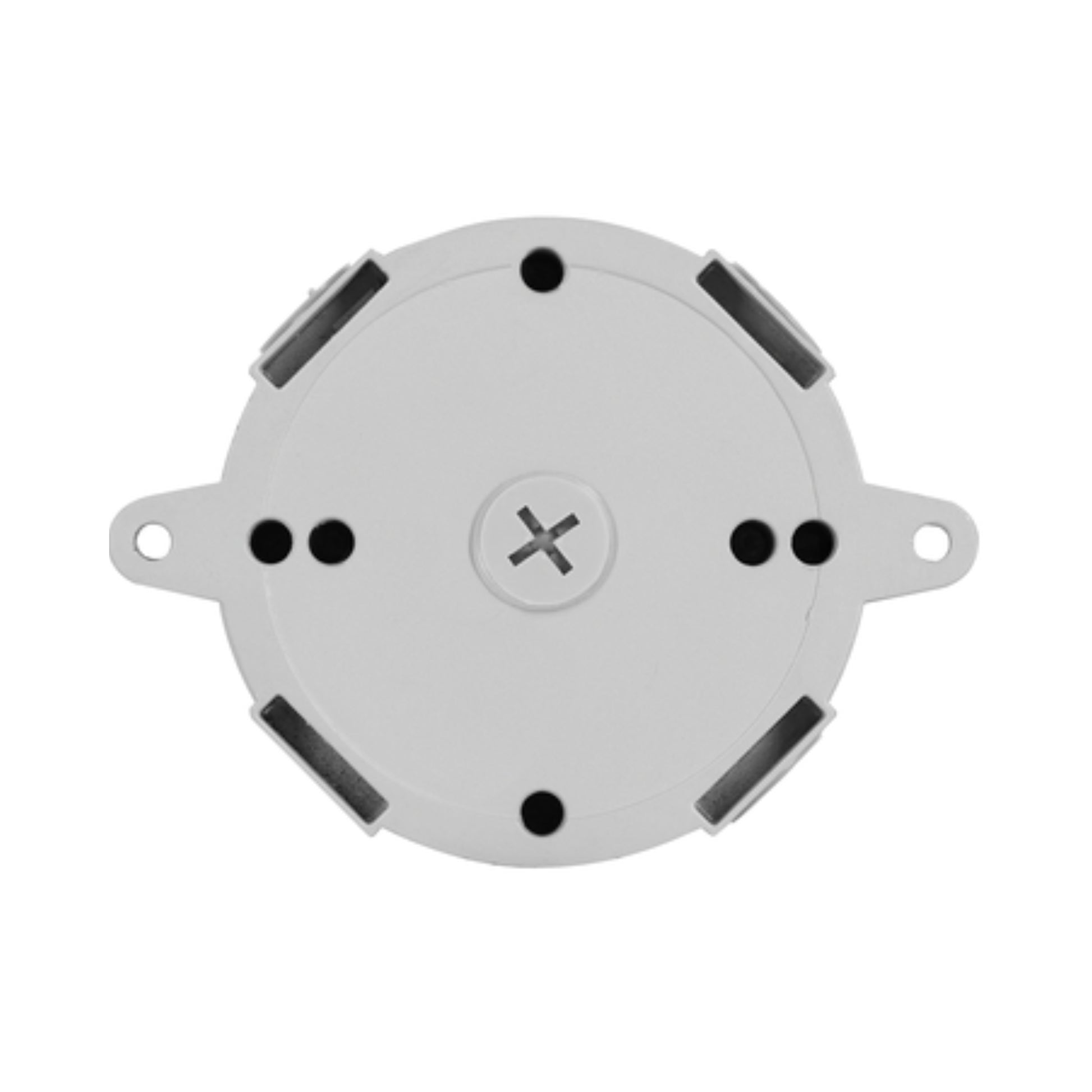

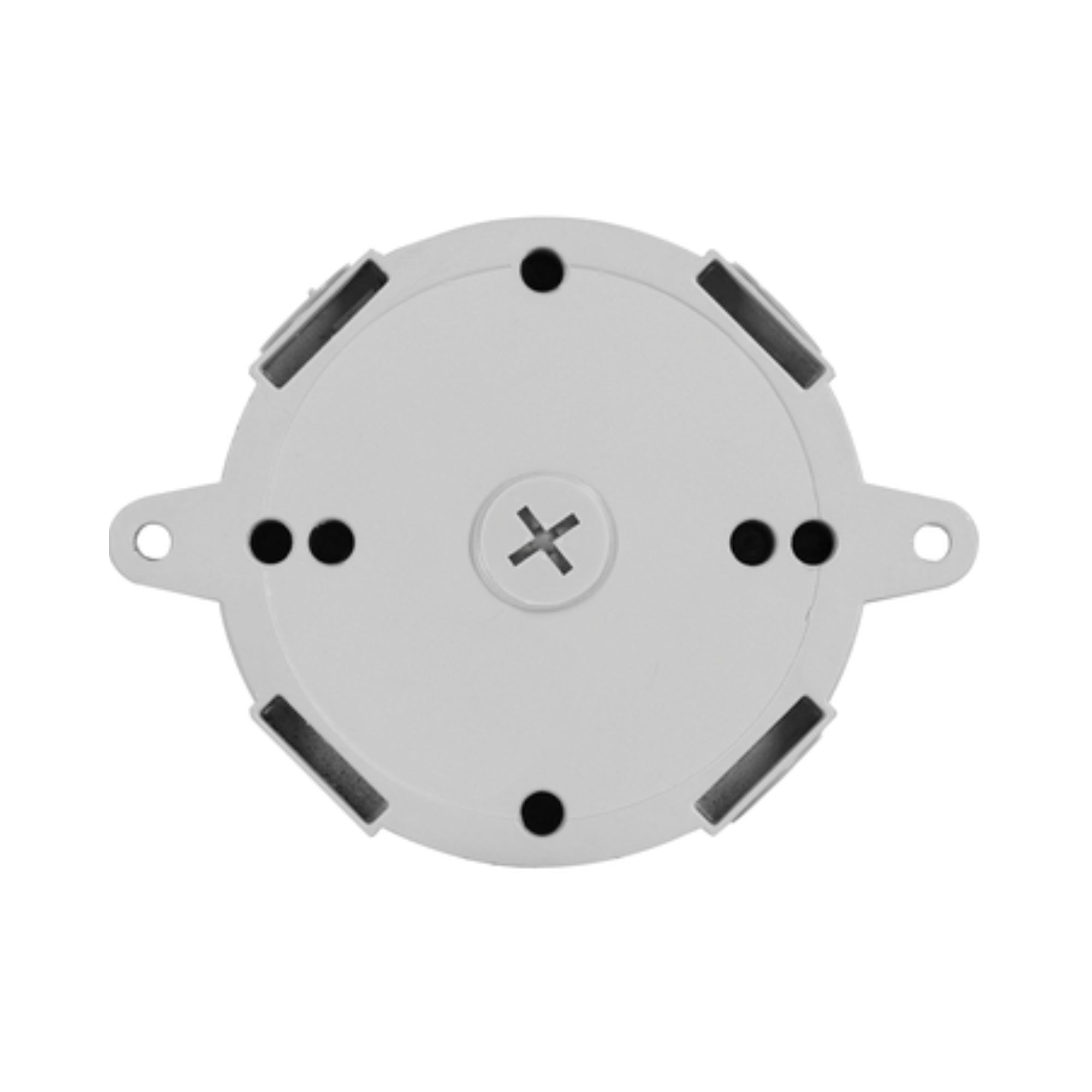

- Integrated FlexMount wall, ceiling, and pendant mounting junction box
- Installation and operation manual
