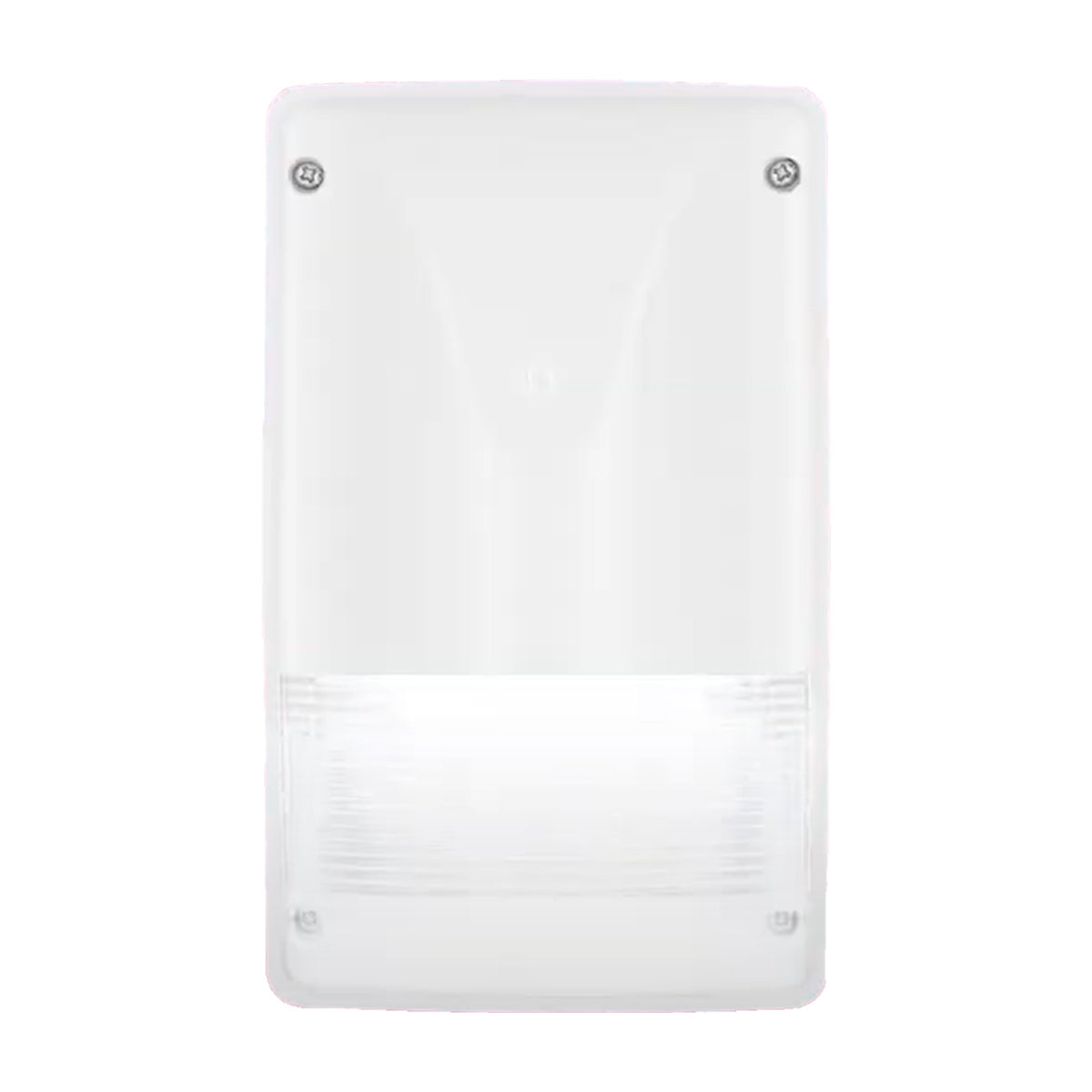

LEDVANCE SYLVANIA Dual Selectable LED Mini Wall Pack — 10-30W Selectable, 120–347V, White

The LEDVANCE SYLVANIA 62418 is a high-efficiency, versatile dual selectable LED mini wall pack delivering up to 3,900 lumens. Finished in a clean architectural white, this fixture streamlines inventory by offering 3-way selectable wattage (10W, 20W, or 30W) and 3-way selectable color temperature (3000K, 4000K, or 5000K) in a single unit. Operating on a universal 120–347V driver, it includes an integrated selectable on/off photocell for automated security lighting. Its IP65 rating and rugged aluminum construction make it a dependable and stylish choice for building perimeters, entryways, and stairwells.

Key Features

• Wattage: 10W / 20W / 30W Selectable
• Selectable CCT: 3000K / 4000K / 5000K
• Delivered Lumens: 1,300 to 3,900 lumens
• Efficacy: Up to 130 Lumens Per Watt (LPW)
• Voltage: 120–347V universal input
• Dimming: 0–10V dimming standard
• Controls: Integrated 120-347V selectable on/off photocell included
• CRI: 80+
• Environmental Ratings: IP65 rated for Wet Locations
• Certifications: DLC Premium Listed, cULus, RoHS Compliant, FCC
• Estimated Life: 100,000 hours (L70)

Typical Applications

• Building perimeters and modern facades
• Security and pathway lighting
• Entryways, walkways, and man doors
• Commercial and residential exteriors

Performance & Light Output

The 62418 mini wall pack provides powerful illumination ranging from 1,300 to 3,900 lumens depending on the selected wattage setting. Its high efficacy of 130 lumens per watt ensures significant energy savings when replacing legacy HID or incandescent fixtures. The 100,000-hour rated life guarantees long-term performance with virtually zero maintenance requirements, even in high-use environments.

Electrical & Controls

This fixture features a universal driver that operates on voltages from 120V up to 347V AC. It supports standard 0–10V dimming for customized light levels. The built-in button photocell offers convenient automated dusk-to-dawn control, with a selectable switch that allows users to disable the sensor for manual or external control as needed.

Construction & Durability

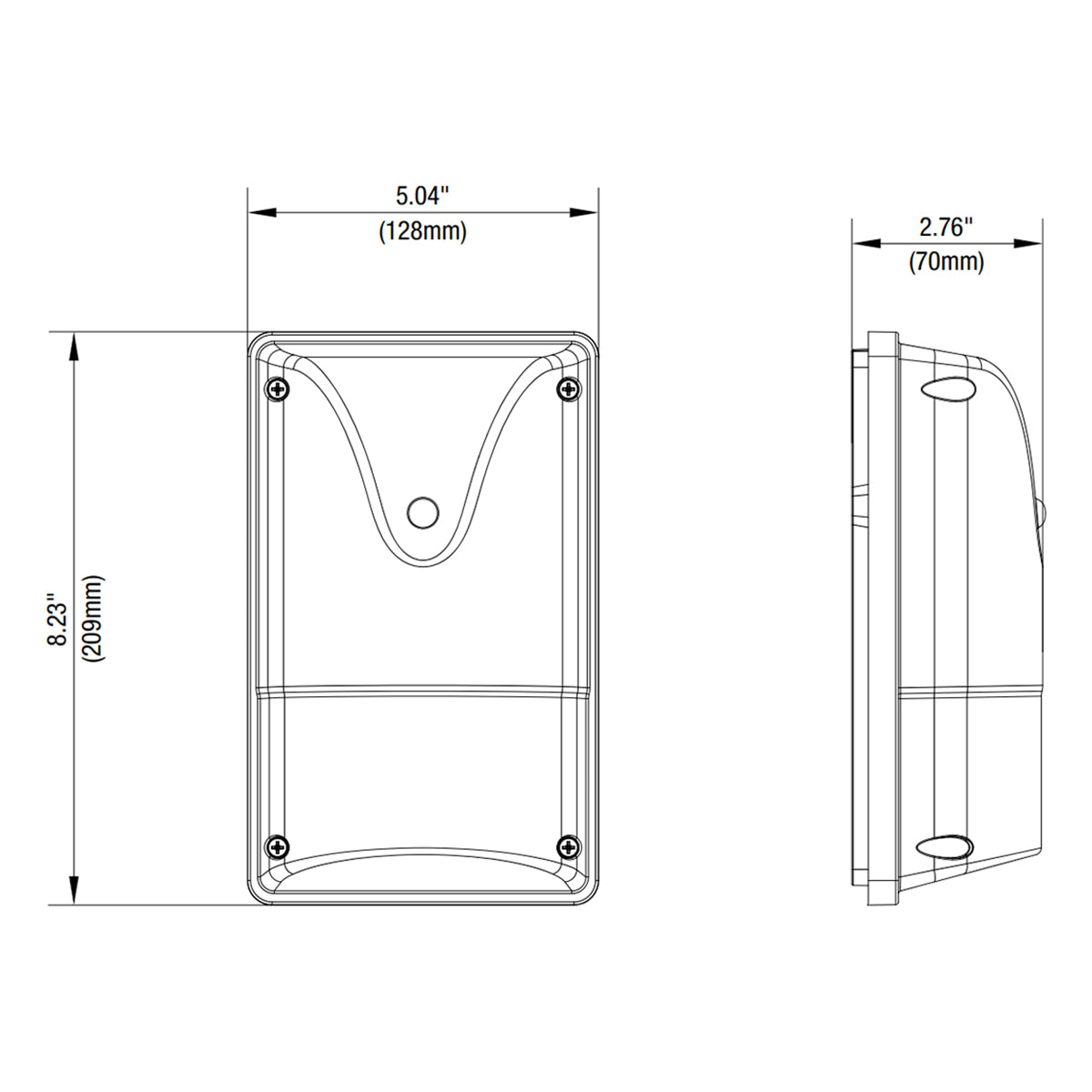

Built for the outdoors, the 62418 features a precision aluminum housing with a high-durability white powder-coat finish. It is IP65 rated, providing complete protection against dust and water spray. The compact design (approx. 8.2" x 5.0") and wide operating temperature range (-40°F to 122°F) make it suitable for a wide variety of installation sites.

Installation & Mounting

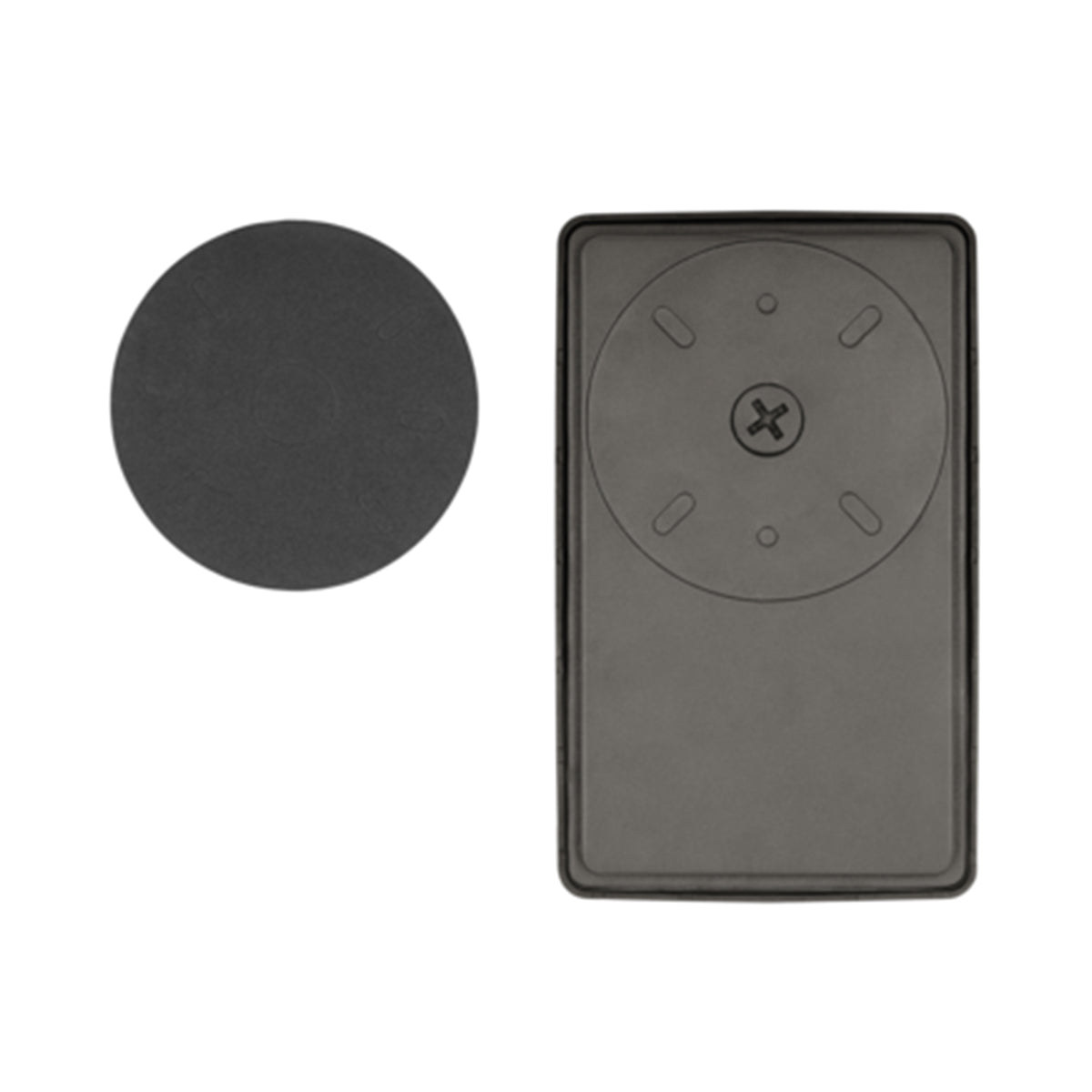

The 62418 is designed for easy wall mounting directly to standard junction boxes. Its lightweight design and multiple knockout points for conduit access make it a preferred choice for contractors seeking a fast and reliable installation.

What's Included

• LEDVANCE SYLVANIA Dual Selectable Mini Wall Pack (White)
• Integrated Selectable Photocell
