LEDVANCE Sylvania 62355 ValueLED Dual Selectable 4ft Extruded Vapor Tight 1A — 50W — 3500K/4000K/5000K — Gray
Available in stock (65)
About this item
About this item
- Output & Equivalency: Switchable 30W/40W/50W variable power settings delivering 3,450/4,600/5,750 lumens (115 lm/W) to replace 2x32W T8, 3x28W T8, or 3x32W T8 fluorescent fixtures.
- Extruded Sealed Enclosure: UV-stabilized polycarbonate lens and polycarbonate housing with snap-on end caps and robust IP65 gaskets eliminate removing the lens during wiring.
- Selectable CCT: Onboard switch under the snap-on end cap enables selection between 3500K, 4000K, and 5000K switchable Kelvin steps.
- 0–10V Dimming & Controls: Standard 120–277V AC driver dims via 0–10V controls; external microwave sensor and battery backup configurations sold separately.
- Rebates & Ingress Defense: DLC 5.1 listed, cULus wet location rated, IP65 sealed, NEMA 4X corrosion-resistant, and backed by the 5-year NLB Trusted Warranty Program.
Description
Description
LEDVANCE Sylvania 62355 ValueLED Dual Selectable 4ft Extruded Vapor Tight 1A — 30W/40W/50W Selectable — 3500K/4000K/5000K — Gray/UV-Stabilized Polycarbonate Lens
The LEDVANCE Sylvania 62355 (EXVAP1A/S050UNVD8SC7/48U/GR) is a commercial 4ft Extruded Vapor Tight luminaire from the ValueLED Dual Selectable 1A series engineered to deliver up to 5,750 lumens with field-adjustable 30W/40W/50W power settings and switchable 3500K/4000K/5000K color temperatures. Operating on 120–277V AC electrical systems with 0–10V continuous dimming, this luminaire provides an energy-efficient replacement for legacy 2x32W T8, 3x28W T8, or 3x32W T8 fluorescent fixtures with up to 47% energy savings. Built with a cULus Wet Location rating, it is qualified for commercial utility rebates under DLC 5.1 standards and features an extruded, IP65-sealed, NEMA 4X polycarbonate enclosure with snap-on end caps that eliminate the need to remove the lens during installation.
Key Features
- Selectable Wattage: 30W / 40W / 50W — field-adjustable multi-wattage selectable driver accessed under the snap-on end cap
- Wattage Equivalency: Replaces legacy 2x32W T8, 3x28W T8, or 3x32W T8 fluorescent fixtures for up to 47% energy savings
- Maximum Lumen Output: 5,750 lm at 50W (3,450 / 4,600 / 5,750 lm steps)
- Peak Efficacy: 115 lm/W across all selectable wattage settings
- CRI: >80 color rendering across all settings
- Selectable CCT: 3500K / 4000K / 5000K — field-adjustable CCT for tunable white and switchable Kelvin control
- Lens & Optics: UV-stabilized polycarbonate lens with 120° optical distribution
- Dimming: 0–10V continuous dimming standard
- Voltage: Universal 120–277V AC constant current driver
- Location Rating: cULus Listed for wet locations
- Operating Temperature: -4°F (-20°C) to 102°F (40°C) ambient operating range
- Certifications: DLC 5.1 Listed, cULus Listed, IP65, NEMA 4X, FCC, RoHS, NLB Trusted Warranty Program
- Rated Life: 75,000 hours (L70)
- Warranty: 5-year limited warranty — LEDVANCE Sylvania (NLB Trusted Warranty Program)
Performance & Light Output
| Wattage | Total Lumens | Efficacy | Legacy Equivalent |
|---|---|---|---|
| 50W | 5,750 lm | 115 lm/W | 3x32W T8 (75W system, 33% energy savings) |
| 40W | 4,600 lm | 115 lm/W | 3x28W T8 (64W, 38% savings) / 3x32W T8 (75W, 47% savings) |
| 30W | 3,450 lm | 115 lm/W | 2x32W T8 (56W system, 46% energy savings) |
CRI >80 across all configurations with a 120° beam distribution. Rated life 75,000 hours (L70). Delivers high-efficiency illumination resulting in significant energy reduction compared to traditional fluorescent systems.
Smart & Control Features
Equipped with 0–10V dimming leads for continuous dimming on commercial 0–10V branch circuits. The ValueLED Extruded Vapor Tight 1A series is also offered in made-to-order configurations with an external Microwave Motion/Daylight sensor (catalog # 62431, sold separately; default settings: 100% detection area, 5-minute hold time, 50 lux daylight threshold, 30-minute stand-by period, 30% stand-by dimming level) programmable via optional handheld remote controls (catalog # 60105 / HIBAY2A/REMOTE or # 65305 / STRIP2A/REMOTE, sold separately).
Electrical
Powered by a constant current driver operating on 120–277V AC. Delivers high electrical efficiency with a Power Factor >0.9 and Total Harmonic Distortion (THD) <20%. Integrated 2.5kV surge protection shields internal electronics against transient voltage spikes. Includes 0–10V dimming control leads.
Emergency Battery Backup: Available in made-to-order internal emergency battery backup configurations (catalog # 62434 and sensor/battery combo # 62437, sold separately) providing 900 lumens for 90 minutes during a power outage.
Construction

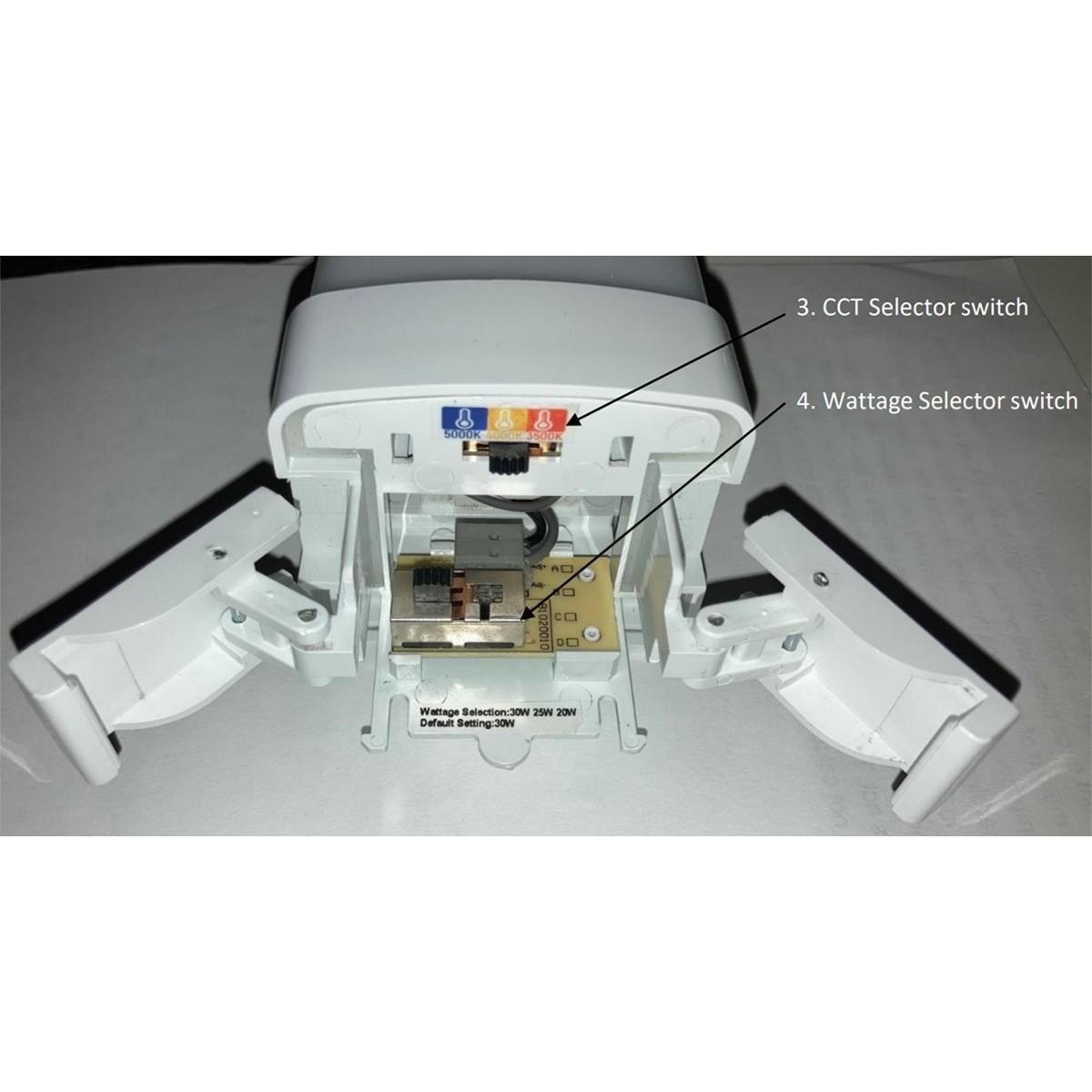

Durability & Impact Protection: Extruded polycarbonate housing and UV-stabilized polycarbonate lens engineered for thermal dissipation and durability, paired with a NEMA 4X corrosion-resistant rating. Simple snap-on end caps provide direct access to wiring and wattage/CCT selector switches without removing the lens.
Ingress Protection: IP65 rated and cULus wet location listed with robust end-cap gaskets for complete protection against airborne dust and water jets.
Operating Temperature: Operating ambient temperature range of -4°F (-20°C) to 102°F (40°C).
Lens & Optics: UV-stabilized polycarbonate lens delivering a 120° optical distribution.
Finish: Gray finish formulated for high resistance against corrosion and surface wear.

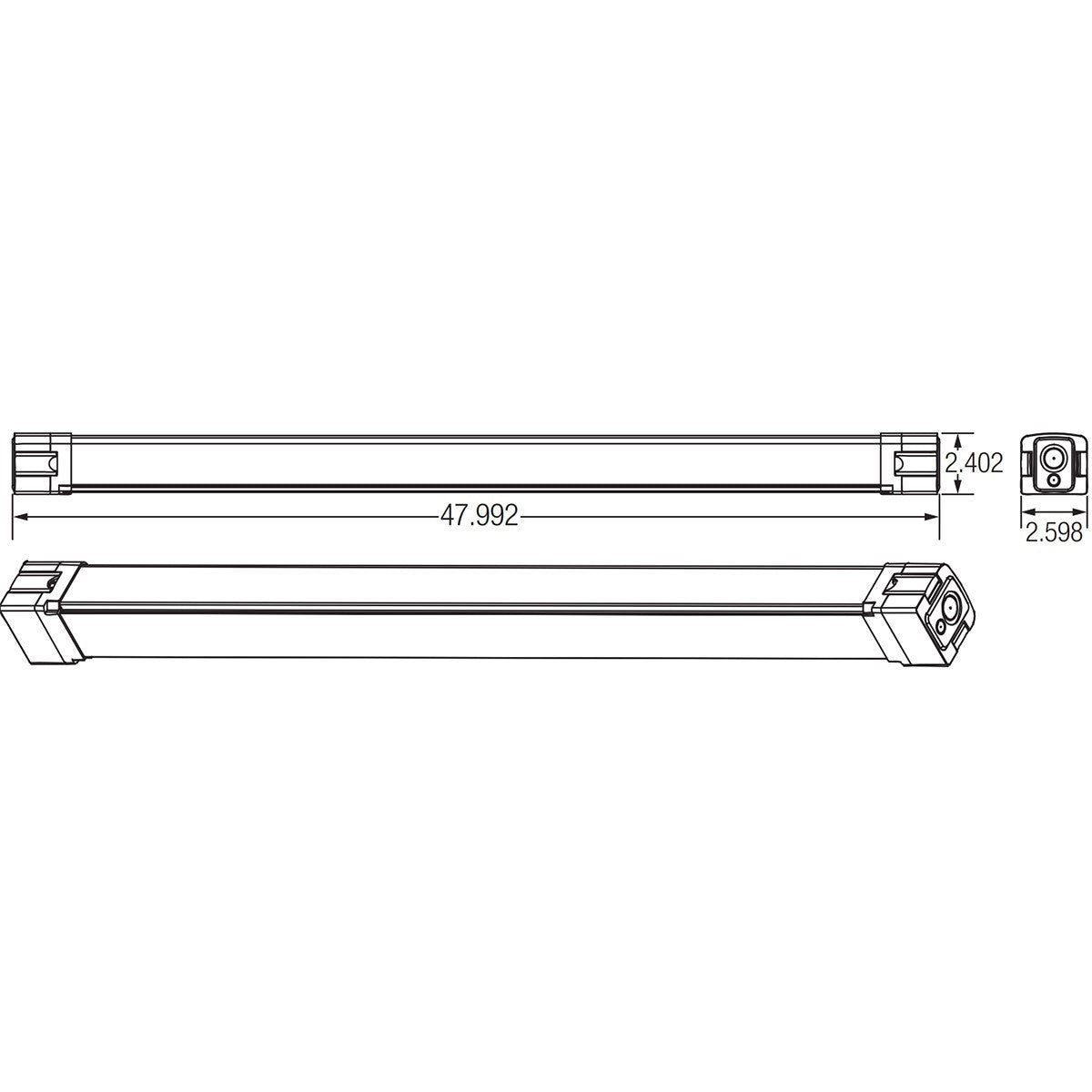

Dimensions & Weight: 47.99" L × 2.60" W × 2.40" H (47.992" / 1219mm L × 2.598" / 66mm W × 2.402" / 61mm H).
Installation & Mounting
Standard Mounting: Supplied standard with stainless steel surface mounting brackets and V-hooks for suspended chain mounting. Input wiring enters through the pre-punched knockout in the end cap labeled "INPUT WIRING" (through-wiring is not supported on this luminaire).
Accessories & Made-to-Order Options (Sold Separately):
- Sensors & Remote Controls: 60105 / HIBAY2A/REMOTE (Standard Remote Control for motion sensor, sold separately), 65305 / STRIP2A/REMOTE (Remote Control with digital readout for sensors, sold separately), MTO Sensor SKU 62431 (sold separately)
- Emergency Battery Backup: MTO Emergency SKU 62434 and Sensor/Emergency SKU 62437 (900 lumens for 90 minutes, sold separately)
Certifications & Rebates
- DLC 5.1 Listed: Qualifies for commercial utility rebate incentives across regional energy programs. To confirm rebate eligibility with your local utility provider, visit designlights.org and search model 62355 or EXVAP1A/S050UNVD8SC7/48U/GR.
- cULus Listed: Certified for wet locations.
- NEMA 4X & IP65 Rated: NEMA 4X corrosion-resistant enclosure and IP65 sealed against dust and water jets.
- FCC & RoHS Compliant: Complies with FCC electromagnetic interference limits and RoHS hazardous substance restrictions.
- NLB Trusted: Verified under the National Lighting Bureau Trusted Warranty Program.
Typical Applications
- Tunnels & Underground Passageways — IP65 and NEMA 4X sealed extruded polycarbonate body resists moisture, dust, and corrosion in damp subterranean corridors.
- Commercial & Industrial Stairwells — Dual selectable lumen and Kelvin switches allow contractors to tune light output to stairwell mounting heights.
- Parking Garages & Covered Canopies — UV-stabilized polycarbonate lens and -4°F (-20°C) to 102°F (40°C) temperature rating withstand semi-exposed outdoor structures.
- Mechanical, Utility & Maintenance Bays — Snap-on end caps speed up single-end input wiring without disassembling the main optical lens.
- Wet or Dusty Industrial Corridors — 75,000-hour L70 lifespan and 2.5kV surge protection reduce maintenance across commercial branch circuits.
What's Included
- LEDVANCE Sylvania 62355 (EXVAP1A/S050UNVD8SC7/48U/GR) ValueLED Dual Selectable 4ft Extruded Vapor Tight 1A — Gray
- Stainless steel mounting brackets and V-hooks
- Installation and operation manual
